FIRST Residential Sliding Doors
Description

FIRST residential sliders have a 'flushline' sill and easy-glide panels that cope effortlessly with heavier, double glazed doors. The clean lines and simplified styling can be accentuated even further by rebating the frame into the floor pad for a flush floor-to-frame look.

FIRST sliders are rated to 2.1m high in 'very high' wind zones. For higher doors consider using the Metro Series or APL Architectural Series.

Key Features
  • For mainstream residential use
  • Recommended maximum 2100mm high doors in Extra High wind zones. For larger sizes consider using the Metro Series and APL Architectural Series
  • Flush sills facilitate easier indoor-outdoor movement

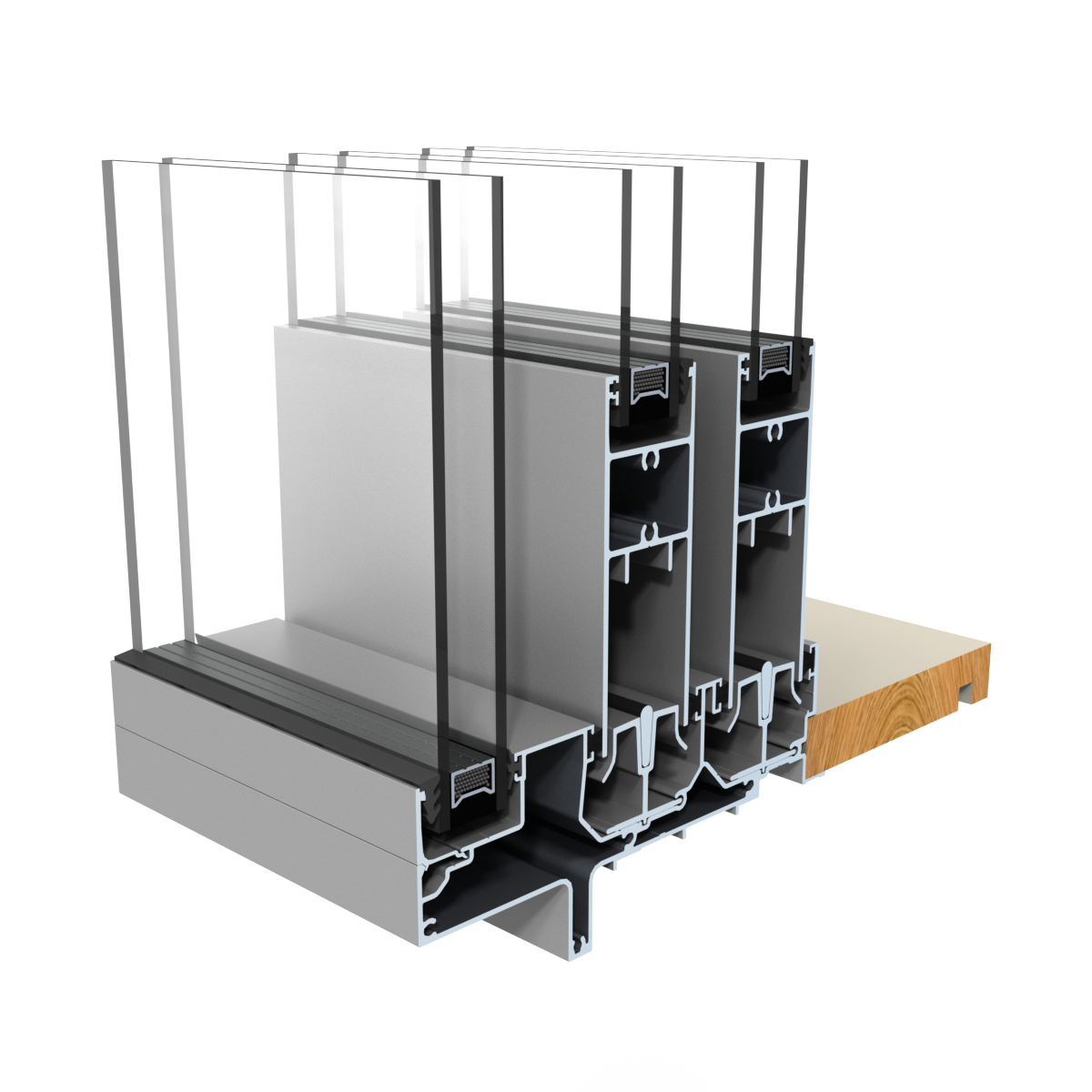

  • Single sliding, double sliding, and Multi Slider options
  • A 4-panel option is available (i.e. three stacking panels)
  • Doors slide on the inside of fixed panels

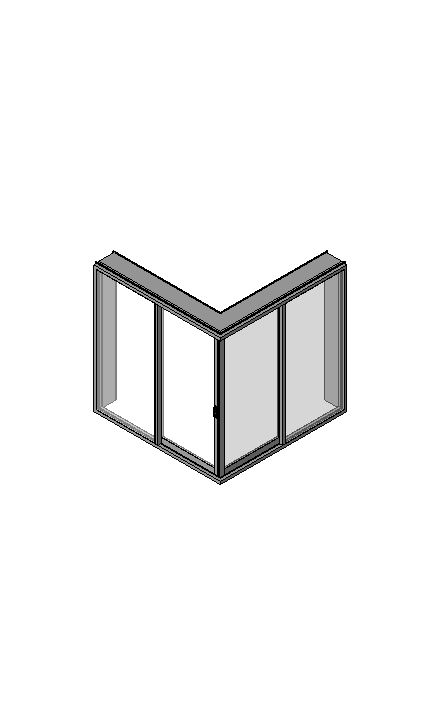

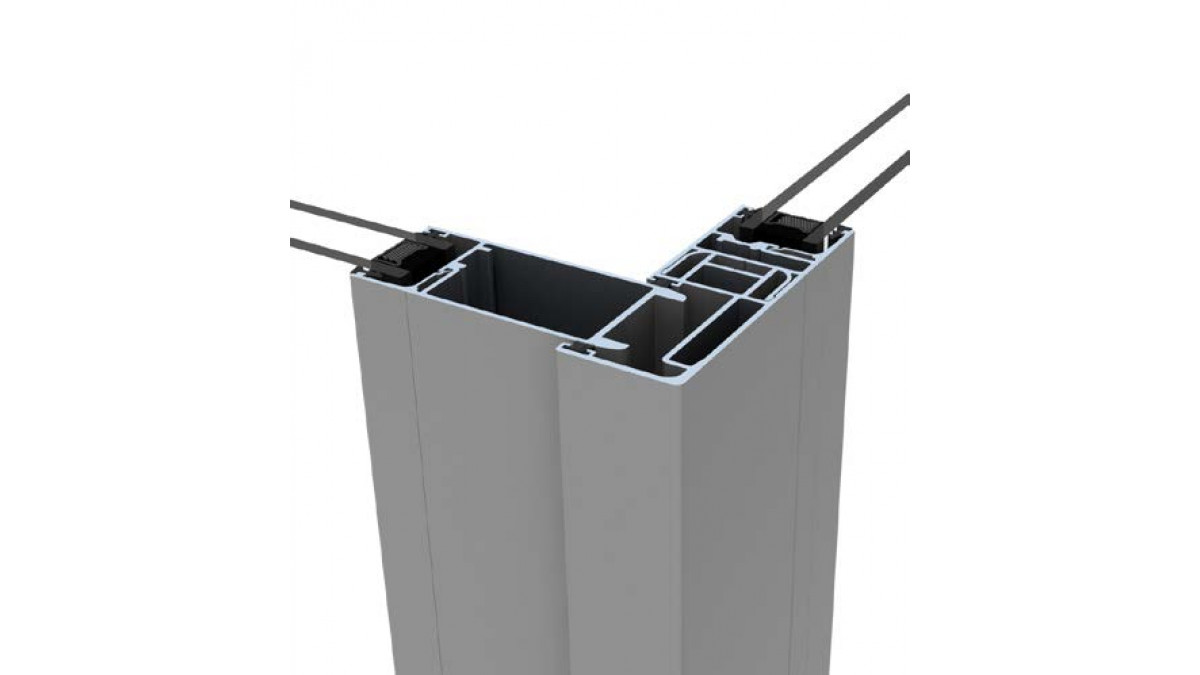

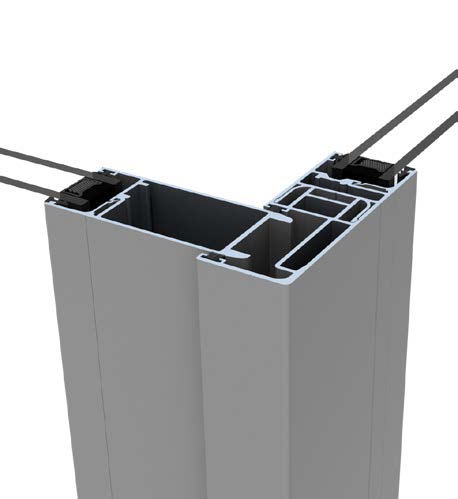

  • Corner sliders without a corner post are possible — either exterior or interior corner formats
  • Interlocker stiles are flush in the closed position for a clean look.



Categories / Ranges
Sliding Doors FIRST Residential
Scope of Use
  • Suitable for broad residential use
  • Corner sliders available
  • Available in defined maximum sizes
Limitations on Use
  • For true, flush indoor-outdoor levels consider recessing the sill into the floor pad to minimise or eliminate upstand
  • Four-panel option requires appropriate wall thickness
  • Recommended maximum 2100mm high doors in Extra High wind zones. For larger sizes consider using the Metro Series and APL Architectural Series



Statement of Building Code Compliance
  • Designed, tested and manufactured to meet NZS 4211: Performance of Windows, and NZS 4233:  Glazing in Buildings, Parts 1-4
  • Designed and tested to conform to NZ Building Code, including Clause E2
In-Service History
  • Extensively used in residential projects throughout New Zealand for more than 40 years with continuous design upgrades
  • Widely used by homeowners, builders, Group home builders and specifiers
  • Statement of Building Code Compliance
Other Performance Attributes
  • Window and door warranty provided under normal conditions of use against failure of materials and workmanship for a period of five years
  • Surface finish is covered by a separate performance warranty dependent on the actual finish selected
  • A hardware/componentry warranty is offered against defects in manufacturing, functionality and surface finish for a period of five years, provided care and maintenance guidelines have been followed



Literature
Product Assurance
Data Sheet
Specification Clause
Warranty
Other Literature
APL and Sustainability 2017
First Care & Maintenance Brochure 2017
Full Specification
Manufacturer Contact List
Span Tables
Specifier Guide
WANZ Guide to E2/AS1
CAD/PDF Details
Full Set of Drawings

FRSD

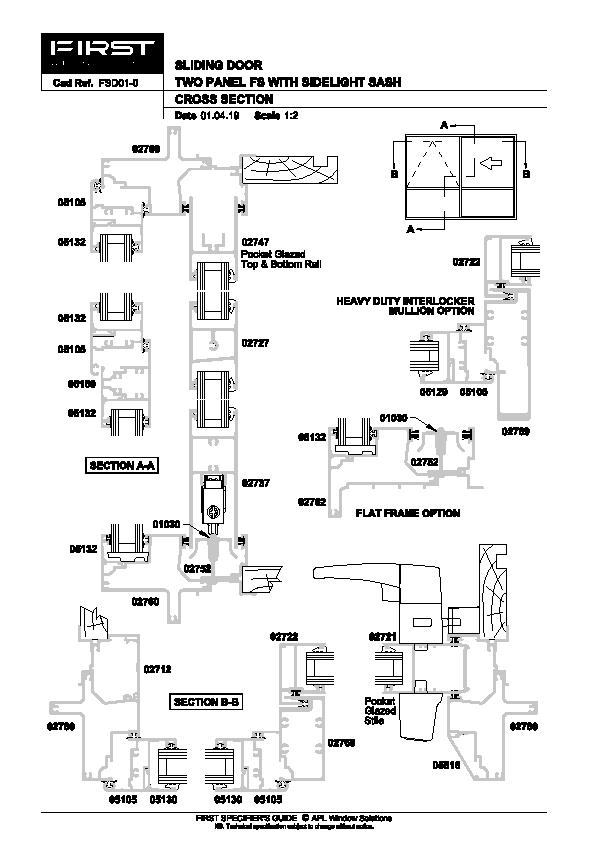

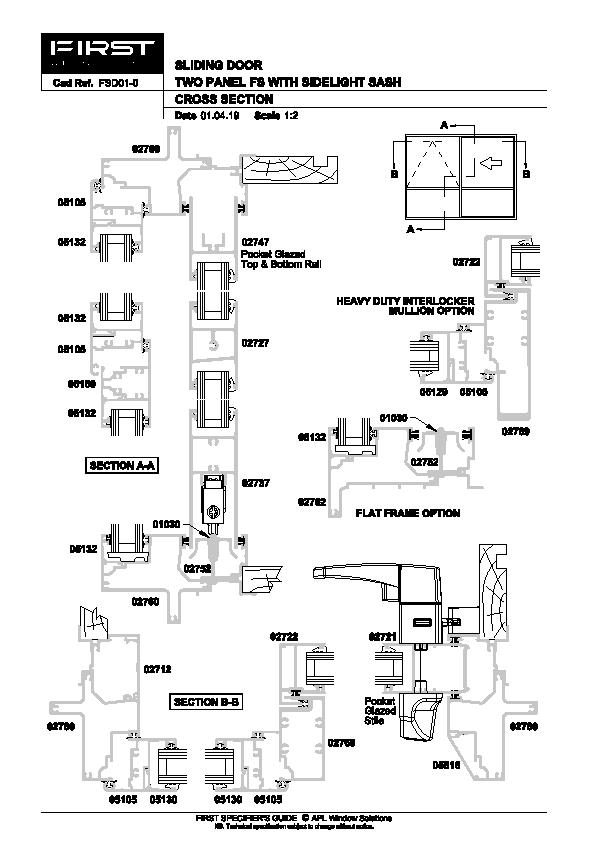

FIRST Residential Sliding Door Two Panel FS with Sidelight Sash

FSD02-0

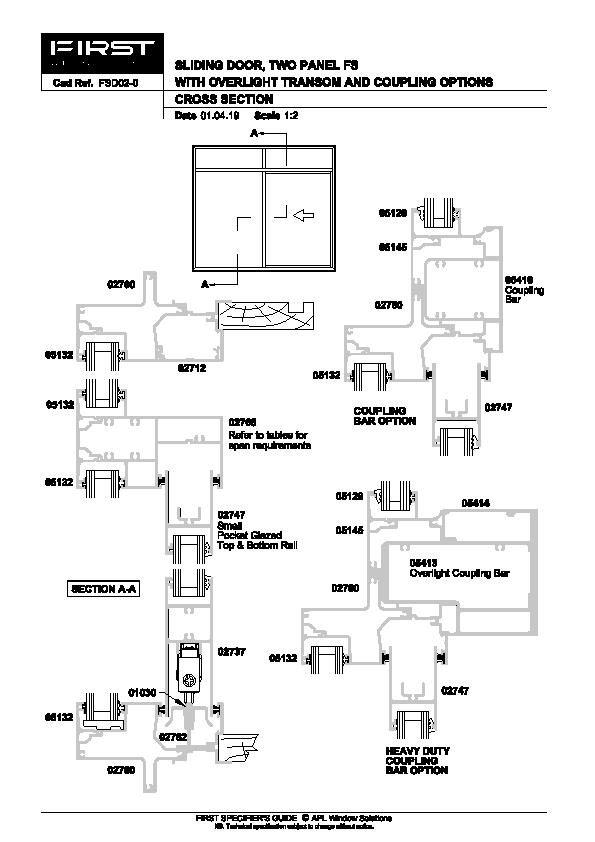

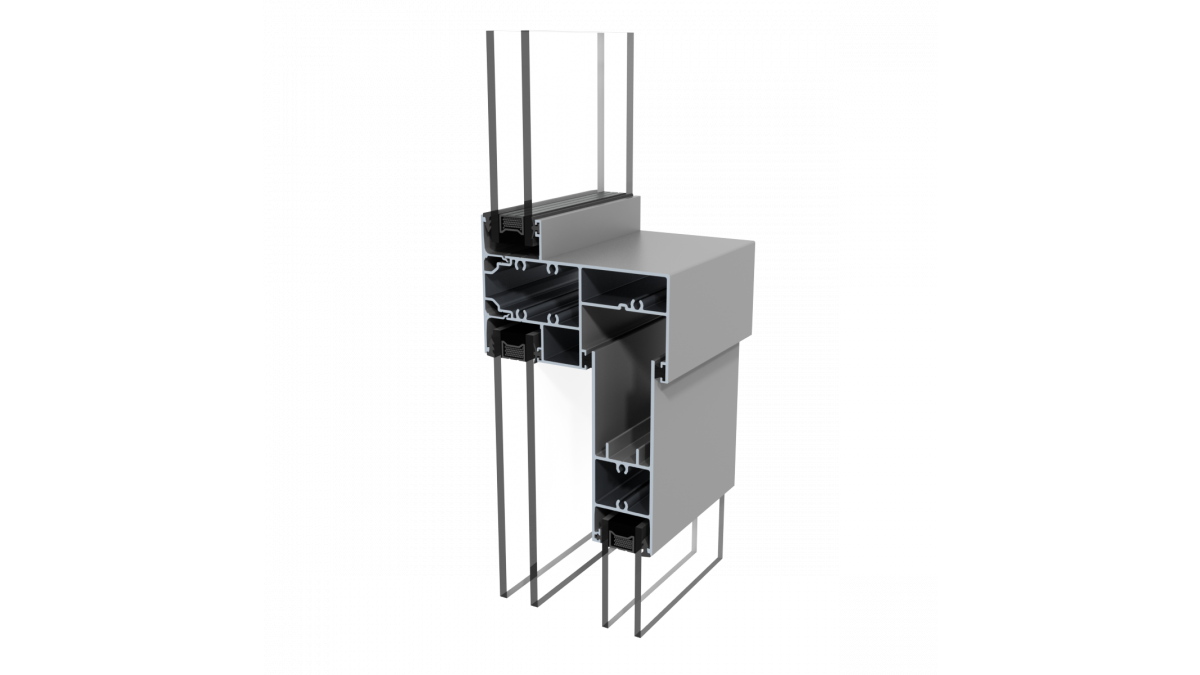

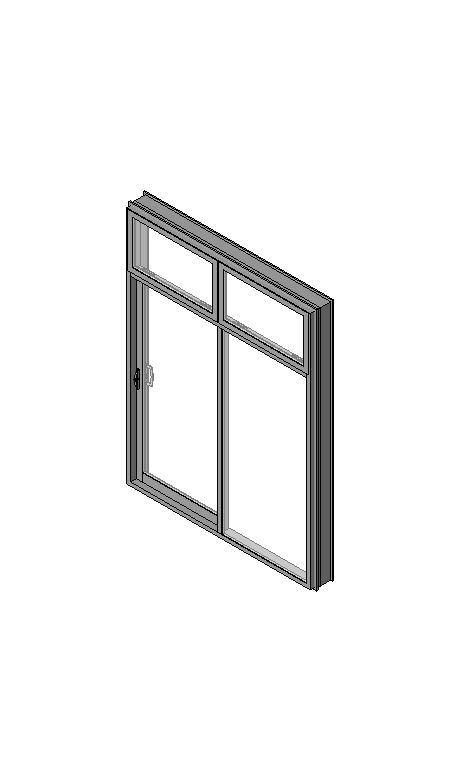

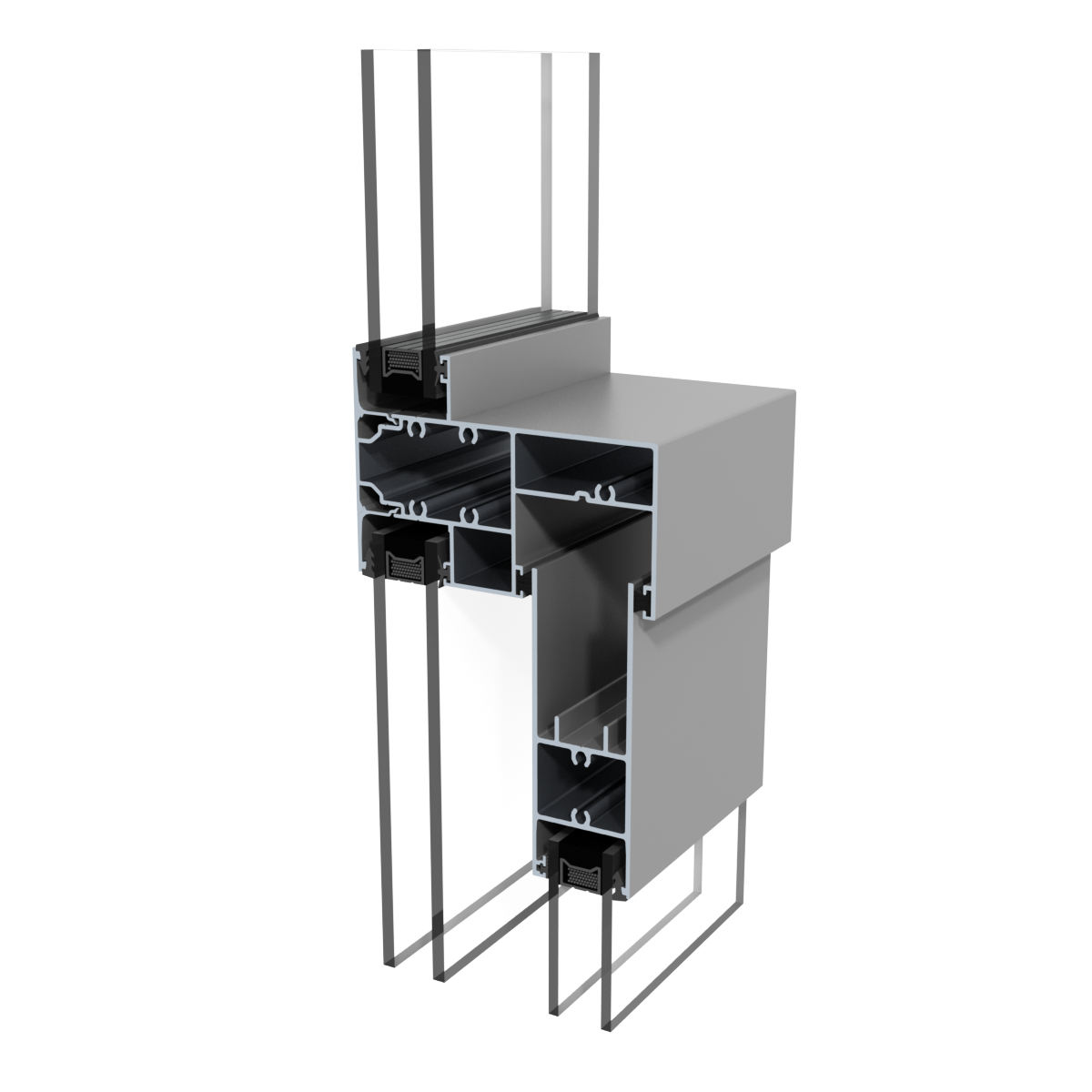

FIRST Residential Sliding Door Two Panel FS with Overlight Transom and Coupling Options

FSD03-0

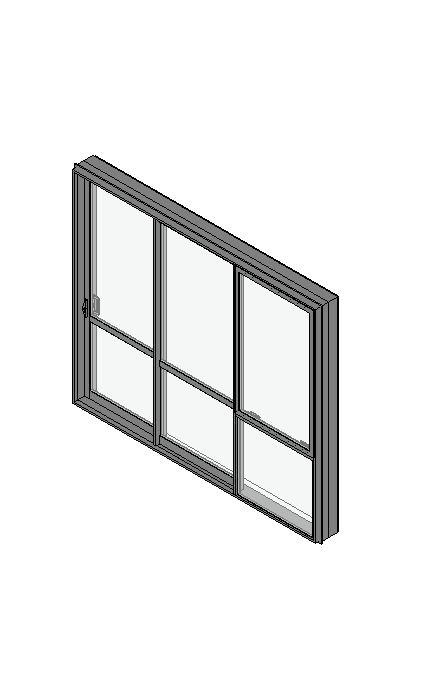

FIRST Residential Multi Sliding Door Three Panel FSS

FSD04-0

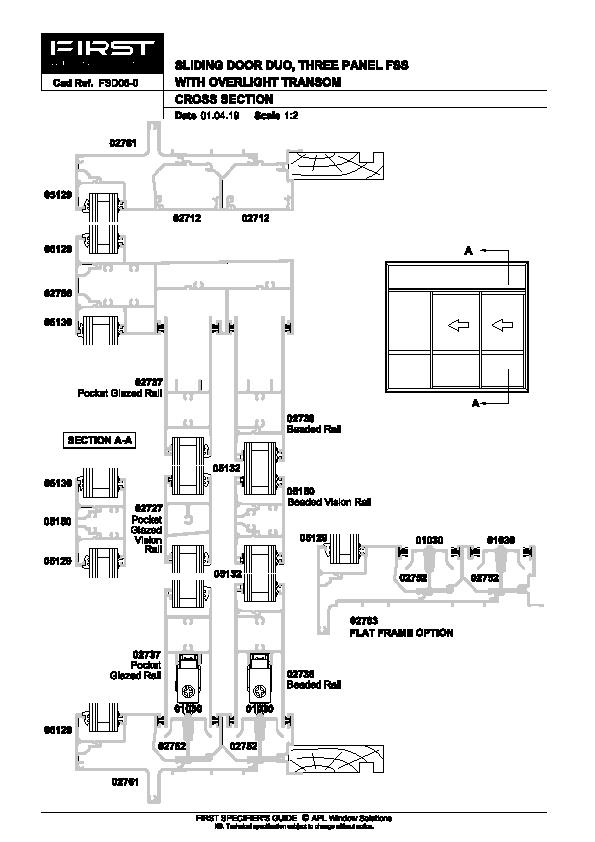

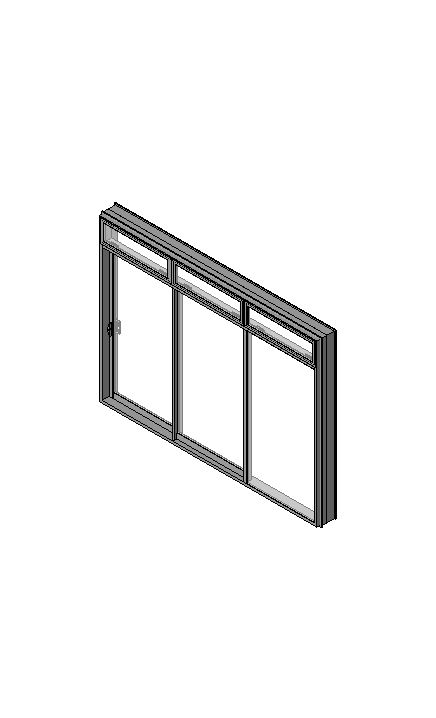

FIRST Residential Multi Sliding Door Three Panel FSS with Overlight Transom

FSD05-0

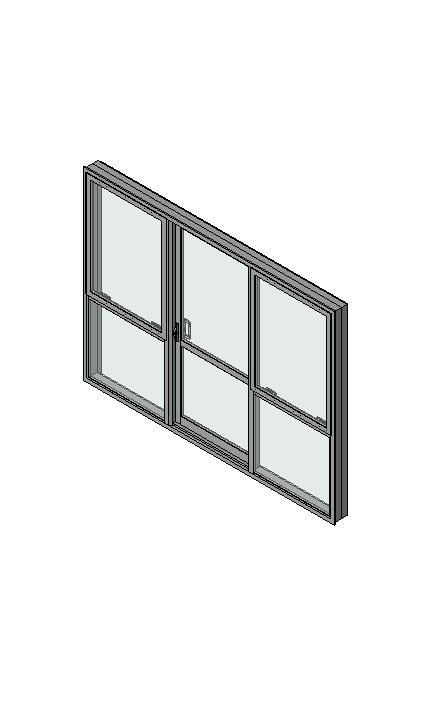

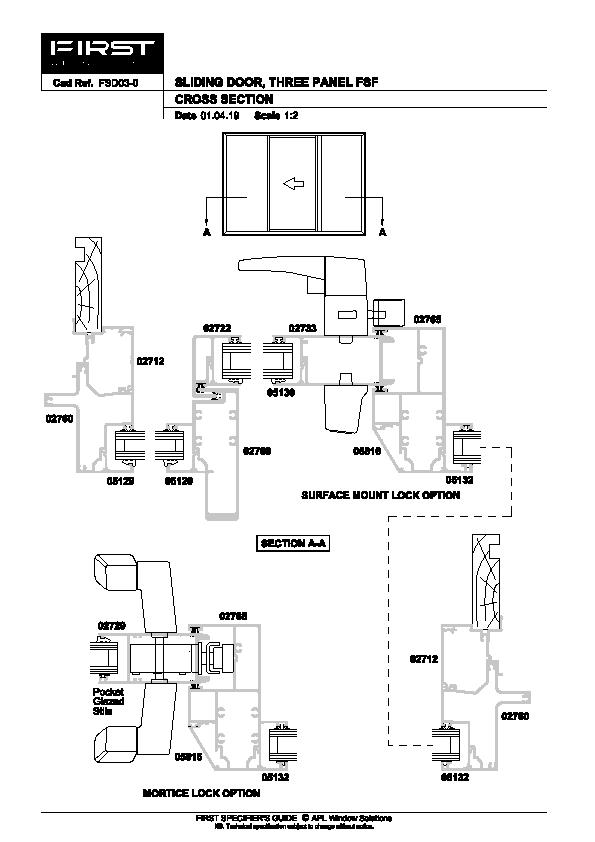

FIRST Residential F700RS Sliding Door Three Panel FSF

FSD06-0

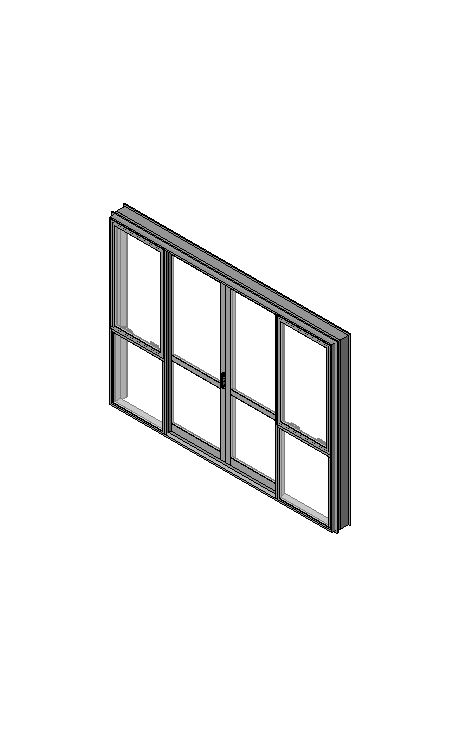

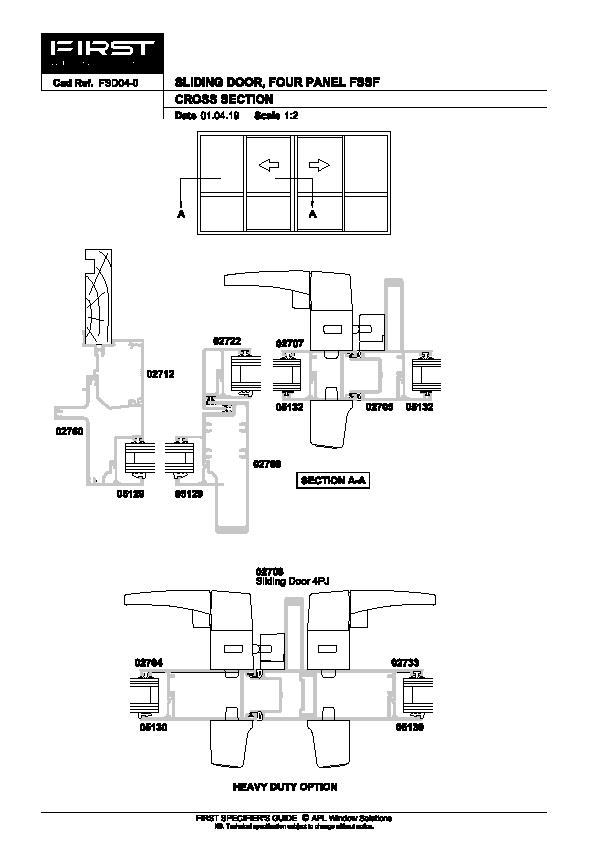

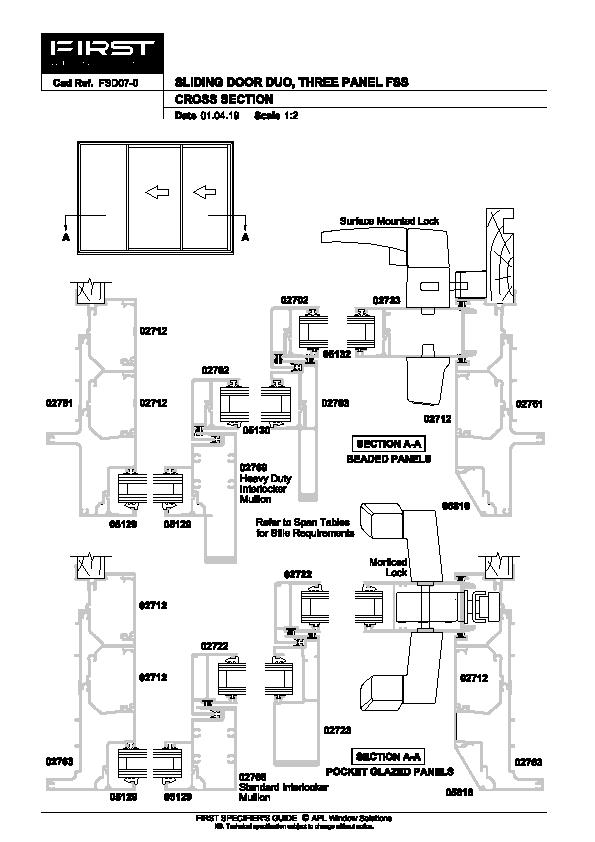

FIRST Residential F700RS Sliding Door Four Panel FSSF

FSD07-0

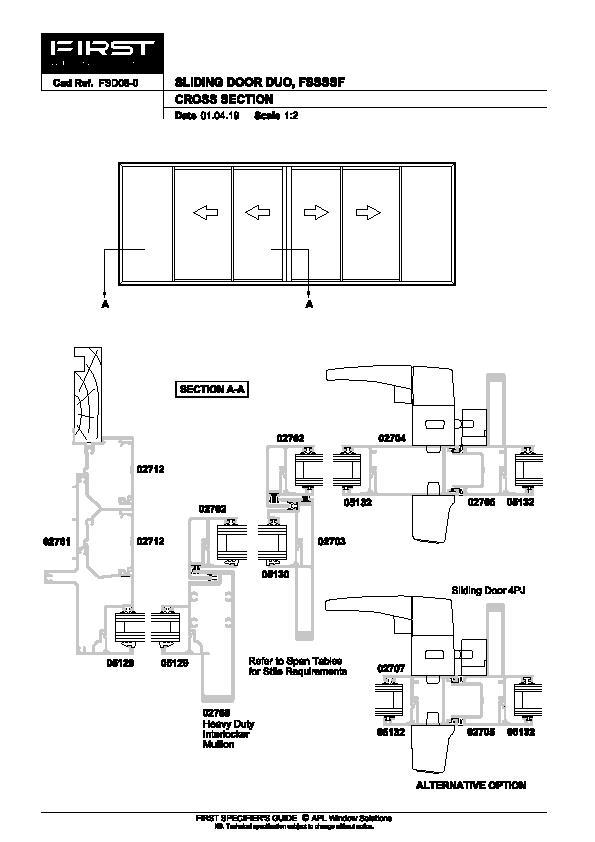

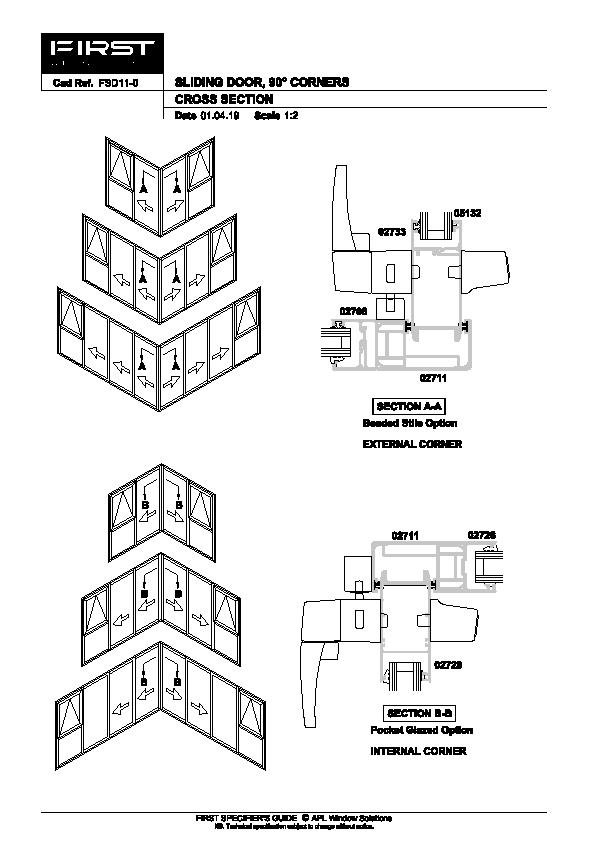

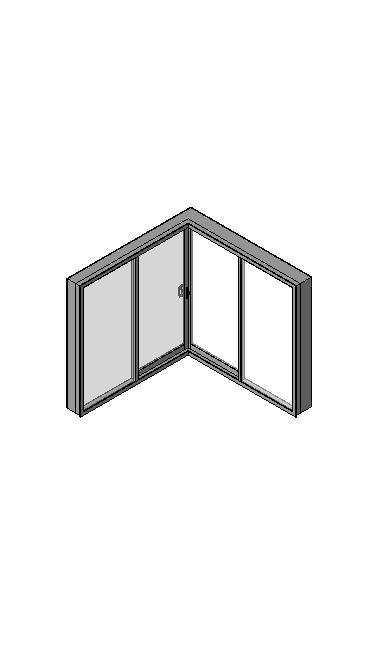

FIRST Residential Sliding Door 90º Corners

FSD08-0

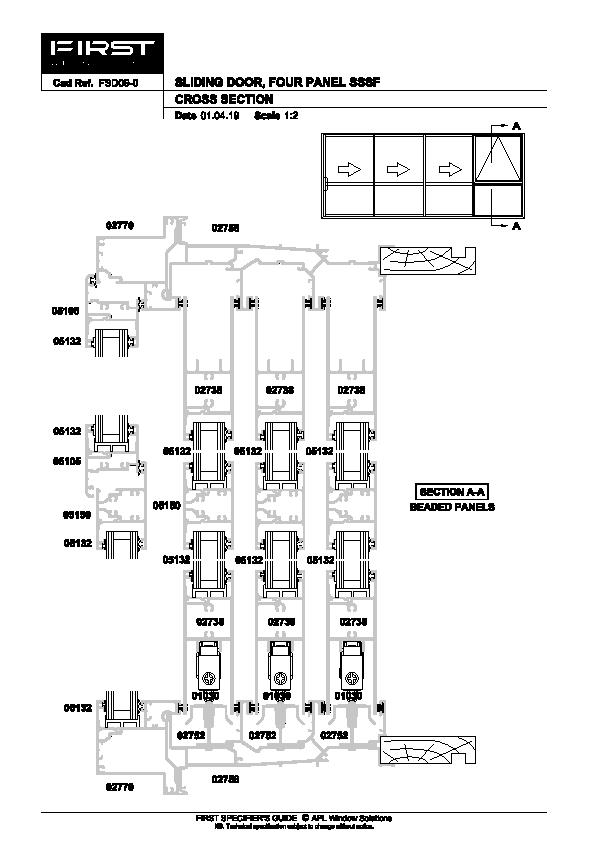

FIRST Residential Multi Sliding Door FSSSF

FSD09-0

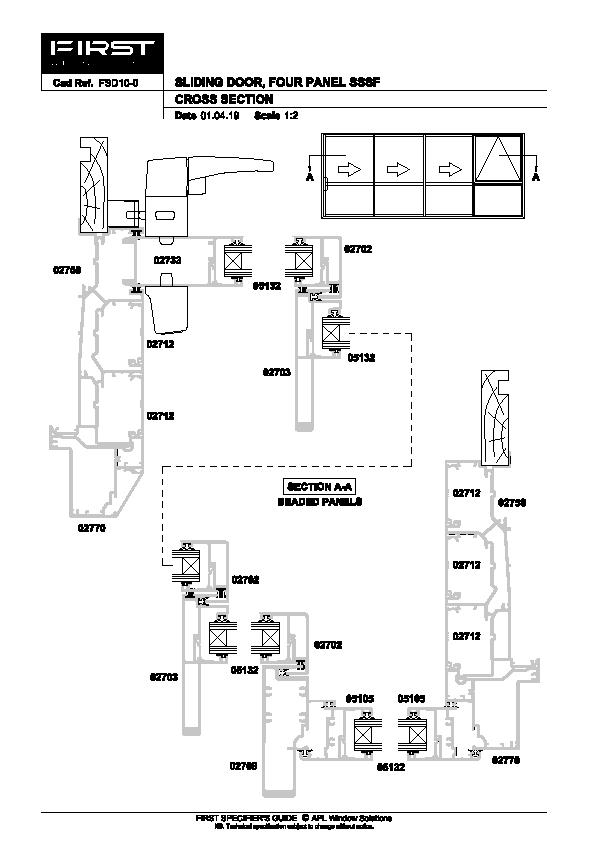

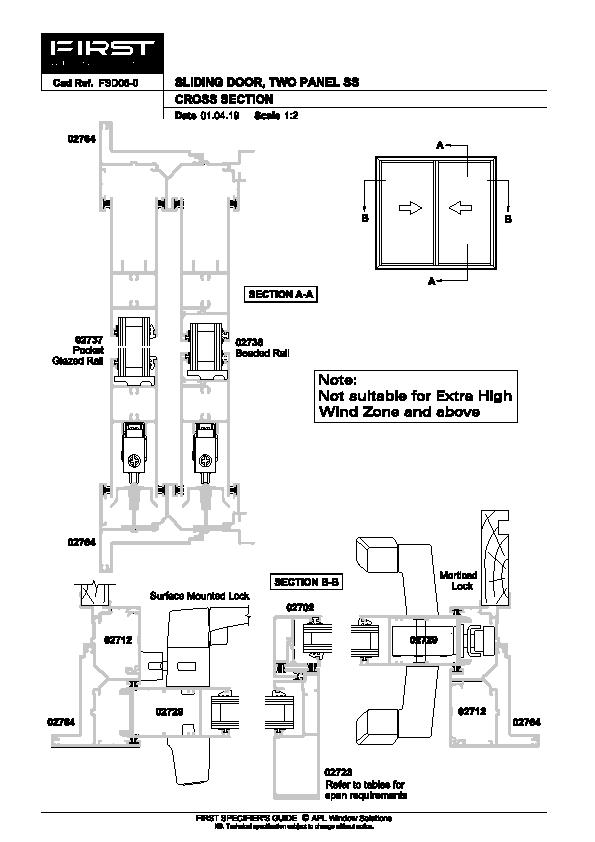

FIRST Residential F700RS Sliding Door Two Panel SS

FSD10-0

4 Panel Sliding Door Frame

FSD11-0

4 Panel Sliding Door Frame

FSD12-0

Installation Details

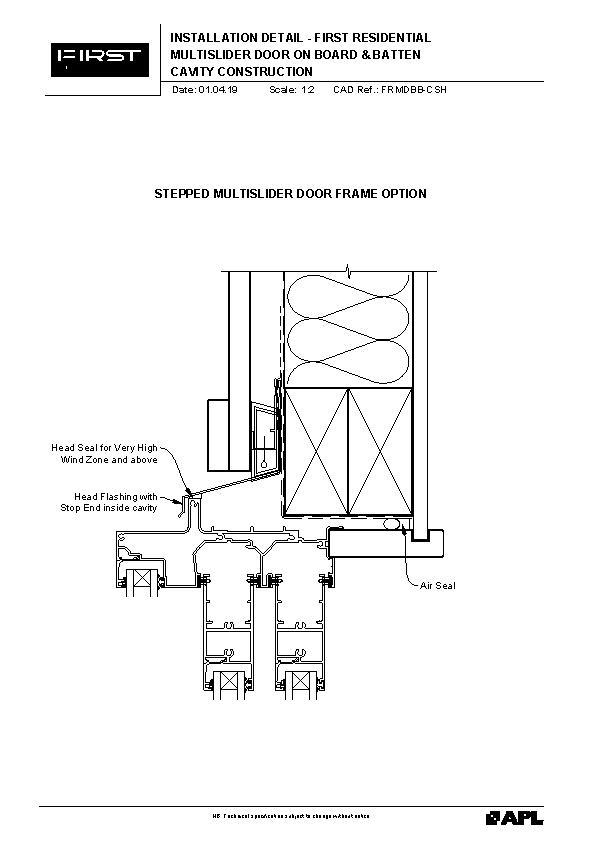

FIRST Residential Multislider Door on Board and Batten

FRMDBB

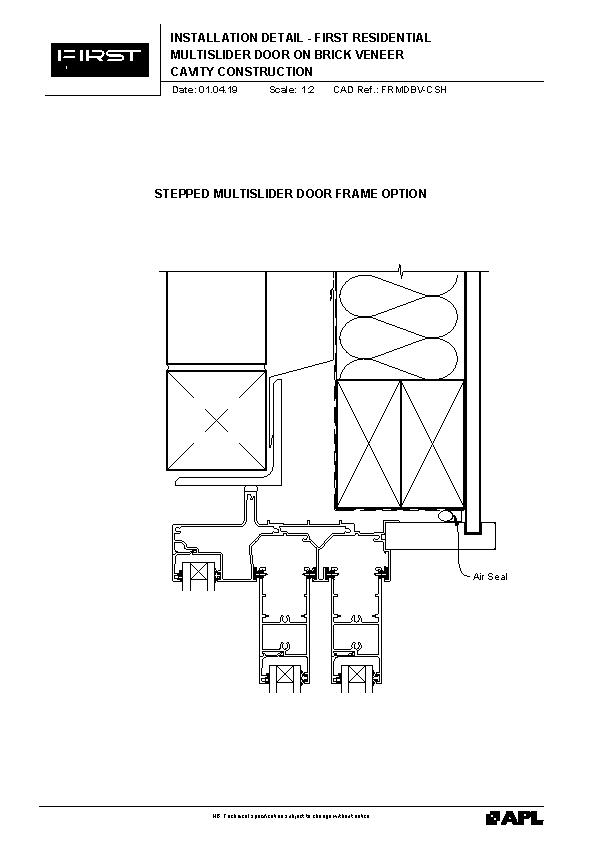

FIRST Residential Multislider Door on Brick Veneer

FRMDBV

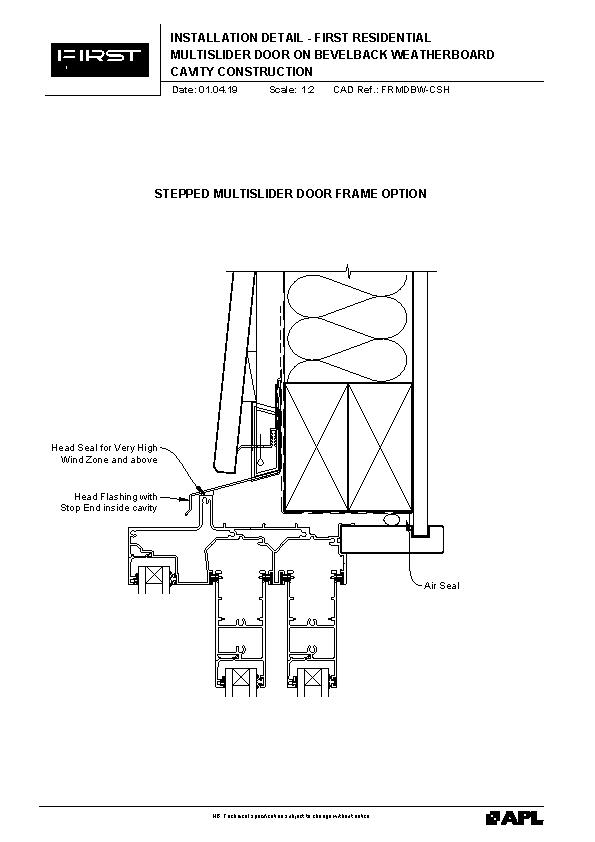

FIRST Residential Multislider Door on Bevelback Weatherboard

FRMDBW

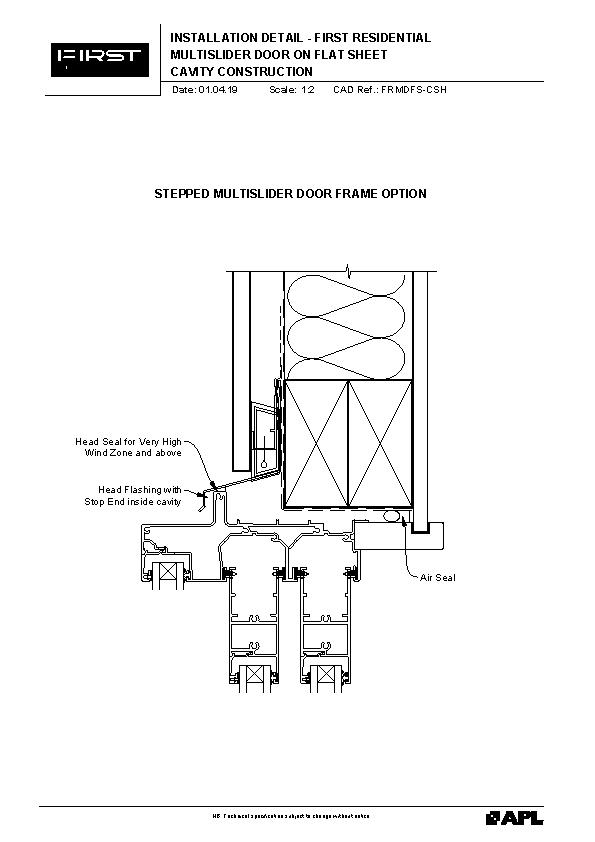

FIRST Residential Multislider Door on Flat Sheet

FRMDFS

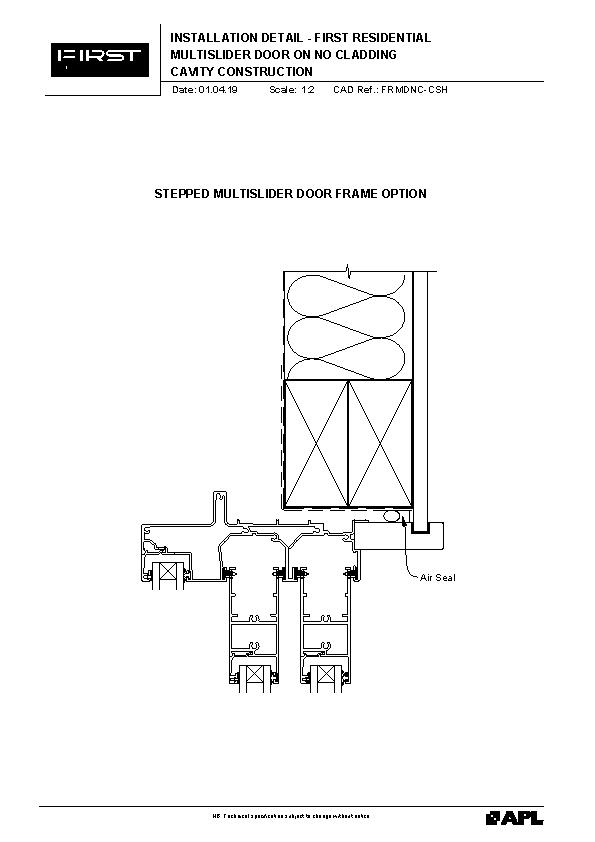

FIRST Residential Multislider Door on No Cladding

FRMDNC

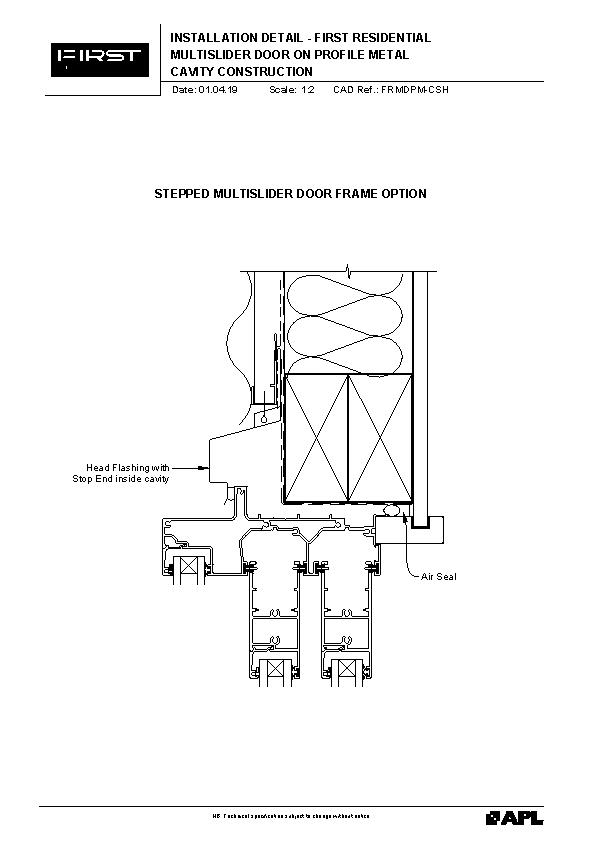

FIRST Residential Multislider Door on Profile Metal

FRMDPM

FIRST Residential Multislider Door on Rusticated Weatherboard

FRMDRW

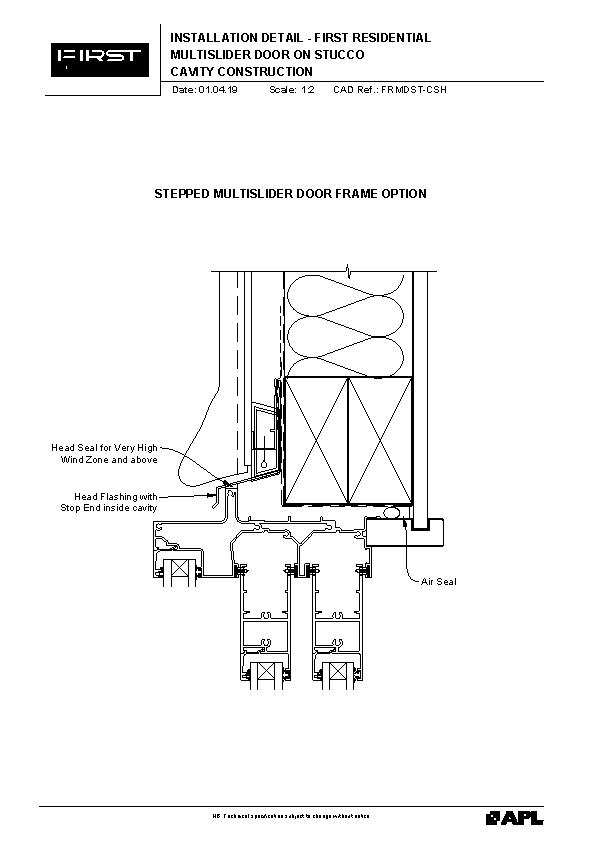

FIRST Residential Multislider Door on Stucco

FRMDST

FIRST Residential Sliding Door on Board and Batten

FRSDBB

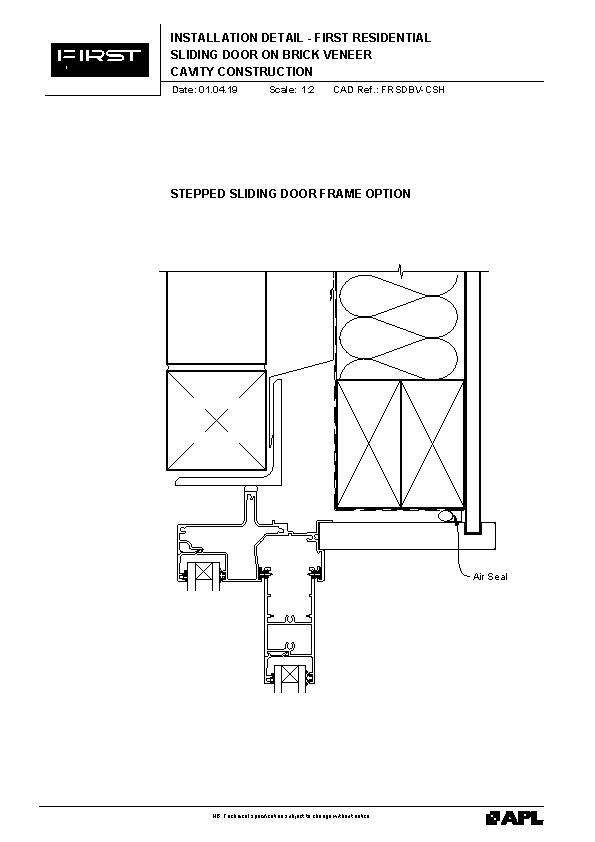

FIRST Residential Sliding Door on Brick Veneer

FRSDBV

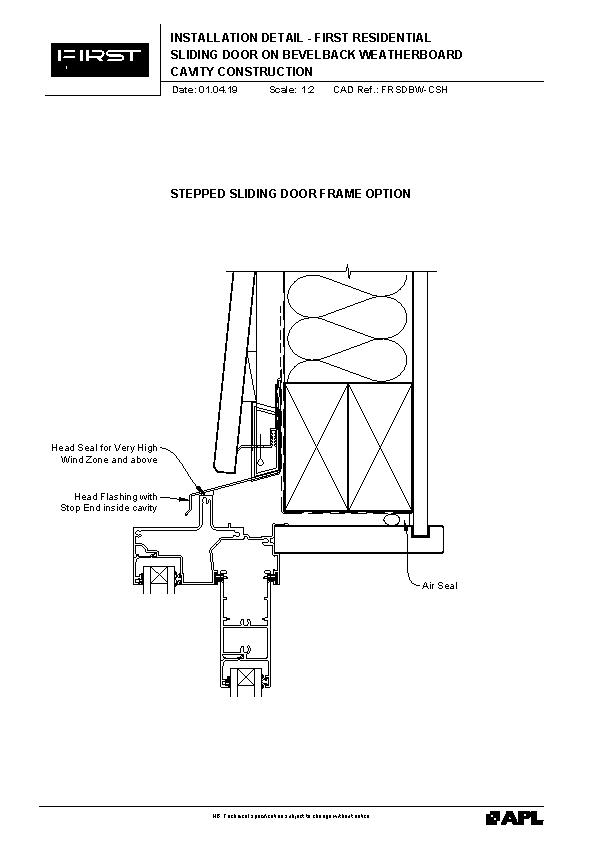

FIRST Residential Sliding Door on Bevelback Weatherboard

FRSDBW

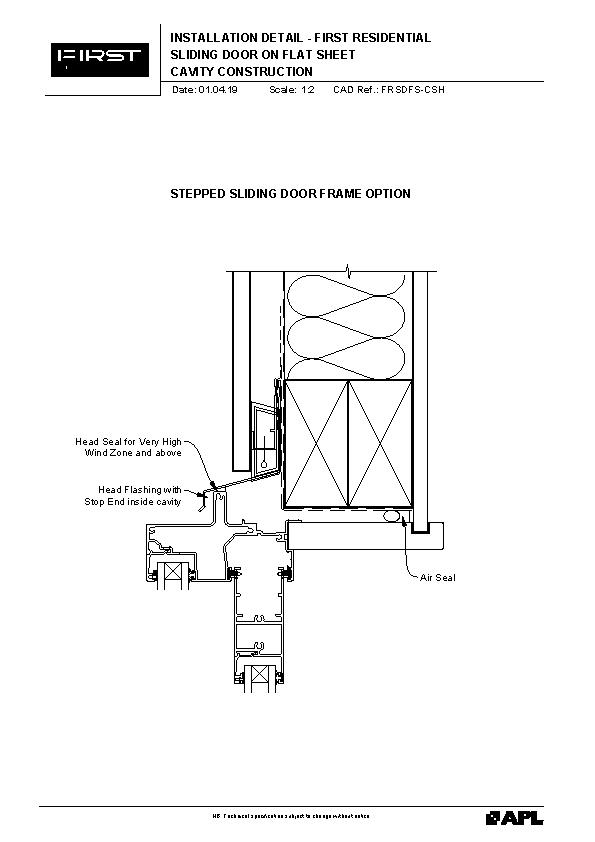

FIRST Residential Sliding Door on Flat Sheet

FRSDFS

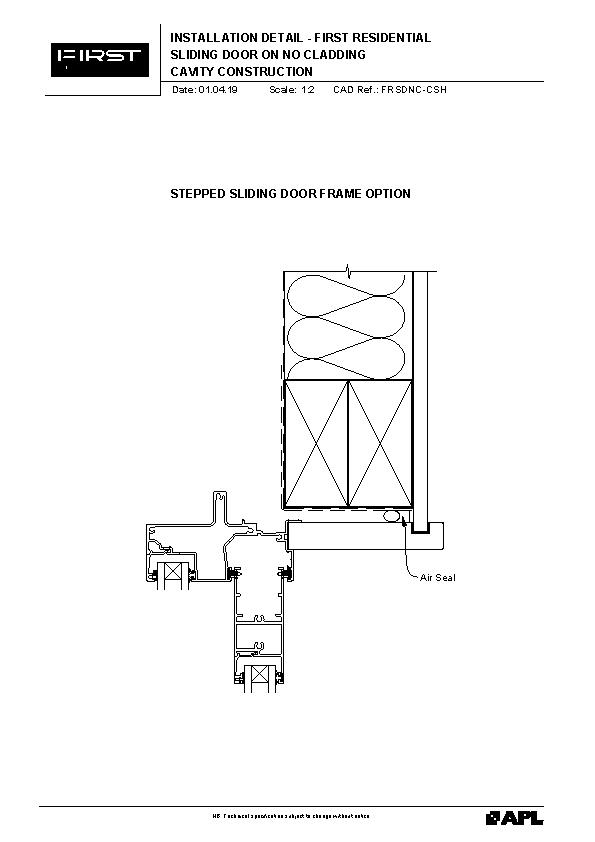

FIRST Residential Sliding Door on No Cladding

FRSDNC

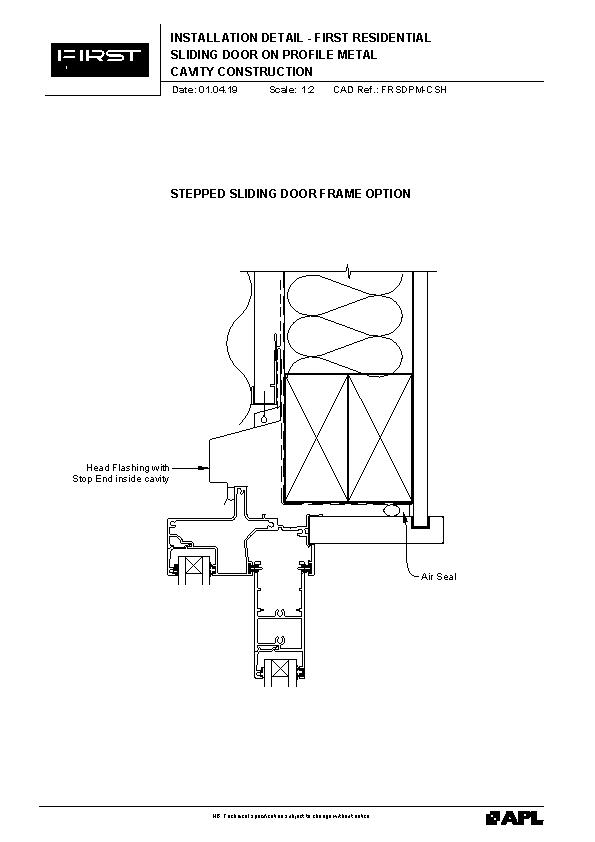

FIRST Residential Sliding Door on Profile Metal

FRSDPM

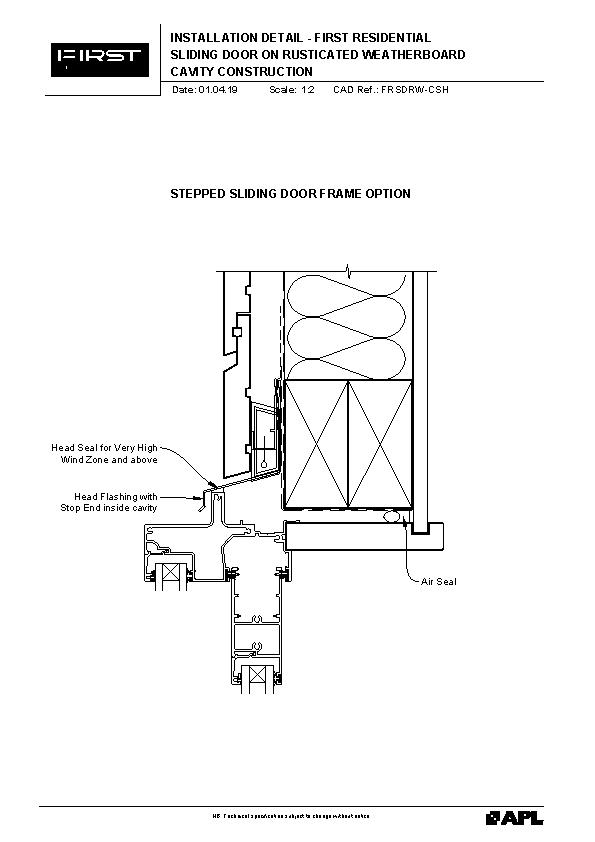

FIRST Residential Sliding Door on Rusticated Weatherboard

FRSDRW

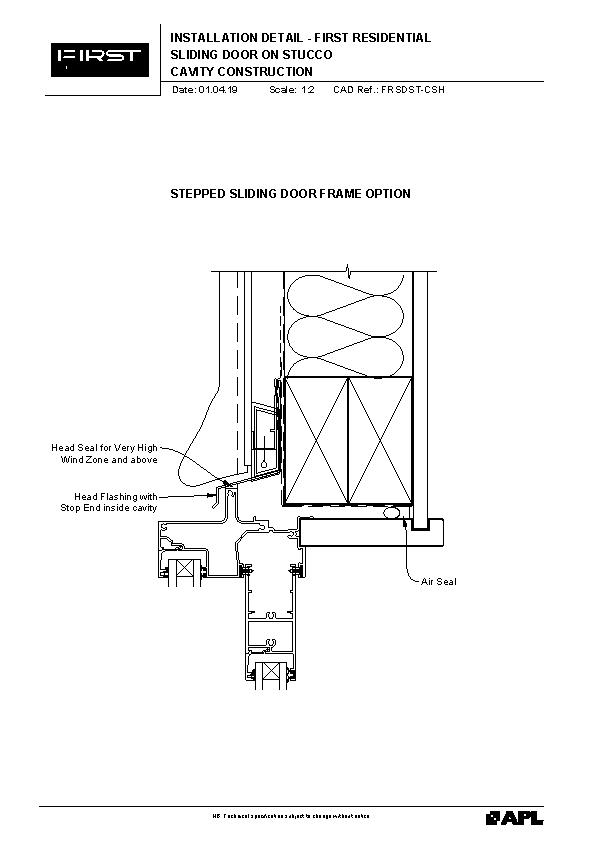

FIRST Residential Sliding Door on Stucco

FRSDST

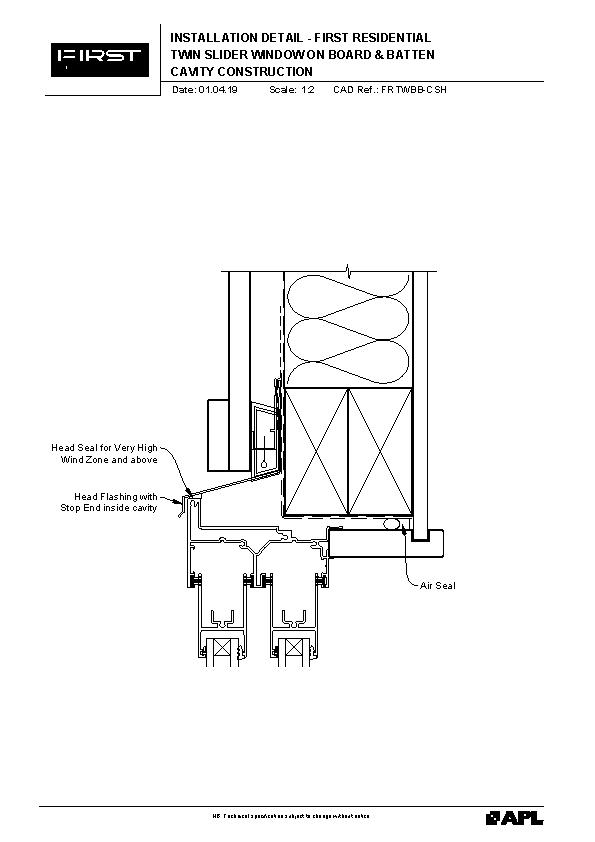

FIRST Residential Twin Slider Door on Board and Batten

FRTSBB

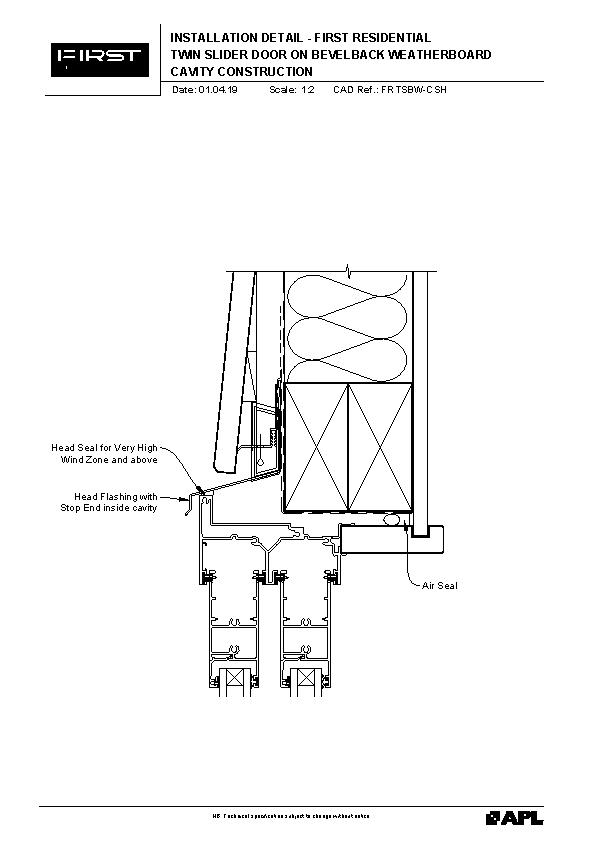

FIRST Residential Twin Slider Door on Bevelback Weatherboard

FRTSBW

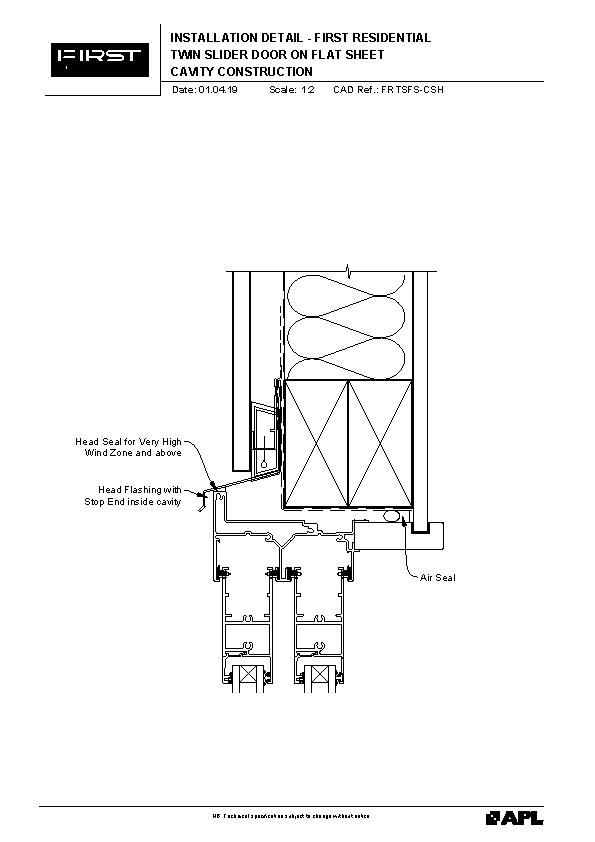

FIRST Residential Twin Slider Door on Flat Sheet

FRTSFS

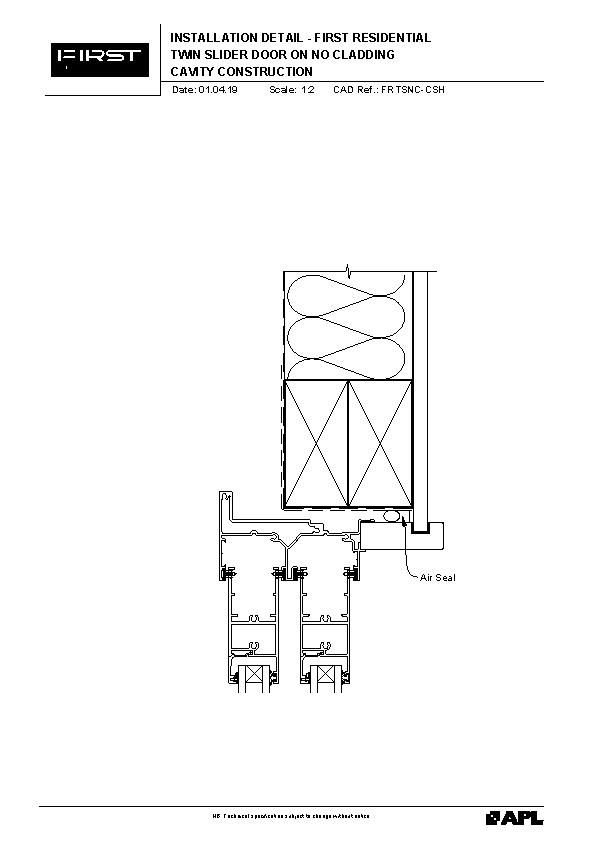

FIRST Residential Twin Slider Door on No Cladding

FRTSNC

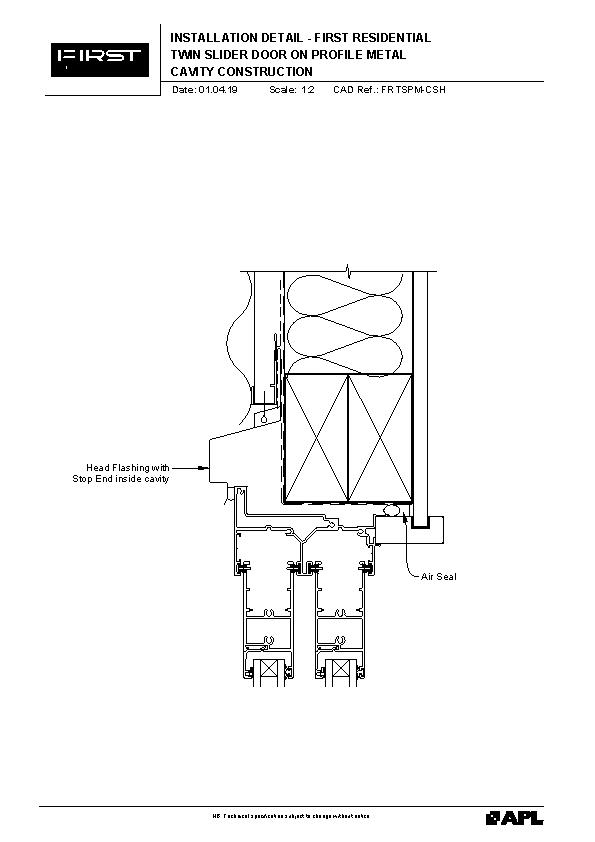

FIRST Residential Twin Slider Door on Profile Metal

FRTSPM

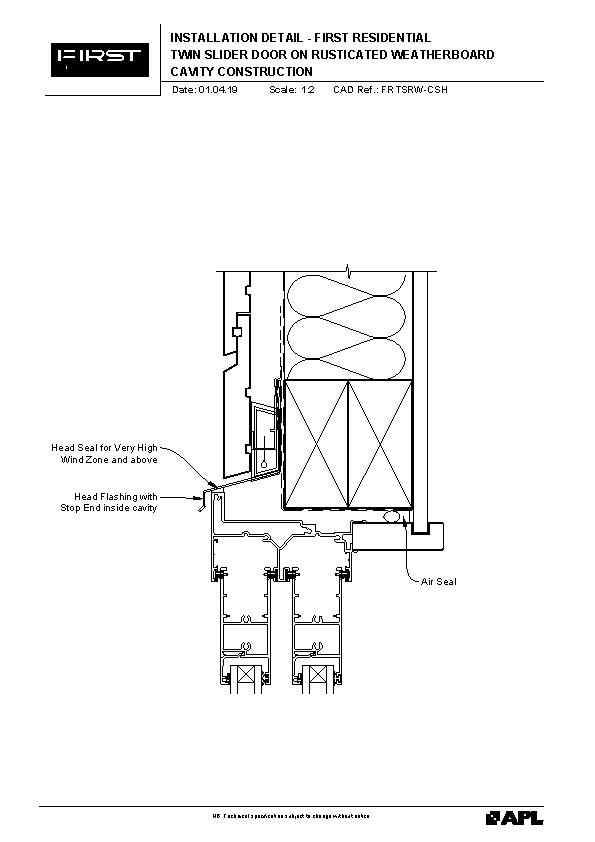

FIRST Residential Twin Slider Door on Rusticated Weatherboard

FRTSRW

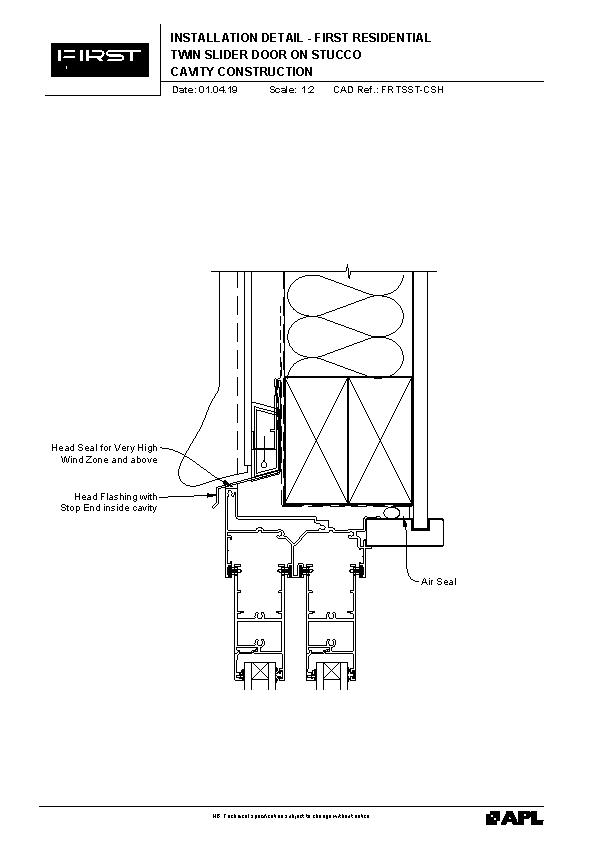

FIRST Residential Twin Slider Door on Stucco

FRTSST

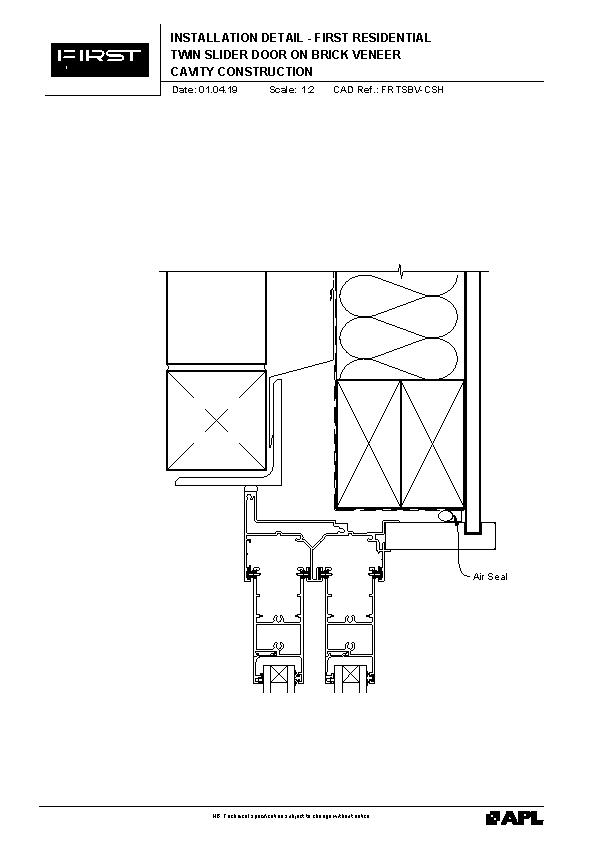

FIRST Residential Twin Slider Door on Brick Veneer

FTSBV
