Commercial Magnum Commercial Doors
For high-performance double-glazing, explore AGP’s product range available now Explore
Description

Magnum commercial doors are versatile and robust and are suitable for commercial, institutional and some specialised residential settings. They can be mounted in a range of styles — hinged, on floor springs or transom closers, or constructed as sliders, bottom rolling, top hung and with electronic control. Bi-folds are also available.

Magnum doors are compatible with most of the commercial window systems offered.

Key Features

A versatile and robust commercial door system that can be:

  • Hinged
  • Floor sprung (pivot door)
  • Hung on concealed transom closers (pivot door)

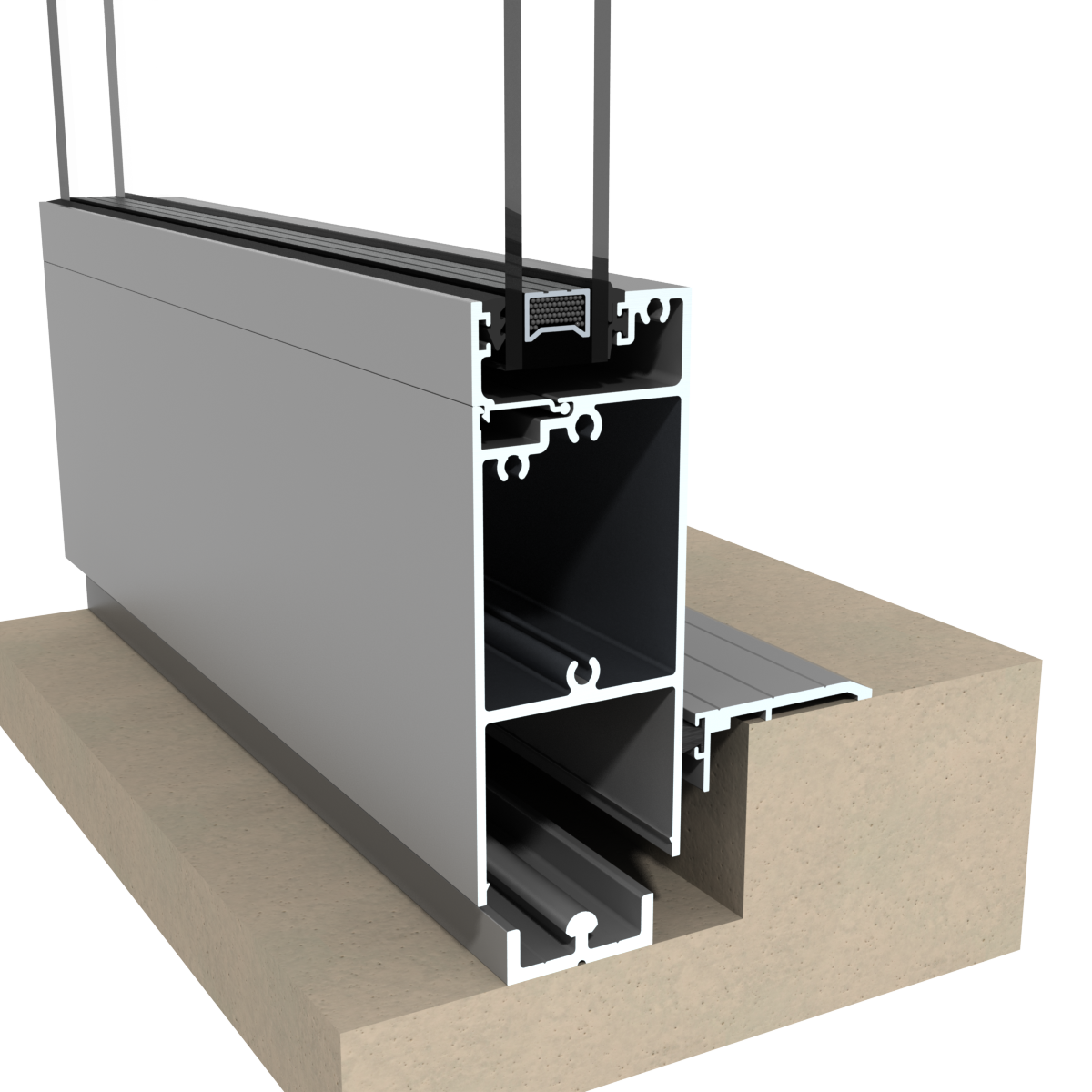

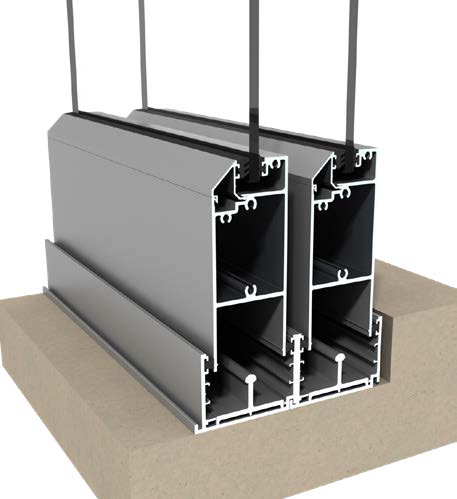

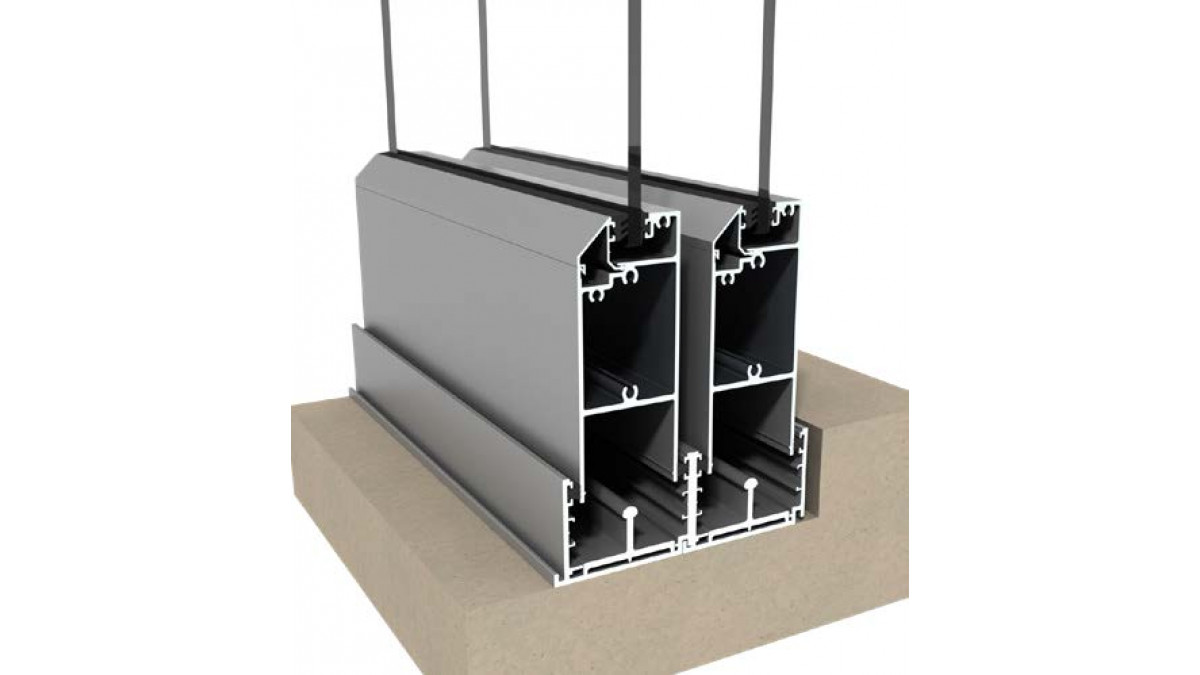

  • Sliding — stacking on multiple tracks (with bottom rollers)
  • Sliding top hung
Categories
Sliding Doors
Scope of Use
  • Suitable for a wide range of commercial environments
  • Also used in some residential applications
  • Location and exposure suitability will depend on door type used e.g. sliding, hinged
  • Magnum sliders are compatible with the 100mm Shopfront suite
  • Need to be used in defined maximum sizes according to the wind exposure
Limitations on Use
  • Magnum sliding doors need good weather cover in either commercial or residential settings (consider using APL Architectural Series sliders if appropriate)
  • Magnum overwall sliders can be specified with appropriate detailing
Statement of Building Code Compliance
  • Designed, tested and manufactured to meet NZS 4211: Performance of Windows, and NZS 4233:  Glazing in Buildings, Parts 1-4
  • Designed and tested to conform to NZ Building Code, including Clause E2
In-Service History
  • Launched in 1998
  • Some design upgrades released
  • Widely used by builders and specifiers
Other Performance Attributes
  • Window and door warranty provided under normal conditions of use against failure of materials and workmanship for a period of five years
  • Surface finish is covered by a separate performance warranty dependent on the actual finish selected
  • A hardware/componentry warranty is offered against defects in manufacturing, functionality and surface finish for a period of five years, provided care and maintenance guidelines have been followed
Documents
Data Sheet
Span Tables
FIRST on Masterspec
Specifier Guide
Environmental Product Declaration (EPD) Report

2023

WGANZ Guide to E2/AS1

1 August 2019

First Care, Maintenance & Warranty Brochure (with AGP)

2020

First Brochure

2014

AGP Cleaning & Maintenance
AGP Condensation Guide
AGP Visual Quality of Glass
APL and Sustainability

2019

Manufacturer Contact List
CAD/PDF Details
Full Set of Drawings

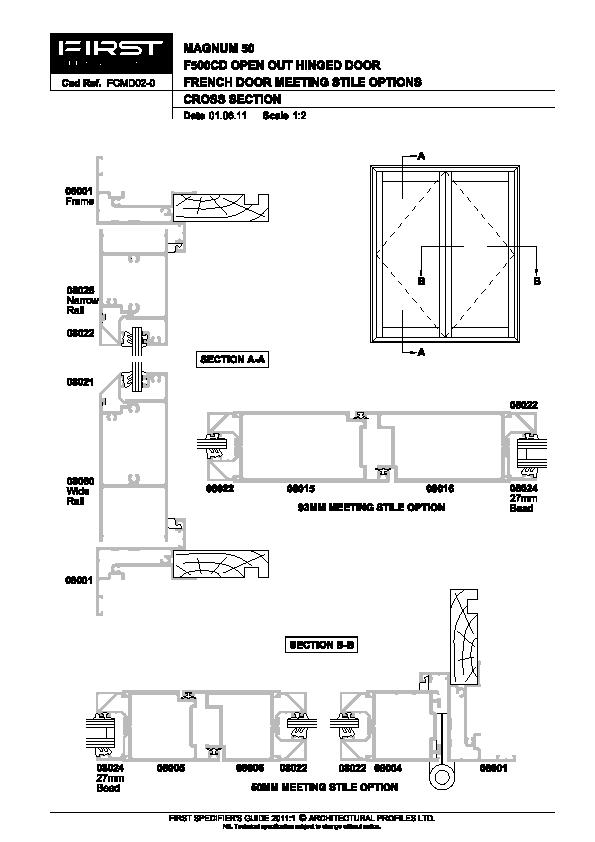

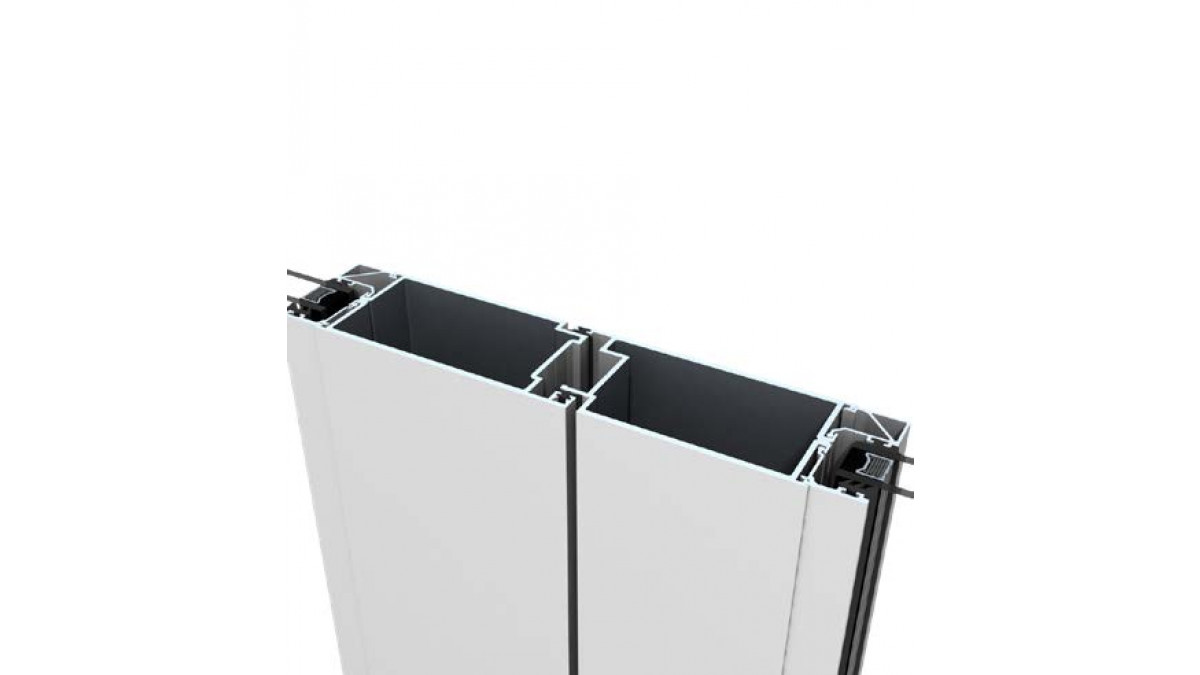

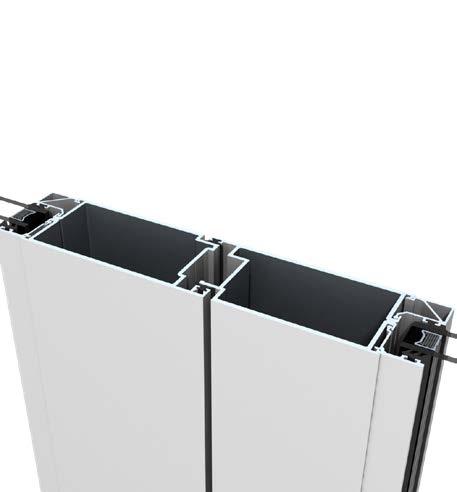

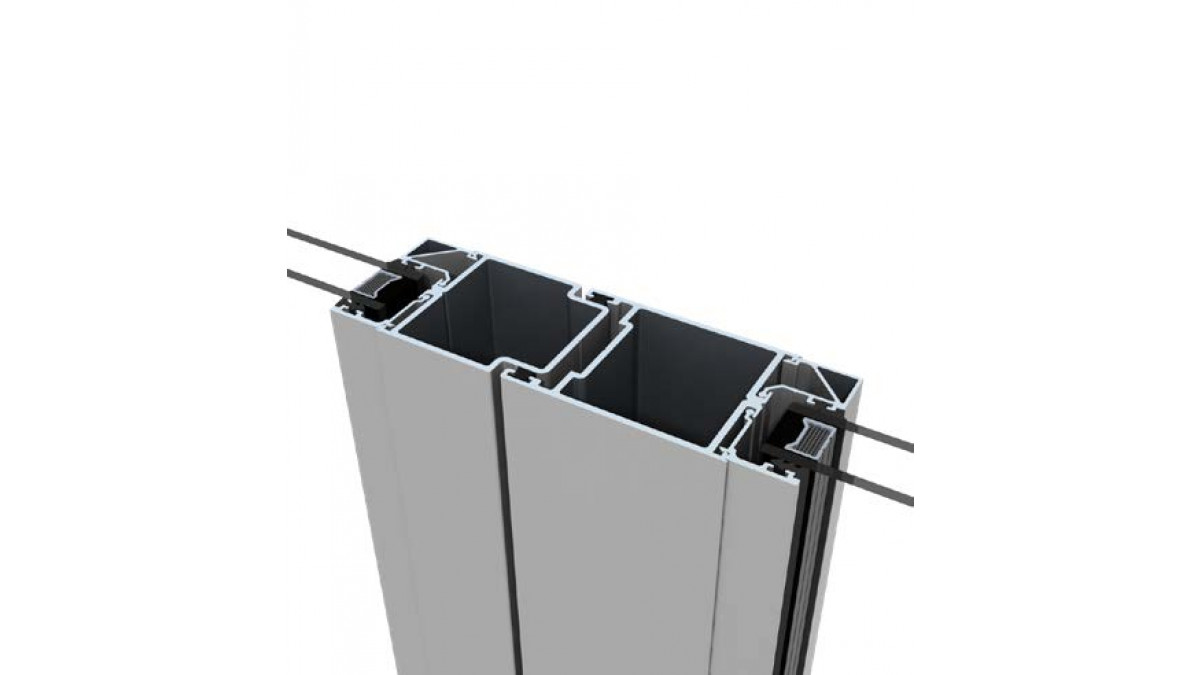

FIRST Commercial Magnum 50 F500CD Open Out Hinged Door French Door Meeting Stile Options

FCMD02-0

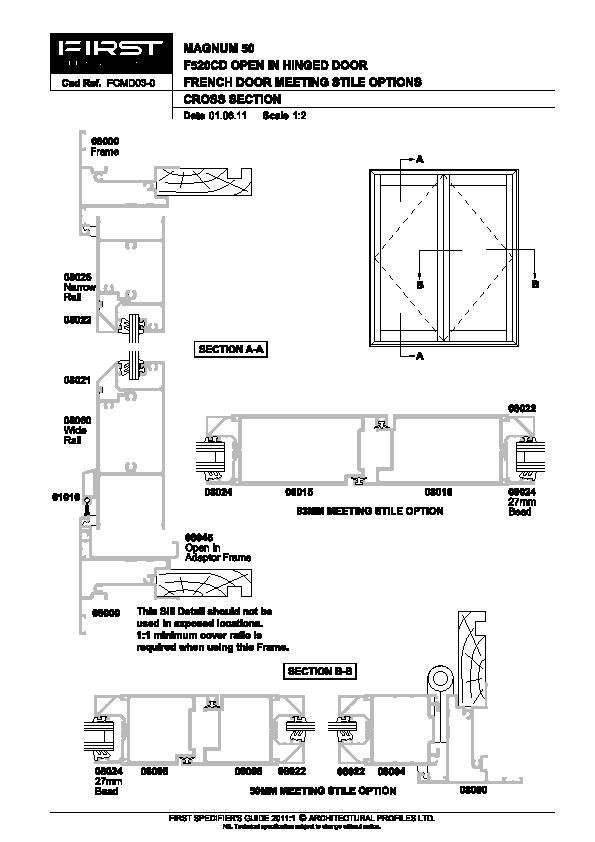

FIRST Commercial Magnum 50 F520CD Open In Hinged Door French Door Meeting Stile Options

FCMD03-0

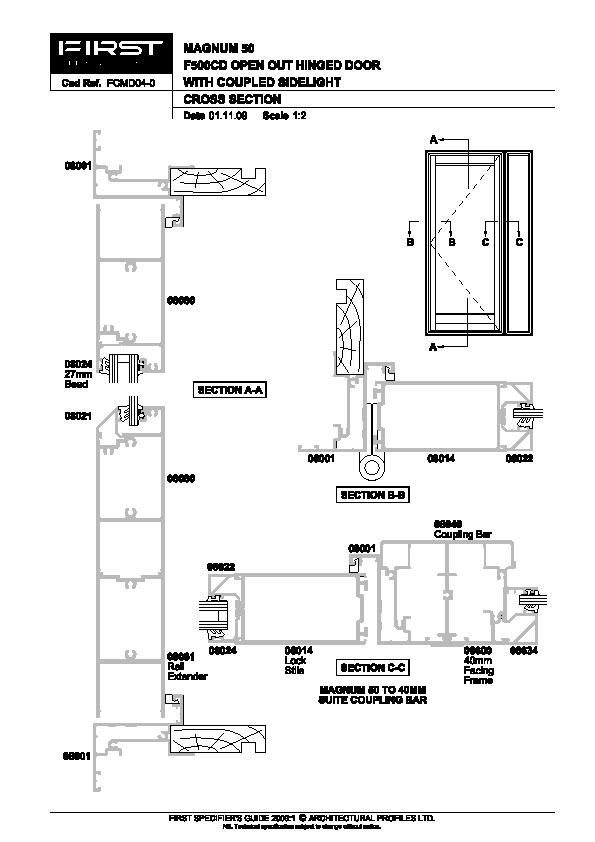

FIRST Commercial Magnum 50 F500CD Open Out Hinged Door with Coupled Sidelight

FCMD04-0

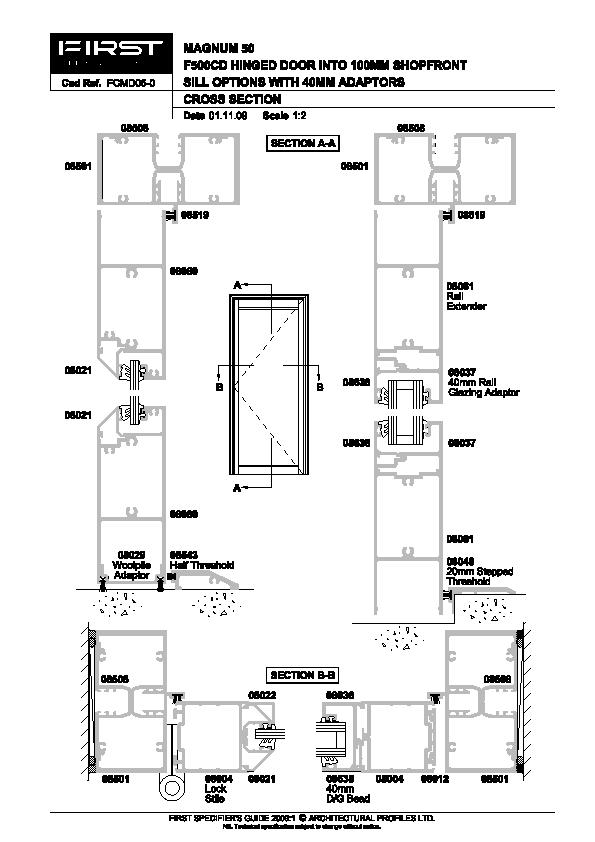

FIRST Commercial Magnum 50 F500CD Hinged Door into 100mm Shopfront Sill Options with 40mm Adaptors

FCMD05-0

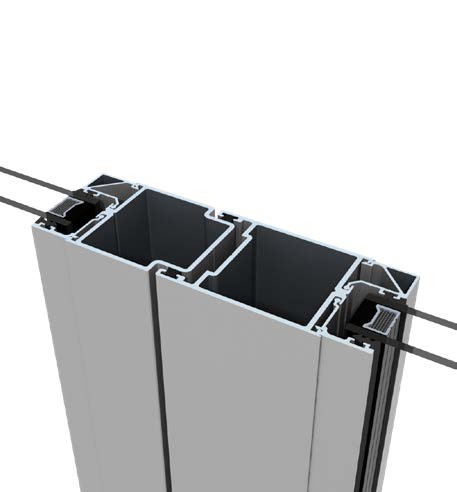

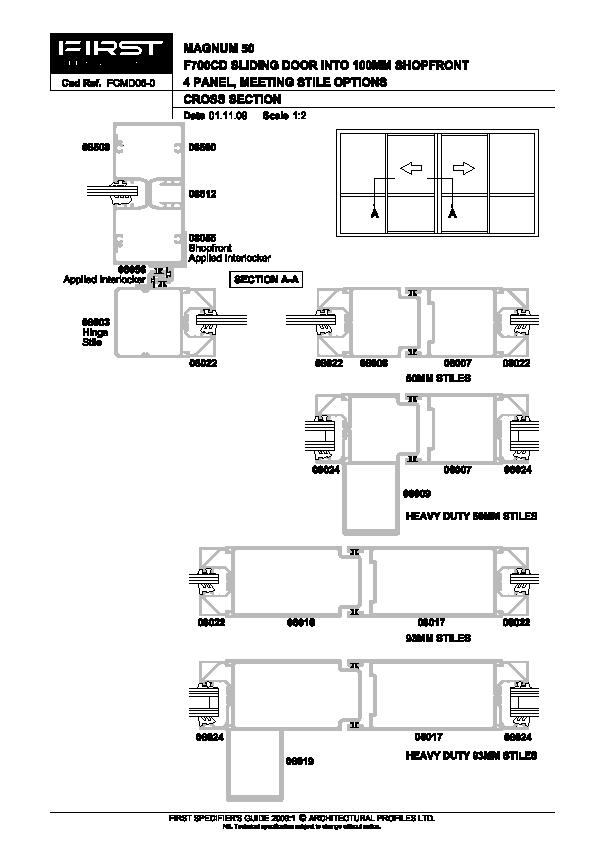

FIRST Commercial Magnum 50 F700CD Sliding Door into 100mm Shopfront 4 Panel, Meeting Stile Options

FCMD06-0

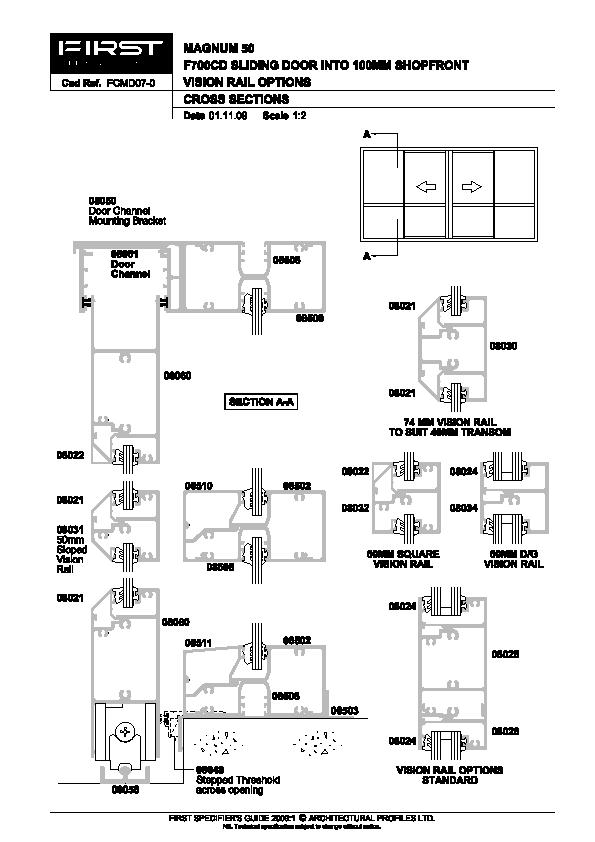

FIRST Commercial Magnum 50 F700CD Sliding Door into 100mm Shopfront Vision Rail Options

FCMD07-0

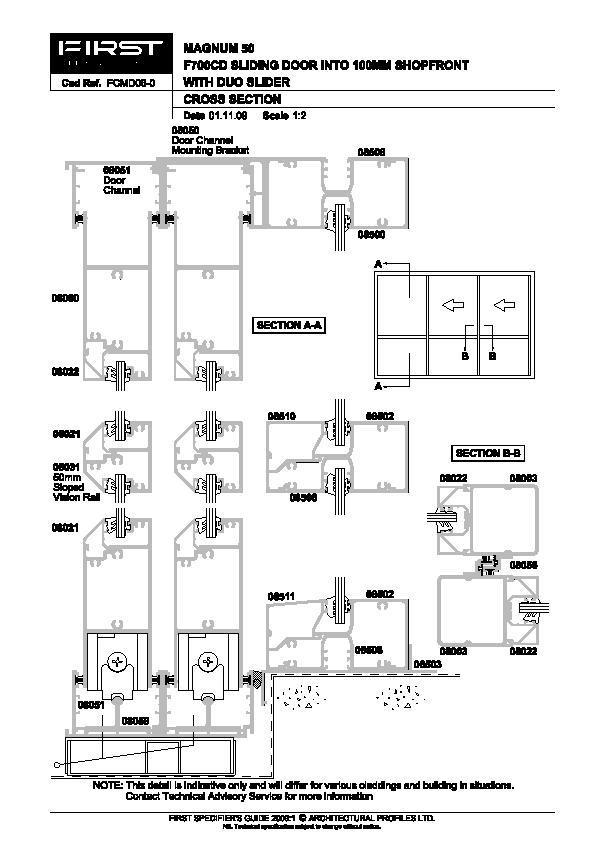

FIRST Commercial Magnum 50 F700CD Sliding Door into 100mm Shopfront with Duo Slider

FCMD08-0

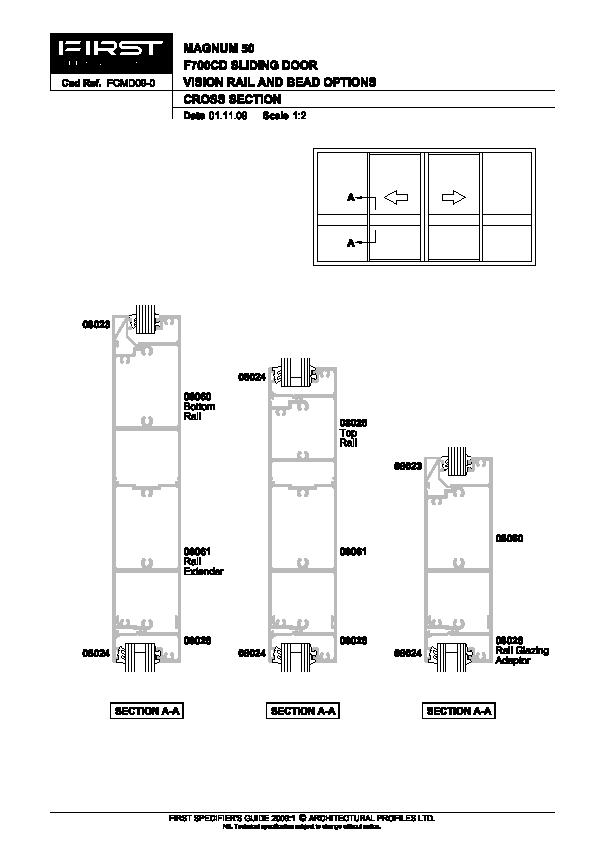

FIRST Commercial Magnum 50 F700CD Sliding Door Vision Rail and Bead Options

FCMD09-0

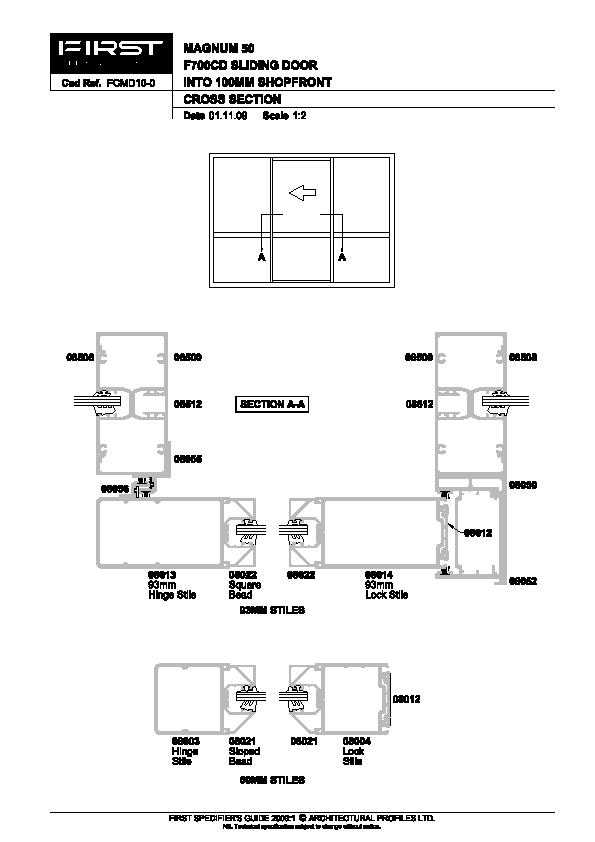

FIRST Commercial Magnum 50 F700CD Sliding Door into 100mm Shopfront

FCMD10-0

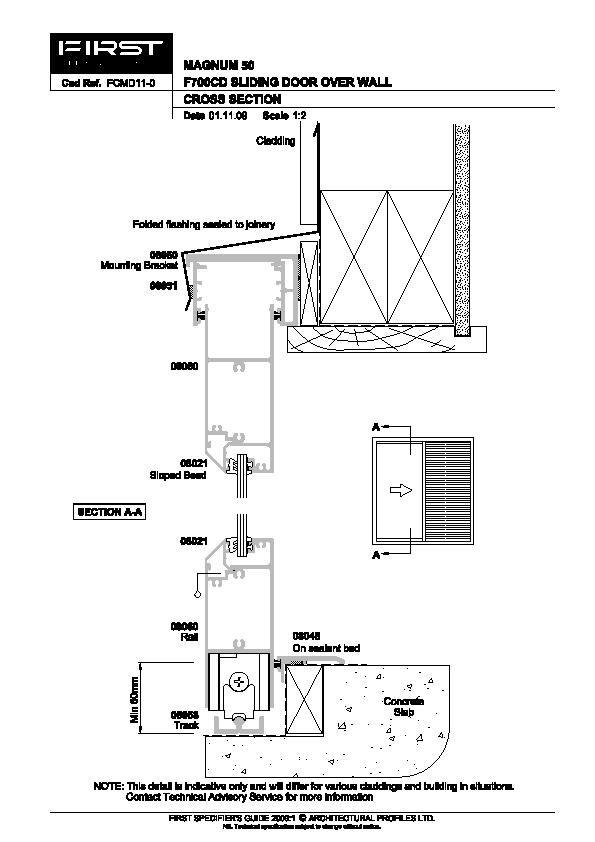

FIRST Commercial Magnum 50 F700CD Sliding Door Over Wall

FCMD11-0

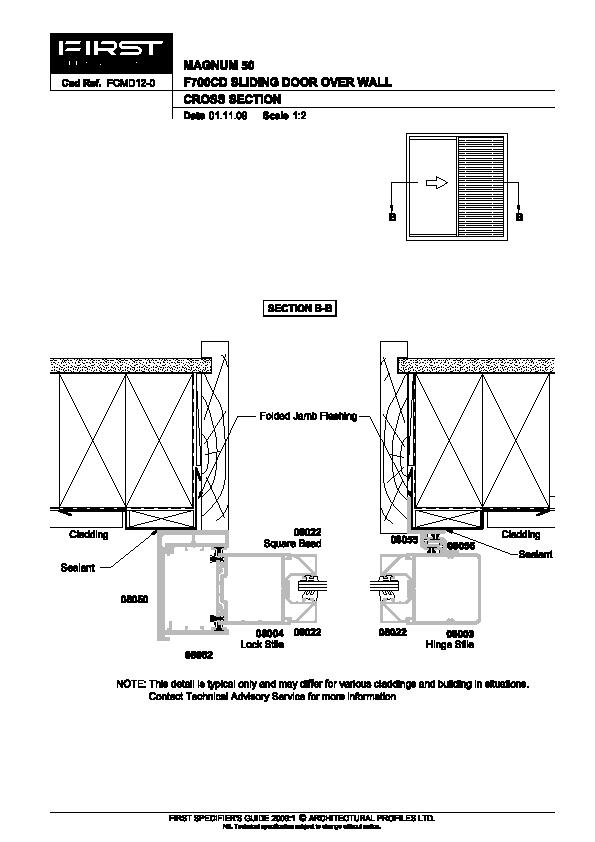

FIRST Commercial Magnum 50 F700CD Sliding Door Over Wall

FCMD12-0

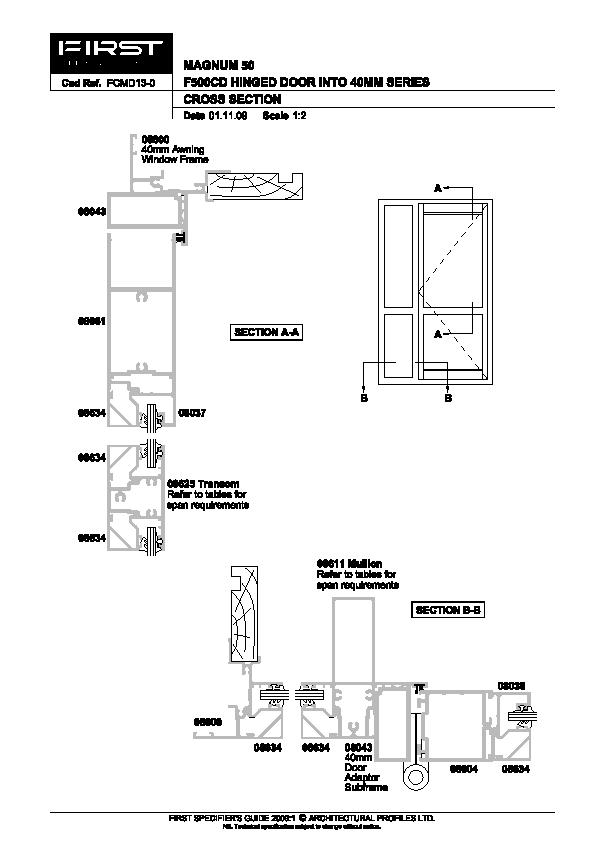

FIRST Commercial Magnum 50 F500CD Hinged Door into 40mm Series

FCMD13-0

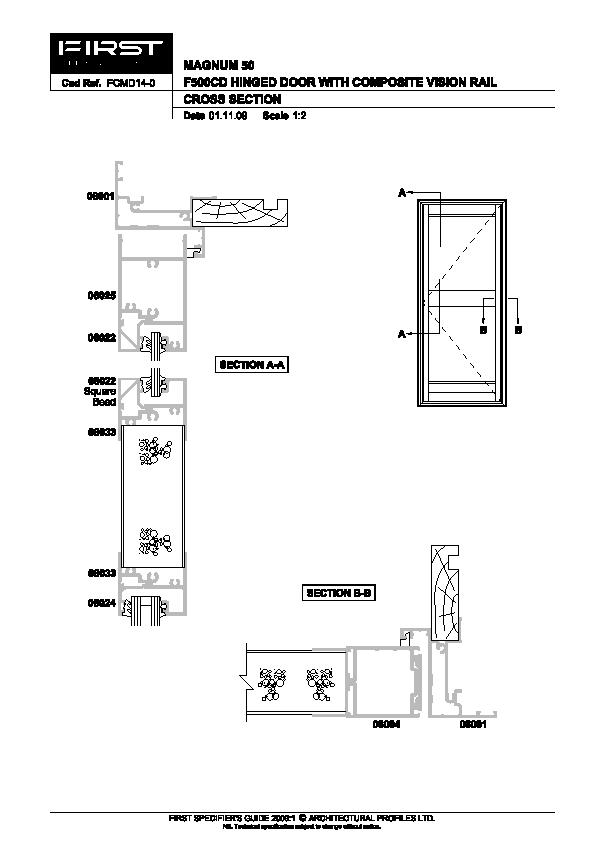

FIRST Commercial Magnum 50 F500CD Hinged Door with Composite Vision Rail

FCMD14-0

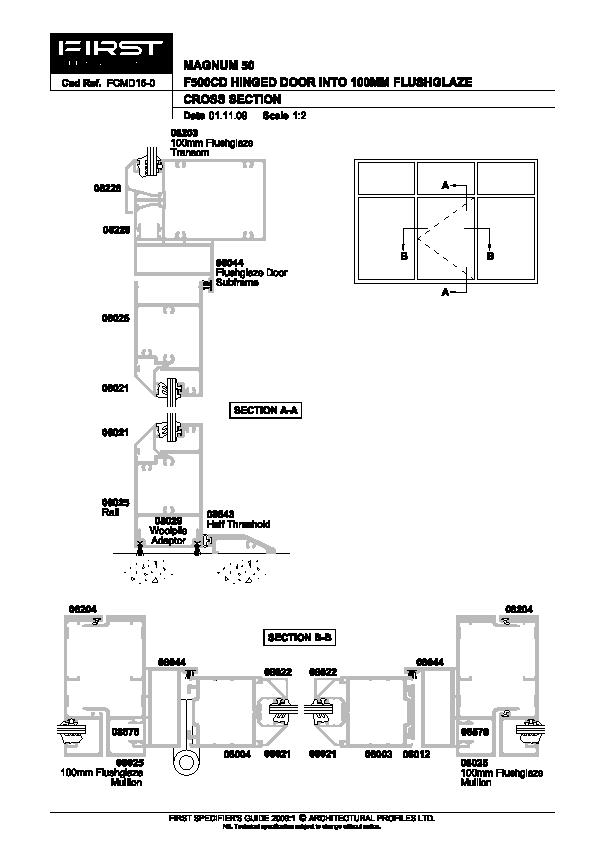

FIRST Commercial Magnum 50 F500CD Hinged Door into 100mm Flushglaze

FCMD15-0

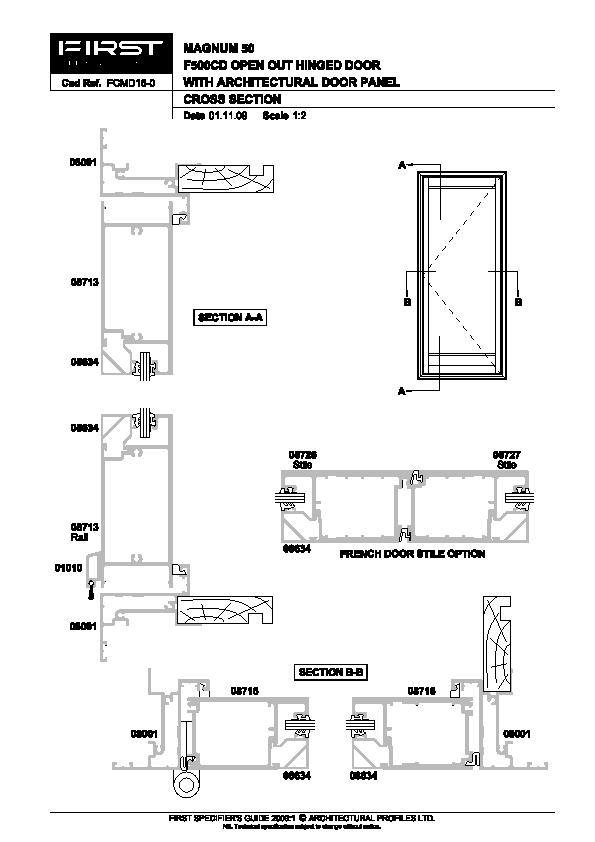

FIRST Commercial Magnum 50 F500CD Open Out Hinged Door with Architectural Door Panel

FCMD16-0

BIM

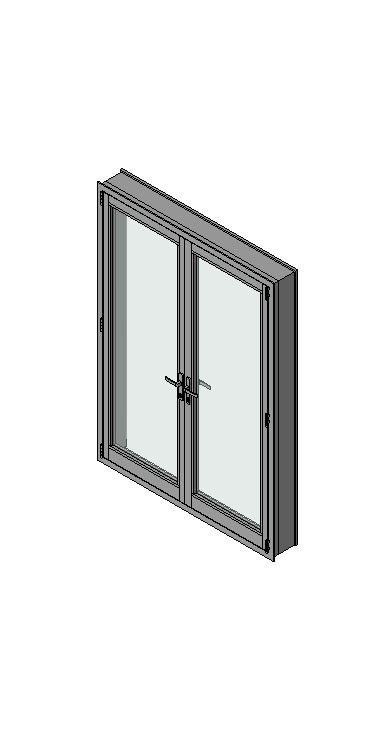

FIRST Commercial Magnum 50, French Door

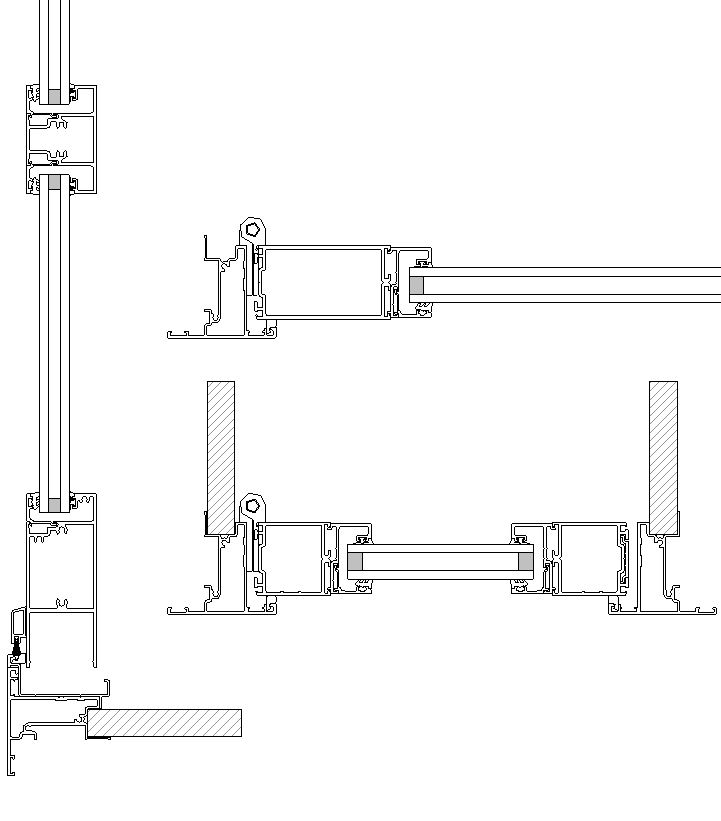

Magnum 50mm Door, Open In Single Leaf

Revit LT 2020

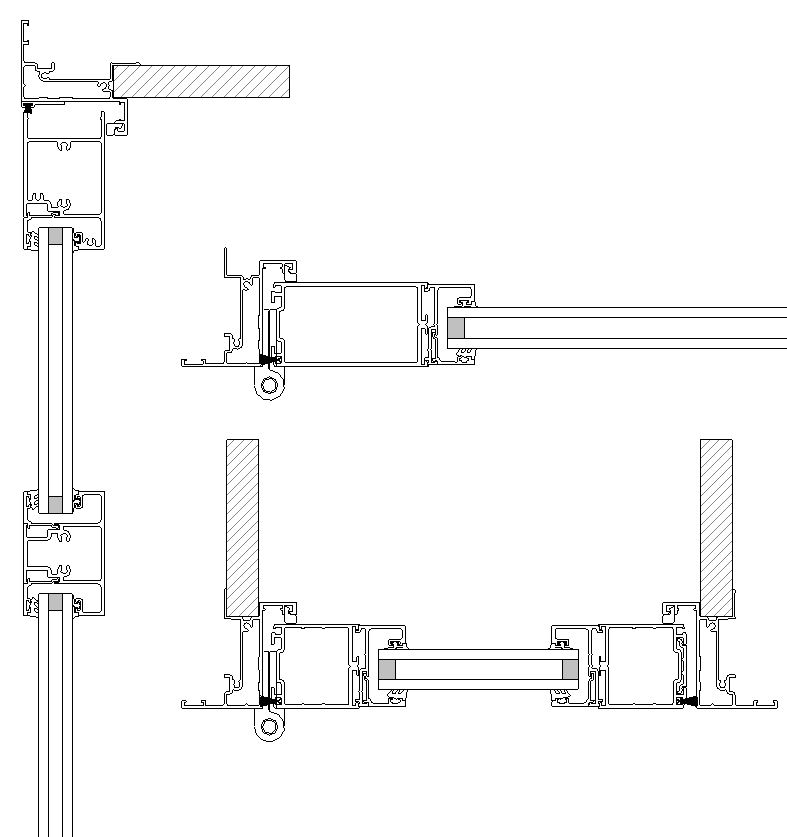

Magnum 50mm Door, Open Out Single Leaf

Revit LT 2020
