APL Architectural Series Sliding Windows by FIRST Windows & Doors

APL Architectural Series Sliding Windows

FIRST Windows & Doors

All products

Complete your window system with AGP glass, New Zealand's leading double-glazing technology Explore

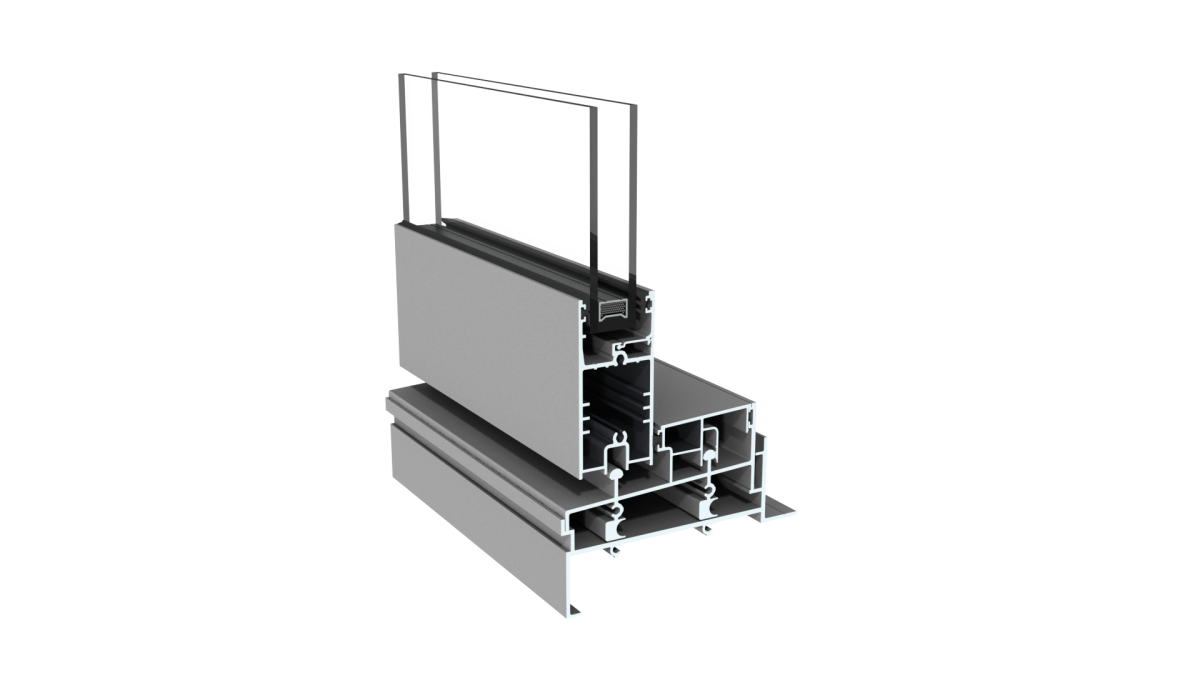

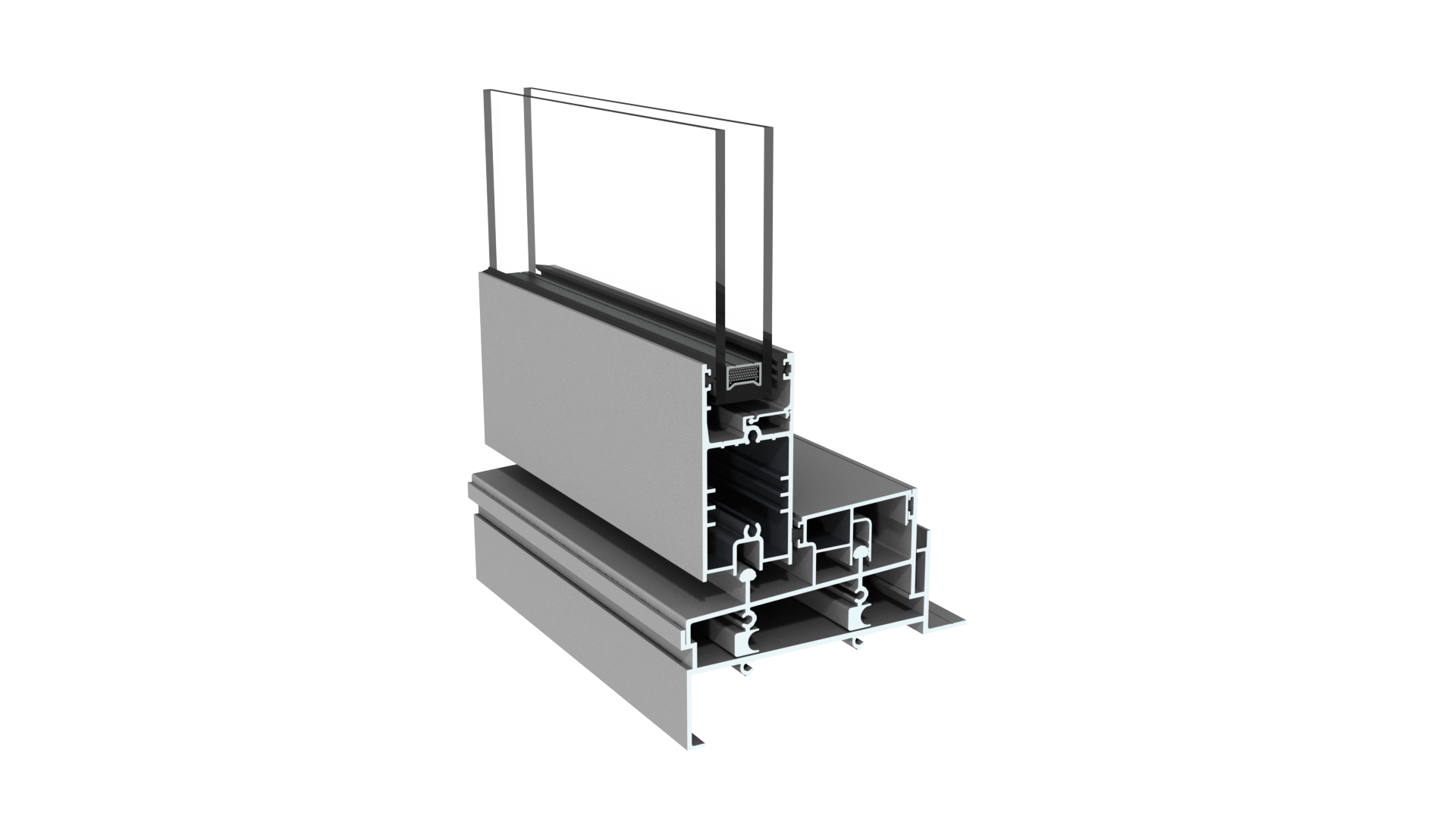

Sliding window sloped sill – single slider

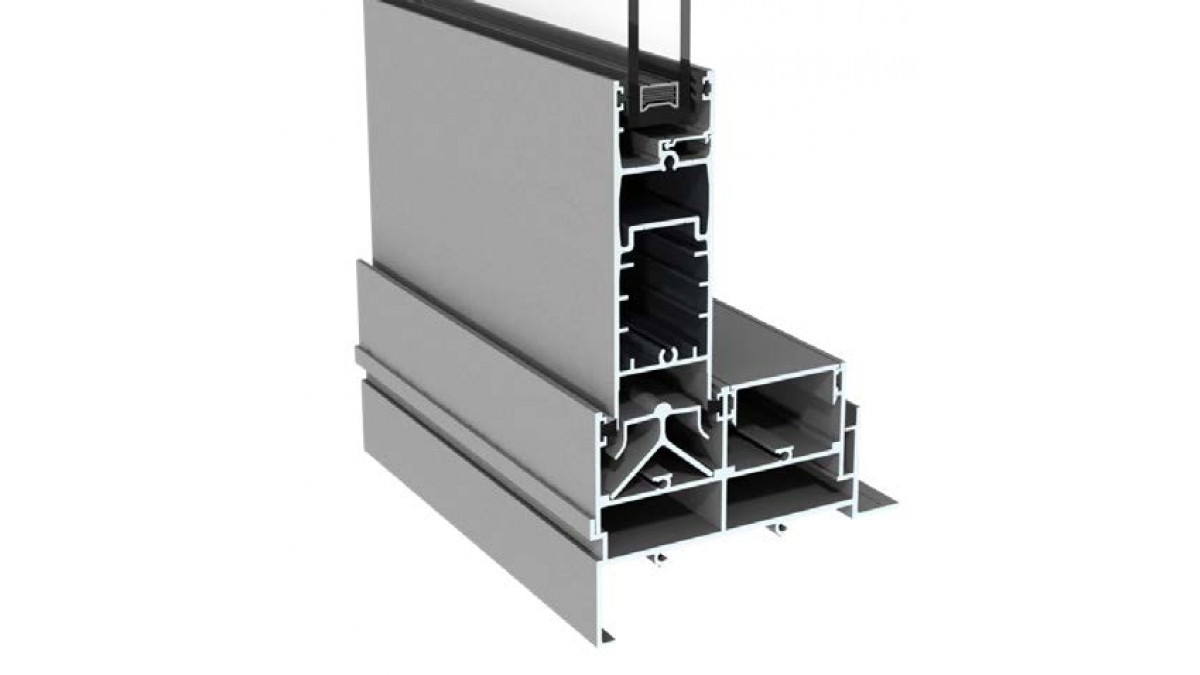

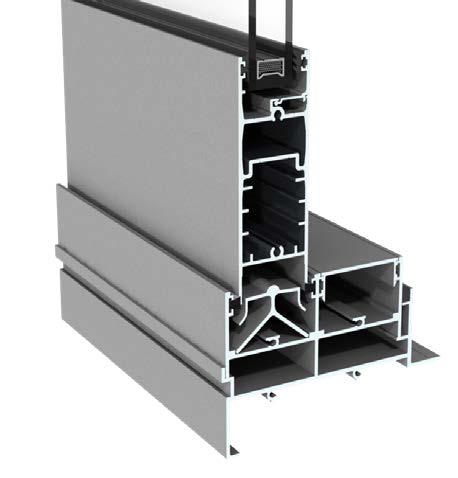

Flush sill option with bottom rail

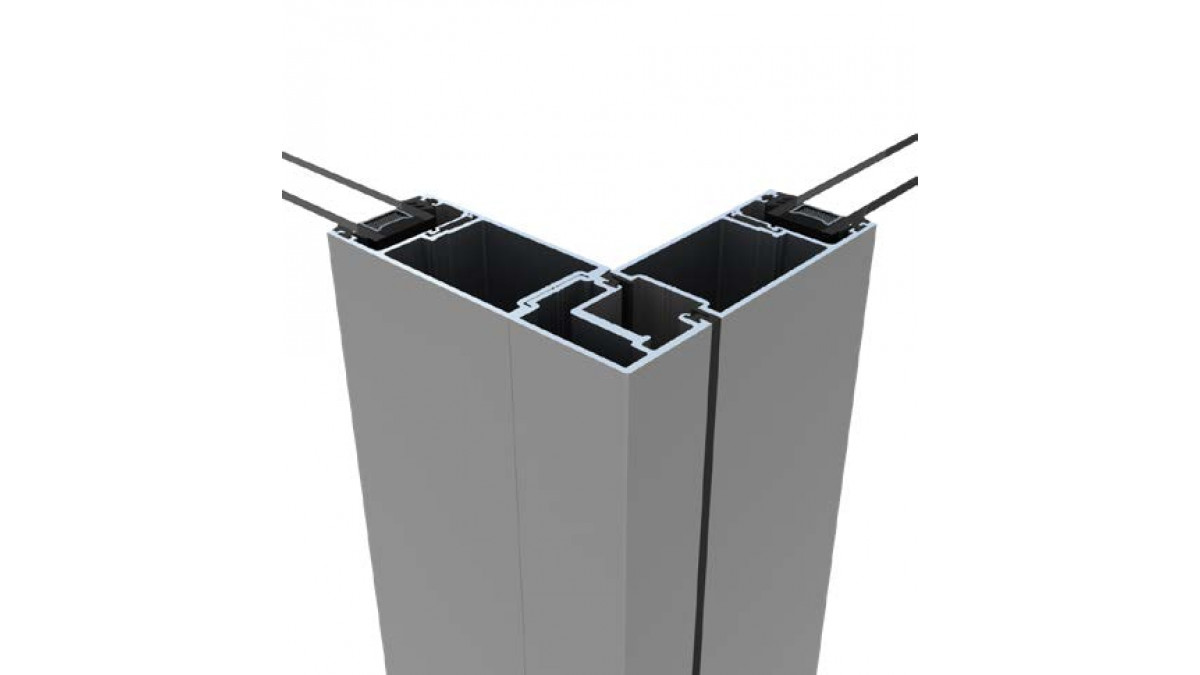

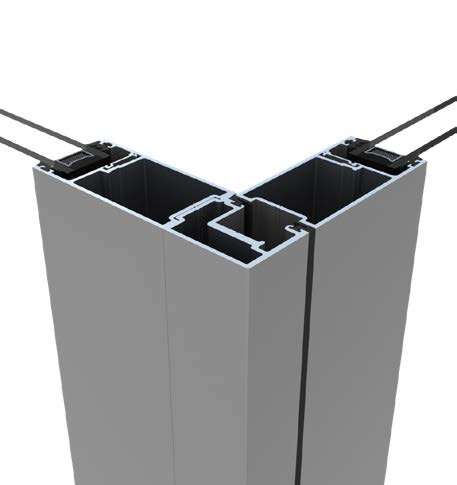

90° corner meeting stiles

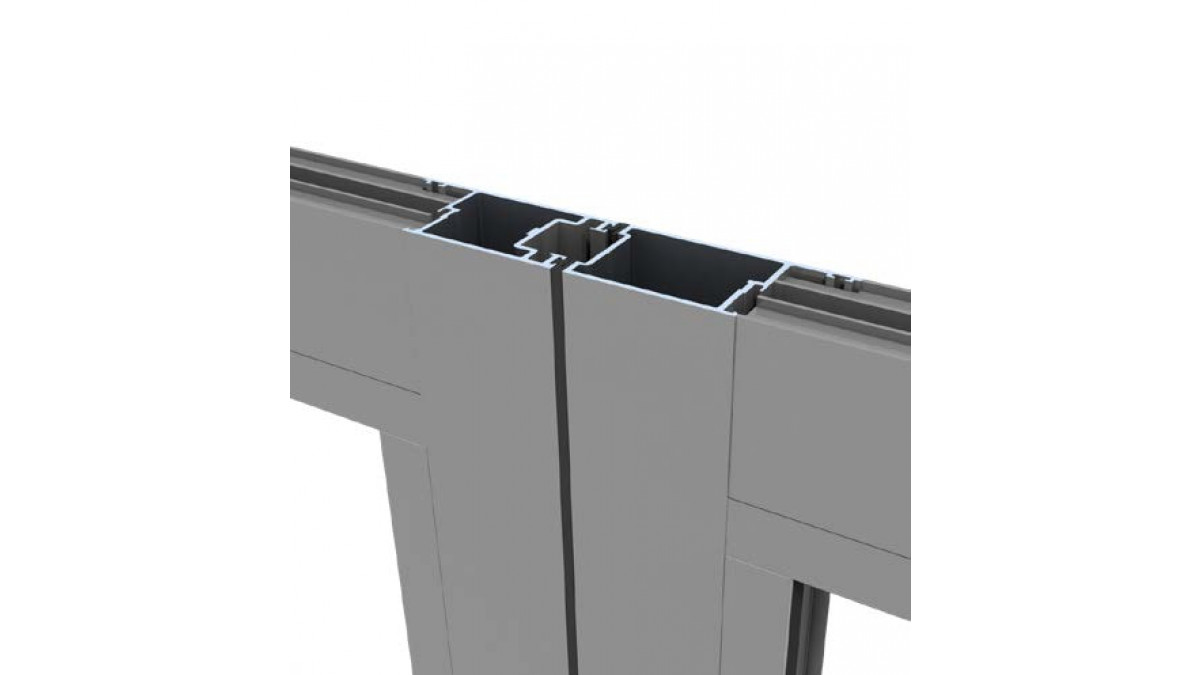

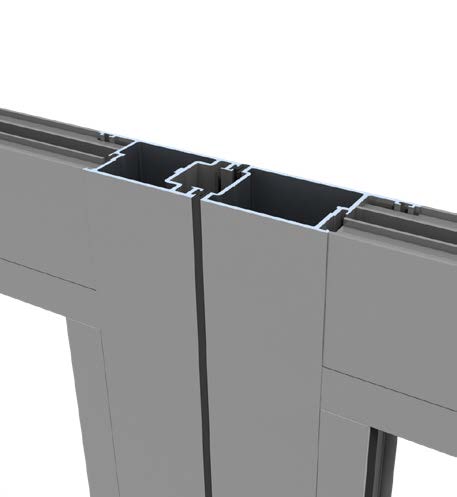

Bi-parting meeting stiles

Product Enquiries

Description

Sliding windows use the sliding door frame and panels move on an outside track. They can meet at 90° corners without the need for a corner post.

Most configurations include a fixed side panel. However, a bypass slider option is available where two or more panels are configured to open from opposing ends.

For best overall performance, pair with The AGP System® with Solux-E® or Solux Ultra® low-e glass.

Key Features

Designed for suitability for Extra High wind zones and Specific Design applications
APL Architectural Series sliding windows use the sliding door frame but generally have smaller interlocker stiles, mullions and bi-parting meeting stiles
The sill frame has both sloped and flush track options
The sloped sill option has a smaller top and bottom rail
Interlocker stiles and mullions are flush in the closed position
Ideal for non-projecting or servery windows

Ranges

APL Architectural Series

Scope of Use

Suitable for most applications where non-projecting windows are desired
Need to be used in defined maximum sizes according to the wind exposure
Designed for suitability for Extra High wind zones and Specific Design applications

Limitations on Use

Consider the ease of reaching to the window catch if the sliding panel is placed beyond a bench
Some weather protection above e.g. wide eaves recommended to protect open windows

Statement of Building Code Compliance

Designed, tested and manufactured to meet NZS 4211: Performance of Windows, and NZS 4233: Glazing in Buildings, Parts 1-4
Designed and tested to conform to NZ Building Code, including Clause E2

In-Service History

Launched in 2004
Design upgrades regularly released
Widely used by homeowners, builders and specifiers

Other Performance Attributes

Window and door warranty provided under normal conditions of use against failure of materials and workmanship for a period of five years
Surface finish is covered by a separate performance warranty dependent on the actual finish selected
A hardware/componentry warranty is offered against defects in manufacturing, functionality and surface finish for a period of five years, provided care and maintenance guidelines have been followed

Documents

Data Sheet

pdf

Span Tables

pdf

Declare Label

2025

pdf

Calculate R-Value and Ug-Value

pdf

FIRST on Masterspec

URL

Full Specification

docx

Specification Clause

docx

Specifier Guide

pdf

WGANZ Guide to E2/AS1

1 August 2019

pdf

AGP Care & Maintenance

pdf

First Care, Maintenance & Warranty Brochure (with AGP)

2020

URL

AGP State of the Art Glass Brochure

URL

First Brochure

2014

URL

AGP Condensation Guide

pdf

AGP Visual Quality of Glass

pdf

APL and Sustainability

2024

URL

Manufacturer Contact List

URL

CAD/PDF Details

View full

Full Set of Drawings

pdf

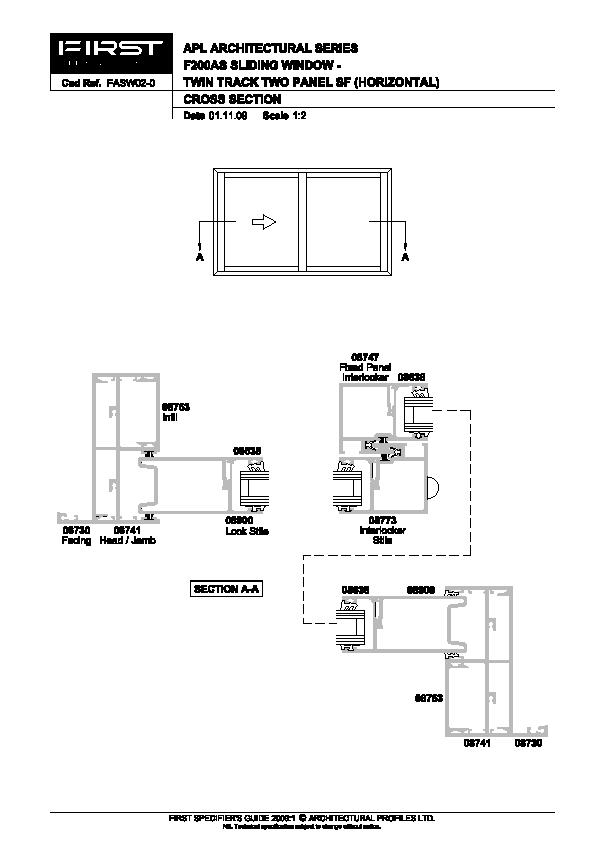

FIRST APL Architectural Series F200AS Sliding Window - Twin Track Two Panel SF (Horizontal)

FASW02-0

dwf

dwg

dxf

pdf

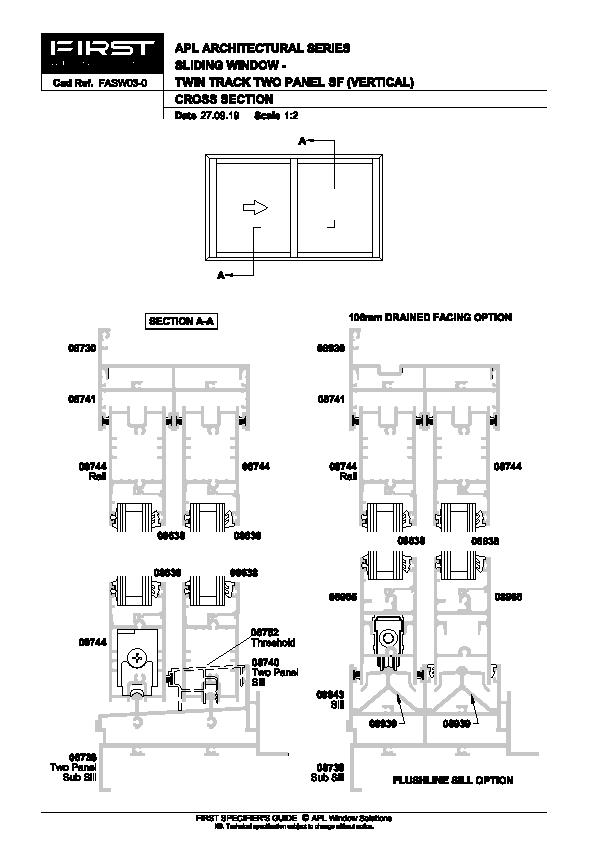

FIRST APL Architectural Series Sliding Window Twin Track Two Panel SF

FASW03-0

dwf

dwg

dxf

pdf

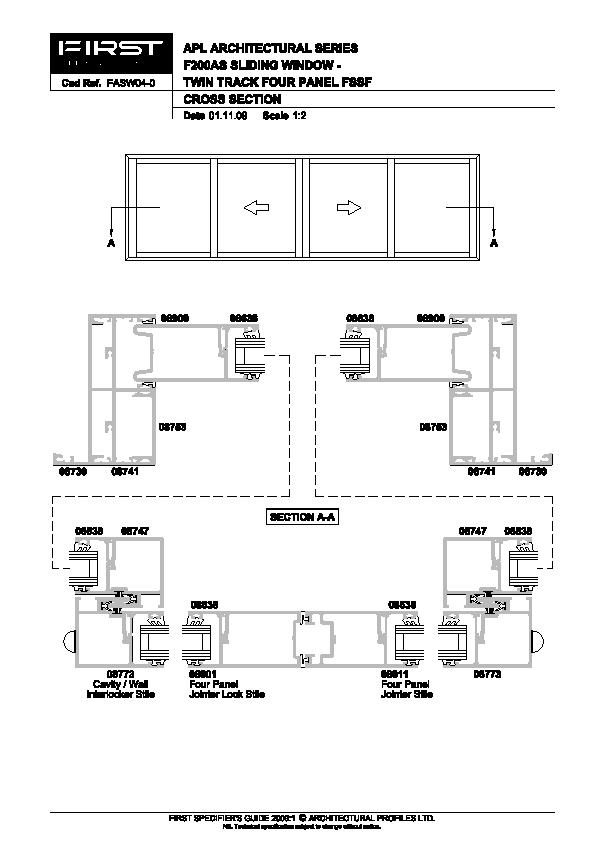

FIRST APL Architectural Series F200AS Sliding Window - Twin Track Four Panel FSSF

FASW04-0

dwf

dwg

dxf

pdf

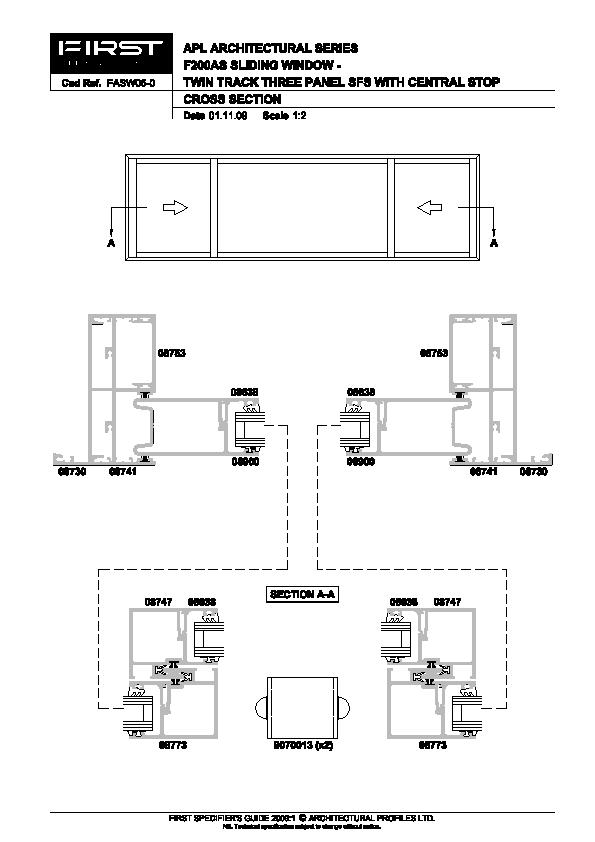

FIRST APL Architectural Series F200AS Sliding Window - Twin Track Three Panel SFS with Central Stop

FASW05-0

dwf

dwg

dxf

pdf

Installation Details

View full

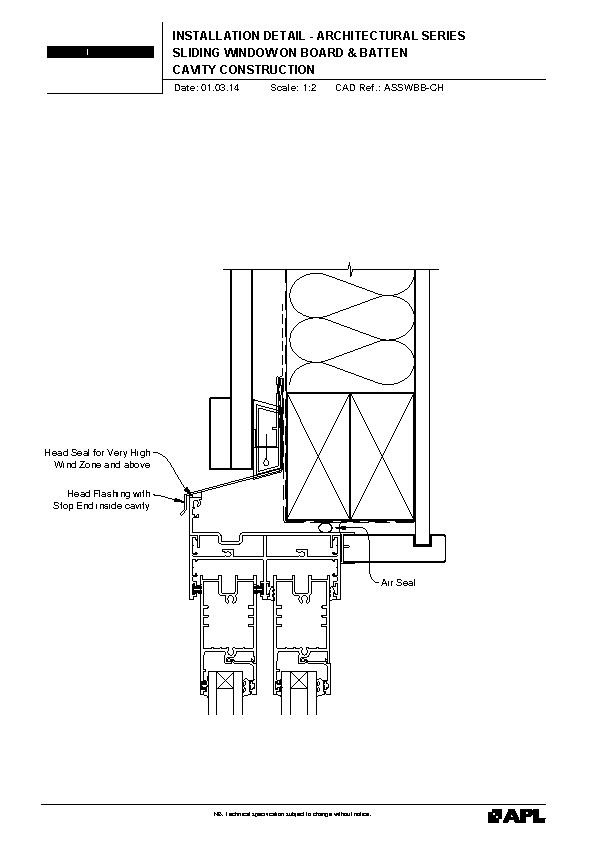

FIRST APL Architectural Series Sliding Window on Board and Batten

ASSWBB

dwg

pdf

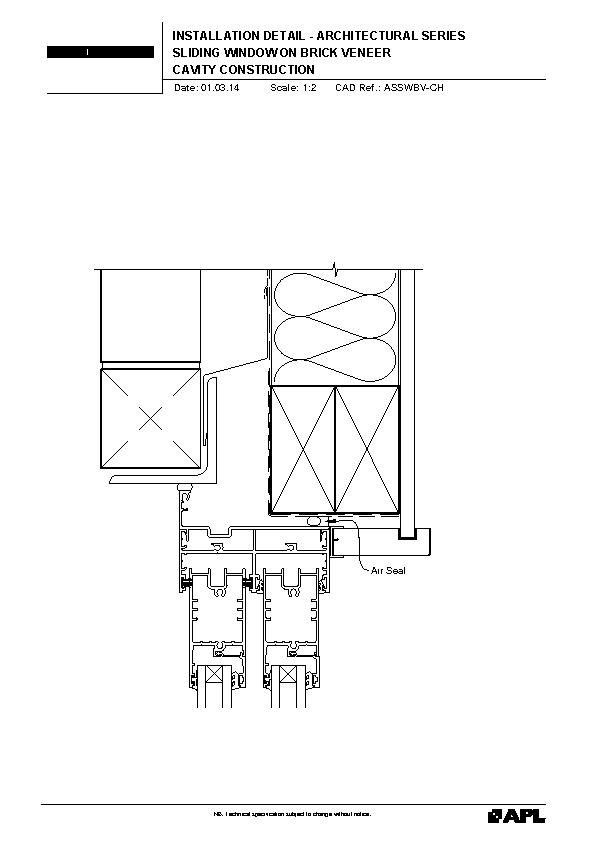

FIRST APL Architectural Series Sliding Window on Brick Veneer

ASSWBV

dwg

pdf

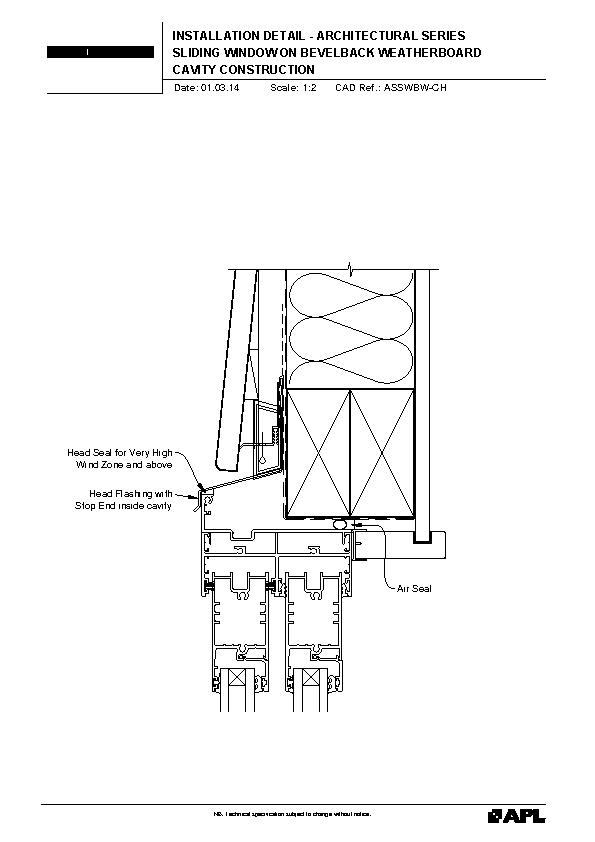

FIRST APL Architectural Series Sliding Window on Bevelback Weatherboard

ASSWBW

dwg

pdf

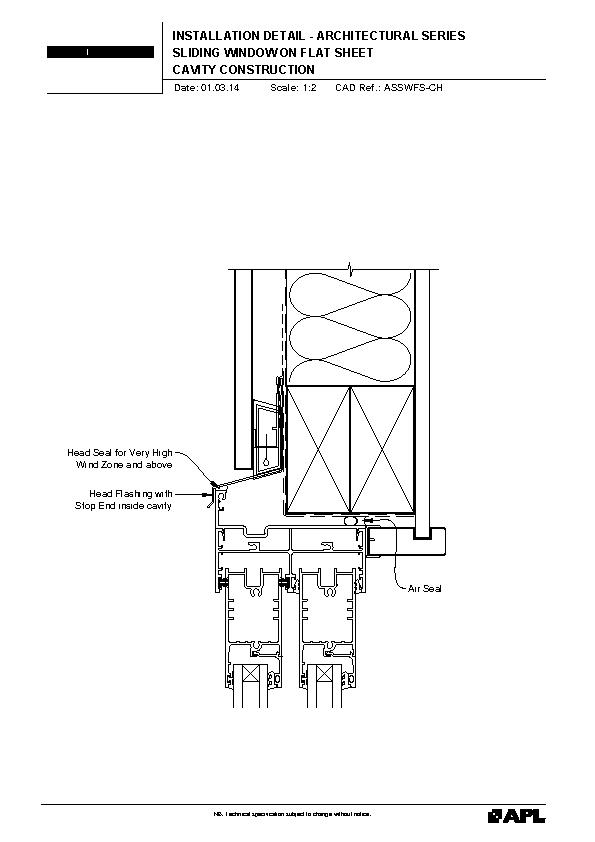

FIRST APL Architectural Series Sliding Window on Flat Sheet

ASSWFS

dwg

pdf

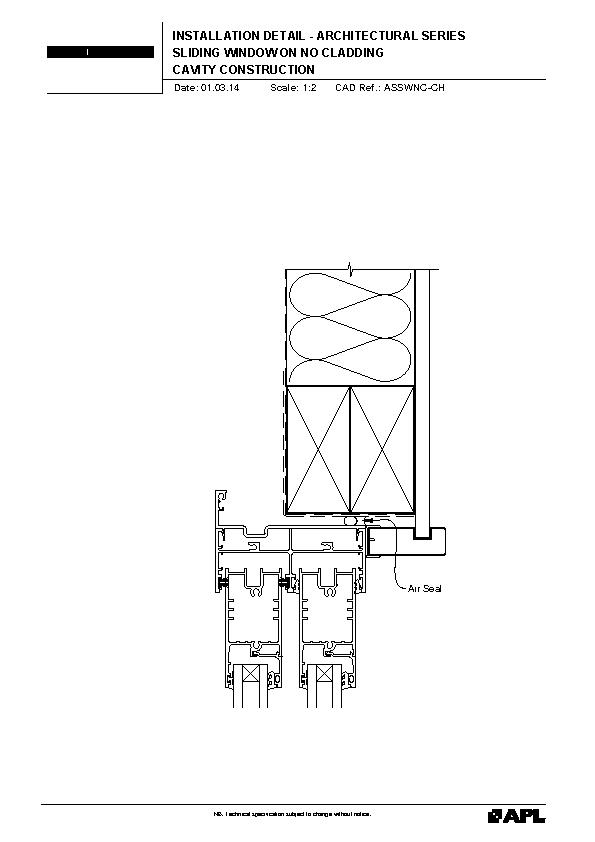

FIRST APL Architectural Series Sliding Window on No Cladding

ASSWNC

dwg

pdf

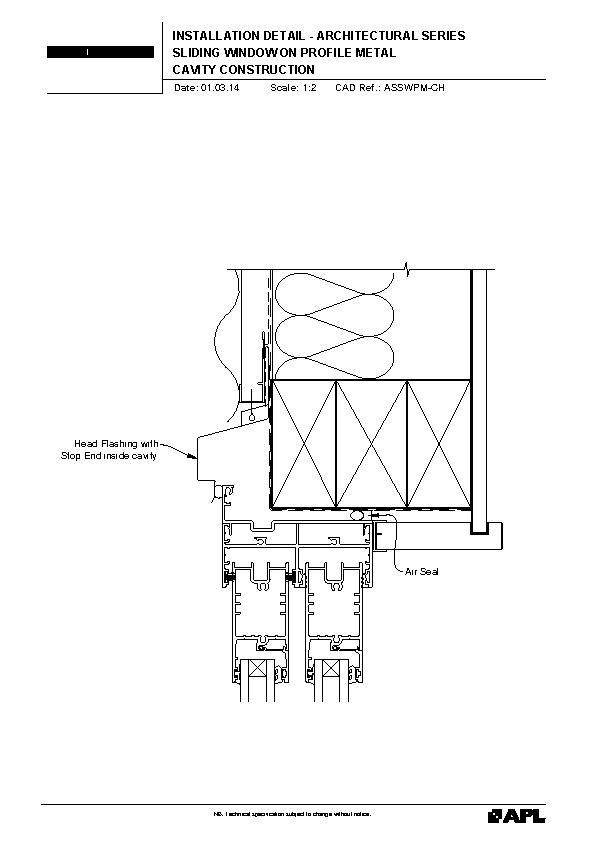

FIRST APL Architectural Series Sliding Window on Profile Metal

ASSWPM

dwg

pdf

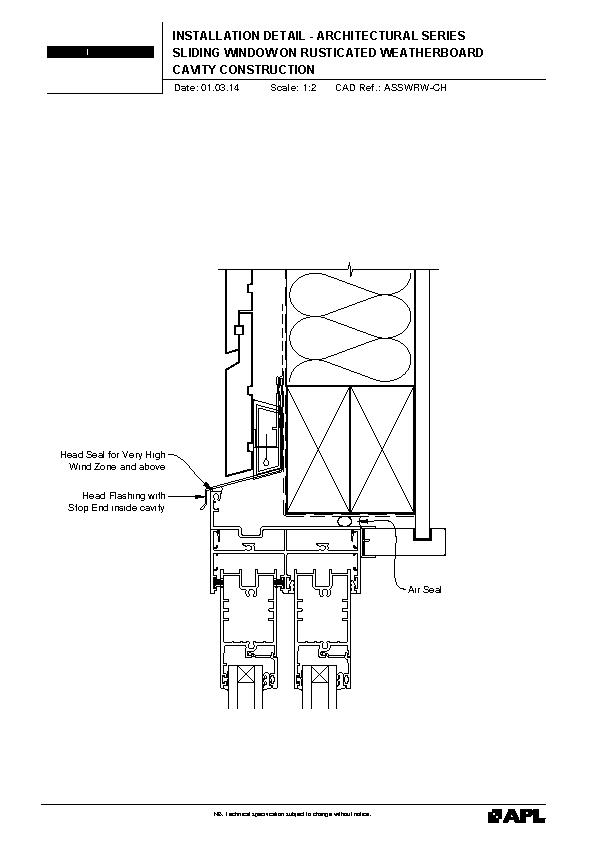

FIRST APL Architectural Series Sliding Window on Rusticated Weatherboard

ASSWRW

dwg

pdf

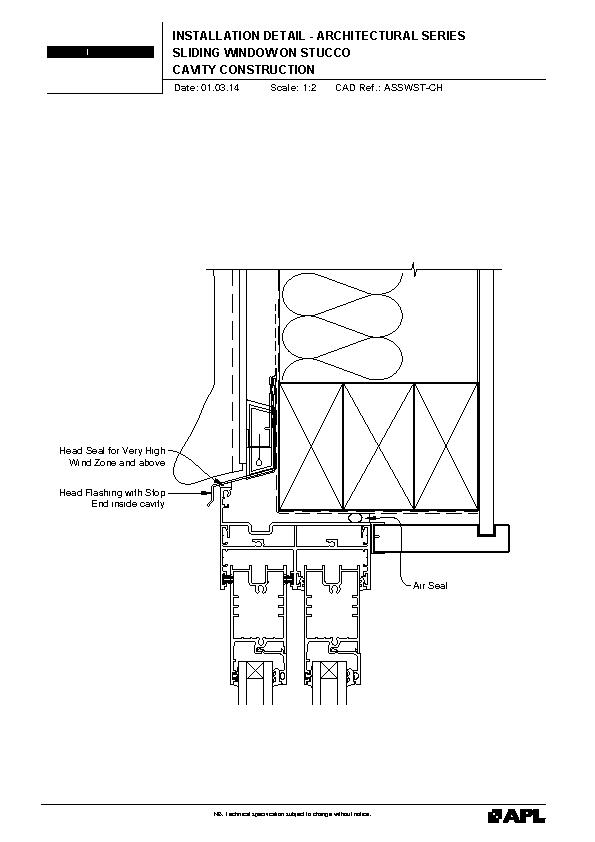

FIRST APL Architectural Series Sliding Window on Stucco

ASSWST

dwg

pdf

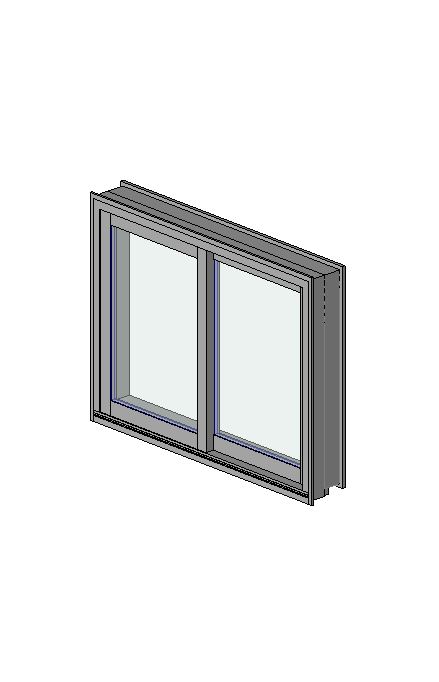

BIM

View full

First Windows & Doors deliver a wide variety of high-performing solutions for residential and commercial projects. Available as a complete window system with AGP glass.

Product Enquiries

Categories

Popular Products

Popular Brands

Features

Sections

This Month

The Creative Art of Downsizing

Creating a Distinctive Architectural Feature with Mario Romano Walls

AvanTech YOU Illumination: Customisation in a New Light

SECTIONS

Surface Water Sumps: Their Location, Sizing and Function

Passive Over-Heating of Homes

One Thing You Can Do to Improve Your Business

Description

Key Features

Categories

Ranges

Scope of Use

Limitations on Use

Statement of Building Code Compliance

In-Service History

Other Performance Attributes

Full Set of Drawings

FIRST APL Architectural Series F200AS Sliding Window - Twin Track Two Panel SF (Horizontal)

FIRST APL Architectural Series Sliding Window Twin Track Two Panel SF

FIRST APL Architectural Series F200AS Sliding Window - Twin Track Four Panel FSSF

FIRST APL Architectural Series F200AS Sliding Window - Twin Track Three Panel SFS with Central Stop

FIRST APL Architectural Series Sliding Window on Board and Batten

FIRST APL Architectural Series Sliding Window on Brick Veneer

FIRST APL Architectural Series Sliding Window on Bevelback Weatherboard

FIRST APL Architectural Series Sliding Window on Flat Sheet

FIRST APL Architectural Series Sliding Window on No Cladding

FIRST APL Architectural Series Sliding Window on Profile Metal

FIRST APL Architectural Series Sliding Window on Rusticated Weatherboard

FIRST APL Architectural Series Sliding Window on Stucco

FIRST APL Architectural Series Sliding Window FSSF

FIRST APL Architectural Series Sliding Window SF

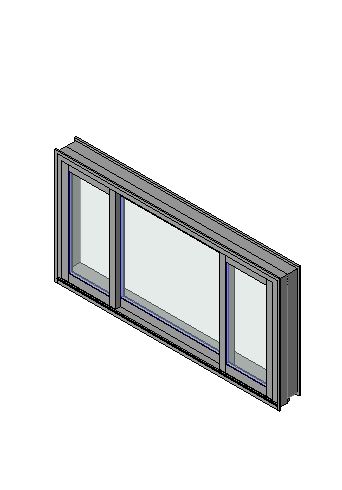

FIRST APL Architectural Series Sliding Window SFS
