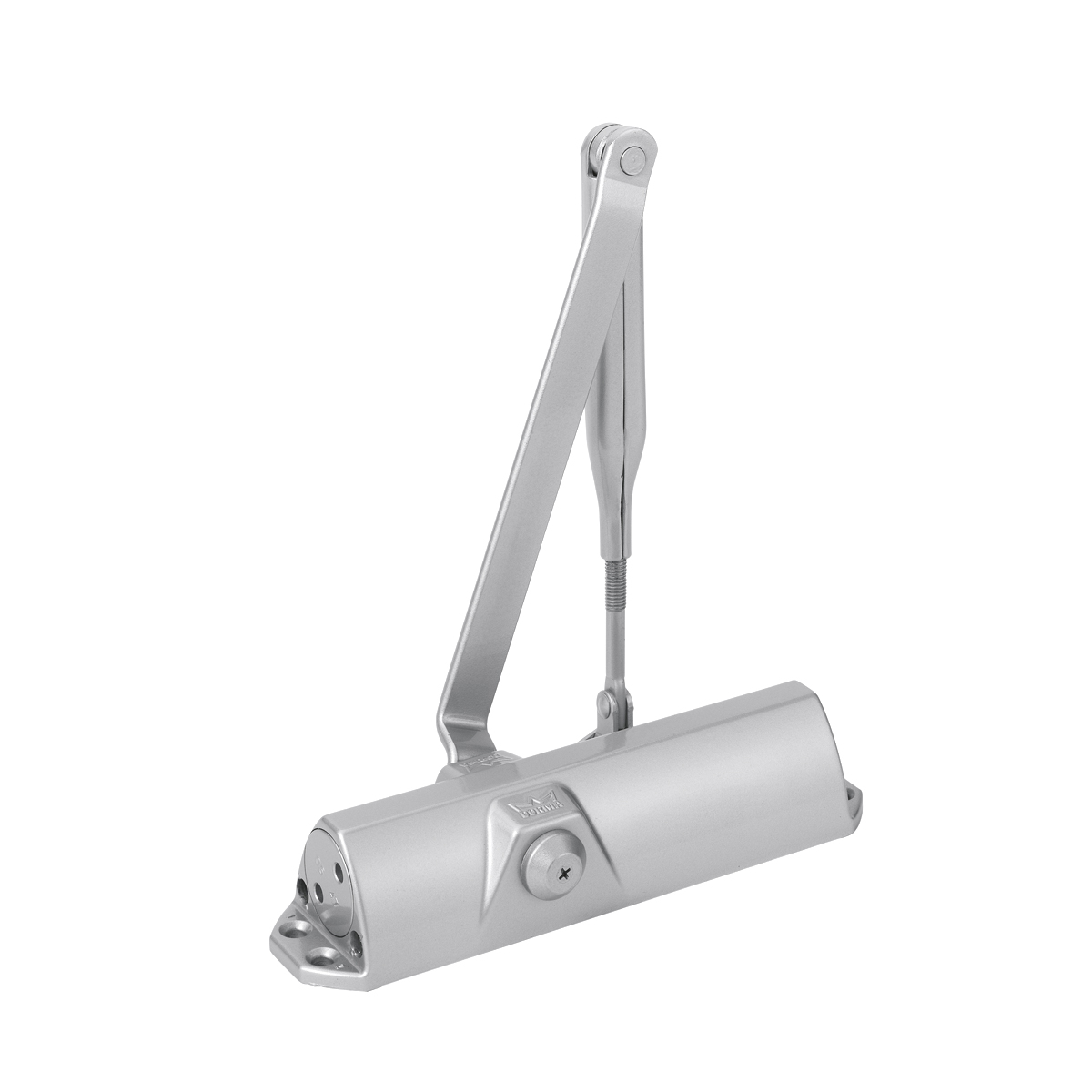

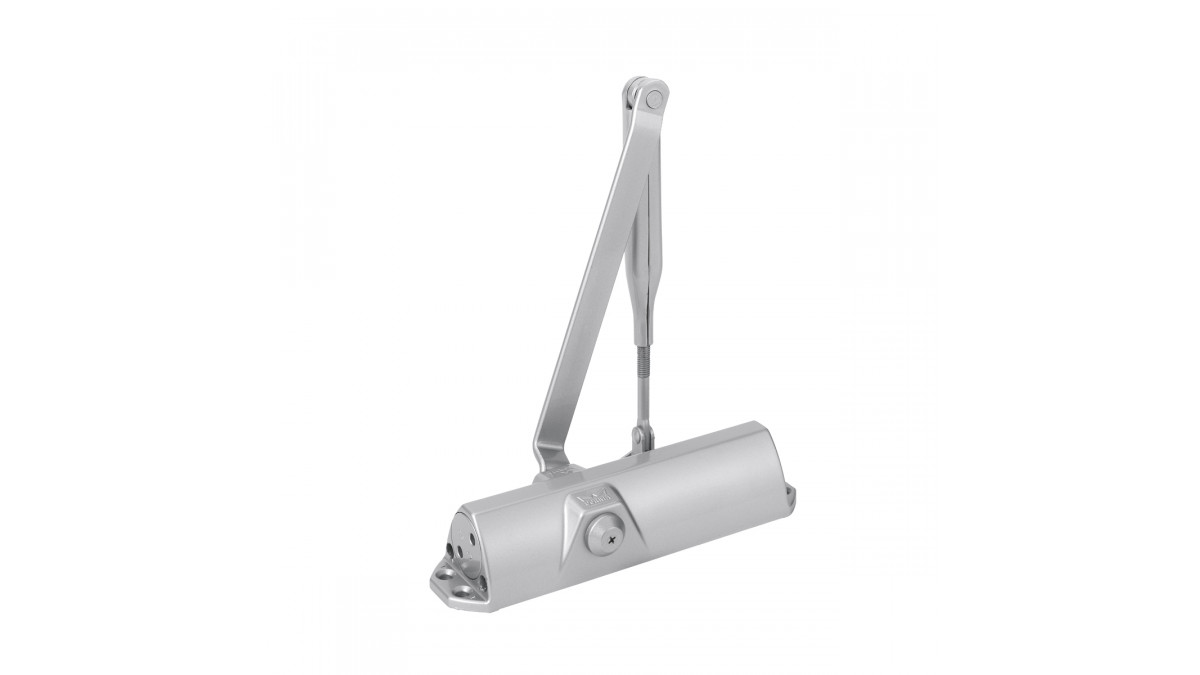

DORMA TS 68 Door Closer
Description

A rack-and-pinion door closer with a scissor arm. The DORMA TS 68 was developed as a low-cost door closer solution with a uniquely styled body appearance. Its nicely curved face sets it apart from other closers in the low cost segment.

Key Features
  • One model for all standard doors
  • Door widths up to 1100mm
  • Minimal closer body projection
  • Selectable closing force
  • Cost-effective
Categories
Automatic Doors
Ranges
Door Closers
Scope of Use

The DORMA TS 68 door closer is quick and easy to install. The closer arm's power shoe and changes in template position allow easy selection of the closing force to suit various door sizes. With minimal body projection when installed on the pull side, the doors can open to greater angles when close adjoining walls are a concern.

Statement of Building Code Compliance

Certified to ISO 9001

In-Service History

Singapore Sports Hub - Singapore

The Singapore Sports Hub designed by ARUPSPORT is more than merely multifunctional. Measuring 35 hectares, the huge complex of sporting arenas will accommodate 150 different sporting disciplines. Within it there are also several multifunctional sports halls, a swimming pool, skating park and a go-kart track, a water park for the dragon boat races so popular in Asia, and not least a 41,000 square meter shopping mall.

DORMA’s contribution to the project

The doors in any areas are equipped with DORMA door closer systems: about 200 doors in the substation areas and more than 500 doors in the façade (TS 68 and TS 73 V).



Documents
BPIR Product Statement: dormakaba Door Closers

v1.0 July 2024

ISO Certification
Warranty
Brochure
Additional Information
Can't find what your looking for? Contact Dorma for more information
CAD/PDF Details
TS 68 EN2 3 4 Pull Side Installation
TS 68 EN2 3 4 Push Side Transom Installation
TS 68 EN2 Push Side Parallel Arm Installation
TS 68 EN3 Pull Side Installation
TS 68 EN3 Push Side Transom Installation
Installation Details
TS 68 BC Standard Arm Installation Instructions

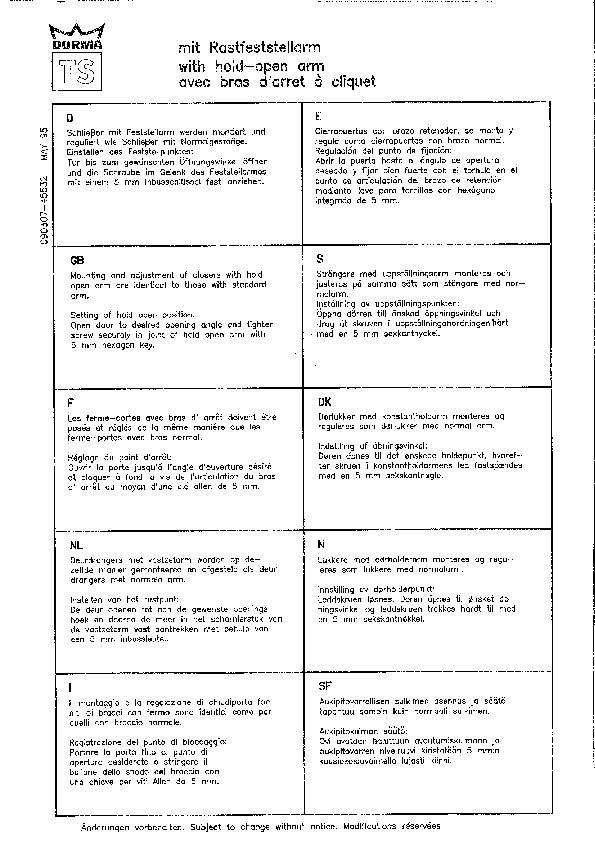

TS 68 HO Arm Installation Instructions
TS 68 NBC Standard Arm Installation Instructions

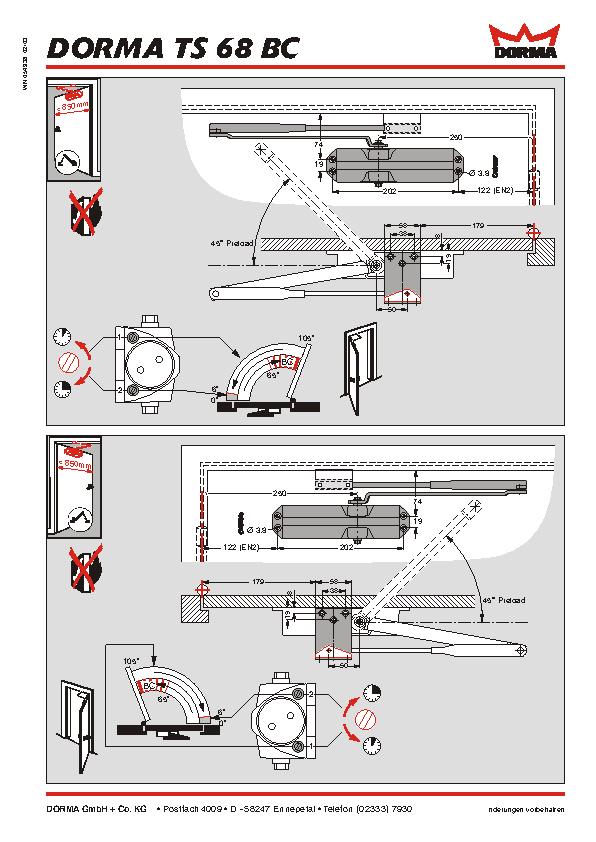

TS 68 Parallel Arm Installation Instructions
