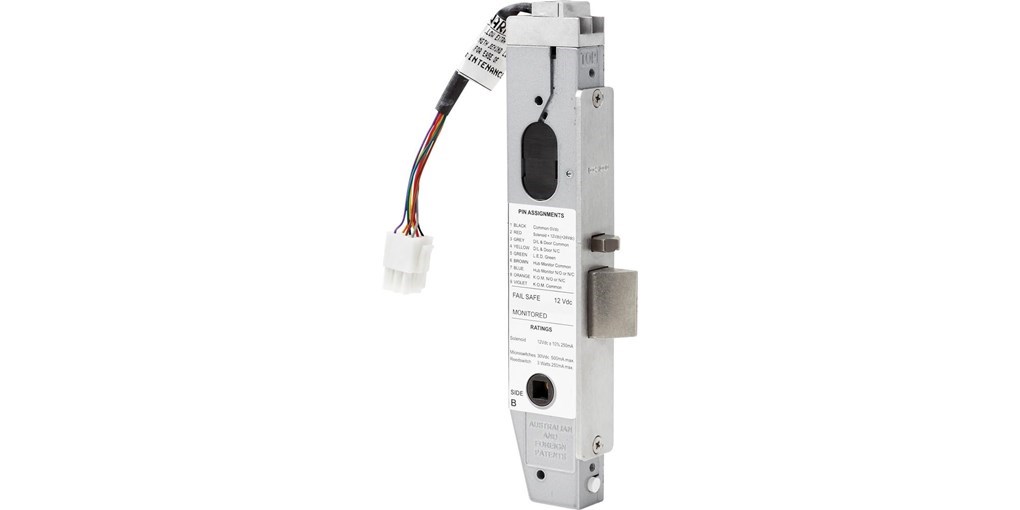

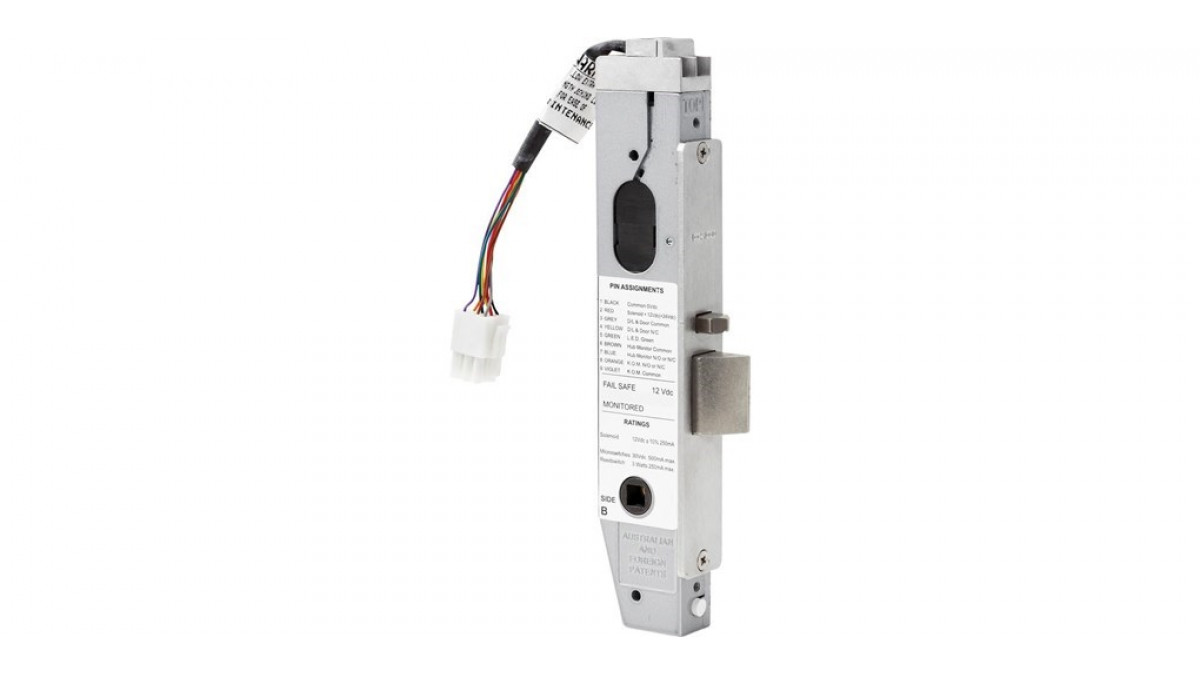

Lockwood Electric Mortice Locks: 3580 Series
Description

The lock can be operated by push buttons, intercom systems and key switches or integrated with electronic access control systems for use with higher security devices such as keypads or card readers.

The 3580 Series is available in a wide variety of configurations to suit varying requirements and is especially suited to narrow style or short backset applications.

Key Features
  • Voltage: Available in 12Vdc - 24Vdc
  • Current: 12Vdc ± 5% 250mA (max) and 24Vdc ± 5% 125mA (max)
  • LED Current: When LEDs are fitted, add 15mA (max) to total current draw
  • Monitoring: Key override / Deadlatched and door closed / Request to exit / Hub/deadlatch/key override monitor: max ratings 500mA @ 30Vdc / Door status monitor: max ratings 3W, 250mA (max) @ 12Vdc, 125mA (max) @24Vdc
  • Environment: Operational temperature range -20°C to +60°C
  • Case/Cover: High purity zinc alloy construction
  • Backset: 23mm standard, 25.4mm, 30mm and 38mm extended available
  • Latch bolts: 15mm stainless steel construction
  • Door clearance: 3 mm to 6.5mm
  • Door thickness: Standard applications 32 to 50mm — Extension kits available
  • Cylinder: Standard Lockwood oval shaped cylinders
  • Cabling: 3.6m length of cable with 9 pin socket supplied with each lock. Recommended cabling: 18AWG (0.82mm2) cable runs up to 30m
  • Furniture: Compatible with Lockwood series door furniture
  • Standard Finishes: Satin Chrome (SC) standard / Bright Chrome (CP) / Polished Brass (PB)
Categories
Locks
Scope of Use
  • Compatible with Lockwood series door furniture
  • Door thickness: Standard applications 32 to 50mm — Extension kits available
  • 3.6m length of cable with 9 pin socket supplied with each lock
