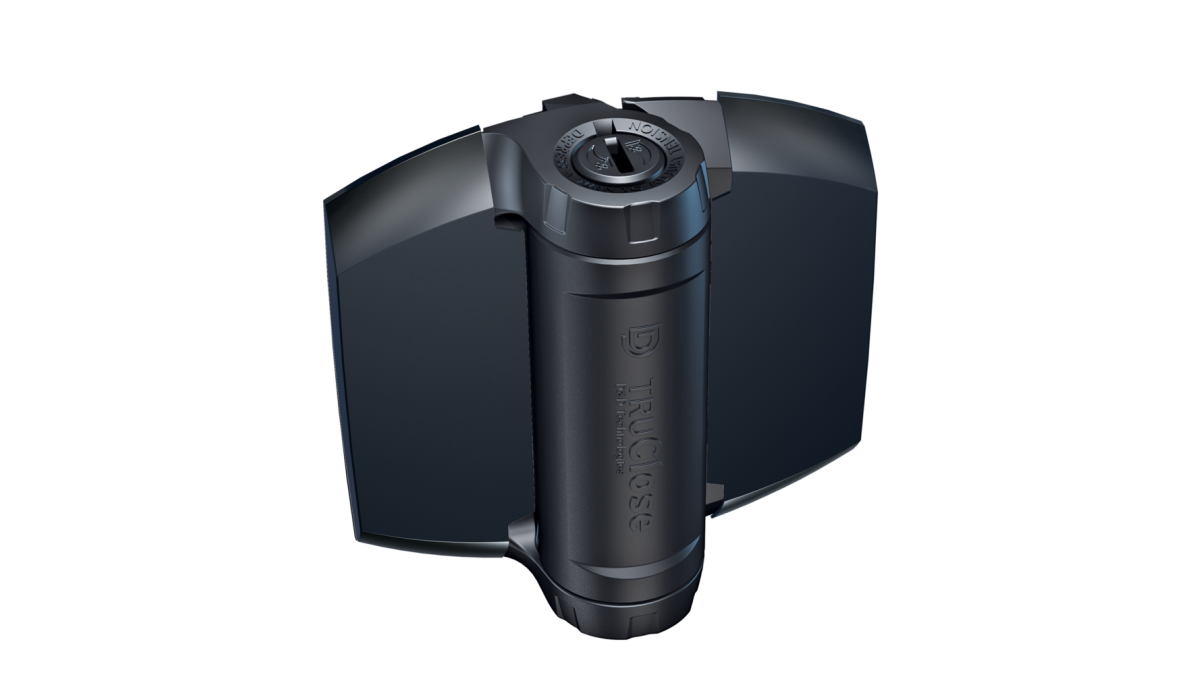

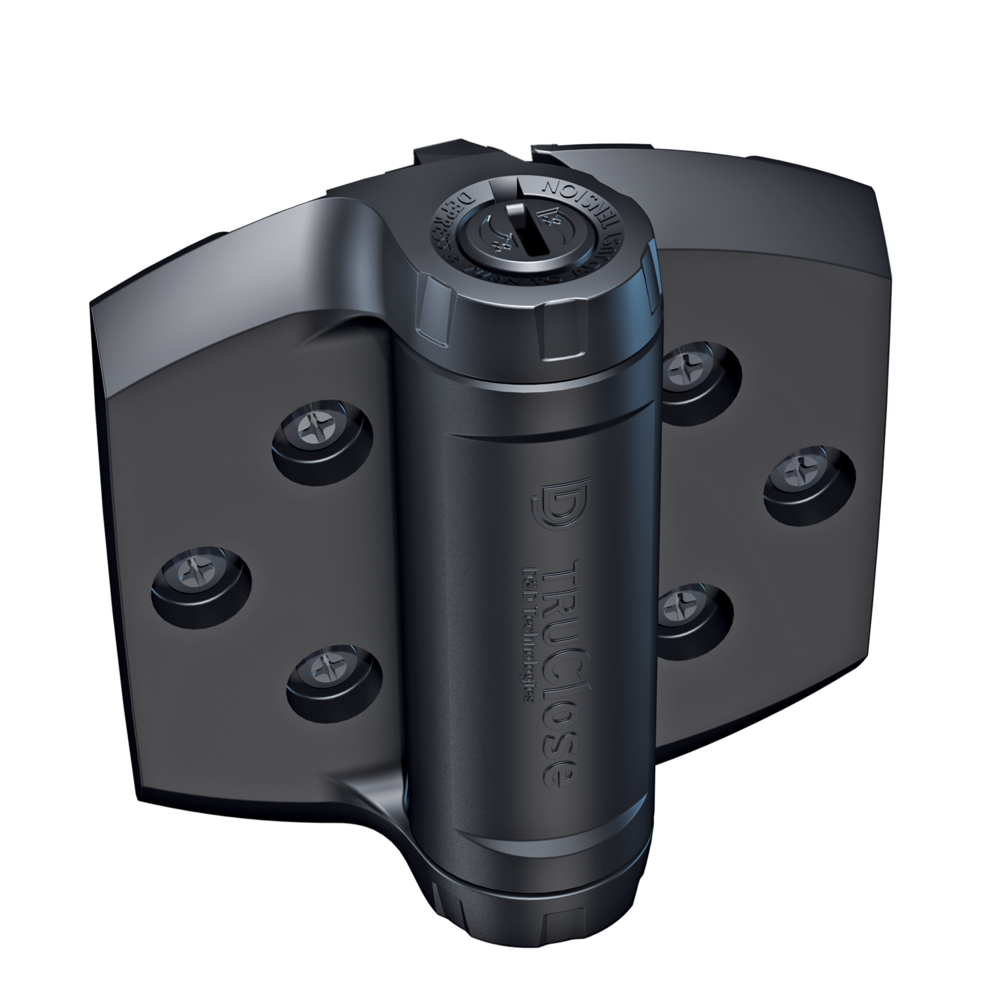

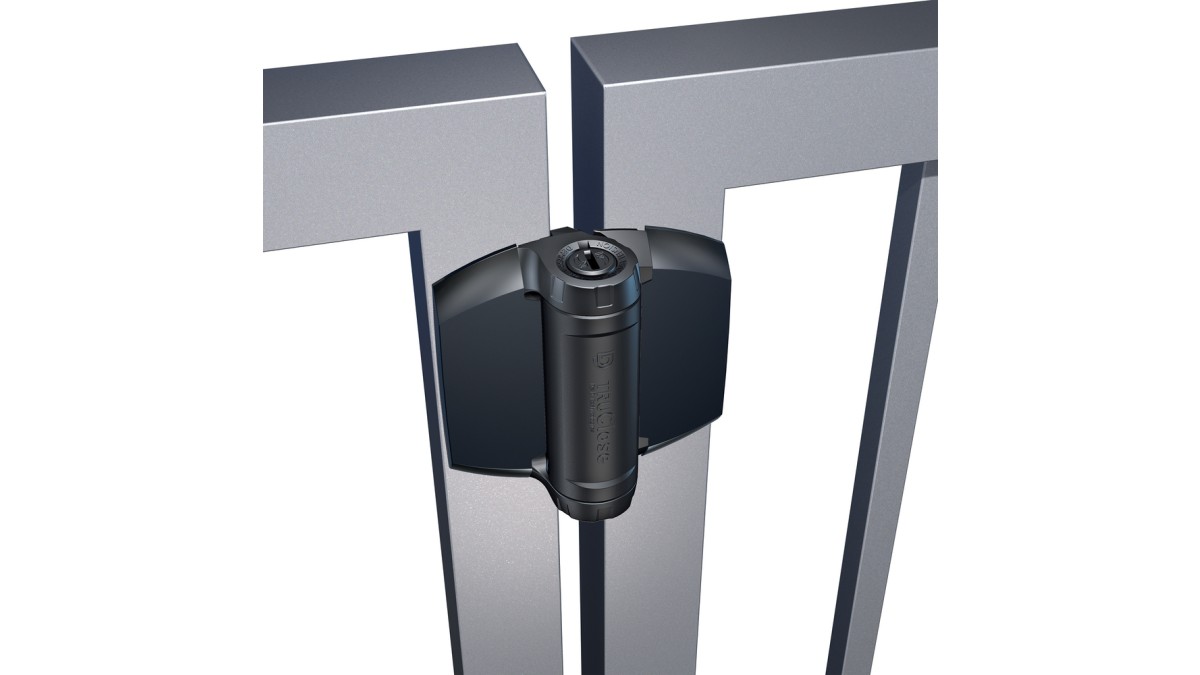

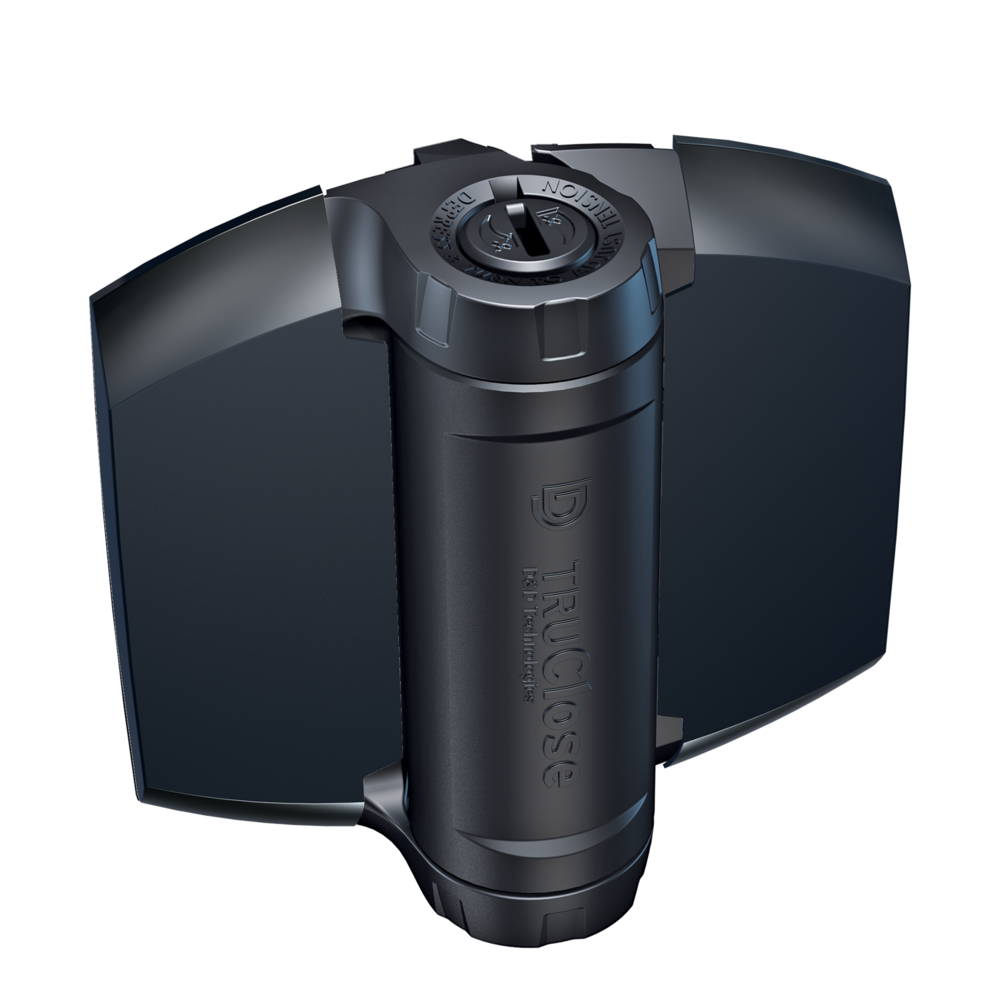

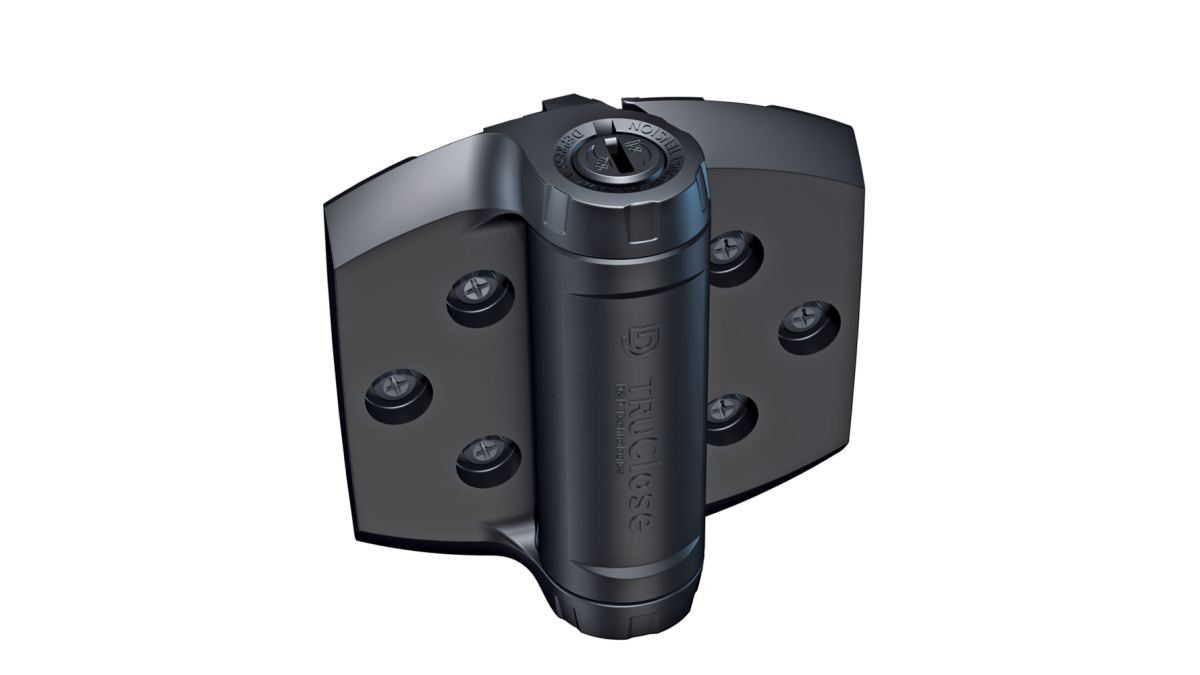

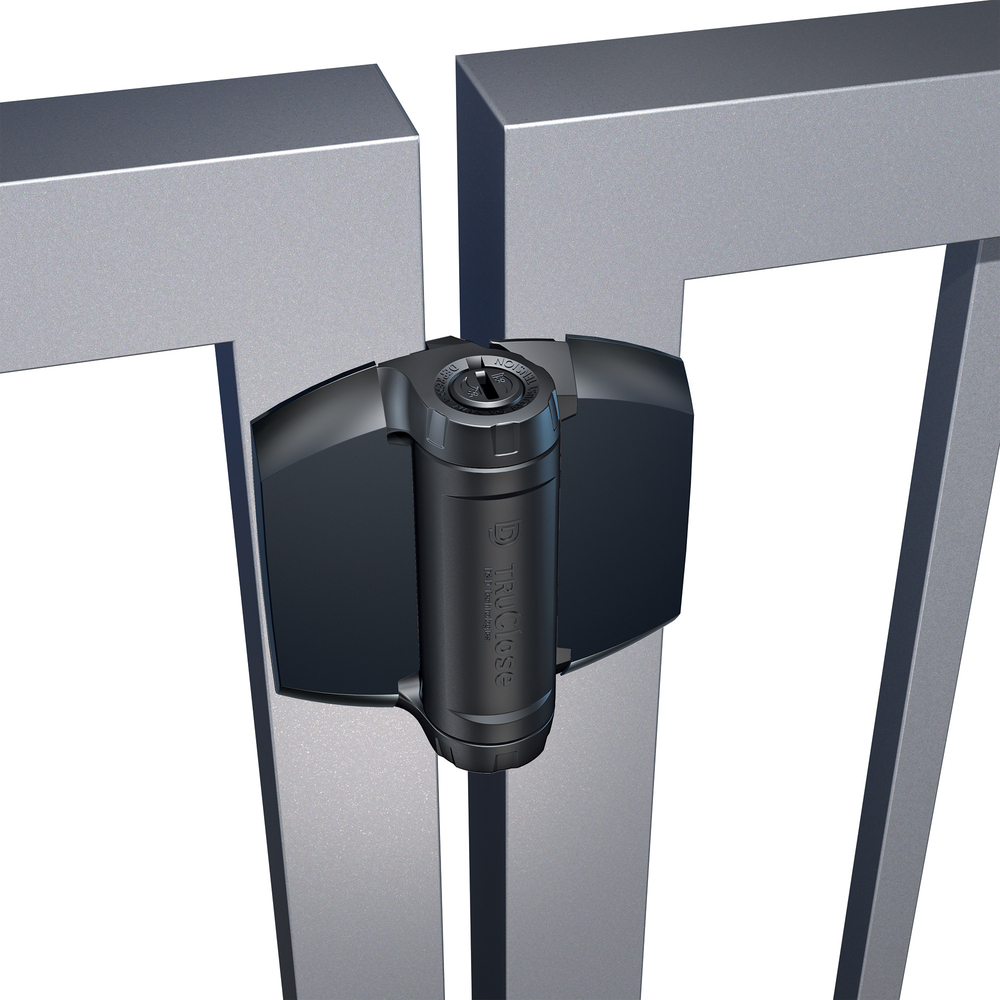

D&D Technologies Truclose® Heavy Duty Hinge For Metal/Wood/Vinyl Gates
Description

TruClose® Safety Gate Hinges are trusted child safety gate hinges. These polymer hinges were devised to overcome all the problems associated with conventional gate hinges rust, binding, sagging and staining. The TruClose Heavy Duty range of hinges are designed for heavy or high-traffic gates weighing up to 70kg. The engineering-grade polymers and a stainless-steel closing spring deliver hinges designed to last a lifetime.

Due to a high degree of safety and reliability, TruClose hinges are ideal for child safety gates around swimming pools, childcare centres, schools, homes, playgrounds and hotels/resorts. TruClose hinges are quick and easy to install and to adjust for self-closing speed. They come standard with Black trim covers, which means there are no visible fasteners. Optional Polished or Chrome metallic trim covers are also available.

The TruClose® Heavy Duty hinges come in a range of other options, including some with side-fixing legs (to assist speedy installation and extra fixing strength), a MultiAdjust version offering remarkable 3-way adjustment (vertical, horizontal and tension adjustment) and a version for round-posted gates and fences (such as on tennis court gates etc.). D&D has sold millions of these award-winning TruClose® Safety Gate Hinges worldwide.

  • Product Code: TCHD1S3
  • Gate Type: Self-Closing
  • Gate Material: Aluminium, Steel/Ornamental Iron, Wood, Vinyl/PVC
    Self-Closing Gate Weight: Up to 70kg
  • Approx Gate Size: 1.2m W x 1.8m H
  • Gate Frame/Post Shape: Square-to-Square
  • Min Post Size: 50mm+
  • Ideal Gate Gap: 19mm
  • Fixing Method: Screw-On
  • Colour/Finish: Black, Brushed Metallic, Polished Metallic
Key Features
  • Quick and easy to install
  • Self-closes gates up 70kg
  • Won’t rust, bind, sag or stain
  • Simple, adjustable closing tension (from either end of hinge)
  • Super-strong polymer and stainless steel construction
  • UV-stabilised and self-lubricating durability
  • Gloss black, decorative trim covers (no visible fasteners)
  • Optional 2 side-fixing legs for faster alignment & added strength
  • Australian made and owned
  • Lifetime warranty
Scope of Use

Self-closing hinges for high-traffic & pool gates, up to 70kg.

  • Pool Gate
  • Child Safety Gate
  • Playground Gate
  • Front or Side Gate
  • Pedestrian Gate
  • Driveway Gate — single or double
  • Pet Gate
  • Public/Commercial Gate
  • Security Gate
  • Privacy Gate

Installation:

  • Gate Material: Aluminium, Steel/Ornamental Iron, Wood, Vinyl/PVC
  • Self-Closing Gate Weight: Up to 70kg
  • Approx Gate Size: 1.2m W x 1.8m H
  • Gate Frame/Post Shape: Square-to-Square
  • Min Post Size: 50mm+
  • Ideal Gate Gap: 19mm
Limitations on Use
  • When installing TruClose® hinges to a swimming pool gate always confirm any safety requirements with local Council or safety authorities to ensure compliance
  • For pool and safety gates install a hinge safety cap (optional)
Other Performance Attributes
  • Won’t rust, bind, sag or stain
  • Super-strong polymer and stainless steel construction
  • UV-stabilised and self-lubricating durability
  • Lifetime warranty
