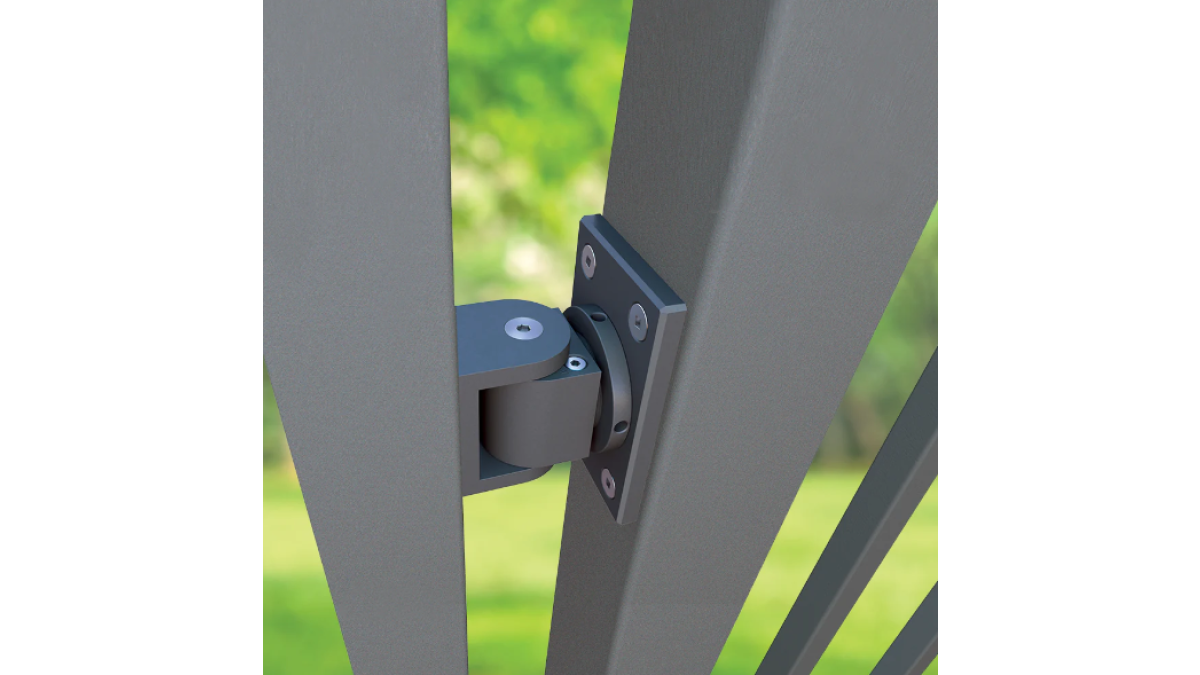

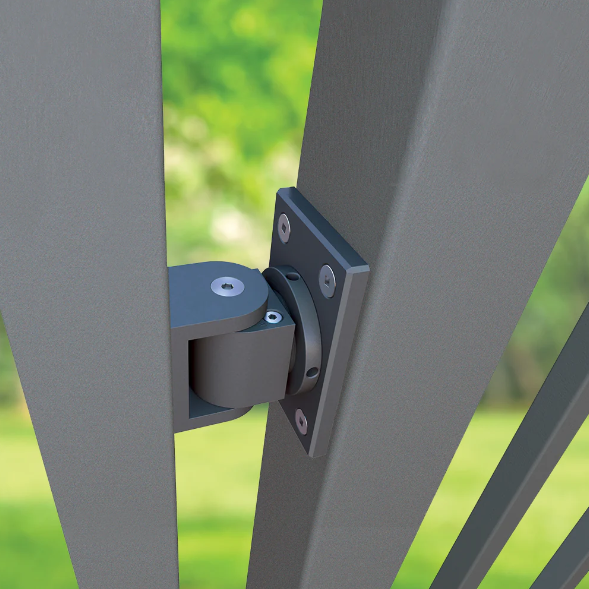

D&D Technologies Sureclose® Centre Mount Hinges & Hinge Closers
Description

Hydraulic SureClose® Gate Closers & Hinges are designed to replace conventional, bulky commercial gate hinges and closers. These strong and sturdy hinge-closers provide smooth, bind-free performance. Superb engineering and patented design allow clever concealment of the hydraulics in a remarkably small housing. There is no compromise of quality with these small-footprint SureClose® gate closers and hinges.

The SureClose® SM hinge was designed for large industrial-style gates, such as found on commercial and heavy residential gates, plus estate gates and gates around factories, schools, access control areas and driveways that dont require self-closure. The SM model features extra-large hinge pins and dual thrust bearings designed for high loads. Save money when SM is used as the bottom, load-bearing hinge along with a SureClose® 57 or SureClose® 108 closer. All SureClose® hinges and closers come packaged with the gate mounting bracket included.



Key Features
  • Self-Closing from 90° – will not hold open
  • Maintenance free
  • Self-Closes gates up to 120kg
  • Multiple adjustment options
  • Prevents gate slam noise & gate damage
  • 50 Micron hard anodising (Aluminium Components)
  • High corrosion resistance
  • 5 Year Limited Warranty
Scope of Use

Internally Mounted, Hydraulic, Gate Hinge-Closers

Gate Application: Front Gate, Side Gate, Pedestrian Gate, Pet Gate, Public/Commercial Gate, Security Gate, Privacy Gate

Other Performance Attributes
  • Product Code: 75001113-75001114-75057113M-75057114M-75057123M-75057124M
  • Gate Type: Self-Closing
  • Gate Material: Aluminium, Steel/Ornamental Iron
  • Self-Closing Gate Weight: Up to 120kg
  • Approx Gate Size: 1.2m W x 1.8m H
  • Gate Frame/Post Shape: Square-to-Square
  • Min Post Size: 50mm+
  • Ideal Gate Gap: 64-76mm
  • Fixing Method: TBC
  • Colour/Finish: Black Anodised
