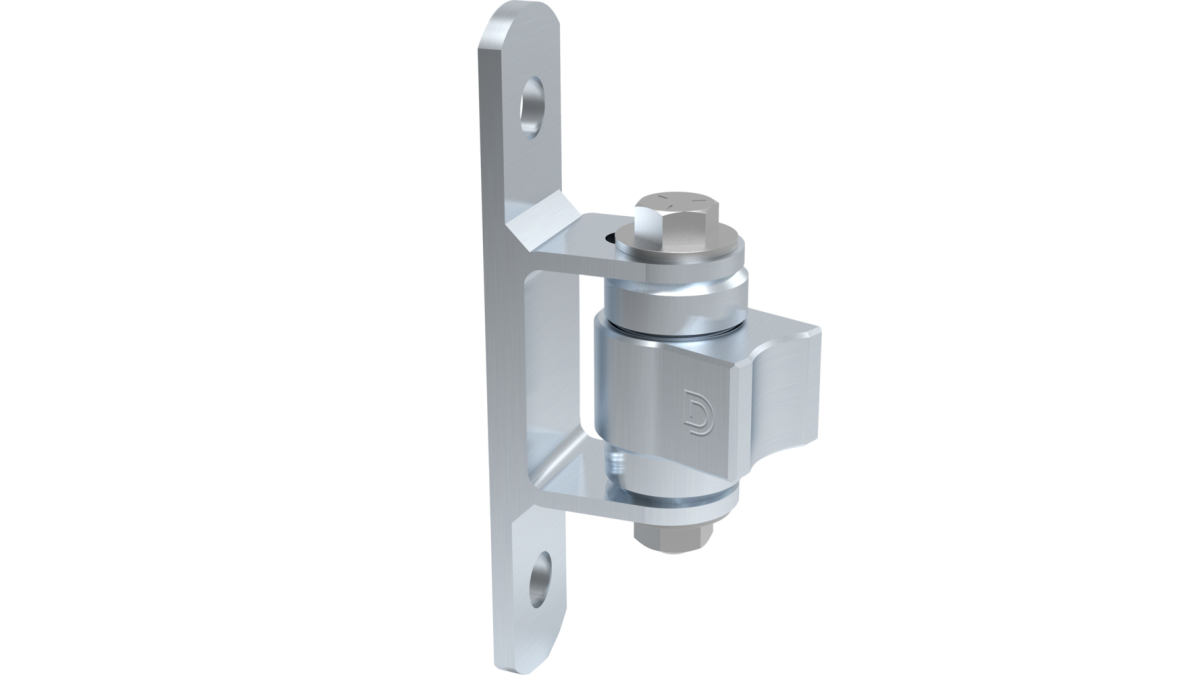

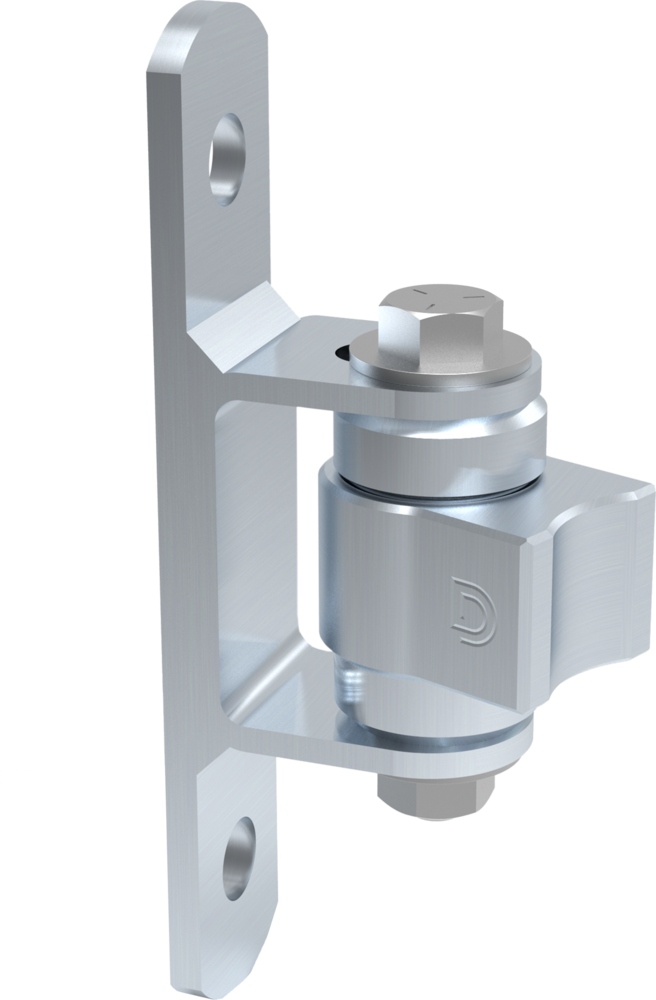

D&D Technologies Shut it® Half Bolt-On Badass Hinge
Description

Shut it® Half Bolt-On Badass Hinge are CNC machined to the tightest tolerances in the industry. The Half Bolt-On BadAss was designed to be used on gates where welding the hinges to the end post is not an option (no field welder). The Half Bolt-On BadAsses produce near frictionless movement with maintenance free usage.

  • Product Code: CI3770
  • Gate Type: Non Self-Closing
  • Gate Material: Steel/Ornamental Iron
  • Approx Gate Size: 2m H x 3m W
  • Gate Frame/ Post Shape: Square to Square, Square to round
  • Min Post Size: 38mm+
  • Ideal Gate Gap (mm): 67-80
  • Fixing Method: Bolt-On, Weld-On
  • Colour/Finish: Zinc
Key Features
  • Designed to bolt on to an end post
  • Two sealed maintenance-free bearings
  • Adjustable barrel for precise installations
  • Flat, bolt-on bracket for through bolting
  • Zinc plated
  • Load rating per gate: 900kg
  • Maximum gate weight: 450kg
Scope of Use

Non self-closing gate hinge. Designed to be used on gates where welding the hinges to the end post is not an option.

  • Pedestrian Gate
  • Driveway Gate — single or double
  • Pet Gate
  • Playground Gate
  • Public/Commercial Gate
  • Automated/Electric Gate
  • Security Gate
  • Privacy Gate
Installation:
  • Approx Gate Size: 2m H x 3m W
  • Gate Frame/ Post Shape: Square to Square, Square to Round
  • Min Post Size: 38mm+
  • Ideal Gate Gap: 67-80mm
  • Fixing Method: Bolt-on, weld-on
Limitations on Use
  • Load rating per gate: 900kg
  • Maximum gate weight: 450kg
Other Performance Attributes
  • Two sealed maintenance-free bearings
