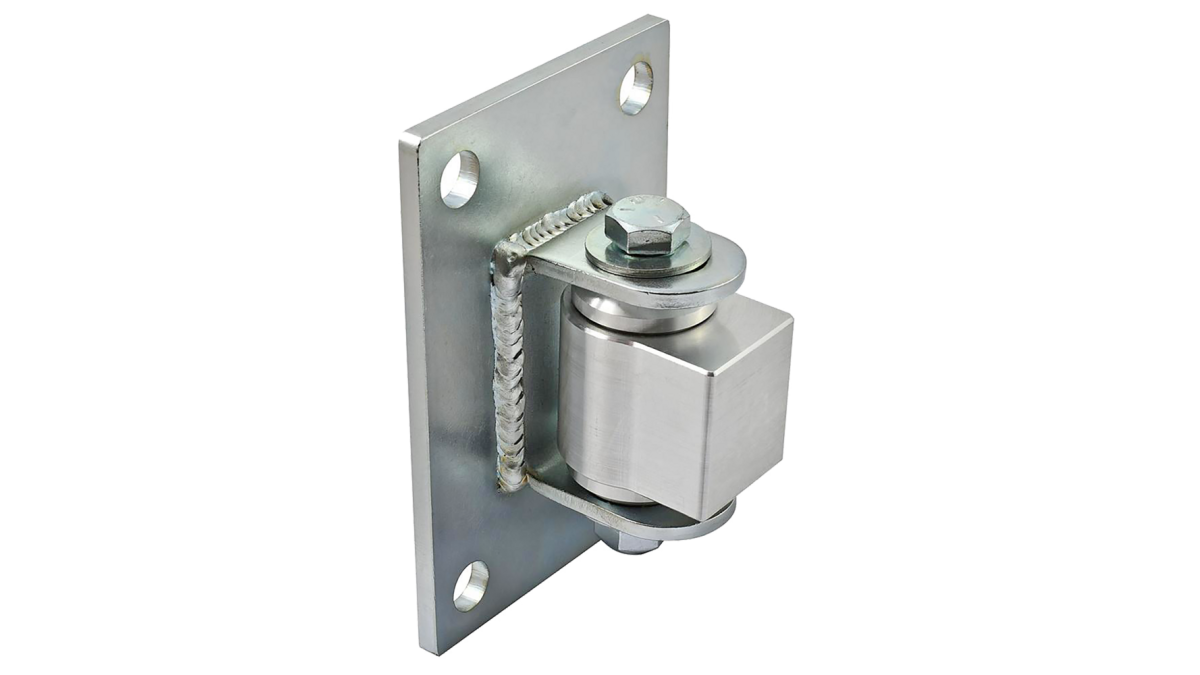

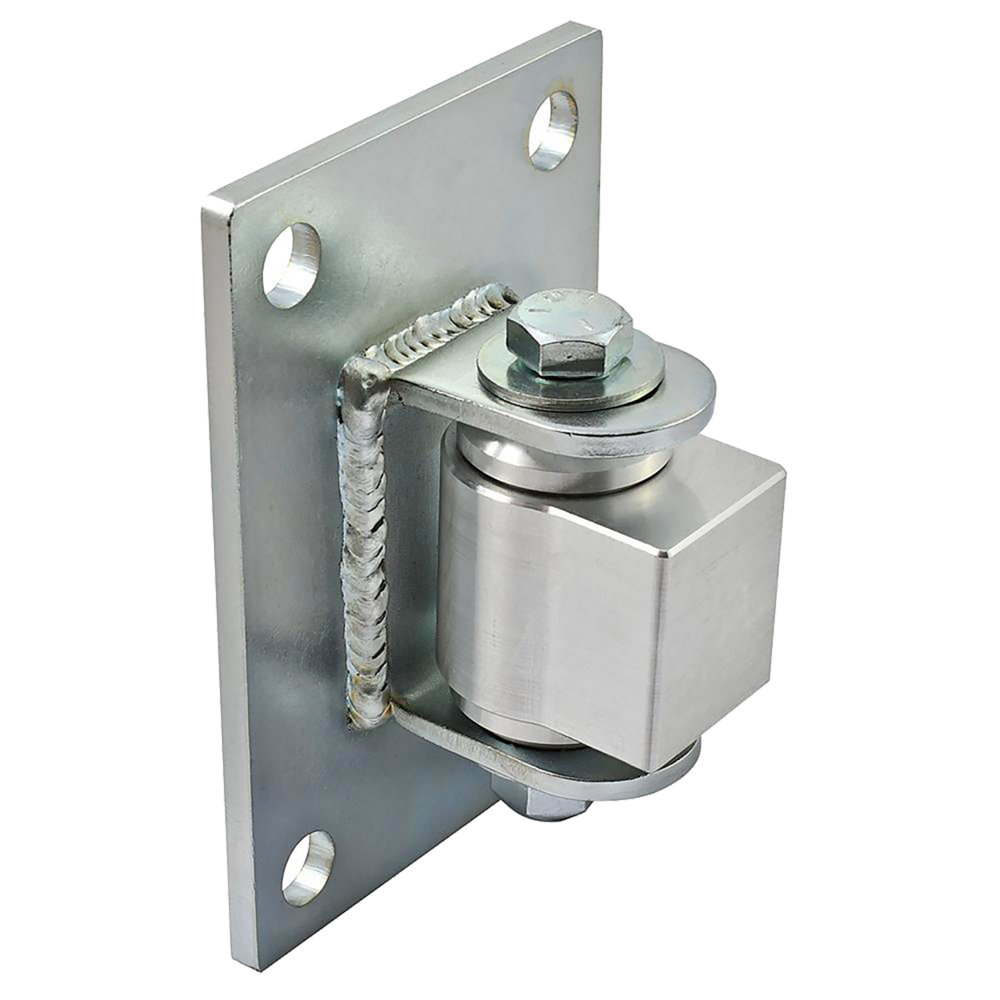

D&D Technologies Shut it® Combo Half Bolt-On Badass
Description

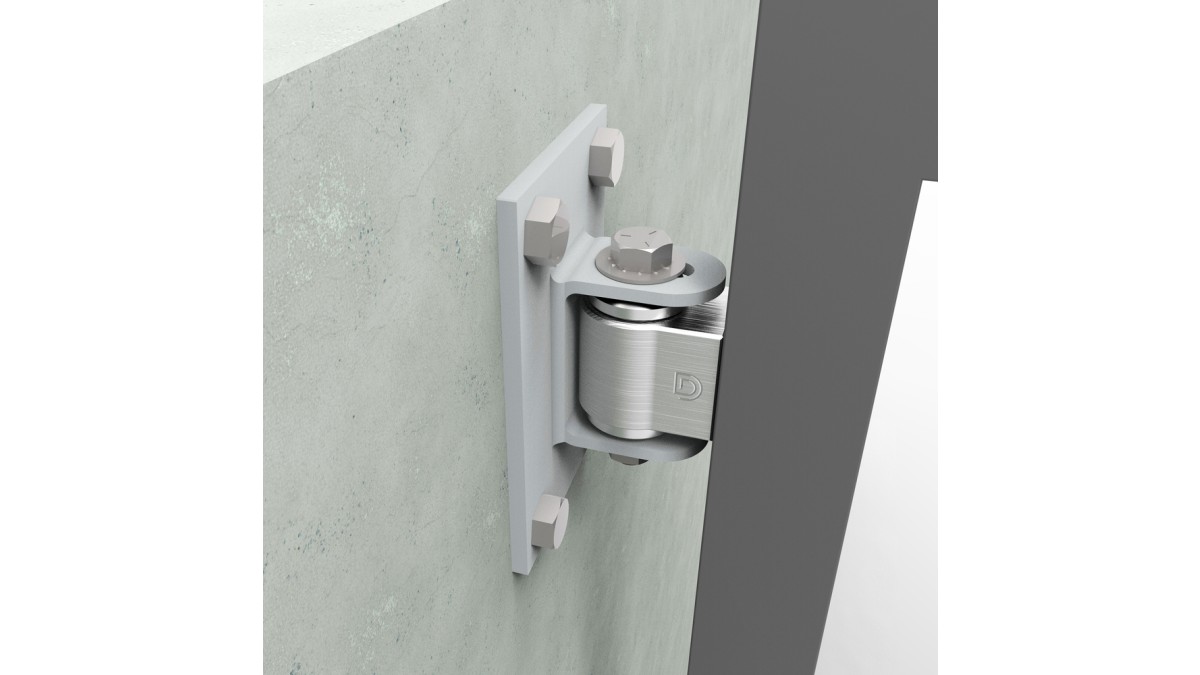

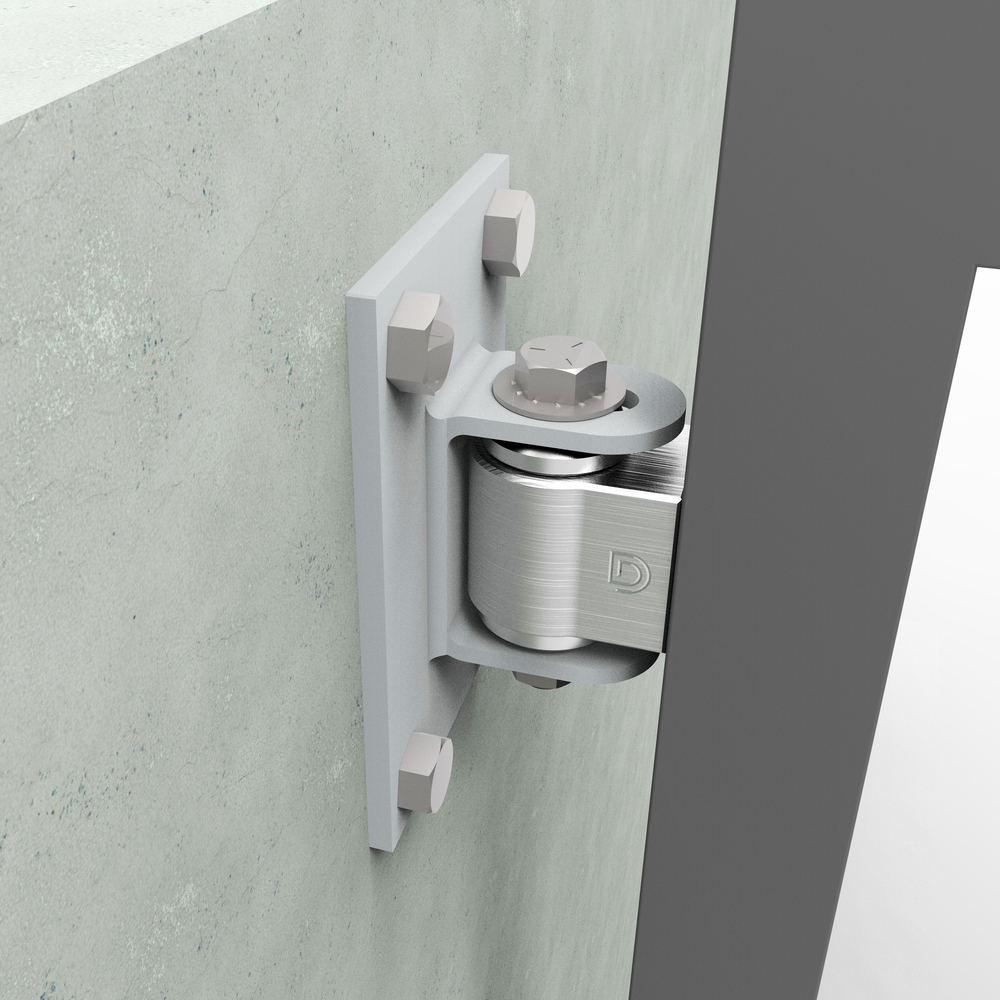

With a wide mounting plates and four anchor points, the Half Bolt-on BadAss hinges reduce fence post flexing, preventing fatigue in the fence post. Four anchor points position bolts at the sides, rather than the centreof the fence post for a solid, stronger connection. Shut It gate hinges are assembled in the U.S.A. with the industry's first maintenance-free high-temperature sealed bearings, which are safe to powder coat with the hinges installed on the gate.

Key Features
  • Made to bolt or weld to 100-125mm  fence posts
  • Wider brackets enable anchor points to be positioned at the sides, rather than the centre of a fence post - reducing flexing, preventing fatigue in fence post
  • High-temperature sealed bearings - safe to powder coat with hinges installed on the gate
  • No greasing, no maintenance
  • Precision bushing - distributes gate load for optimal performance and longer life
  • CNC machined to perfection and near-frictionless movement
  • Max Gate Load: 450kg
  • Max Gate Weight: 270kg
  • Limited Lifetime Warranty
Scope of Use
  • Gate Type - Non-Self-Closing
  • Made to bolt or weld to 100-125mm  fence posts
Limitations on Use
  • Max Gate Load: 450kg
  • Max Gate Weight: 270kg
Other Performance Attributes
  • Product Code - CI3740
  • Gate Type - Non-Self-Closing
  • Gate Material - Aluminum
  • Approx Gate Size - 1.5m x 2m
  • Gate Frame/ Post Shape - Square to Square
  • Min Post Size - 38mm+
  • Ideal Gate Gap - 73-86 mm
  • Fixing Method - Bolt-On, Weld One
  • Colour/ Finish - Zinc
