D&D Technologies Shut it® Badass Strap Hinge
Description

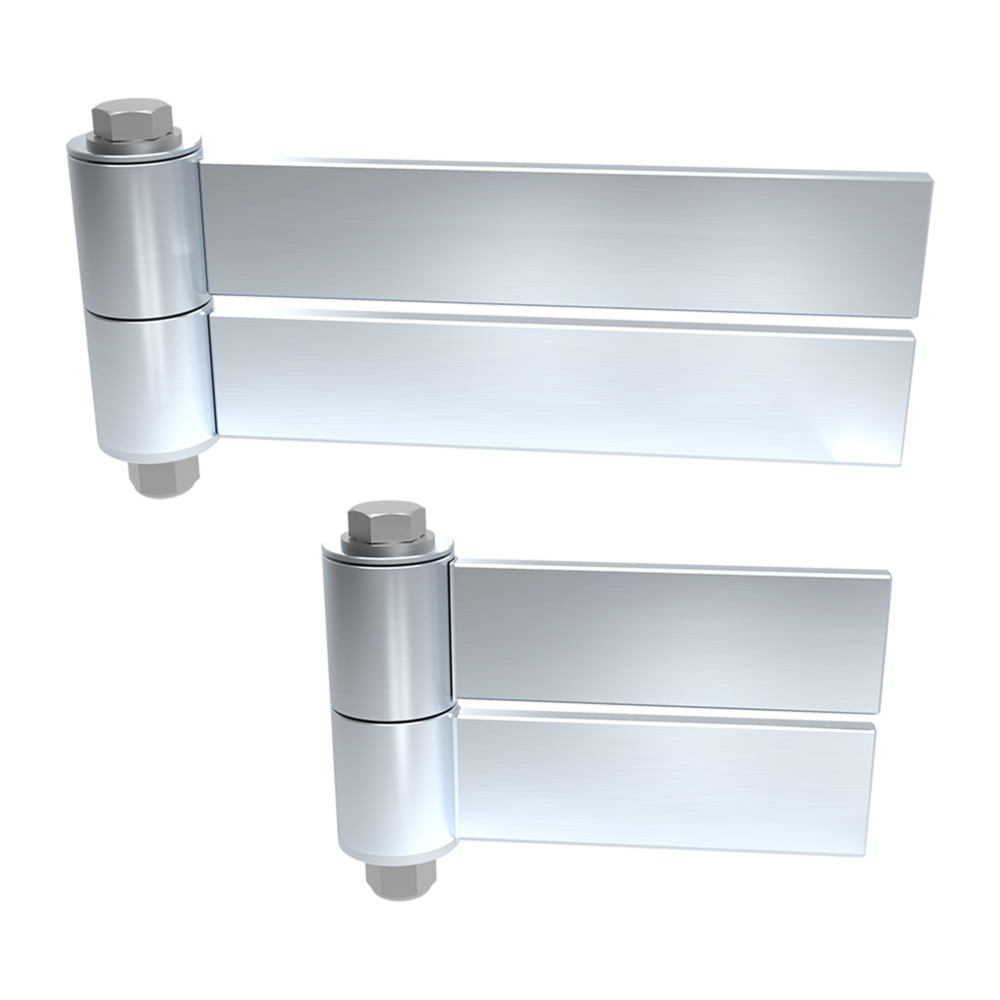

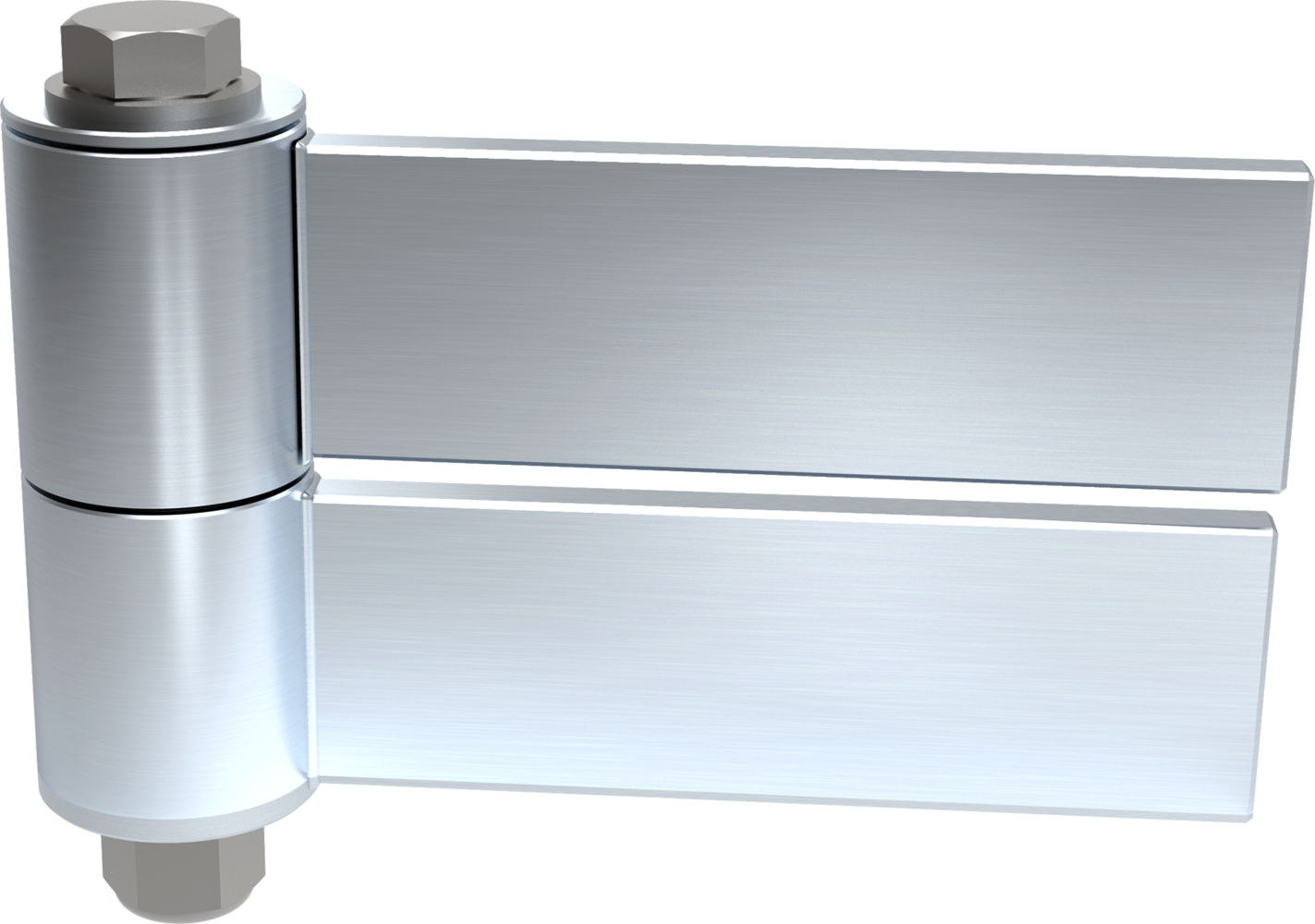

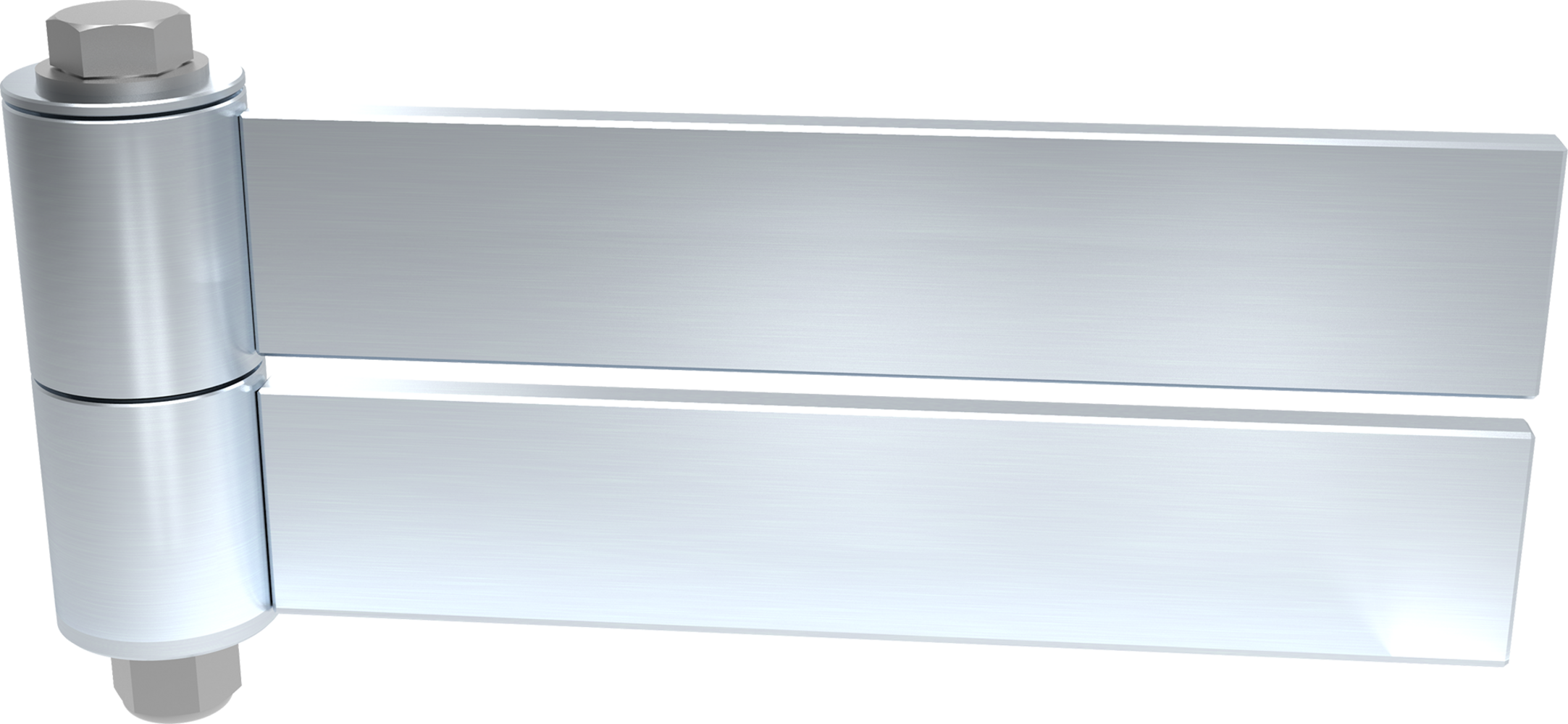

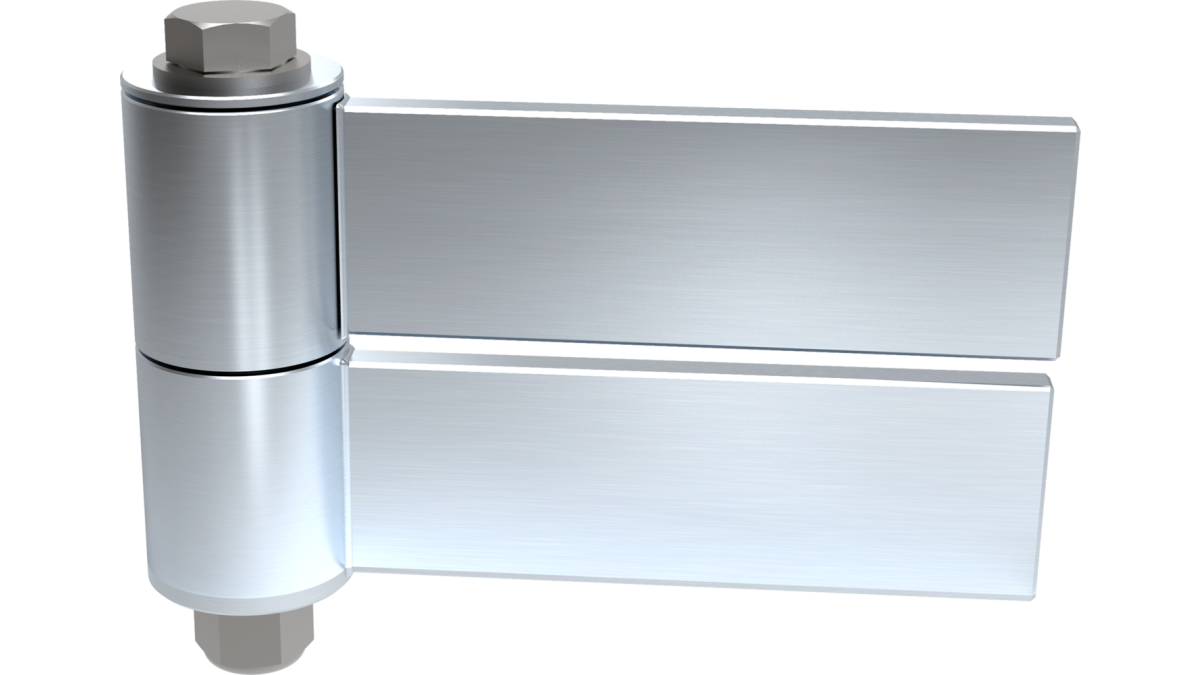

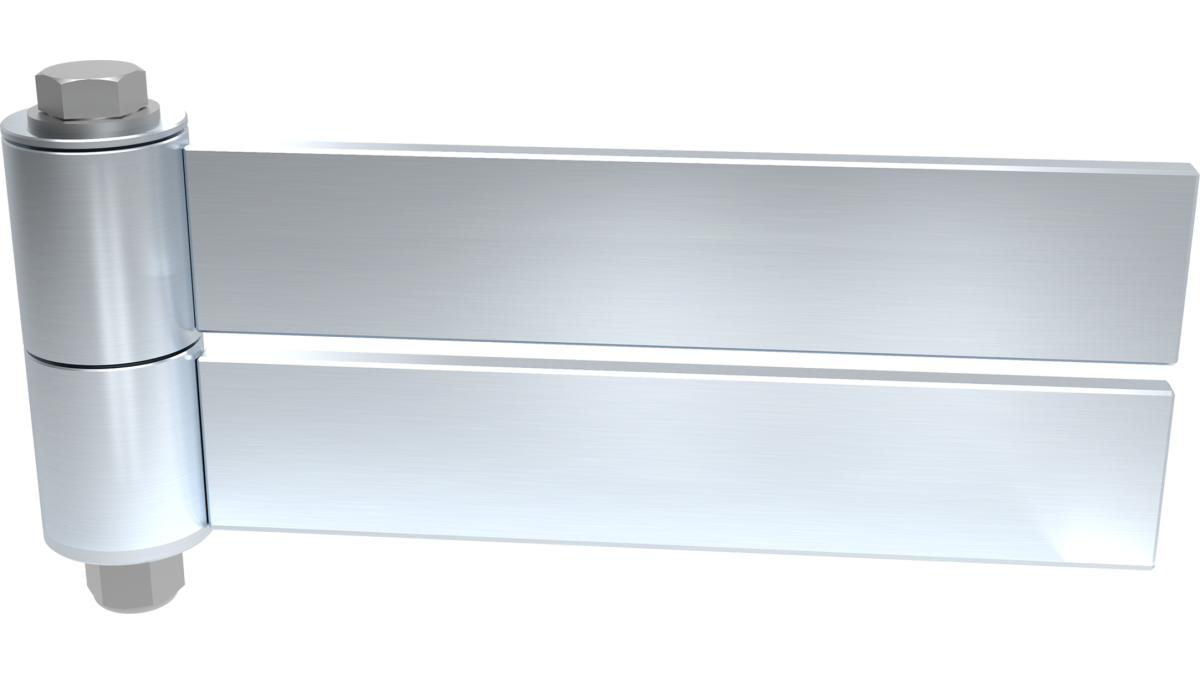

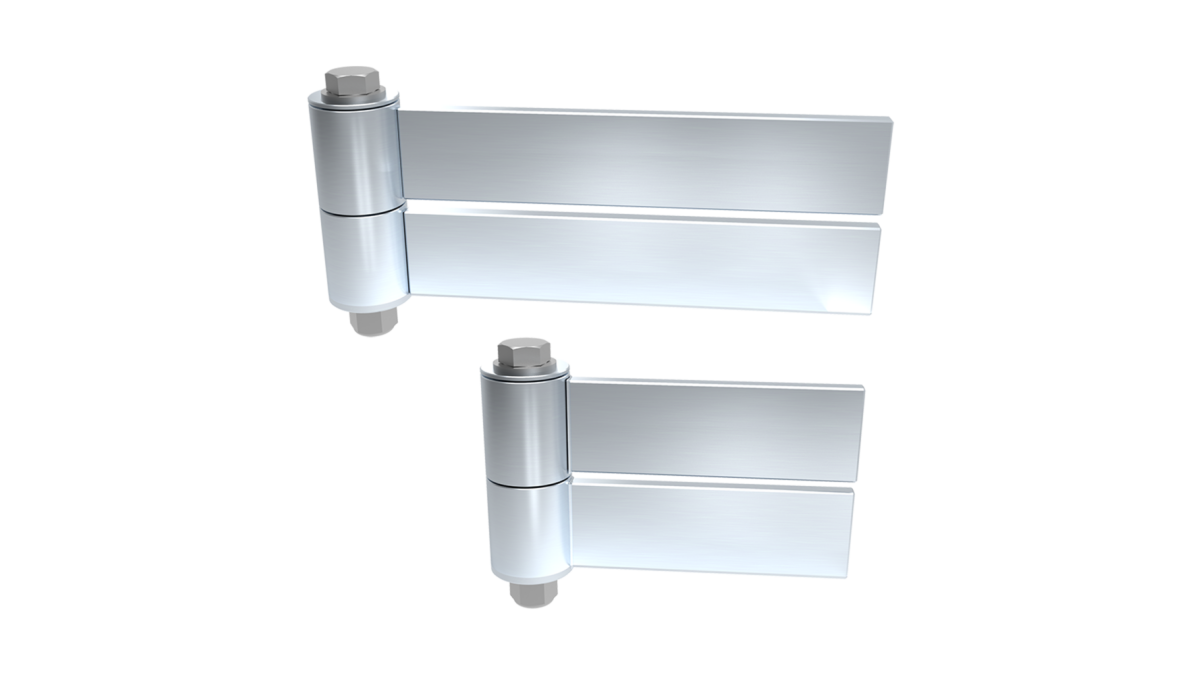

One of Shut It Gate Hardwares newest gate hinges, the BadAss Strap Hinge, is a barrel hinge that includes either an 152mm or 254mm strap for convenient and flexible gate installations. The strap hinge is also one of Shut It's strongest gate hinges with more bearing load than any hinge on the market. By combining different lengths top and bottom it is the ideal solution for opening gate on an uphill gradient.

  • Product Code: CI3900-CI3925-CI3975
  • Gate Type: Non Self-Closing
  • Gate Material: Steel/Ornamental Iron
  • Approx Gate Size: 2m H x 3m W
  • Gate Frame/ Post Shape: Square to Square
  • Min Post Size: 40mm
  • Ideal Gate Gap: Fixed at 13mm
  • Fixing Method: Weld On
  • Colour/ Finish: Zinc
Key Features
  • Suitable for motorised, uphill or heavy gates
  • For square-posted, weld-on installations
  • Zinc electroplated external components
  • Swings 180, fixed gap variance 13mm
  • Leaf straps can be cut to length
  • Load rating per gate: 1,360kg
  • Maximum gate weight: 680kg
Scope of Use

Non self-closing gate hinge, suitable for motorised, uphill or heavy gates.

  • Pedestrian Gate
  • Driveway Gate — single or double
  • Pet Gate
  • Playground Gate
  • Public/Commercial Gate
  • Automated/Electric Gate
  • Security Gate
  • Privacy Gate

Installation:

  • Approx Gate Size: 2m H x 3m W
  • Gate Frame/ Post Shape: Square to Square
  • Min Post Size: 40mm
  • Ideal Gate Gap: Fixed at 13mm
  • Fixing Method: Weld On
Limitations on Use
  • Load rating per gate: 1,360kg
  • Maximum gate weight: 680kg
Other Performance Attributes
  • Zinc electroplated external components
