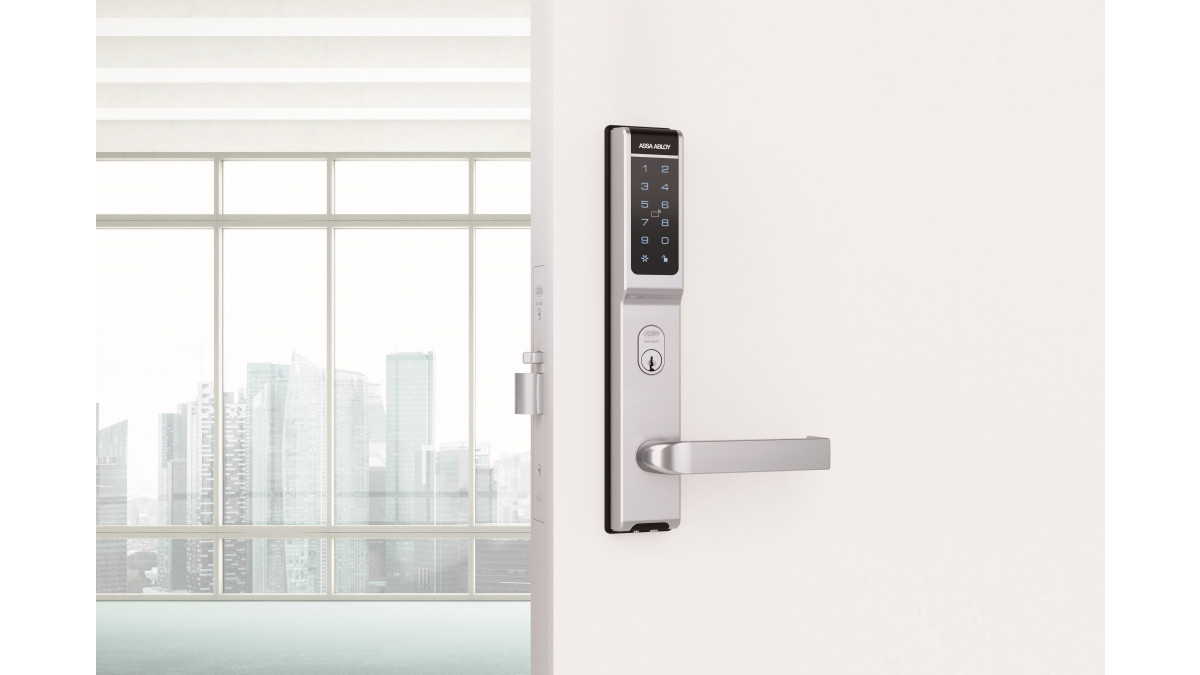

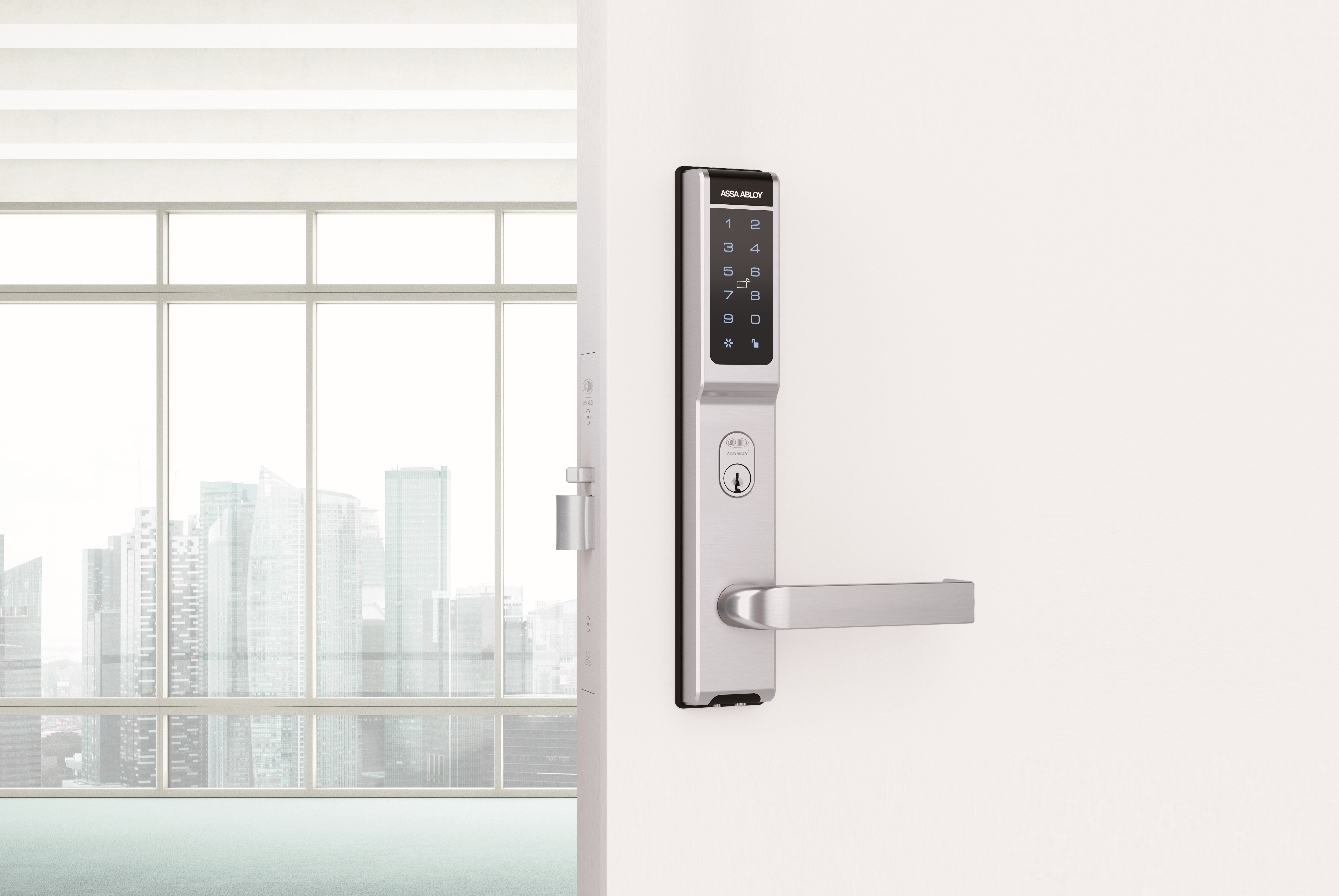

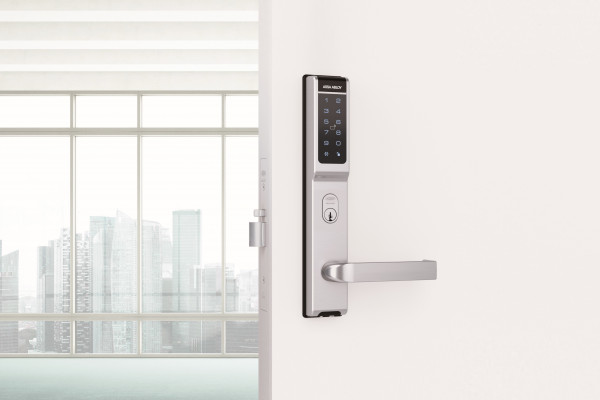

Aperio AU100 V3 Wireless Escutcheon

The new AU100 is a fully commercial grade digital lockset that offers the durability and quality that is synonymous with ASSA ABLOY. The AU100 is now fully retrofitable with Lockwood mortice variants without modification to the mortice whatsoever. In addition, for the first time the internal lever and door position can now be wirelessly monitored. A capacitive keypad and proximity reader are also included in the one lock.

Key Features

Electronic Features

  • Wireless online access control
  • Authorisation changes in real time
  • Audit trails and time zones managed through existing system
  • Rex (internal lever monitoring)
  • Door position switch
  • Smart off line credential cache for last 200 users
  • Store last 200 events and audit trails locally in the lock
  • Battery powered – up to 40,000 operations
  • LED status
  • Battery low warning sent to EAC system

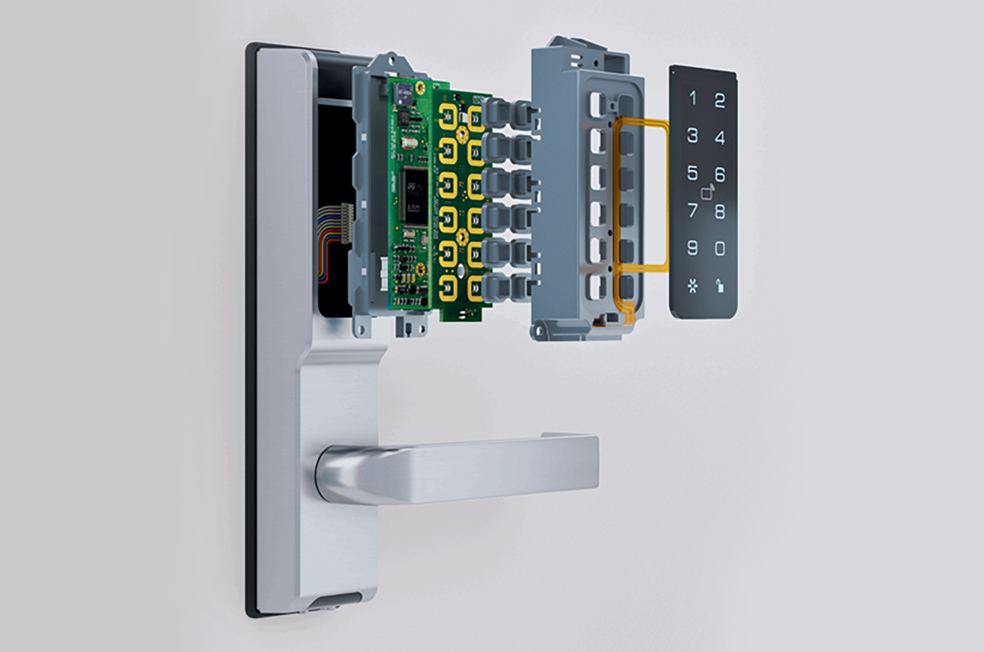

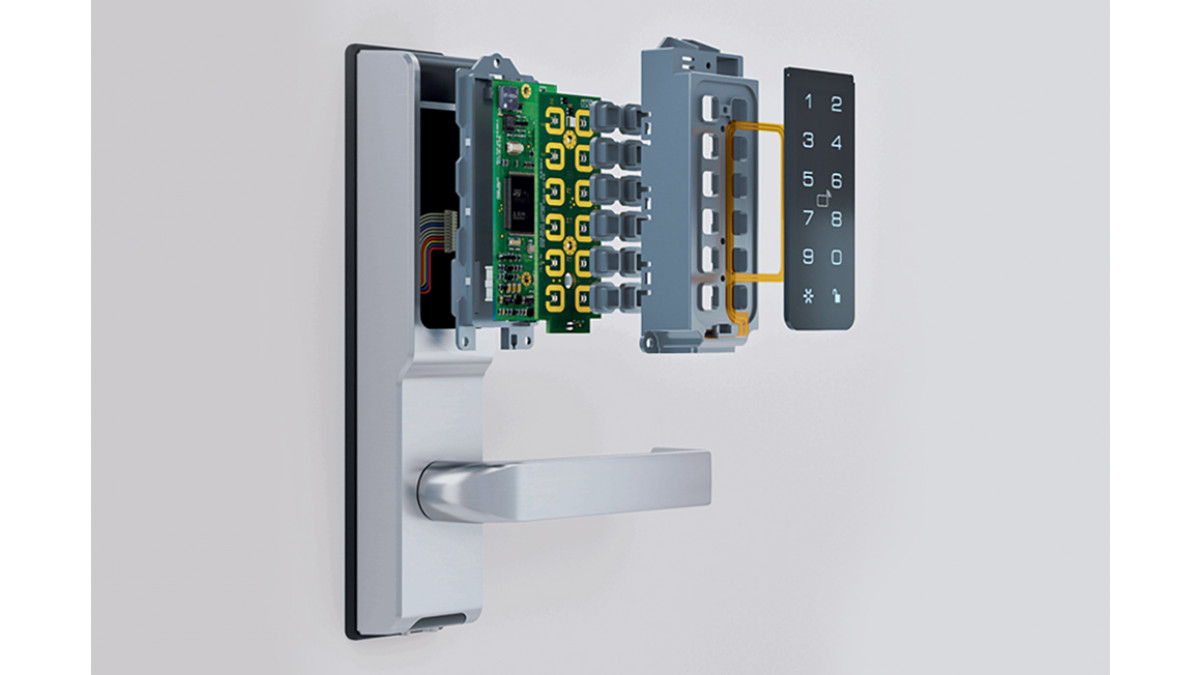

  • Powerful new electronics with USB interface
  • Heartbeat communication: 5-10 seconds
  • Remote door opening/locking functions
  • Supports multiple high frequency RFID technologies and Seos mobile access

Mechanical Features

  • Emergency egress
  • Compatible with Lockwood 3772 and 5782 Series Mechanical Mortice Locks
  • Additional key override
  • Fire rated
  • Multiple lockset formats
  • Emergency egress
Scope of Use

The strong vandal proof keypad is weather rated for outdoor conditions including protection against light rain, sun, and dust. The AU100 Escutcheon is suitable for a range of applications including;

  • Internal doors and semi protected outdoor
  • Retrofit mechanical Mortice Locks
  • Expand existing access control installations
  • New access control installations
  • Doors that can’t be hard wired
  • Heritage listed buildings

Compatible with Lockwood 3772 and 5782 Series Mechanical Mortice Locks.

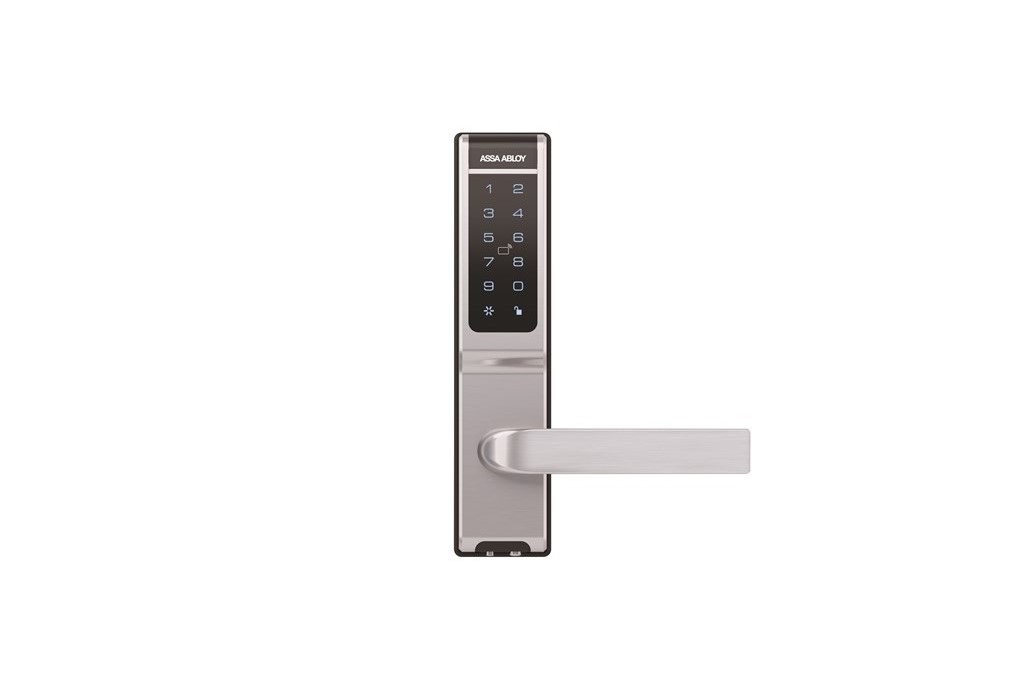

The AU100 is available in a range of form factors including: the popular 530 latch option (non key overide) and 60mm and 30mm backset variants.

Statement of Building Code Compliance
  • Successfully tested up to 2 hours on fire door assemblies in accordance with Australian Standard AS1905.1 2005 — Part 1: Fire Resistant Doorsets
  • (Security) Australian Lock Standard (AS4145.2:1993)
  • (Durability) Australian Lock Standard (AS4145.2:1993)
  • Australian Electrical Regulatory Compliance
  • European Electric Compliance
Aperio Technology Catalogue

ASSA ABLOY specialise in door opening solutions, dedicated to satisfying end-user needs for security, safety and convenience.
