Safeguard® R11 Vinyl Sheet Flooring
Description

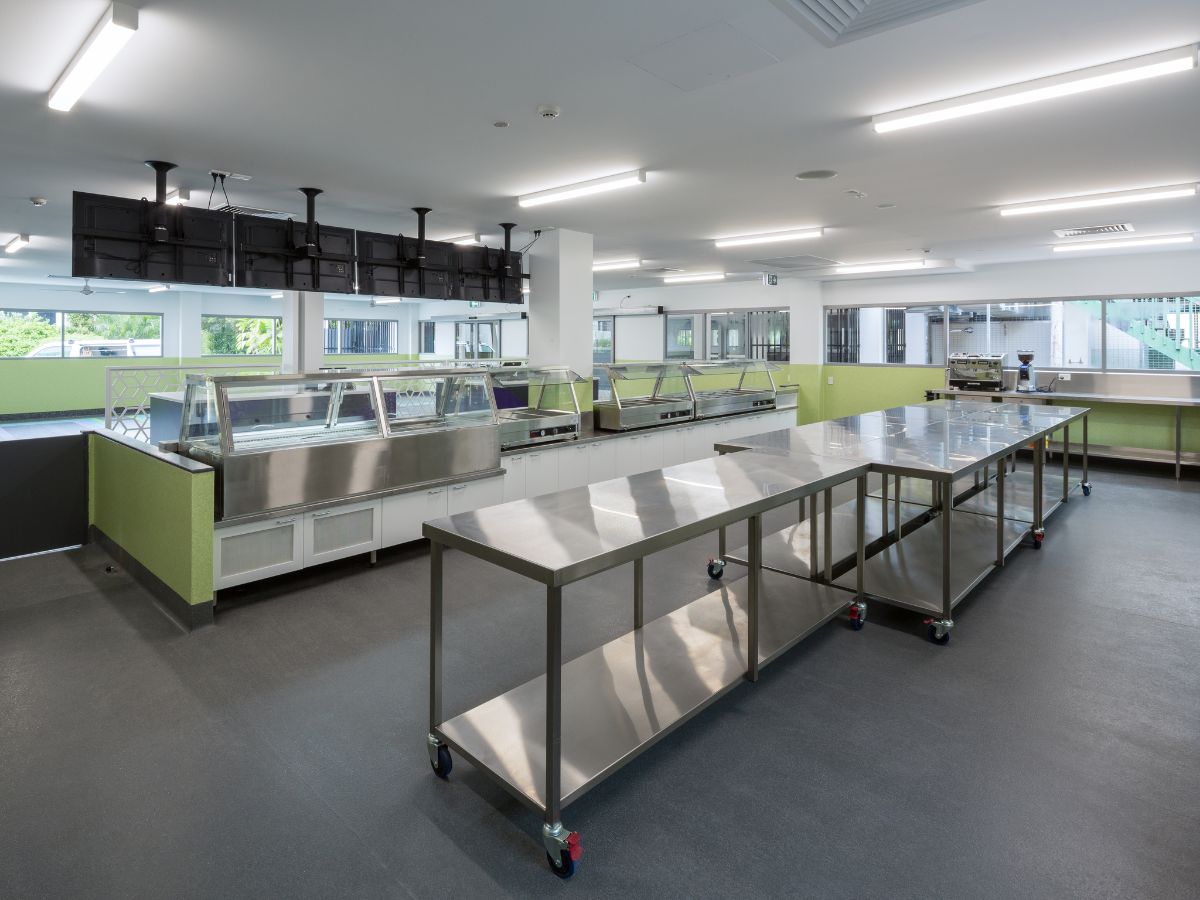

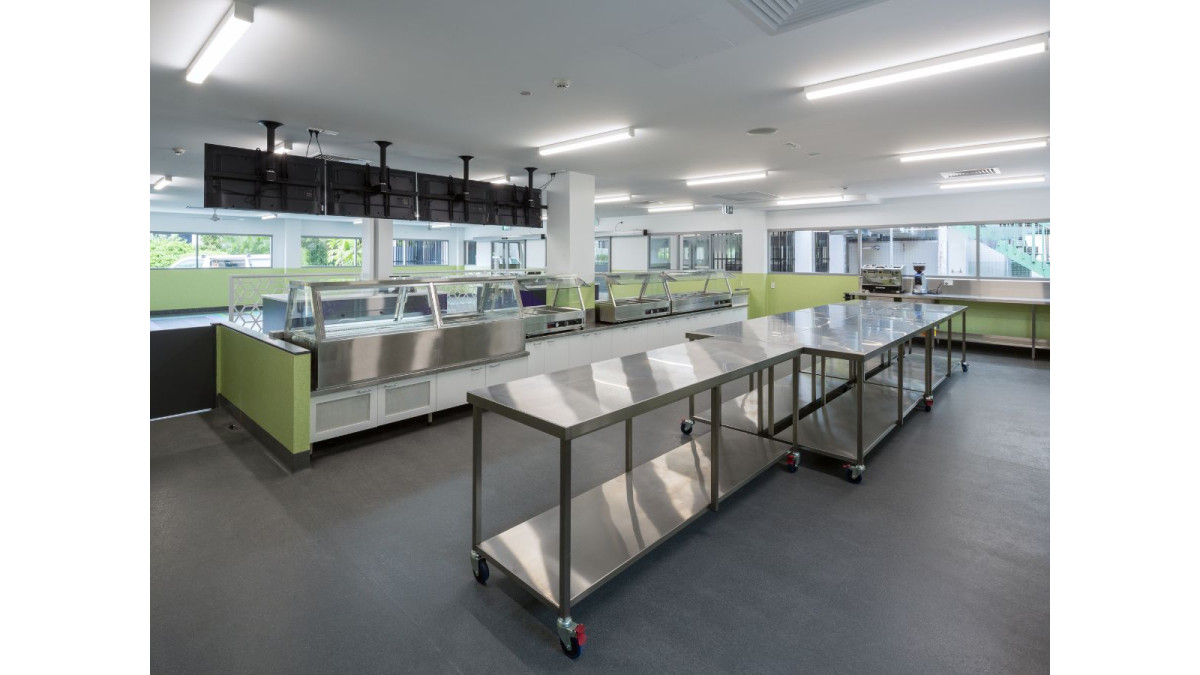

Armstrong Flooring’s Safeguard® R11 is a vinyl sheet floor suitable for commercial kitchens, education, healthcare and aged care facilities where safety is required. The range is available in a range of neutrals and dark tones.

Safeguard® R11 features a combination of high-quality PVC, hard wearing aluminium oxide, silicon carbide and quartz provide long term durability and slip resistance.

Key Features
  • Available in 6 colours
  • Highly durable and slip resistant
  • Hygienic surface and chemical resistant
  • Low VOC and phthalate free
  • Compliant with Green Building Council low VOC emission rates
Scope of Use
  • Recommended for commercial slip resistant applications:
    • Hospitals
    • Healthcare
    • Aged care
    • Education
    • Hospitality
    • Retail
    • Offices
    • Light industrial interiors
Limitations on Use
  • Not suitable for wet barefoot areas like bath and shower rooms - please refer to Accolade Foothold® and Natralis Foothold® for wet barefoot slip resistance
  • Must be installed in accordance with the Armstrong Flooring technical documentation
Statement of Building Code Compliance
  • B2.Durability: B2.3.1(c)
  • C3 Fire Affecting Areas Beyond Source: C3.4(b)
  • D1 Access Routes: D1.3.3(d)
  • E3 Internal Moisture: E3.3.3, E3.3.5, E3.3.6
  • F2 Hazardous Building Materials: F2.3.1
  • G3 Food Preparation and Prevention of Contamination: G3.3.2(b)

See BPIR for full information.

In-Service History

Armstrong Flooring have been a leader in flooring for over 50 years and are proudly Australia’s only manufacturer of commercial vinyl sheet flooring.

Other Performance Attributes
  • Warranty: 15 years
  • Slip Rating: P4 / R11
  • Fire Rating:
    • Critical Radiant Flux (CHF Value) = ≥ 4.5kW/m²
    • Smoke Development Rate = ≤ 750%.minutes
  • Environmental:
    • Low VOC and phthalate free
    • Compliant with Green Building Council low VOC emission rates
Documents
BPIR Product Statement: Sheet Vinyl

2024

Technical Resources: Safeguard R11
Data Sheet: Safeguard Collection

2024

Environmental Information: Safeguard R11
Fire Testing: Safeguard R11
Slip Resistance Testing: Safeguard R11
BIM Files: Safeguard R11
Armstrong Flooring on Masterspec
Installation Instructions: Safeguard Collection

2023

BIM Files: Safeguard R11
Colour Range: Safeguard R11

A leader in flooring for over 50 years and are proudly Australia’s only manufacturer of commercial vinyl sheet flooring.
