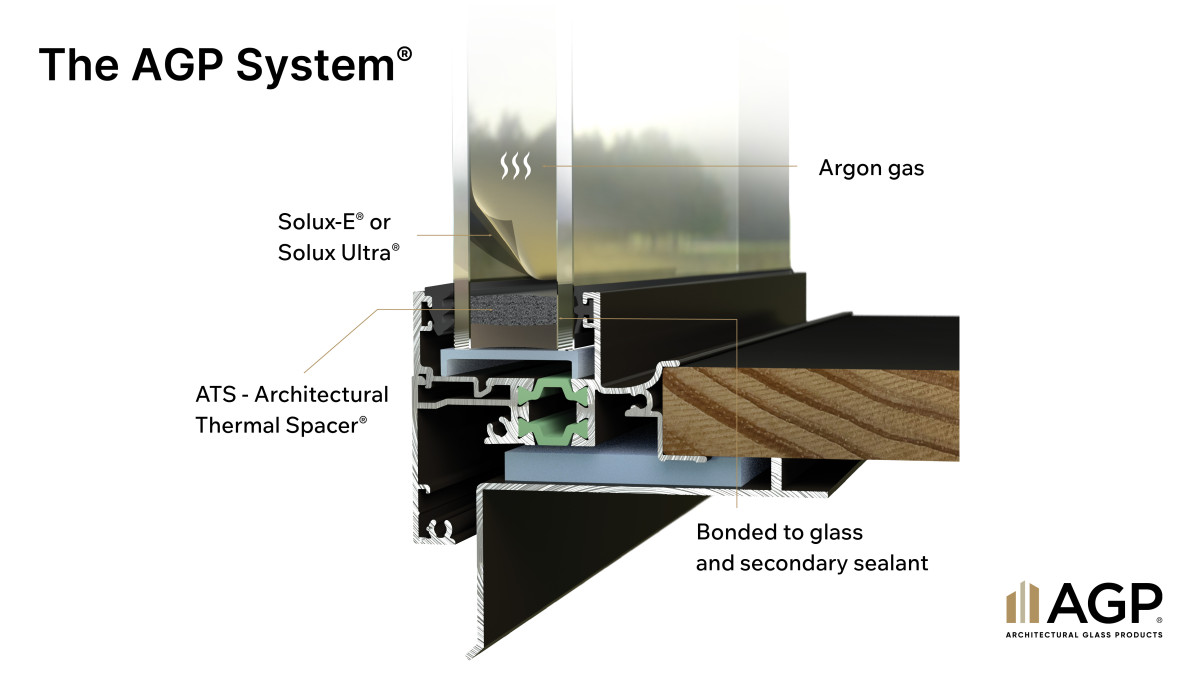

The AGP System® with Solux Ultra® is the optimal solution for APL Windows and Doors. AGP glass and APL frames should be specified together as a total window system

• All building types located below 800m altitude
• NZS 3604 wind zones up to and including Extra High
• Specific Engineering Design wind pressures up to 10.0kPa ULS and 10.0kPa SLS
• For additional information please see attached documentation
• For direct project specification support please see contacts or MasterSpec document attached.

• Please refer to The AGP System BPIR documents
• Must be installed into an APL Window System and strictly in accordance with APL manufacturing pack glazing details or AGP written instructions.

When designed, specified, installed and maintained as outlined The AGP System® with Solux-Ultra® will comply with, or contribute to compliance with, the following NZ Building Code clauses:

• B1 Structure: B1.3.1, B1.3.2, B1.3.3, B1.3.4
• B2 Durability: B2.3.1(b). Testing/QA to BS EN 1279 parts 1–4 and 6 as referenced
• E2 External Moisture: E2.3.1, E2.3.2, E2.3.7
• F2 Hazardous Building Materials: F2.3.1–F2.3.3
• F4 Safety from Falling: Per NZS 4223.3 clause 21 where applicable
• G7 Natural Light: G7.3.1, G7.3.2
• H1 Energy Efficiency: H1.3.1, H1.3.2, H1.3.3; R-values R0.17–R0.91 achievable depending on window/door type, dimensions and IGU type per H1/AS1 or H1/VM1 methods

• Visual Light Transmission (VLT) = 73%
• Solar Heat Gain Coefficient (SHGC) = 0.39
• G-Value / Solar Factor (SF) = 43%
• U-Value (Ug Centre of Glass) = 1.0
• Fading Control (Tdw-ISO) = 0.54
• IGUs tested to BS EN 1279 series.
• Please see attached AGP H1 Thermal Performance, and AGP Comparison Data documentation.

Warranty & Maintenance

• 12 year IGU warranty — two years longer than industry standard
• Please see attached AGP Warranty document
• Clean per AGP guidance; clear drainage holes; clean at least every 3 months.
