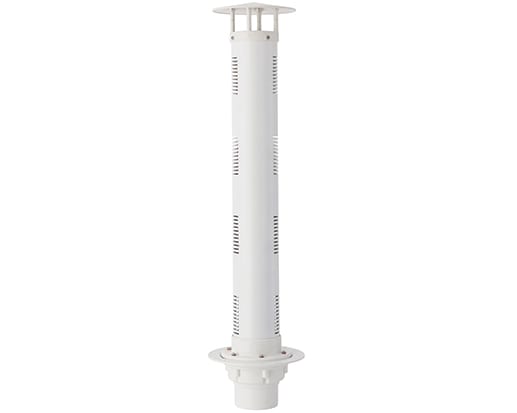

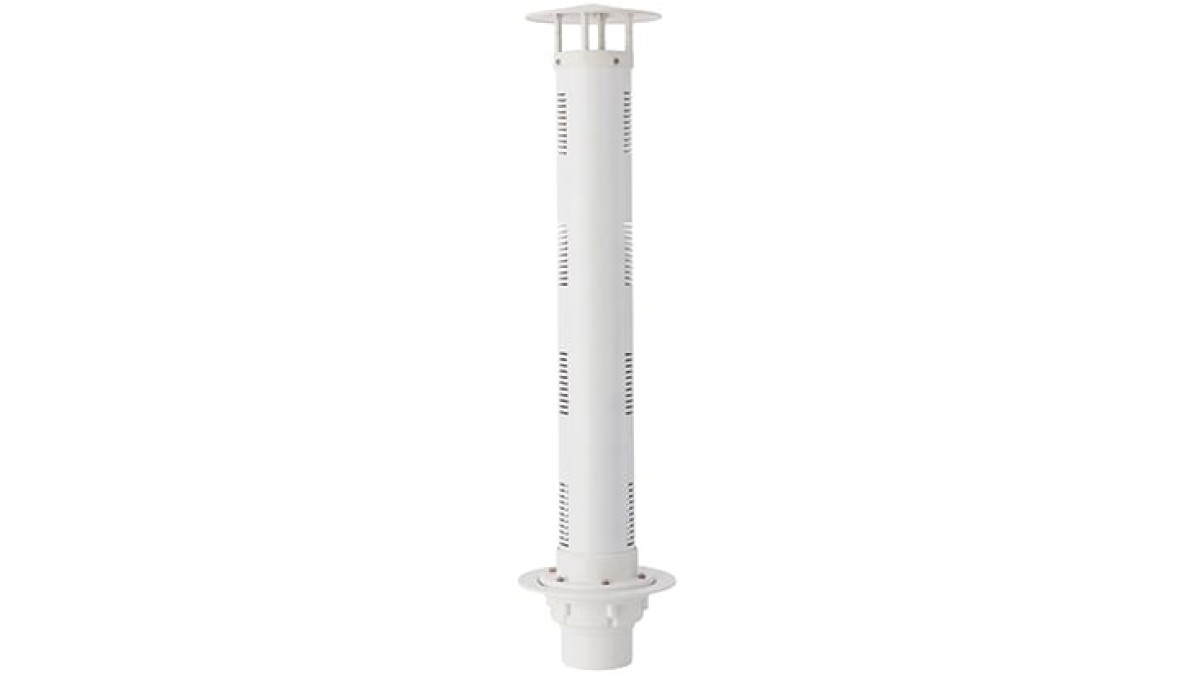

HiFlow Green Roof Stand-Pipe Planter Box Drain

The stand-pipe planter box drain is suitable for green roof or ballast roof applications. It features a 1m slotted PVC stand pipe and overflow hat with vermin screen.

  • Order code: 3100.205.3
Key Features
  • Slotted PVC stand-pipe
  • 1m, longer by request
  • Adapter flange DWV100
NZ Made
NZ Made
Scope of Use
  • Suitable for use with:
    • liquid membrane
    • single layer membrane
    • multi-layer membrane
    • torch-on membrane
    • monolithic membrane*
  • All corrosion zones as defined in NZS 3604:2011
  • Green or ballast roof applications
  • 1m pipe — longer by request
  • 100m outlet
Limitations on Use
  • *For use with monolithic membrane consult membrane supplier
NZS 3604 Corrosion Zone B suitable
Corrosion Exposure Zone B
NZS 3604 Corrosion Zone C suitable
Corrosion Exposure Zone C
NZS 3604 Corrosion Zone D suitable
Corrosion Exposure Zone D
Statement of Building Code Compliance

If designed, installed and maintained in accordance with Aquaknight Industries’ requirements, the Aquaknight Roof Drain will meet or contribute to meeting the following provisions of the NZBC:

  • B1 Structure B1.3.1, B1.3.2, B1.3.3 (a, b, c, j)
  • B2 Durability B2.3.1 (b)
  • E1 Surface Water E1.3.3 (a, b, c, d, e, f)
  • F2 Hazardous Materials F2.3.1
E1 Surface Water compliant
Surface Water
PASS Product Statement: Aquaknight Roof Drains

PASS no. 19026

FlowLab Testing
Warranty: Membrane Drainage Fittings


Green Roof Stand-pipe Planter Box Drain
CAD/PDF Details

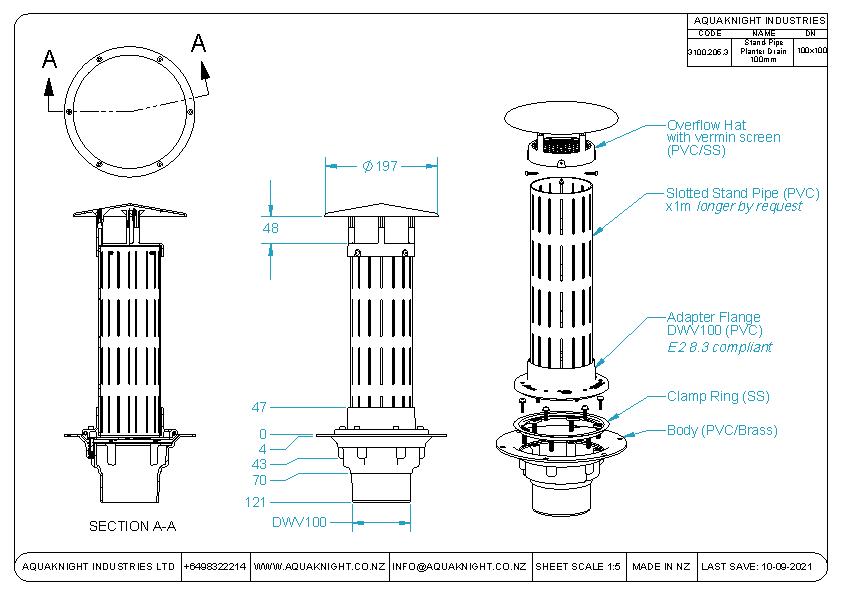

Stand-Pipe Planter Drain 100mm


Aquaknight offers premium drainage solutions for all modern membrane types: liquid, single ply, multi-layer, torch-on and monolithic.
