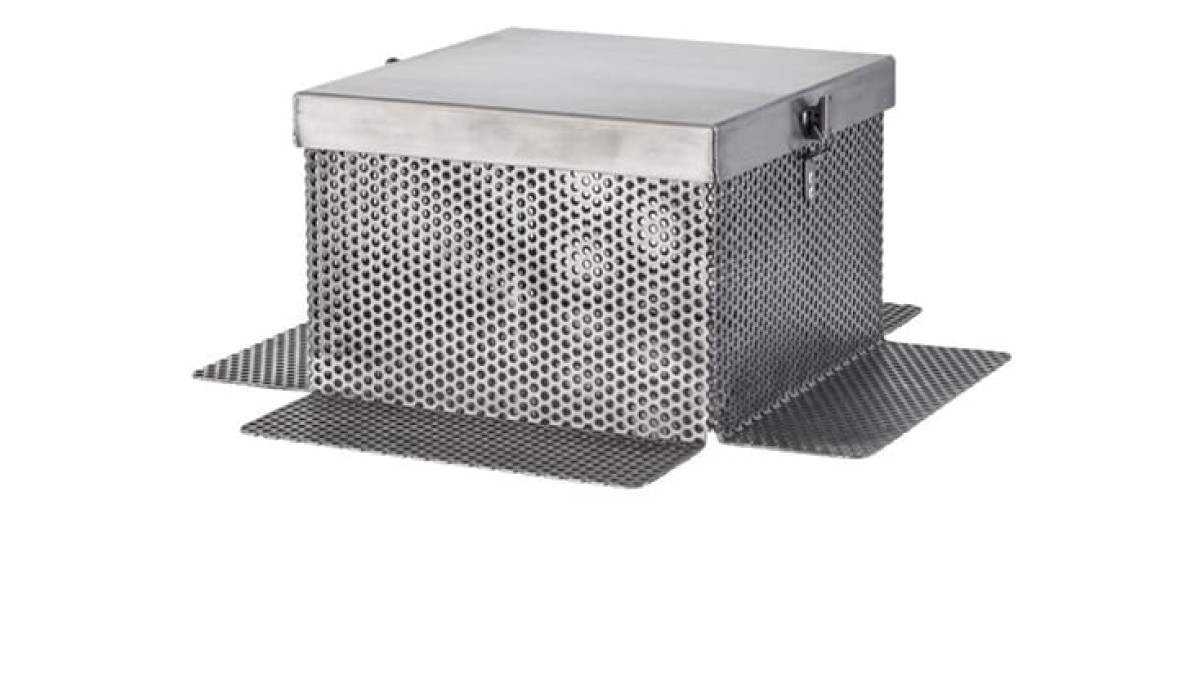

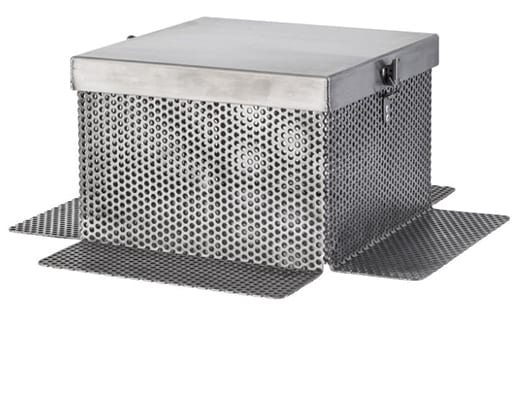

Green Roof Isolation Cage

Isolation boxes for green roof applications. Made from stainless steel or aluminium in any size to suit the project.

On a Green Roof the outlets must be isolated from the growing media. This can be achieved with a layer of drainage mat against the isolation cage, and two layers of filter cloth placed against the drainage mat to further prevent fines from entering the drainage system.



Key Features
  • Size to suit application
  • Options include latched, lockable, split lid, cut-out for Down-Pipe Junction
  • Aluminium or stainless steel
NZ Made
NZ Made
Scope of Use
  • Suitable for use with:
    • liquid membrane
    • single layer membrane
    • multi-layer membrane
    • torch-on membrane
    • monolithic membrane*
  • All corrosion zones as defined in NZS 3604:2011
  • Any size and height to suit the application
Limitations on Use
  • The lid must be above finished soil level in order to quickly locate the outlets in an emergency event.
  • For high corrosion zones such as coastal areas SS316 is recommended
  • *For use with monolithic membrane consult membrane supplier
NZS 3604 Corrosion Zone B suitable
Corrosion Exposure Zone B
NZS 3604 Corrosion Zone C suitable
Corrosion Exposure Zone C
NZS 3604 Corrosion Zone D suitable
Corrosion Exposure Zone D
Warranty: Membrane Drainage Fittings


Green Roof Isolation Cage
CAD/PDF Details

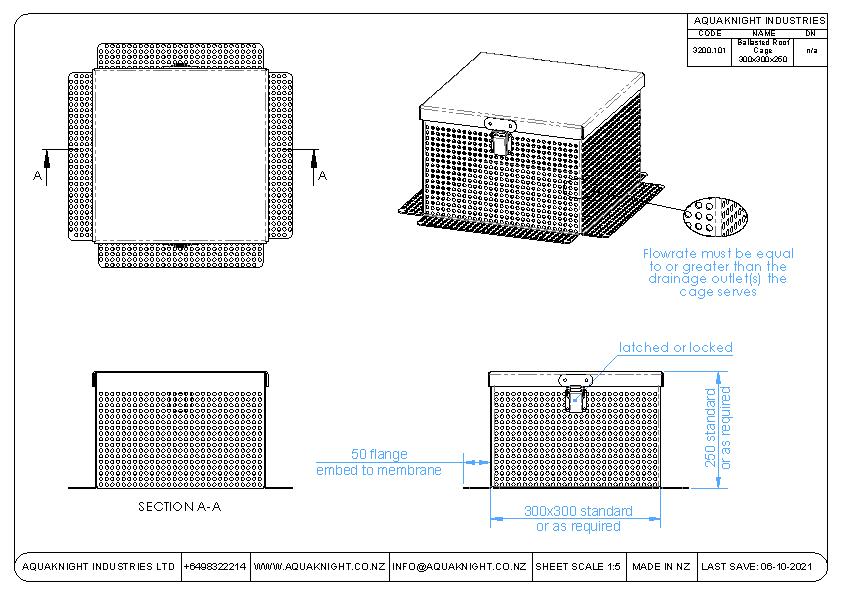

Ballasted Roof Cage 300x300x250


Aquaknight offers premium drainage solutions for all modern membrane types: liquid, single ply, multi-layer, torch-on and monolithic.
