Smartwood Bi-Fold Doors
ALTHERM Window Systems
All products
For high-performance double-glazing, explore AGP’s product range available now Explore
Alth Smartwood Bifold Drs copy
203 Smartwood Bifold Corner + Hinge
Bi fold door head and top guide track
Bi fold door overlight transom
Sill track and panel roller
Description

Smartwood Bi-fold doors are bottom rolling with the weight carried on the sill. This reduces lintel sag and enhances smooth operation over the long term.

The rolling gear sits to the exterior of the door panels and allows easy cleaning at the sill. An optional sill support bar is available.

Key Features
  • The Smartwood bi-fold door system is bottom rolling for optimum panel support
  • Rollers run on an external track
  • Bottom rails can be doubled in height for a robust look
  • Smartwood bi-fold doors can be supplied in both multiples of 2-panels and also with a free-swinging third panel to allow easy access (a single panel hinged to the jamb can also be used with an adjoining 3-panel set)
  • For 2-panel multiple configurations a minimum panel width of 650mm applies
Categories
Bifold Doors
Ranges
Smartwood
Scope of Use
  • Suitable for most residential environments
  • Need to be used in defined maximum sizes according to the wind exposure
Limitations on Use
  • Open bi-folds need to be monitored in windy conditions
  • In closed position bi-fold door stiles impact views
  • For 2-panel multiple configurations a minimum panel width of 650mm applies
Statement of Building Code Compliance
  • Designed, tested and manufactured to meet NZS 4211: Performance of Windows, and NZS 4233:  Glazing in Buildings, Parts 1-4
  • Designed and tested to conform to NZ Building Code, including Clause E2



In-Service History
  • Launched in 1997
  • Some design upgrades implemented
  • Widely used by homeowners, builders and specifiers
Other Performance Attributes
  • Window and door warranty provided under normal conditions of use against failure of materials and workmanship for a period of five years
  • Smartwood products need sealing after installation with an appropriate finish e.g. oiled, varnished, stained or painted; regular care and restoration recommended
  • Aluminium surface finish is covered by a separate performance warranty dependent on the actual finish selected
  • A hardware/componentry warranty is offered against defects in manufacturing, functionality and surface finish for a period of five years, provided care and maintenance guidelines have been followed
Documents
Data Sheet
pdf
Span Tables
pdf
Altherm Care, Maintenance & Warranty Brochure (with AGP)

2020

URL
Altherm on Masterspec
URL
Full Specification
docx
Specification Clause
docx
Specifier Guide
pdf
WGANZ Guide to E2/AS1
pdf
Altherm Design Brochure

2020

URL
AGP Cleaning & Maintenance
pdf
AGP Condensation Guide
pdf
AGP Visual Quality of Glass
pdf
APL and Sustainability

2019

URL
Manufacturer Contact List
URL
CAD/PDF Details
View full
Full Set of Drawings
pdf
Altherm Smartwood Bi-Fold Door, 2 Panel with Sidelight

SBD02-0

dwf
dwg
dxf
pdf
Altherm Smartwood Bi-Fold Door, 2 Panel with Overlight

SBD03-0

dwf
dwg
dxf
pdf
Altherm Smartwood Bi-Fold Door, 3 Panel

SDB04-0

dwf
dwg
dxf
pdf

Stylish contemporary lines, effective thermal technology and unwavering attention to detail have made Altherm a favourite with architects, designers and homeowners across New Zealand.

Product Enquiries

News from ALTHERM Window Systems

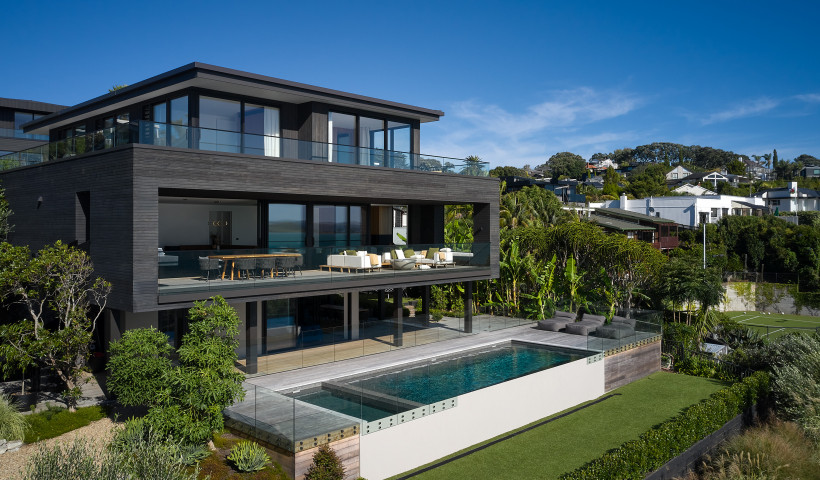

Altherm Windows and Doors Provide Uncompromised Views
