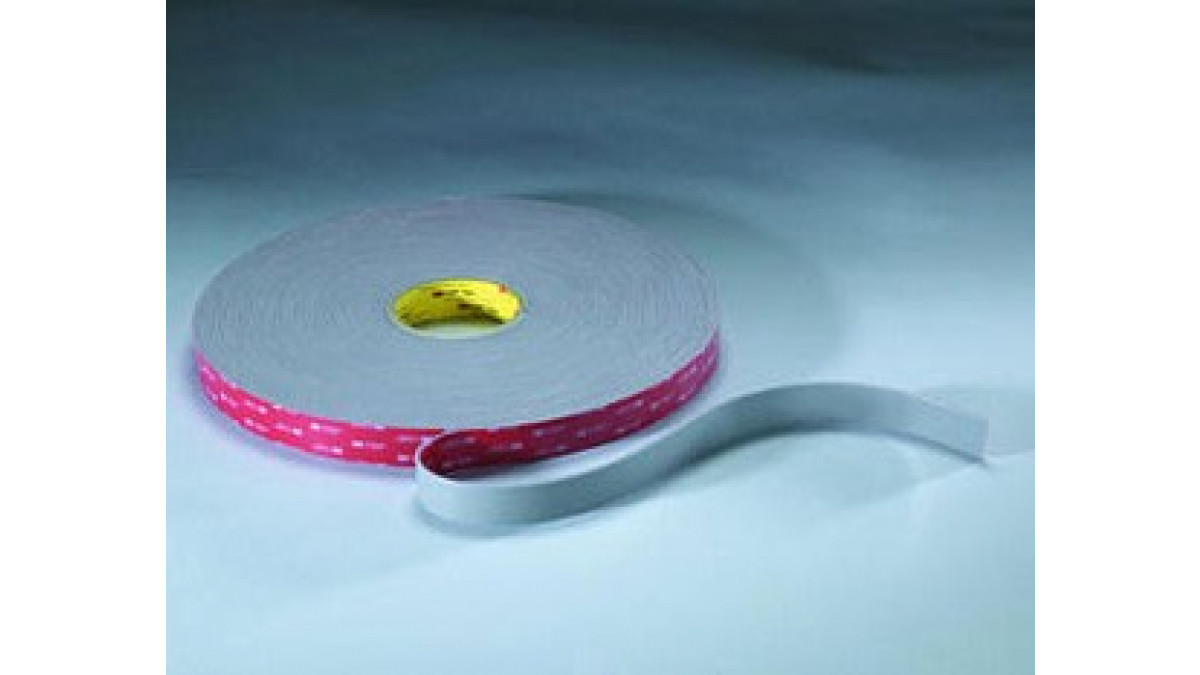

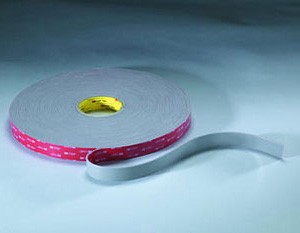

3M VHB Structural Glazing Tape G23F
Description

3M VHB™ Structural Glazing Tape G23F is a grey, 2.3 mm, multi-purpose acrylic adhesive with a conformable foam core and film liner. It is commonly used for structural glazing. The fast and easy to use permanent bonding method provides high strength and long-term durability.

3M VHB Tape consists of a durable acrylic adhesive with viscoelastic properties. This provides an extraordinarily strong double sided foam tape that adheres to a range of substrates, including aluminium, painted aluminium and glass. 3M's bonding tapes provide excellent strength, conformability, surface adhesion and temperature resistance. The 3M VHB Structural Glazing Tape family is used to attach glass panels to metal frames in curtain wall systems, commercial windows and doors, skylight and canopy systems replacing commonly used mechanical fasteners, gaskets and structural silicone sealants.



Key Features
  • Fast and easy-to-use permanent bonding method provides high strength and long-term durability
  • Virtually invisible fastening keeps surfaces smooth
  • Used as an alternative to structural silicone and spacer tapes/gaskets
  • Grey, 2.3 mm, multi-purpose adhesive and conformable acrylic foam core offers a good balance of strength and conformability
  • Creates a permanent seal against water, moisture and more
  • Pressure sensitive adhesive bonds on contact to provide immediate handling strength
  • Also available in black with 3M VHB Structural Glazing Tape B23F



Scope of Use
  • Recommended application: Attach glass panels to metal frames (structural glazing)
  • Permanent bonding method
  • The 3M VHB Structural Glazing Tape family is used to attach glass panels to metal frames in curtain wall systems, commercial windows and doors, skylight and canopy systems
  • Replacing commonly used mechanical fasteners, gaskets and structural silicone sealants
