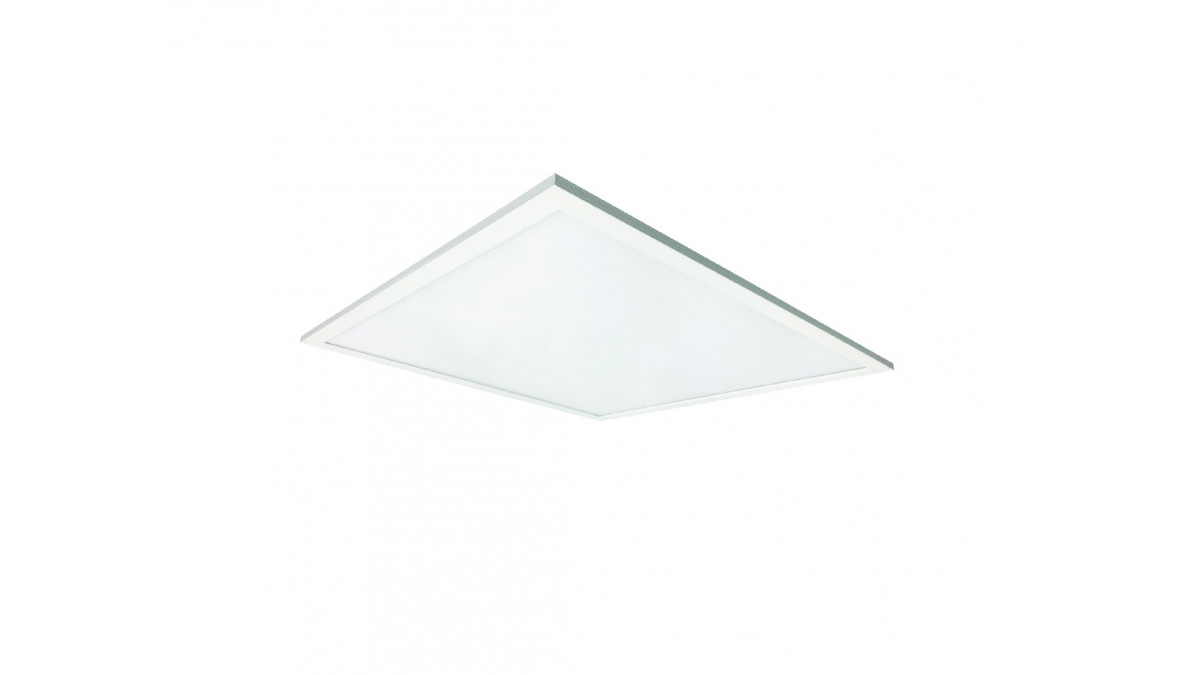

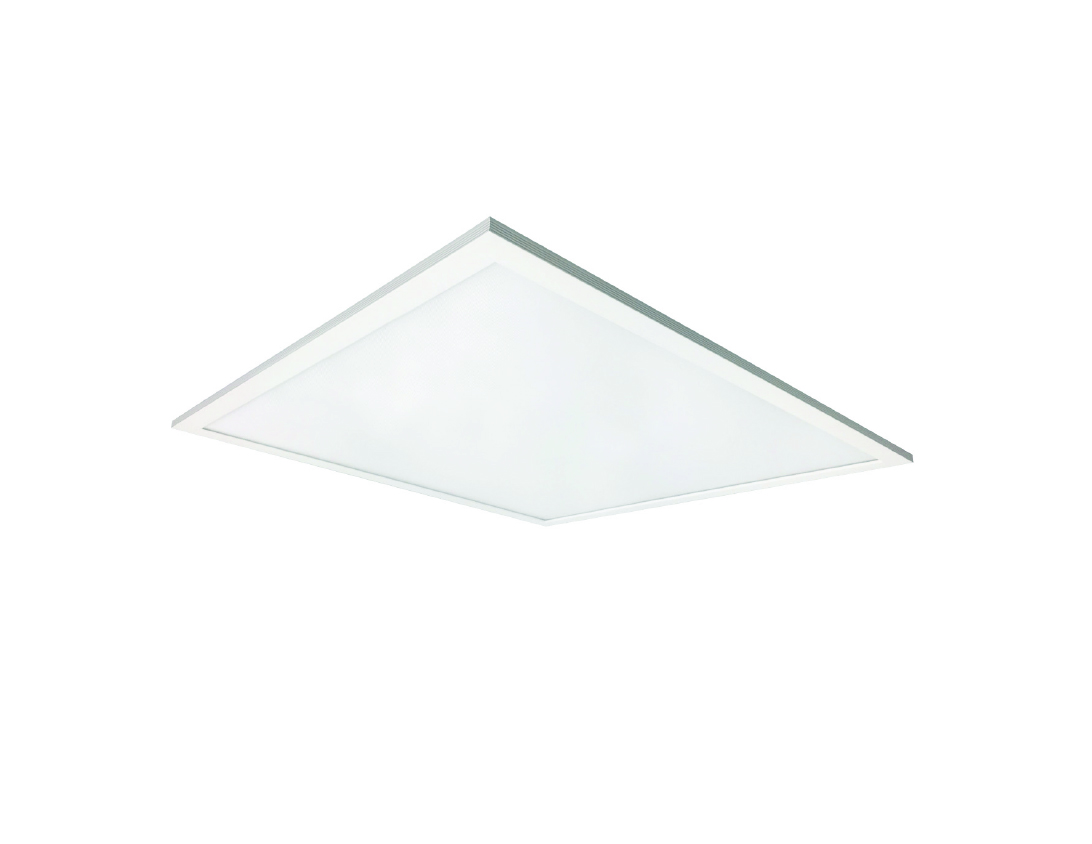

Pacino LED Panels

A range of attractive LED panels with a unique non-prismatic style frosted diffuser, achieving 90 Lumens per watt. Low glare versions also available.

Featuring a unique 2.3mm PMMA (acrylic) non-prismatic frosted diffuser, unlike traditional units using polystyrene which turns yellow when exposed to UV.

LED strips are mounted to all 4 sides of the panels for even light distribution, fastened using buckles not glue as this can cause the chips to discolour.

Using a thicker welded frame for added structural integrity, Vynco Panels also have an edge-folded back sheet, and two extra stainless steel bars on the back of the larger sizes to prevent the back sheet from warping and coming away from the edge of the panel when it is suspended.

Key Features
  • Unique 2.3mm PMMA (acrylic) non-prismatic frosted diffuser
  • LED strips are mounted to all 4 sides of the panels
  • Thicker welded frame for added structural integrity
  • 4000k and 6000k versions available
  • Pacino Panels are available in three sizes
  • 50,000 lifetime hours under normal conditions
  • IP40
  • CRI>80
  • Dimmable versions available upon request
  • UGR<23
  • 5 year warranty
NZ-Owned Business
NZ-Owned Business
Scope of Use

Panels are generally used in commercial spaces where standard sizes of ceiling tiles are installed.

Limitations on Use
  • Not suitable for use in wet areas
  • Must be installed by a registered electrician
Statement of Building Code Compliance
  • AS/NZS 61347.1:2002
  • AS/NZS 61347.2.13:2013
Other Performance Attributes
  • 5 year warranty
  • 50,000 lifetime hours under normal conditions
  • IP40
  • CRI>80
  • UGR<23
Product Assurance
Supplier Declaration of Conformity
