Frameless Glass — Metropolis Style
Description

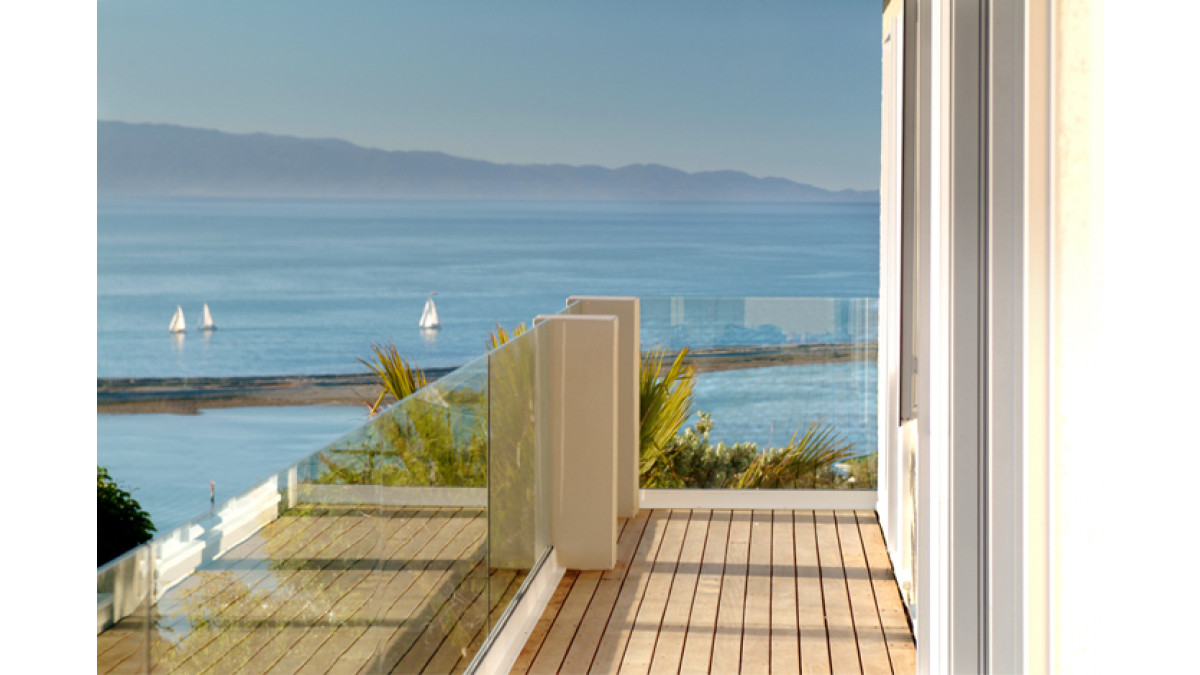

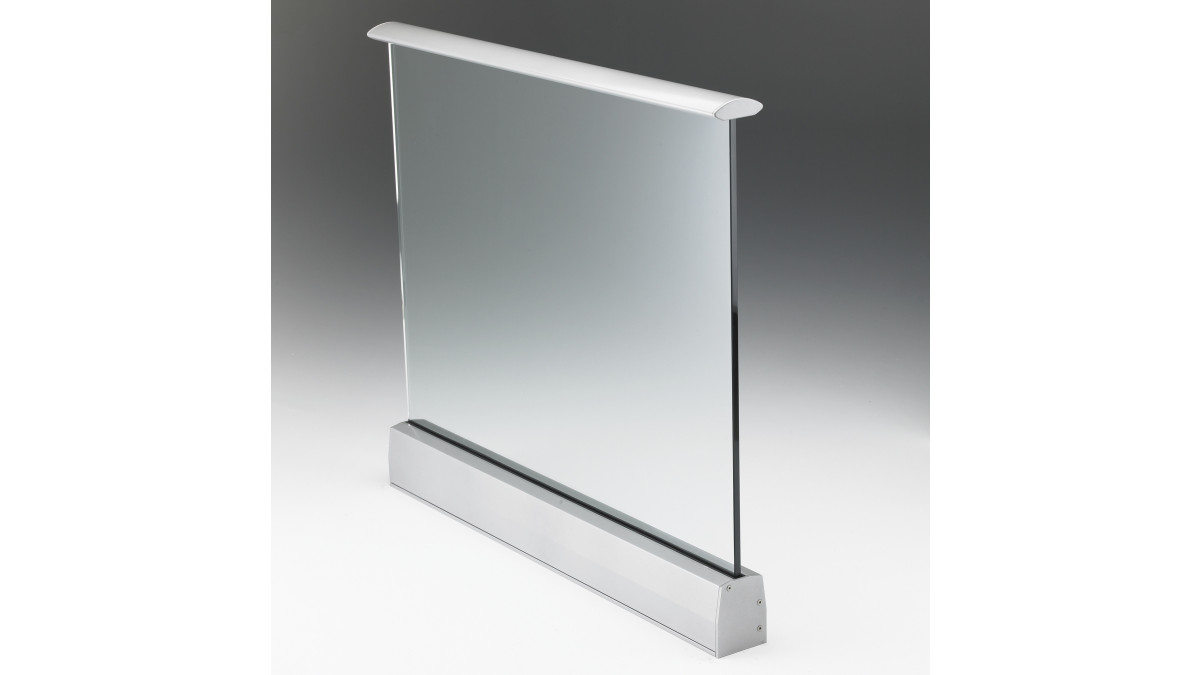

UNEX's Top Mounted Channel System, 'Metropolis' Style, is a frameless glass infill cantilevered from an aluminium top-mounted channel using mechanical fixings, with a choice of five interchangeable top rail options, all of which can be finished in a range of 60+ colours.

Key Features
  • Designed for standard heights up to 1200mm from finished deck level
  • Range of colours - can be powder coated or anodised in all standard NZ colours
  • Specifications available for an additional handrail option - “Metropolis”
  • Standard specifications available for fixing to dry/membrane timber, open/wet timber and concrete substrates
  • Specifications for non-standard situations may be provided by UNEX upon request
  • Aesthetically appealing – at only 110mm high and 90mm wide
  • Installed only by Authorised Fabricators, available nationwide
  • Designed for wind speeds up to 64m/s (ULS)
  • Glass infill to be Grade A Safety Toughened with a thickness of 12mm (most common) or 15mm
  • Cut-outs required in glass at each mechanical clamp fixing
Scope of Use

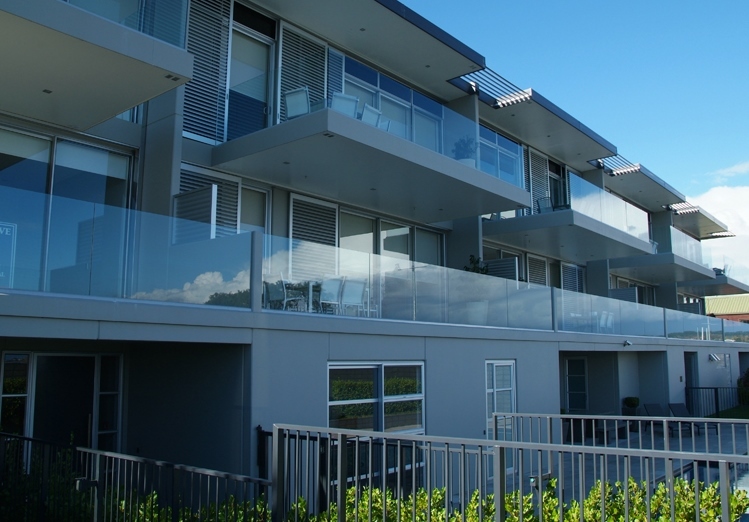

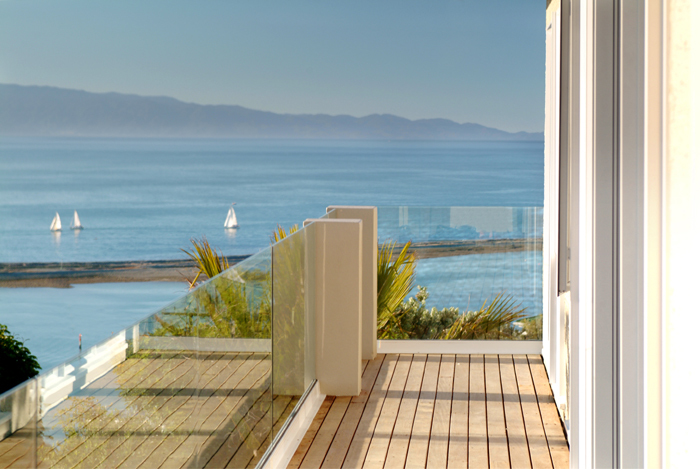

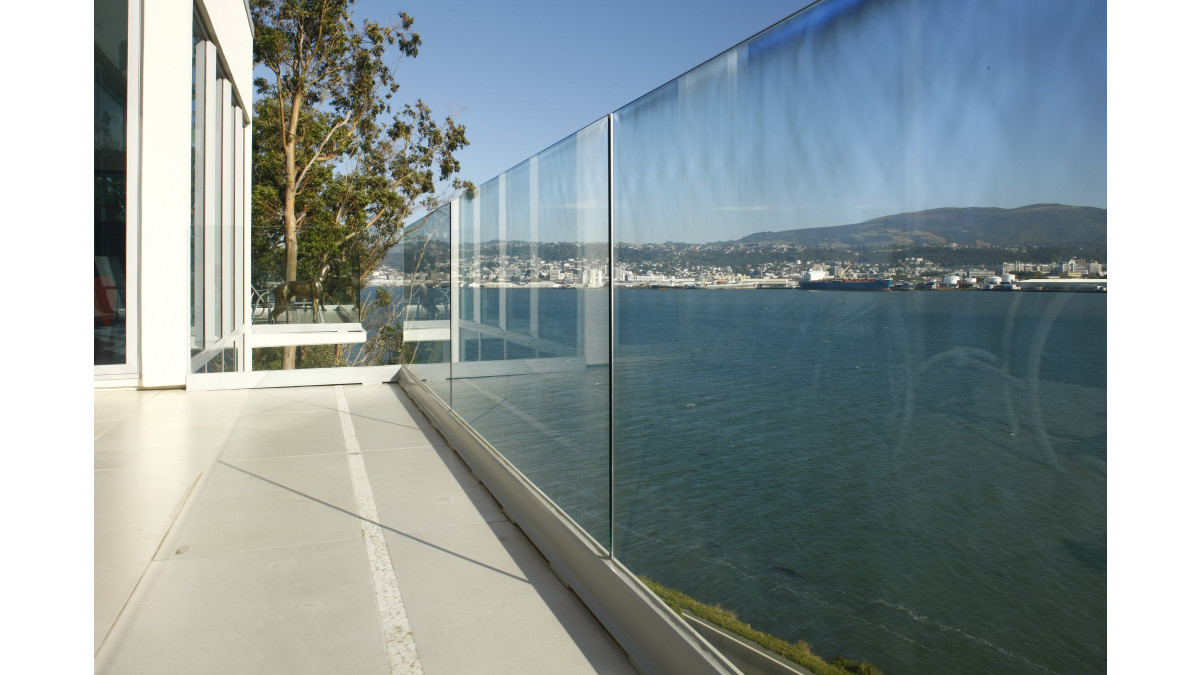

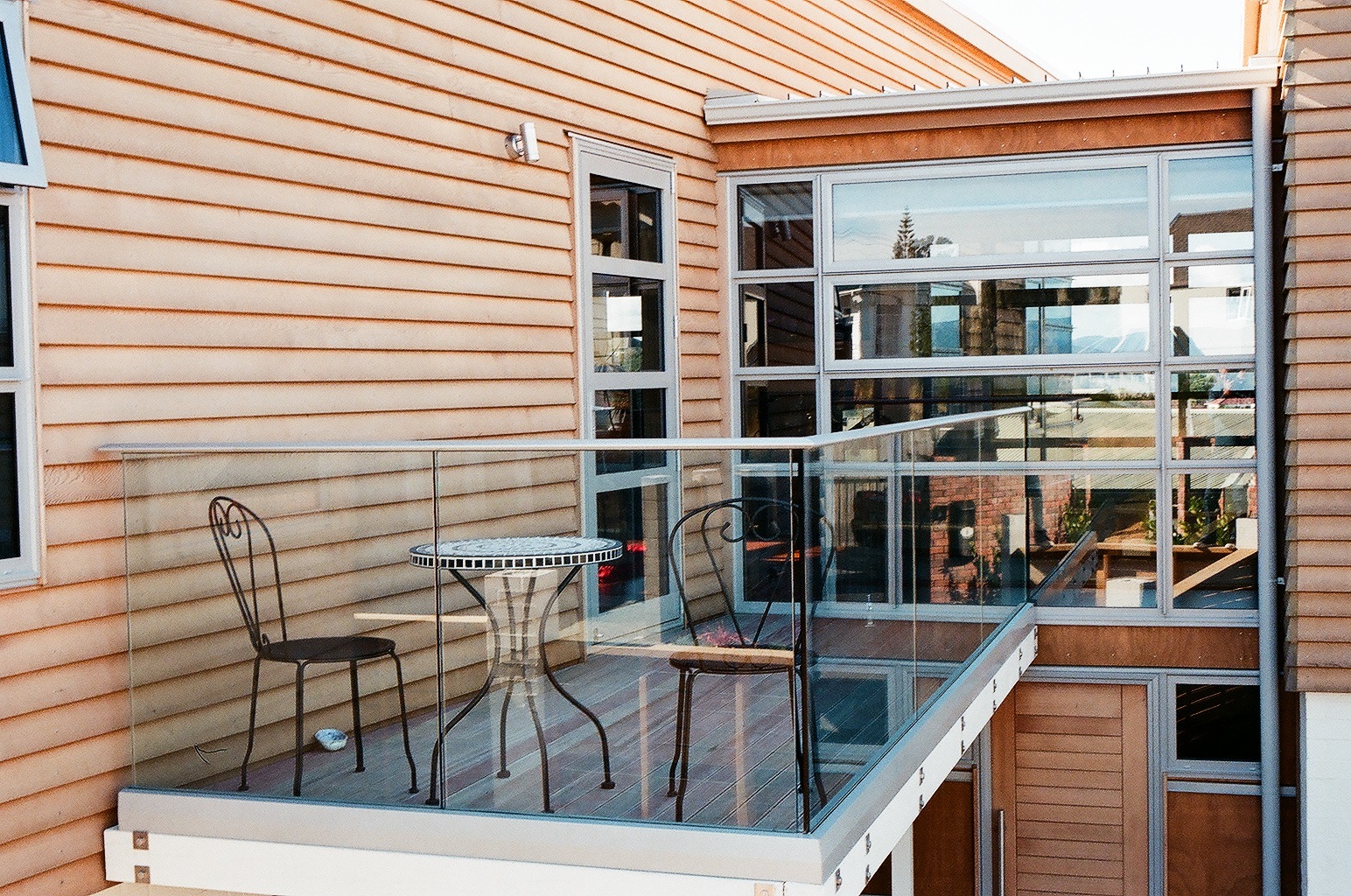

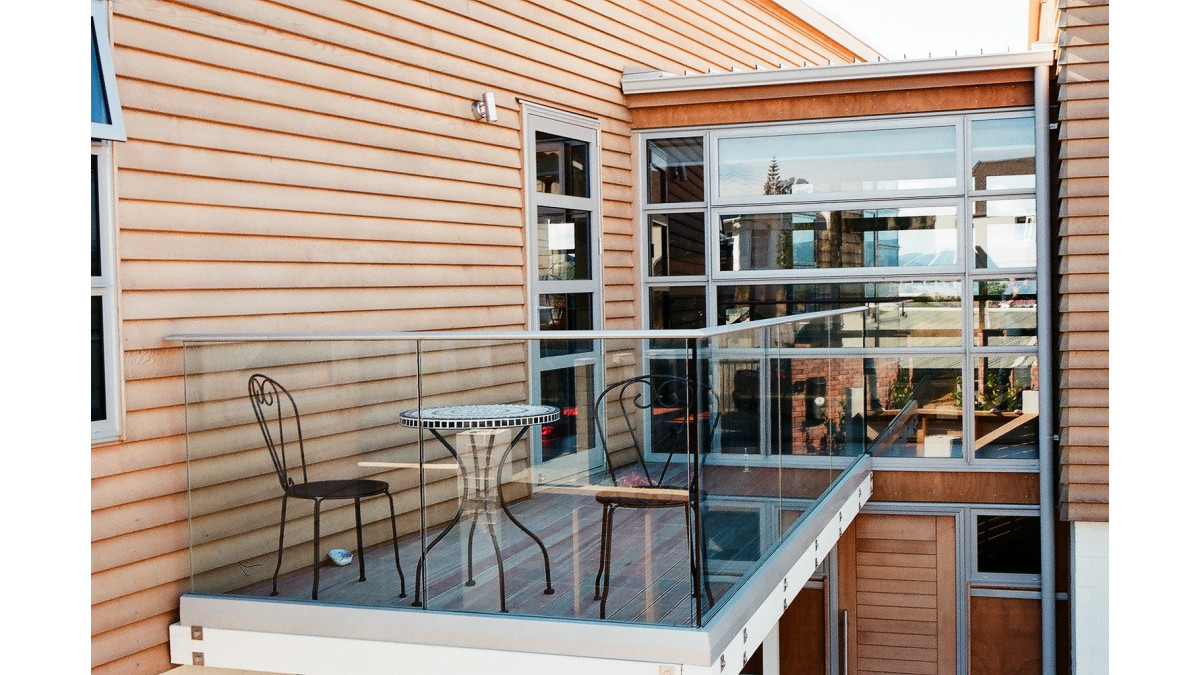

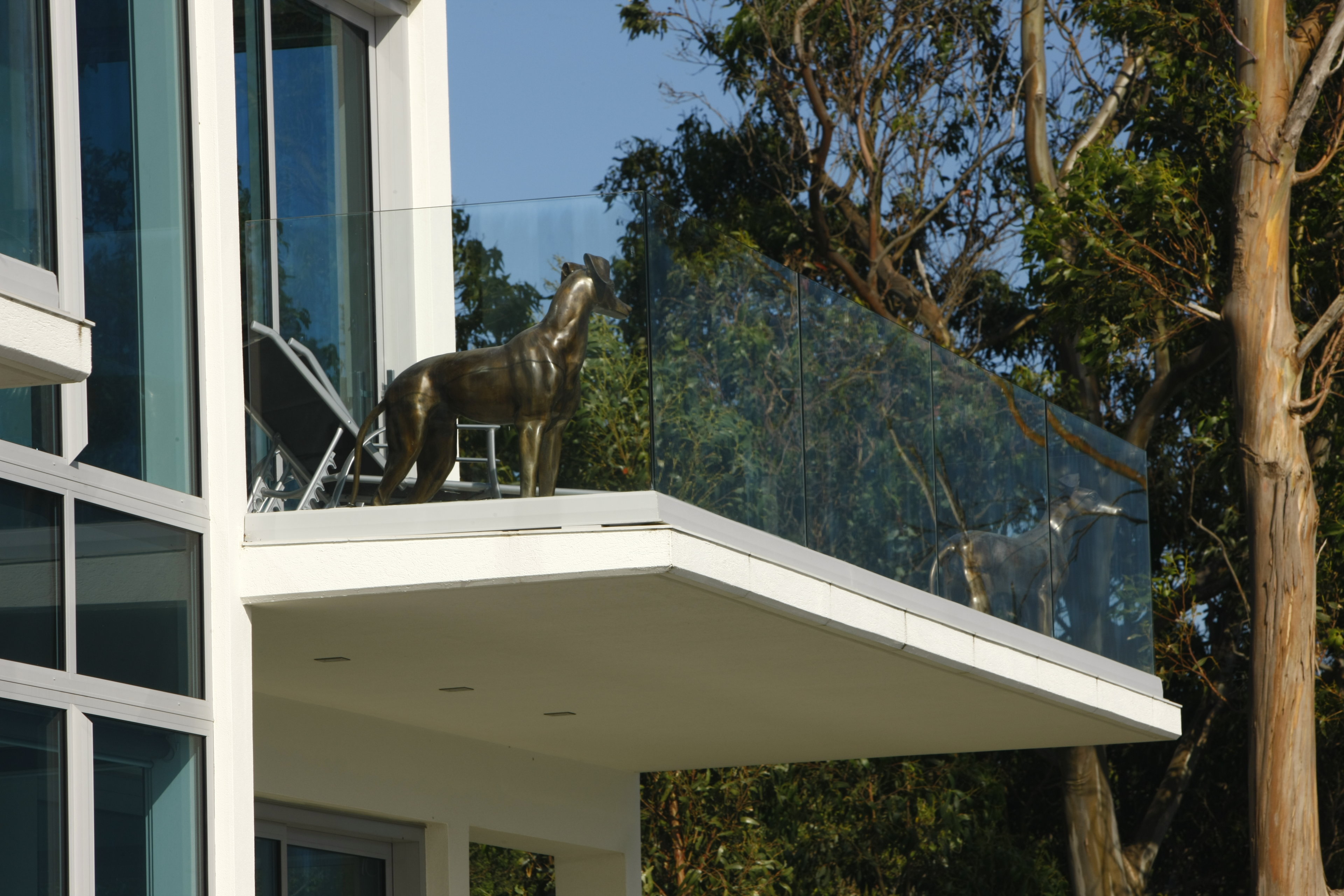

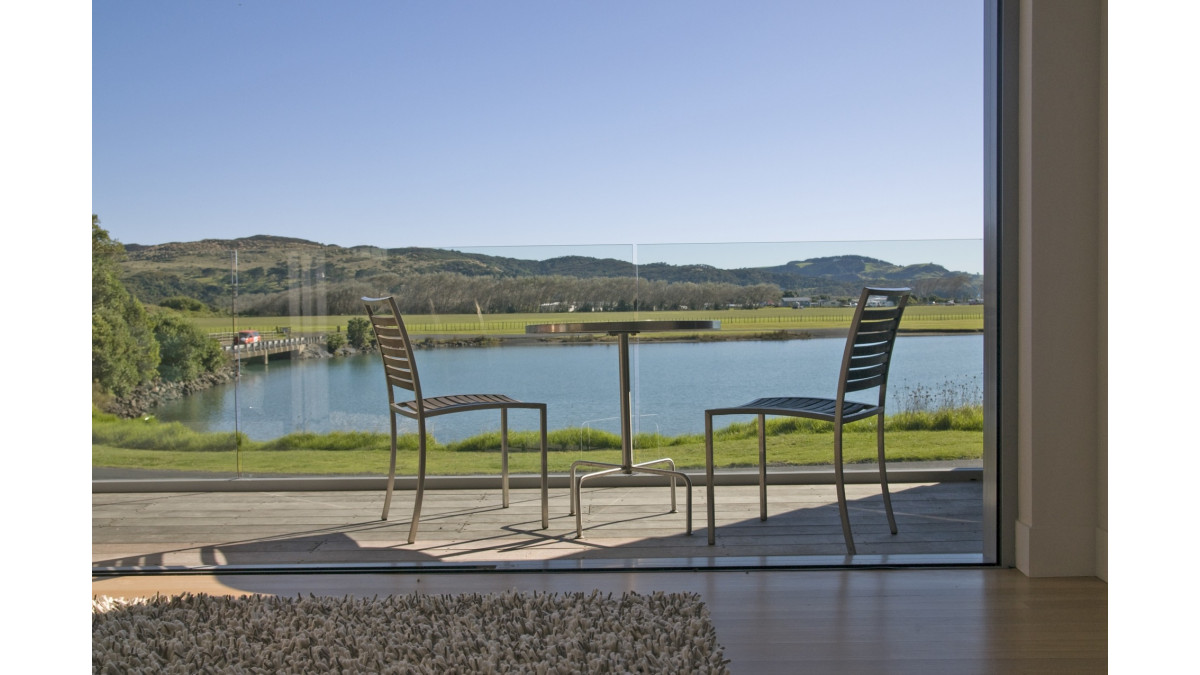

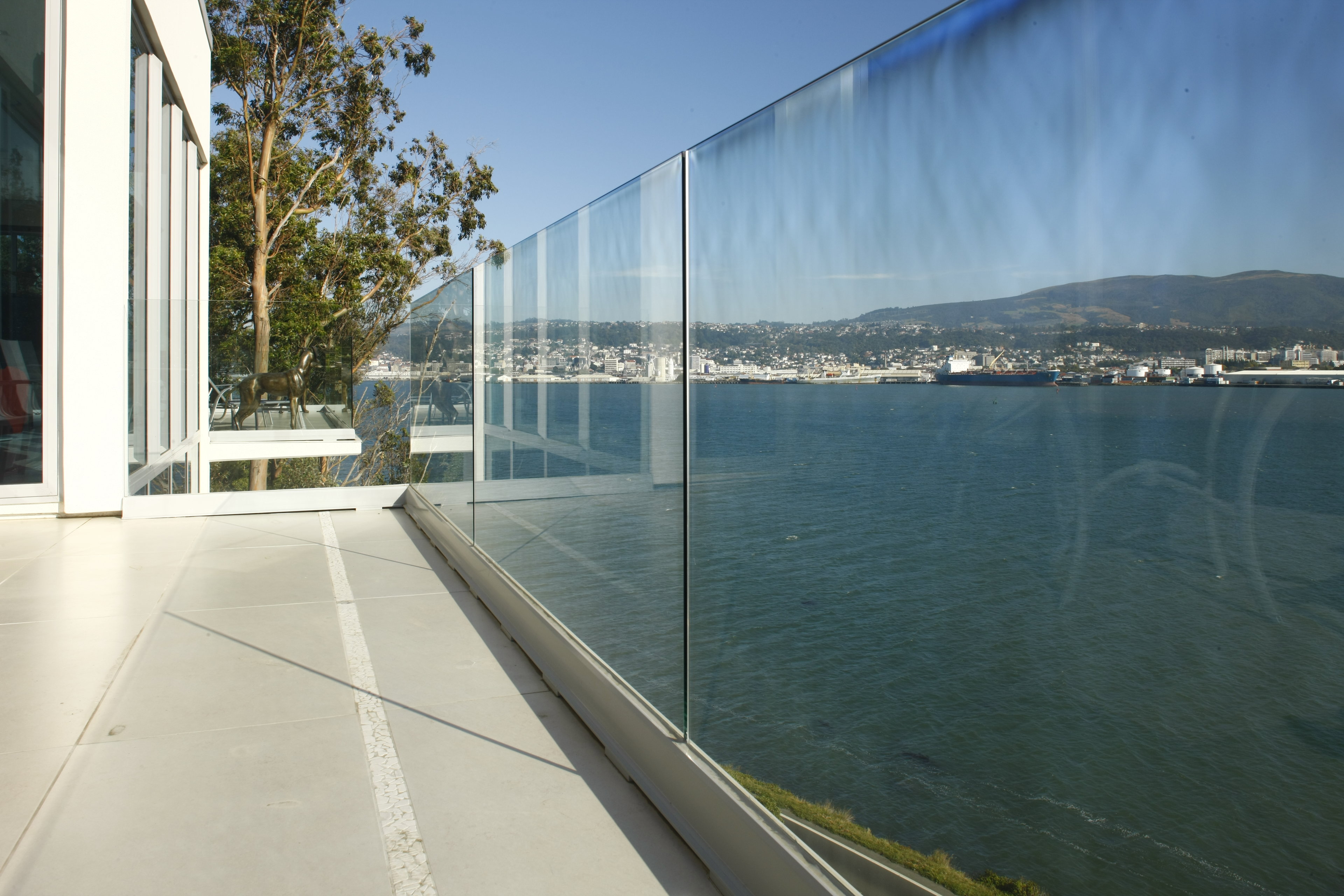

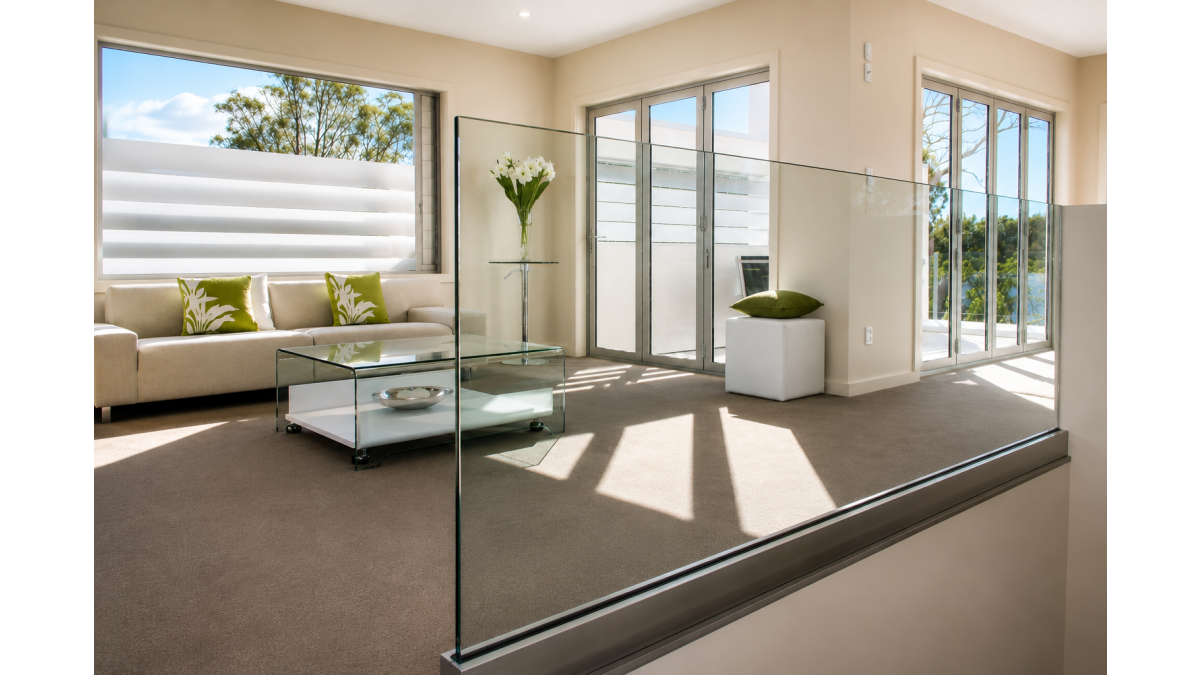

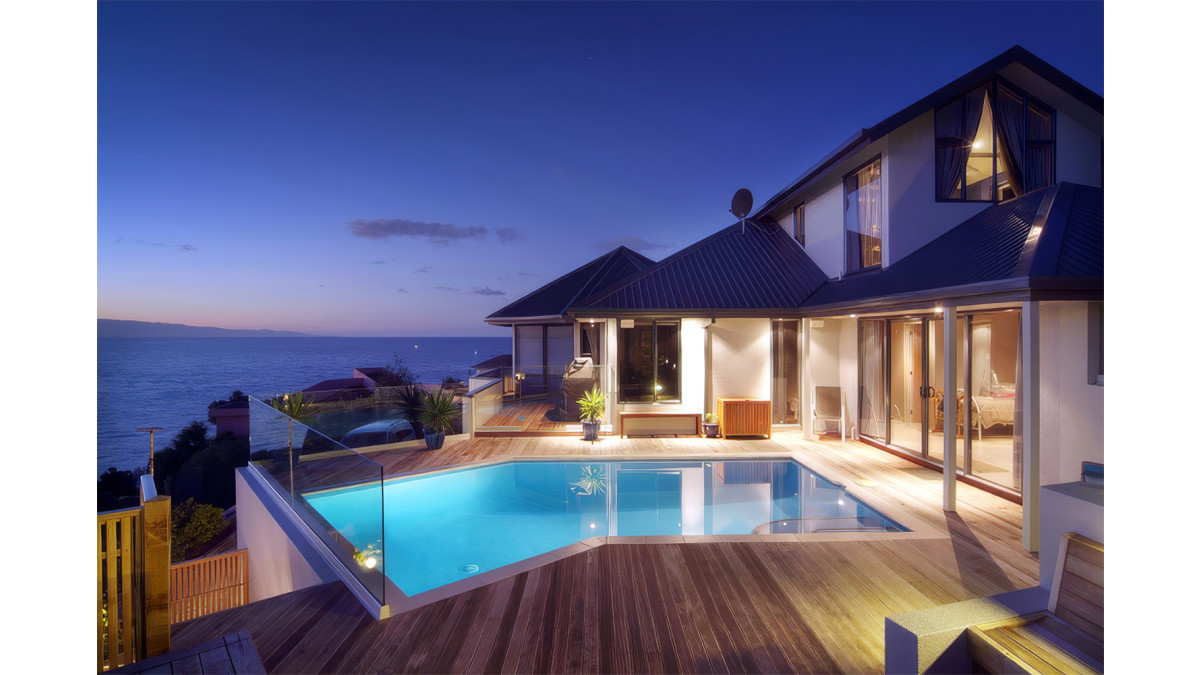

The Metropolis Frameless Glass Style by UNEX can be used for both external and internal applications, including decks, balconies, stairways and landings, mezzanine floors, pedestrian gates, and pool fences, etc.

Unex Systems’ Arena brand is designed to and complies with “A”, “B, E” and “C3” loadings of AS/NZS 1170.1:2002 for residential applications, office, and work areas, as well as areas for moving people without obstacles.

There is a number of standard fixing options available to fix to the top of dry/membrane timber (with water-proofing considerations), wet/open timber, and concrete substrates. Site-specific specifications may also be provided upon request for those non-standard situations.

The standard powders used by Unex Systems – the Interpon powder coat range - can be used right down to sea level, provided the care and maintenance instructions are adhered to.

Limitations on Use

UNEX designs for residential situations, office, and work areas, as well as for areas with moving people, however, cannot be used for “C1/C2”, “C5” or “D” Loadings. In these applications, UNEX recommends the use of its “Extreme Barriers” range of styles which has been specifically developed for these higher loadings in crowd and public situations.

The standard UNEX top rails comply with the handrail profile requirements of D1/AS1 for “Private” and “Common” stairways (with the exception of the #ARC and #ART top rails), but do not comply for “Accessible Stairways or Ramps”.

There are certain risks to consumers associated with glass balustrades where no other form of top rail exists. Refer to the “Glass Requirements” sheet (available for download on the right) and in particular, the “Risk to Consumers” section, for further information and to make an informed decision.

For certain buildings such as architectural sky rises (over 3 stories high), light commercial, and high pollution areas, a higher grade powder coat powder must be specified.

NZS 3604 Wind Zone Extra High suitable
Extra High Wind Zone
NZS 3604 Wind Zone High suitable
High Wind Zone
NZS 3604 Wind Zone Medium suitable
Medium Wind Zone
NZS 3604 Wind Zone Very High suitable
Very High WInd Zone
NZS 3604 Wind Zone Very High suitable
Very High Wind Zone
Statement of Building Code Compliance

UNEX has designed its Arena range to comply with the B1, B2, F2 and F4 requirements of the NZ Building Code and are suitable for occupancy types “A”, “B, E” and “C3” in accordance with AS/NZS 1170.

Producer statements for all standard specifications can be created online in the registered area of the UNEX website.

For non-standard situations not covered by UNEX's specifications, a site-specific PS1 and specification may be prepared by UNEX upon request.

In-Service History

UNEX has specialised in designing and manufacturing architectural balustrade systems throughout Australasia and beyond since 1981.

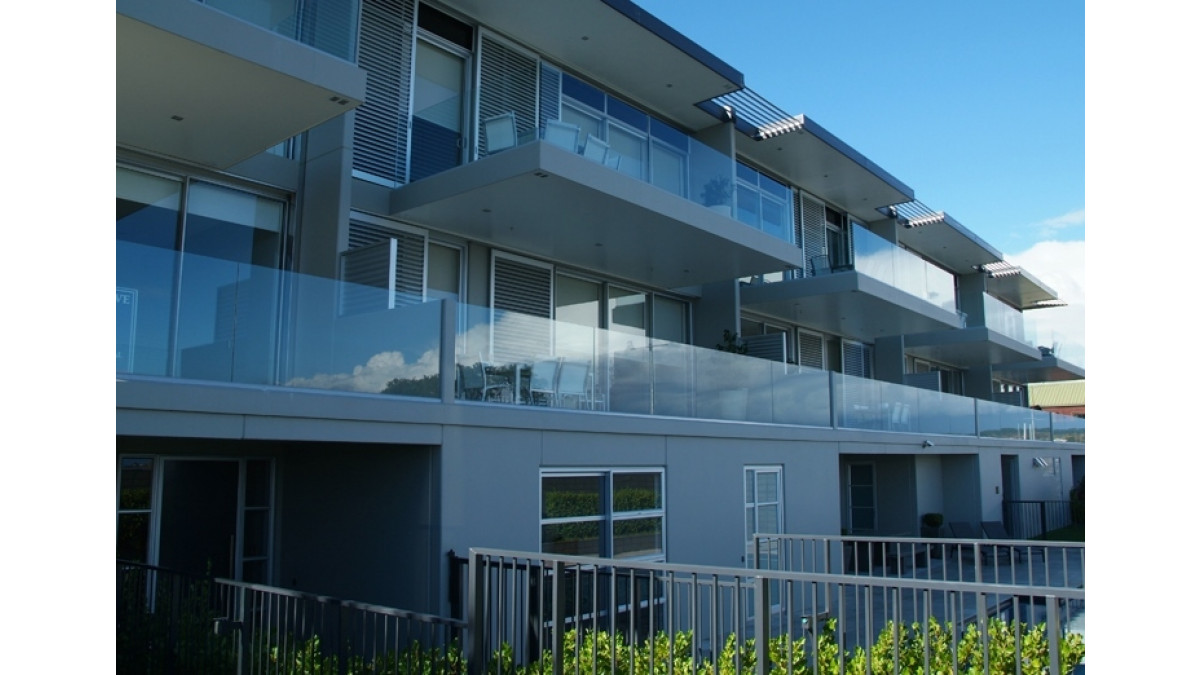

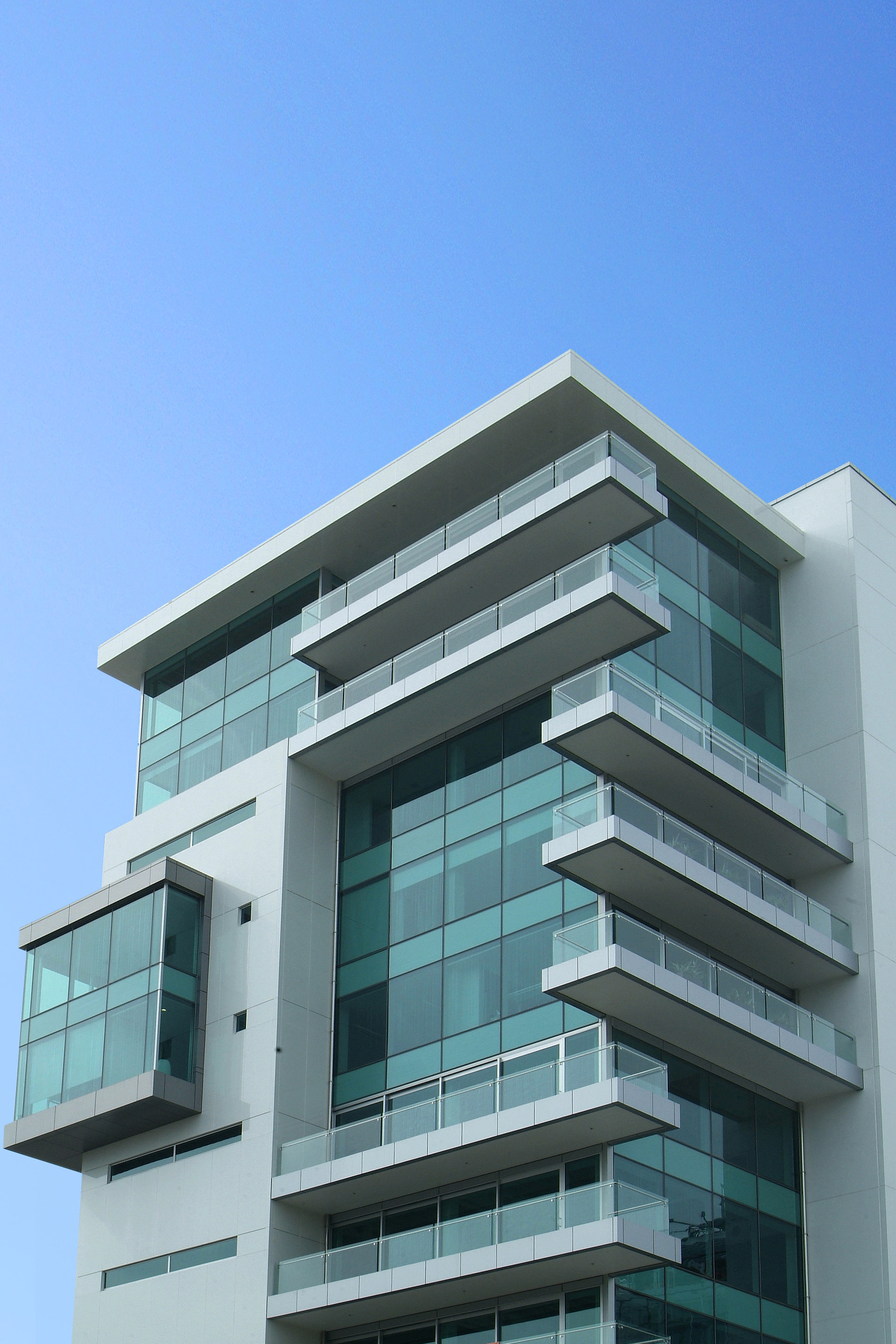

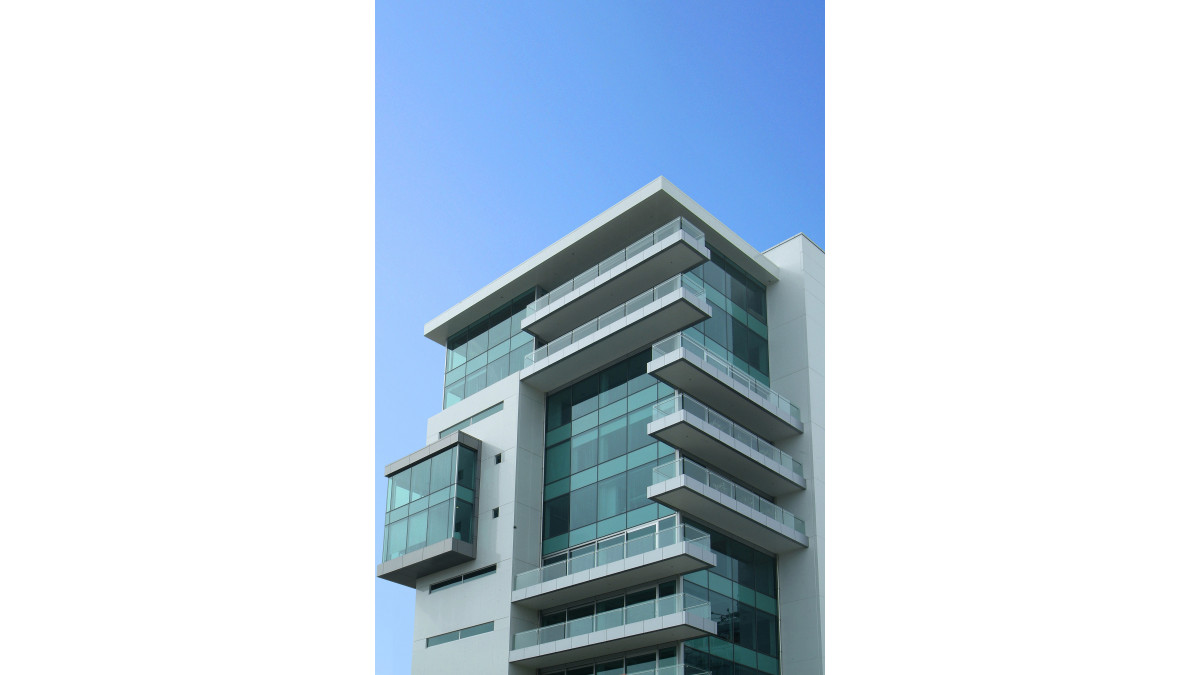

This Metropolis Frameless Glass Style has been incorporated in UNEX's range since 2006 and was one of the first frameless systems with mechanical fixings on the NZ market. This system has since been used in numerous projects throughout New Zealand including high rise towers, residential apartments, pool fences, etc.

B1 Structure compliant
Structure
B2 Durability compliant
Durability
F2 Hazardous Building Materials compliant
Hazardous Building Materials
F4 Safety from Falling compliant
Safety from Falling
F9 Restricting Access to Residential Pools compliant
Restricting Access to Residential Pools
Documents
UNEX Promotional Catalogue

ZUPPB

NZ Building Code Compliance
Glass Requirements
Maintenance Instructions
Installation and Operation
UNEX Authorised Fabricators
Colour Range
CAD/PDF Details
Arena AZM Top-Mount Channel Style

3.111.1

AZM, Dry Timber Fixing

4.111.1

AZM, Wet Timber Fixing

4.111.2

AZM, Concrete Fixing

4.111.5
