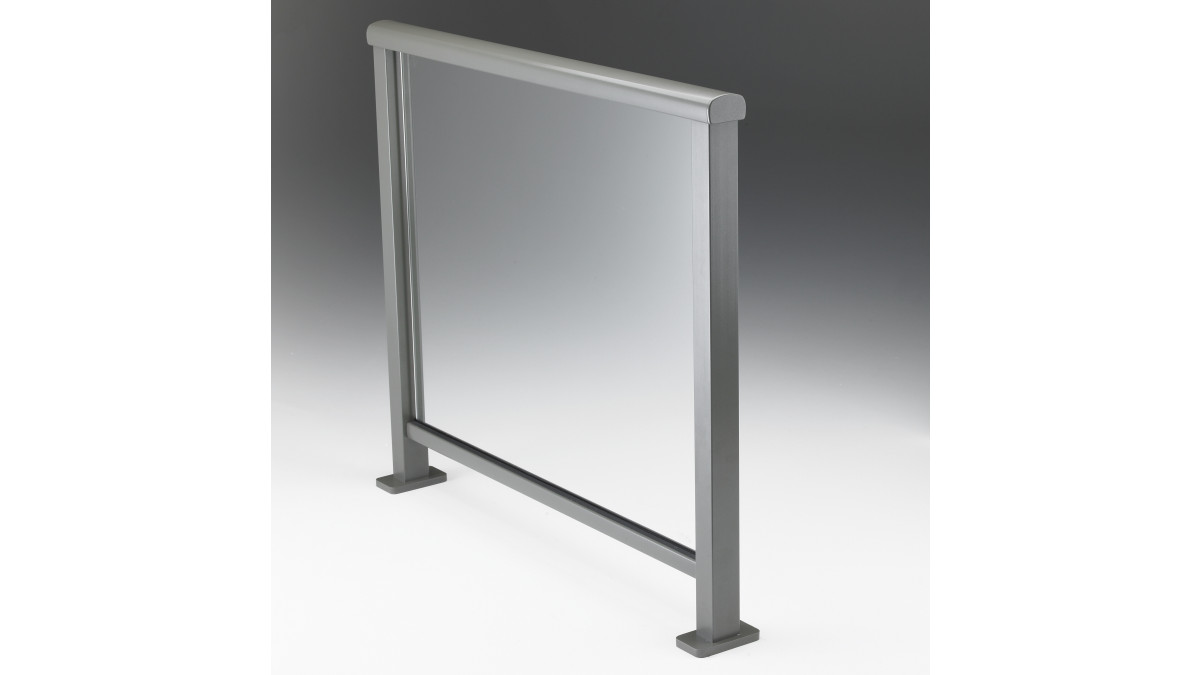

Framed Glass — Avon Style
Description

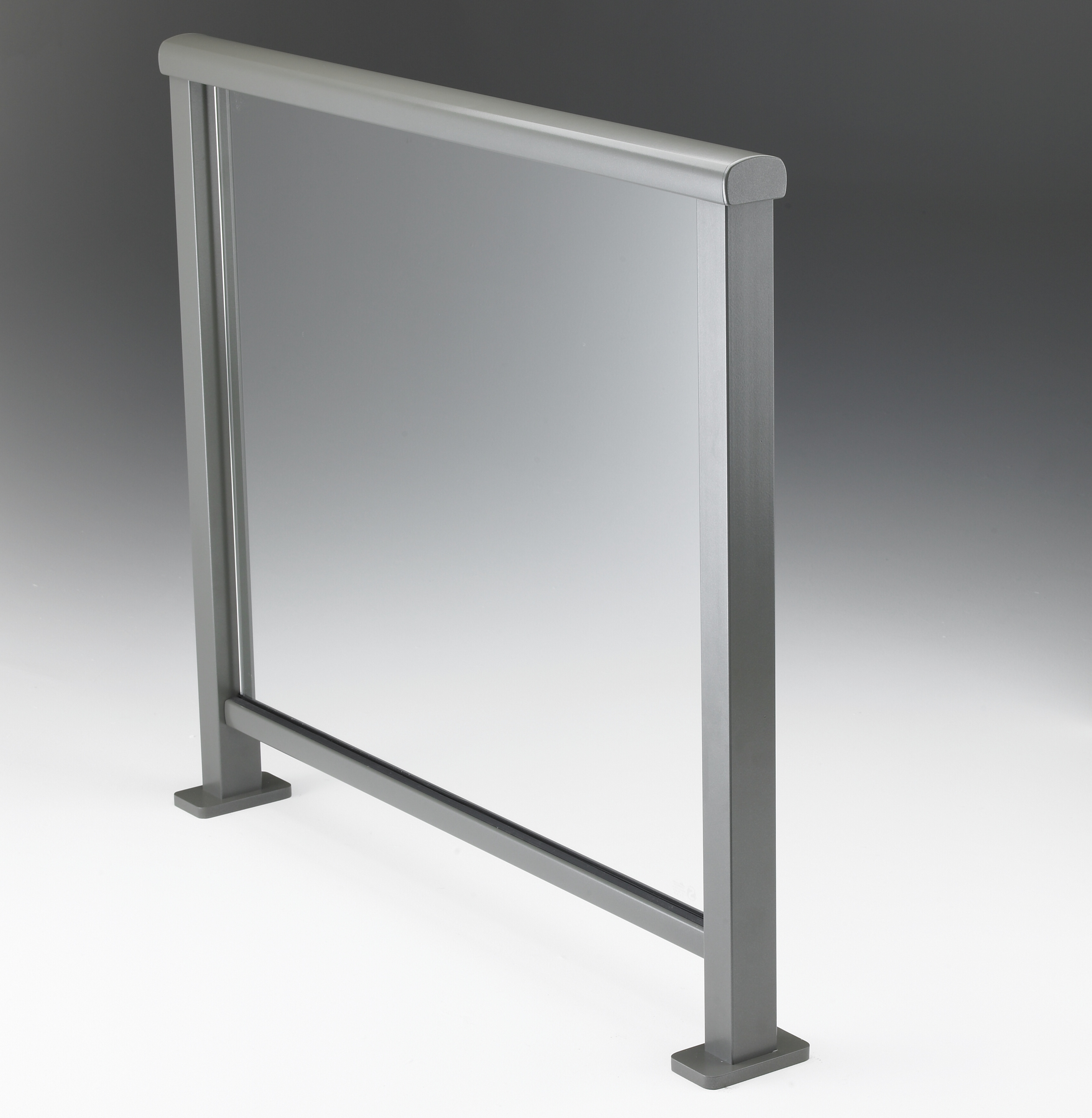

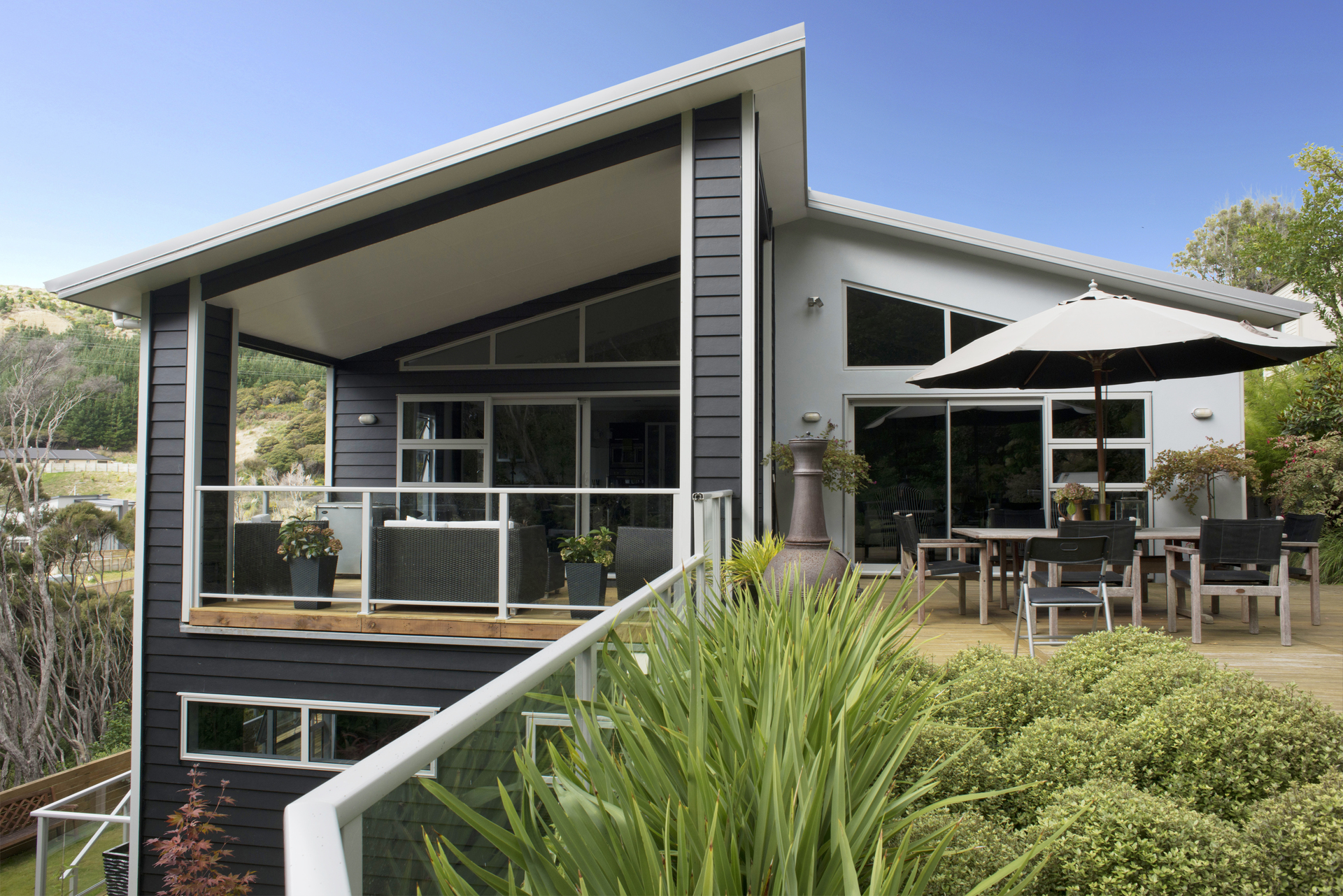

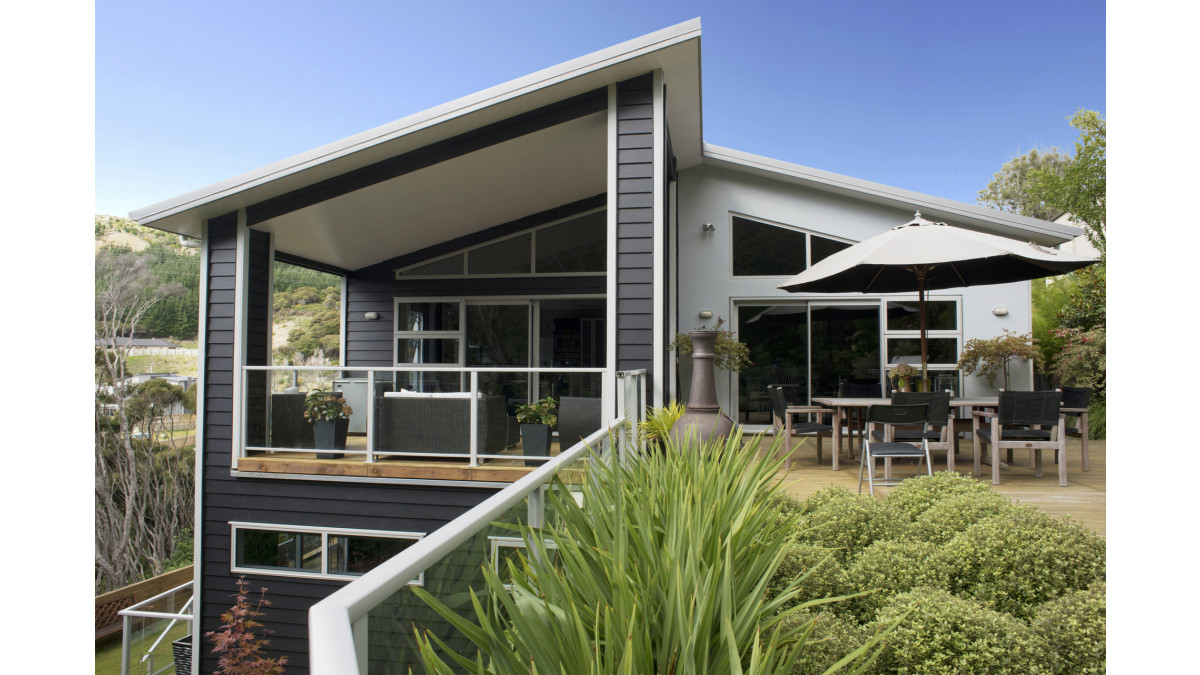

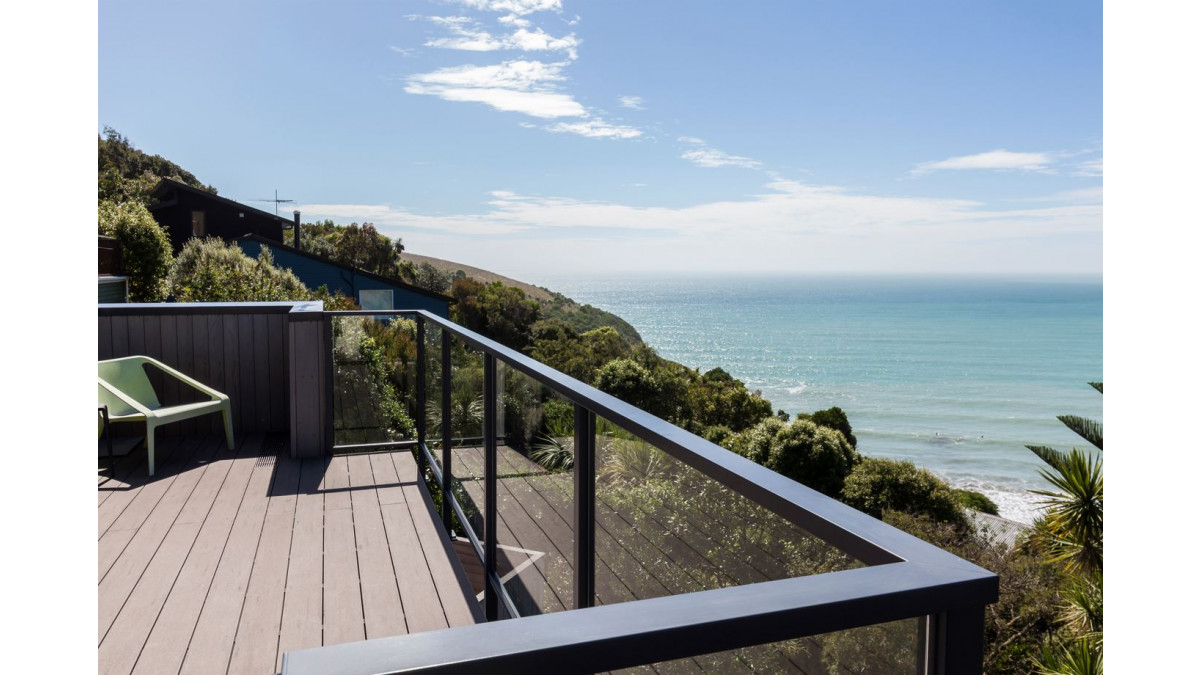

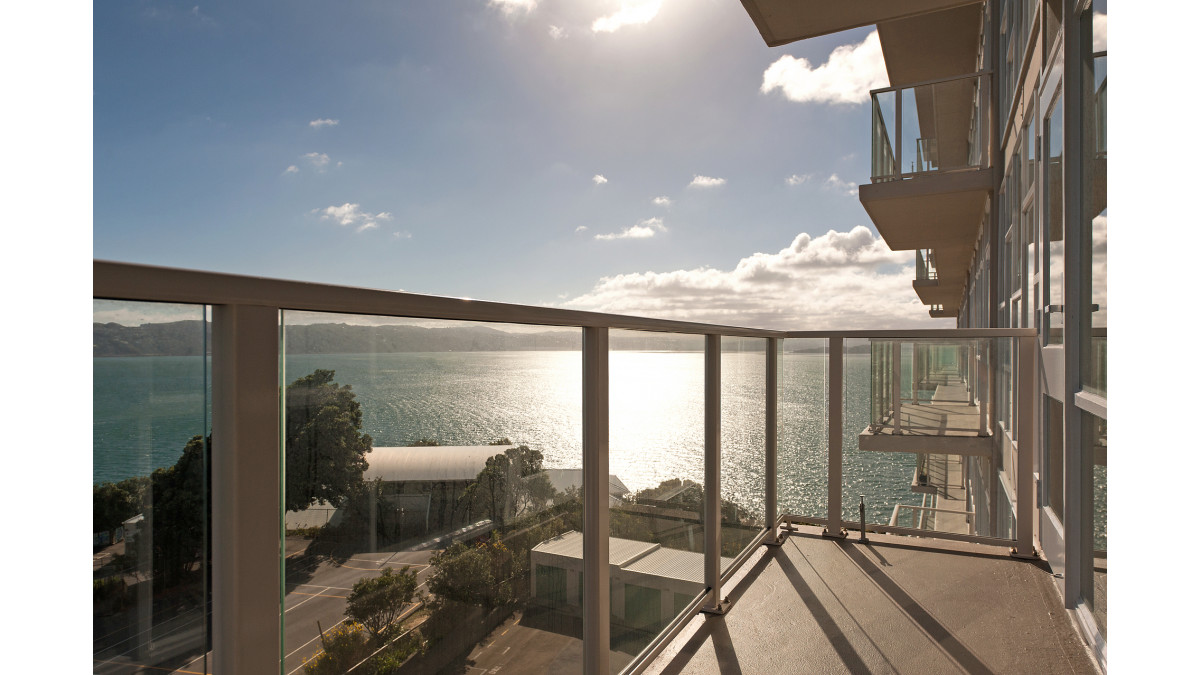

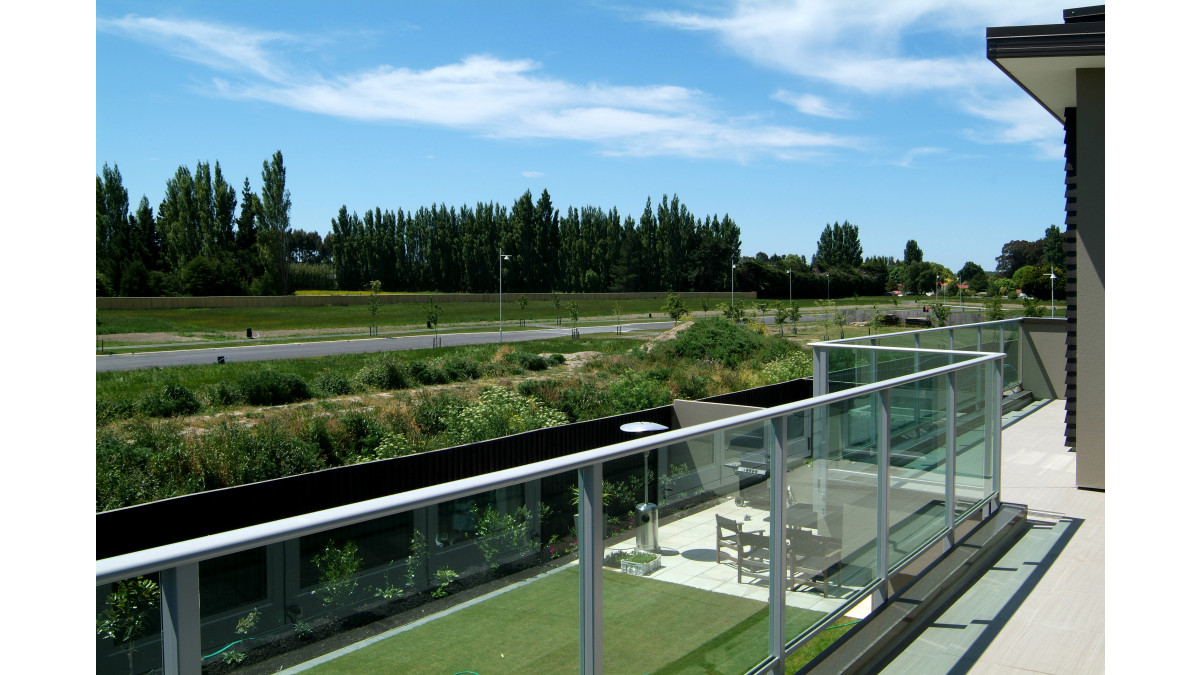

Unex's Framed Glass balustrade, Avon Style, are aluminium framed panels with glass infill spanning between the top and bottom rails with a choice of five interchangeable top rail options, all of which can be finished in a range of 60+ colours.

This traditional system is attractive, yet the most cost-effective balustrade of all glass styles.

Key Features
  • Range of six plus top rails to choose from
  • Designed for standard heights up to 1200mm from finished deck level
  • Wide range of finish options – can be powder coated or anodised in all standard NZ colours
  • Standard specifications available for top or side fixing to both timber and concrete substrates
  • Specifications for non-standard situations may be provided by Unex Systems upon request
  • Screws together with minimal, if any, welds required
  • Made from 6000 series extruded aluminium alloys
  • Installed only by Authorised Fabricators, available nationwide
  • Post option available for side-fixed situations to conceal screw fixings
  • Designed for wind speeds up to 64m/s (ULS)
NZ-Owned Business
NZ-Owned Business
Scope of Use

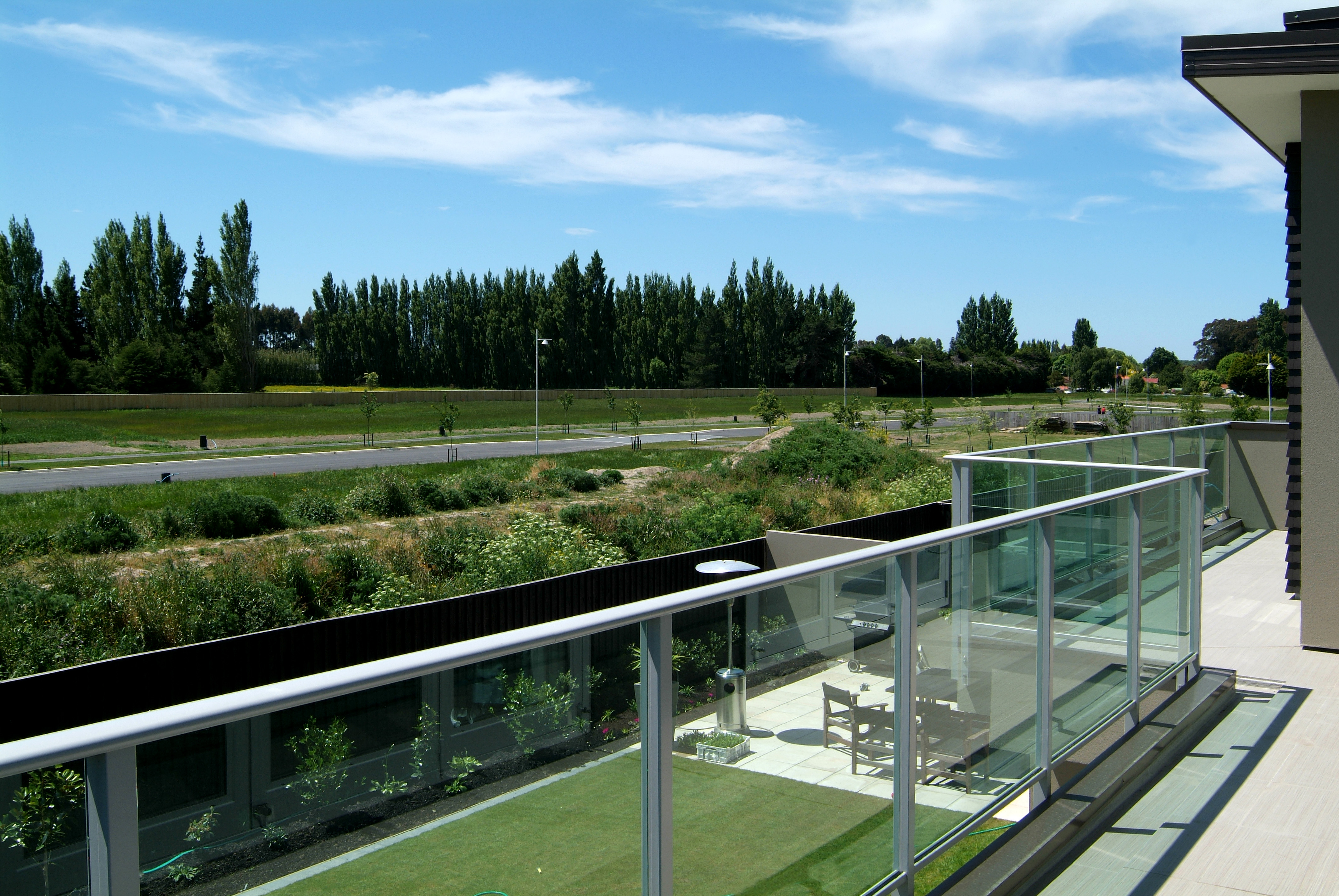

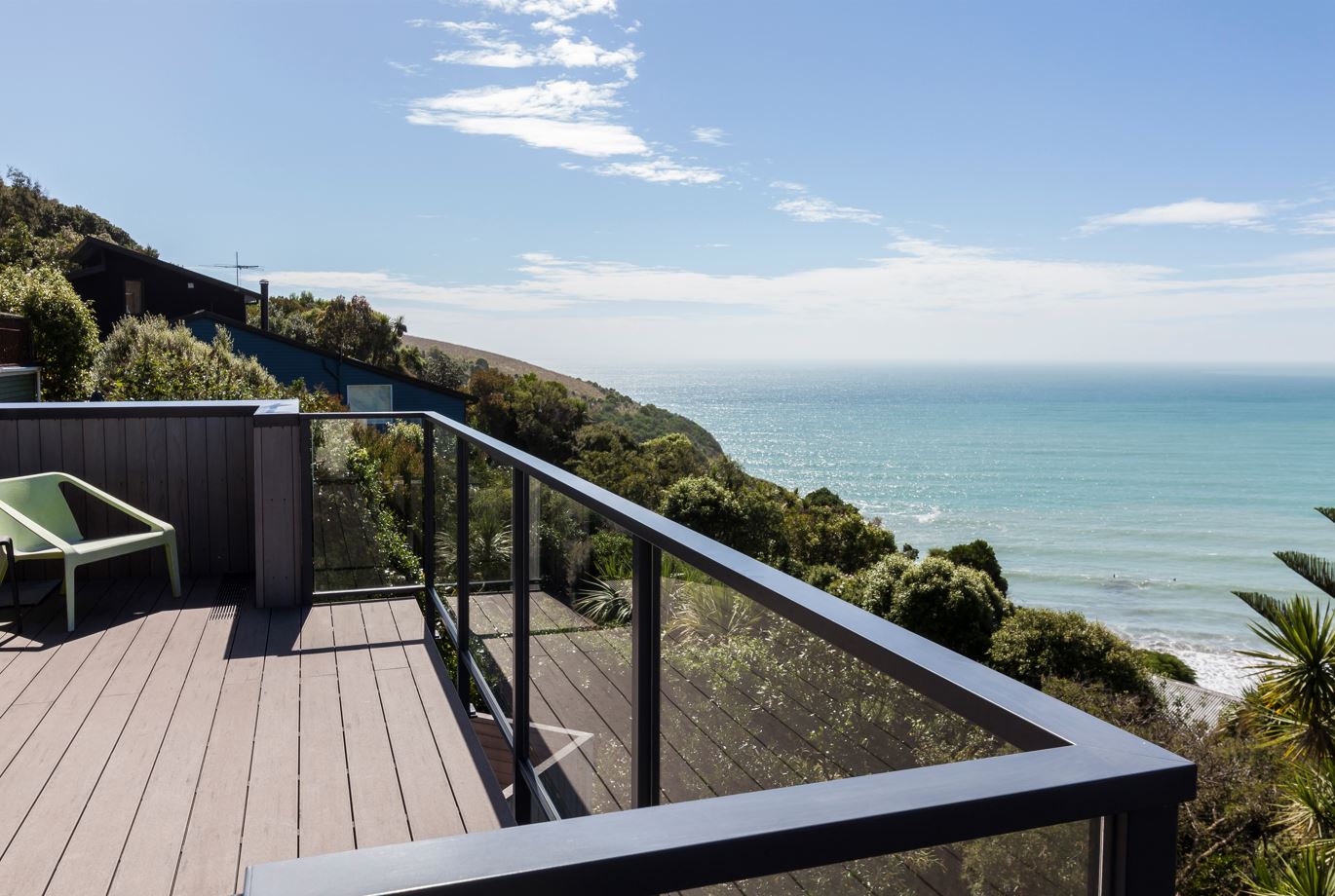

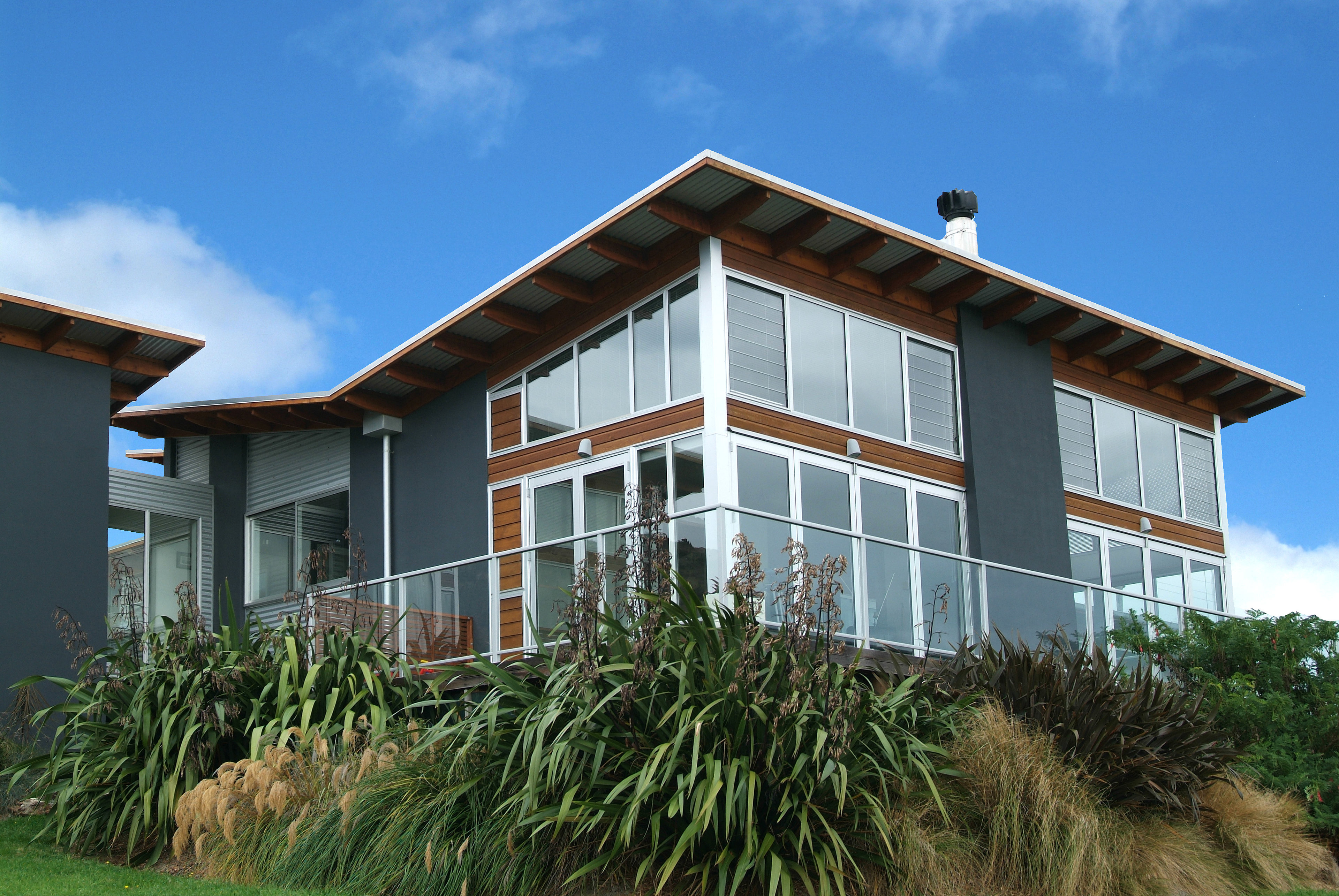

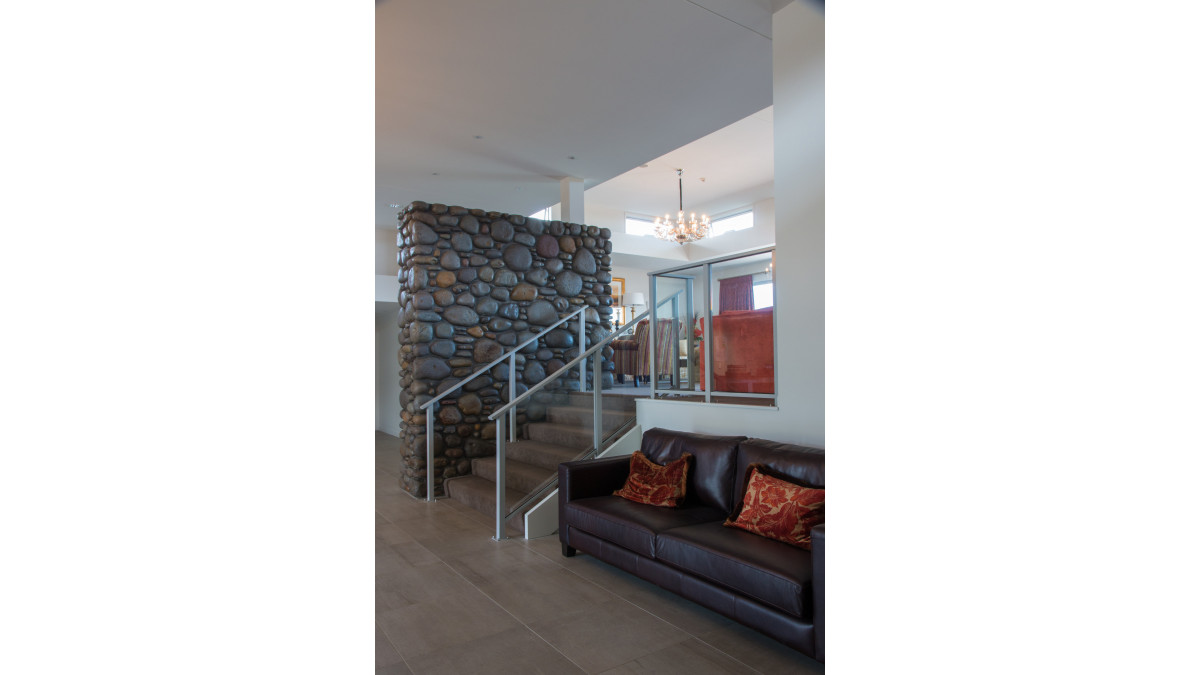

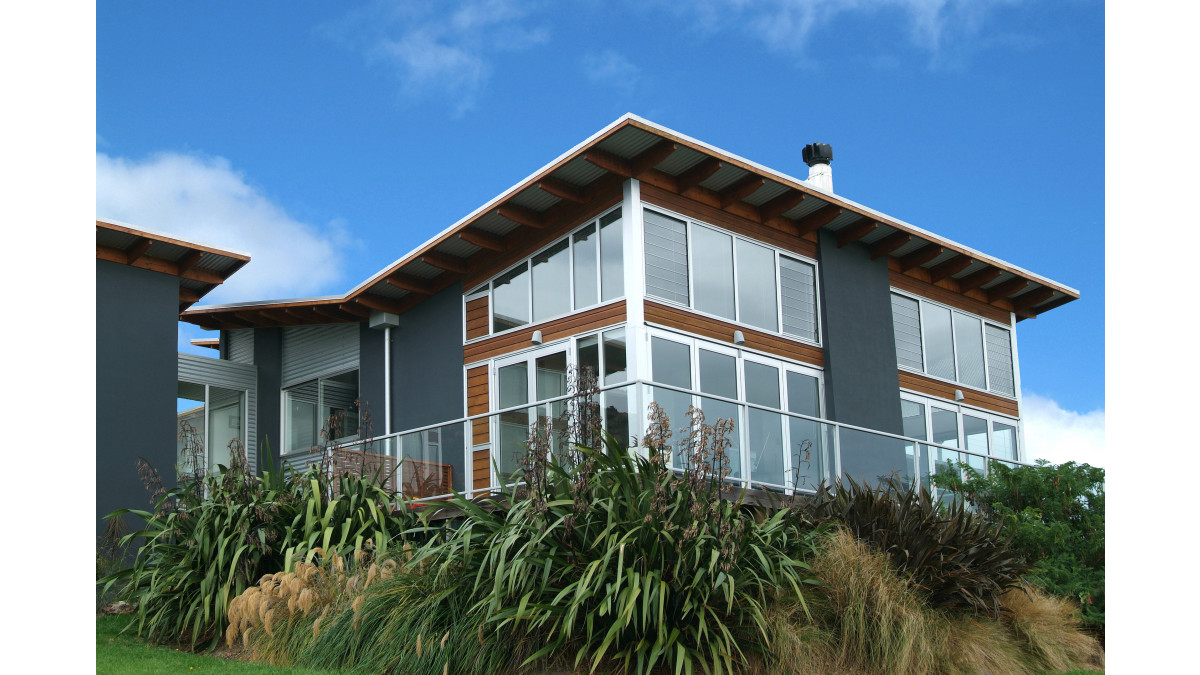

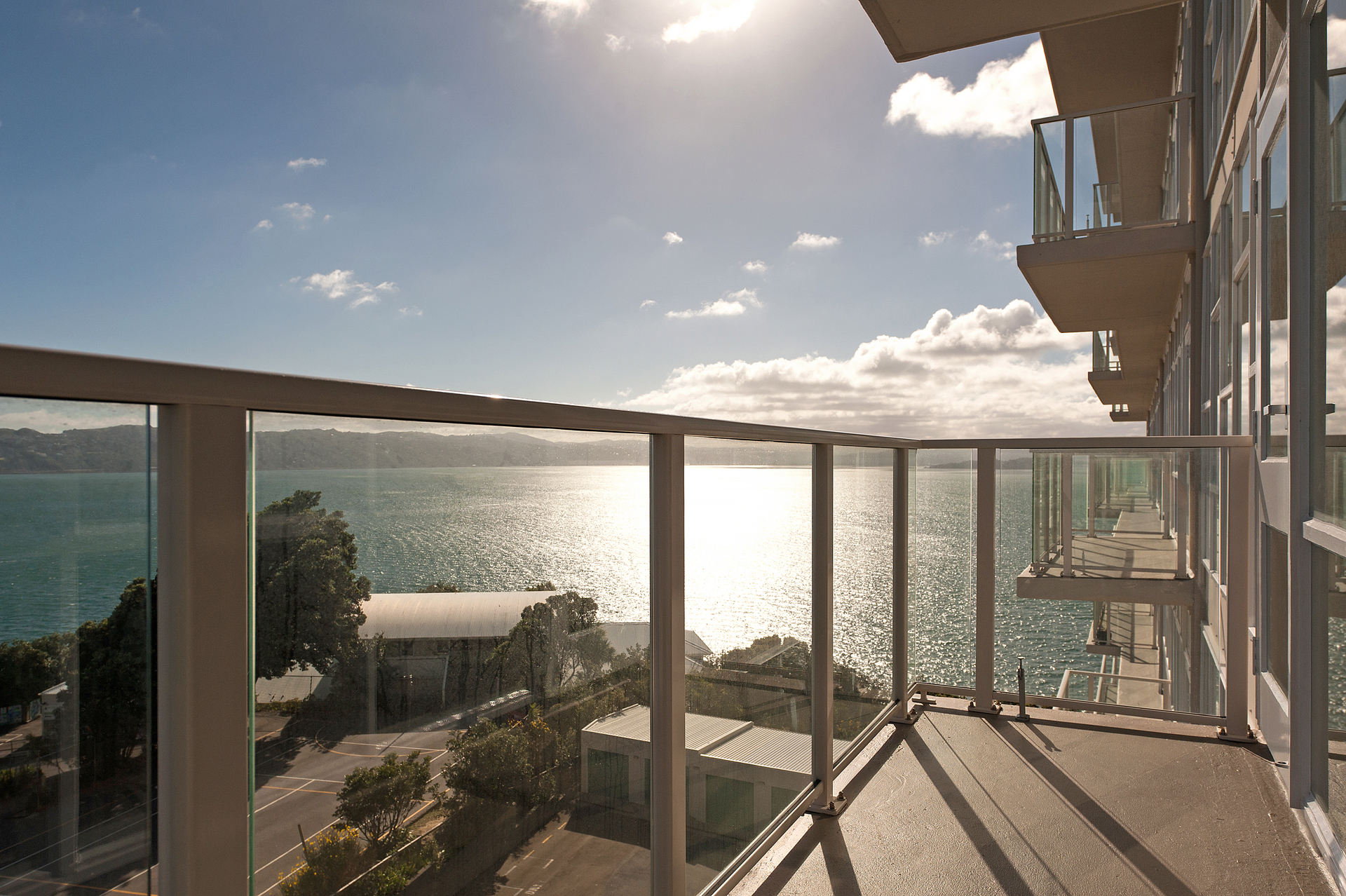

The Avon Framed Glass style by UNEX can be used for both external and internal applications, including decks, balconies, stairways and landings, mezzanine floors, pedestrian gates, and pool fences, etc.

Unex Systems’ balustrade brands – namely Aluma, Eclipse Vogue and Arena – are designed to and comply with 'A', 'B', 'E' and 'C3' loadings of AS/NZS 1170.1:2002 for residential applications, office and work areas, as well as areas for moving people without obstacles.

There is a wide range of fixing options available to fix to the top and sides of both timber and concrete substrates. The Unex Systems DKG2 gutter bracket system is designed for membrane decks with gutters and waterproofing considerations. Site-specific specifications may also be provided upon request for those non-standard situations.

The standard powders used by Unex Systems (the Interpon powder coat range) can be used right down to sea level, provided the care and maintenance instructions are adhered to.

Limitations on Use

The Unex Systems brands designed for residential situations, office and work areas, as well as for areas with moving people – namely Aluma, Eclipse Vogue and Arena – cannot be used for 'C1/C2', 'C5' or 'D' Loadings. In these applications, Unex Systems recommends the use of the 'Extreme Barriers' range which has been specifically developed for these higher loadings in crowd and public situations.

The standard Unex Systems’ top rails comply with the handrail profile requirements of D1/AS1 for “Private” and “Common” stairways (with the exception of the #ARC and #ART top rails), but do not comply for “Accessible Stairways or Ramps”.
Where a top rail of a balustrade on a stairway does not comply with D1/AS1, Unex Systems recommends an auxiliary complying handrail is mounted to the side of the balustrade posts.

For certain buildings such as architectural sky rises (over 3 stories high), light commercial or high pollution areas, a higher grade powder coat powder must be specified.



NZS 3604 Wind Zone Extra High suitable
Extra High Wind Zone
NZS 3604 Wind Zone High suitable
High Wind Zone
NZS 3604 Wind Zone Medium suitable
Medium Wind Zone
NZS 3604 Wind Zone Very High suitable
Very High WInd Zone
NZS 3604 Wind Zone Very High suitable
Very High Wind Zone
Statement of Building Code Compliance

Unex Systems has designed its range of balustrade styles in the Aluma, Eclipse Vogue and Arena brands to comply with the B1, B2, E2, F2 and F4 requirements of the NZ Building Code and are suitable for occupancy types 'A', 'B', 'E' and 'C3' in accordance with AS/NZS 1170.

For more information, please refer to Unex Systems' NZ Building Code Compliance Document (right).

Producer Statements for all standard specifications can be created online in the registered area of the Unex Systems website.

For non-standard situations not covered by the specifications, a site-specific PS1 and specification may be prepared by Unex Systems upon request.



In-Service History

Unex Systems has specialised in designing and manufacturing architectural balustrade systems throughout Australasia and beyond since 1981.

These framed glass styles have been incorporated in Unex’s range since the early 1990s. There have been a number of enhancements made since this time — in particular during 2008, when the building code changed to incorporate AS/NZS1170 which meant that the required balustrades loads effectively doubled. Unex Systems then redesigned a number of their balustrade extrusions to ensure these loads were adequately met.

B1 Structure compliant
Structure
B2 Durability compliant
Durability
E2 External Moisture compliant
External Moisture
F2 Hazardous Building Materials compliant
Hazardous Building Materials
F4 Safety from Falling compliant
Safety from Falling
F9 Restricting Access to Residential Pools compliant
Restricting Access to Residential Pools
Documents
UNEX Promotional Catalogue

ZUPPB

NZ Building Code Compliance
Maintenance Instructions
Typical Specification
Producer Statement
Authorised Fabricators
UNEX Authorised Fabricators
Colour Range
CAD/PDF Details
Filters
Fixing Specs
Assembly Specification w/VRT Top Rail

AS.25.04T

NZBAL-B12.0

Assembly Specification w/ART Top Rail

AS.25.05T

NZBAL-B12.0

Assembly Specification w/PRR Top Rail

AS.25.06T

NZBAL-B12.0

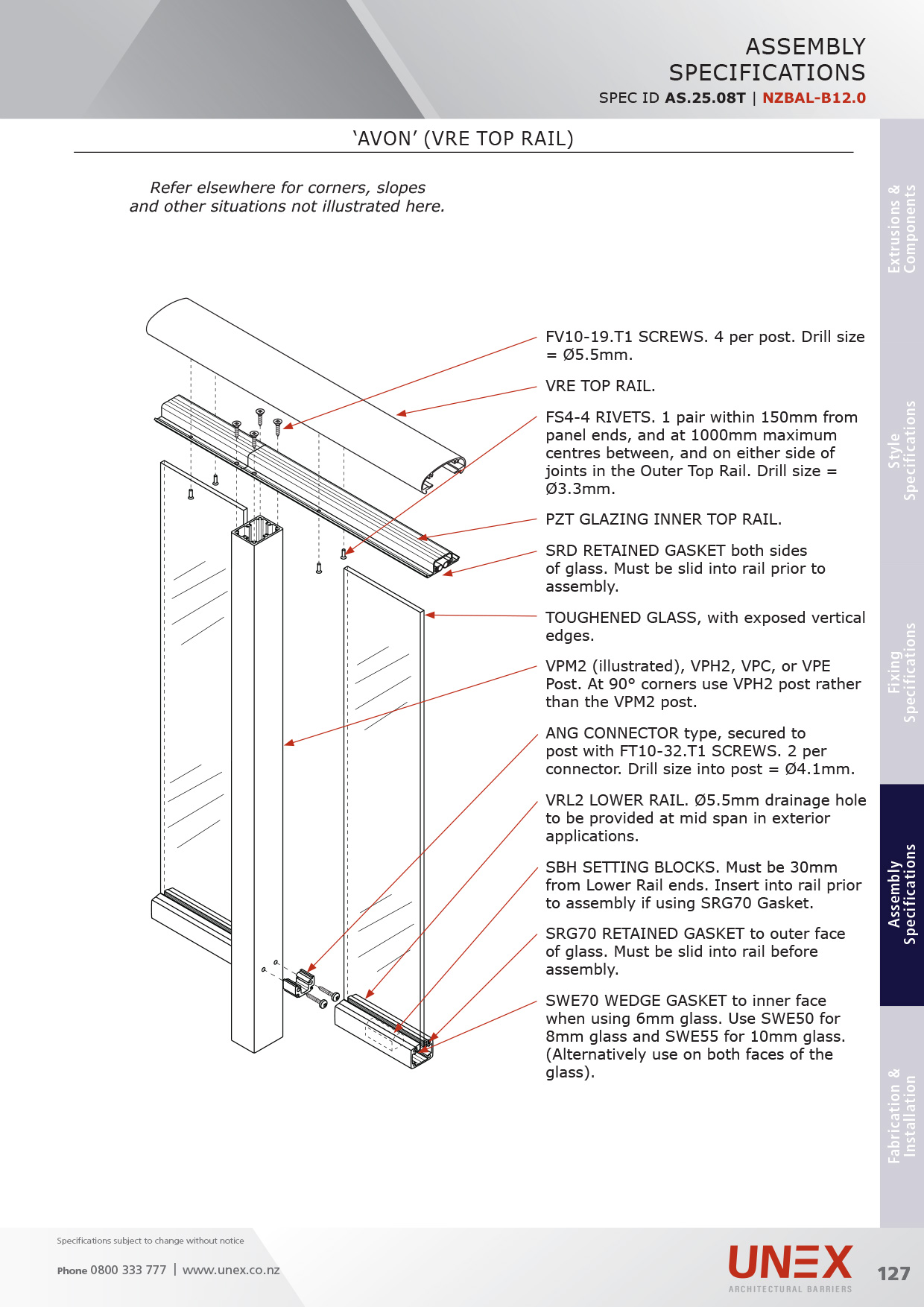

Assembly Specification w/VRE Top Rail

AS.25.08T

NZBAL-B12.0

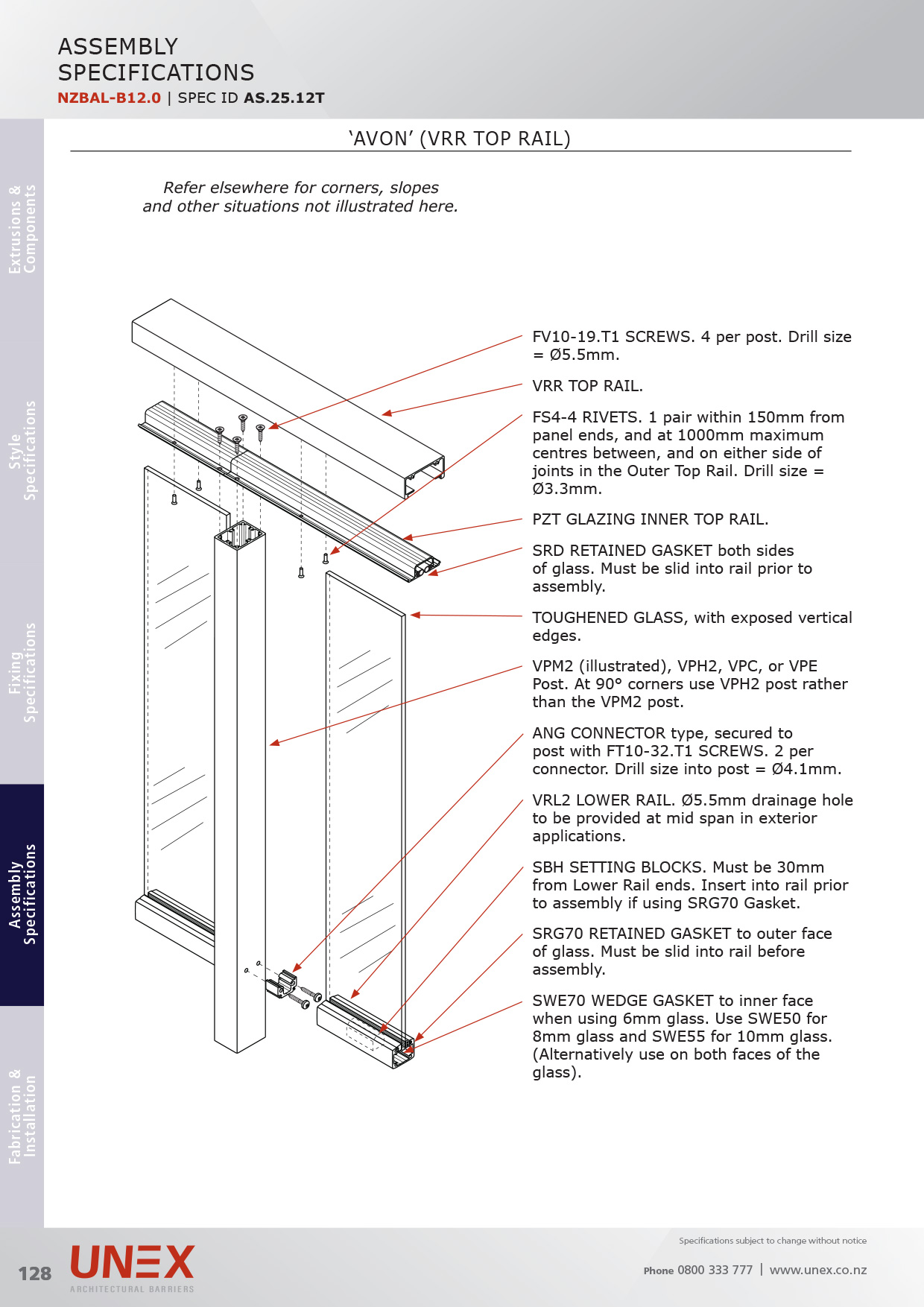

Assembly Specification w/VRR Top Rail

AS.25.12T

NZBAL-B12.0

Dry Timber, Side Fixing, Screws, 90mm Edge Joist

FS.1S.04.01

Dry Timber, Side Fixing, Bolts

FS.1S.06.01

Dry Timber, DKG2 Fixing, Screws, 90mm Edge Joist

FS.1S.07.01

Dry Timber, DKFB Fixing, Screws, 90mm Edge Joist

FS.1S.08.01

Dry Timber, Top Fixing, 65mm CRS

FS.1T.01.00

Dry Timber, Top Fixing, 90mm CRS

FS.1T.02.00

Wet Timber, Side Fixing, Screws, 90mm Edge Joist

FS.2S.04.01

Wet Timber, Side Fixing, Screws, 135mm Edge Joist

FS.2S.05.01

Wet Timber, Side Fixing, Bolts

FS.2S.06.01

Wet Timber, Top Fixing, 65mm CRS

FS.2T.01.00

Wet Timber, Top Fixing, 90mm CRS

FS.2T.02.00

Concrete, DKG2 Fixing, Expoxy-set Anchors

FS.3S.07.01

Concrete, Side Fixing, Epoxy-set Anchors

FS.3S.19.01

Concrete, Top Fixing, Epoxy-set Anchors, 65mm CRS

FS.3T.01.00

Concrete, Top Fixing, Epoxy-set Anchors, 90mm CRS

FS.3T.02.00

Concrete, Post Built-into

FS.3T.12.01

Masonry, Side Fixing, Epoxy-set Anchors

FS.4S.19.00

Masonry, Top Fixing, Epoxy-set Anchors, 65mm CRS

FS.4T.01.00

Masonry, Top Fixing, Epoxy-set Anchors, 90mm CRS

FS.4T.02.00

Steel, Side Fixing, Bolts

FS.5S.06.01

Steel, Top Fixing, Inline Bolts

FS.5T.00.00_75

Steel, Top Fixing, Inline Bolts

FS.5T.00.00_90

Steel, Top Fixing, Bolts, 65mm CRS

FS.5T.01.00

Style Specification w/VRT Top Rail

SS.25.04T

NZBAL-B12.0

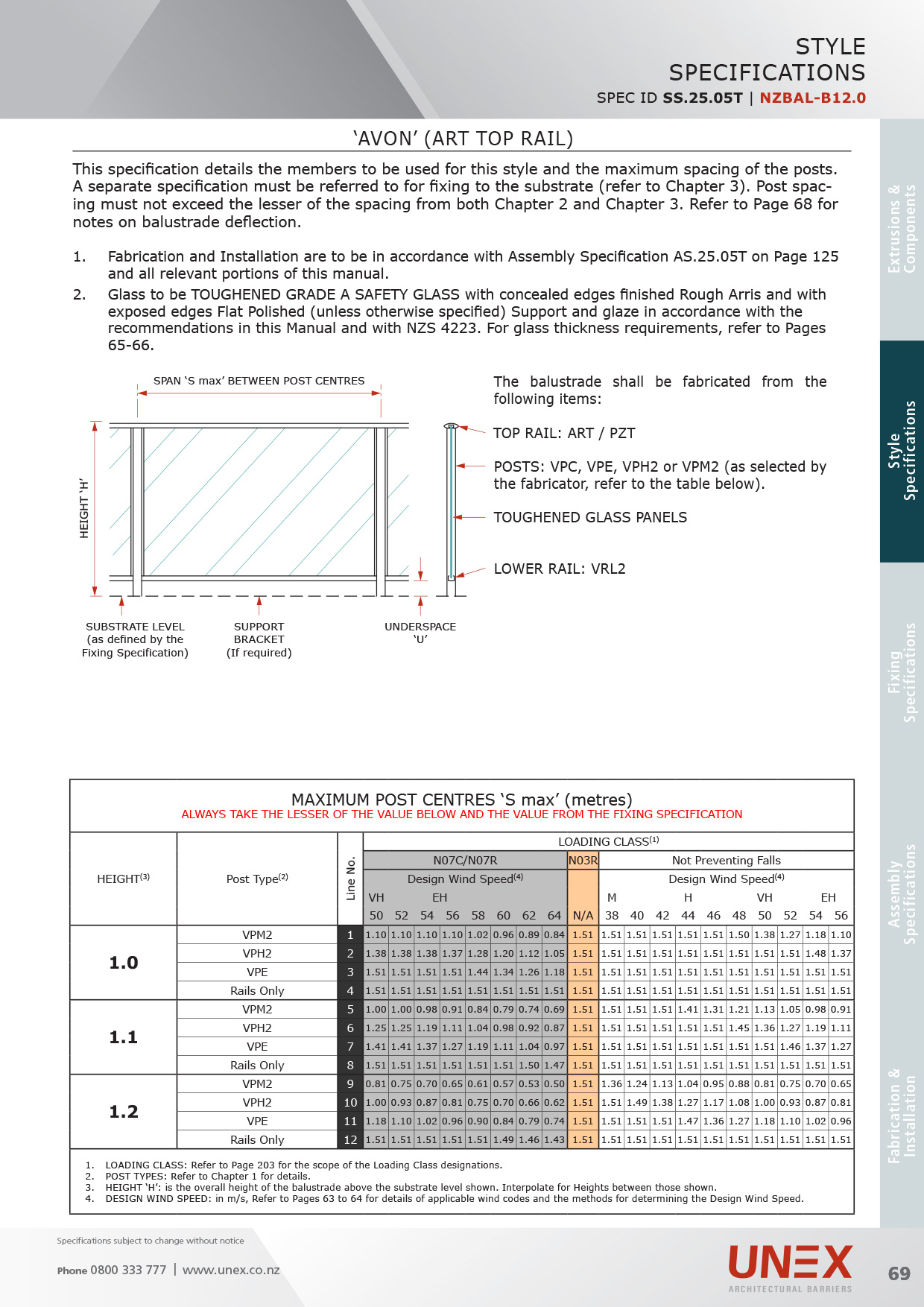

Style Specification w/ART Top Rail

SS.25.05T

NZBAL-B12.0

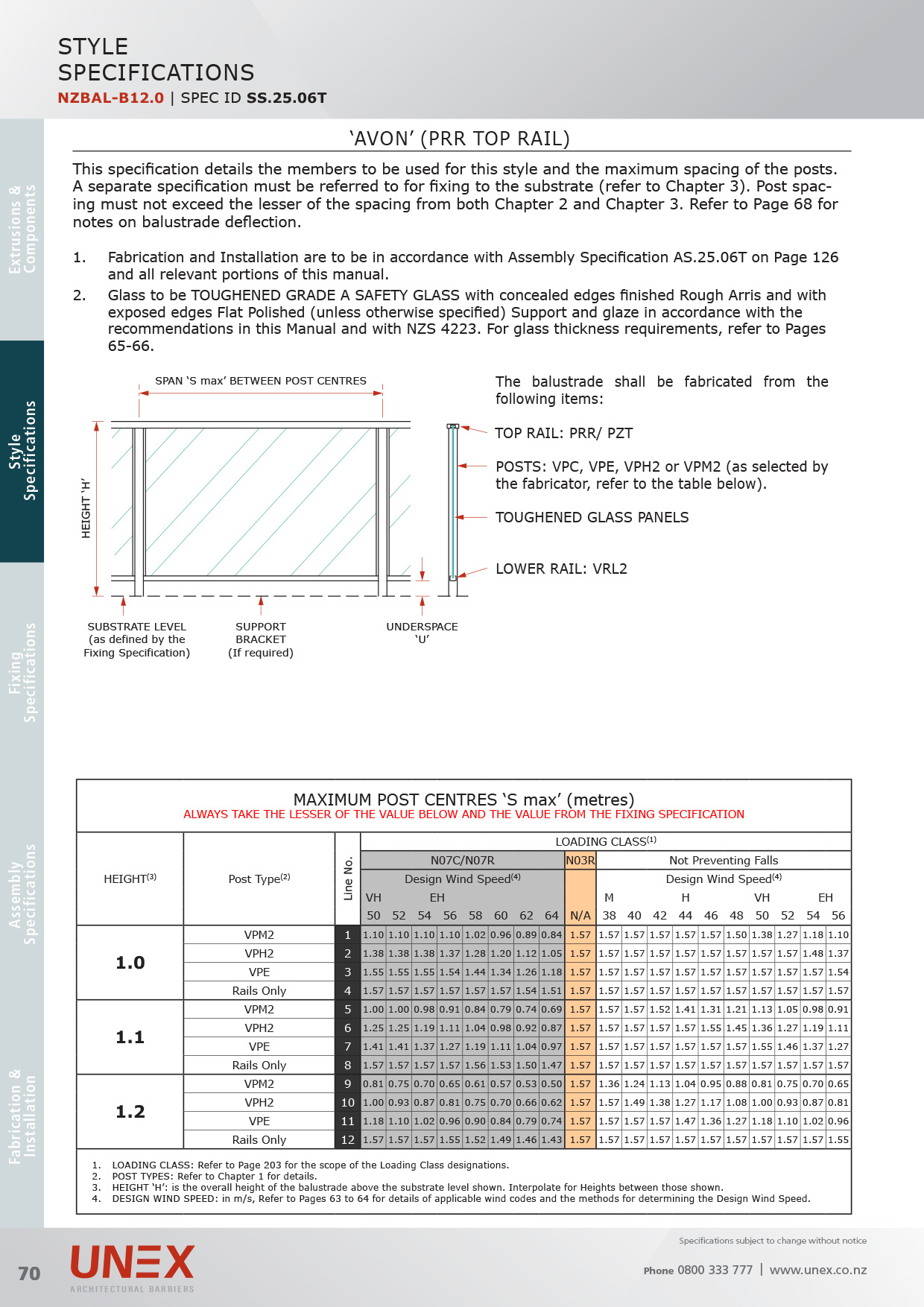

Style Specification w/PRR Top Rail

SS.25.06T

NZBAL-B12.0

Style Specification w/VRE Top Rail

SS.25.08T

NZBAL-B12.0

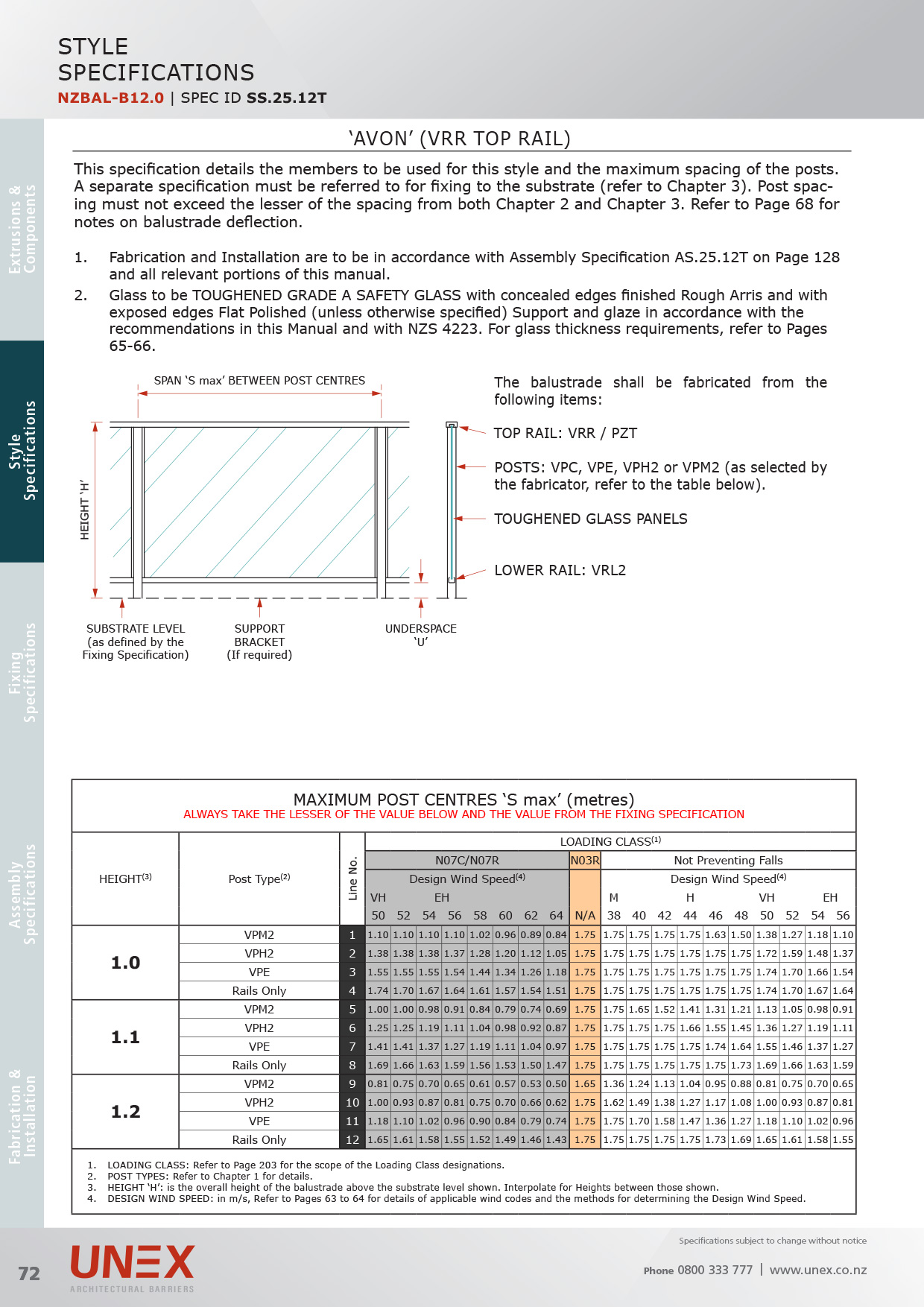

Style Specification w/VRR Top Rail

SS.25.12T

NZBAL-B12.0

BIM
Avon Style (Side Fixed)

BF.25.16S

1.0

Avon Style (Top Fixed)

BF.25.16T

1.0
