Energie Eco XL Solar Thermodynamic Large Volume Water Heating
Description

An Energie Eco XL large volume water heating system is designed to heat water for commercial or industrial use. The Energie Eco XL system can heat up to 6,000 litres of water, and sized according to the business needs.

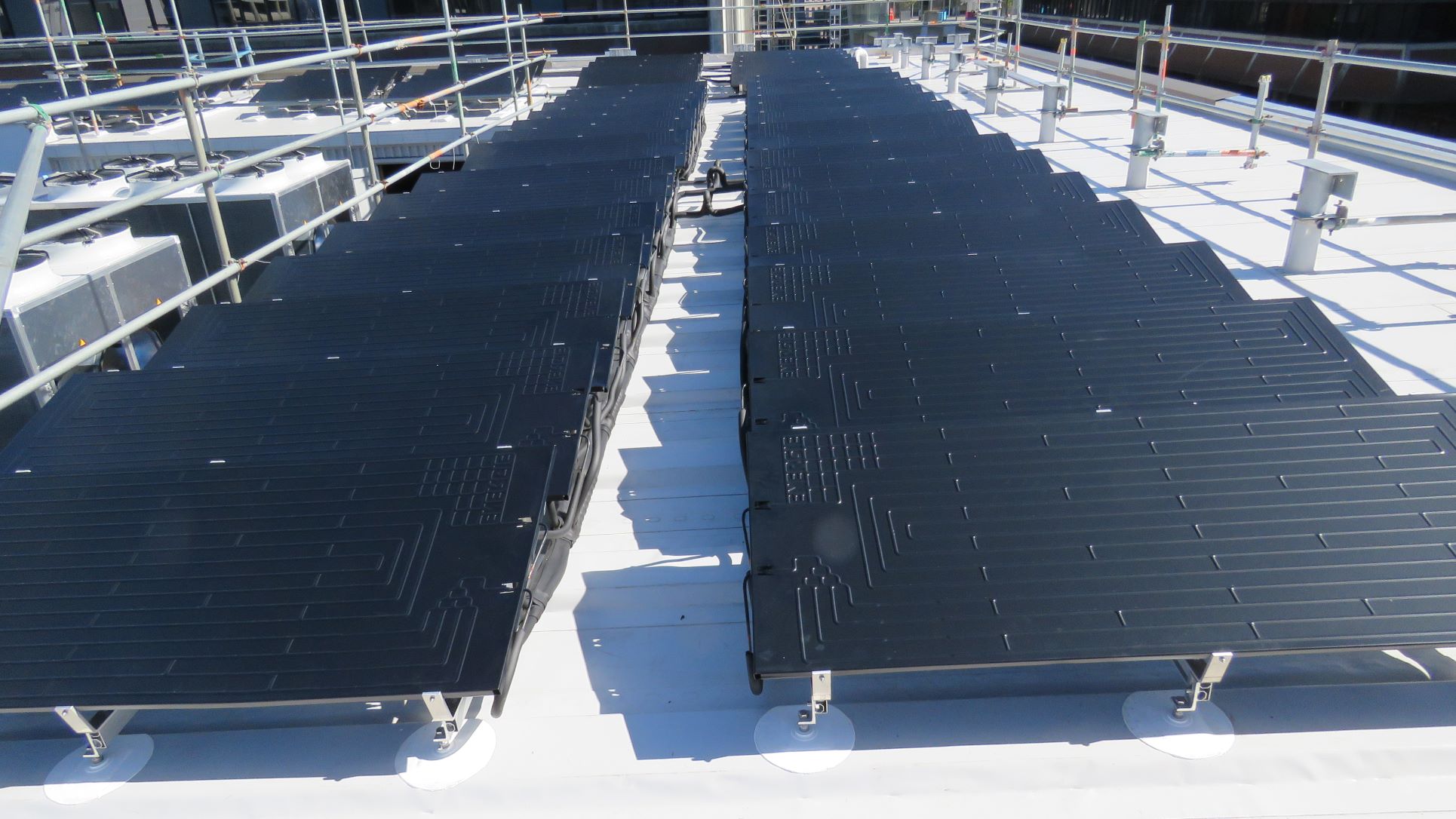

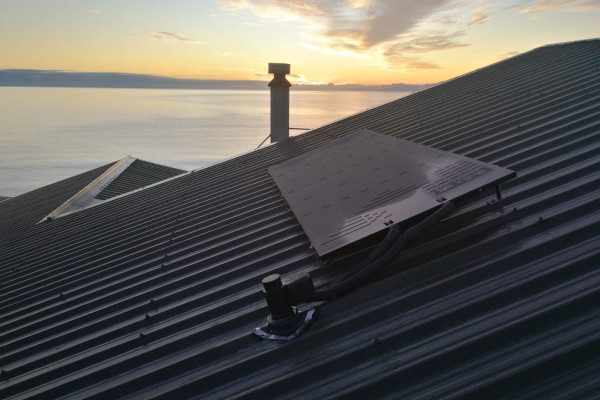

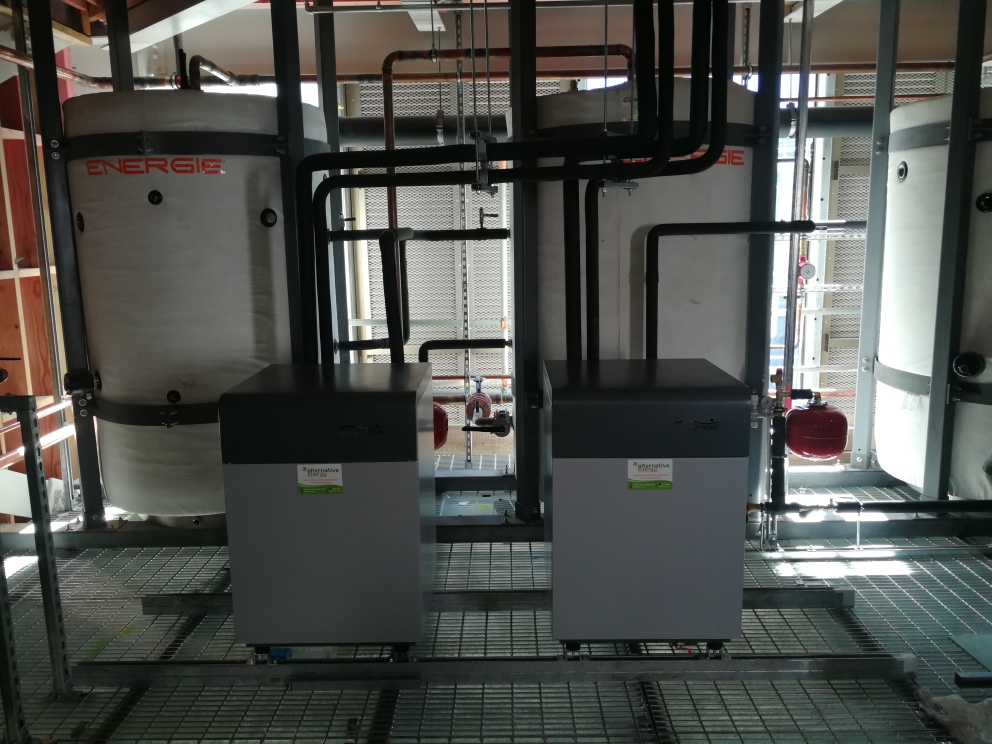

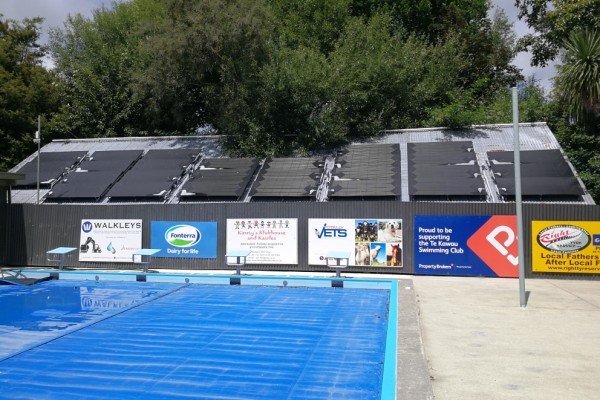

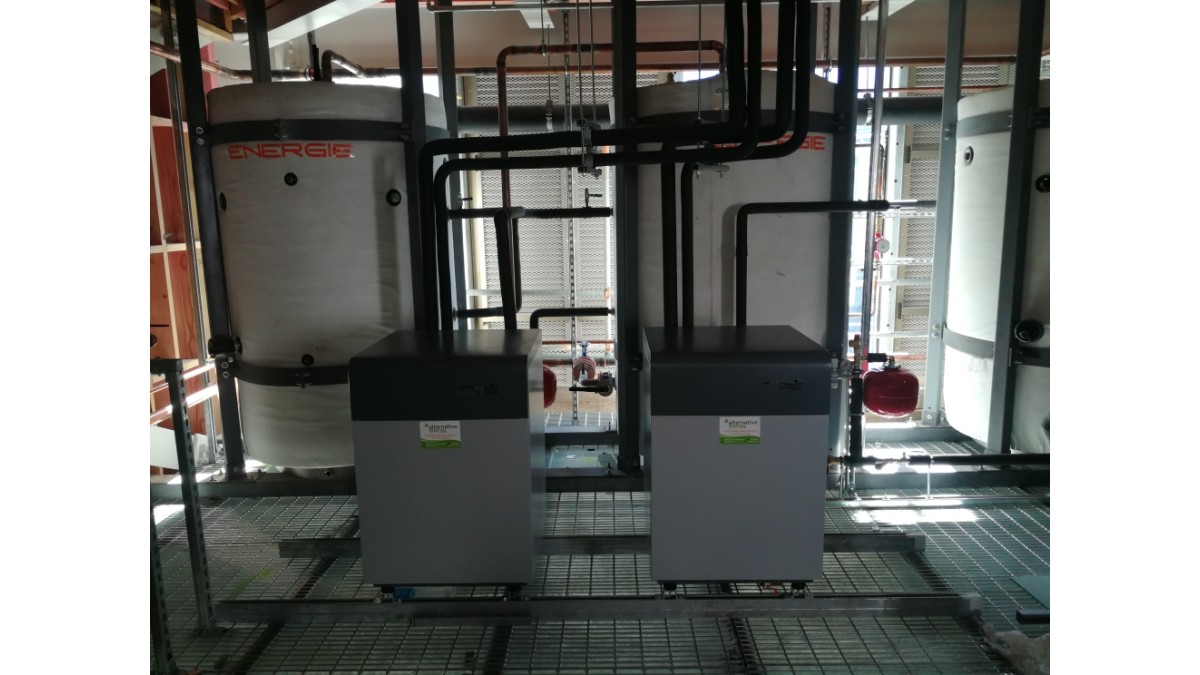

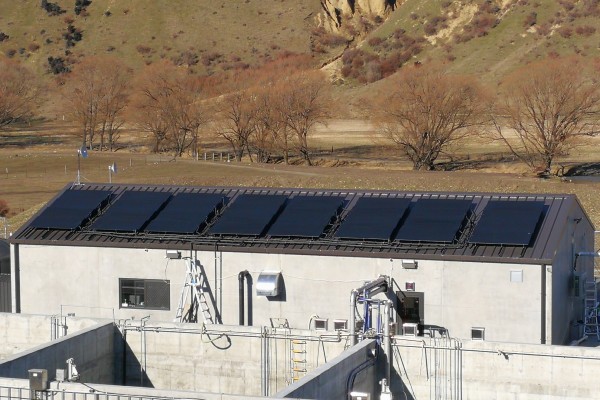

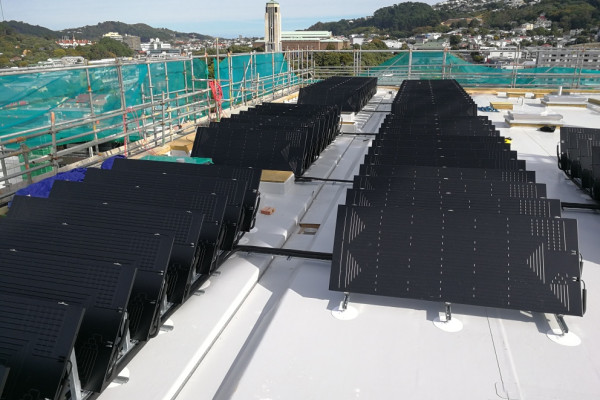

The system consists of a solar block, 1 or 2 stainless steel hot water cylinders, and either 6, 12, 16, 28 or 40 aluminium thermodynamic solar panels, which are externally mounted on the roof, wall or ground.

Power consumption ranges from 1.2kW for a 6 panel system (which will heat 1,000 litres of water for up to 22 people) to 8.4kW for a 40 panel system (which will heat 6,000 litres of water for up to 135 people).

Key Features
  • Works in all weather, even at night
  • Capacities: 1000 to 6000 litres /22 to 135 people, approximately
  • Manufactured by European brand leader with over 30 year's experience
  • Highest quality engineering
  • All systems are designed and installed to NZ building code
  • Products approved and certified to AS/NZS 2712:2007
Scope of Use
  • The Energie Eco XL system is suitable for use in any type of commercial business that requires large volumes of hot water
  • Ideal for motels, hotels, restaurants, hospitals, gyms, schools, sports halls, campsites, breweries, processing plants and industries
  • Systems available suitable for heating 1,000-6,000 litres of water
  • Suitable for 22-135 people
Model Panels Water Volume People* Power Consumption
Eco 1000 6 1,000 litres up to 22 1.2kW
Eco 1500 12 1,500 litres up to 34 2kW
Eco 2000 12 / 16 2,000 litres up to 45 2 / 3.2kW
Eco 3000 16 / 28 3,000 litres up to 68 3.2 / 5.6kW
Eco 4000 28 4,000 litres up to 90 5.6kW
Eco 6000 40 6,000 litres up to 135 8.4kW

*Based on consumption of 50 litres per person, per day

Limitations on Use
  • The thermodynamic panels should be mounted facing north, west or east

The Energie Eco XL must be installed by a qualified plumber. Relevant installation documents can be supplied by The Alternative Energy Company on request.

Statement of Building Code Compliance

Energie Eco XL systems, if designed, used, installed and maintained in accordance with the statements and conditions of the technical literature, will meet or contribute to meeting the following provisions of the NZBC:

  • Clause G12: Water supplies

The products meet the requirements set out in the following documents, or relevant parts of cited standards within the documents:

  • Energie’s Supplier Declaration of Conformance, dated 24 January 2014
  • Approved and certified to AS/NZS 2712:2007
In-Service History
  • Manufactured by European brand leader with over 30 year's experience
Other Performance Attributes
  • Hot water up to 60°C
  • Up to 3 cycles of hot water replacement system capacity per day

Power consumption ranges:

Model Panels Water Volume People* Power Consumption
Eco 1000 6 1,000 litres up to 22 1.2kW
Eco 1500 12 1,500 litres up to 34 2kW
Eco 2000 12 / 16 2,000 litres up to 45 2 / 3.2kW
Eco 3000 16 / 28 3,000 litres up to 68 3.2 / 5.6kW
Eco 4000 28 4,000 litres up to 90 5.6kW
Eco 6000 40 6,000 litres up to 135 8.4kW

*Based on consumption of 50 litres per person, per day

The Energie central heating system is manufactured to the highest standards and certified under the following management system:

  • European Keymark certificate, registration # 011-7S888 F, valid until 30 June 2019

Warranty and Maintenance

  • 5 year warranty on cylinder
  • 10 year warranty on solar panel
  • Maintenance is almost non-existent
Documents
Product Technical Statement
Accreditation
Supplier Declaration of Conformity
Brochure / Technical Guide
Additional Information
FAQs: Energie
How Does it Work?

The Alternative Energy Company is the New Zealand supplier of solar thermodynamic hot water systems made by Energie (Portugal), and Eurothane GP PIR insulation panels made by Recticel (UK).
