Euroline Seamlok
Description

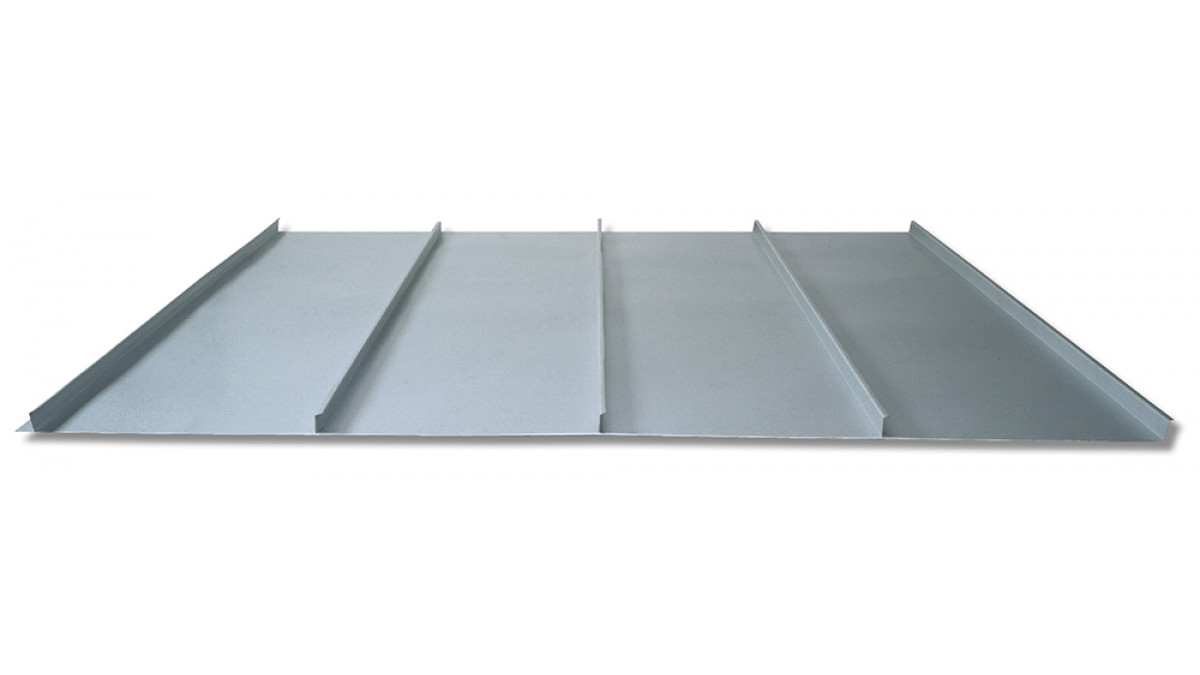

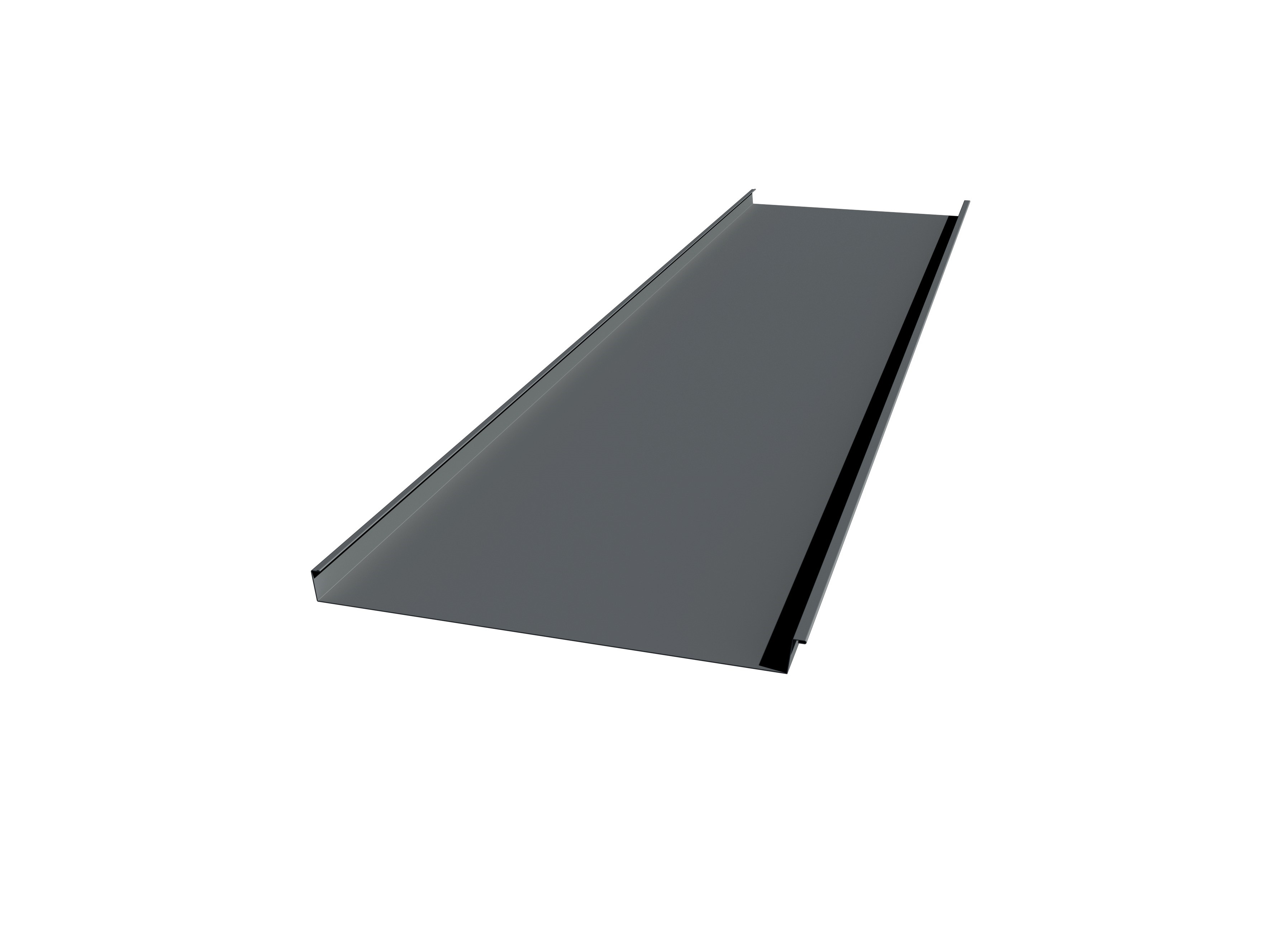

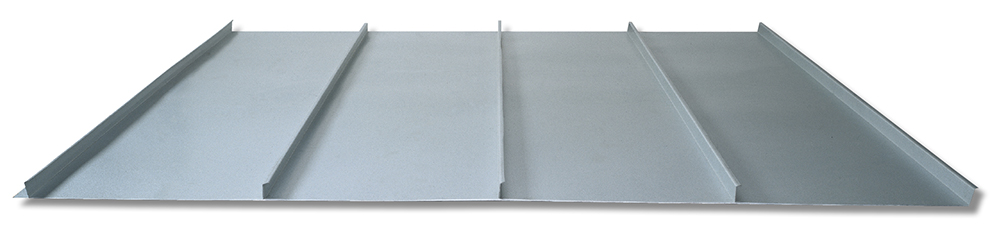

Euroline is an elegant descendant of eighteenth century standing seam roofing which, because of Steel & Tube’s modern rollforming technology, is now available in continuous lengths. Euroline is obtainable in two profiles: Seamlok for roofing and wall cladding and Battenlok for roofing only.

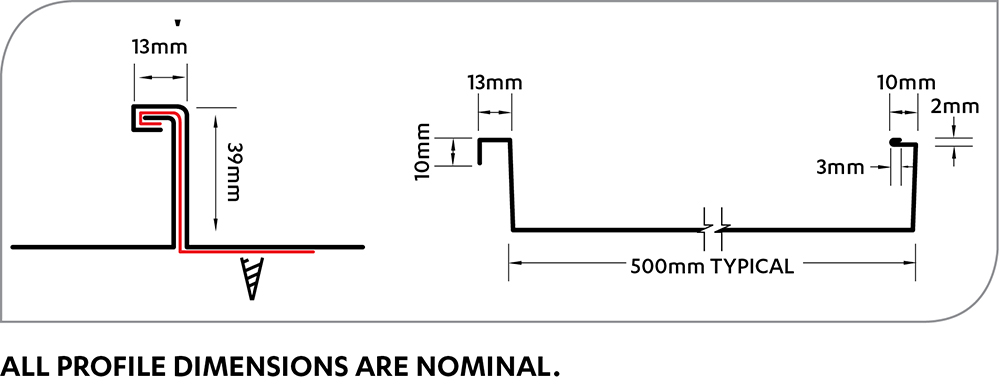

Each profile is available with or without a swaged pan and each has nominal widths of 300mm, 400mm and 500mm.

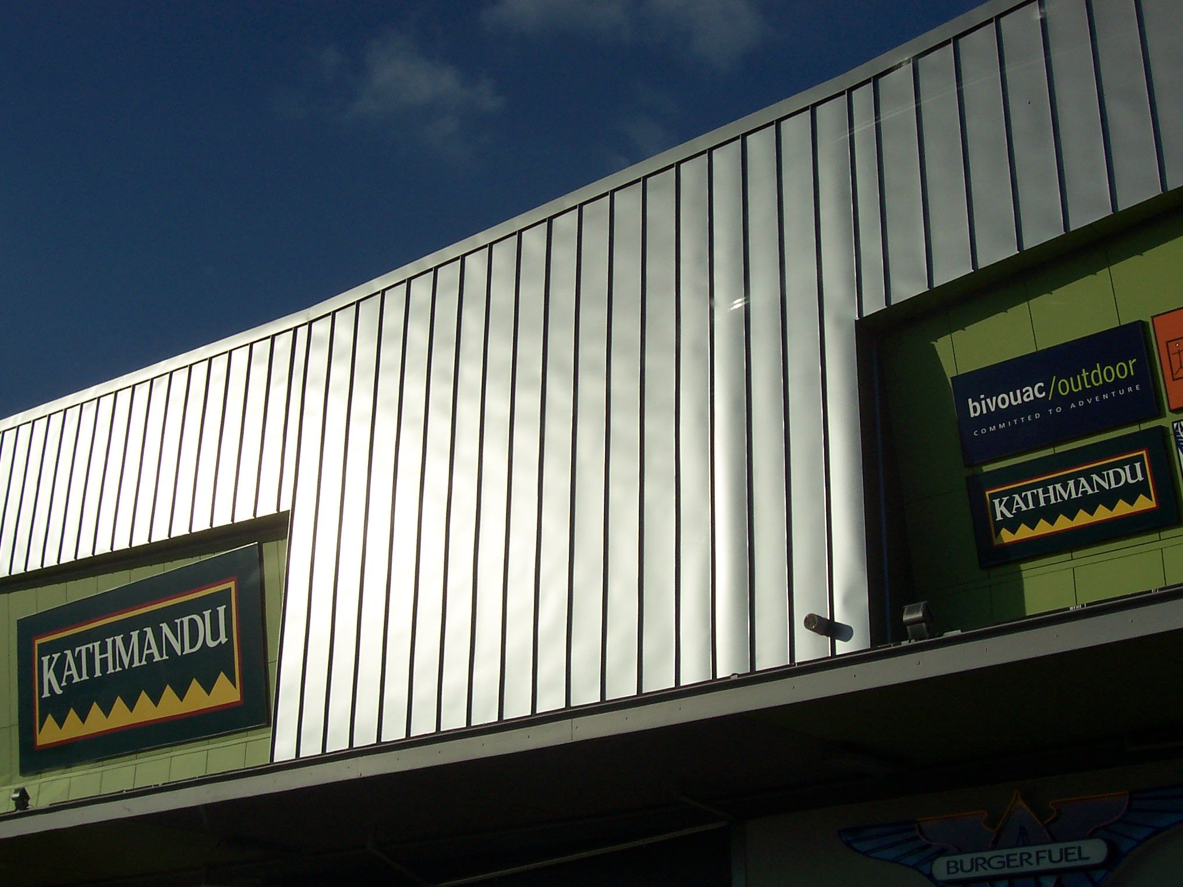

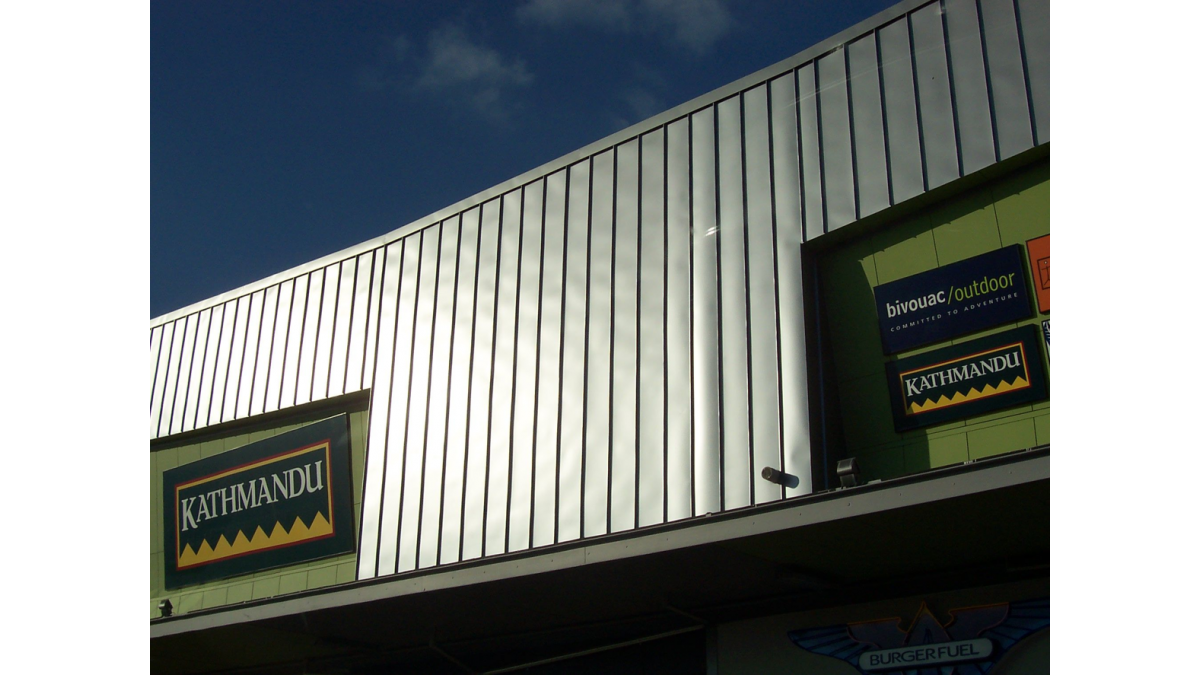

It is important to be aware that the nature of standing seam roofs gives rise to undulations (canning) in the flat pan which is not only to be expected, but is an architectural feature of the product.

All Steel & Tube roofing, cladding and rainwater goods manufactured from COLORSTEEL are accredited with Environmental Choice which contributes to Homestar and Greenstar.

Key Features
  • Minimum pitch 3 degrees
  • Available in a wide selection of materials

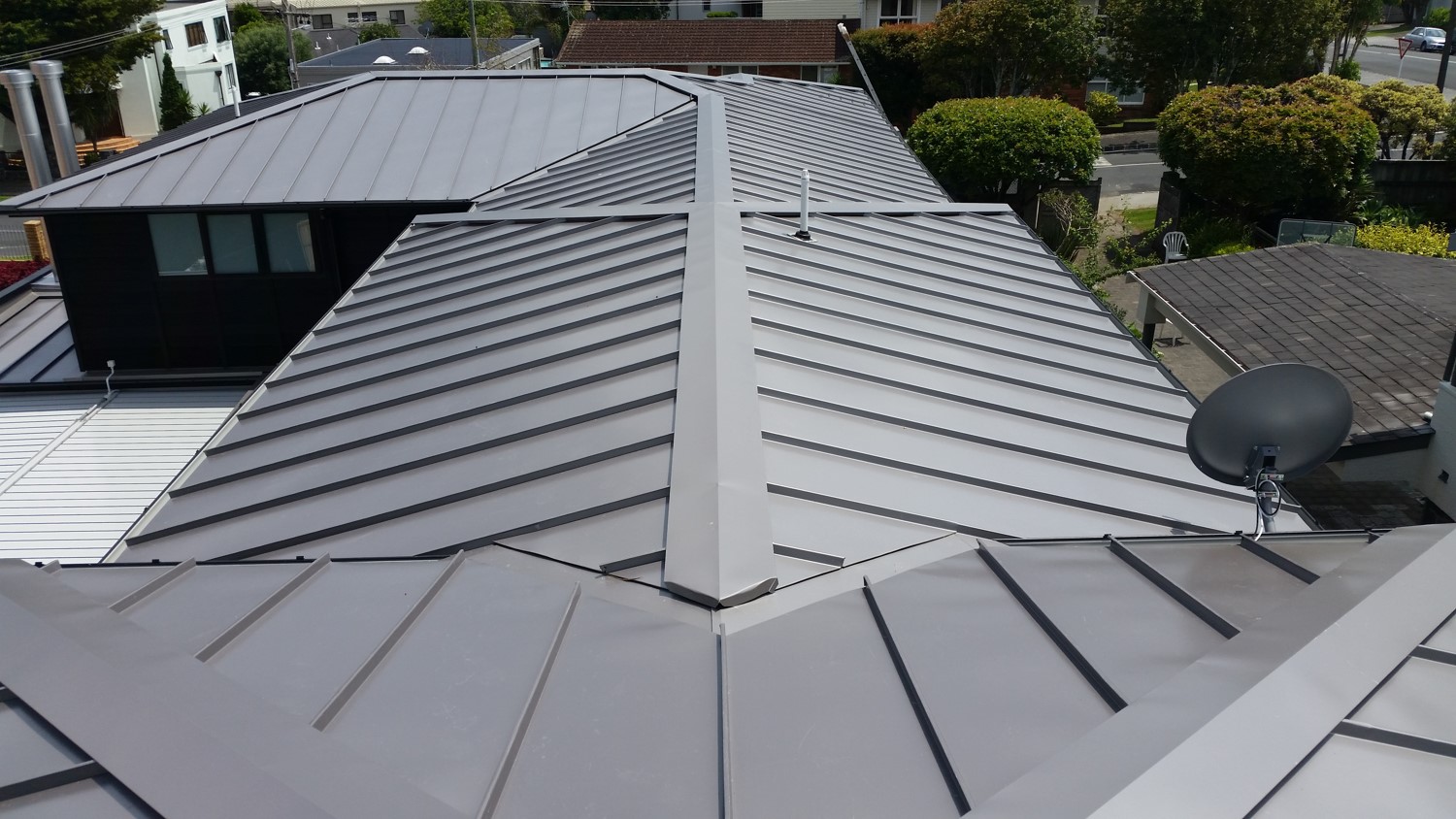

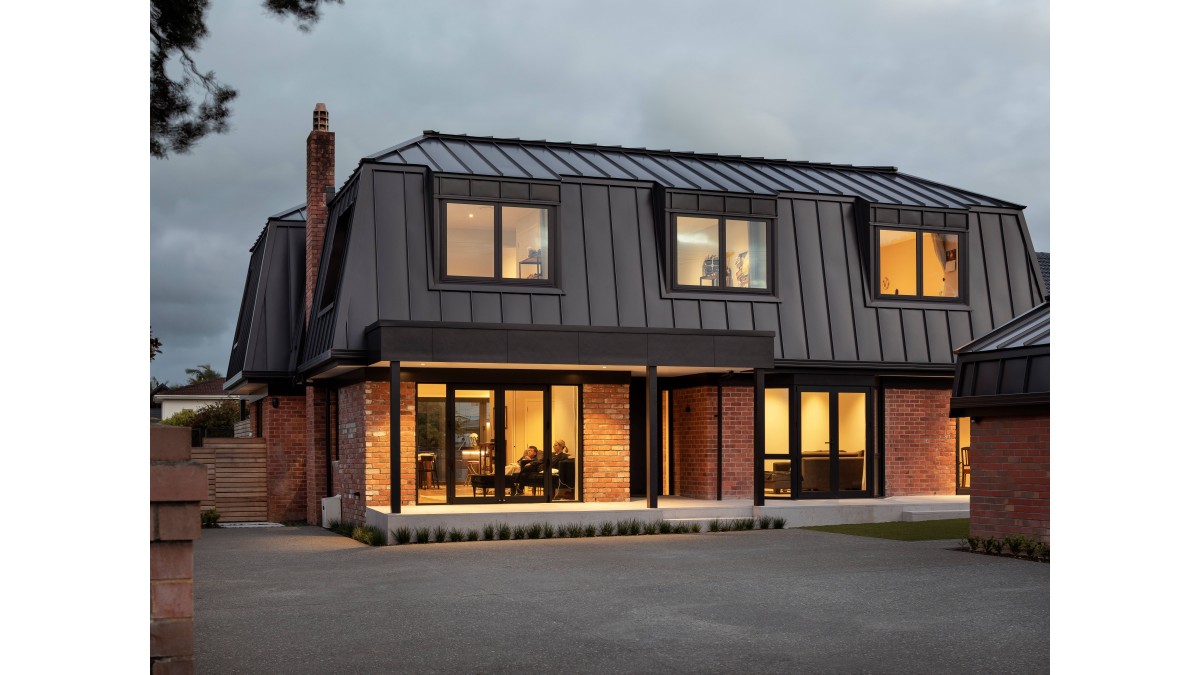

  • Applications: residential and commercial cladding and roofing
  • Traditional standing seam product
  • Custom widths and tapered pans are also available
Eco Choice Aotearoa (ECNZ) Licensed
Eco Choice Aotearoa
NZ Made
NZ Made
NZ-Owned Business
NZ-Owned Business
Scope of Use
  • Residential and commercial cladding and roofing
Limitations on Use
  • In accordance with Acceptable Solution E2/AS1 the minimum pitch for EuroLine is 3°
3° Minimum Roof Pitch Required
Other Performance Attributes

All Steel & Tube roofing, cladding and rainwater goods manufactured from COLORSTEEL are accredited with Environmental Choice which contributes to Homestar and Greenstar.

B2 Durability compliant
Durability
C Protection from Fire compliant
Protection from Fire
E2 External Moisture compliant
External Moisture
