SP10 Tilt-Lock® Oval Base Mini Post Balustrade
Opus Hardware
All products

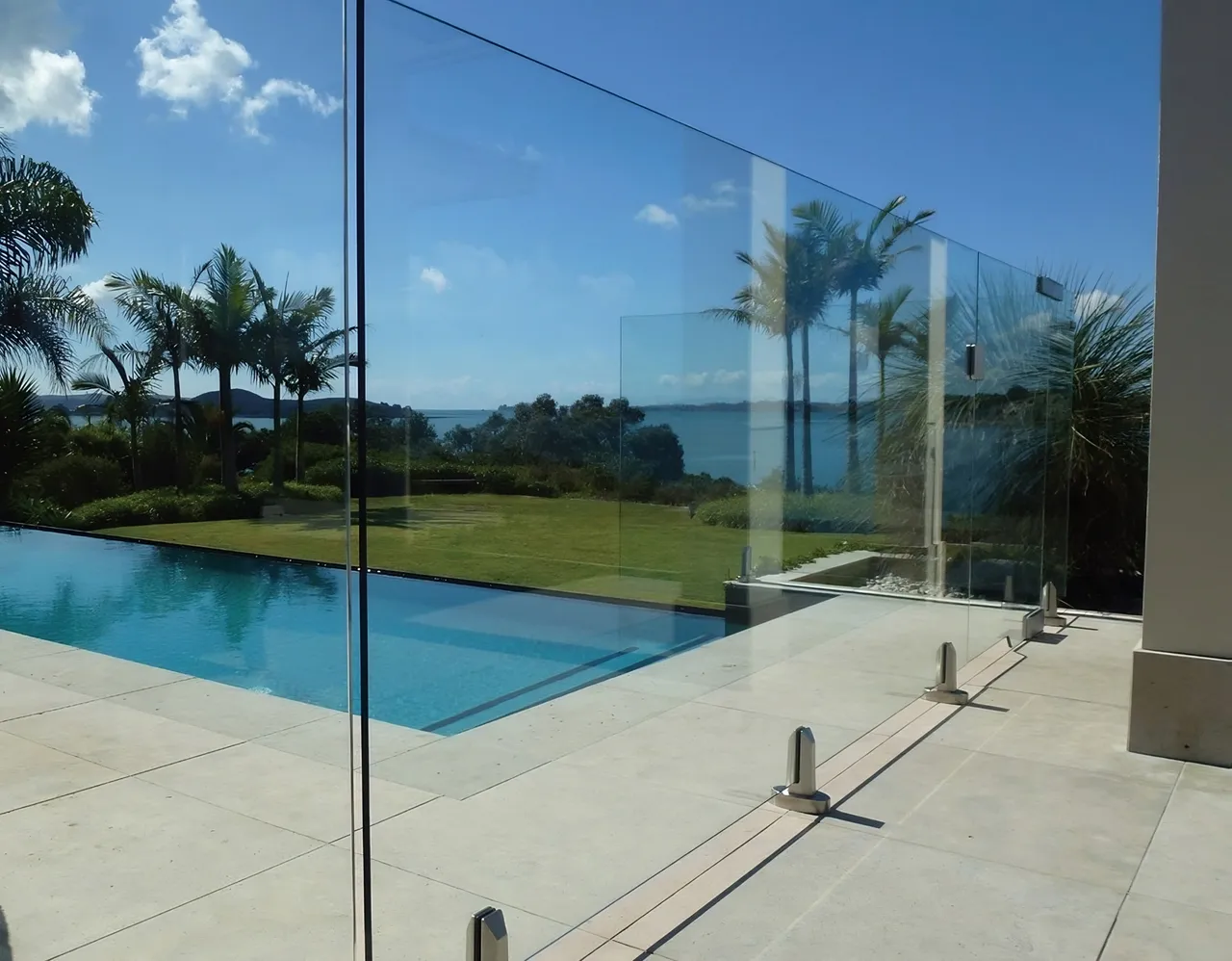

SP10 Pool Fence
eyJidWNrZXQiOiJtZXRyb2dsYXNzLXdlYnNpdGUtcHJvZC1hc3NldHMiLCJrZXkiOiJpbWFnZXNcLzEtcHJvZHVjdHNcLzItYmFsd
Stiffeners 96ccbe9c f915 4d1f bc81 558f9bcb2219 1024x1024
Description

The Tilt-Lock® SP10 Oval Base Fixed Mini Post is a Balustrade and Pool Fencing System using 2205 Duplex Stainless Steel Posts that are capable of clamping 12-13.52mm Toughened Glass panels without visible fixings.

Suitable for a wide range of applications, including balustrades, windbreaks, stairways and pool fencing, Tilt-Lock® Struts are a unique, premium design that utilises hidden fixings with a high range of tilting adjustability to provide a premium product in all aspects.

Key Features
  • Fully Tilt Adjustable; allows for glass to be tilted 30mm back or forward
  • All adjustments can be achieved from one side
  • Duplex 2205 higher strength ultra Marine stainless steel
  • Available in Satin, Polished, Black or a custom powder coat finish
  • Suits Glass 12-13.52mm in thickness
  • Fully tested and engineered
Categories
Enclosure Balustrades and Stairs Interior Balustrades, Stairs and Rails Fencing, Walling and Gates Pool Fencing
Ranges
Balustrade & Pool Systems
NZ-Owned Business
NZ-Owned Business
Scope of Use
  • Suitable for balustrades, pool fencing, wind breaks, or barriers
  • Suitable for residential
  • Occupancy Types: A & C3
  • Suitable for up to Very High wind zones (subject to glass requirements)
  • Accommodates 12mm to 17.52mm glass types
  • Mounted into timber, steel or concrete
  • Frameless or semi-frameless with handrail
Limitations on Use
  • Not Suitable for Commercial occupancies (C1/C2 & C5)
  • Not Suitable for Extra High Wind Zones
Statement of Building Code Compliance
  • B1 Structure
  • F2 Hazardous Building Materials
  • F4 Safety from Falling
  • F9 Restricting Access to Residential Pools

Design loads are in accordance with AS/NZS 1170.1:2002 table 3.3 as modified by NZBC B1/VM1 and DBH Guidance on Barrier Design (March 2012).

  • Occupancy Types: A & C3
Test Results
Test Results
Documents
Technical Manual

01/2025

pdf

Opus Hardware is a New Zealand-owned and family-run business specializing in frameless glass hardware products including balustrades, commercial doors, showers, facades, and canopies.
