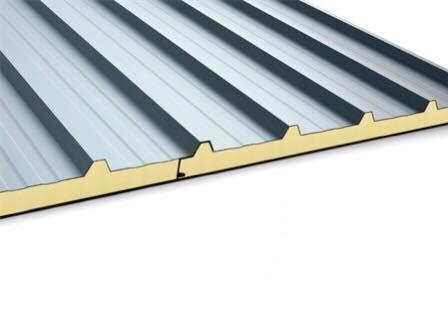

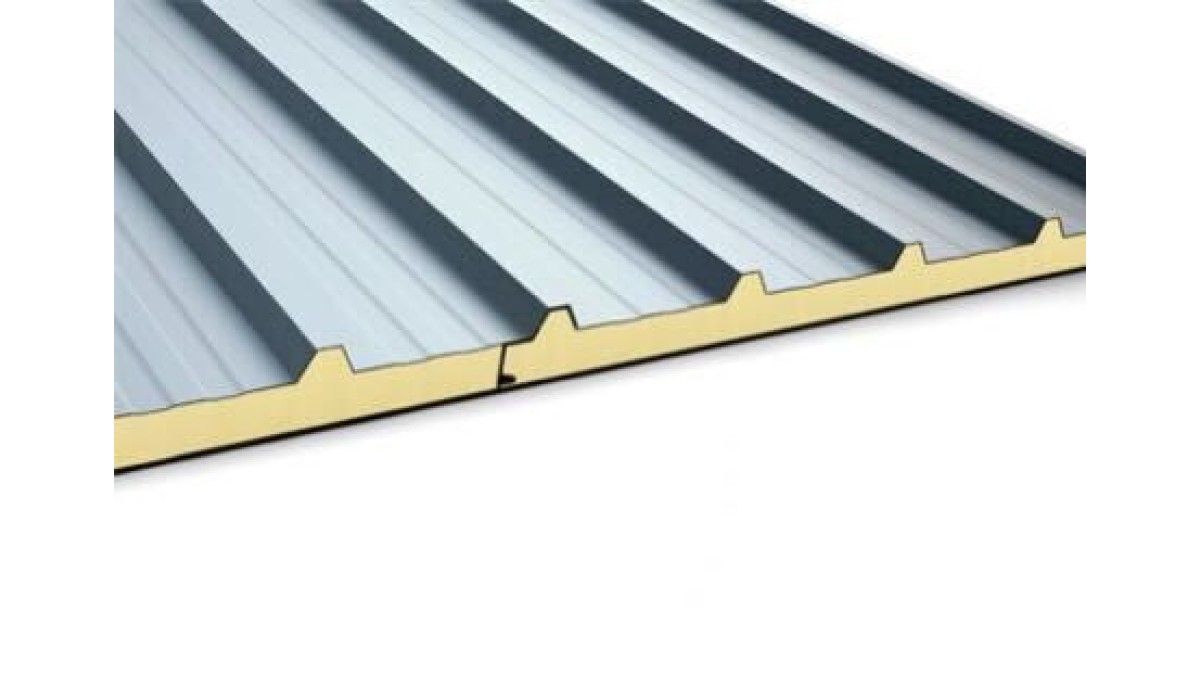

• Roof and Wall cladding
• Minimum roof pitch 3°
• Lengths from 2m-24m
• Suitable for roof and wall cladding
• 15m un-piloted truck (longer lengths available depending on freight restrictions to site)
• With steel or timber structural framing and on a concrete slab or sub-floor structure
• In all wind zones, up to and, including Extra High wind zone as defined in NZS 3604:2011 or a calculated wind design pressure (ULS) of 4 kPa
• With a snow loading of up to 1kPa
• In all exposure zones as defined in NZS 3604:2011

Please note lengths are restricted by transportation to site. If sheet lengths longer than 15m are required, please check with Metalcraft Insulated Panels.

• The specification and installation of the suPIRspan is to be in accordance with the ThermoSpan EPS specification and installation
• Minimum roof pitch 3°
• Span of the panels is to be in accordance with suPIRspan tables V1.0, dated November 2019
• In buildings that require fire-resistance rating (FRR) for passive fire protection, the passive fire protection systems must be specifically designed
• All fixings to comply NZ Steel requirements (NZ Steel, 2018)
• Where the system is to be used in a micro-climate (as defined in clause 4.2.2, NZS 3604:2011), Metalcraft Insulated Panel Systems is to be consulted
• In exposure zone D, COLORSTEEL Maxx must be specified. In exposure zone C, COLORSTEEL Maxx or Endura may be specified. In exposure zone B, any COLORSTEEL product may be specified (NZ Steel, 2018)
• Where compliance with G3.3.2 (a and b) is required, COLORSTEEL CP-Antibacterial must be specified as the internal lining of the panel

• Compliance with H1 — Aspirespan with 150mm thick PIR insulation core can achieve a thermal resistance rating of R7.5 (Thermal Resistance R-value (m²K/W) @15°C)
• See PASS Product Statement for full performance
