Maxi Drive Pivot System
Description

Louvretec's Maxi Drive Pivot system, allows for motorisation of the 300mm Maxi Louvres.

Maxi Drive hides both the motor and pivot mechanism within the structural aluminium support frame.

RL300 and RL450 Louvres are also compatible with the Maxi Drive Pivot system.

Key Features
  • Maxi Drive keeps the motor and pivot mechanism hidden within a structural aluminium support frame
  • Powered by Somfy, Maxi Drive incorporates both a reduction gear box and supporting drive arm, providing strength for pivoting this large Louvre.
  • Ideal for both residential and commercial projects
  • Maxi Drive motorises our 300mm Maxi Louvre, the RL300 Louvre andt he RL450 Louvre

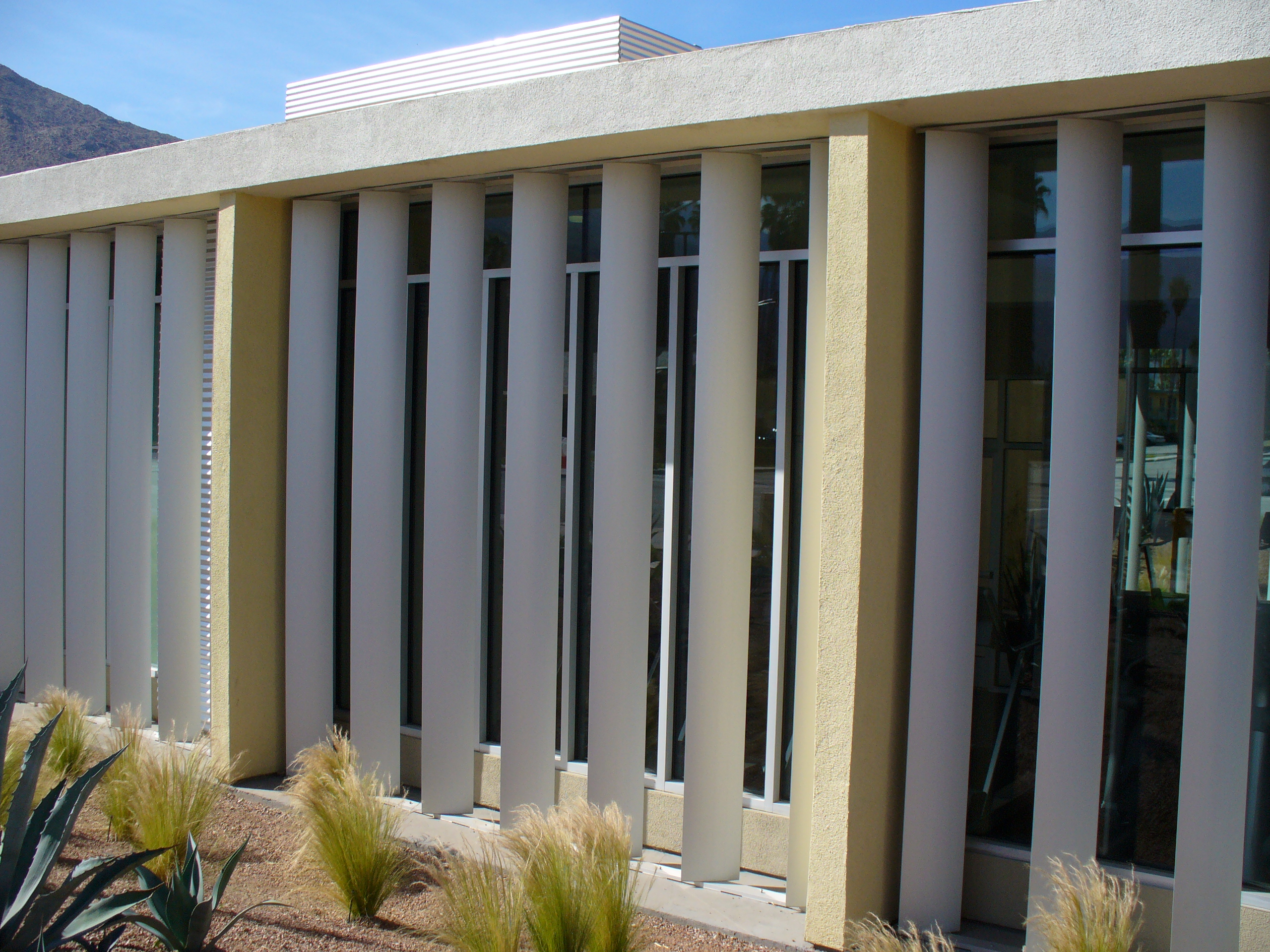

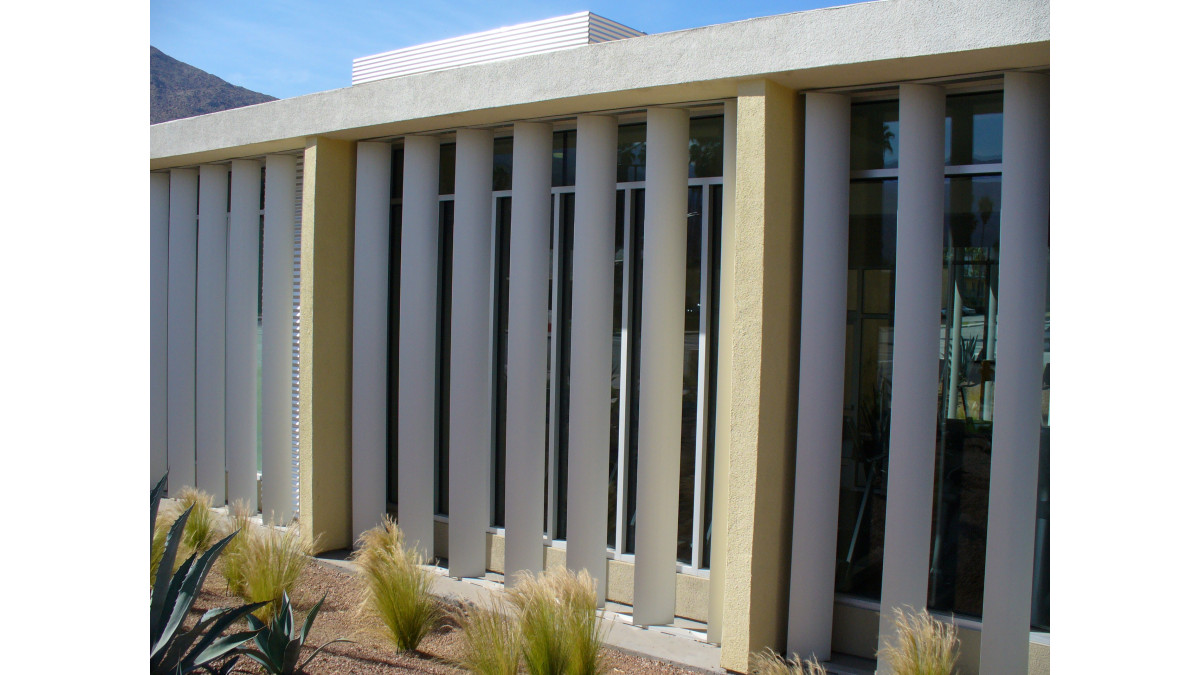

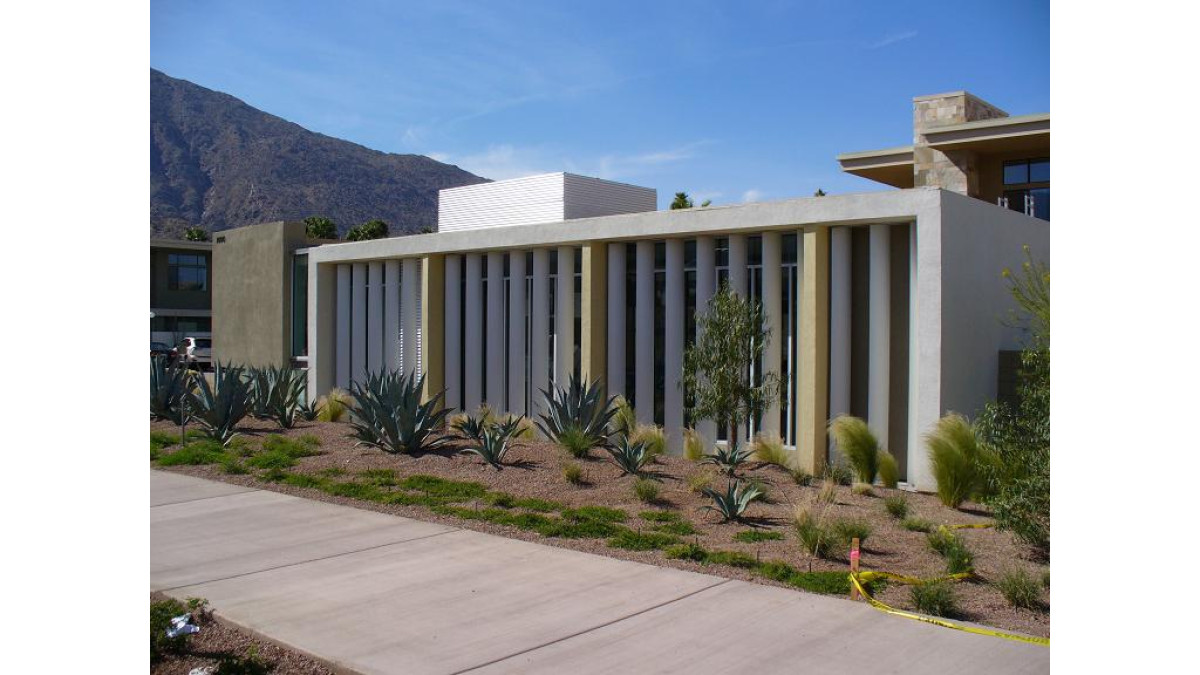

  • Also available hand operable, Bracket of End Fixed
  • Louvres can run horizontally or vertically
  • Designed and manufactured locally for New Zealand and Australian conditions.
  • Plastic injected components (manual) are UV stabilised
  • All fixings are marine grade 316 stainless steel
  • Can be powder-coated, anodised or woodgrain finished to large range of colours
  • Full site measure, design, shop drawing(if required) and installation service provided
  • All louvre panels are custom made
  • Low maintenance
NZ Made
NZ Made
NZ-Owned Business
NZ-Owned Business
Scope of Use
  • Can be used for sun shading, wind break, privacy and as a stunning architectural feature
  • Suitable for coastal, inland, snow, residential, commercial installation
  • Louvres can be installed horizontally, vertically or at an angle and can be motorised, manually adjustable (Spiral Pivot system) or fixed (end or bracket).
  • The Maxi Drive pivot system allows for rotation of large Maxi sized Louvres
Limitations on Use
  • Louvre spans are restricted by wind zone. Refer relevant table in Louvretec 2025 Design Manual
  • Louvres cannot be used as a weather proofing solution to a building
  • Supporting structures over 10m high may require specific engineering
Statement of Building Code Compliance
  • Engineered to meet relevant AS/NZS standards.
  • All extrusions manufactured in an ISO quality assured environment to AS1866 & AS3902 standards.
  • Louvre spans set out in Section 10.3 of the Louvretec 2025 Design Manual and meets the requirements of AS/NZS 1170:2011, NZS3604:2011, AS/NZ 1664:1997.
  • Refer to Louvretec Engineering section and PS1 with regard to B1 & B2.
In-Service History

Louvrecare is Louvretec's valet and maintenance division. Louvrecare 'Care and Maintenance Department' was established more than 15 years ago & exists to ensure your louvres remain in optimal condition.

Other Performance Attributes
  • Louvretec Louvres can be powdercoated, anodised or finished in a wood grain timber-look
  • Louvretec Louvres are constructed of aluminium
  • Louvretec is in its 25th year of operation
Documents
Louvretec Design Manual - Maxi Drive Sun Louvres Section 10.3

2025

Warranty Louvretec Sun Louvres

2025

Louvretec Sun Louvres Brochure

2025

CAD/PDF Details

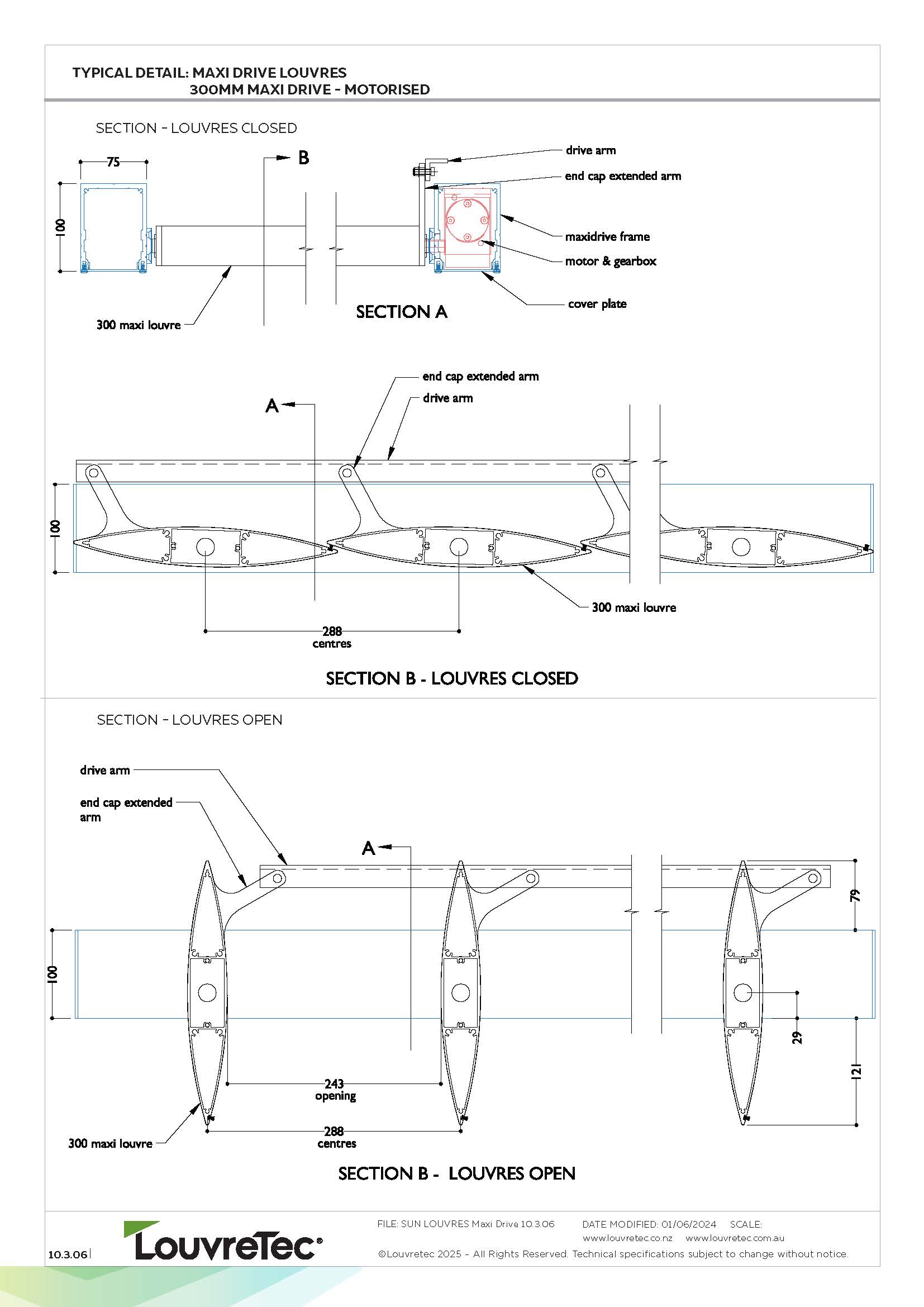

Typical Detail | 300mm Maxi Drive Louvre - Motorised

10.3.06

Louvretec 2025 Design Manual

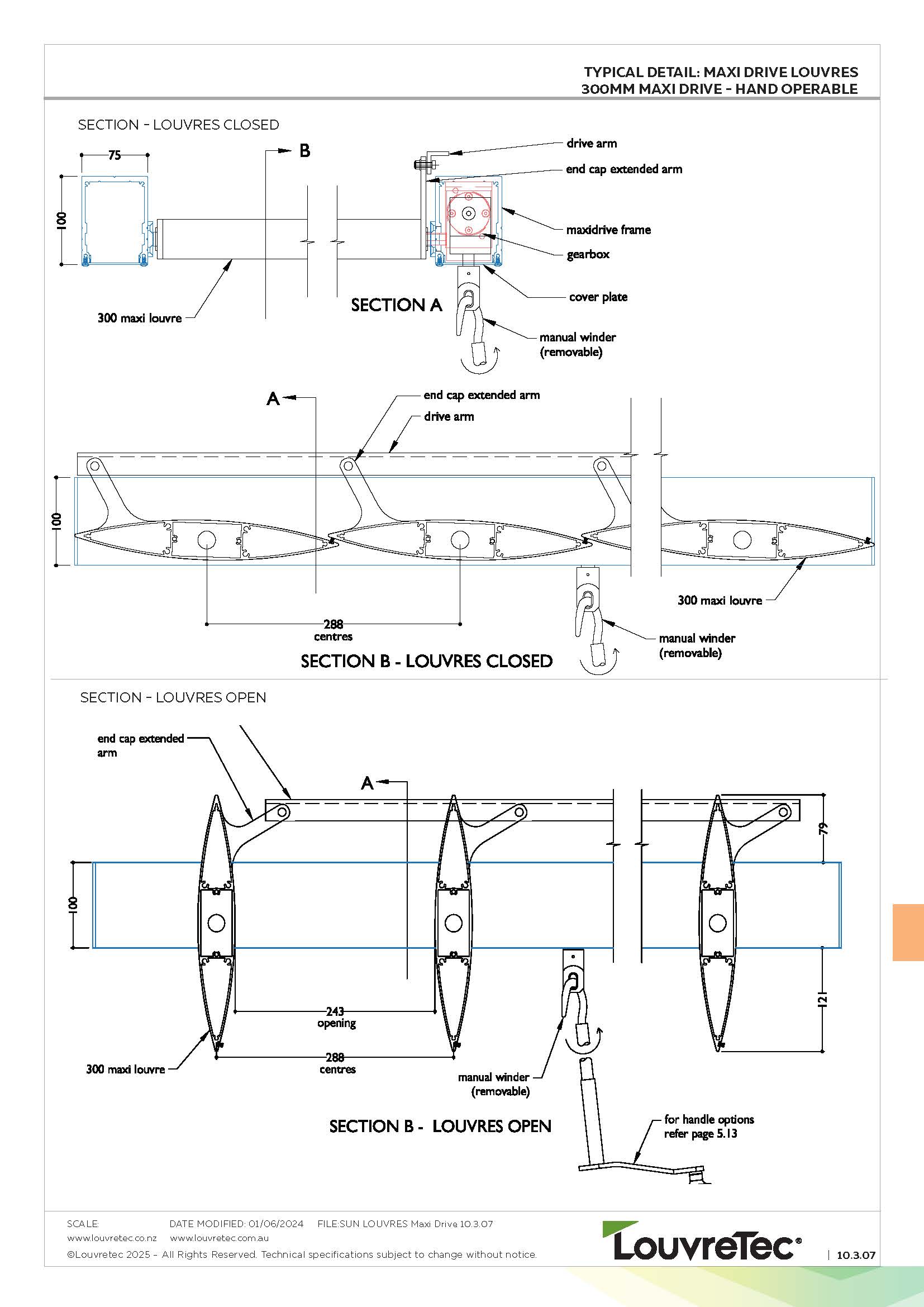

Typical Detail | 300mm Maxi Drive Louvre - Hand Operable

10.3.07

Louvretec 2025 Design Manual

BIM
3D Model | Maxi Drive Overhead Louvre Panel - Motorised

2025
