90mm Midi Louvre
Description

The 90mm Midi Louvre is the perfect mix of compact width with good spans.

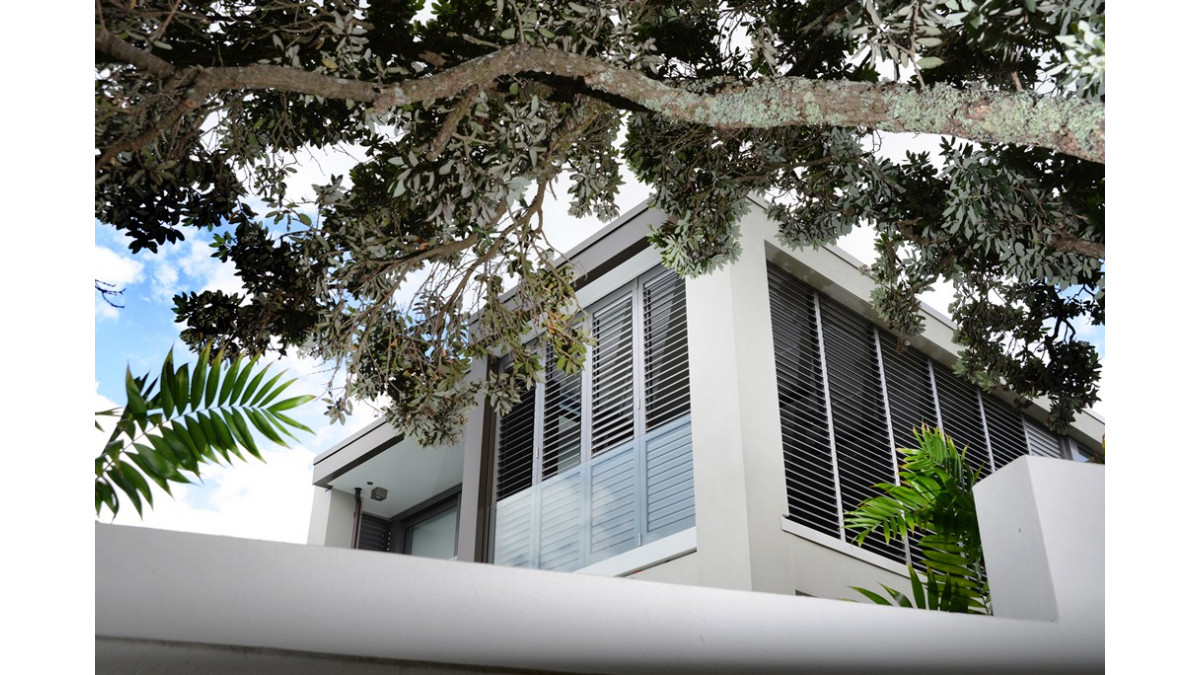

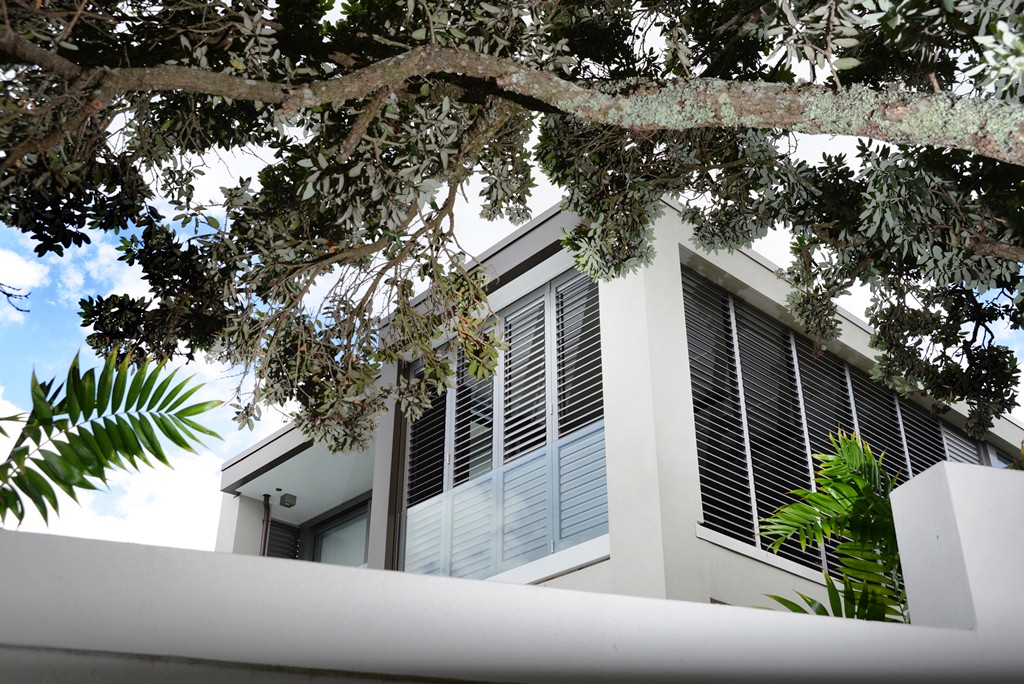

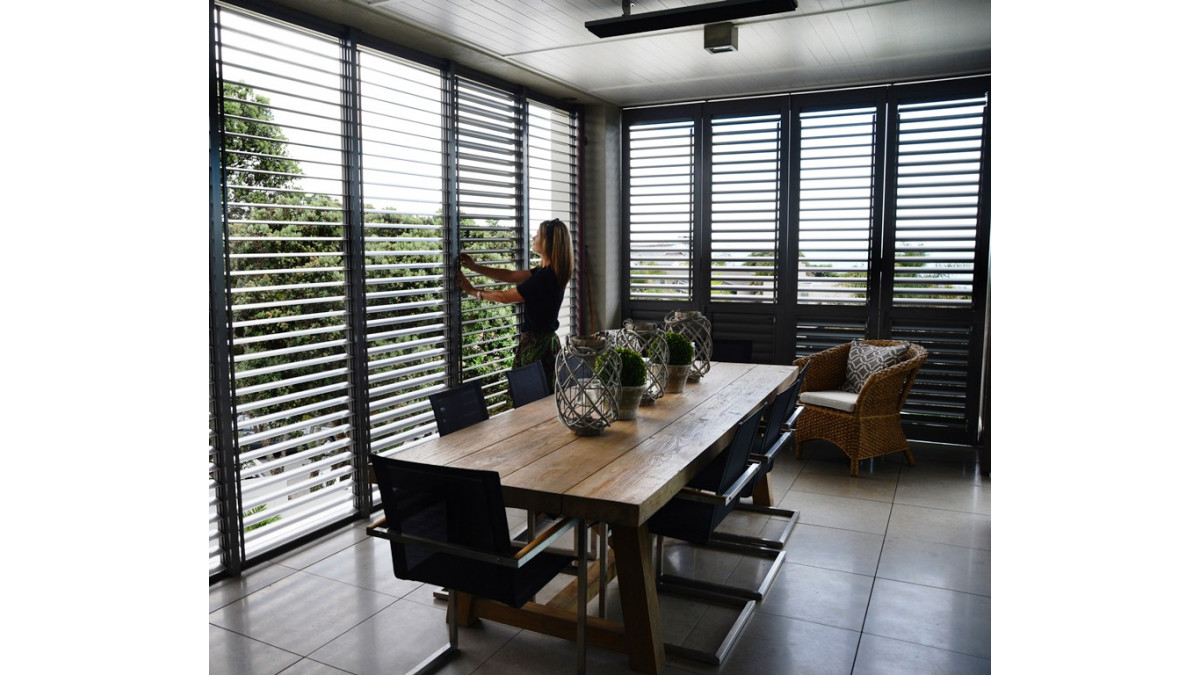

The blade can be hand operated using the KISS Pivot system. It is also well suited fixed within an opening or within sliding, bifolding or hinged louvre doors.

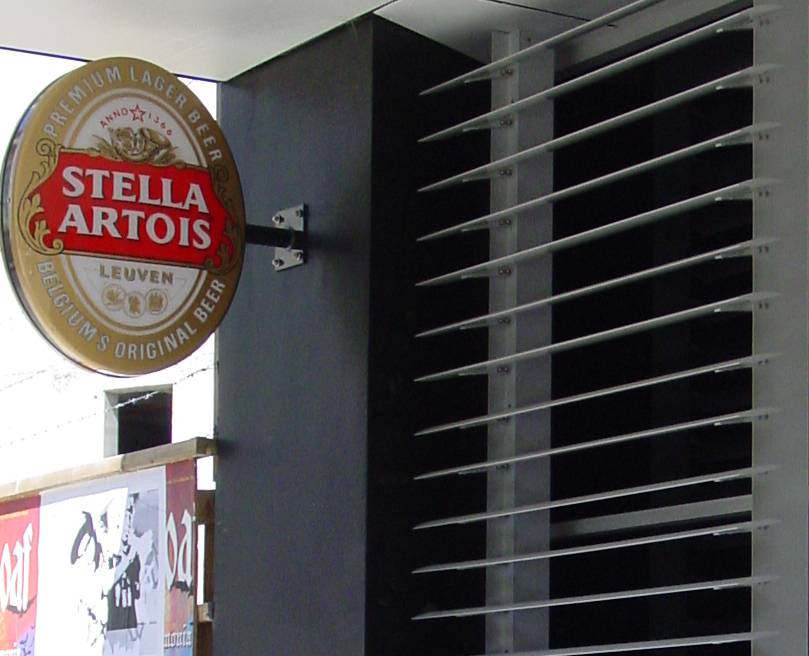

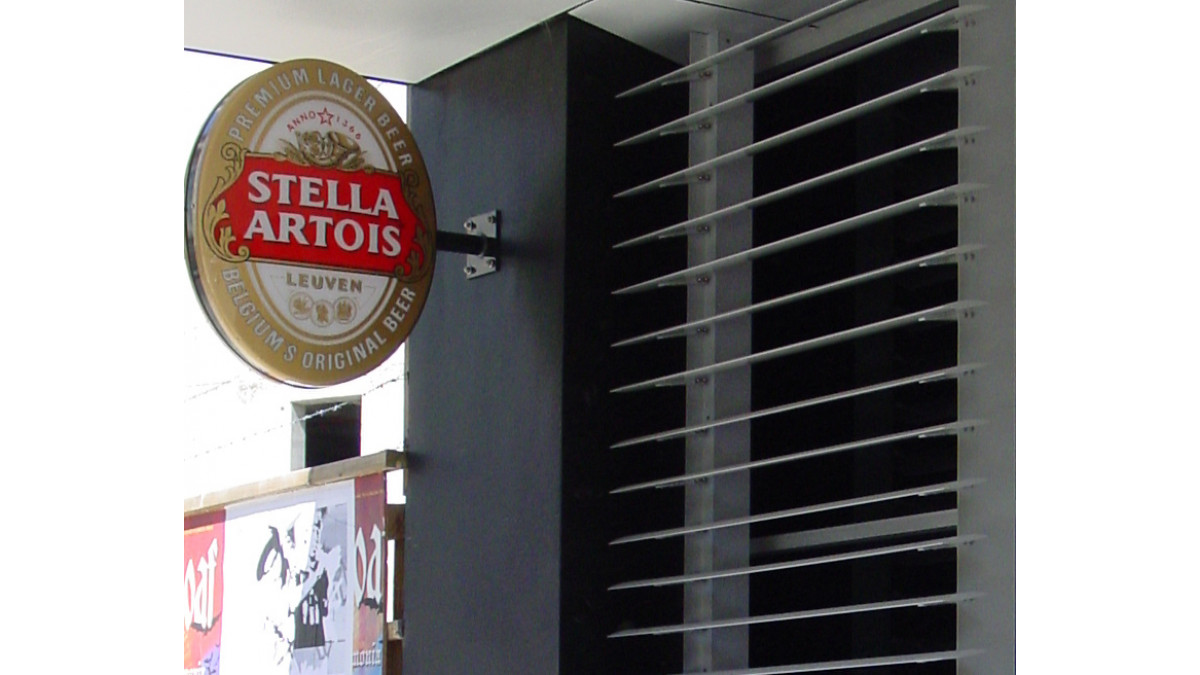

Also available end and bracket fixed.

Key Features
  • Designed and manufactured locally for New Zealand and Australian conditions
  • Louvres can be manually adjustable (Kiss Pivot) or fixed (end or bracket)
  • Plastic injected components (manual) are UV stabilised
  • All fixings are marine grade 316 stainless steel
  • Can be powder-coated, anodised or woodgrain finished to large range of colours
  • Full site measure, design, shop drawing(if required) and installation service provided
  • All louvre panels are custom made
  • Low maintenance
NZ Made
NZ Made
Scope of Use
  • Can be used for sun shading, wind break, privacy and Architectural feature
  • Suitable for coastal, inland, snow, residential, commercial installation
  • Louvres can be installed horizontally, vertically or at an angle and can be manually adjustable (Kiss Pivot) or fixed (end or bracket)
  • The manual Kiss Pivot system allows for 125° of rotation
  • Applications include installation within Louvretec hinged, bifold and sliding panels
Limitations on Use
  • Louvre spans are restricted by wind zone. Refer relevant table in Louvretec Product catalogue
  • Louvres cannot be used as a weather proofing solution to a building
  • Supporting structures over 10m high may require specific engineering
NZS 3604 Corrosion Zone D suitable
Corrosion Exposure Zone D
NZS 3604 Earthquake Zone High suitable
High Earthquake Zone
NZS 3604 Earthquake Zone Low suitable
Low Earthquake Zone
NZS 3604 Earthquake Zone Medium suitable
Medium Earthquake Zone
NZS 3604 Earthquake Zone Very High suitable
Very High Earthquake Zone
NZS 3604 Wind Zone Extra High suitable
Extra High Wind Zone
NZS 3604 Wind Zone Specific Design suitable
Specific Design Wind Zone
Statement of Building Code Compliance
  • Engineered to meet relevant AS/NZS standards
  • All extrusions manufactured in an ISO quality assured environment to AS1866 & AS3902 standards
  • Louvre spans, as per tables 1&2, section 12 of the Louvretec Product Catalogue, are certified by Markplan Consulting Limited (Consulting Structural Engineers) and meets the requirements of AS/NZS 1170:2011, NZS3604:2011, AS/NZ 1664:1997
  • Refer to attached Engineering notes and PS1 provided by Markplan Consulting Limited(Consulting Engineers) with regard to B1 & B2
In-Service History

The Louvretec 90 Midi Louvre has been part the Louvretec range since 1997 being used in residential and commercial applications in New Zealand. Off shore it has been used in Australia and many other countries including the Netherlands, Tahiti, Fiji, Hong Kong and the United States (California).

The Kiss Pivot system for manual applications was introduced in 2002 and is used in most shutter type installations.

Other Performance Attributes

Warranty as per attached.

E1 Surface Water compliant
Surface Water
G7 Natural Light compliant
Natural Light
Documents
CAD/PDF (link to page on supplier website)
About the 90mm Midi Louvre
Span Tables
Maintenance Instructions
Warranty
Warranty
Specification Clause (Masterspec)
Online Product Guide: Sun Louvres
Louvretec Sun Louvres Brochure
Sun Louvre Product Quick Guide Brochure
Lourvetec Product Guide
Online Product Guide: Sun Louvres
Online Brochure: Sun Louvres
Louvretec Product Range
CAD/PDF Details

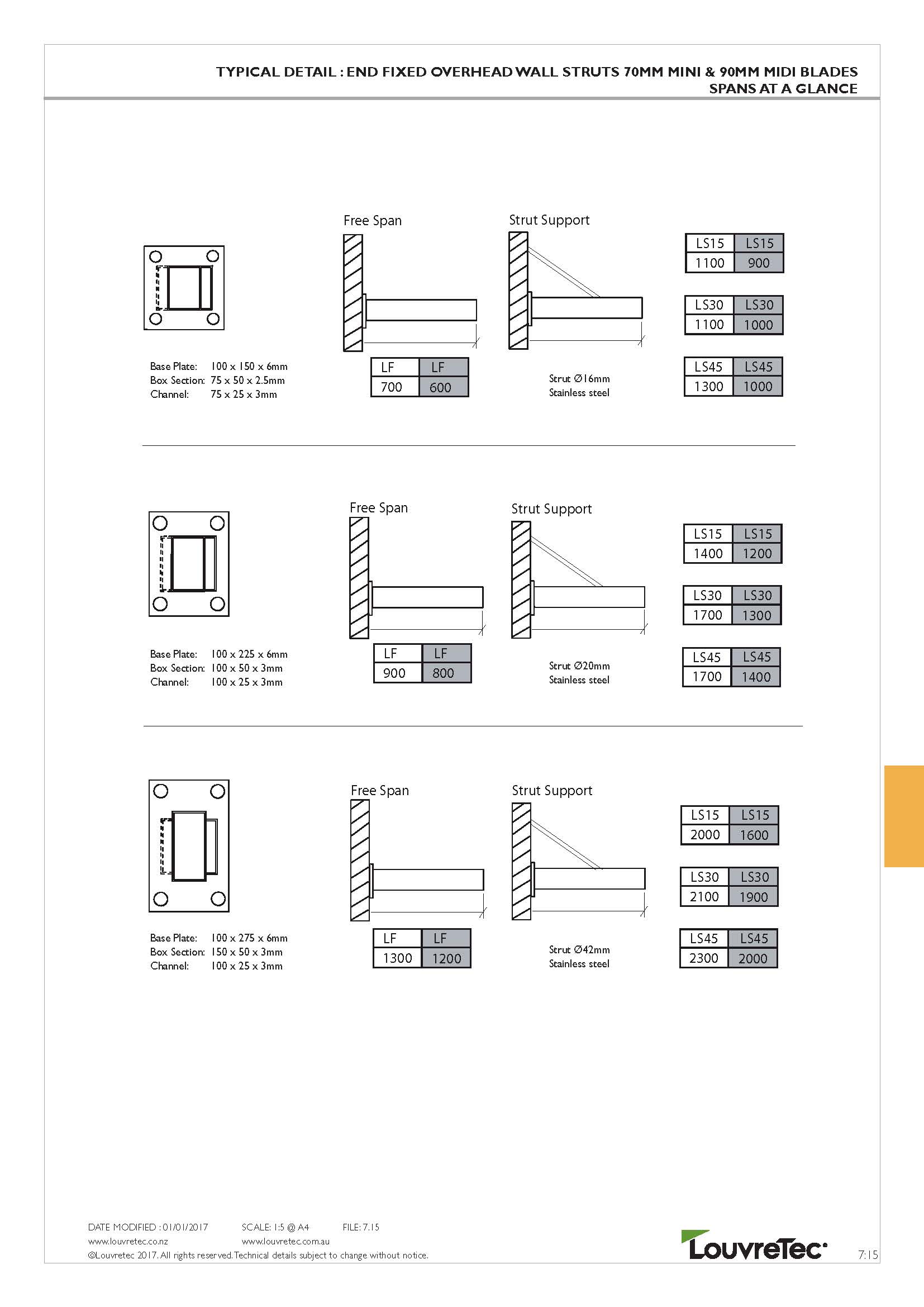

70mm and 90mm Louvres End Fixed Overhead Wall Struts

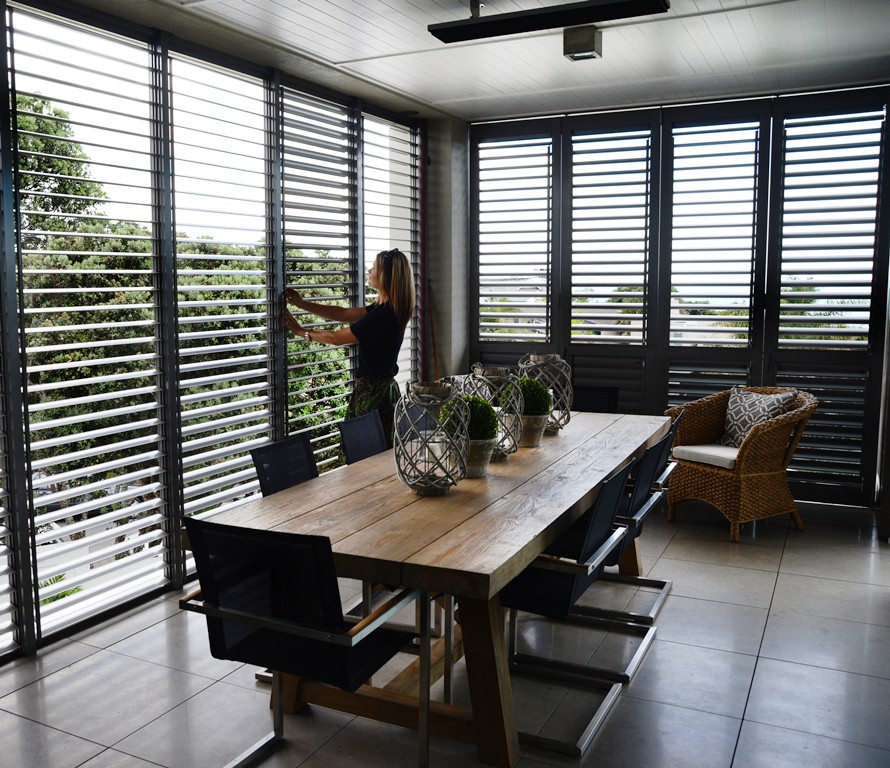

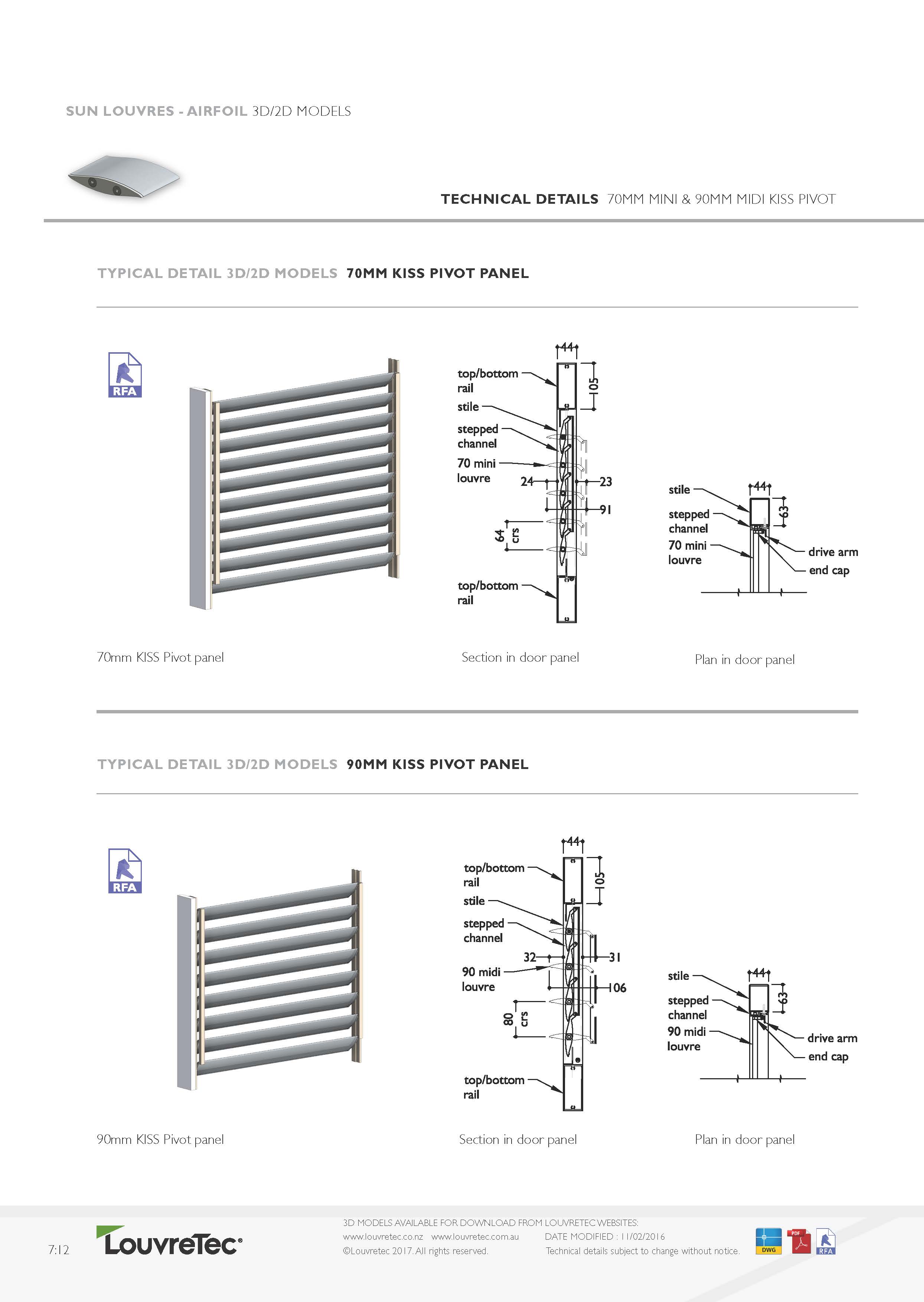

70mm a nd 90mm Kiss Pivot Hand Adjustable Panels

7.12

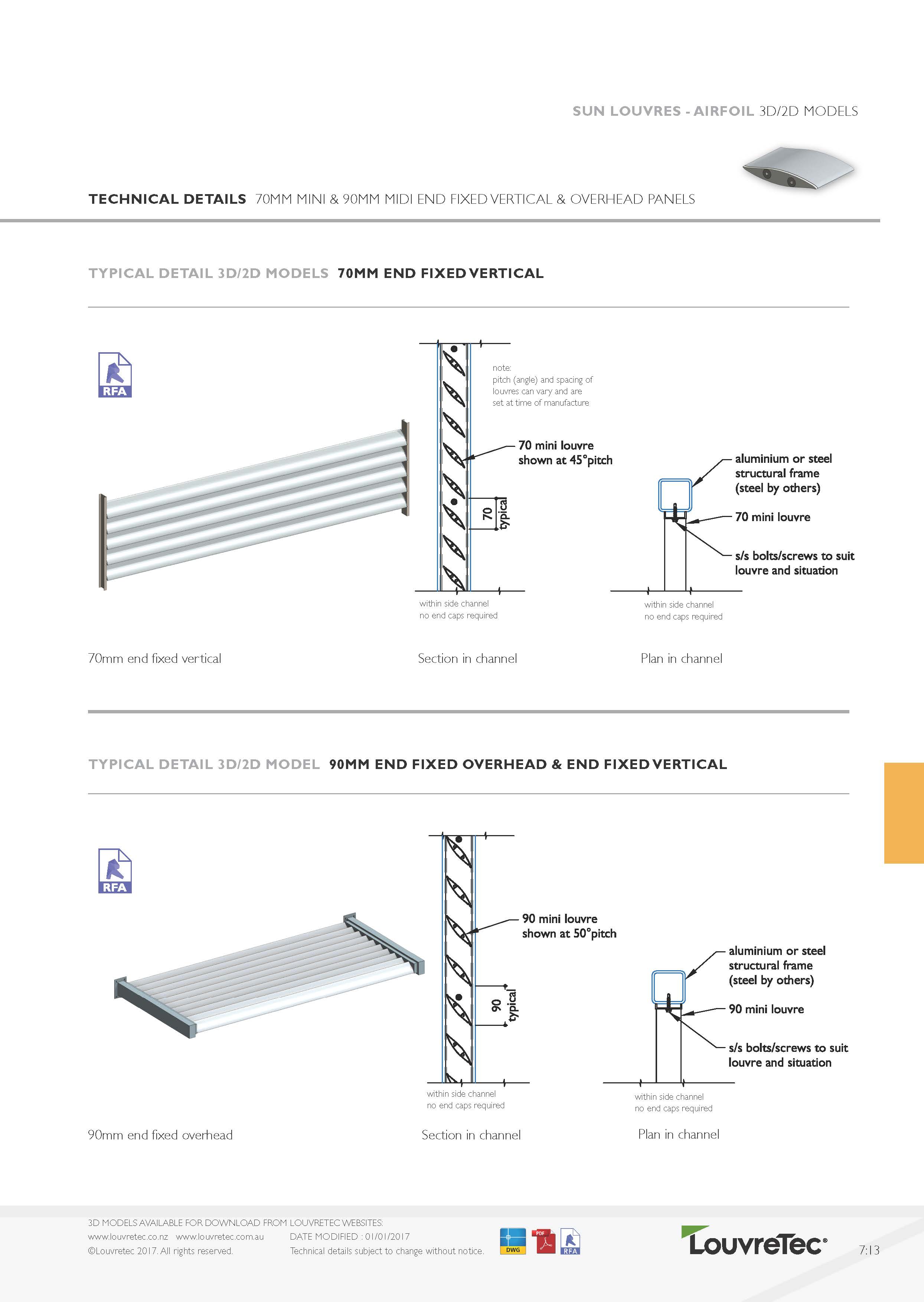

70mm and 90mm End Fixed Vertical and Overhead panels

7.13

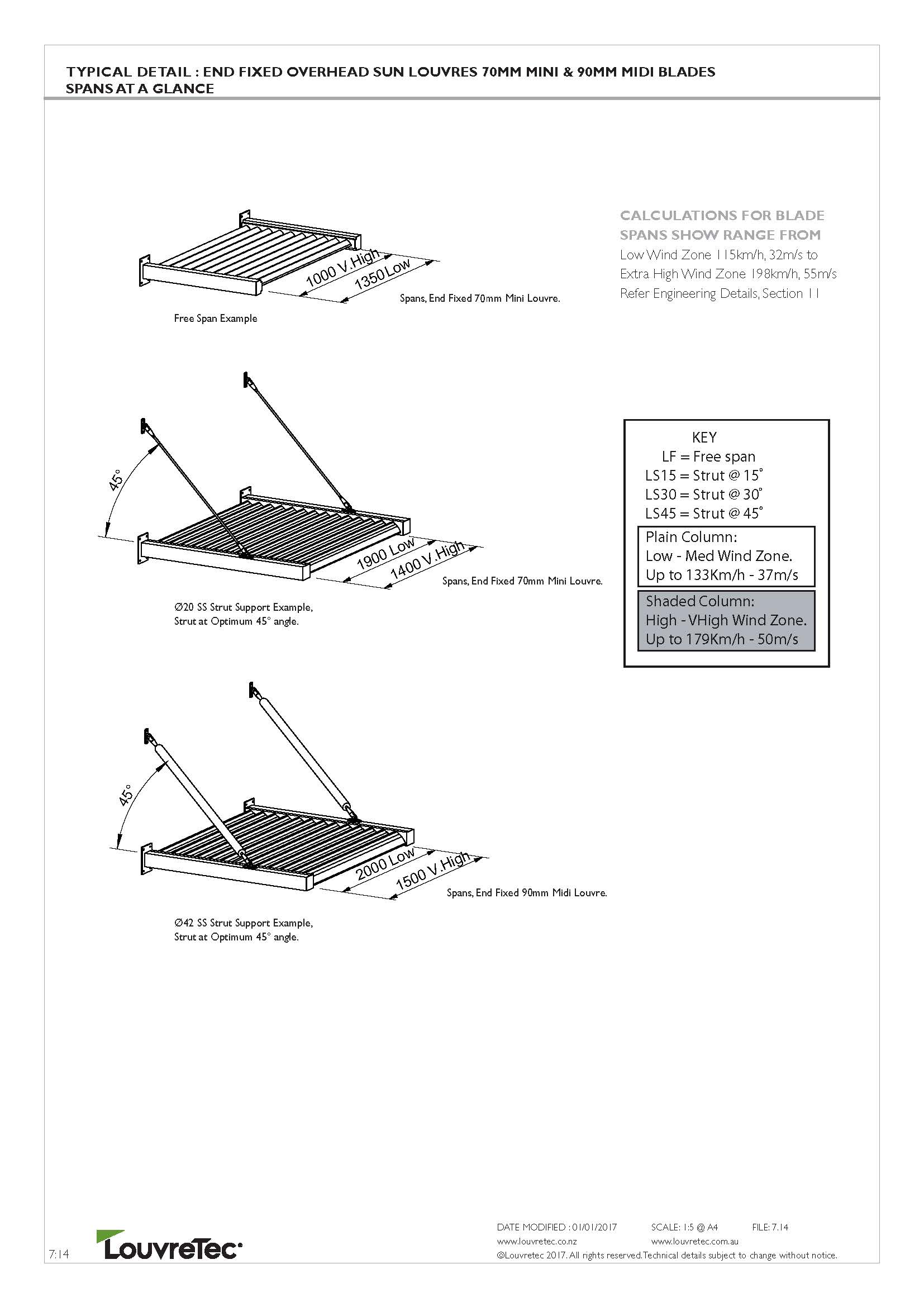

70mm and 90mm Louvres End Fixed Overhead Sun Louvres

7.14

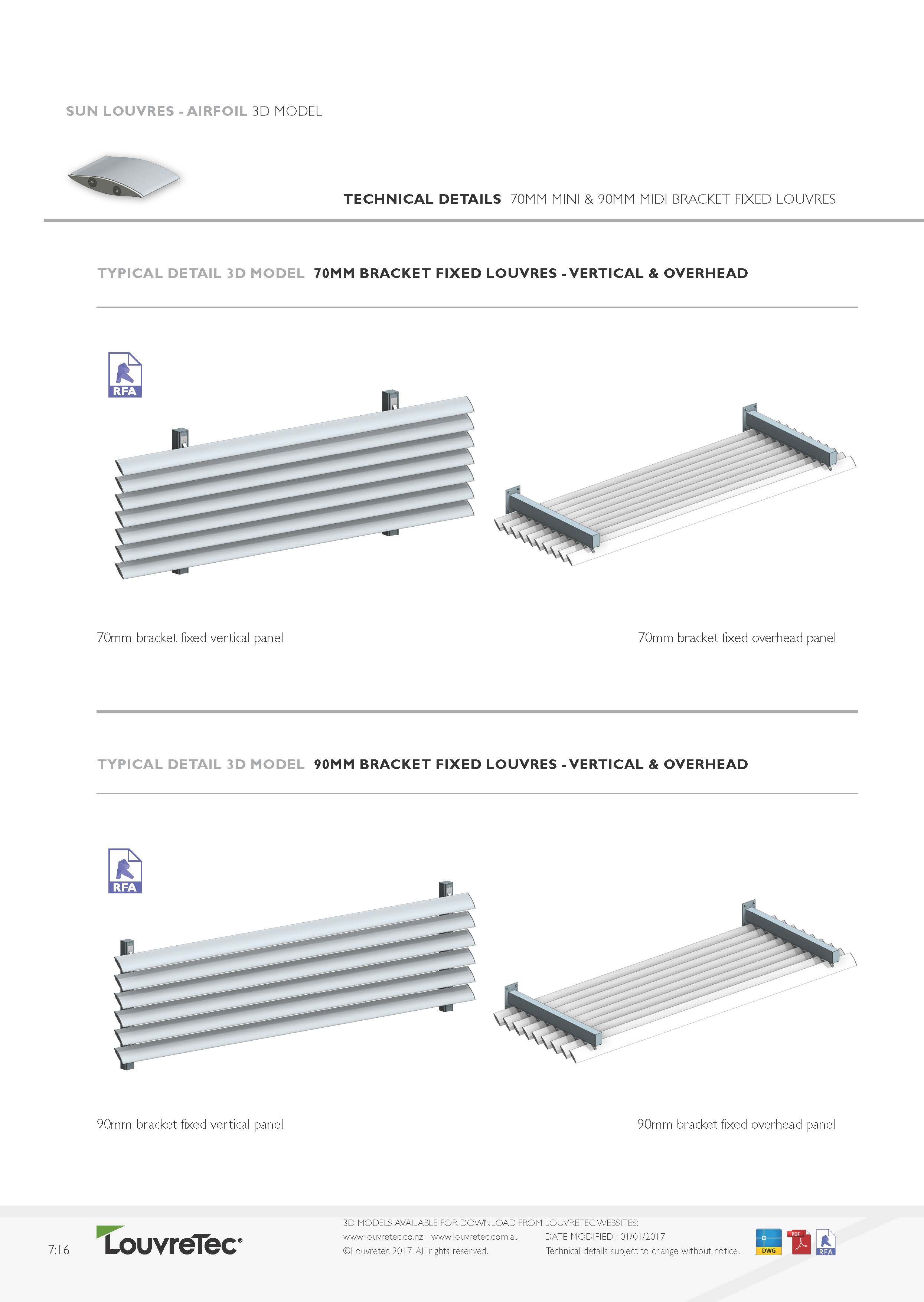

Bracket Fixing for 70mm and 90mm Louvres

7.16 to 7.19
