Description

The new 220/45 Alpine RETRACT ROOF is designed heavy-duty for alpine and exposed coastal locations. The Louvre blades of this Retract Roof can also be specified as a standard, Spiral Pivot Opening Roof — ideal for roof matching for large projects requiring both a Retract and Opening Roofs.

With excellent spanning capabilities, the 220/45 Alpine Retract Roof is ideal for high wind zones and features a flat bottom with a sleek, tapering top.

220/45 Alpine Retract Roof Louvre blades are 220mm wide.

Maximum Spans in Wind Zones (3m height):

Extra High: 5000mm
Low: 5000mm

Key Features

Choose either the 220/45 Alpine Retract Roof or the 220/35 Slimline Retract Roof
Retract Louvre Blades are also compatible as a standard Spiral Pivot Opening Roof
220/45 Alpine Retract achieves excellent spans for high wind zones, coastal & alpine regions
Motorised
Blades features a tapered top and flat bottom

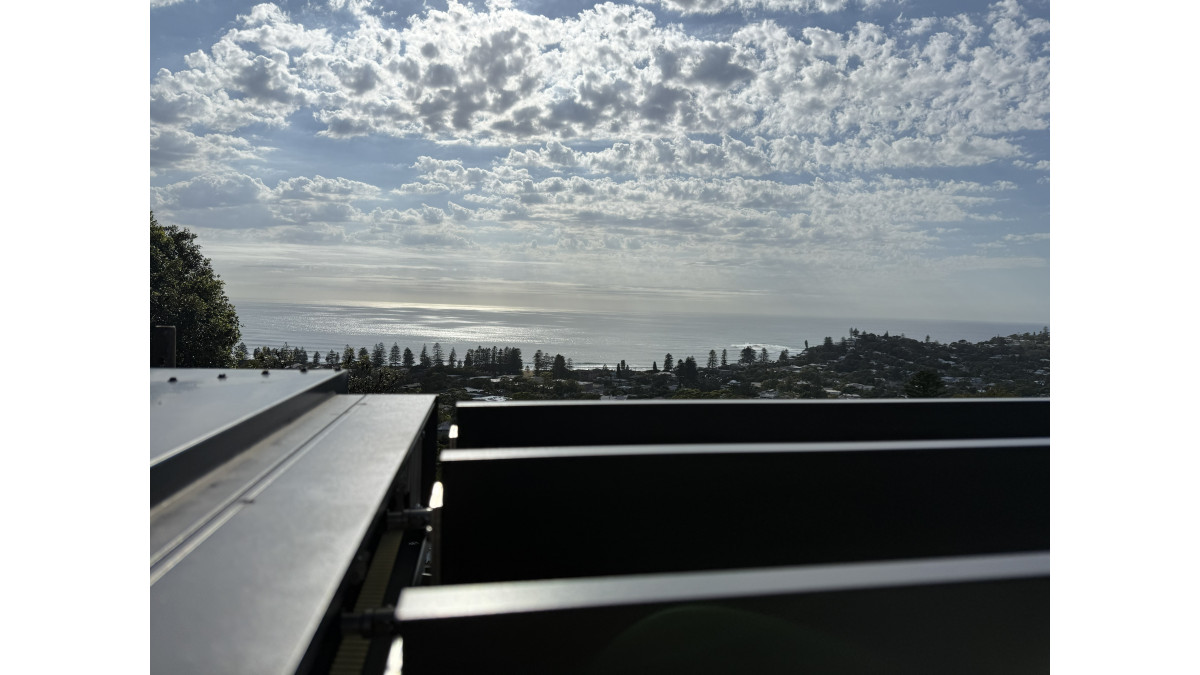

Blades stack neatly and quietly
Can be operated by a customised remote or from a device
Drive systems are concealed

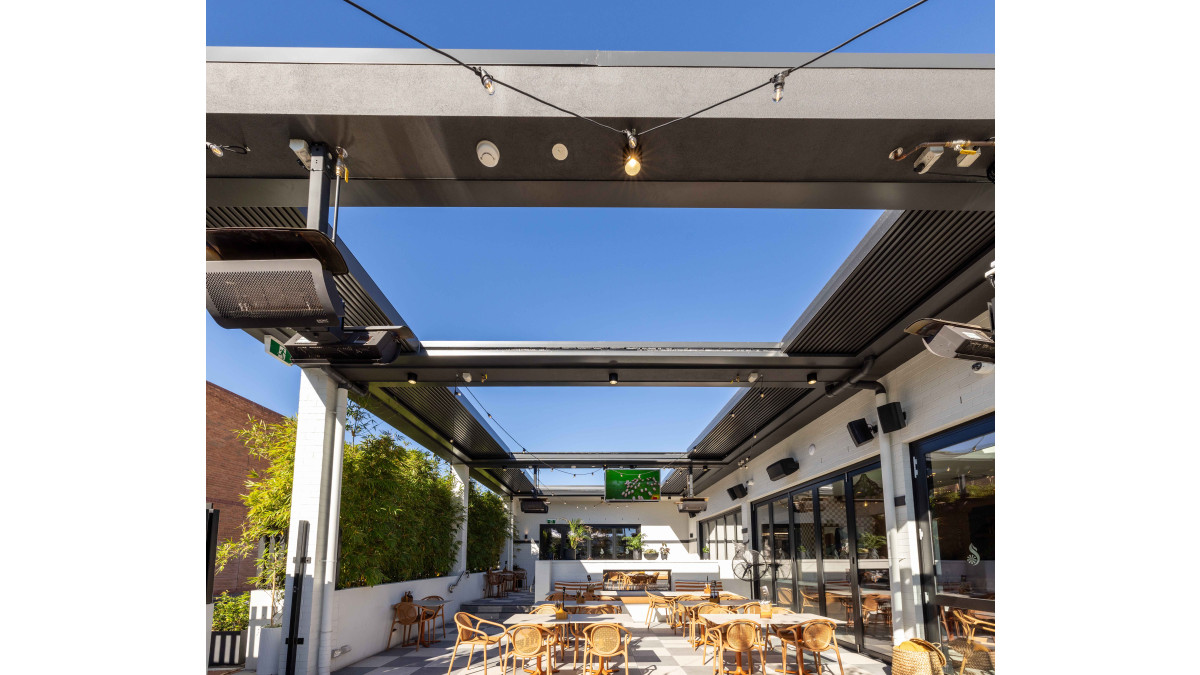

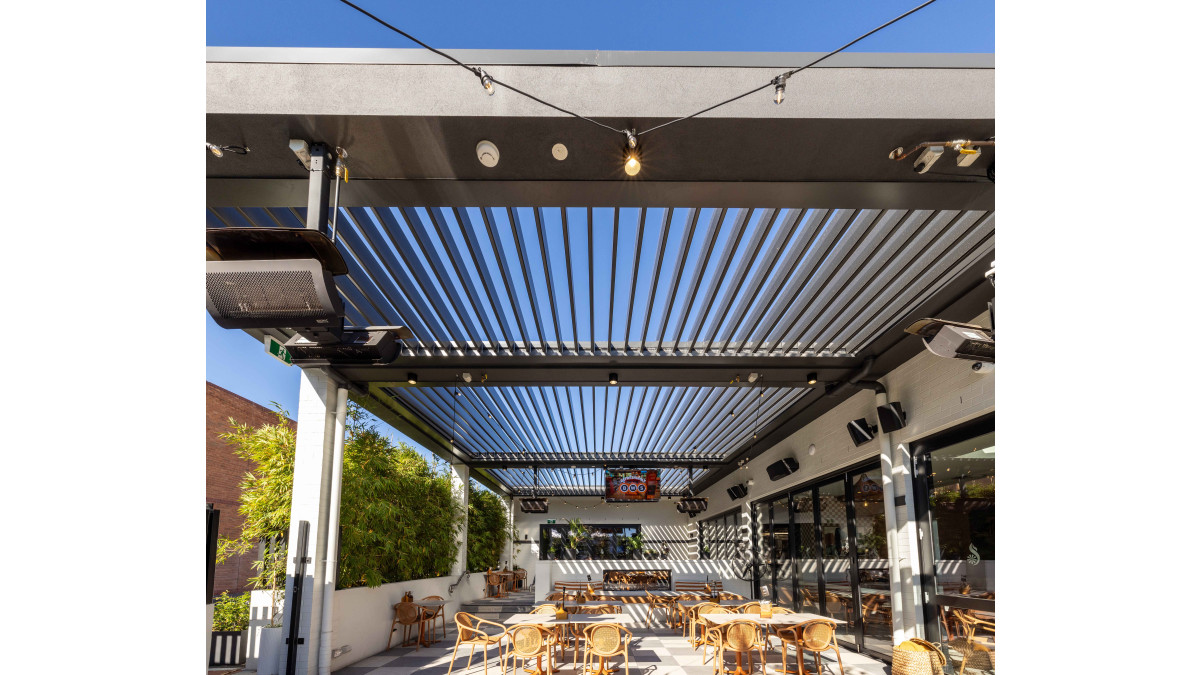

Residential or commercial premises — ideal for restaurants and cafes

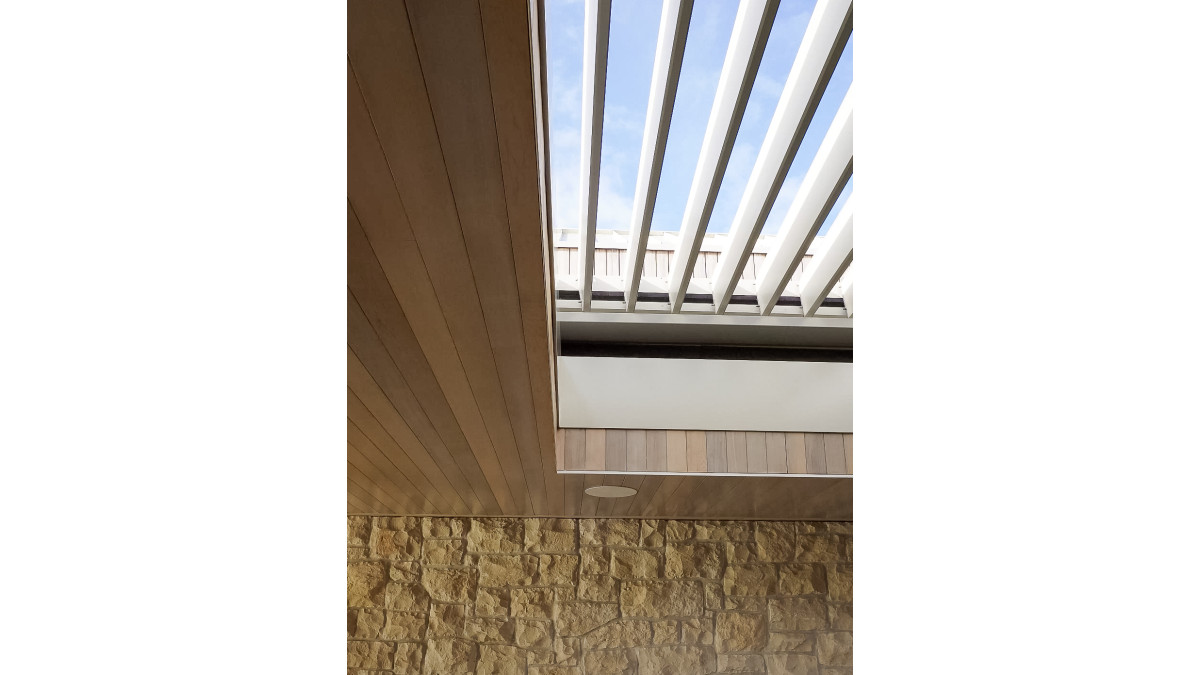

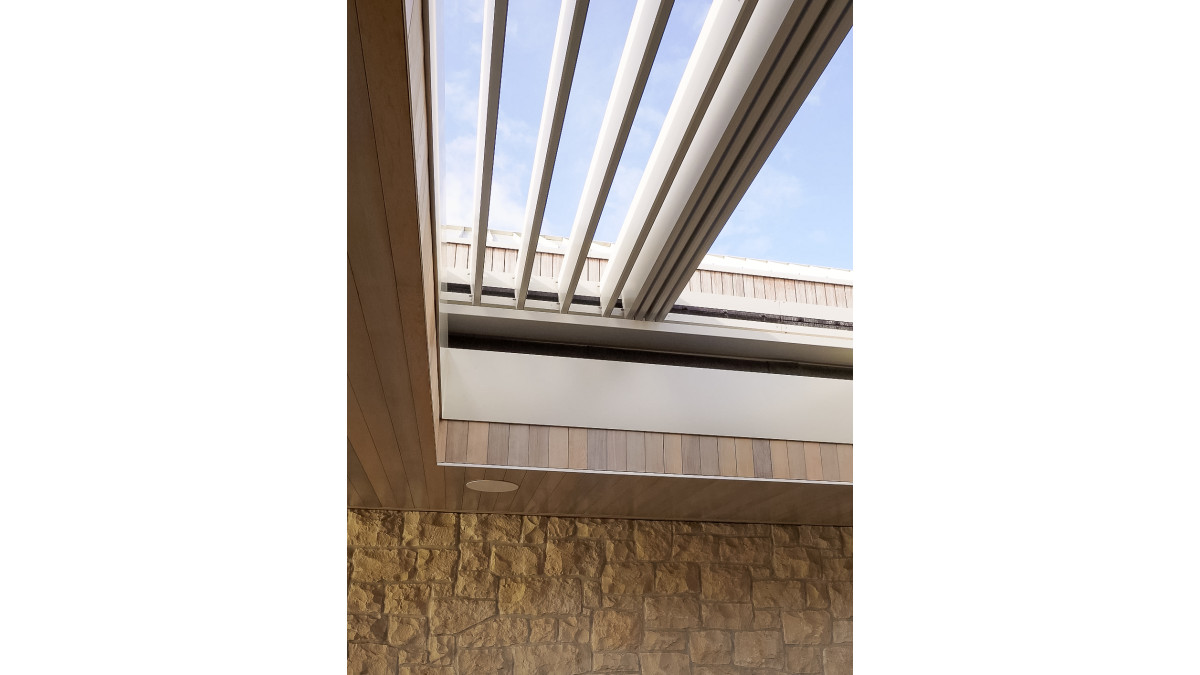

Retract the louvres back to enjoy the sky above
Louvres open and close when back in the overhead position
Choose to retract the blades from one end or from both ends
Frame options include a Three Sided Frame or Four Sided Frame
Extra wide gutter for extra storm-water protection
Cushion closing onto a bulb seal strip
Design strength of an extruded double box-section
Increased closing cover angle for added weather protection
Suitable for residential & commercial projects
Louvretec frames or can work with the project's builder
Sun & privacy protection
Regulate sunlight to help save on energy
Fully engineered

Ranges

Retract Roofs

NZ Made

NZ-Owned Business

Scope of Use

Louvretec Retract Roofs are an exterior, permanent, aluminium, louvre system with operable and retracting blades
Wind Zones determine the span as set out in the Louvretec 2025 Design Manual
Designed for New Zealand's climate and conditions
Constructed of aluminium for durability
Specified to create a functional outdoor room for decks, verandahs and patio areas
Frame options include a 3-Sided, 4-Sided Louvretec frame or a Retract Roof can be incorporated in to a frame by others
Frame is connected to posts (number of posts dependent on requirements) the frame is mounted to a structural wall
Louvretec Retract Roofs are engineered to standards NZ3604

Limitations on Use

Wind Zone — determines style of Retract Roof, the span, frame and posts options as set out in the 2025 Louvretec Design Manual
Installation must be by Louvretec Installations team
For residential and commercial projects

In-Service History

Louvretec's Retract Roof range has been available for ten years and 2025 sees the introduction of two new Retract Roofs to the range, the 220/35 Slimline Retract and the 220/45 Alpine Retract Roof

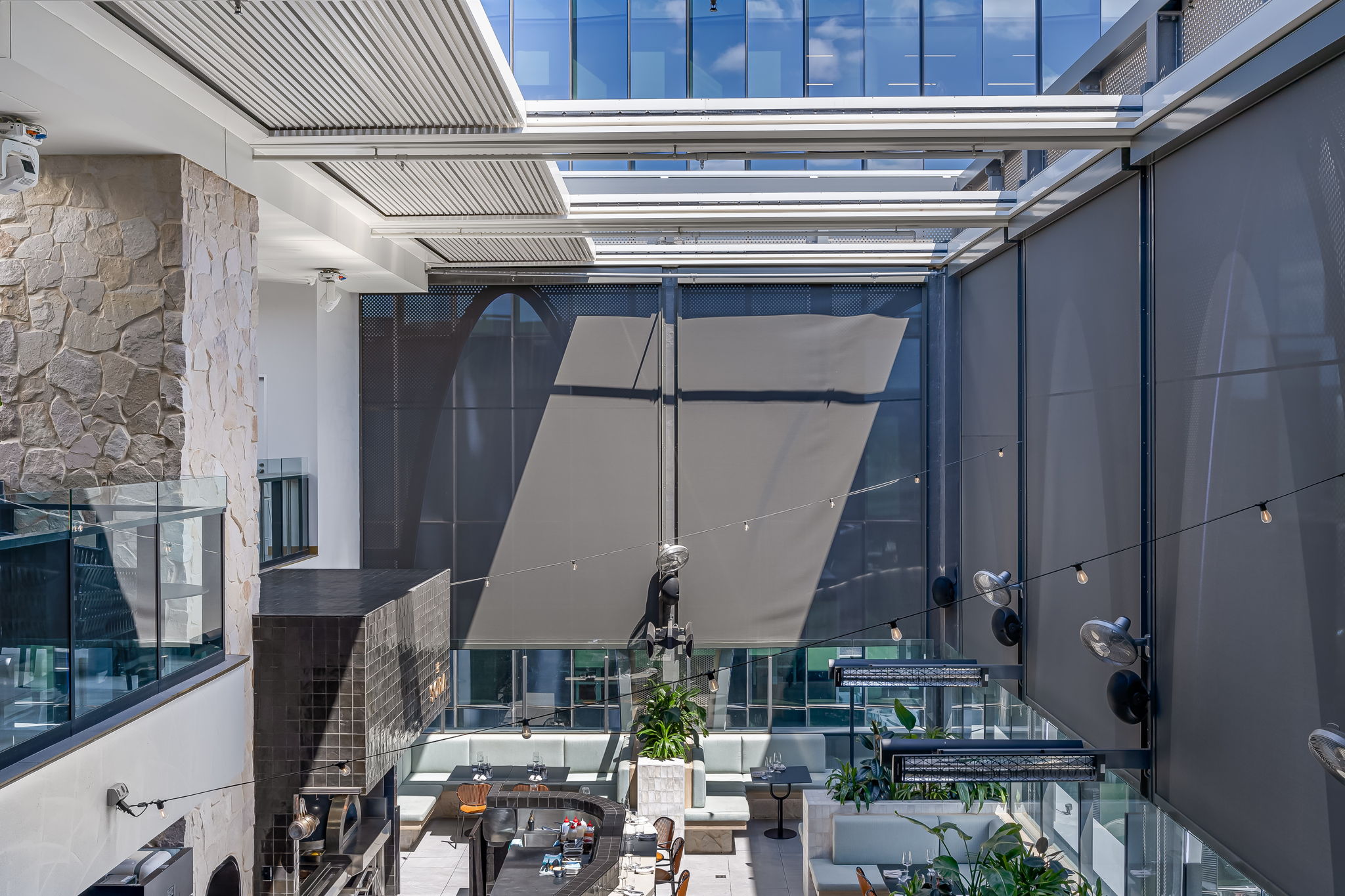

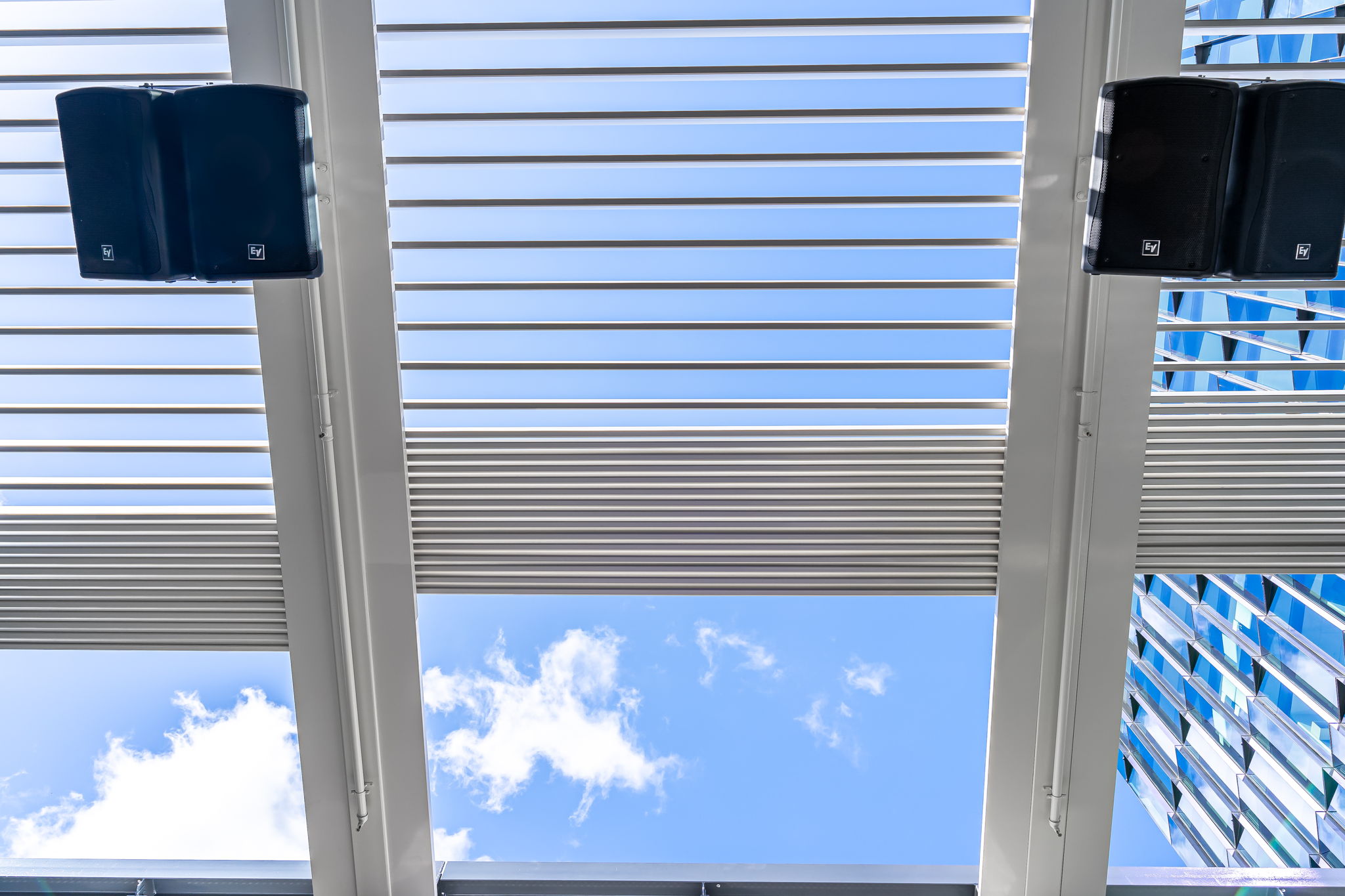

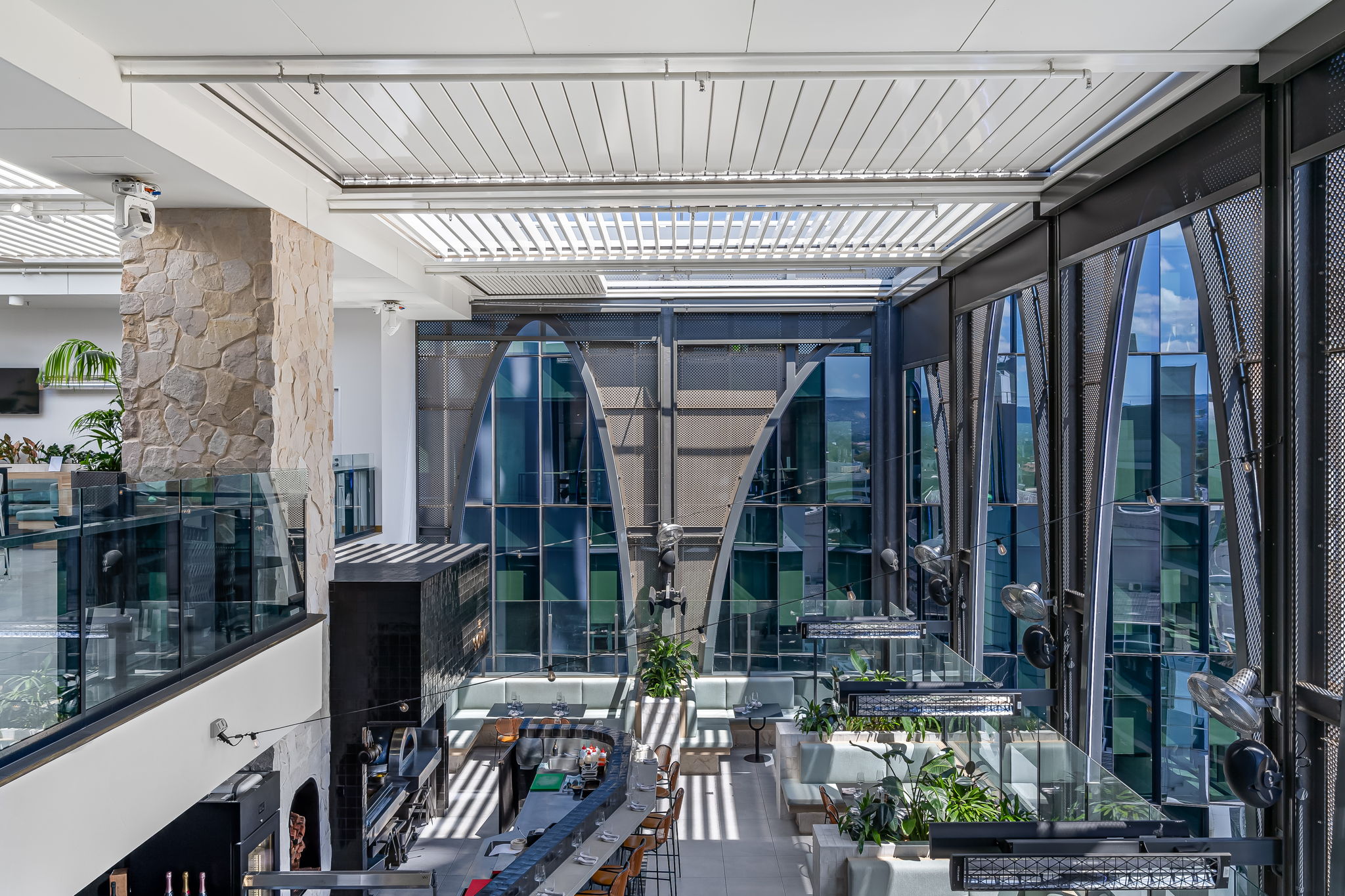

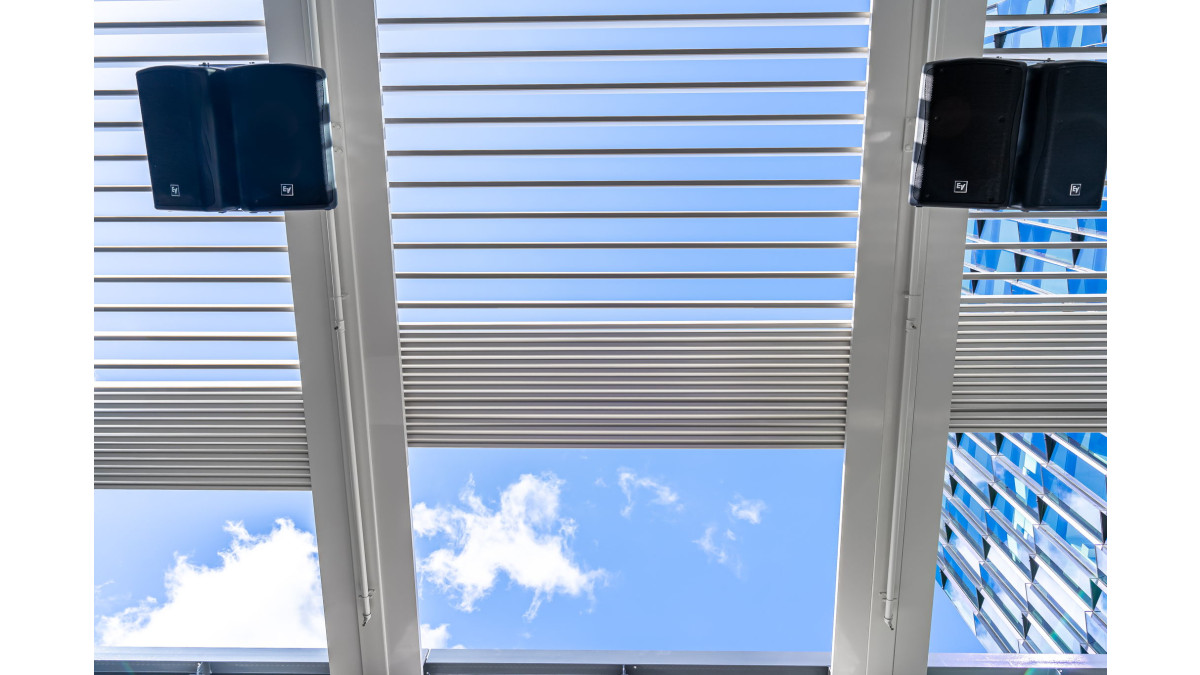

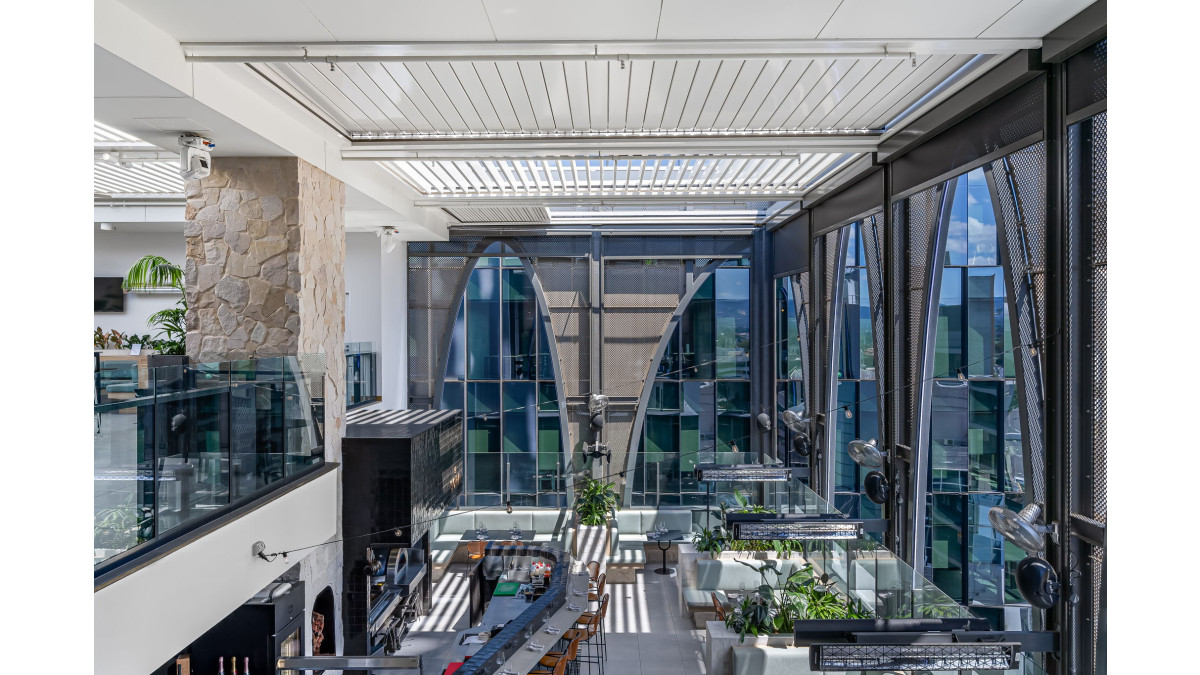

Louvretec Retract Roofs are regularly specified on stunning coastal, country and city homes. Tara Iti Golf Club in Mangawhai also features a Louvretec Retract Roof as do beautiful restaurants such as Sugar Hill in Melbourne and Sora on Pirie Restaurant - Bringing operable, functional spaces with premium design.
With a 25 year heritage Louvretec is a market leader in the louvre systems industry. Louvretec is New Zealand owned and operated and manufactures, designs and installs a premium range of Retract Roofs, Opening Roofs, Sun Louvre systems and Sliding Glass Doors
Louvrecare is Louvretec's valet and maintenance division. Louvrecare 'Care and Maintenance Department' was established more than 15 years ago & exists to ensure your louvres remain in optimal condition.

Other Performance Attributes

Louvretec Louvres can be powdercoated, anodised or finished in a wood grain timber-look
Louvretec Louvres are constructed of aluminium
Engineered

Documents

Louvretec Design Manual - 220/45 Alpine Retract Roof Bundle from Retract Roof Section 3

2025

pdf

Louvretec Design Manual - Retract Roof Entire Section 3

2025

pdf

Warranty

Opening Roofs, Louvres, Shutters

pdf

Warranty Louvretec Retract Roof

2025

pdf

Brochure

Louvretec 2025 Retract Roof Brochure

pdf

CAD/PDF Details

View full

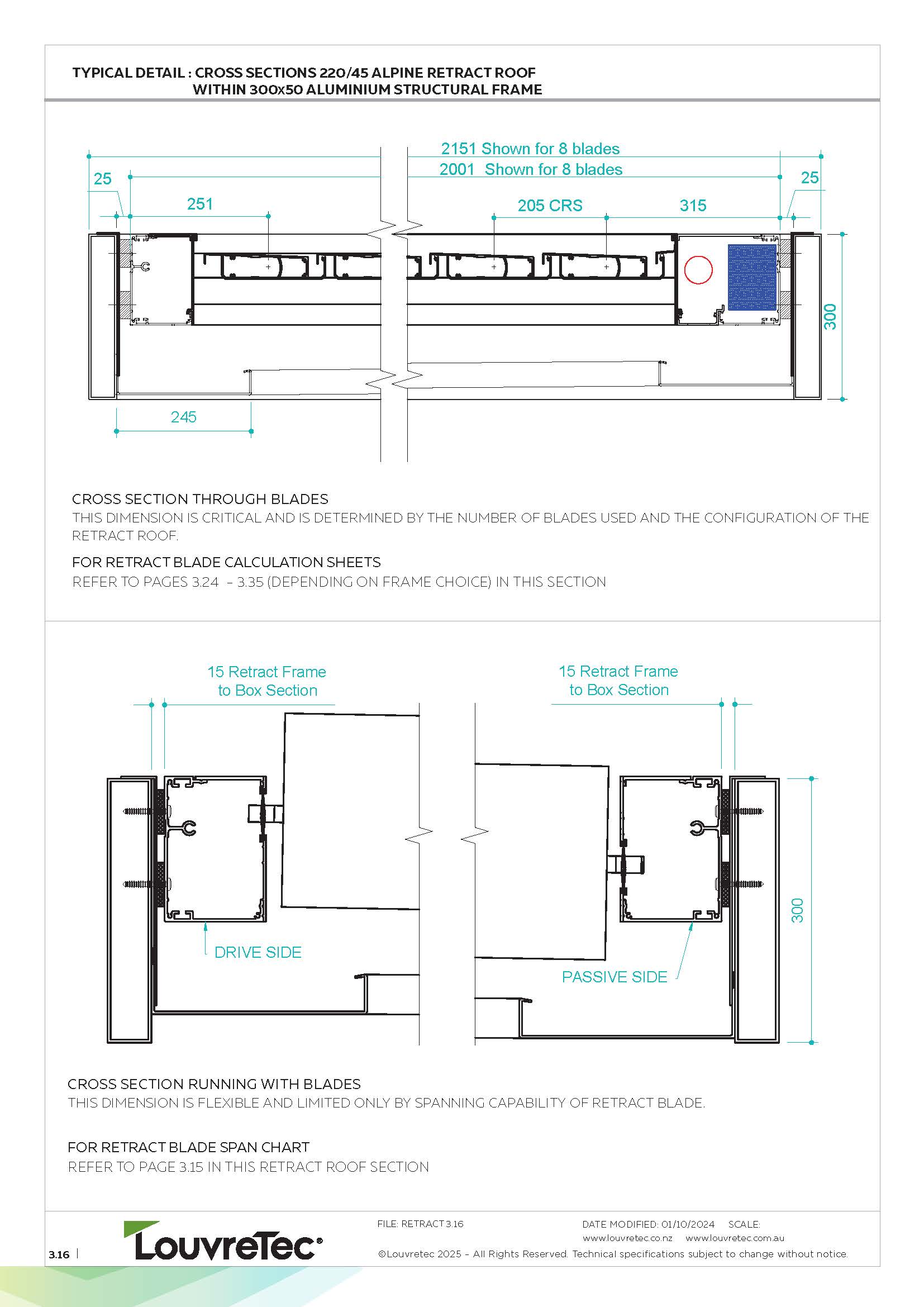

Section 3 2024 Retract Roof Louvretec DM FINAL 110225 Page 17

Typical Detail | 220/45 Alpine Retract Roof - Motorised

3.16

Louvretec 2025 Design Manual

dwg

BIM

View full

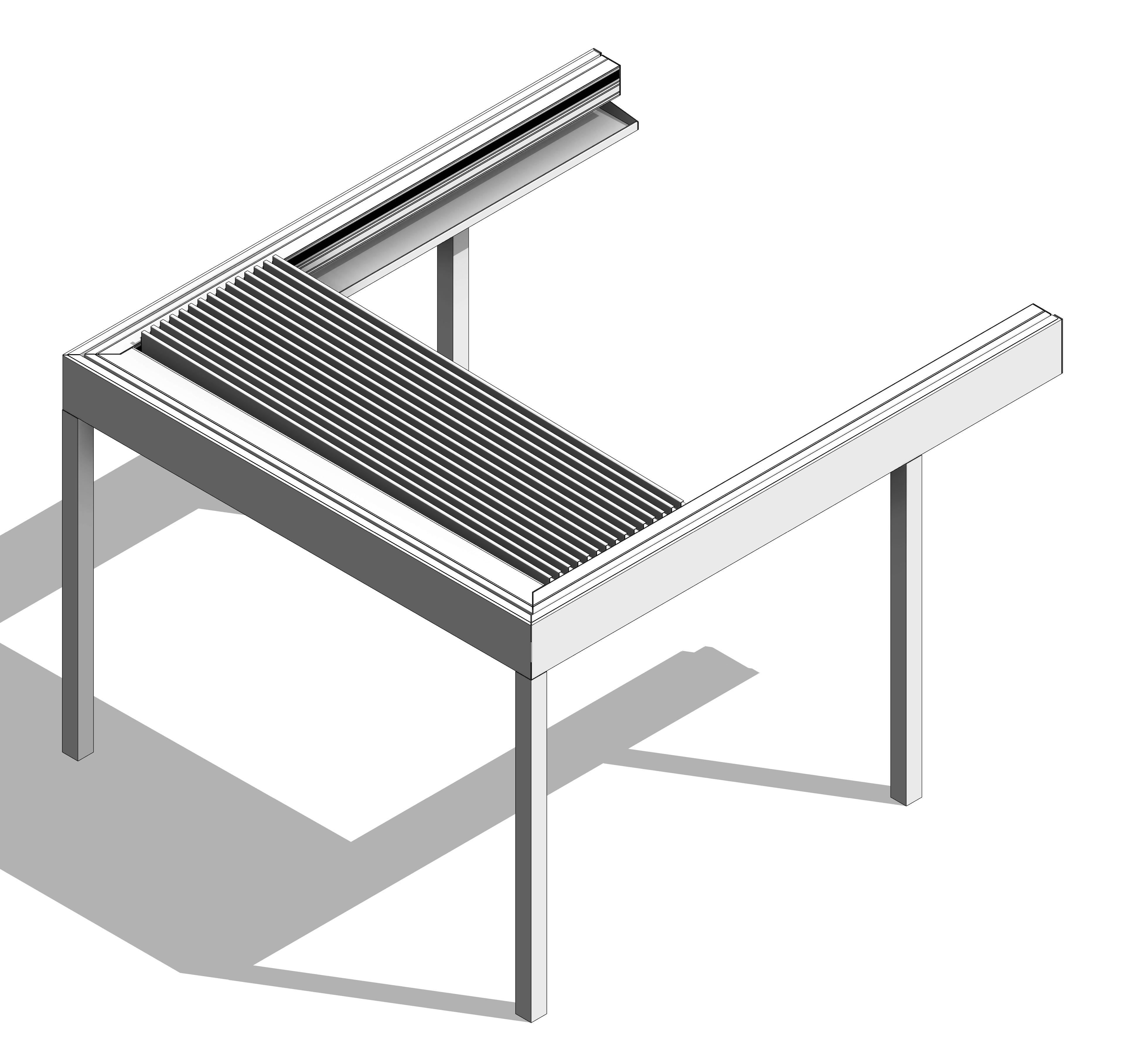

3D Model | 220/45 Alpine Retract Roof, 3 Sides, Blades Retracting to one end

RFA

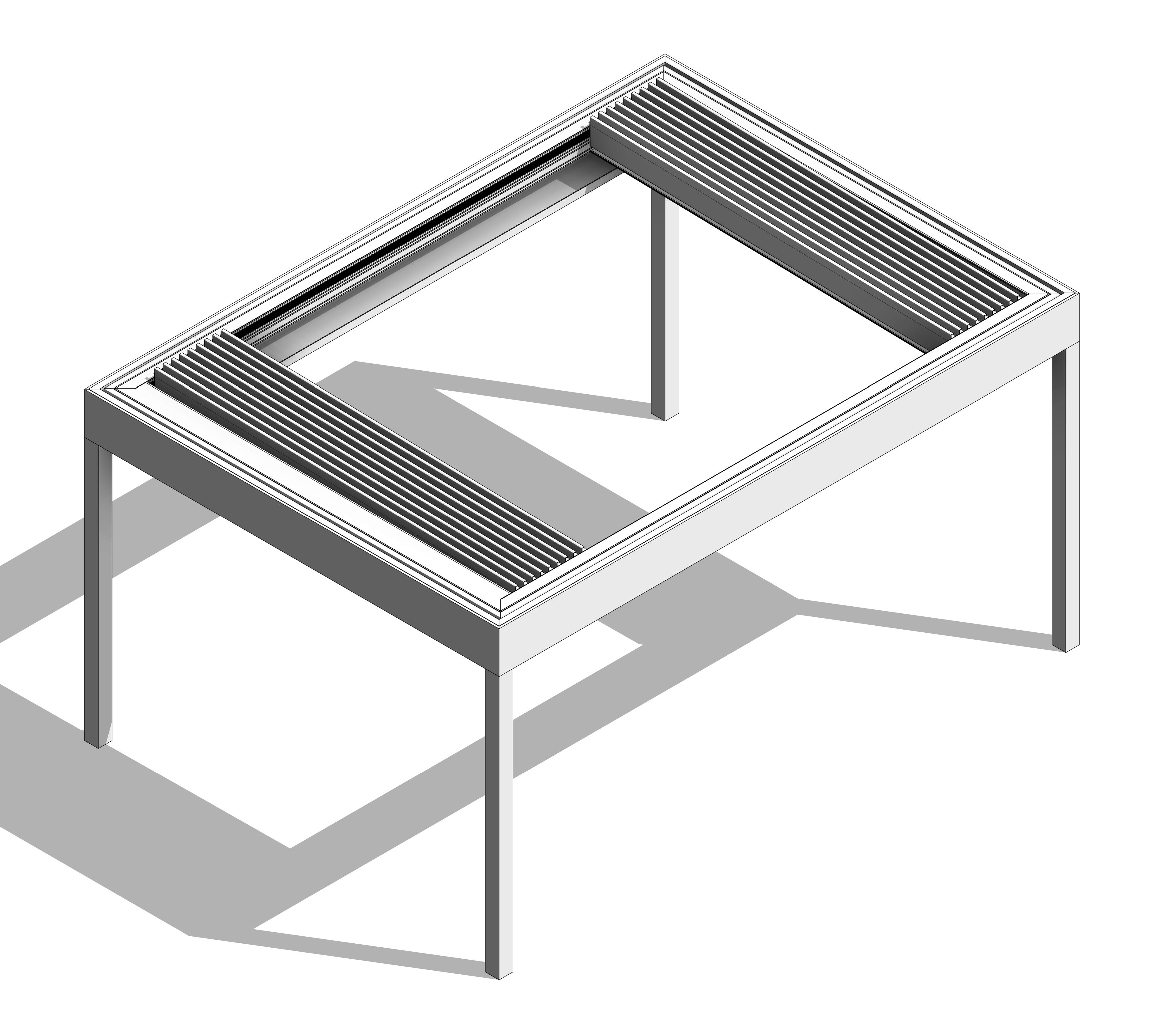

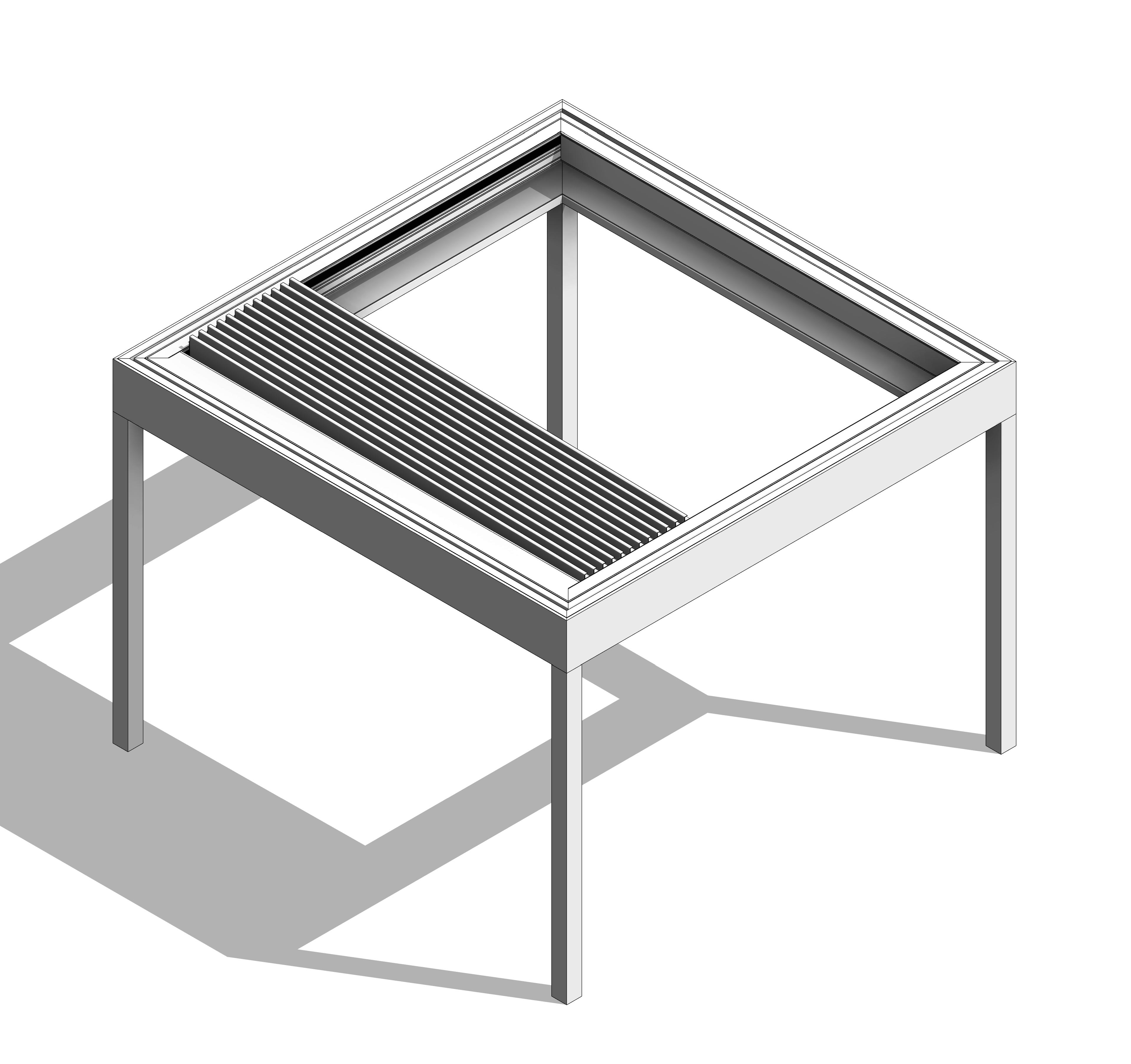

3D Model | 220/45 Alpine Retract Roof, 4 Sides, Blades Retracting to both ends

2025

RFA

3D Model | 220/45 Alpine Retract Roof, 4 Sides, Blades Retracting to one end

RFA

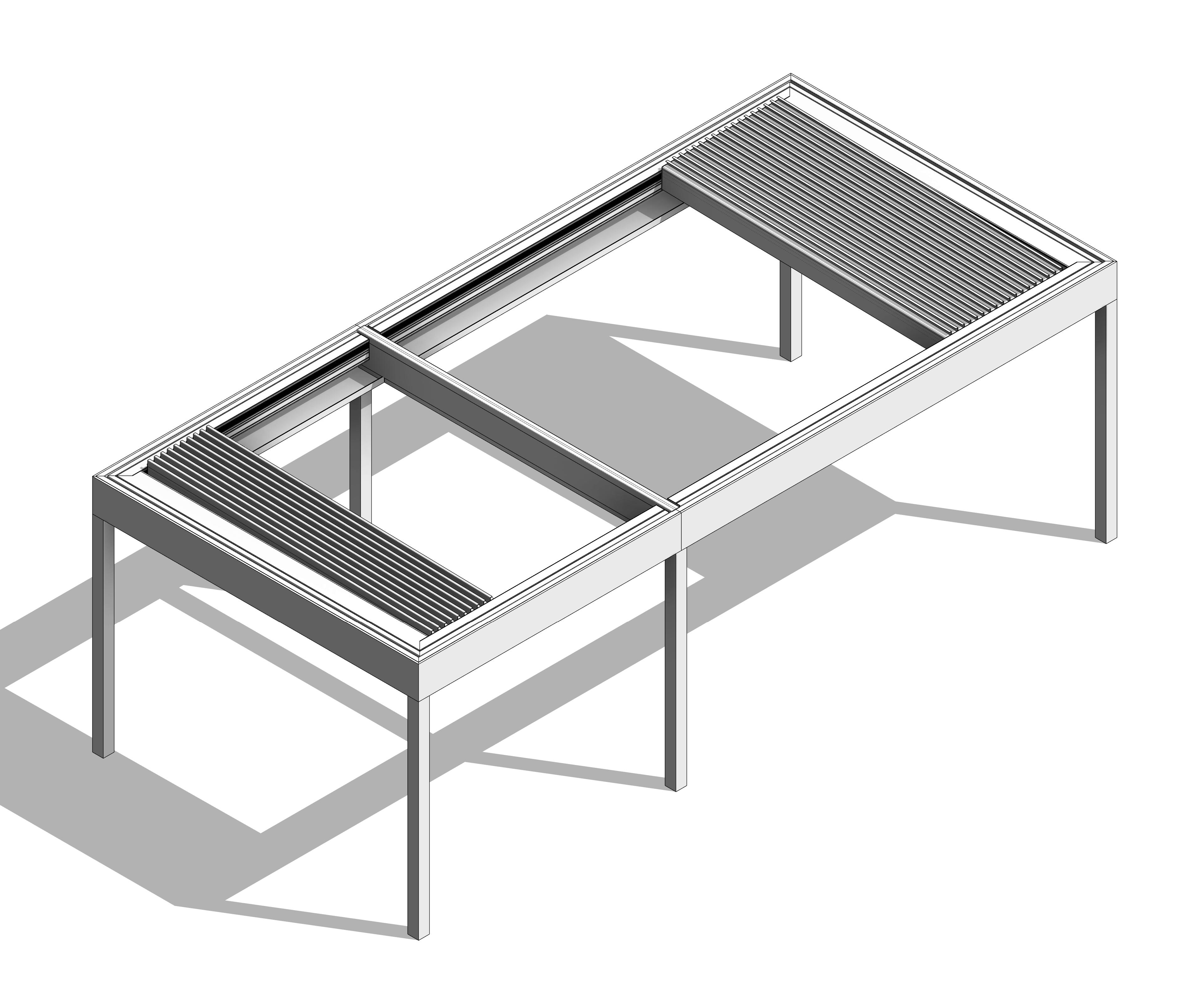

3D Model | 220/45 Alpine Retract Roof, 4 Sides, Double Retract, Blades Retracting to both ends

2025

RFA
