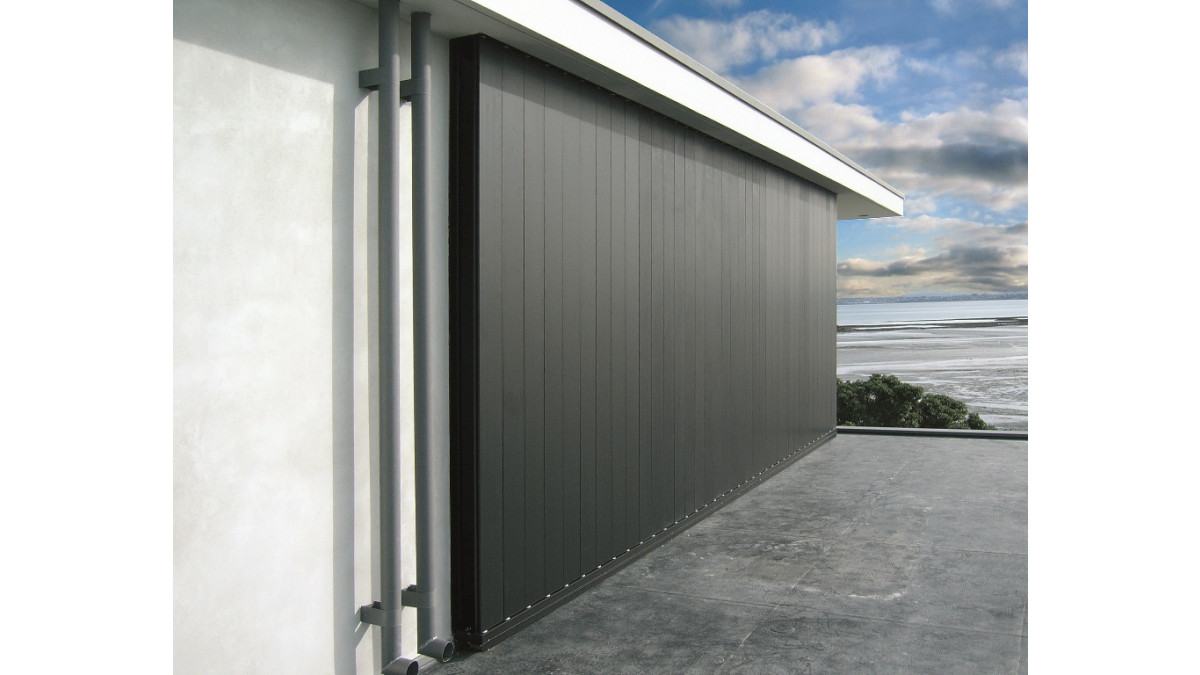

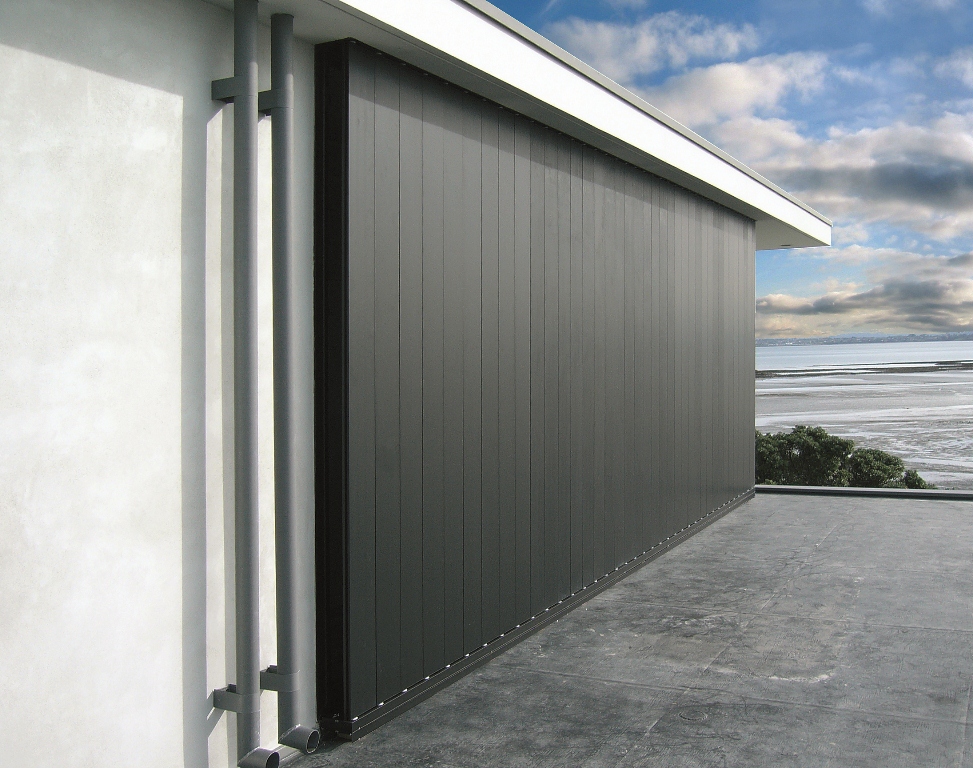

200 Flush Panel
Description

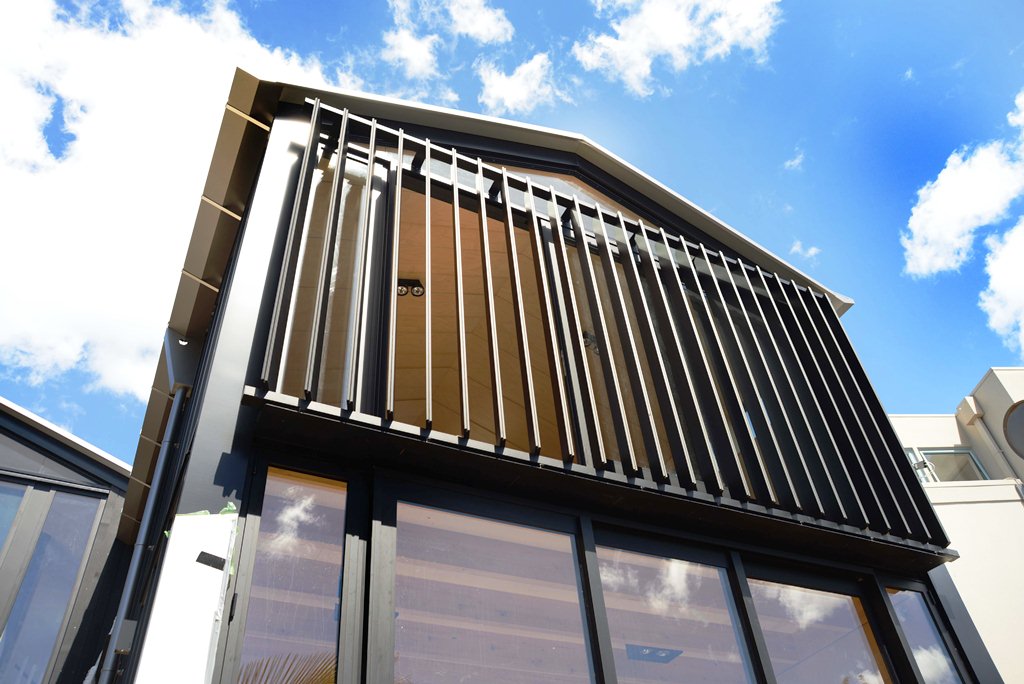

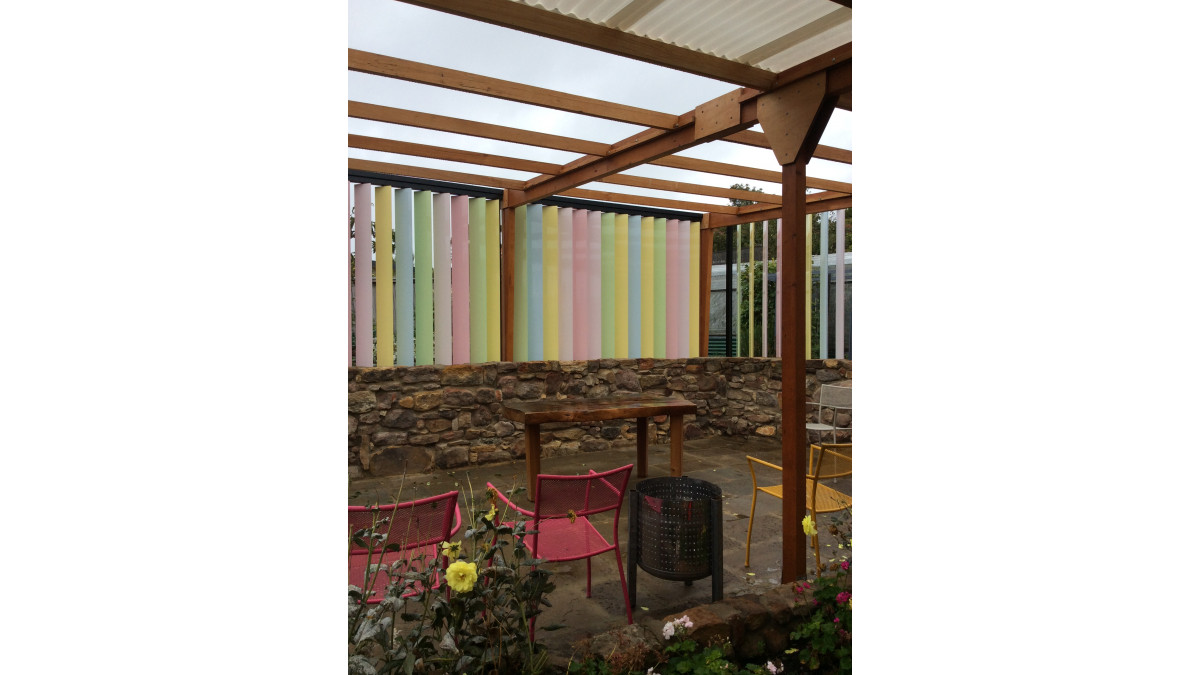

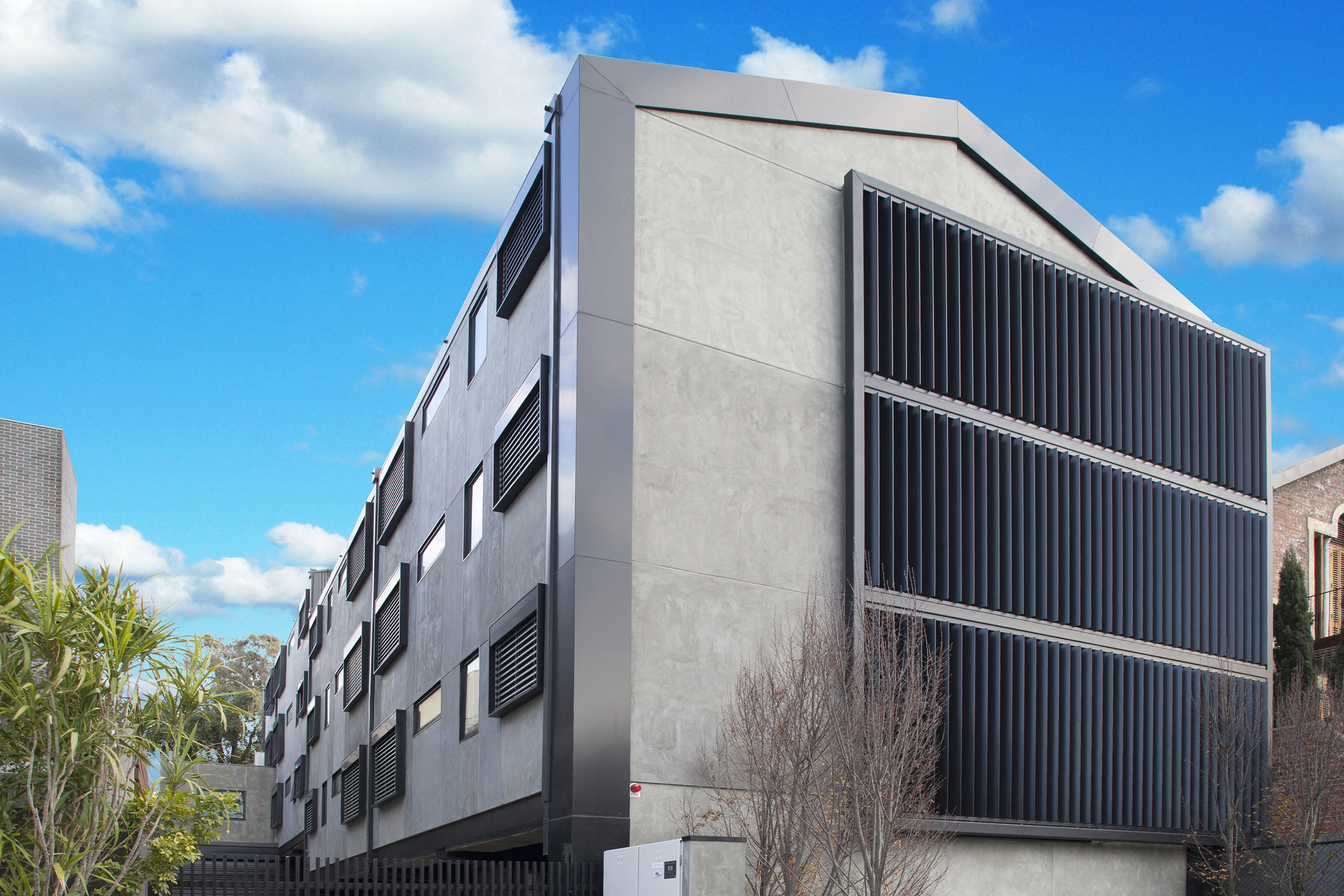

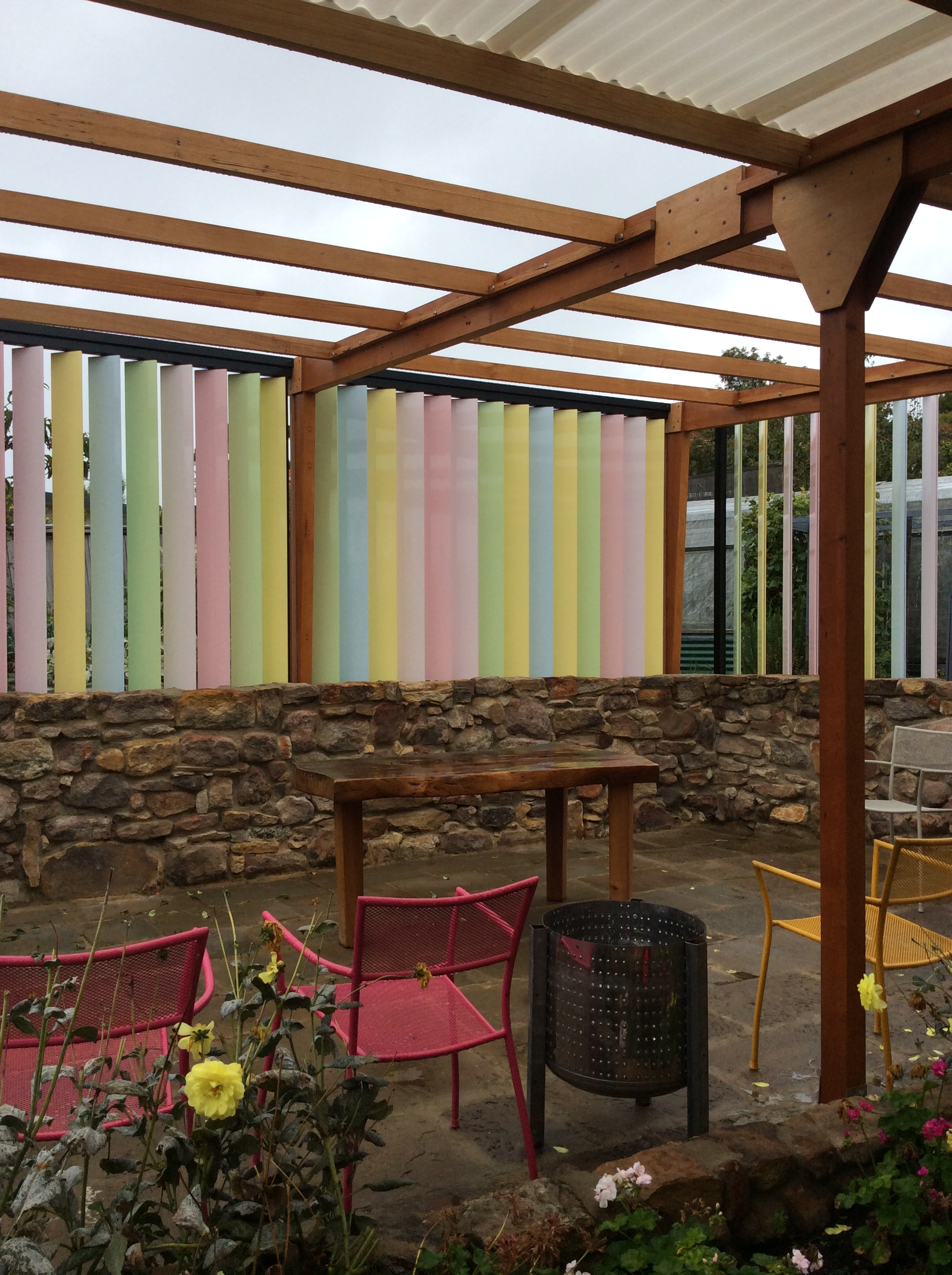

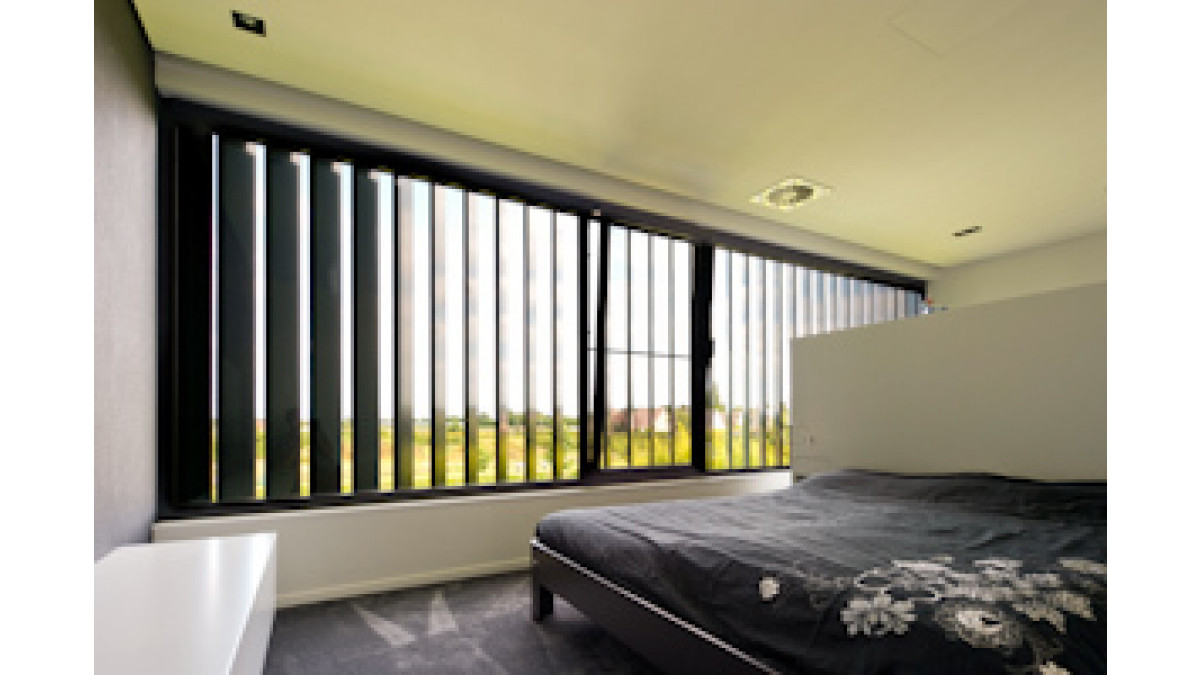

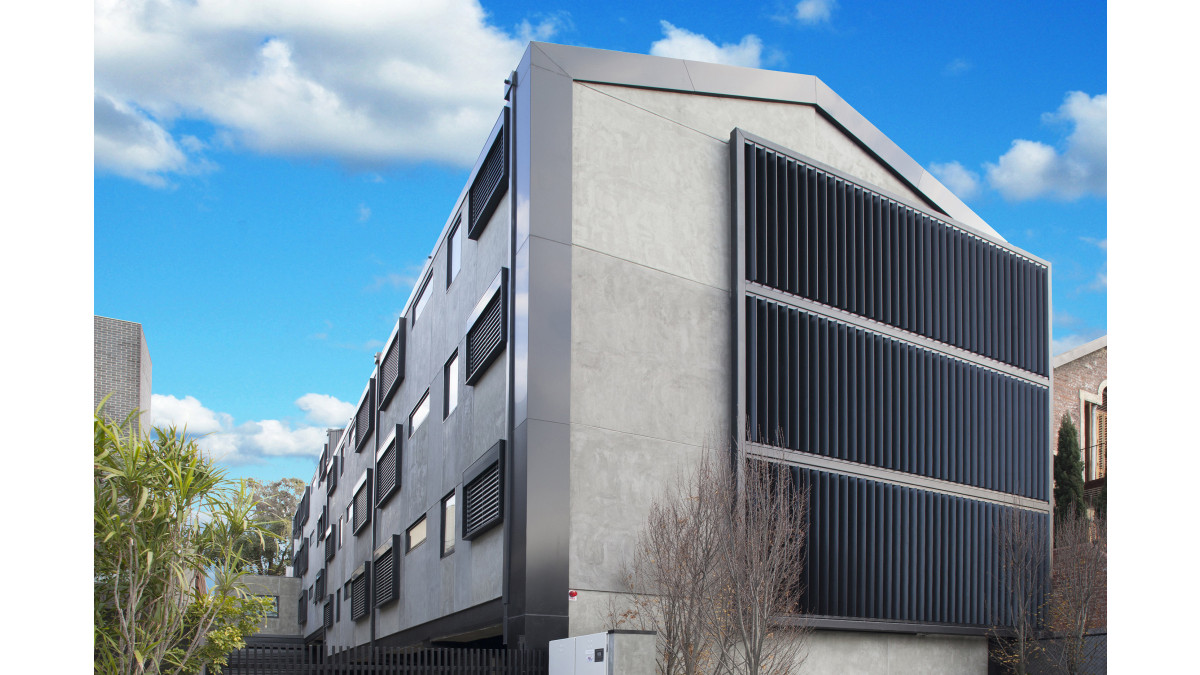

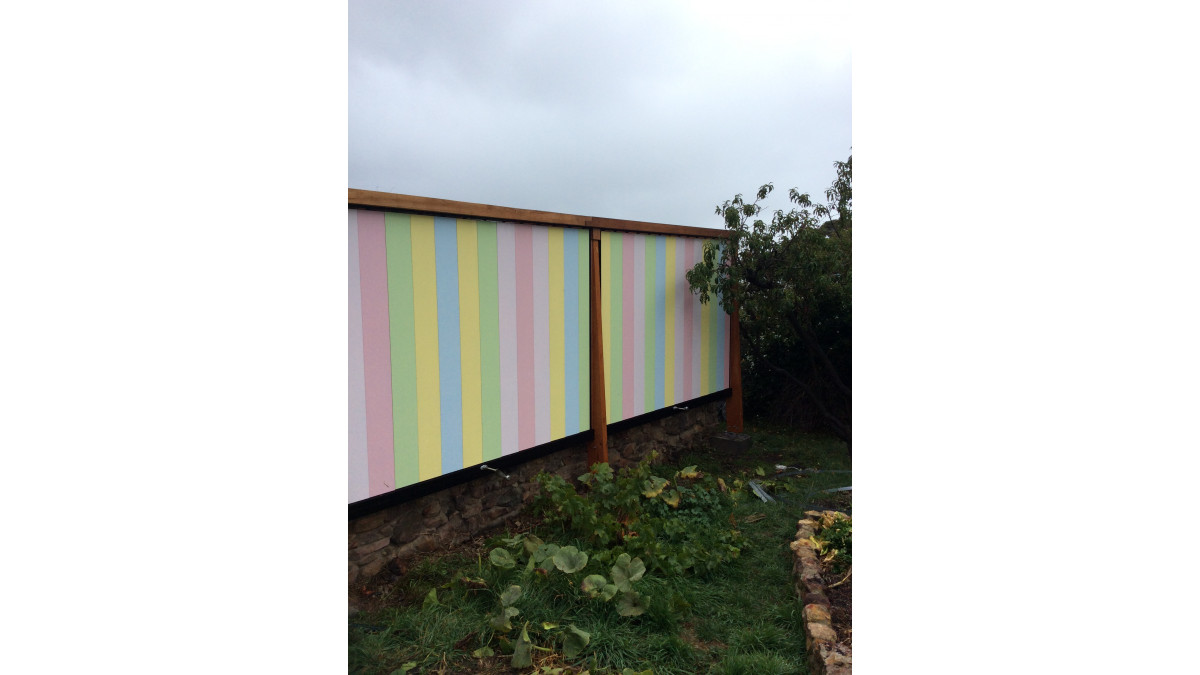

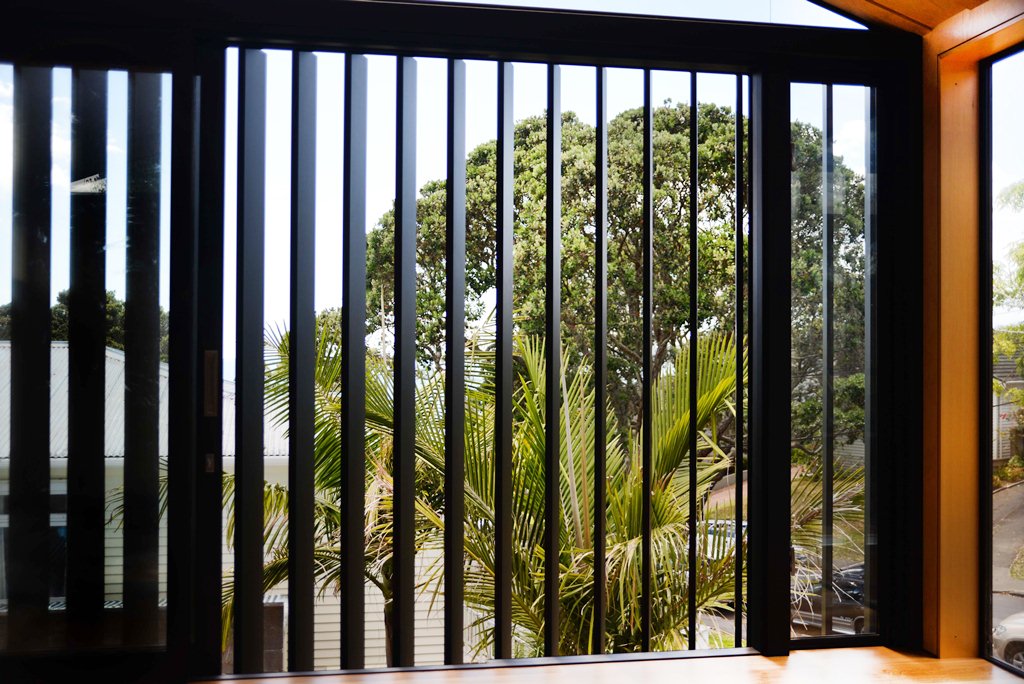

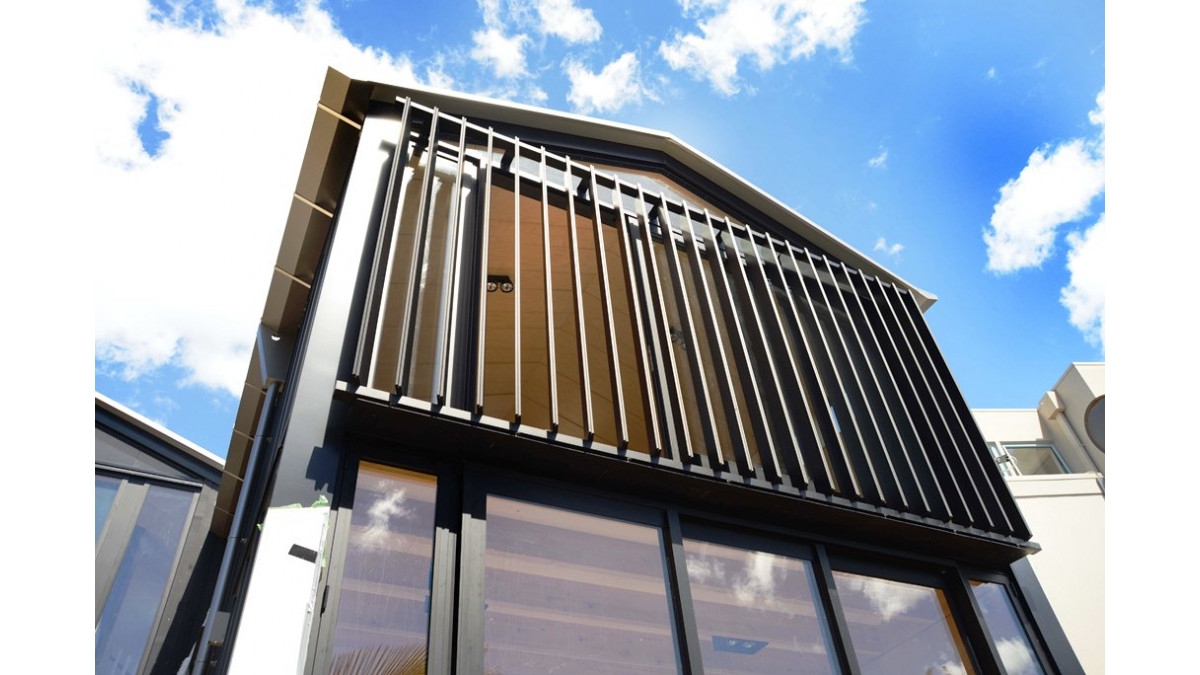

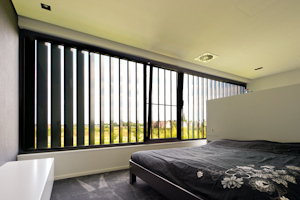

The 200mm Flush Panel is ideal as vertical external panels that sit in front of joinery or panels of glass allowing you to enjoy a wide view looking forward while achieving a high degree of side and rear privacy. The 200mm Flush panel is strong yet elegant and has good spanning capabilities both vertically and horizontally.

Available as Spiral Pivot Motorised or Hand Operable proiding a fully flush operable opening wall.

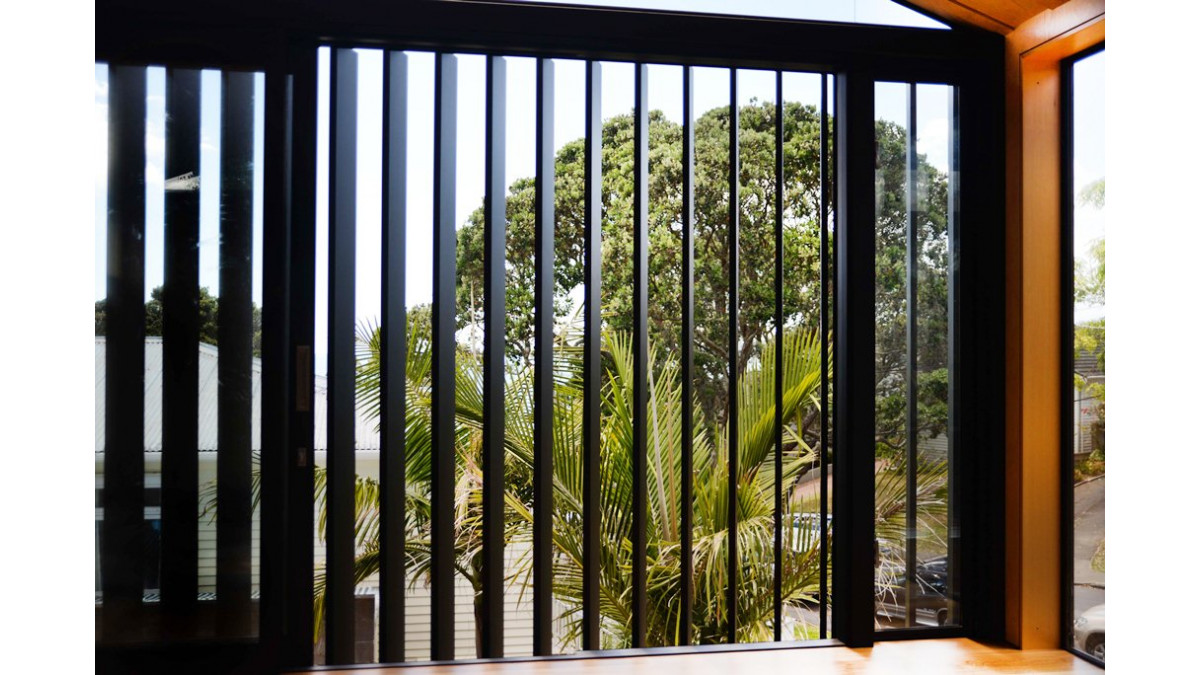

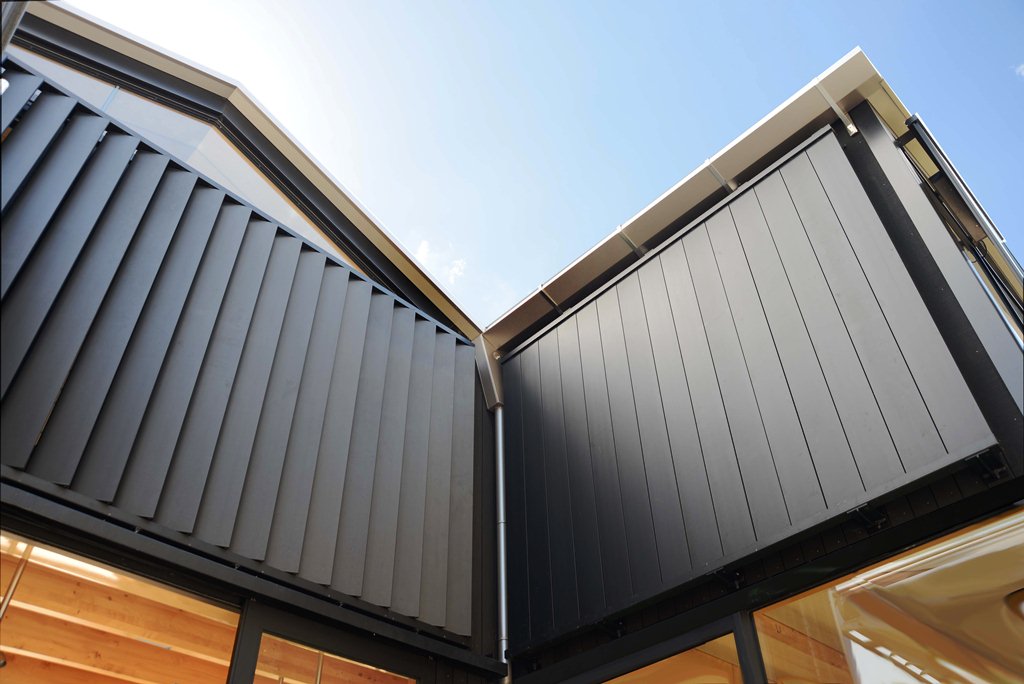

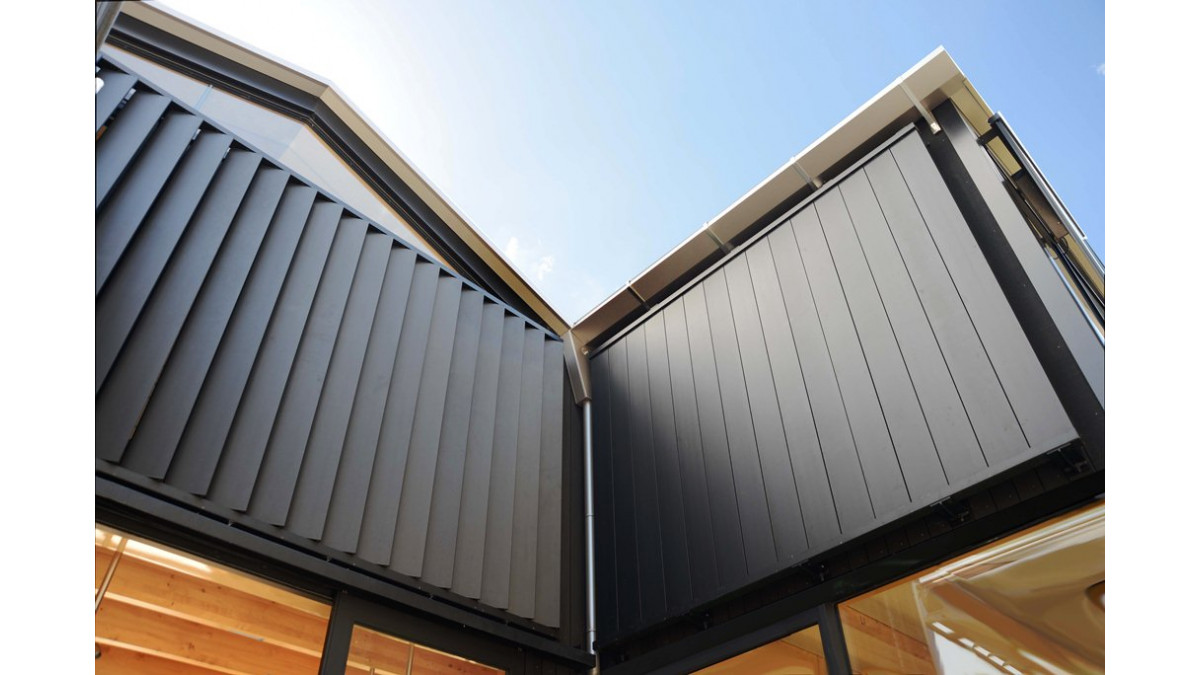

The slim 200mm blades are only 27mm deep giving over 165mm of clear space when opened. Choose from centre of blade or rear pivot options. Rear pivot allows for close fitting alongside aluminium window and door joinery.

Key Features
  • Designed and manufactured locally for New Zealand and Australian conditions.
  • Louvres can be motorised or manually adjustable.
  • Engineered to meet relevant AS/NZS standards.
  • All extrusions manufactured in an ISO quality assured environment to AS1866 and AS3902 standards.
  • Plastic injected components (motorised and manual) are UV stabilised.
  • Drive axles(motorised and manual) and all fixings are marine grade 316 stainless steel.
  • Can be powdercoated, anodised or woodgrain finished to large range of colours.
  • Full site measure, design, shop drawing(if required) and installation service provided.
  • All louvre panels are custom made.
  • Low maintenance.
NZ Made
NZ Made
Scope of Use

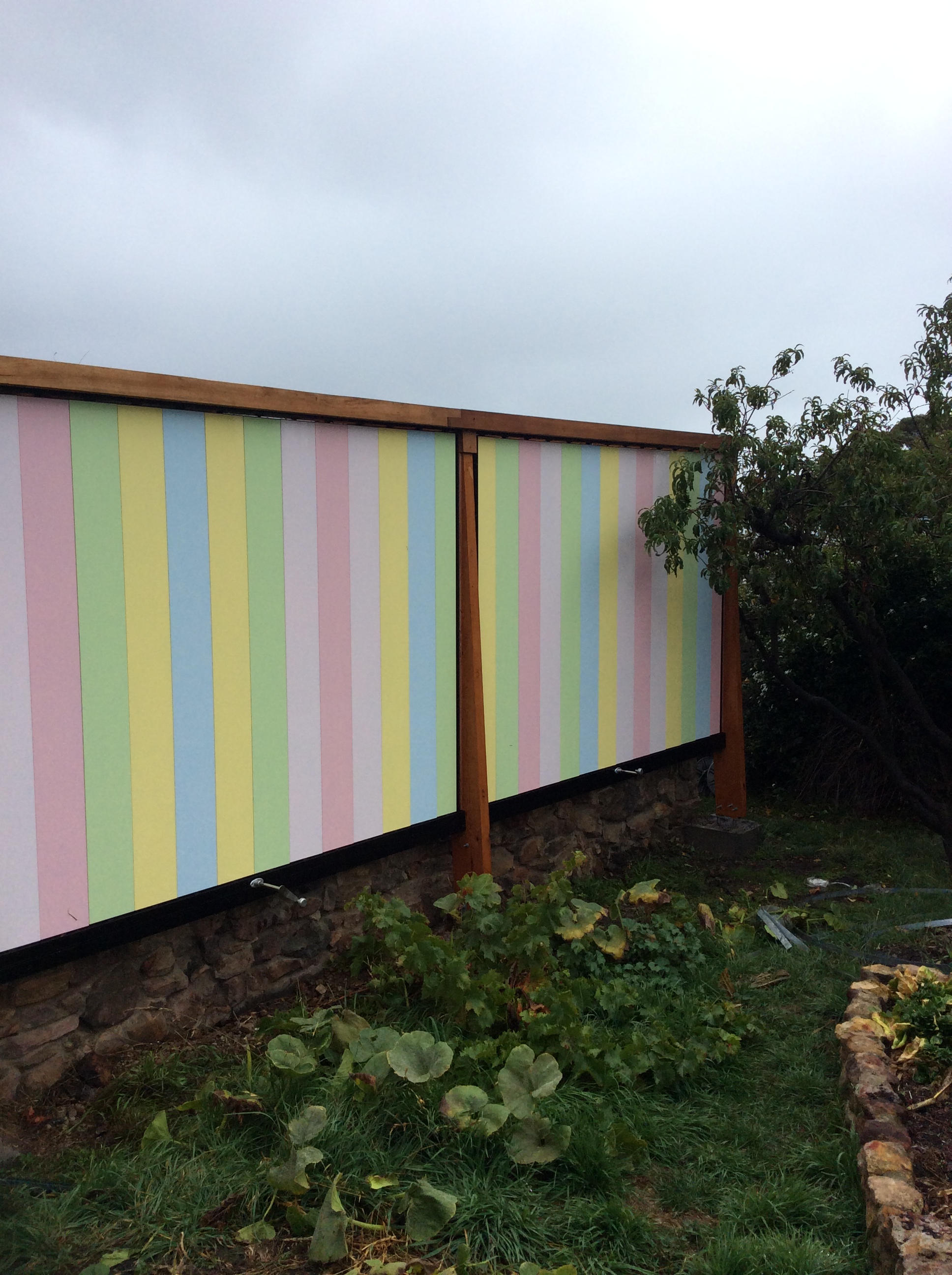

  • Can be used for sun shading, wind break, privacy and Architectural feature.
  • Suitable for coastal, inland, snow, residential, commercial installation.
  • Louvres are generally installed vertically and can be motorised or manually adjustable using the Louvretec Spiral Pivot system.
  • The Spiral Pivot system allows for 180° rotation of the louvres.
  • Louvre spans , as per tables 1 and 2, section 12 of the Louvretec Product Catalogue, are certified by Markplan Consulting Limited (Consulting Structural Engineers) and meets the requirements of AS/NZS 1170:2011, NZS3604:2011, AS/NZ 1664:1997.
Limitations on Use
  • Louvre spans are restricted by wind zone. Refer relevant table in Louvretec Product catalogue.
  • Louvres cannot be used as a weather proofing solution to a building.
  • Supporting structures over 10m high may require specific engineering.
NZS 3604 Corrosion Zone D suitable
Corrosion Exposure Zone D
NZS 3604 Earthquake Zone High suitable
High Earthquake Zone
NZS 3604 Earthquake Zone Low suitable
Low Earthquake Zone
NZS 3604 Earthquake Zone Medium suitable
Medium Earthquake Zone
NZS 3604 Earthquake Zone Very High suitable
Very High Earthquake Zone
NZS 3604 Wind Zone Extra High suitable
Extra High Wind Zone
NZS 3604 Wind Zone Specific Design suitable
Specific Design Wind Zone
Statement of Building Code Compliance

Refer to attached Engineering notes and PS1 provided by Markplan Consulting Limited (Consulting Engineers) with regard to B1 and B2.

In-Service History

The Louvretec 200 Louvreline Flush Panel louvre has been part of the Louvretec range since 1998 being used in residential and commercial applications in New Zealand. Off shore it has been used in Australia and many other countries including the Netherlands, Tahiti, Fiji, Hong Kong and the United States (California).

The Louvretec Spiral Pivot system for manual and motorised applications was introduced in 2003 and is used in most Louvretec manual/motorised systems.

Other Performance Attributes

Warranty as per attached.

B2 Durability compliant
Durability
G4 Ventilation compliant
Ventilation
G7 Natural Light compliant
Natural Light
Documents
Span Tables
Maintenance Instructions
Warranty
Warranty
Specification Clause (Masterspec)
Louvretec Product Range
Online Product Guide: Sun Louvres
Louvretec Sun Louvres Brochure
Sun Louvre Product Quick Guide Brochure
Lourvetec Product Guide
Online Product Guide: Sun Louvres
Options
CAD/PDF Details
Motorised and Hand Operable options

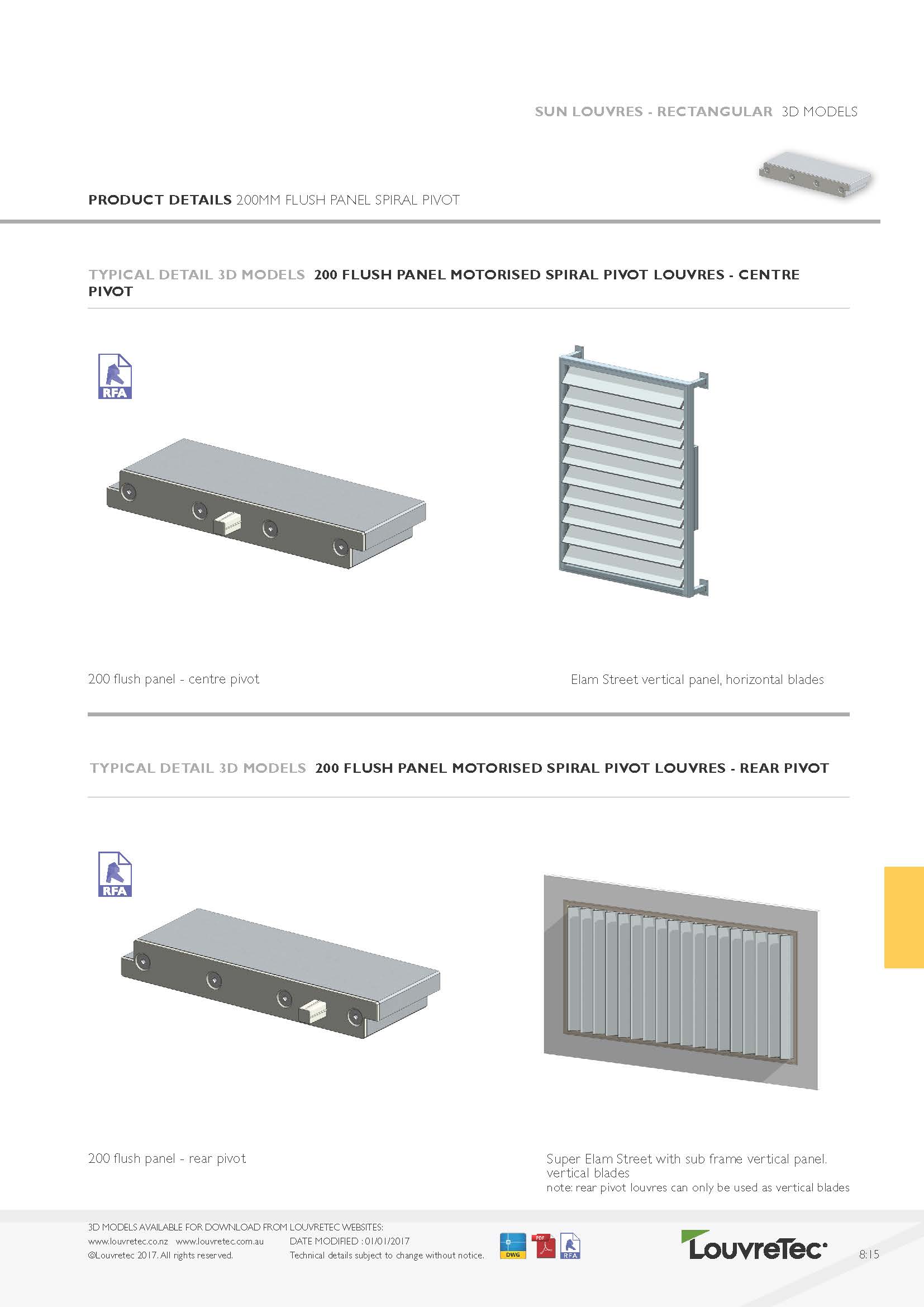

8.15-8.17
