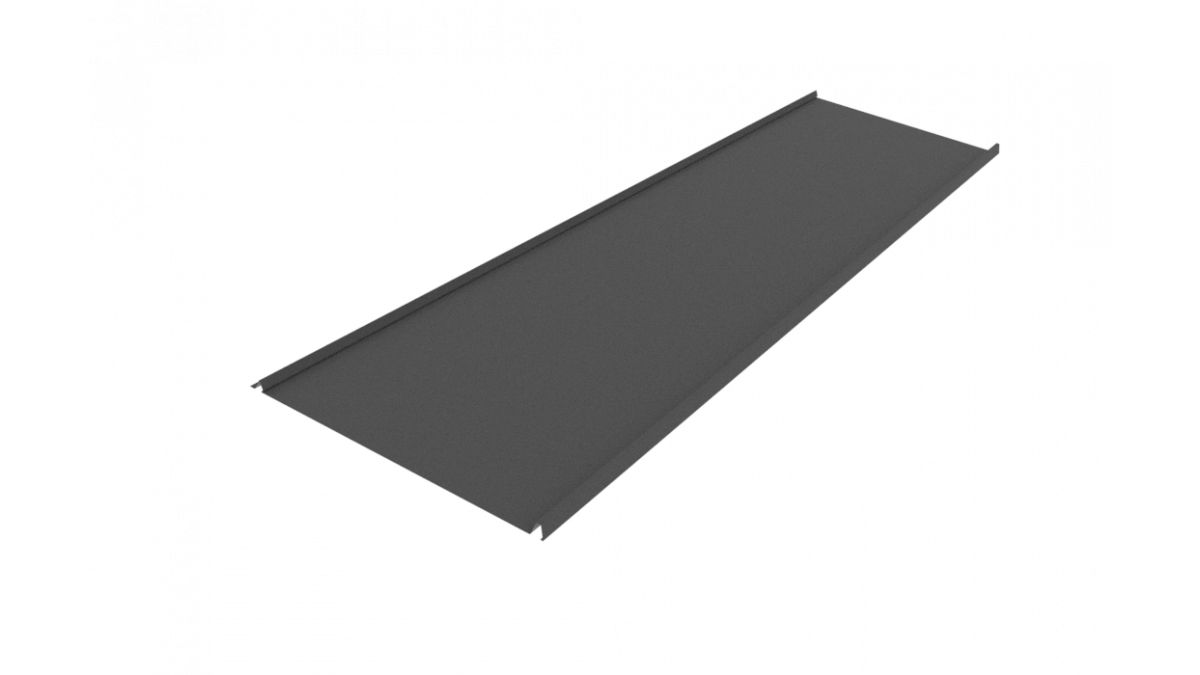

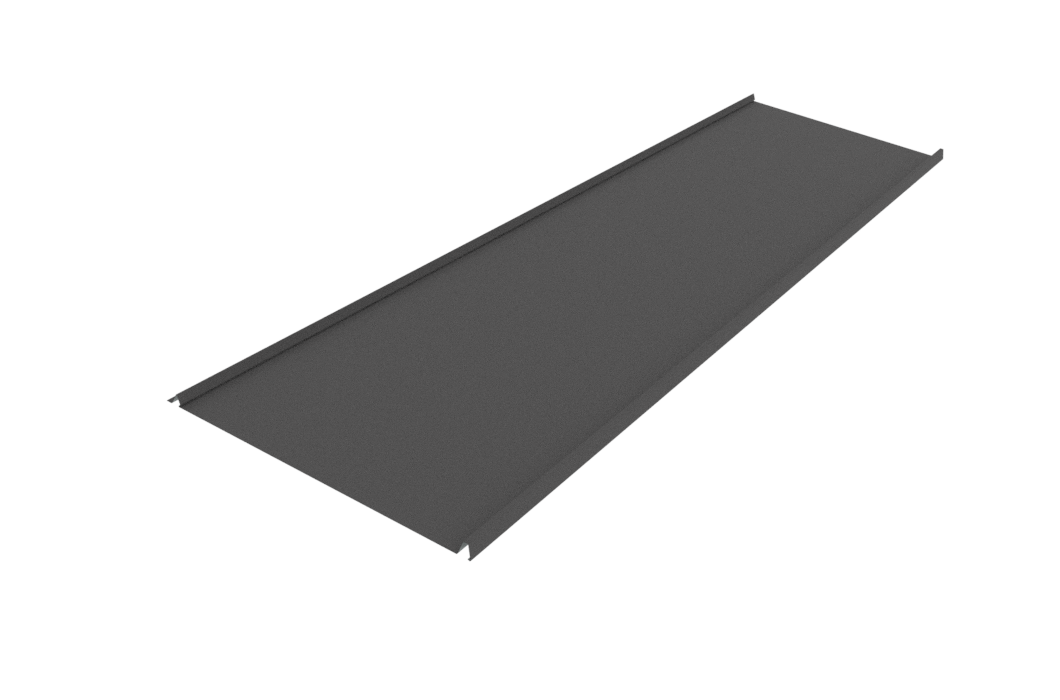

Eurotray Lite
Description

Eurotray Lite features smooth seams and concealed fixings, this profile has the capability of being long run and is suitable for most architectural designs, its robust but stylish design makes it ideal for New Zealand alpine settings.

Key Features
  • Concealed fixings
  • Smooth seams
  • Photovoltaic laminates (PVLs) can be installed on to this profile
  • Suitable for wall cladding
  • NZMRM air box tested
Green Tag Certified
Green Tag Certified
Scope of Use
  • Cover Width: 504mm
  • Sheet width: 528mm
  • Minimum pitch: 8°
  • Photovoltaic laminates (PVLs) can be installed on to this profile
  • Suitable for wall cladding
Limitations on Use
  • Is only manufactured from Zincalume or paint coated steel
  • Requires a fully supported substrate underneath it
  • Suitable for most locations and venting of skillion ceiling roof designs is highly important. Dimond Roofing also recommends that a vented type underlay is used with these designs
  • If using for wall cladding please contact Dimond Roofing
  • Oil-canning, flatness or waviness is a condition that may occur when using wide pan profiles
  • Installed exclusively by RoofingSmiths installers
Statement of Building Code Compliance

Test information available from Pacific Coilcoaters and BHP NZ Steel, and past history of use of long run metal roofing and cladding products in New Zealand indicate that, provided the product use and maintenance is in line with the guidelines contained in the current literature referenced (see Dimond Roofing website) Dimond long run metal roofing and wall cladding systems can be expected to meet the performance criteria in clause B2 and E2 of the New Zealand Building Code, for a period of not less than 15 years.

In-Service History

Dimond is New Zealand's largest manufacturer of steel roofing, cladding, structural and rainwater goods.

Other Performance Attributes
  • NZMRM air box tested

Green Tag:

  • All Dimond Roofing products roll-formed using ColorCote painted steel coil is Global GreenRate GreenTag certified and is applicable for Green Star and Home Star credits
Documents
Data Sheet
Dimond Roofing & Cladding Technical Manual
Environmental Information
Environmental Information — Global Green Tag
BPIR/PTS
CAD/PDF LInk
Installation and Operation
Warranty
Colour Range
Additional Information

Dimond Roofing are a manufacturer of steel roofing, cladding and rainwater products.
