SoundDown SDP Panel Acoustic System for Mass Timber Floors

SoundDown SDP Panel, is a low profile acoustic floor system, designed for superior resilience and durability. This innovative system is built to reduce sound transmission between floors, making it ideal for use in multi-level buildings and spaces where noise reduction is critical.

The SDP Panel system features a unique construction that combines multiple layers of sound-dampening materials, including environmentally friendly materials such as rubber from recycled car tyres and board made from upcycled milk cartons. The result is a floor that can withstand heavy foot traffic, furniture movement, and other common sources of wear and tear without compromising on acoustic performance.

Unlike other acoustic floor systems on the market, the low profile design means that there's no need to sacrifice valuable ceiling height in order to achieve superior noise reduction. Plus, this system is quick and easy to install, with 'supply & install' options available.

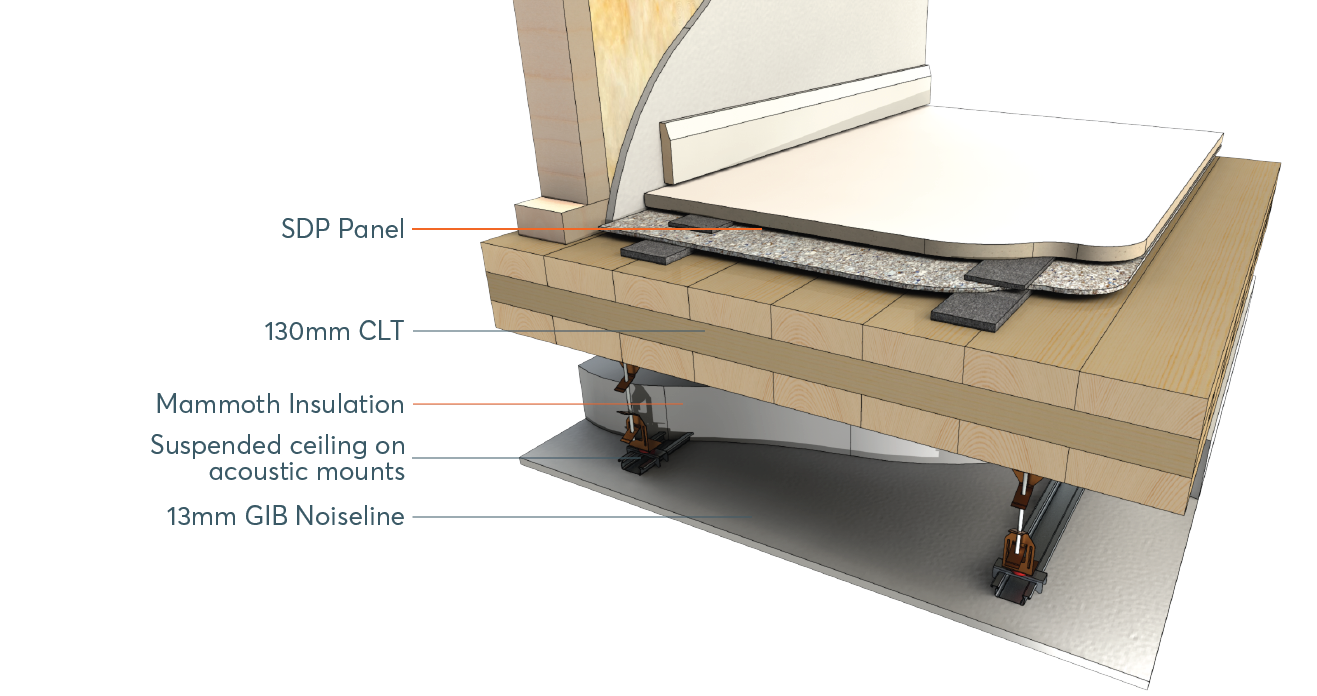

Pre-assembled panels are supplied in 1800 x 600 x 42mm sheets, comprising:

  • 20mm Maglok™ panel
  • 5mm layer of rubber isolation strips
  • 6mm SaveBoard panel
  • 10mm thick x 90 x 45mm rubber pads are fixed to the SDP panel at 450mm centres along the length of the panel


Key Features
  • Low profile
  • No wet trades required
  • Non-combustible topping
  • Highly efficient install
  • Reduces risk of poor installation
  • Low mess
  • Supply & install options available
  • Excellent acoustic ratings
  • Airborne noise — STC: 64dB
  • Impact noise — IIC: 62dB
  • Environmentally friendly elements such as recycled car tires and upcycled milk cartons
Scope of Use
  • Reduces sound transmission between floors when installed as part of an acoustic flooring system (may also include FRR performance)
  • Ideal for use in multi-level buildings and spaces where noise reduction is critical, such as office buildings, retirement villages, or apartment complexes
  • Pre-assembled panels, easy to install
  • Low profile — ideal for optimising ceiling height
  • FFL increase: 41mm
Statement of Building Code Compliance

When used in accordance with the SoundDown technical literature SoundDown SDP Panels will meet or contribute to meeting the following provisions of the NZBC:

  • B1 Structure: B1.3.1, B1.3.2, B1.3.3 (a, b), B1.3.4
  • B2 Durability: B2.3.1 (a), B2.3.2 (a)
  • G6 Airborne and Impact Sound: G6.3.1, G6.3.2
Other Performance Attributes
  • Airborne noise — STC: 64dB
  • Impact noise — IIC: 62dB
CAD + Detailed Drawings zip: SPD
Design & Installation Guide: Sounddown Mass Timber Systems


BPIR Product Statement: SDP


Installation Guide: SDP


Additional Information: Maglok Dragonboard
CAD/PDF Details

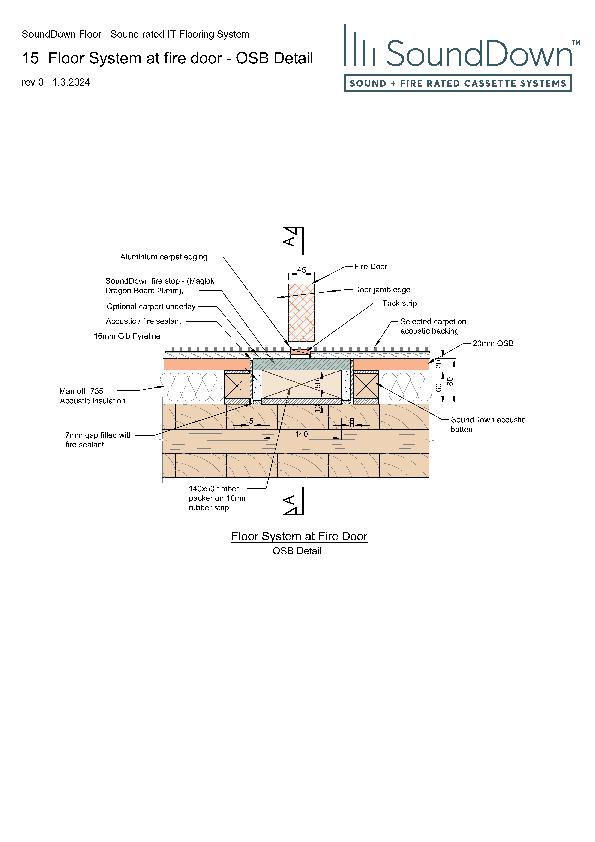

SoundDown Floor System at Fire Door

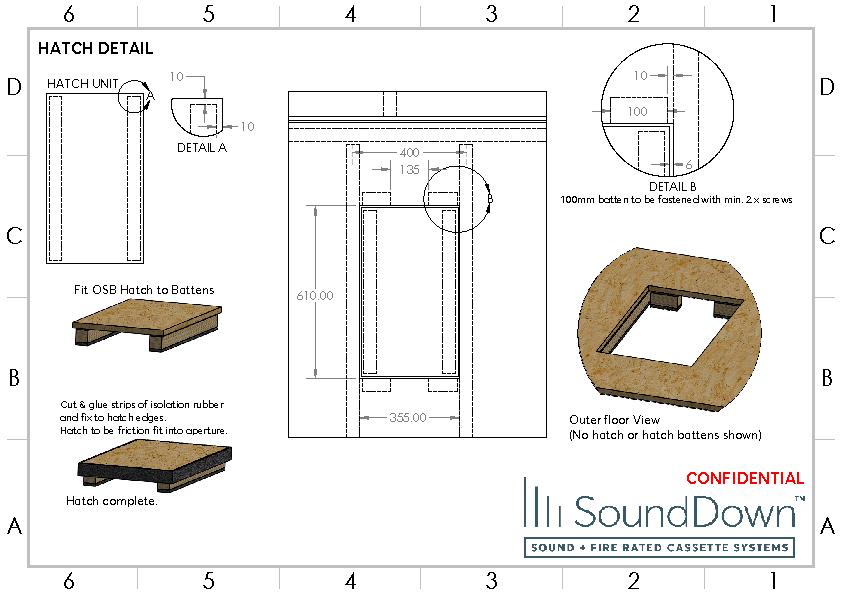

SoundDown Mass Timber Hatch Assembly
