Acoustic Timber
Description

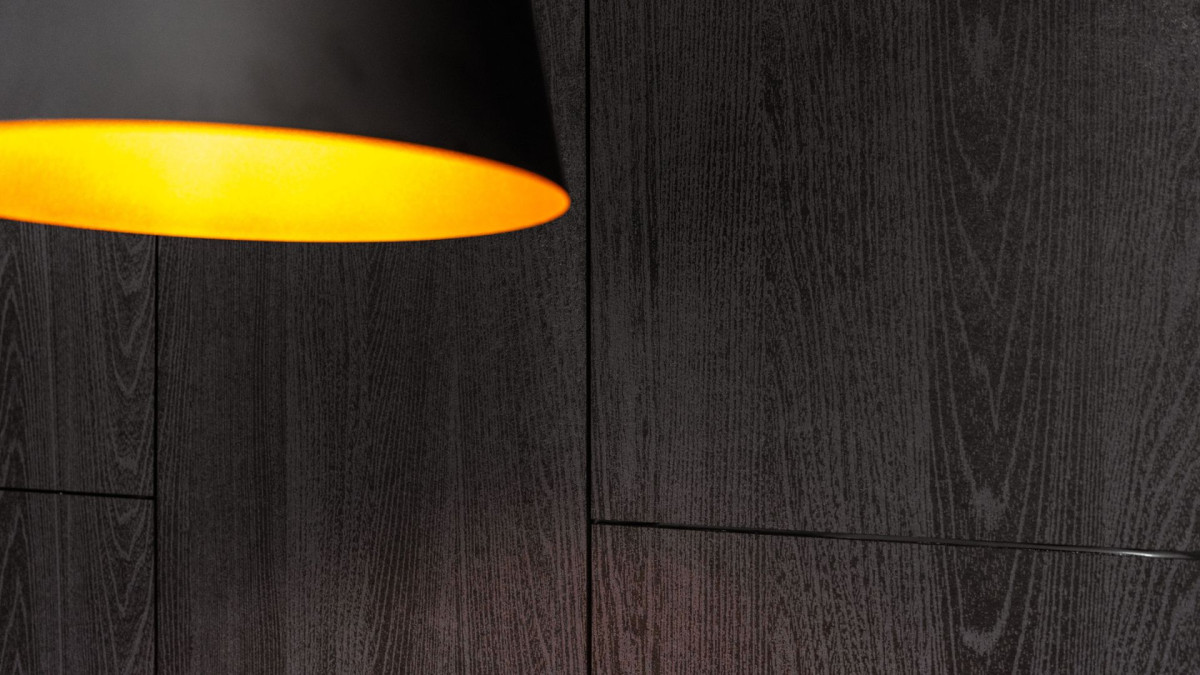

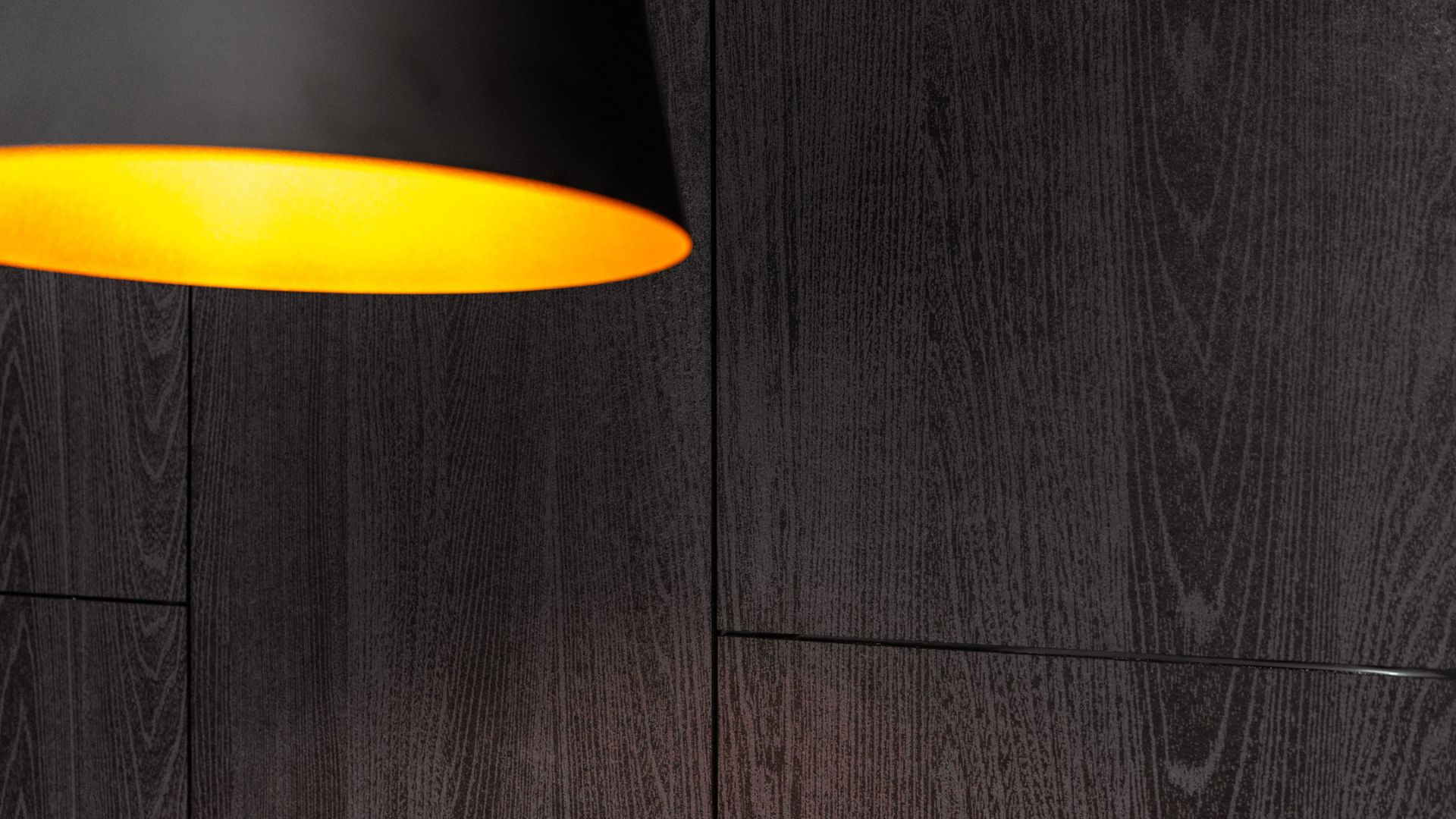

Acoustic Timber™ is a high-performance acoustic treatment designed to realistically imitate timber. Available in panels, baffles, or ceiling tiles. Lightweight and semi-rigid, Acoustic Timber gives an authentic timber look that achieves a high standard of fire compliance and helps you meet seismic requirements. To ensure a natural, high-end finish, Autex Acoustics have hand-picked a selection of premium woodgrains taken from real timber veneers, digitally printed onto the panel surface with a safe, water-based, UV cured ink.

Panel lengths range from 2400 mm to 2700mm with custom lengths available.

Key Features
  • Timber look with excellent acoustic performance
  • Easy to install
  • Lightweight alternative to conventional timber
  • Certified carbon neutral
  • Manufactured in New Zealand with immediate supply available
  • Group 1 fire rating
  • Highly durable, providing long-term stability and performance
  • Available in panels, baffles, or ceiling tiles
  • Panel sizes of 1200mm x 2400mm and 1200mm x 2700mm with custom lengths available
  • Baffles lengths of 2400mm and 2700mm with custom lengths available

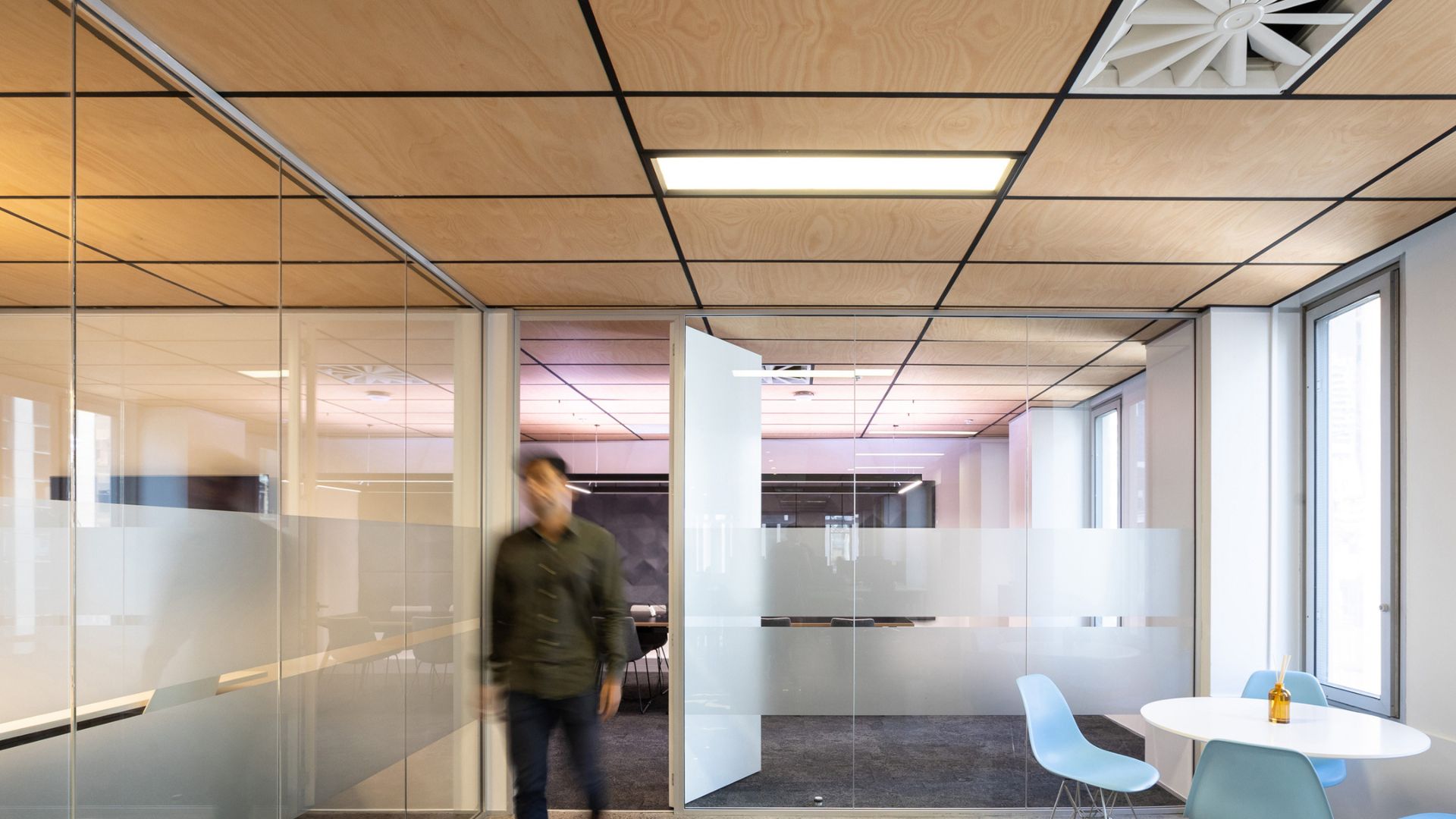

  • Ceiling tiles size is 595mm x 1195mm and 595mm x 595mm with custom lengths available
Scope of Use

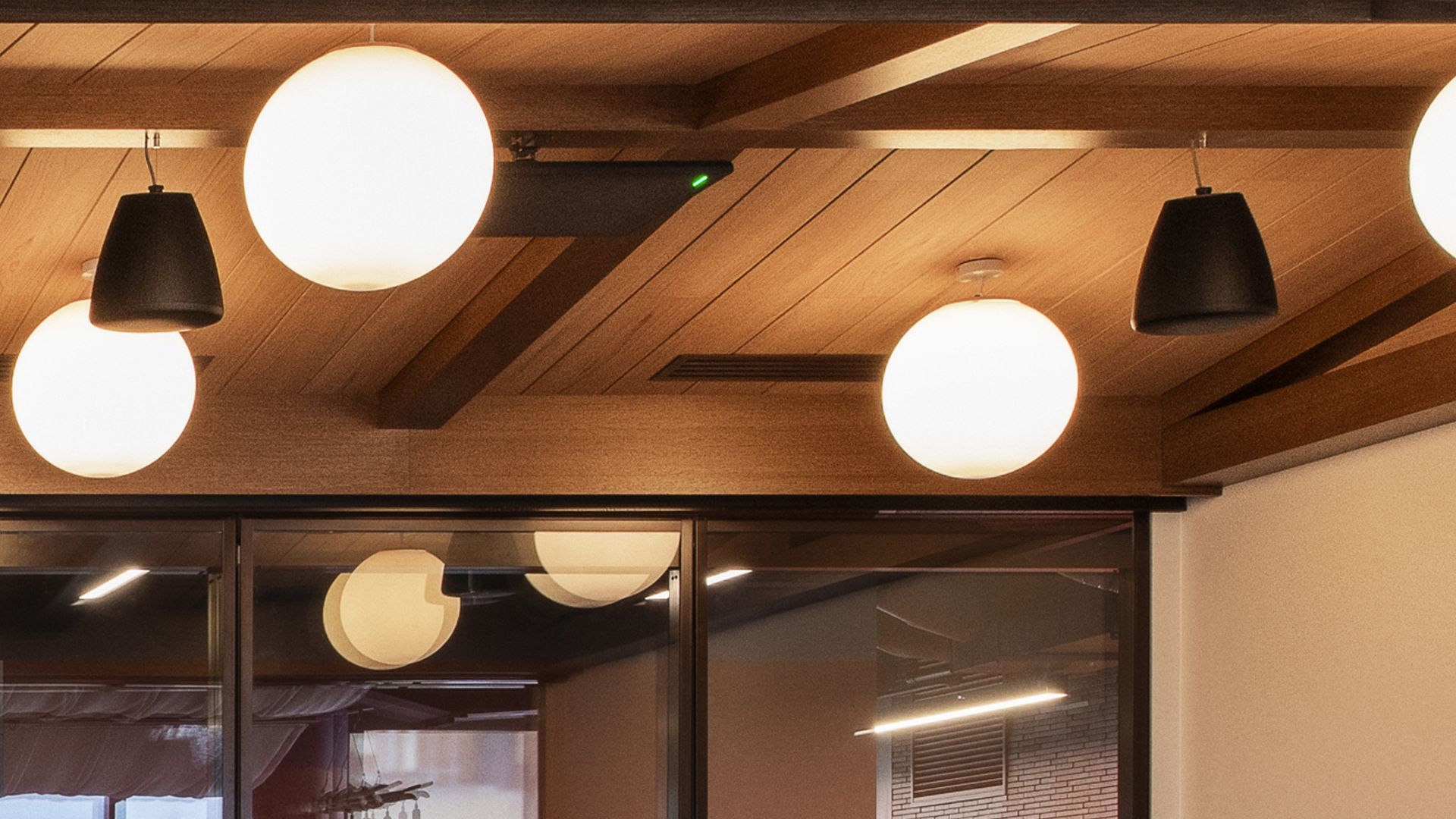

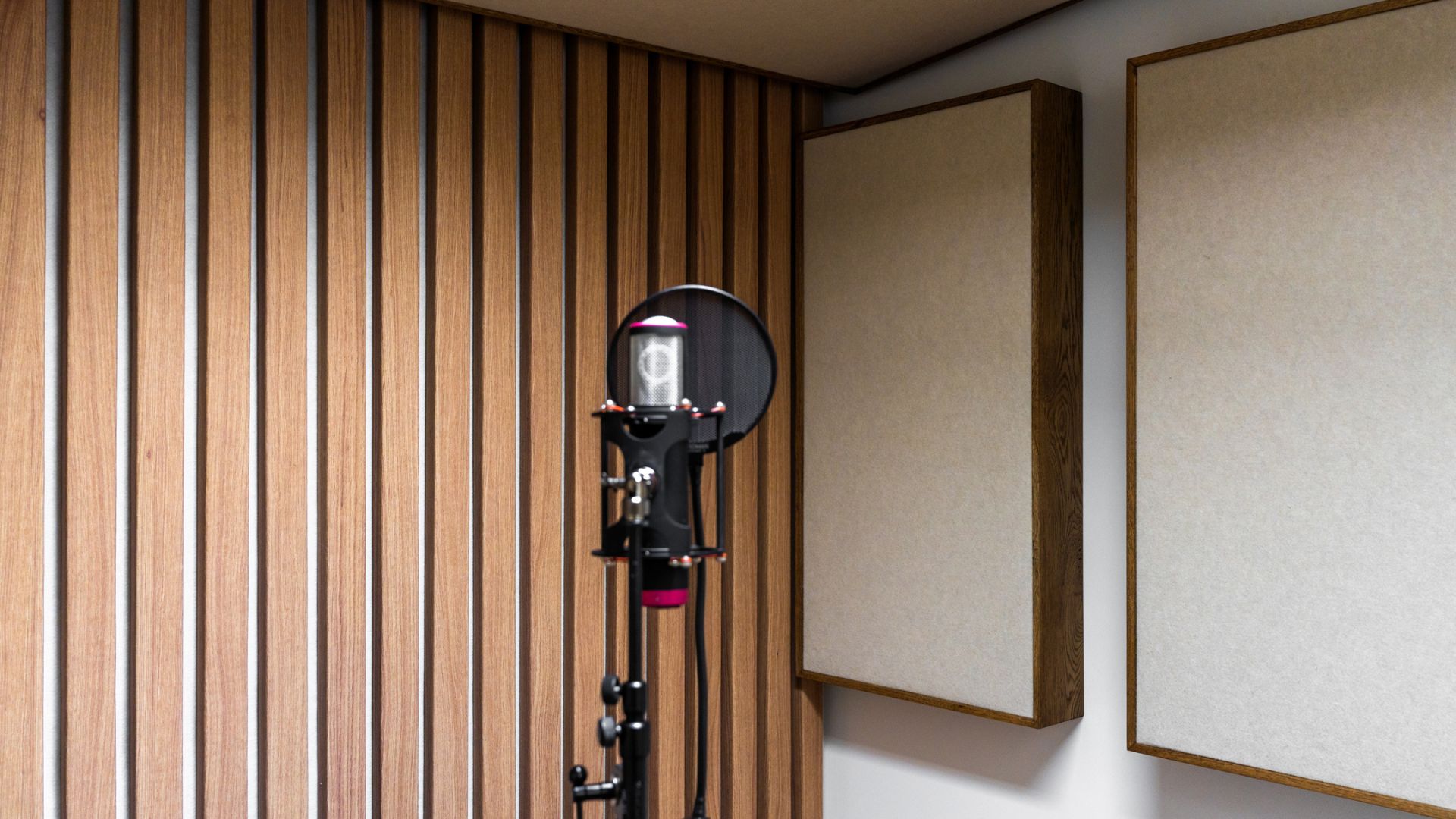

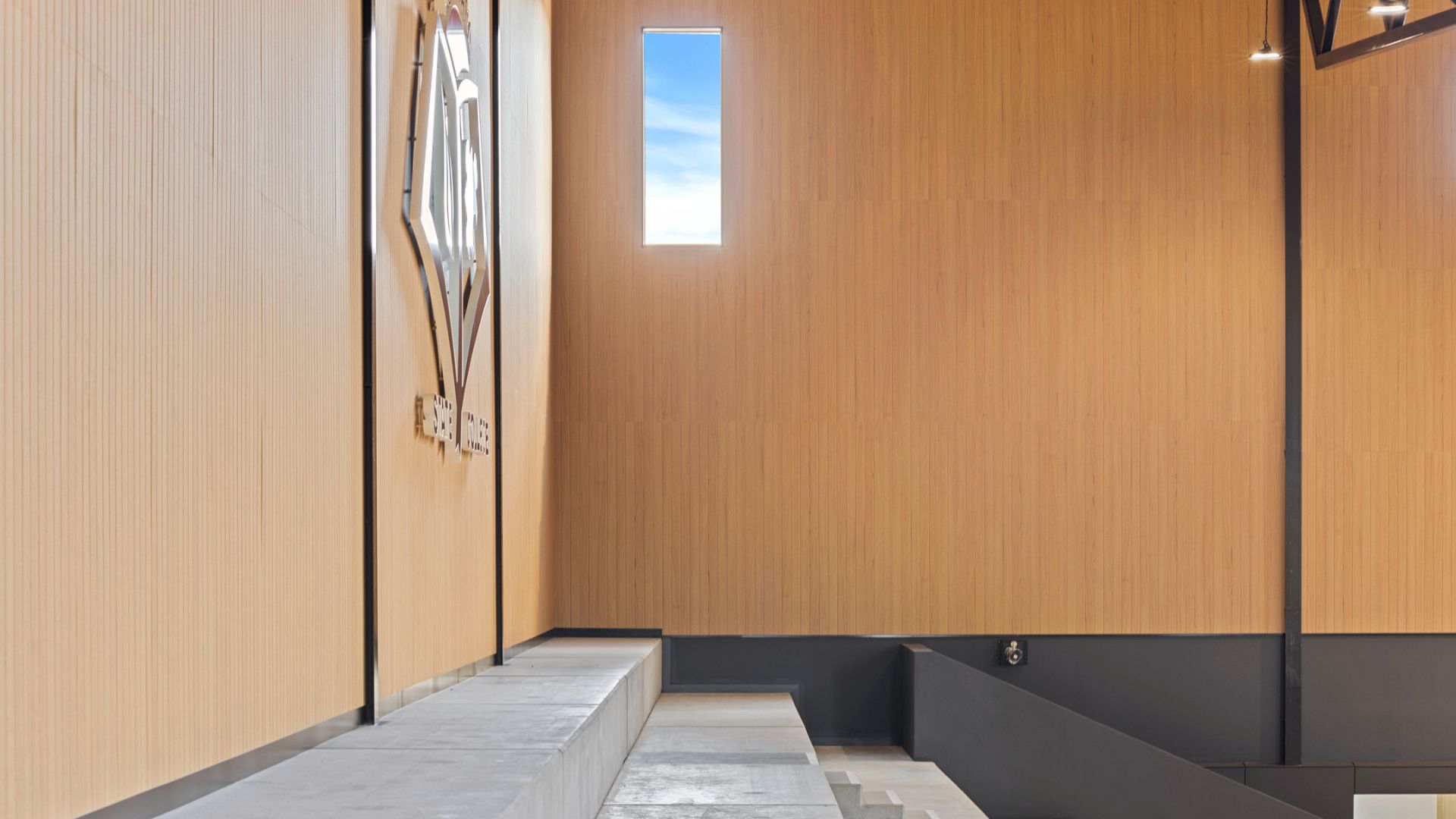

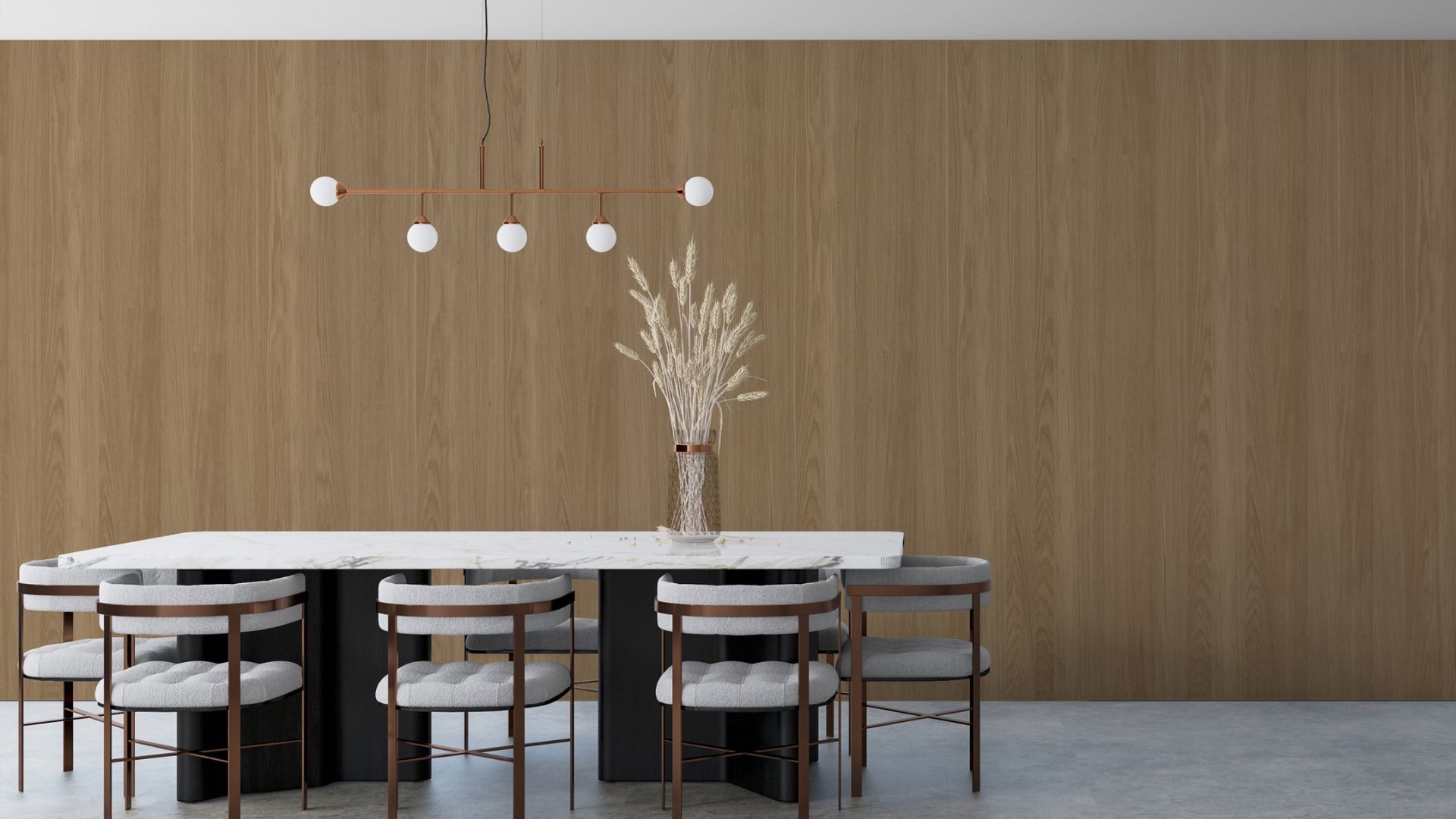

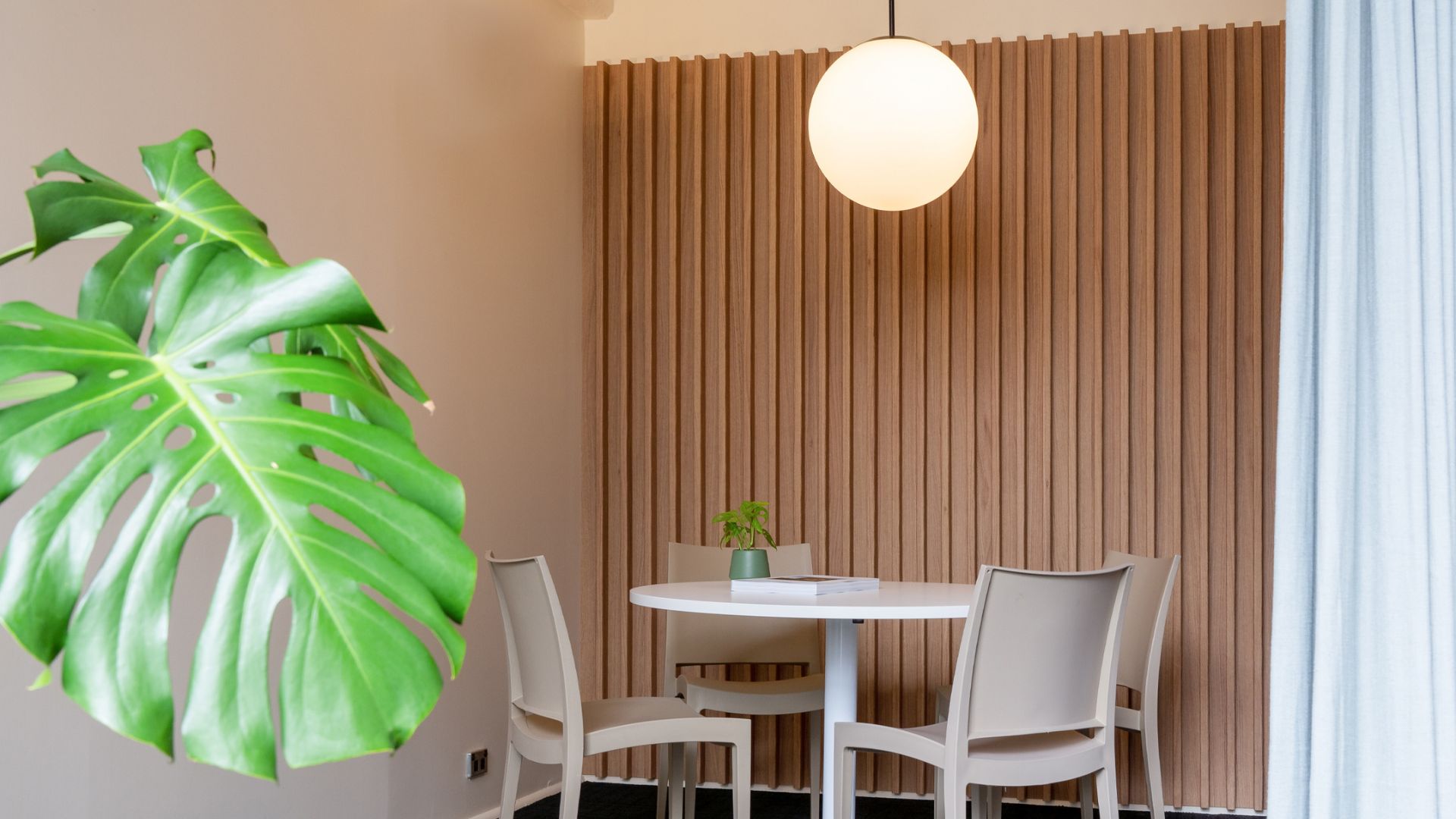

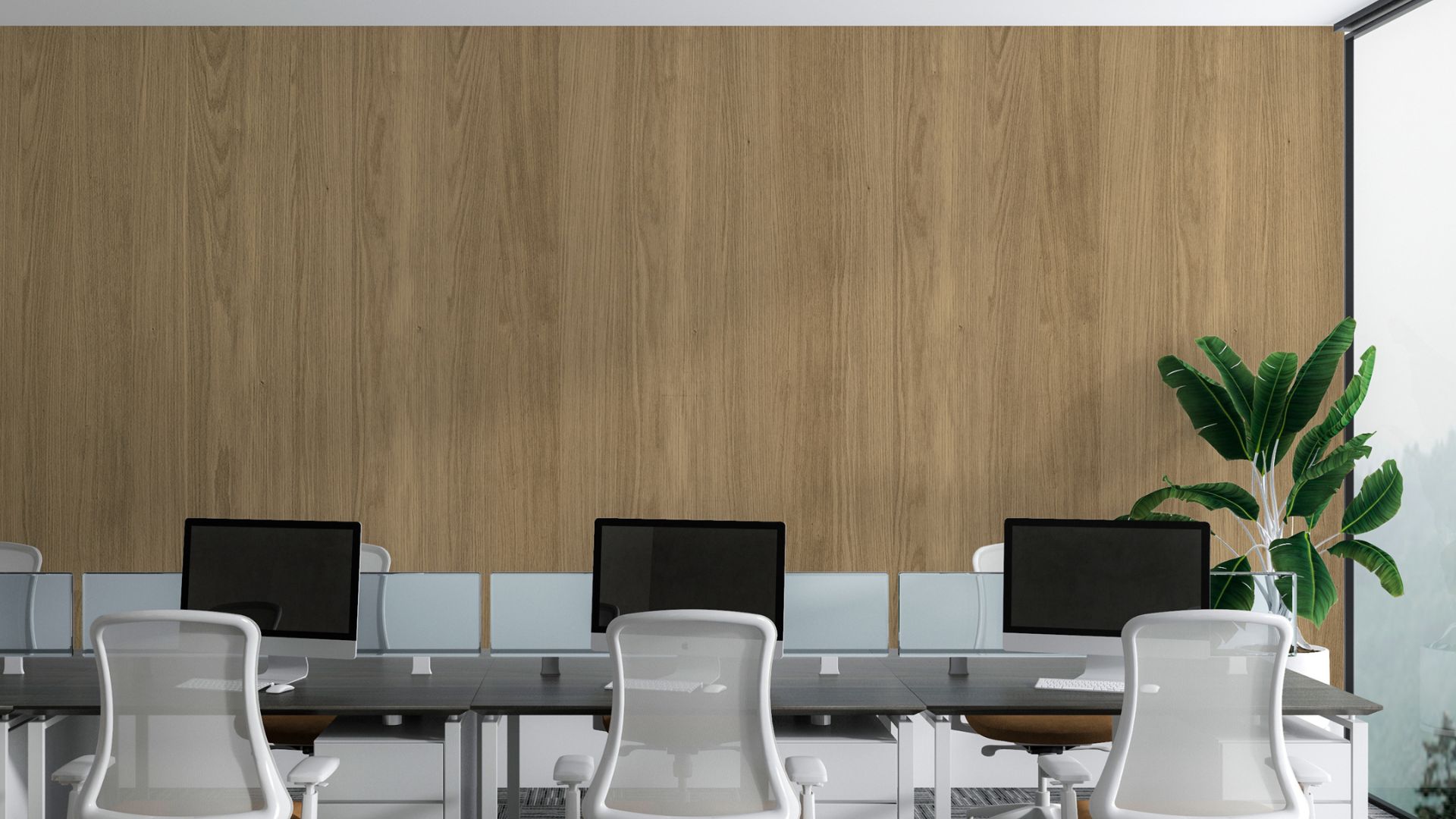

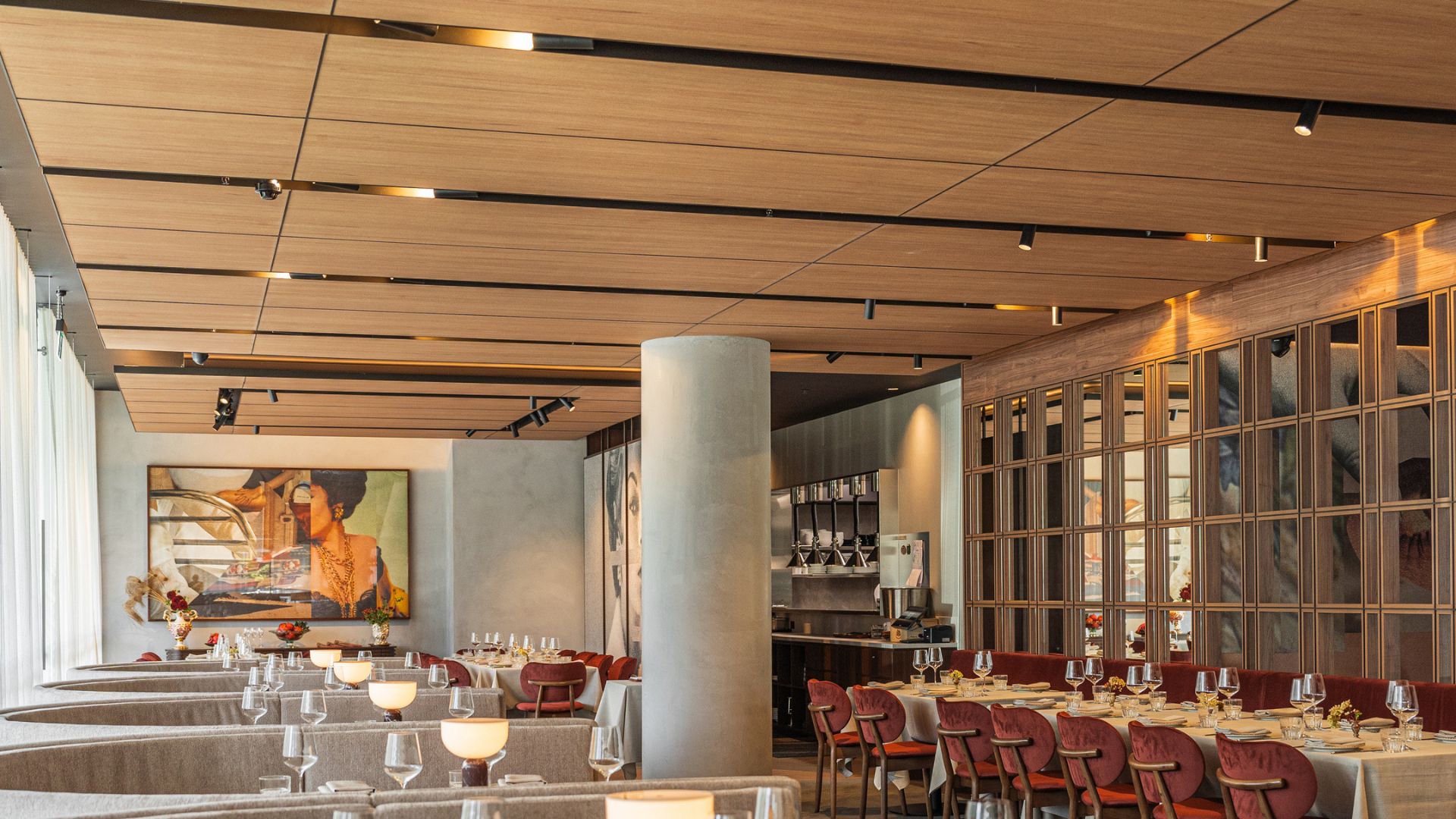

  • Acoustic Timber is suitable for small to large scale wall and ceiling applications

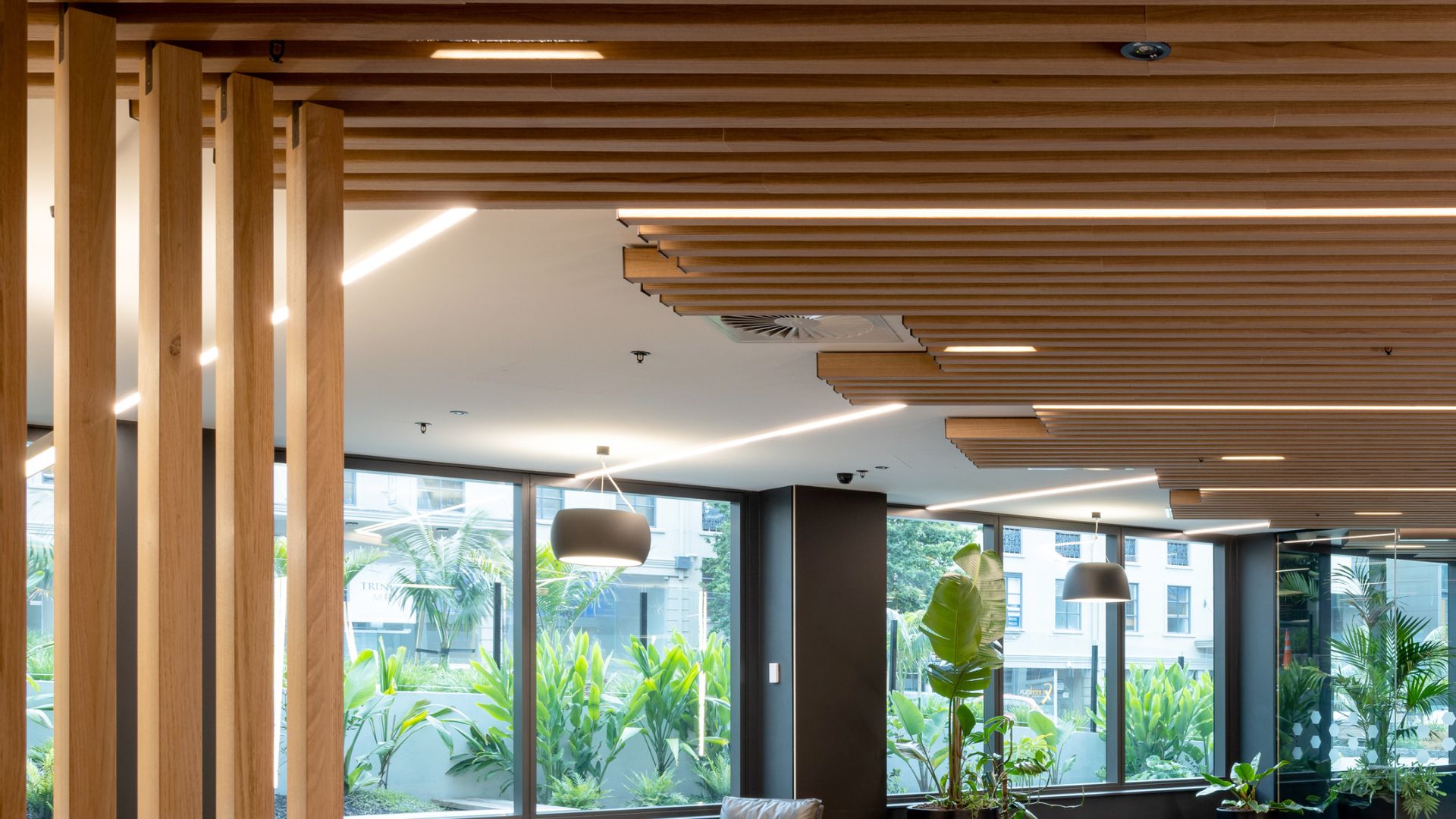

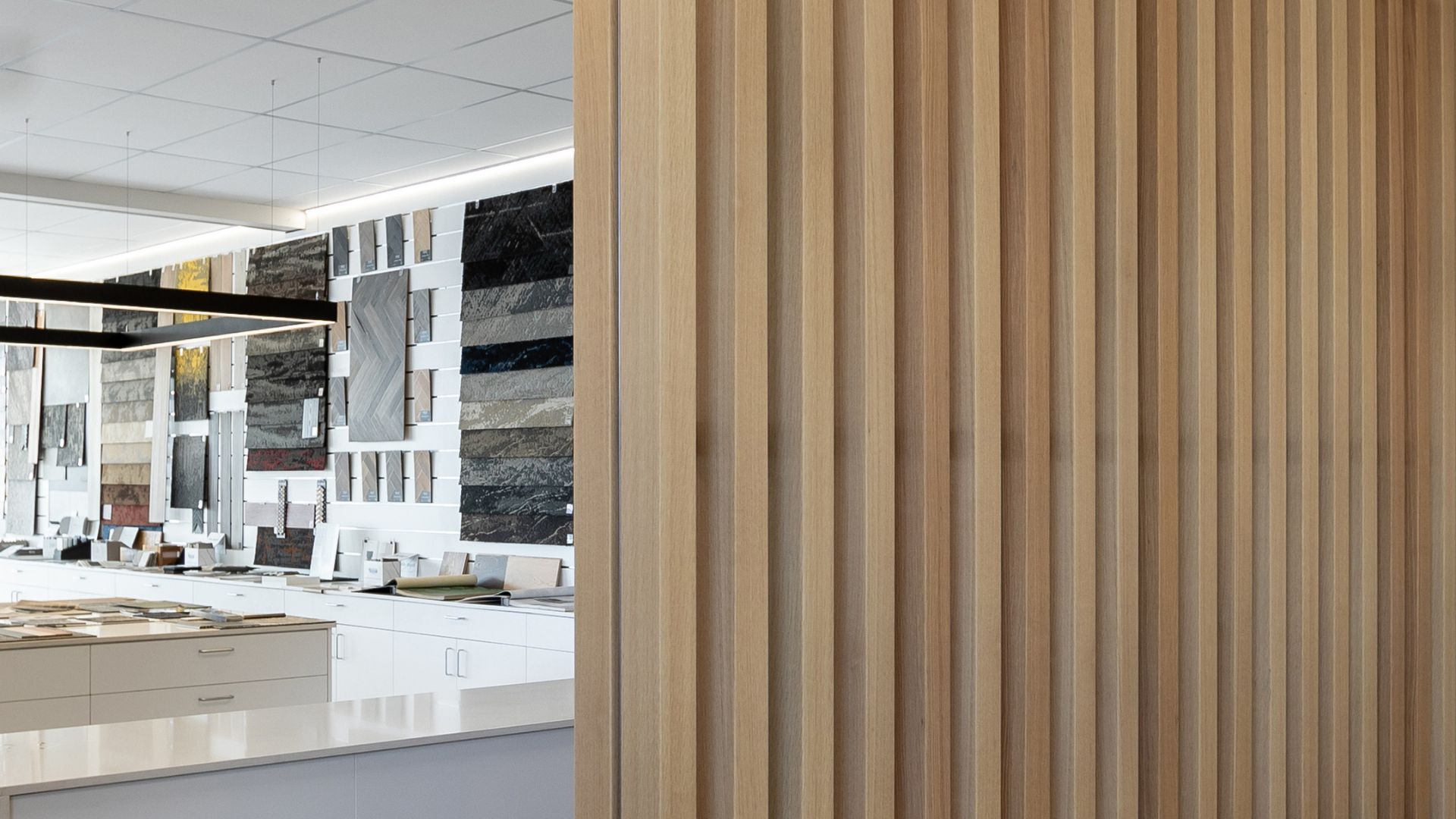

  • Available in Cube™ Panels and Frontier™ Acoustic Raft styles Beam 100 and Beam 250



Other Performance Attributes

Panel:

  • Panel 1200mm
  • Sound absorption:
    • 12mm: Class D, NRC 0.45 — with 25mm air gap: Class C, NRC 0.70
    • 24mm: Class D, NRC 0.70 — with 25 mm air gap: Class C, NRC 0.80
  • Fire rating ASTM E-84-15a: Class A, FS:0 - SD:45, ISO 9705: Classification: Group 1-S, AS ISO 9705 – 2003, Classification: Group 1, BS EN 13501-1:2018: B - s2, d0

Raft:

  • Acoustic absorber Acoustic Timber Raft
    • Beam 100: NRC 0.75
    • Beam 250: NRC 0.90
  • Fire rating ASTM E-84-15a: Class A, FS:0 - SD:45, ISO 9705: Classification: Group 1-S, AS ISO 9705 – 2003 Classification: Group 1, BS EN 13501-1:2018: B - s2, d0
Interior Fire Rating 1
1
Documents
Data Sheet: Acoustic Timber — Panel
Data Sheet: Acoustic Timber — Raft
Care & Maintenance: Acoustic Timber
Care and Maintenance
Manufacturer's Guarantee: Acoustic Timber — Raft
Installation Instructions: Acoustic Timber — Panel
Lookbook: Acoustic Timber

Autex Acoustics' solutions are designed to reduce and control reverberation and echo in building interiors, creating comfortable, acoustically balanced environments.
