ARDEX Damp Proof Tanking System
Description

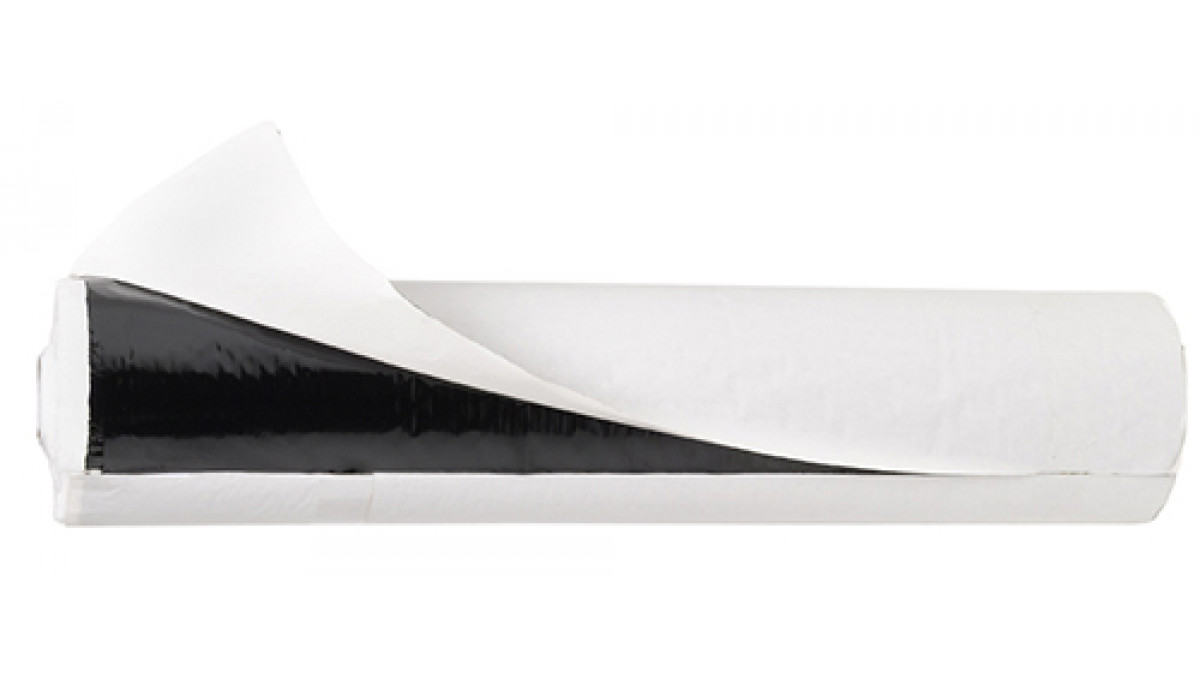

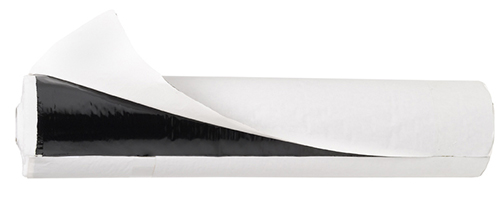

ARDEX WPM 3000X (Shelterseal HD) is a self-adhesive bituminous waterproofing membrane which is self-protected by a cross-laminated high-density polyethylene (HDPE) film. The HDPE film gives the membrane high dimensional stability and elongation properties suited to below-ground stresses. The bituminous compound gives the membrane its mechanical and physical characteristic, such as high heat stability, shape and chemical resistance.

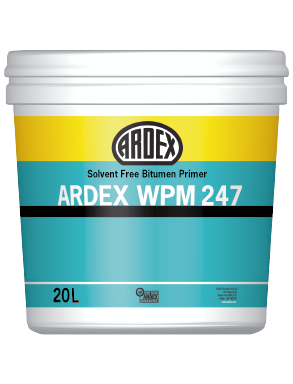

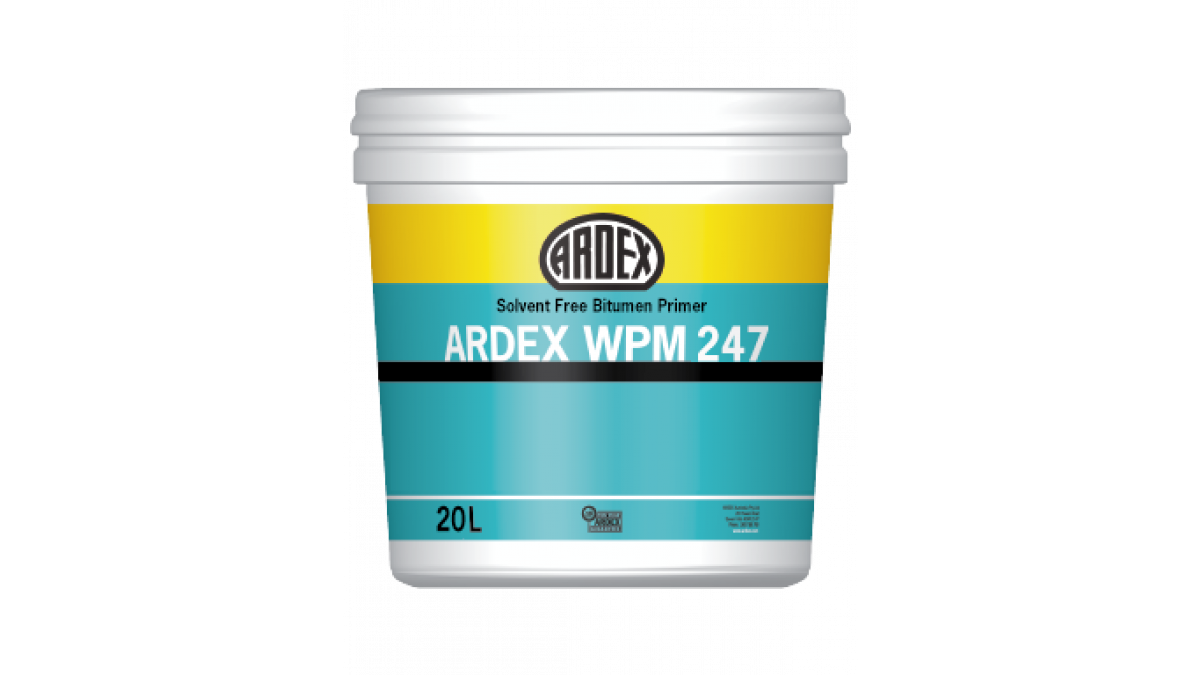

  • Primer: ARDEX WPM 247

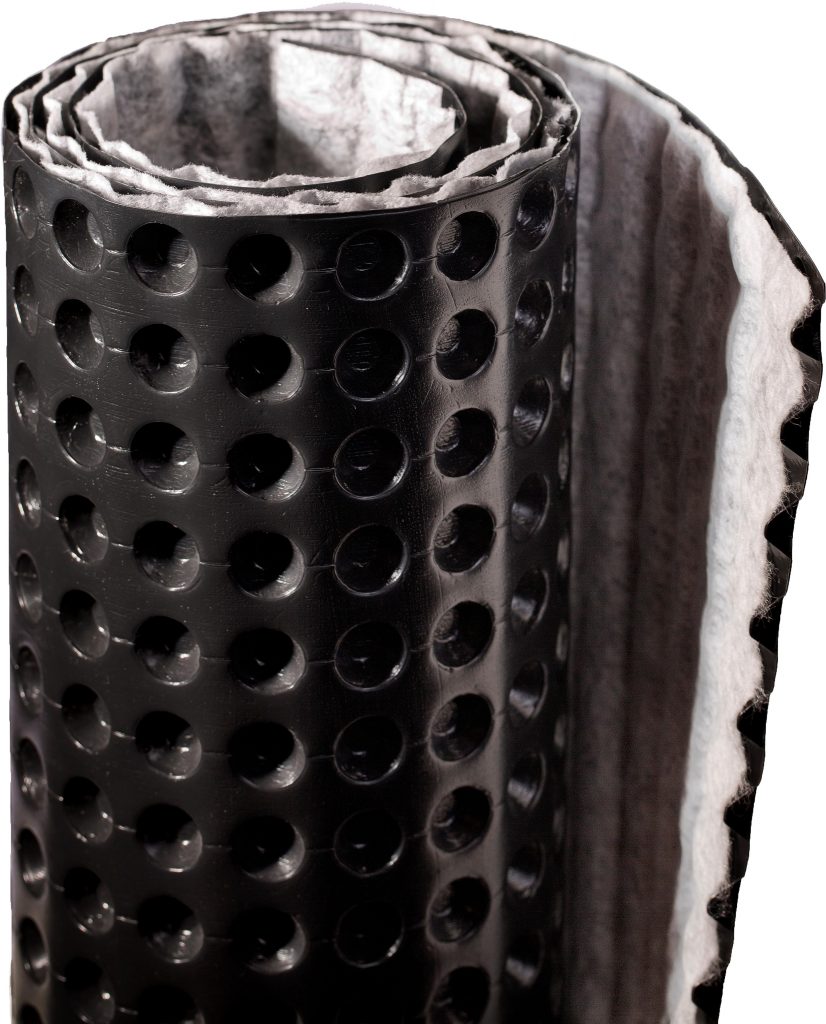

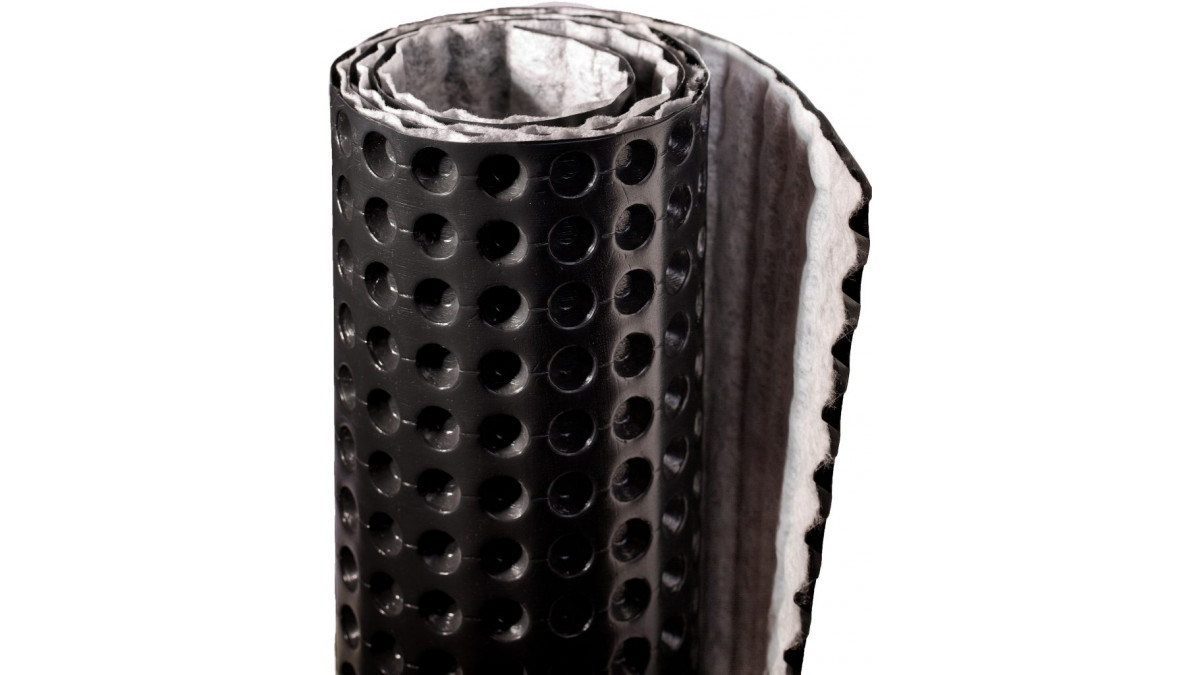

  • Protection Membrane: ARDEX DRS 10 GC

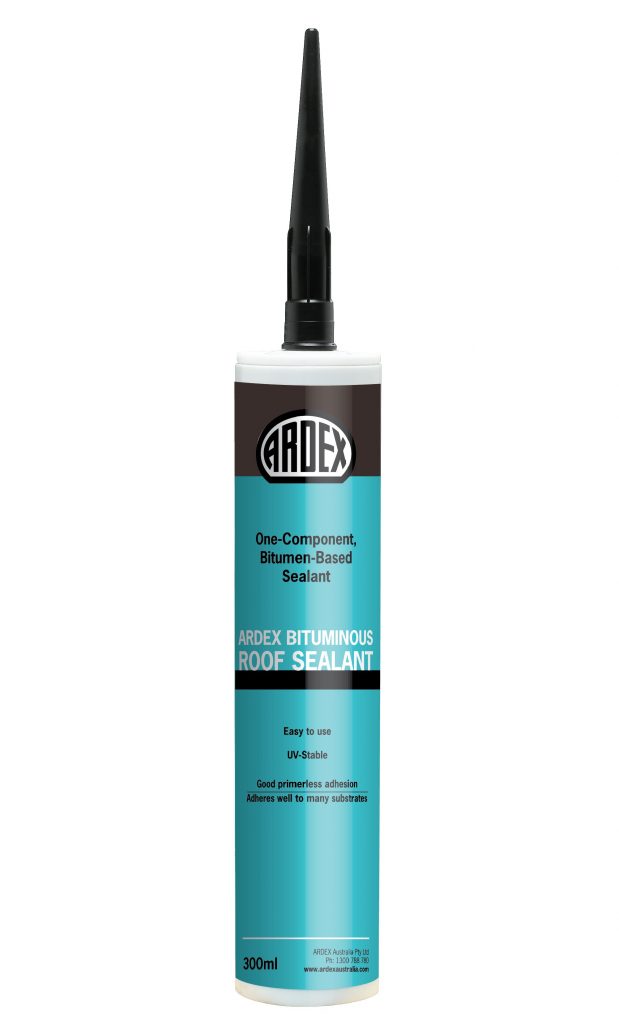

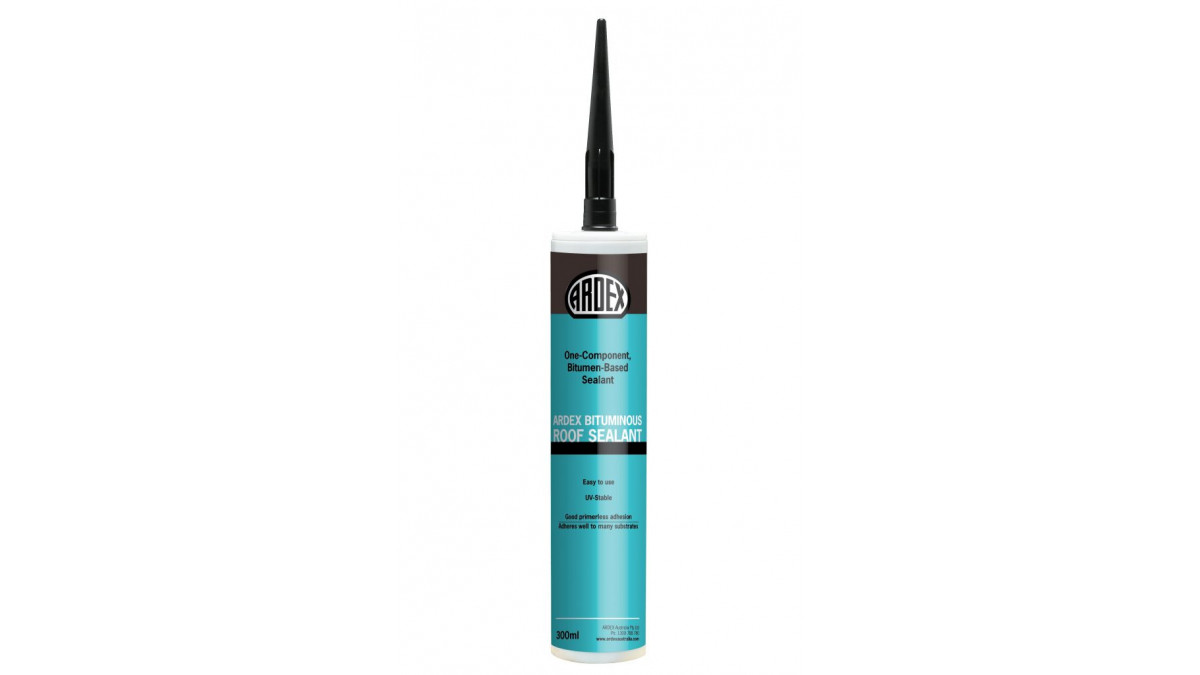

  • Sealant: ARDEX Bituminous Sealant
  • Waterproofing: ARDEX WPM 3000X
Key Features
  • Self-adhesive SBS membrane with HDPE film

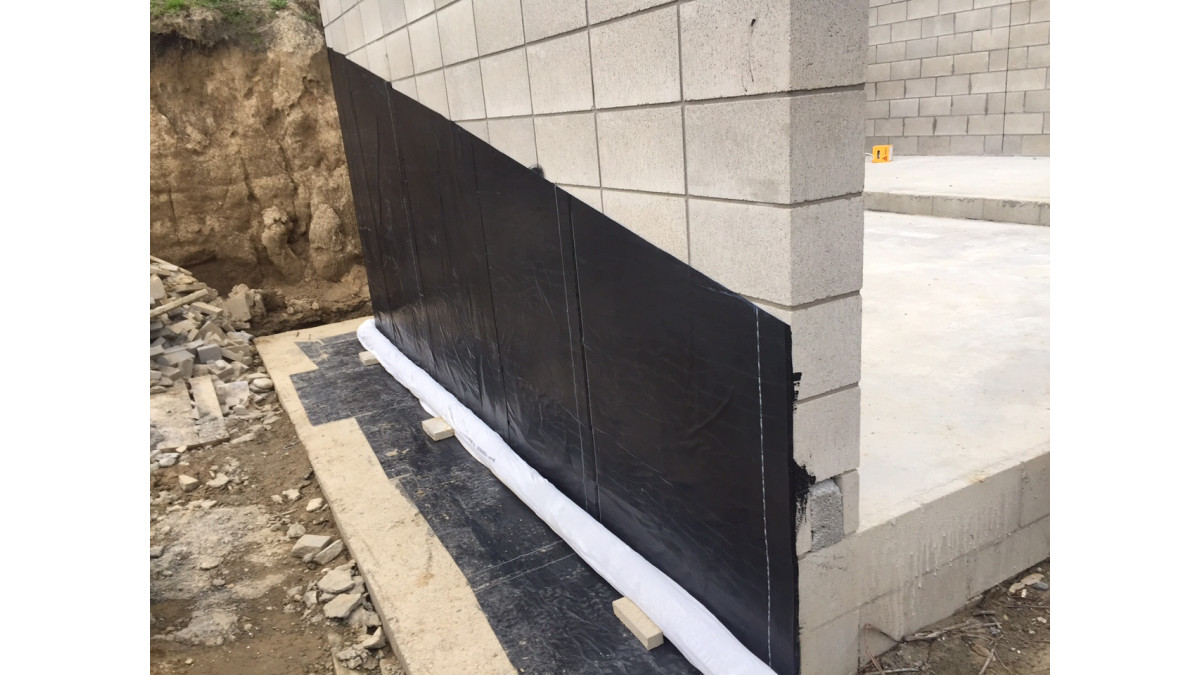

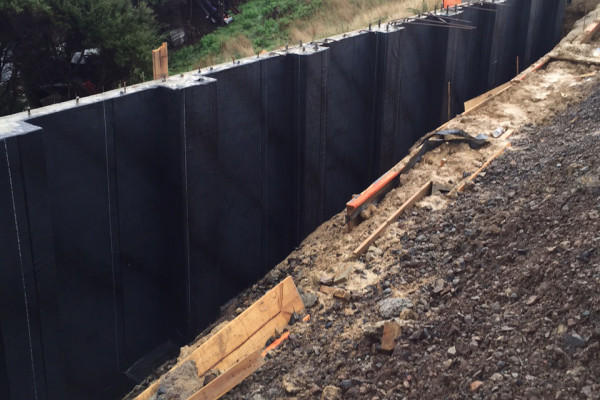

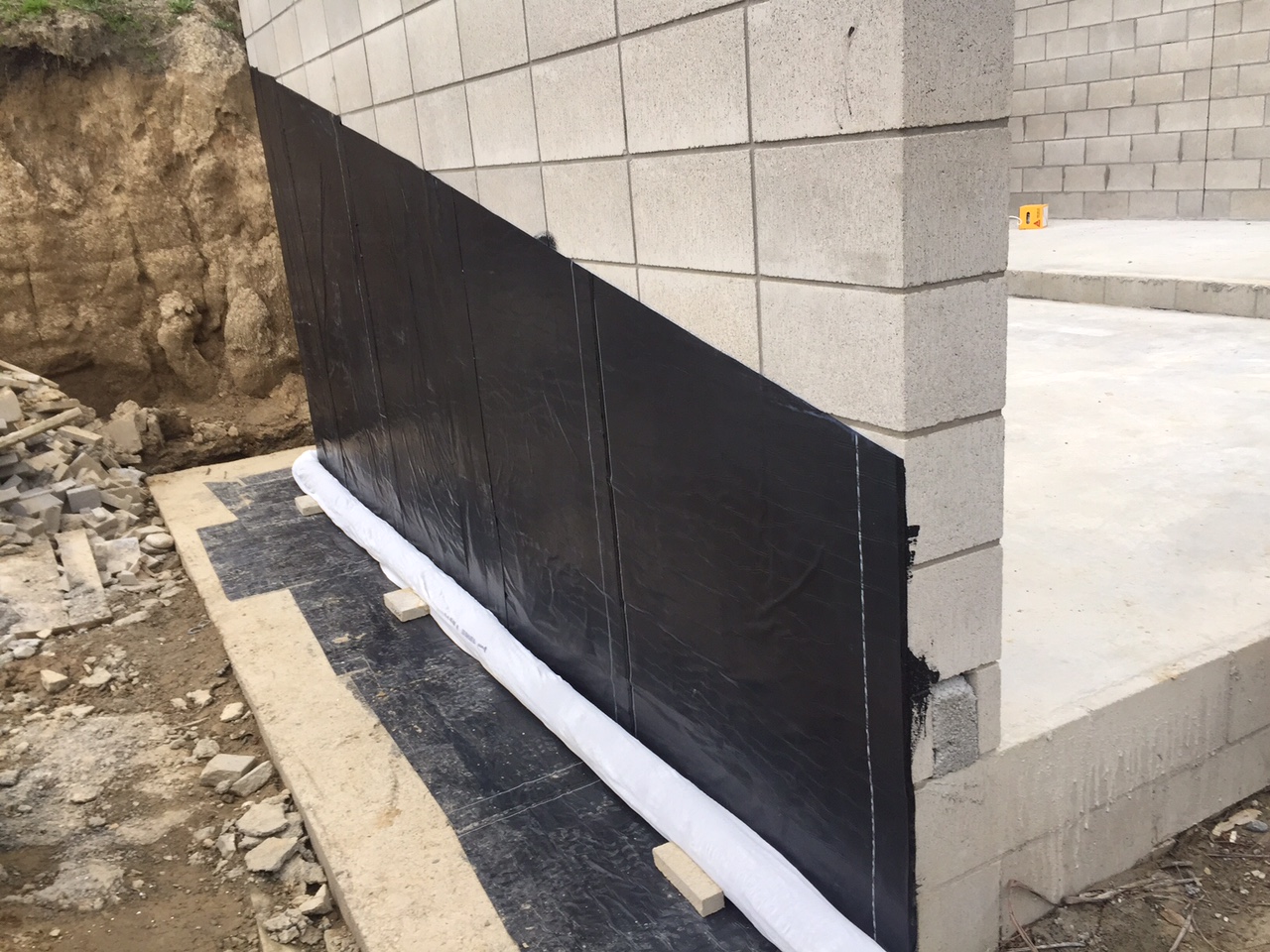

  • Suitable for damp-proofing foundations of underground structures
  • Tough, stable and extensible
  • Acts as a barrier to radon and methane gas
  • Resistance to most chemicals
Scope of Use

ARDEX Damp-proof membranes have been appraised as a damp-proof membrane for use under floor slabs complying with NZS 3604 and as a damp-proof membrane behind concrete masonry basement walls and under floor slabs complying with NZS 4229.

ARDEX Damp-Proof Membranes have also been appraised for use as a damp-proof membrane on buildings subject to specific design within the following scope:

  • Where the design of the building will be the responsibility of the building designer; and,
  • With clean, sound, continuous substrates of insitu or precast concrete complying with NZS 3103 and AS/NZS 1170 or concrete masonry complying with NZS 4230 and 4210; and,
  • Where the membrane is adequately protected against damage during backfilling and in service; and,
  • Where subsoil drainage and free draining granular backfill has been placed behind basement walls

The products must be installed by ARDEX New Zealand Limited approved applicators.

Limitations on Use

The products must be installed by ARDEX New Zealand Limited approved applicators.

Statement of Building Code Compliance

This product/system if designed, used, installed and maintained in accordance with the statements and conditions of the technical literature, will meet or contribute to meeting the following provisions of the NZBC:

  • Clause B2 Durability: Performance B2.3.1 (a) not less than 50 years
  • Clause E2 External Moisture: Performance E2.3.3
  • Clause F2 Hazardous Building Materials: Performance F2.3.1
In-Service History
  • ARDEX WPM 3000X membrane was specified for use in the creation of the five-star Marriott Resort Momi Bay in Fiji.
Other Performance Attributes
  • High tear and perforation resistance
  • High initial tack — even in cold temperatures
  • Cold applied — perfect for use where flames are not permitted
  • Self-sealing
  • Quick installation
B2 Durability compliant
Durability
E2 External Moisture compliant
External Moisture
F2 Hazardous Building Materials compliant
Hazardous Building Materials
Documents
Data Sheet

Product Info: WPM 3000X

Product Info: ARDEX DRS 10 GC
Product Info: ARDEX WPM 247
Product Info: ARDEX WPM 3000X
Product Info: Bituminous Sealant
Substrate Specification
Independent Appraisal (BRANZ)
Maintenance Instructions
Warranty
ARDEX Company Profile
CASE STUDY: Fiji Marriott Resort Momi Bay

ARDEX New Zealand supply and manufacture a range of quality construction materials, including products for levelling floors; external and internal waterproofing; and fixing natural stone and tiles.
