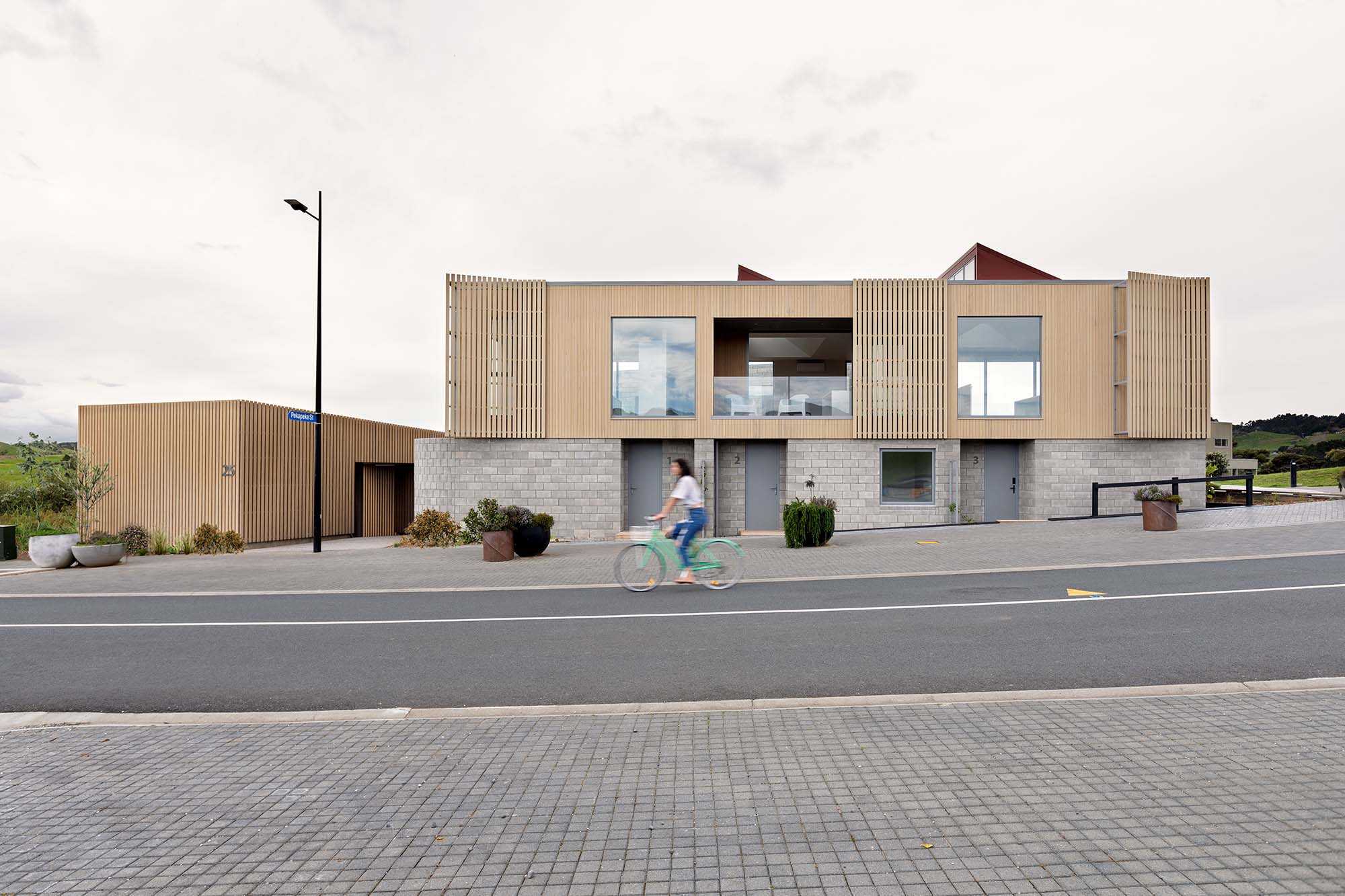

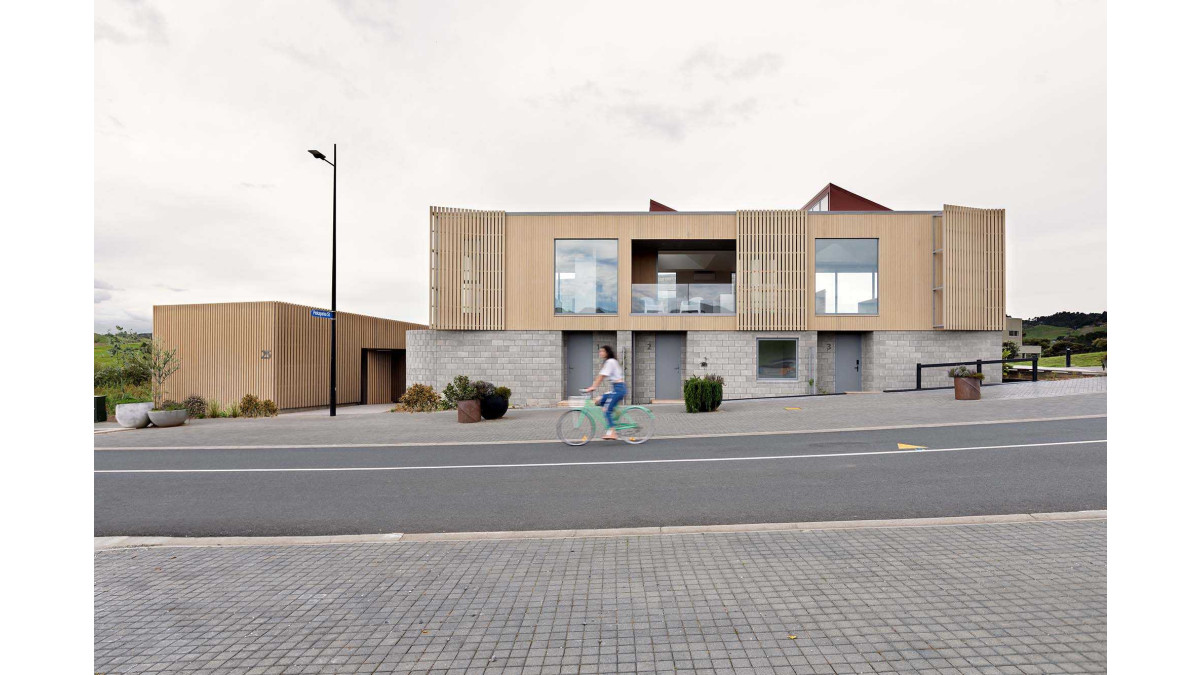

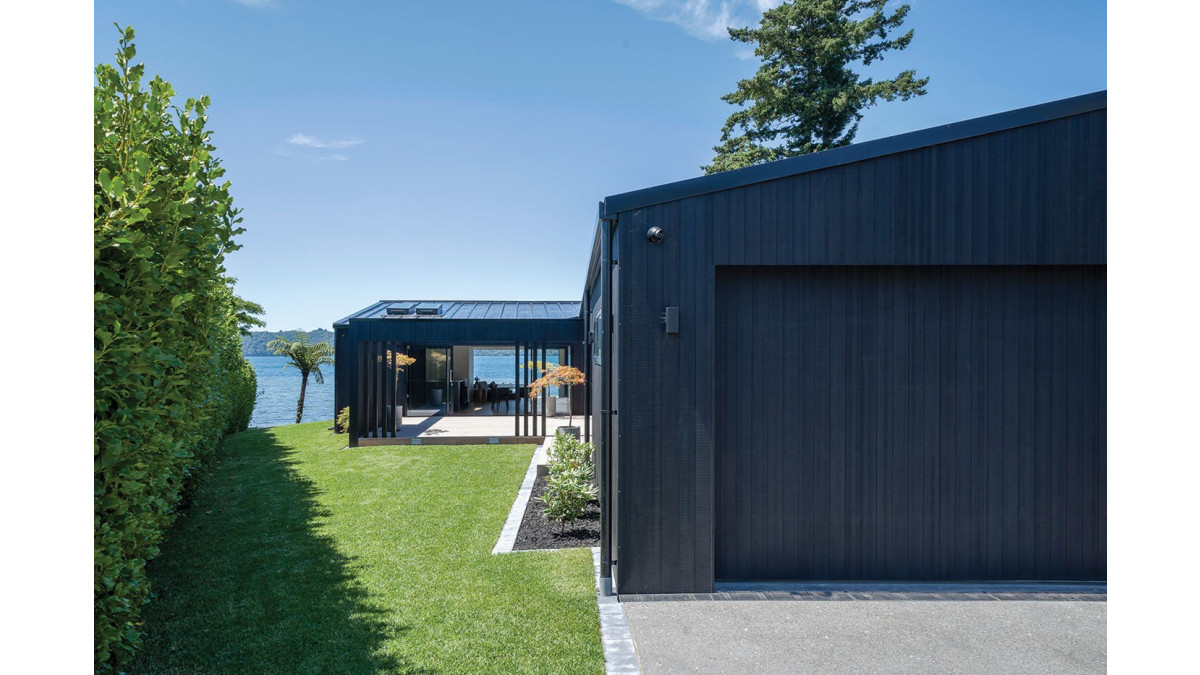

North Point Vulcan Cladding and Vulcan Screening Abodo Wood 04

Vulcan Cladding - Vertical Grain, Architectural Series | Bandsawn Finish | Protector - Straw

Vulcan Cladding - Vertical Grain, Architectural Series | Bandsawn Finish | Protector - Ebony

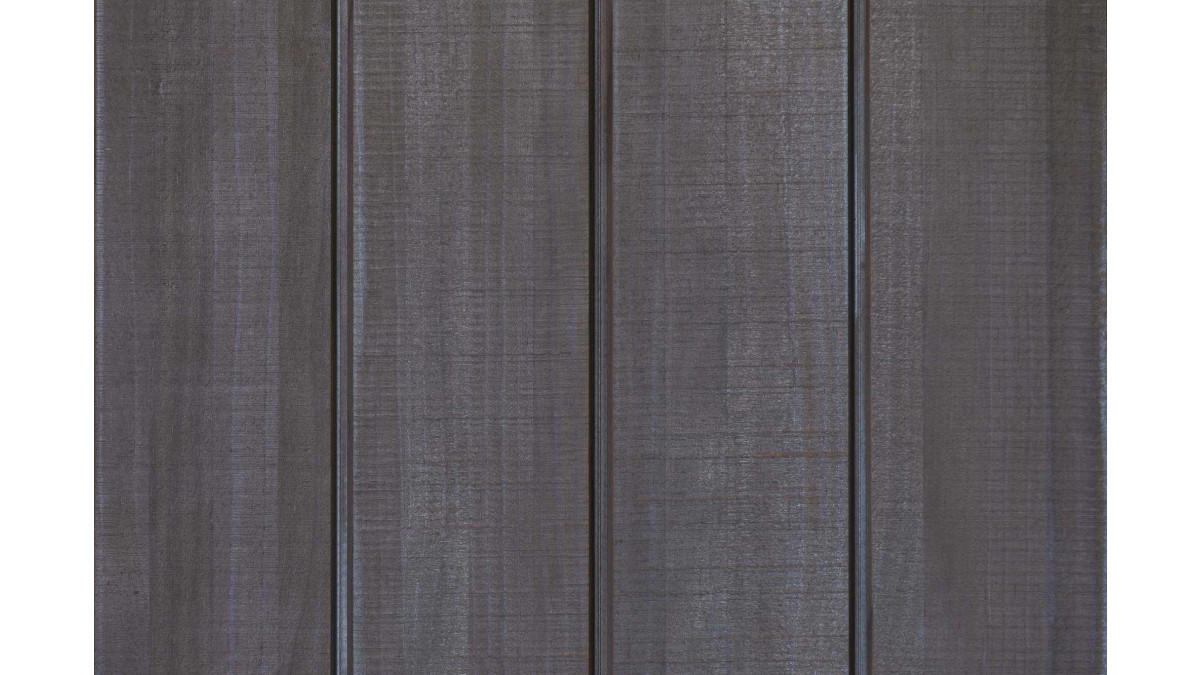

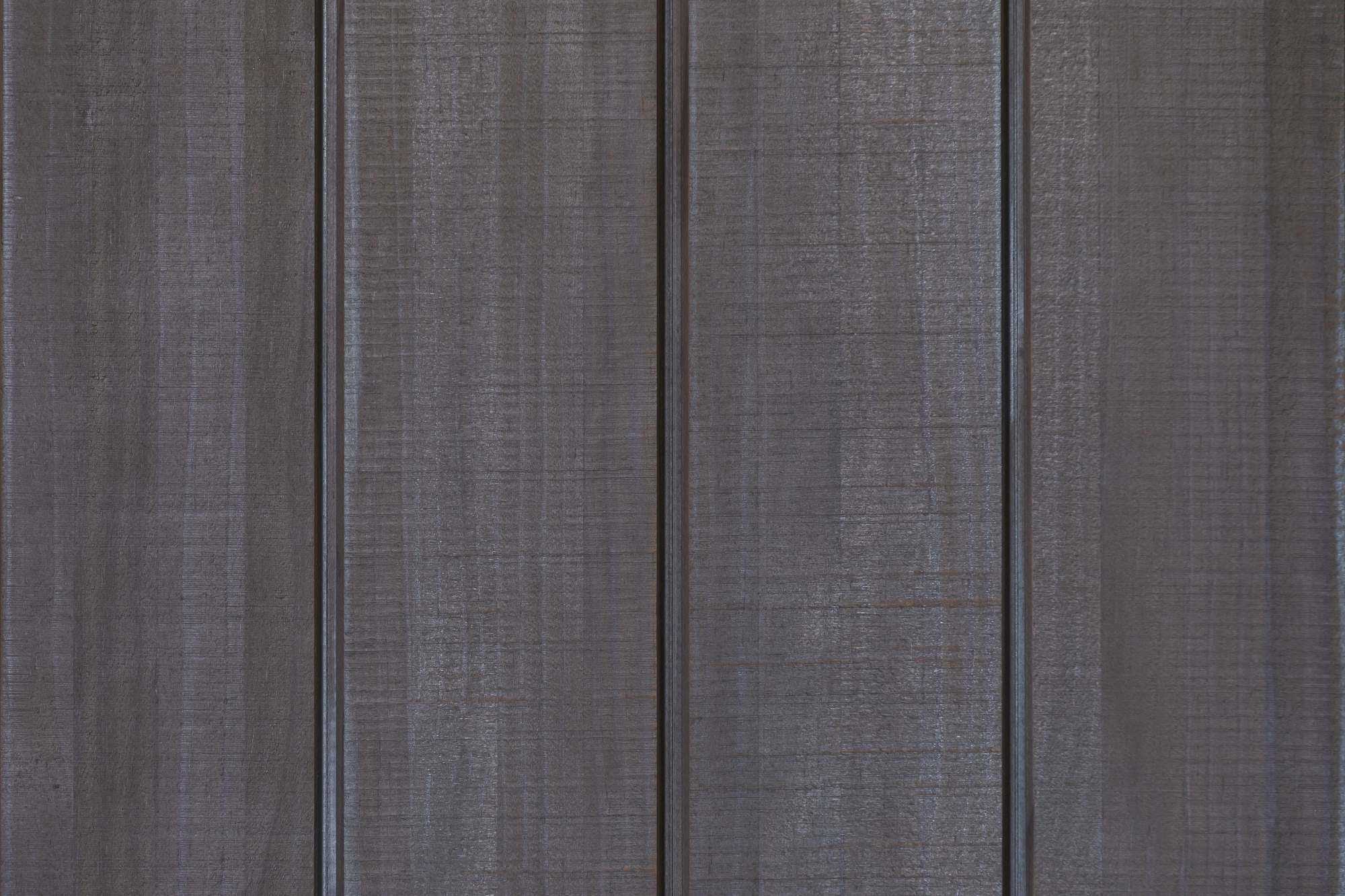

Vulcan Cladding Bandsawn in Protector Graphite

Vulcan Cladding - Vertical Grain, Architectural Series | Bandsawn Finish | Protector™ - Graphite

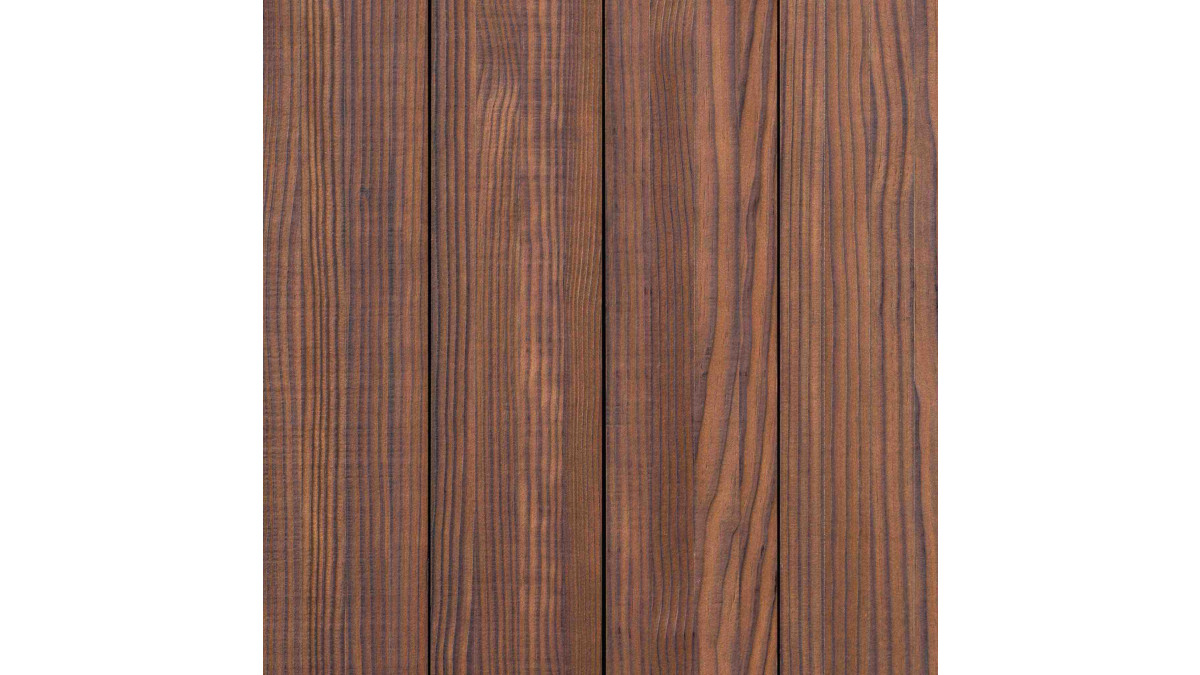

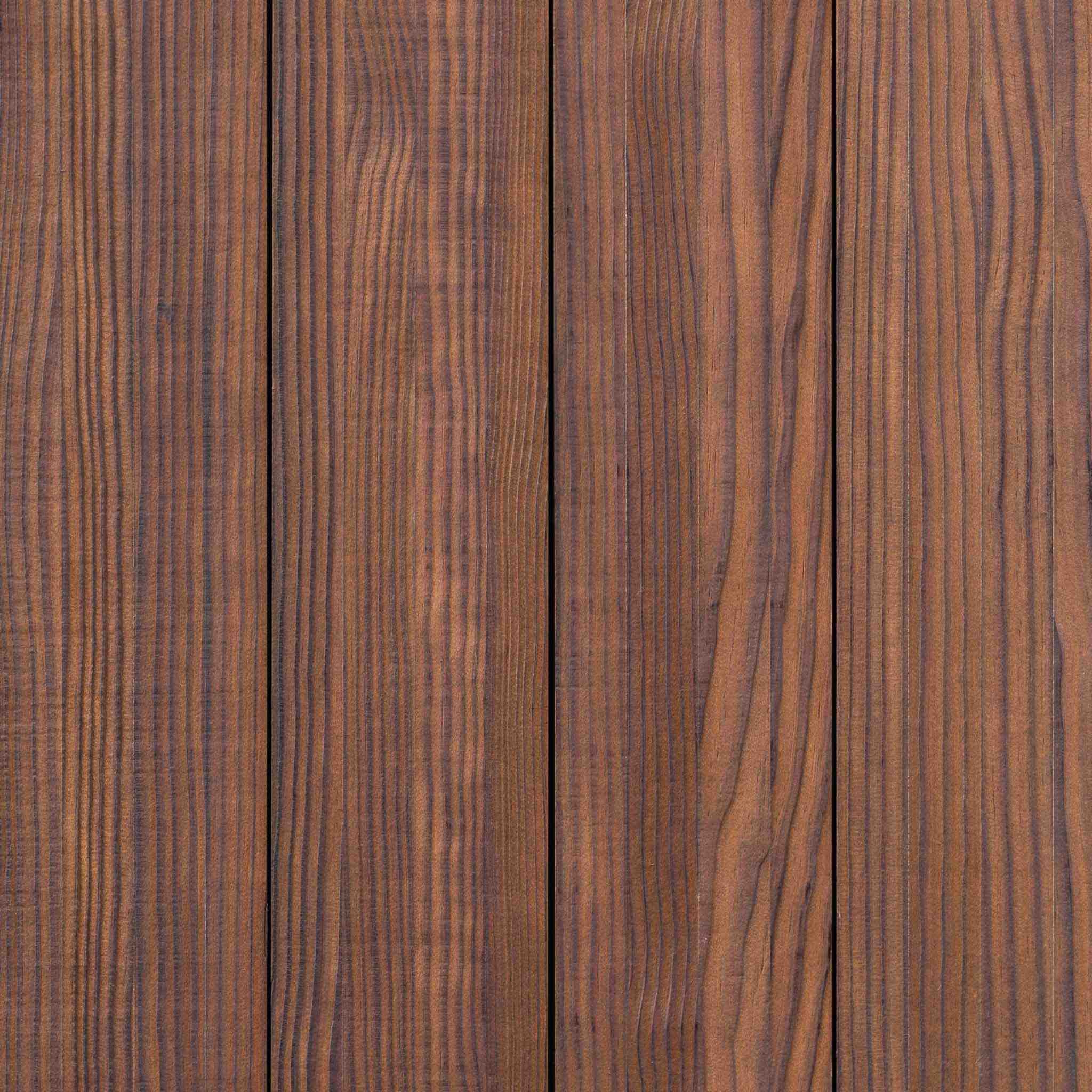

Vulcan Cladding Brushed Finish in Protector Teak

Vulcan Cladding - Vertical Grain, Architectural Series | Brushed Finish | Protector™ - Teak

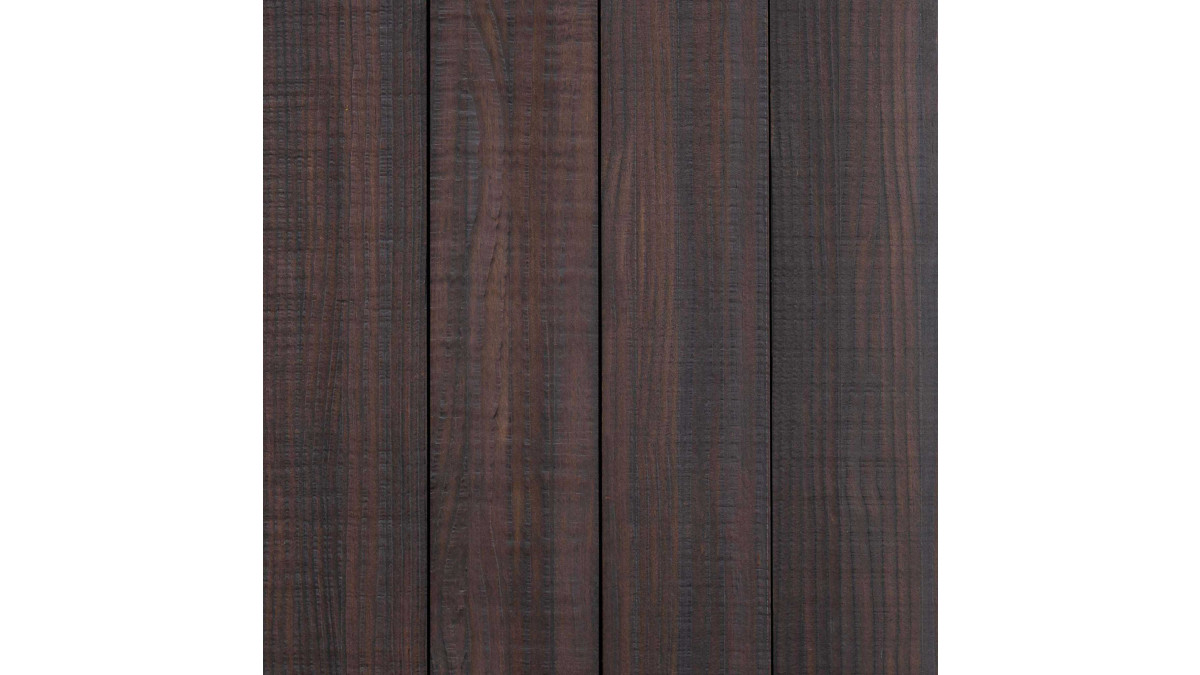

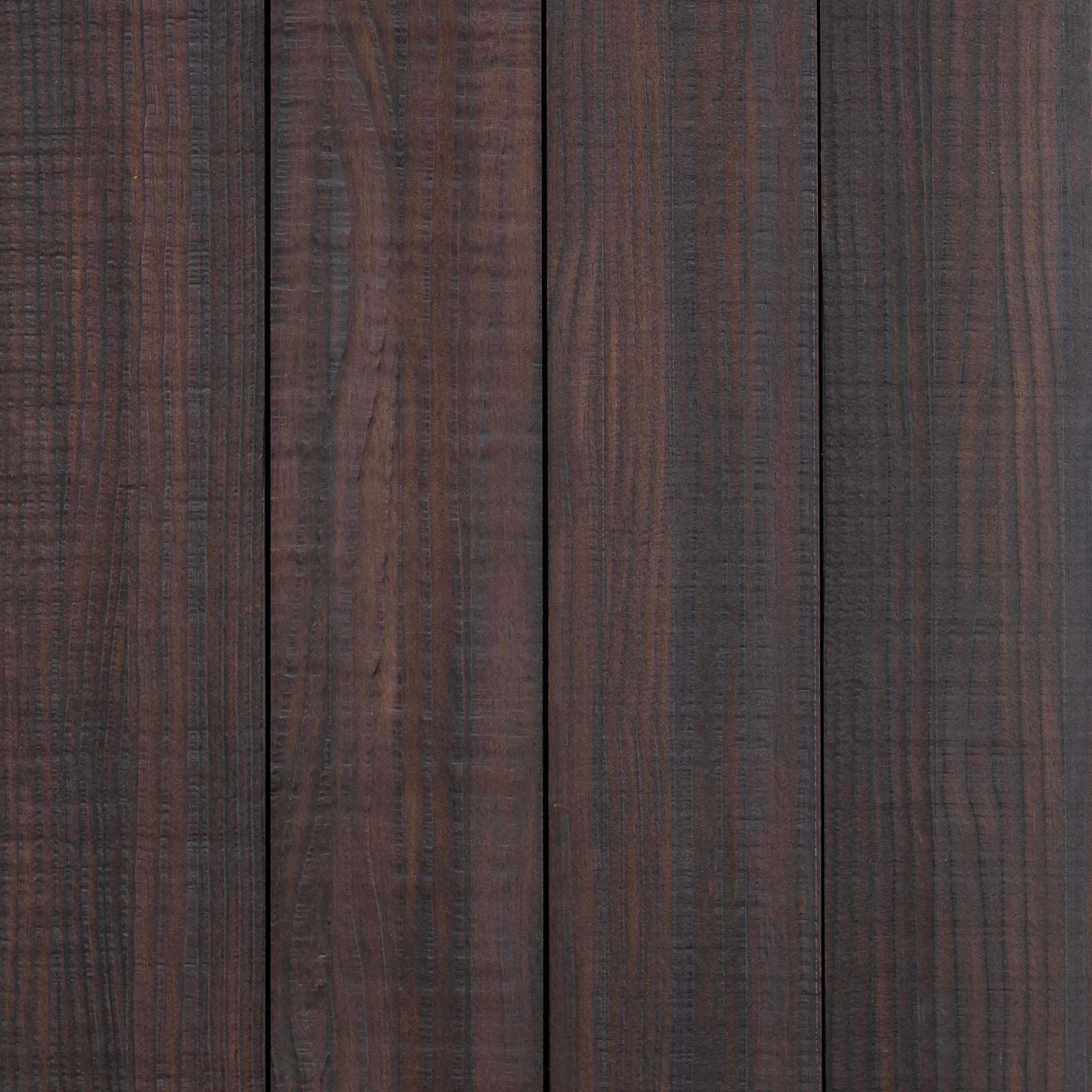

Vulcan Cladding Brushed Finish in Protector Walnut

Vulcan Cladding - Vertical Grain, Architectural Series | Brushed Finish | Protector™ - Walnut

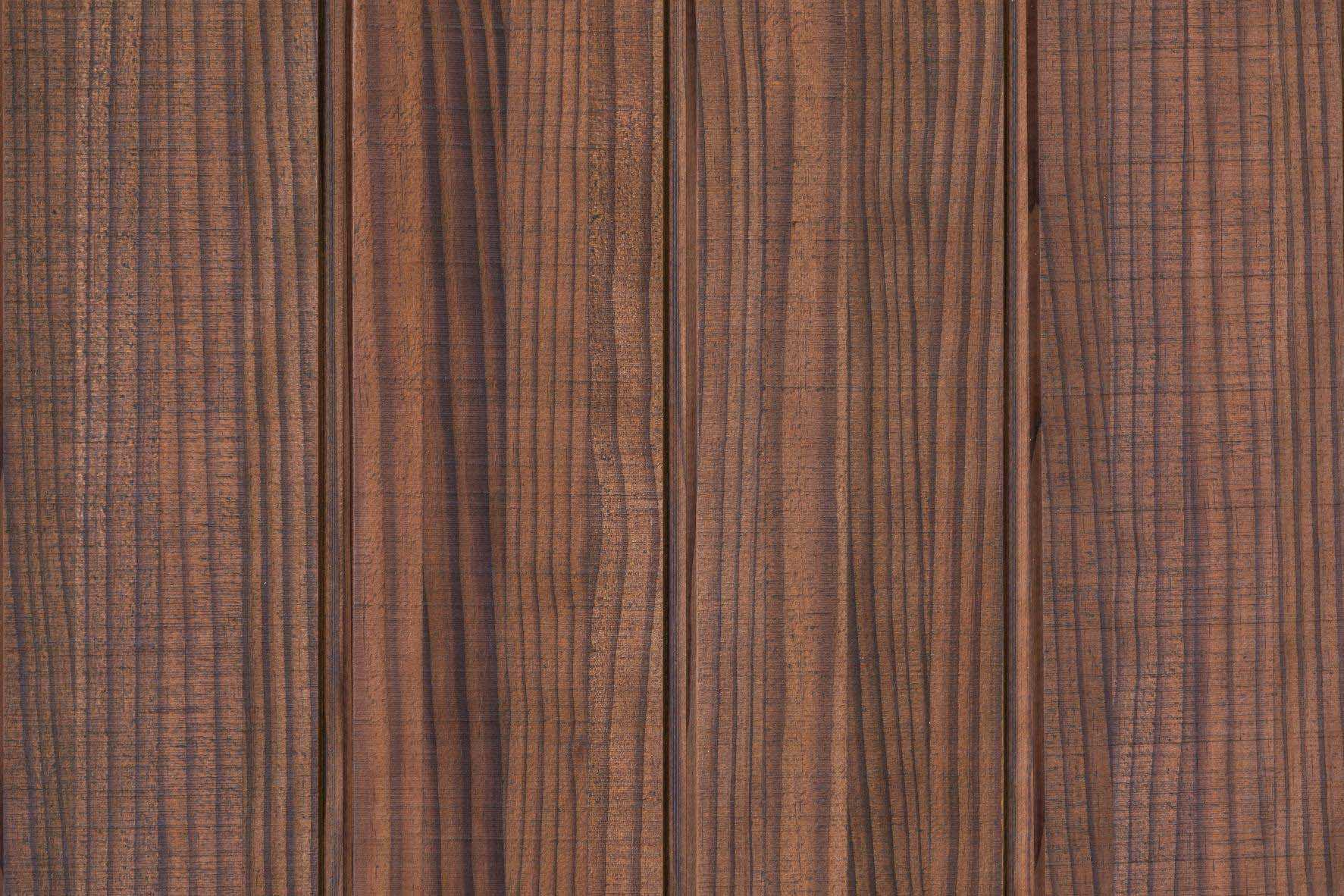

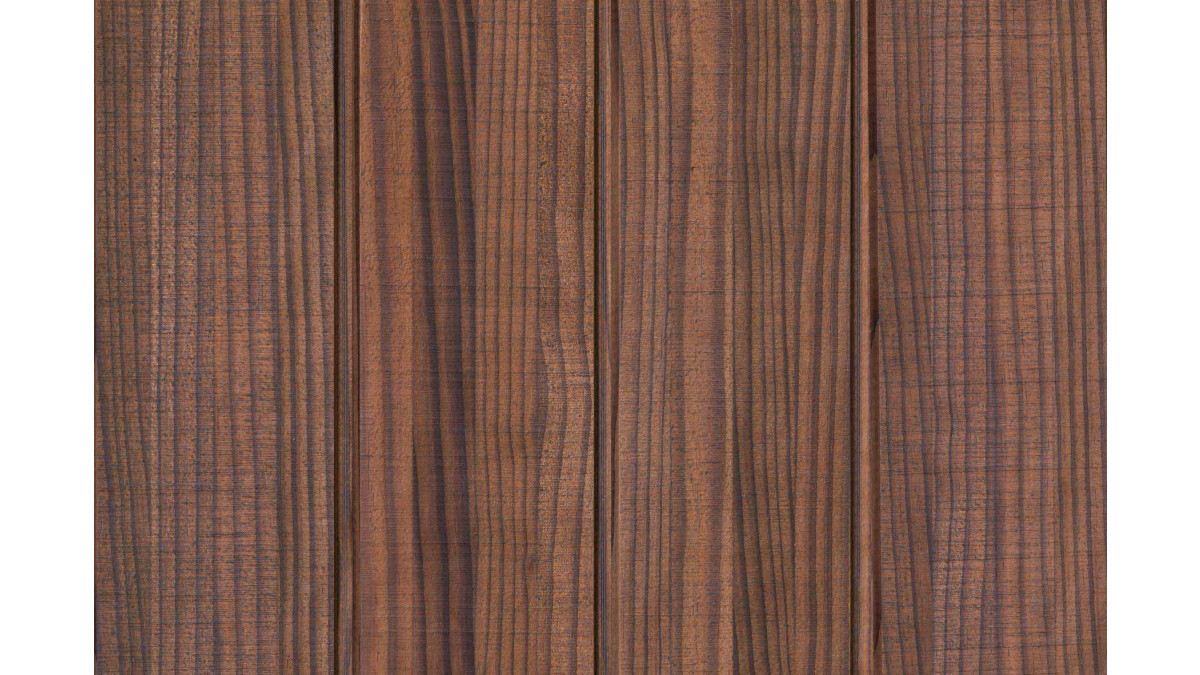

Vulcan Cladding Bandsawn Finish in Iron Vitriol

Vulcan Cladding - Vertical Grain, Architectural Series | Bansawn Finish | Iron Vitriol

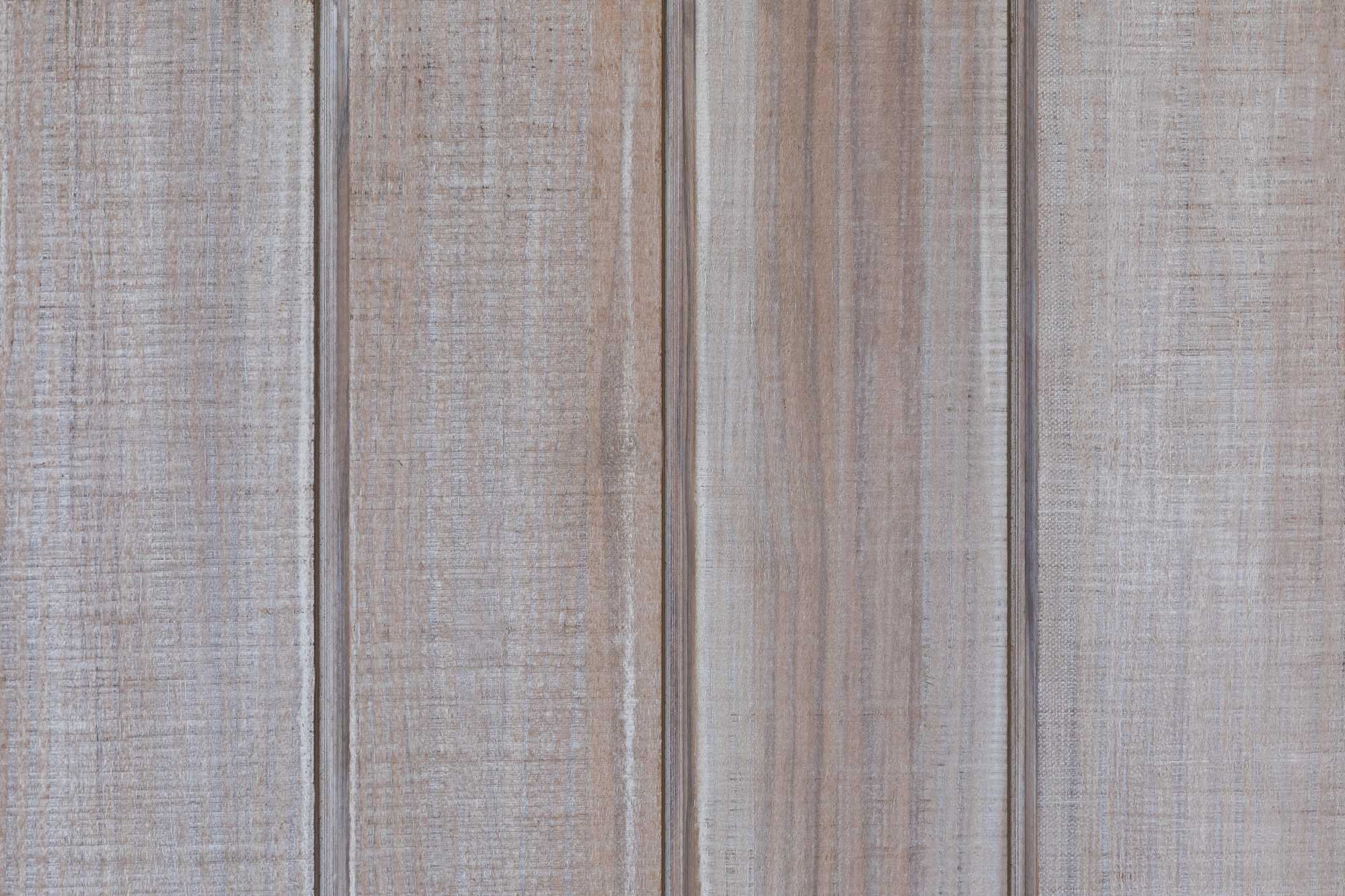

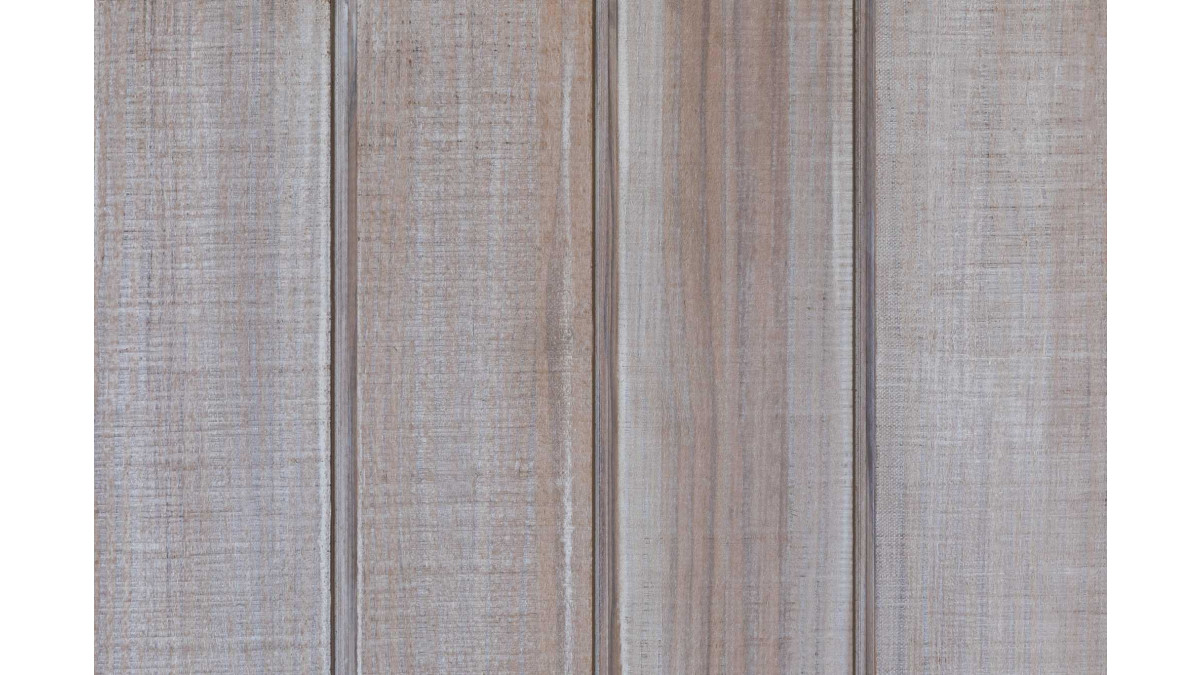

Vulcan Cladding Bandsawn in Protector Patina

Vulcan Cladding - Vertical Grain, Architectural Series | Bandsawn Finish | Protector™ - Patina

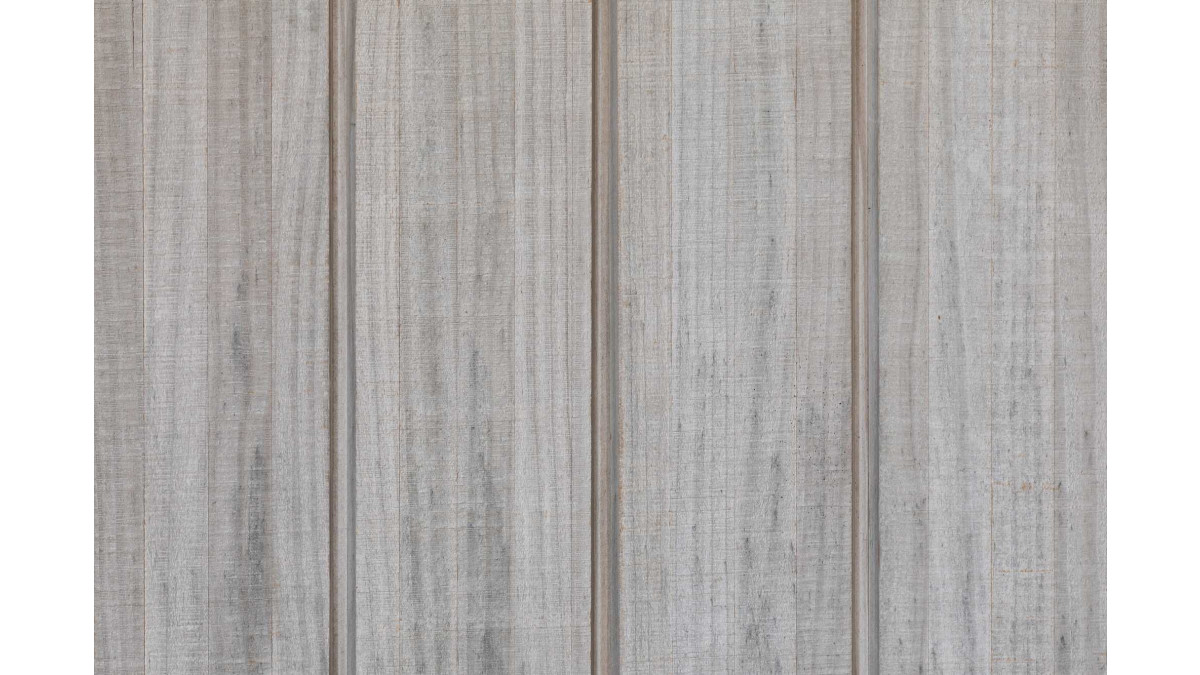

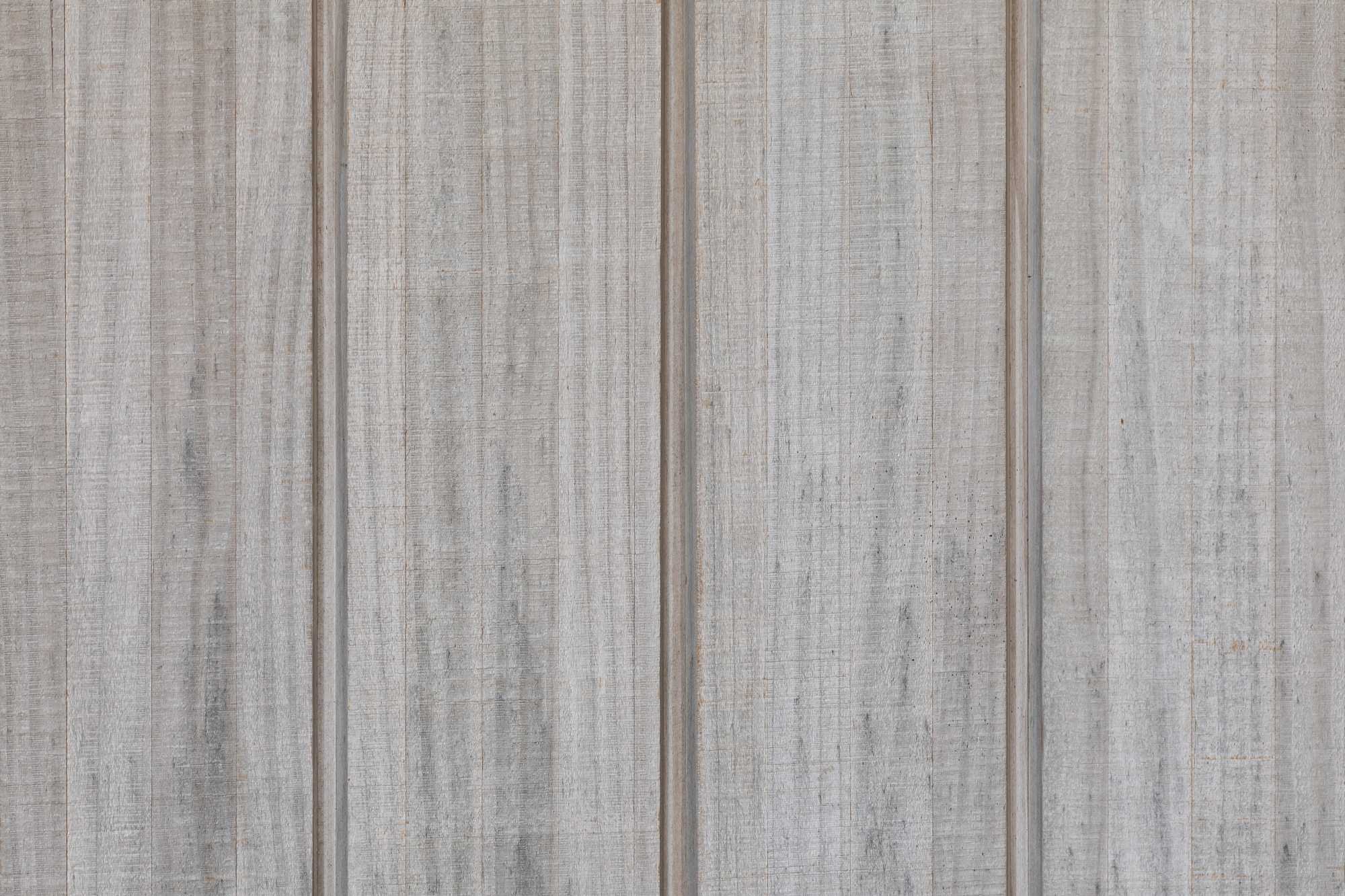

Vulcan Cladding Bandsawn in Sioox Weathered

Vulcan Cladding - Vertical Grain, Architectural Series | Bandsawn Finish | Sioo:x Wood Coating (Weathered)

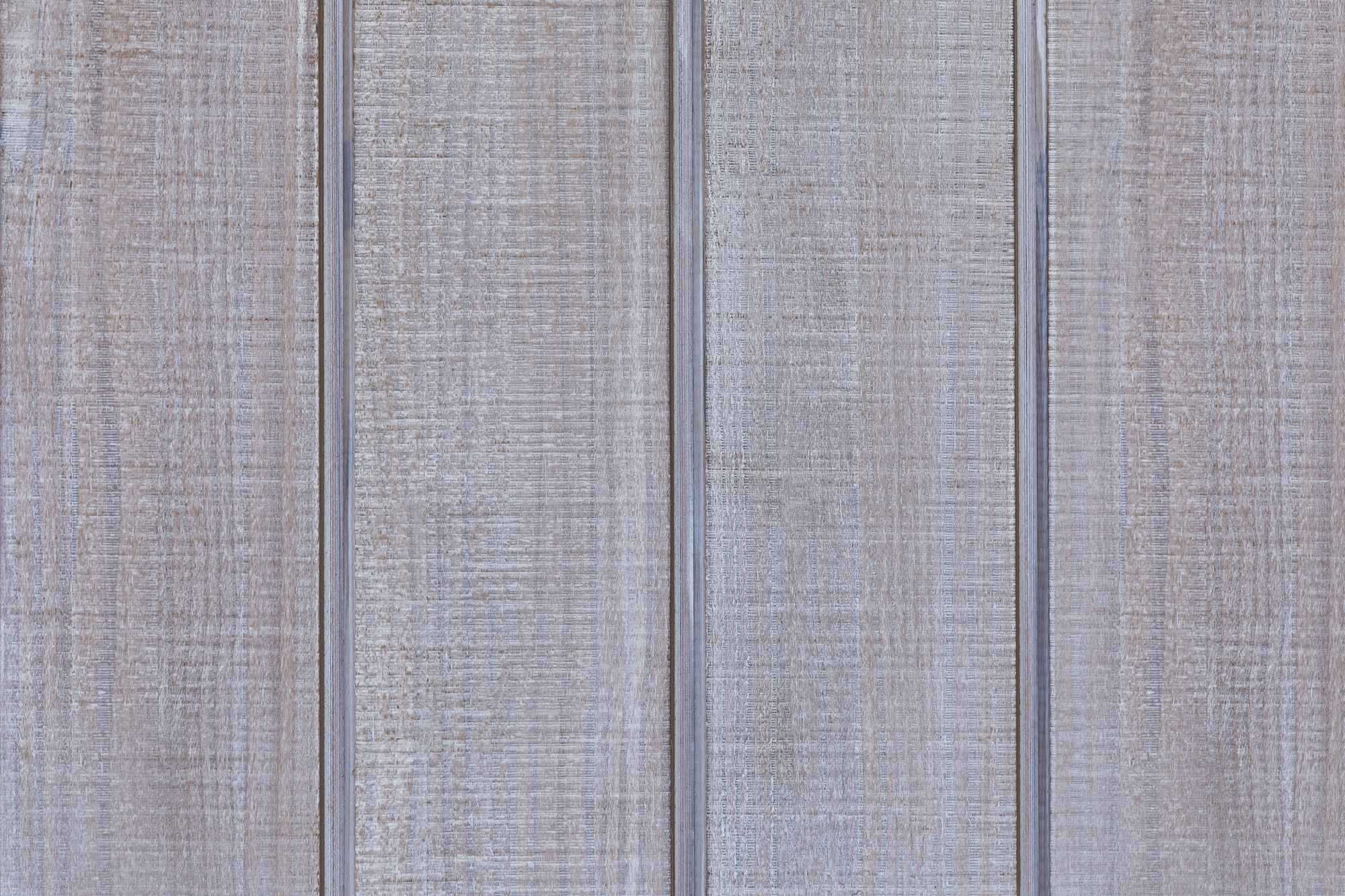

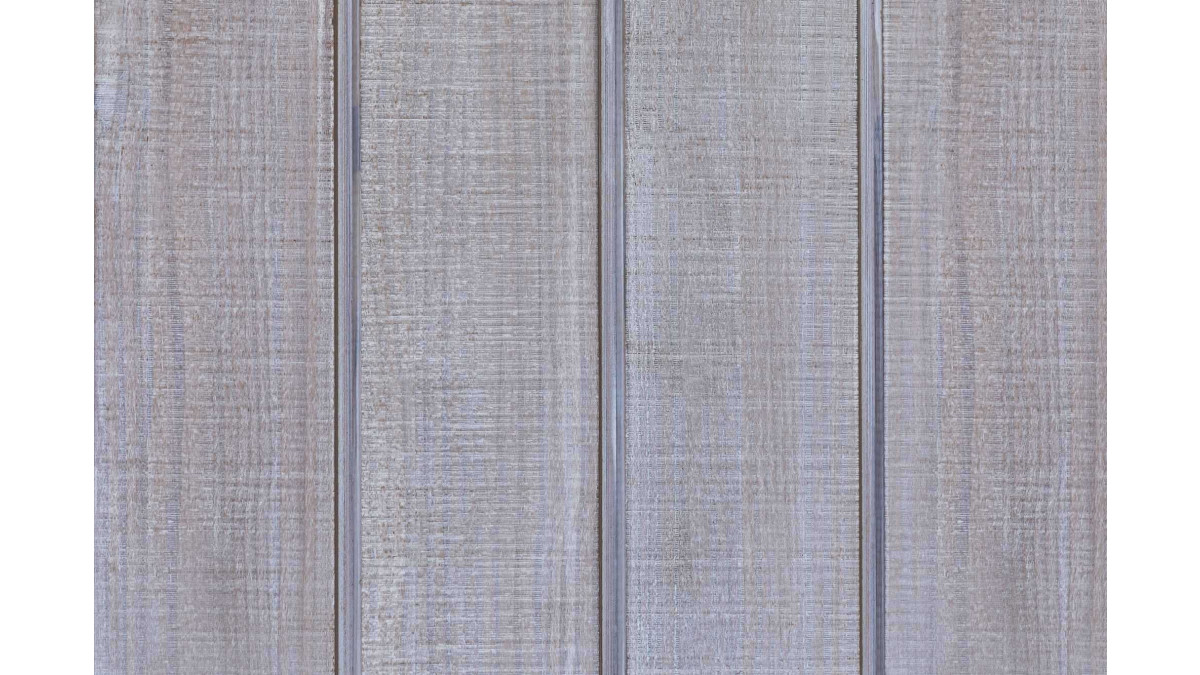

Vulcan Cladding Bandsawn in Protector White

Vulcan Cladding - Vertical Grain, Architectural Series | Bandsawn Finish | Protector™ - White

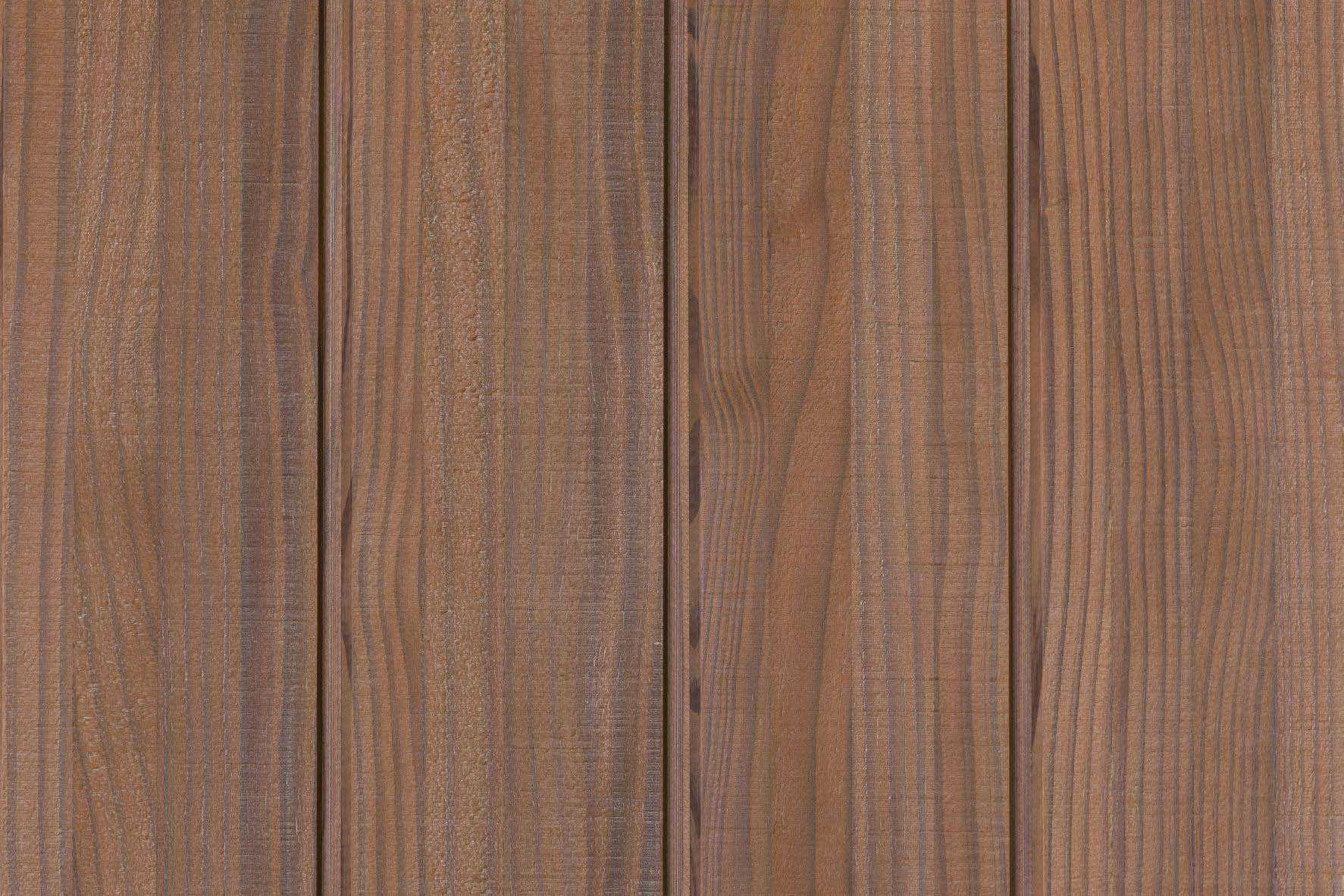

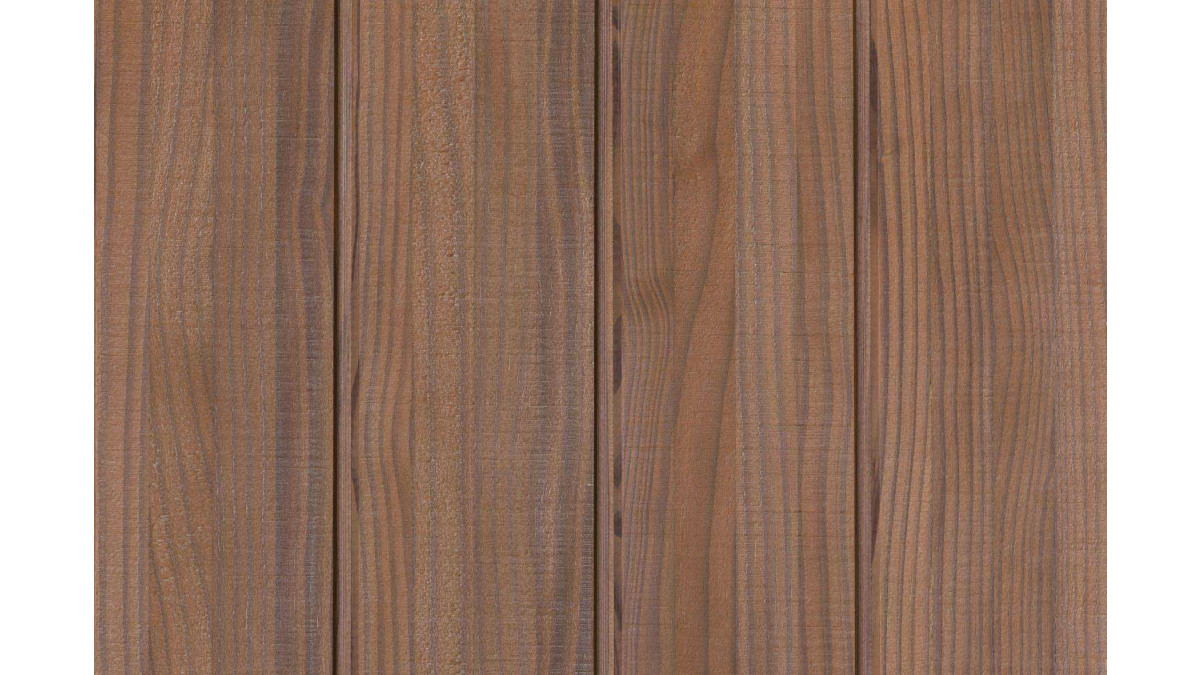

Vulcan Cladding Bandsawn Finish in Protector Natural

Vulcan Cladding - Vertical Grain, Architectural Series | Bandsawn Finish | Protector™ - Natural

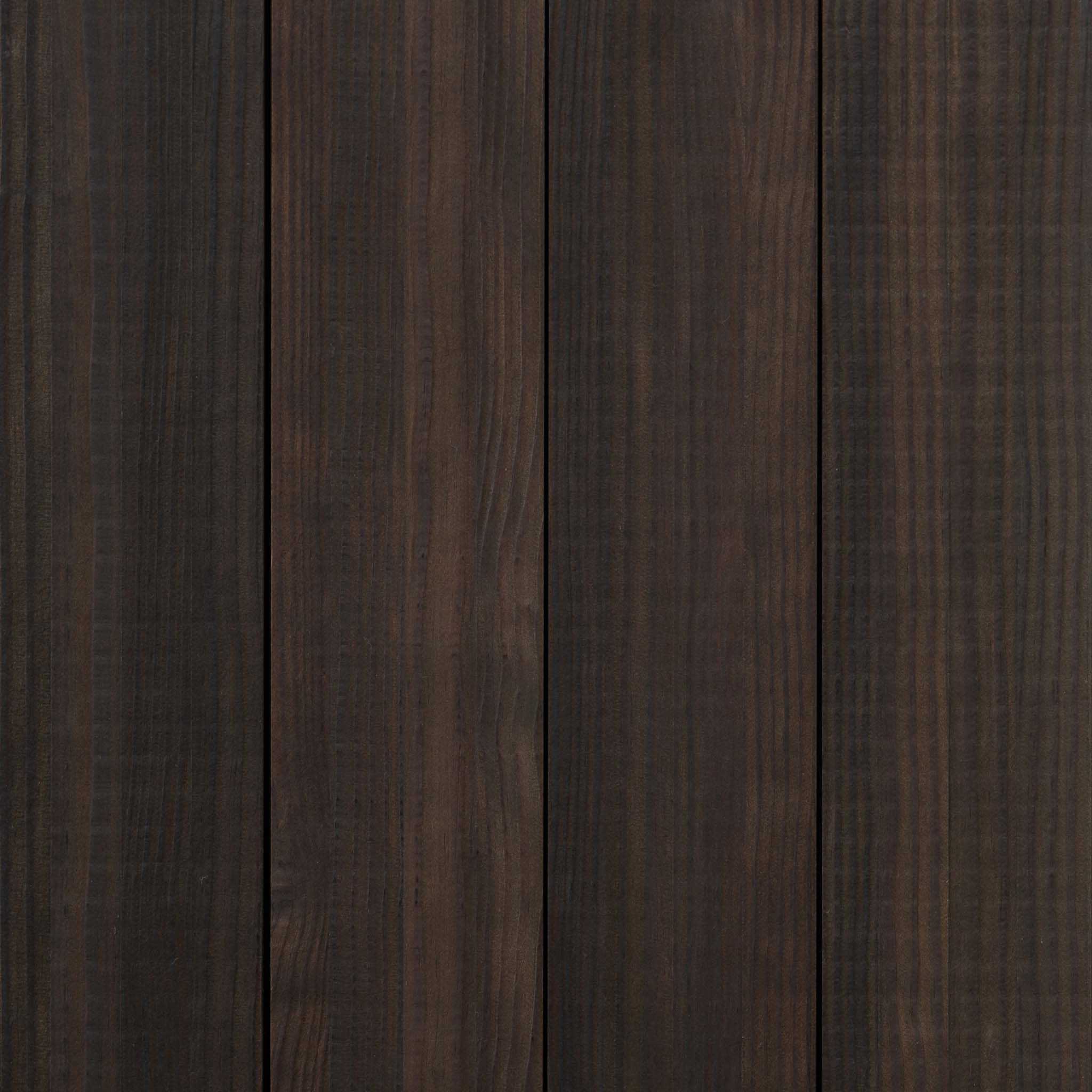

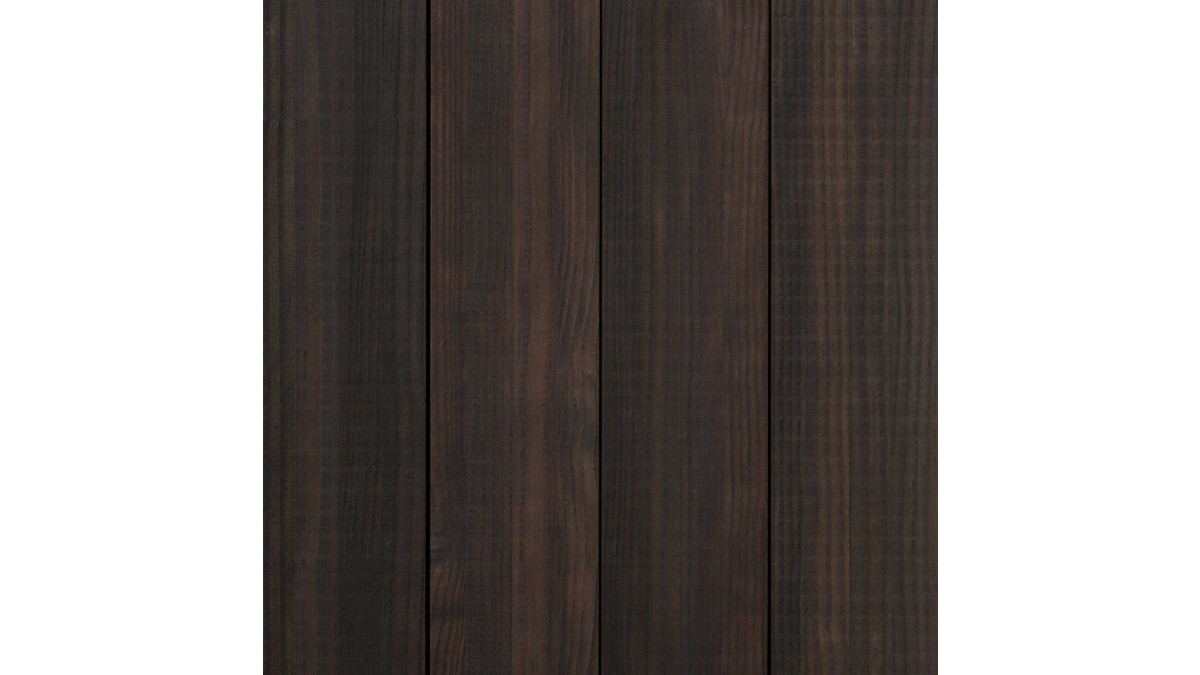

Vulcan Cladding Brushed Finish in Protector Ebony

Vulcan Cladding - Vertical Grain, Architectural Series | Brushed Finish | Protector™ - Ebony

Product Enquiries

Description

Vulcan Cladding — Vertical Grain is created from thermally modified New Zealand plantation timber and engineered with a patented vertical grain construction for superior weathering characteristics. A fine sawn face allows a depth of grain, and optimal coating performance. Vulcan Cladding - Vertical Grain is available in Architectural and Standard Series.

Vulcan Cladding is CodeMark Certified for guaranteed acceptance with New Zealand Building Authorities and conformance with the New Zealand Building Code, and is covered by a 15 year Built to Last Warranty.

Architectural Series

The Architectural Series is Abodo's premium cladding, ideal for architectural projects where a largely clear aesthetic is desired. This series includes a wider range of profiles, colours and finishes.

Colour Range:
- Full range of Abodo’s Protector coating colours (x11)
- Sioo:x Coating
- Iron Vitriol
Finish:
- Bandsawn
- Brushed
Profiles & Size:
- WB12 (180x20, 138x20, 90x60, 90x40, 90x20) — Vertical only
- WB12F (180x20) — Vertical only
- WB10 (180x20, 138x20) — Vertical & Horizontal
- Bevelback AW62 (180x20) — Horizontal only

Key Features

A renewable alternative to Western Red Cedar, Abodo's Vulcan timber is verified to store more carbon than is used in its production. 
The thermal modification process used in its production results in a stable timber with low moisture content — meaning it won’t warp, cup or bleed.
Suitable for coating in dark colours, even in warm climates.
Create clean lines using various profiles, including vertical shiplap and bevel back. With a variety of coatings and finishes, Vulcan is perfect for bespoke architectural aesthetics and applications.
As the thermal modification process is preservative and chemical free, Vulcan timber is ideal interior applications and joinery.
Manufactured with a patented process resulting in an engineered vertical grain orientation that reduces cracking and enables stable weathering long term.
Environmental Product Declaration and Declare Red List Free certified, each square metre of Vulcan Cladding stores 7.56kg+ of carbon.

Ranges

Vulcan Cladding

LBC Declare Red List Free

NZ Made

Scope of Use

Vulcan Cladding can be used in vertical or horizontal applications. WB10 profile is a secret fix profile that can be used to create a vertical shiplap look.

Abodo Weatherboard Cladding Systems are exterior wall claddings on a drained cavity suitable for buildings:

timber framed to NZS3604:2011 Timber framed buildings or steel framed to NASH Standard Part 2: May 2019 Light Steel Framed Buildings
located in a wind zone up to and including Extra High wind zone (as specified in NZS3604)
within the scope of Acceptable Solution E2/AS1 para 1.1, and with risk score not greater than 20
located no closer than 1m from a relevant boundary
in any exposure zone (excluding microclimates) (as specified in NZS3604)

See CodeMark CMNZ70046

Limitations on Use

Must be designed and installed in accordance with the Abodo technical literature

Statement of Building Code Compliance

This product will, if employed in accordance with the supplier's installation and maintenance requirements, assist with meeting the following provisions of the building code:

B1 Structure: B1.3.1; B1.3.2; B1.3.3(a, f, h, j); B1.3.4
B2 Durability: B2.3.1(b)
E2 External moisture: E2.3.2; E2.3.5 (contributes to); E2.3.7 (contributes to)
F2 Hazardous building materials: F2.3.1

Other Performance Attributes

Carbon Storage — Each square metre of Abodo's Vulcan solid timber is proven to store 7.56kg+ of carbon, more than twice the carbon emitted during the manufacturing process. This means carbon is essentially locked in the wood during its useful life.
Forest Stewardship Council® (FSC®) Certified — A guarantee that forest products come from responsibly managed sources, including forest management and chain of custody.
Declare Certified — Declare certified Red List Free by the Living Futures Institute, the leading label in transparency for building products.
Built to Last Warranty — Vulcan Cladding is covered by a 25 year warrany.
