Profile Balustrading
New APL 2019 Specifier Guide now available Order now
Description

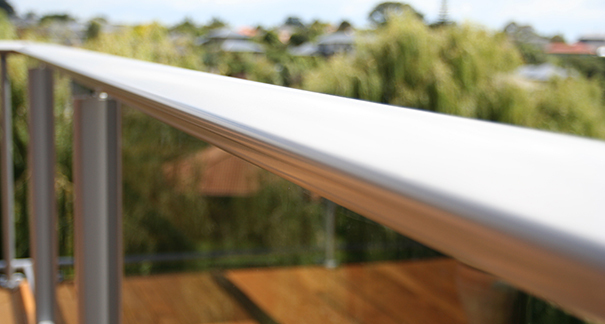

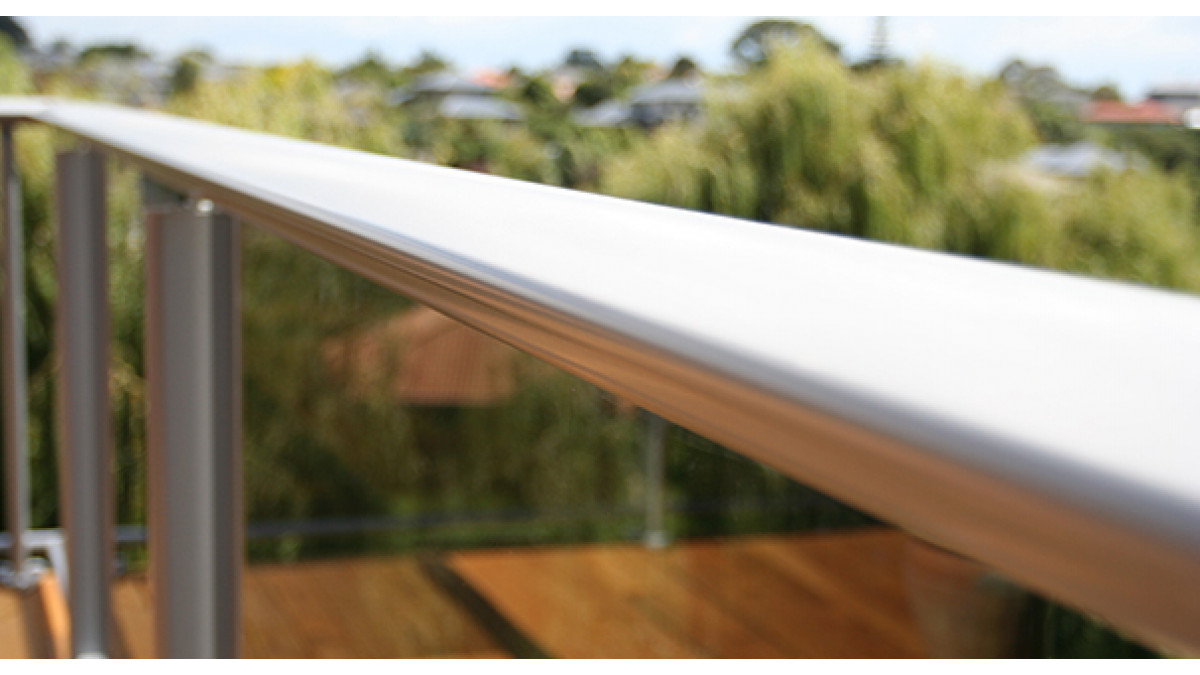

A versatile aluminium balustrade system with exceptional strength and smooth, curved shapes. The post and rail types maximise strength and rigidity, and multiple fixings ensure secure baluster retention.

Rail types emphasise elliptical and round shapes and there is minimal interruption to top rail surfaces with concealed fixings for posts. A choice of either vertical aluminium balusters or glass infill panels is available. Designed for standard heights of 1000mm on balconies and decks, and 1200mm around swimming pools (other heights available).

Key Features
  • Can be used with safety glass as well as balusters
  • Suitable for pools
Scope of Use
  • Designed for general deck and barrier use
  • Suitable for standard heights of 1000mm on balconies and decks, and 1200mm around swimming pools (other heights available)
  • Can be used with safety glass as well as balusters
Statement of Building Code Compliance
  • Designed, tested and manufactured to meet AS/NZS1170.1 Structural Design Actions (Table 3.5.1) when installed in accordance with manufacturer instructions
  • Designed and tested to conform to NZ Building Code, including Clause E2
In-Service History
  • Used in residential projects in New Zealand since 2005
  • Widely used by homeowners, builders, Group home companies and specifiers
Other Performance Attributes
  • Warranty provided under normal conditions of use against failure of materials and workmanship for a period of five years
  • Surface finish is covered by a separate performance warranty dependent on the actual finish selected
Documents
Data Sheet
Span Tables
Producer Statement / Warranty

2017

Vantage Care & Maintenance Guide

2017

Manufacturer Contact List
WGANZ Guide to E2/AS1

1 August 2019

Vantage Brochure
APL and Sustainability

2019

CAD/PDF Details
Full Set of Drawings

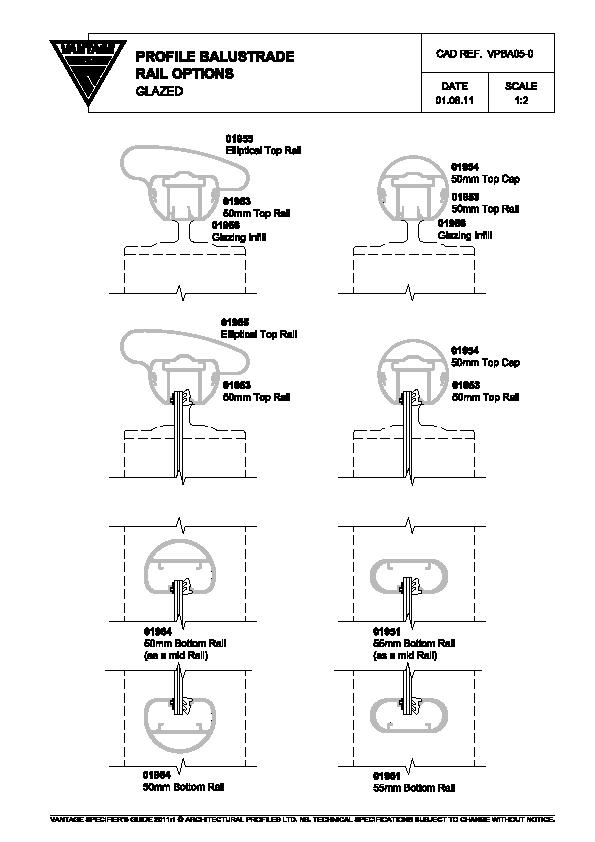

Vantage Profile Balustrading Rail Options Glazed

VPBA05-0

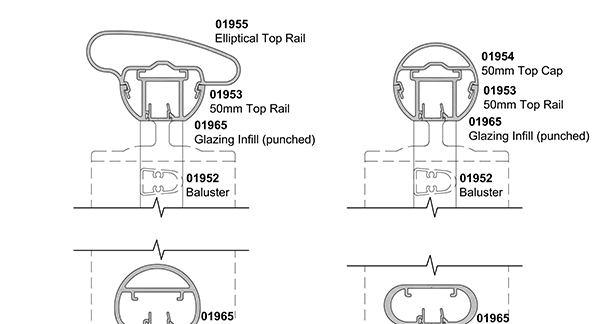

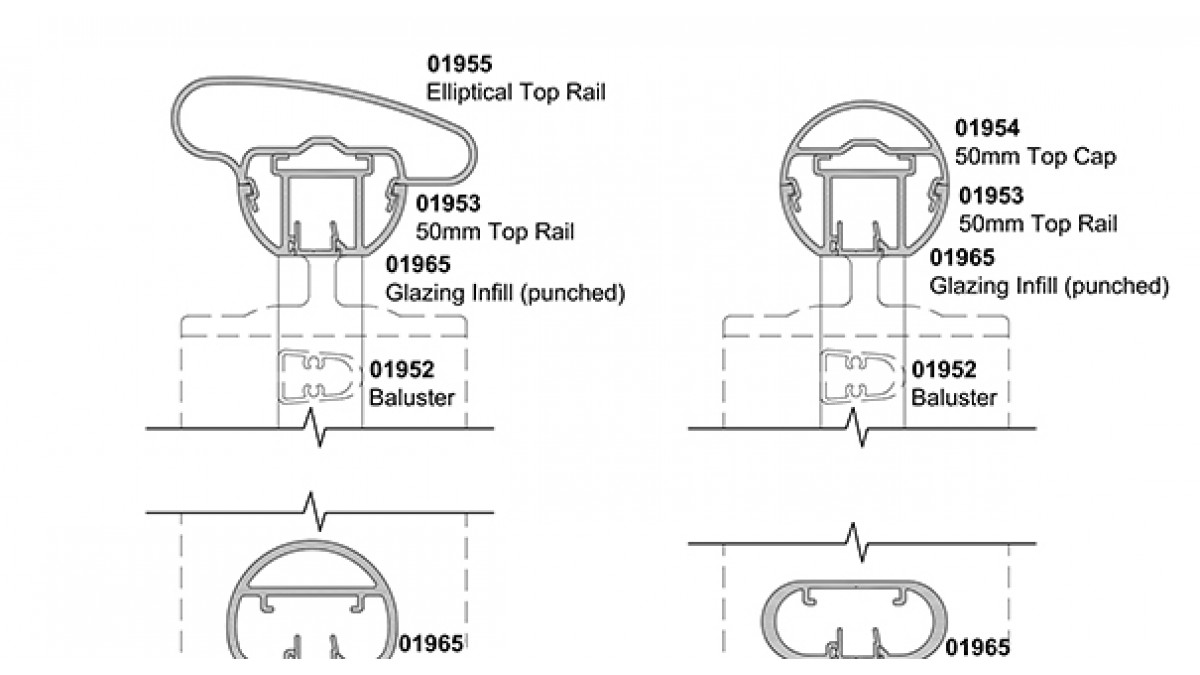

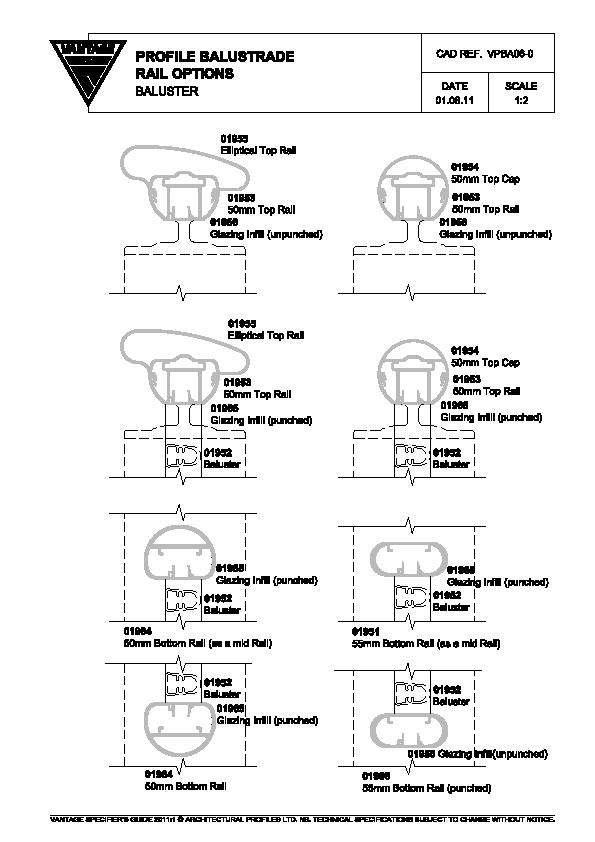

Vantage Profile Balustrading Rail Options Baluster

VPBA06-0

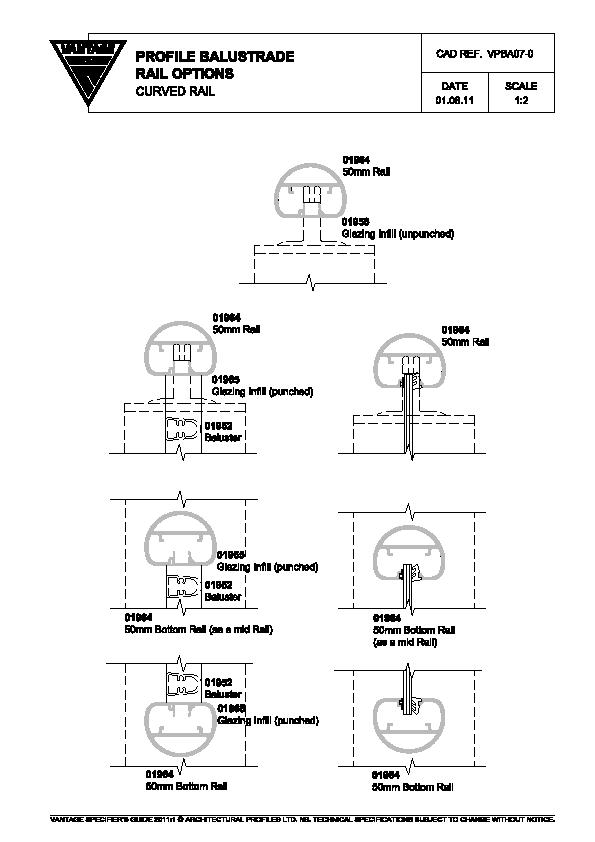

Vantage Profile Balustrading Rail Options Curved Rail

VPBA07-0

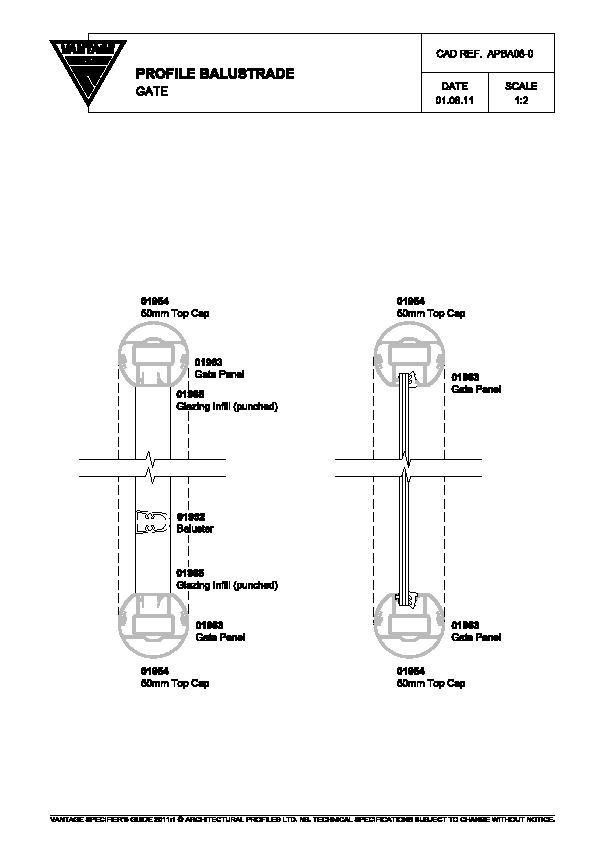

Vantage Profile Balustrading Gate

VPBA08-0

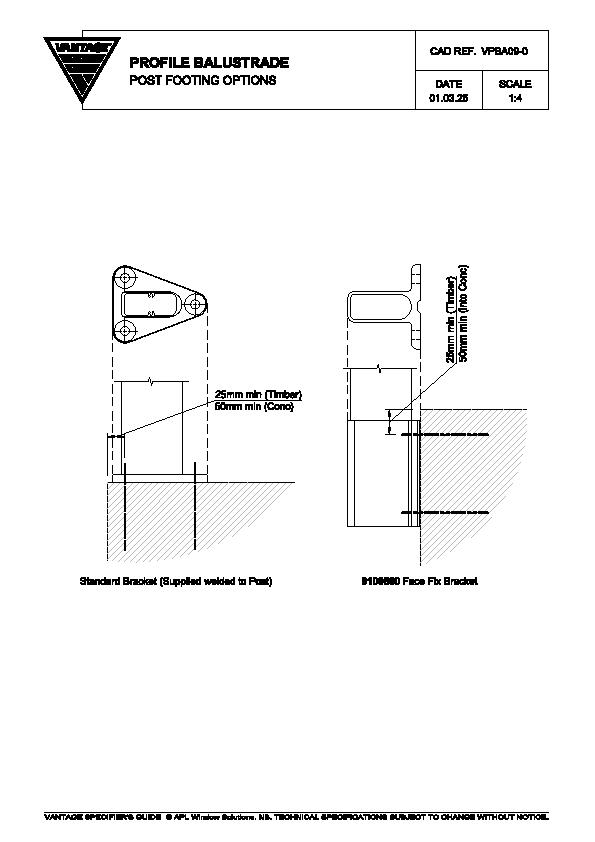

Vantage Profile Balustrading Post Footing Options

VPBA09-0
