Plasma Plus Entrance Door
Complete your window system with AGP glass, New Zealand's leading double-glazing technology Explore
Description

Plasma Plus entrance doors deliver a sleek, architectural look with flat aluminium or full glass cladding, including options for edge-to-edge horizontal planks or negative detail lines. With a 74mm foam-filled core, flanged frame, and triple-glazed insert options, they offer excellent thermal and acoustic performance. Available in dual-colour finishes, hinged or pivot configurations, and compatible with flush sills and Eurogroove hardware for a seamless finish.

Key Features
  • High thermal performance with 74mm overall thickness

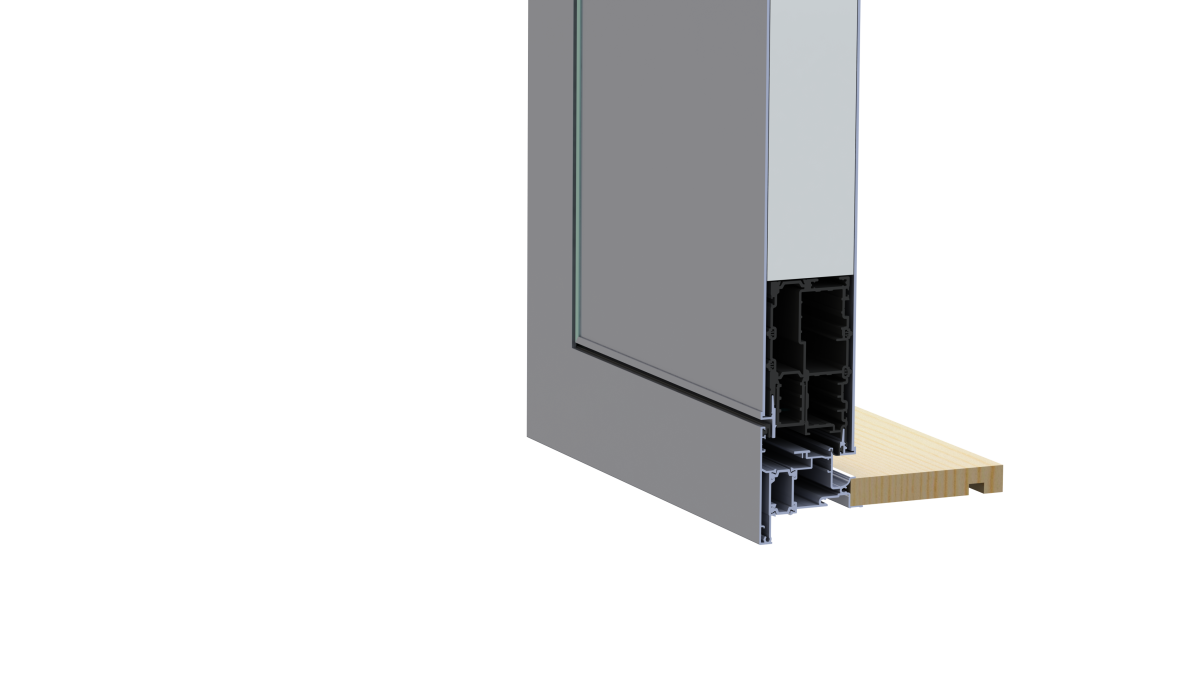

  • Flanged frame allows for dual sealing increasing thermal performance
  • Doors are filled with high density foam for thermal efficiency and sound dampening
  • Can be dual coloured to match interior and exterior colour schemes

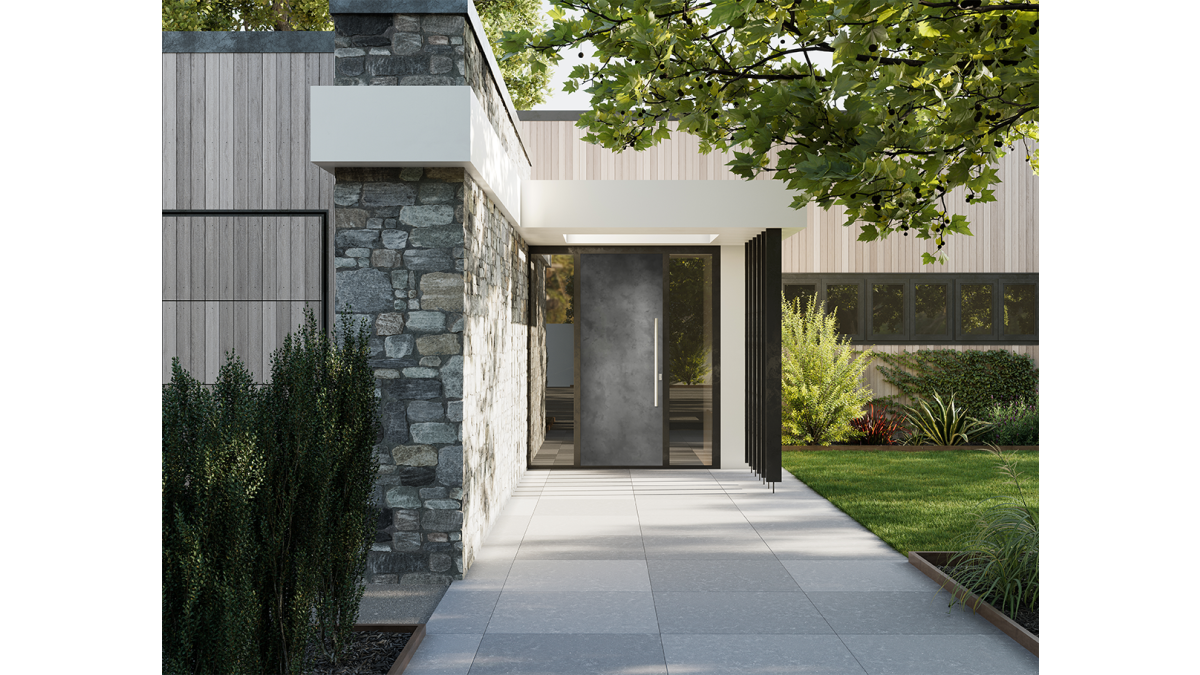

  • Available in unique liquid metal finish with Elemental Finishes

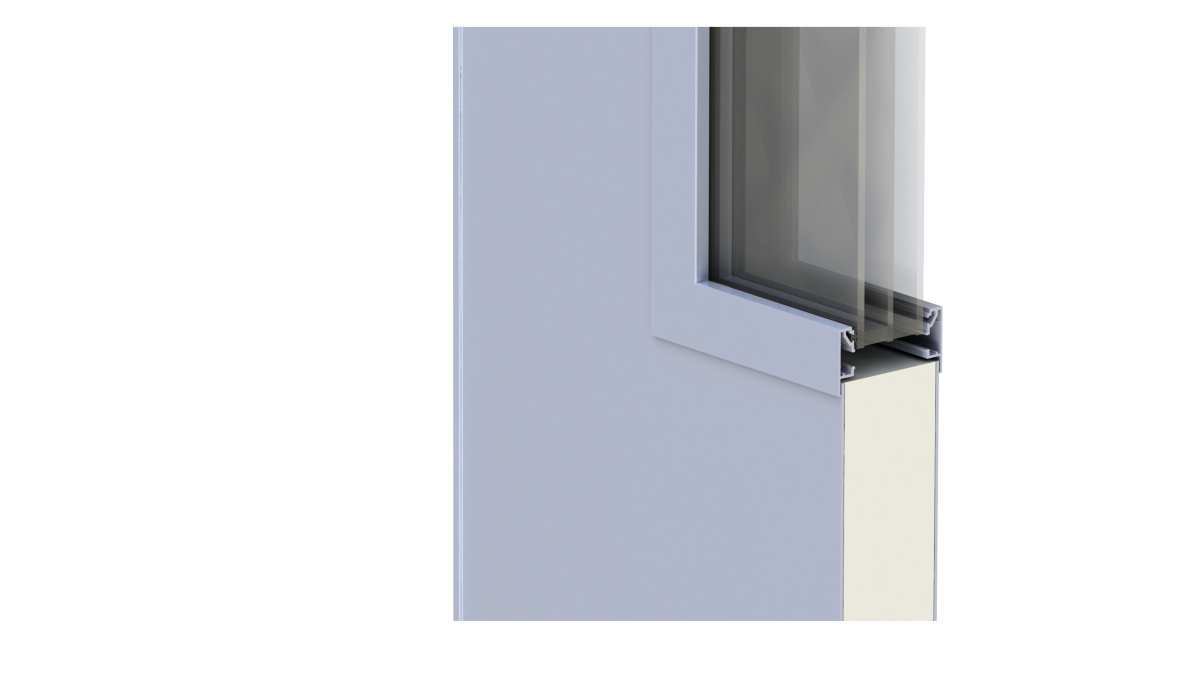

  • Glass inserts (50mm triple glazing only)
  • Fully glass clad Plasma panels also available with an opaque, vivid colour finish
  • Compatible with either hinges or pivot gear
  • A range of door handle and lock options compatible with Eurogroove technology for a seamless fit are available
  • Flush sill options available.
Categories
Entrance Doors
Scope of Use
  • Generally installed in protected entranceways and sheltered environments. Glass Plasma is the best choice for full sun exposure
  • Inward opening option is usually recommended
  • Double opening doors (French style) or opening sidelights possible for full-width access
  • Plasma Plus is compatible with all APL ThermalHeart+ ranges
  • Accepts either standard hinges or pivot gear
Limitations on Use
  • Installation in sheltered environments recommended — away from full sun exposure
  • Dark colours not recommended for doors exposed to prolonged direct sunlight
  • Hardware type must be advised at time of door order
  • Maximum panel size 3500mm x 1450mm (Slimline maximum size 2600 x 1060)
Statement of Building Code Compliance
  • Designed, tested and manufactured to meet NZS 4211: Performance of Windows, and NZS 4233:  Glazing in Buildings, Parts 1-4
  • Designed and tested to conform to NZ Building Code, including Clause E2
In-Service History
  • Released in 2024
  • Widely used by homeowners, builders, Group home builders and specifiers
Other Performance Attributes
  • Door warranty provided under normal conditions of use against failure of materials and workmanship for a period of five years
  • Surface finish is covered by a separate performance warranty dependent on the actual finish selected
  • A hardware/componentry warranty is offered against defects in manufacturing, functionality and surface finish for a period of five years, provided care and maintenance guidelines have been followed
Documents
Data Sheet

2025

Plus Entrance Door R Values

2025

Specifier Guide

2025

Vantage on Masterspec
Manufacturer Contact List
WGANZ Guide to E2/AS1

1 August 2019

Vantage Care, Maintenance & Warranty Brochure (with AGP)

2020

Elemental Finishes

2026

Vantage Brochure
Vantage Entrance Door Brochure

2024

Plasma Configuration Options
APL and Sustainability

2023

CAD/PDF Details
Architectural ThermalHEART® Plasma+ Entrance Door

FULL SET

Metro ThermalHEART® Plasma+ Entrance Door

FULL SET

Metro ThermalHEART® with Centrafix Plasma+ Entrance Door

FULL SET

Residential ThermalHEART® Plasma+ Entrance Door

FULL SET

Vantage is proudly locally made and specified in more New Zealand homes than any other brand, with ongoing innovation to meet changing needs. Available alongside AGP glass as a complete window system.
