Classic Core Entrance Doors
Complete your window system with AGP glass, New Zealand's leading double-glazing technology Explore
Description

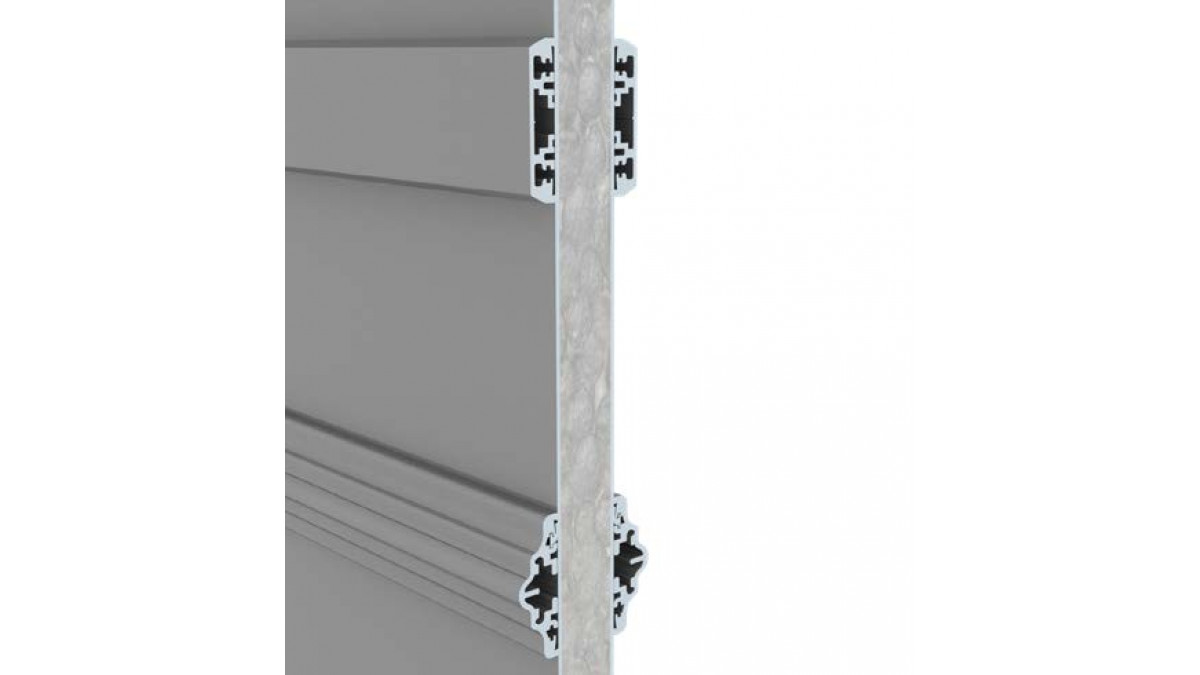

This door offers classic designs and patterns suitable for a more formal look. The Classic Core range is designed with rectangular patterns in either traditional scrolled or contemporary flat-faced edgings. Doors are available with double glazed units set in the door, including arched options.

Key Features
  • For mainstream residential use

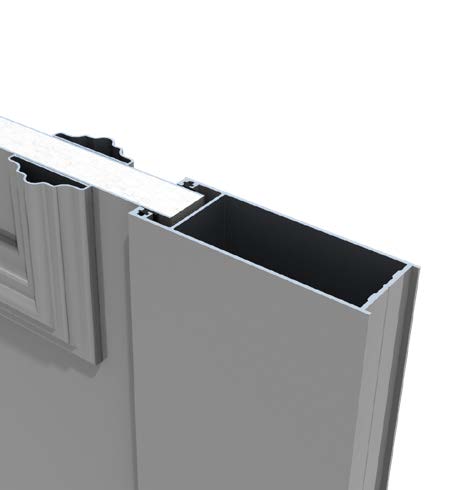

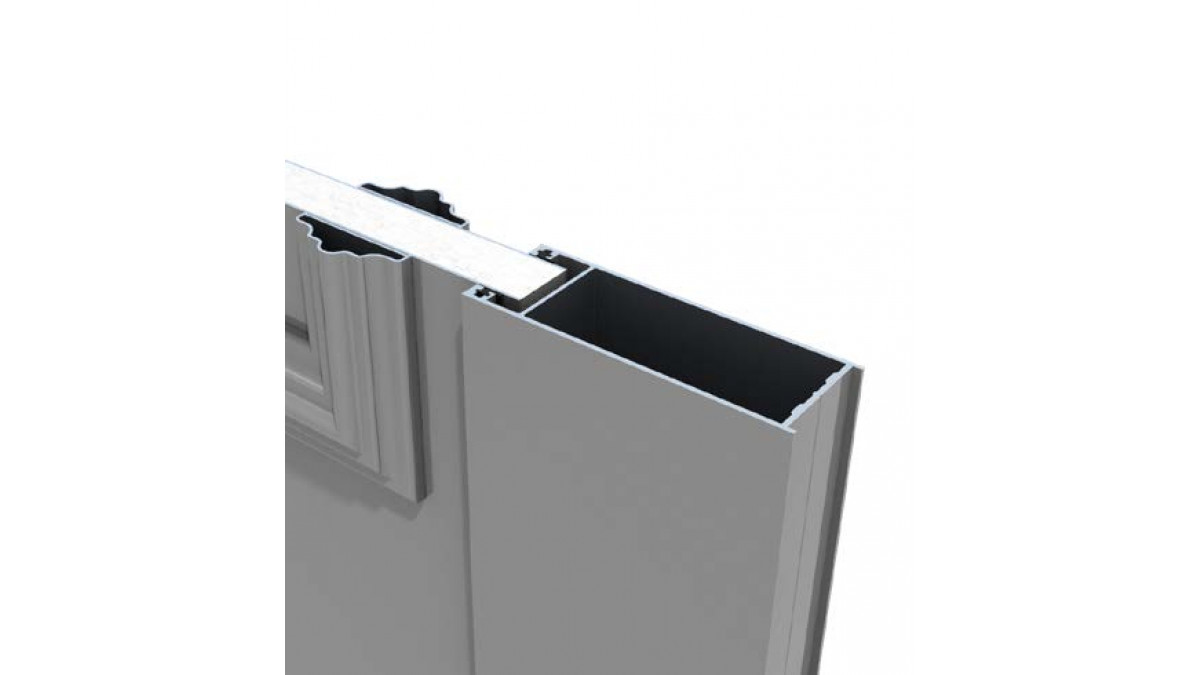

  • Aluminium clad doors with the capability to display a range of rectangular patterns and glazed inserts
  • Glass inserts are generally 18mm IGUs
  • Arched top glazed inserts are possible
  • Maximum size 2250mm x 960mm
  • Panel thickness of 41mm

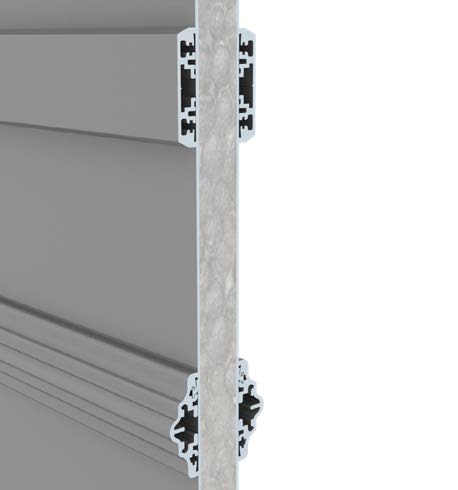

  • Doors are filled with high density polystyrene for thermal efficiency and sound dampening
  • Available in dual colour for seperate interior and exterior choices.
Categories
Entrance Doors
Scope of Use
  • Generally installed in protected entranceways and sheltered environments.
  • Inward opening option is usually recommended

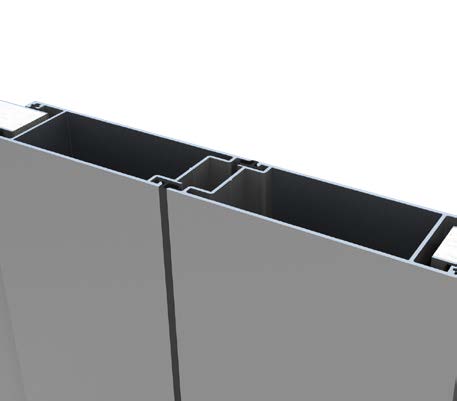

  • Double opening doors (French style) or opening sidelights possible for full-width access
Limitations on Use
  • Installation in sheltered environments recommended — away from full sun exposure
  • Hardware type must be advised at time of door order
  • Dark colours not recommended for doors exposed to prolonged direct sunlight
Statement of Building Code Compliance
  • Designed, tested and manufactured to meet NZS 4211: Performance of Windows, and NZS 4233:  Glazing in Buildings, Parts 1-4
  • Designed and tested to conform to NZ Building Code, including Clause E2
In-Service History
  • Released in 1998
  • Widely used by homeowners, builders, Group home builders and specifiers
Other Performance Attributes
  • Door warranty provided under normal conditions of use against failure of materials and workmanship for a period of five years
  • Surface finish is covered by a separate performance warranty dependent on the actual finish selected
  • A hardware/componentry warranty is offered against defects in manufacturing, functionality and surface finish for a period of five years, provided care and maintenance guidelines have been followed
Documents
Entrance Door R Values

2024

Data Sheet

2025

FIRST on Masterspec
Full Specification
Specification Clause
Specifier Guide
WGANZ Guide to E2/AS1

1 August 2019

First Care, Maintenance & Warranty Brochure (with AGP)

2020

First Brochure

2014

First Entrance Door Brochure

2024

Classic configuration options
APL and Sustainability

2024

Manufacturer Contact List
CAD/PDF Details
Full Set of Drawings

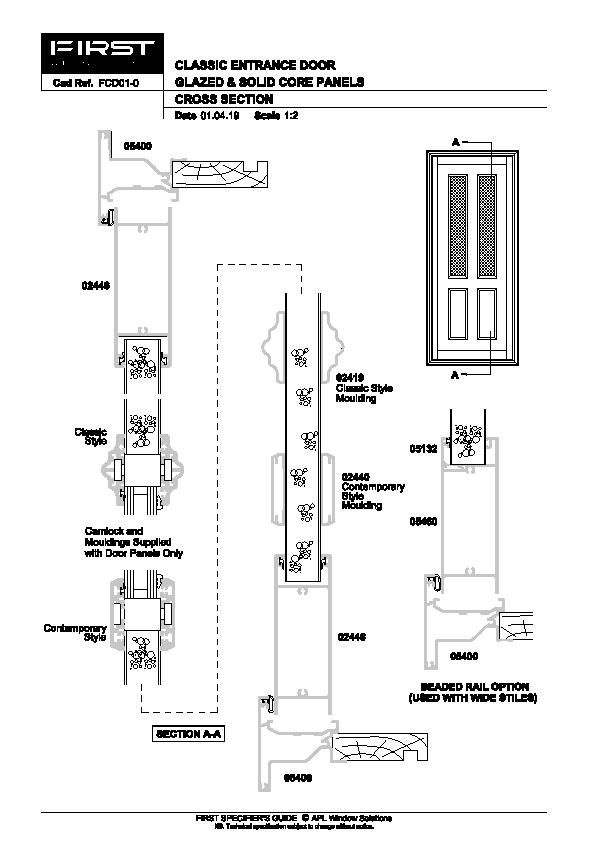

FIRST Residential Classic Entrance Doors Glazed & Solid Core Panels

FCD01-0

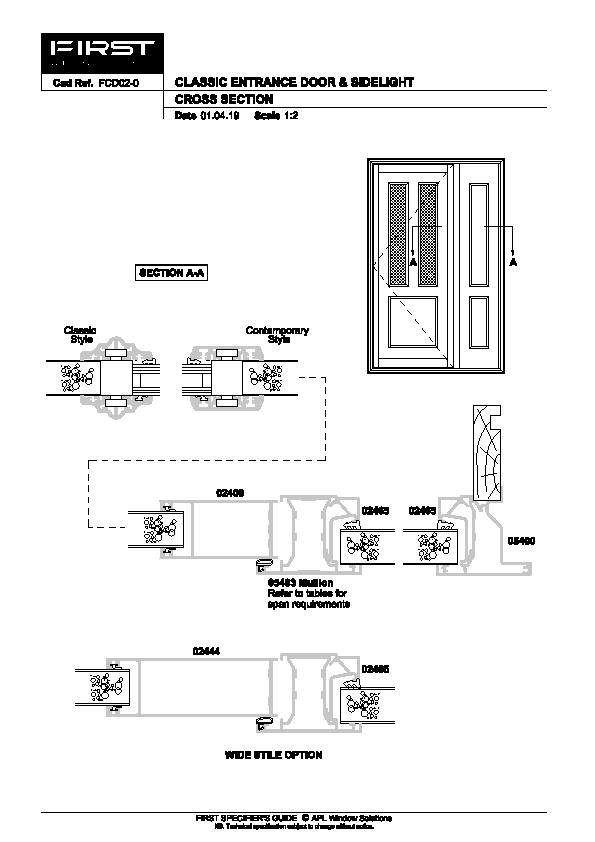

FIRST Residential Classic Entrance Door & Sidelight

FCD02-0

FIRST Residential Classic Entrance Door Equal Sized French Door

FCD03-0
