Modi Clad
CNZ Insulation
All products
Modi Clad Render Less Tilt Angle2
Modi Clad Render Less Tilt
Modi Clad Roof Render
Description

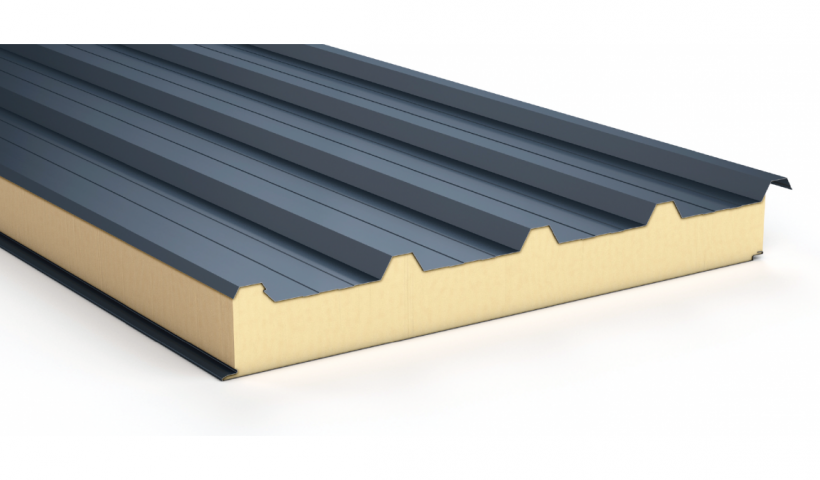

Insulated roof panel comprising a closed cell PIR insulated core with a pre-painted zinc aluminium coated steel skin on the exterior and fibreglass aluminium foil on interior faces. Each panel features an interlocking side joint and covers 1m. Available in lengths up to 16m in 50mm, 75mm, and 100mm thicknesses.

PIR R Values

  • 50mm:   R2.8
  • 75mm:   R4.0
  • 100mm: R5.3
Key Features
  • Fast, simple, safe install techniques.
  • Environmentally responsible systems — Zero ODP (ozone depletion potential), reduced carbon emissions
  • Energy-efficient performance reducing cost over the life of the building
  • Durable construction and long life cycle
  • Insulation maintains its integrity over time
  • Earlier building occupation generates vital cash flow
Categories
Metal Roofing
Ranges
Roof and Wall Panel
NZ Made
NZ Made
NZ-Owned Business
NZ-Owned Business
Scope of Use
  • Residential and commercial roofing
  • With excellent span and bracing capacity and panel lengths of up to 16m, design flexibility is significant
Statement of Building Code Compliance
  1. Fire Performance: AS1530.3 — Group 1-S
Other Performance Attributes
  • Fire Resistance: PIR will self-extinguish as soon as the cause of fire is removed. PIR foam is a thermosetting material. It does not melt, flow or drip when exposed to fire and it will form a strong char that helps protect the foam core and prevent flame spread within the panels
  • Insulation Properties: Due to the low heat conductibility of its fully formed closed cell structure, PIR is thermally efficient, allowing buildings to achieve premium levels of energy efficiency, with some of the thinnest available solutions
  • Durability: PIR does not sag or absorb moisture ensuring a consistent performance which will last the full lifetime of the building
C Protection from Fire compliant
Protection from Fire
Interior Fire Rating 1S
1S
Test Results
Test Results
Documents
Technical Manual (incl. Details)
pdf

CNZ Insulation Ltd offer a range of light-weight wall, roof and cool store panels for industrial, commercial and residential applications.
