High-Performance Steel Framing
Description

The roll-forming technology behind steel framing ensures a high degree of dimensional accuracy; resulting in consistently straight walls, square corners, and a beautifully streamlined finish. Steel will never warp or twist due to moisture changes, so it maintains this high-level finish throughout the life of the building.

With one of the highest strength-to-weight ratios of all construction materials, steel delivers excellent spanning capability. This makes it perfect for creating wide, open spaces; as well as innovative building shapes and non-conventional roof lines. It’s also ideal for building on sloping or difficult sites.

Key Features
  • AXXIS® delivers the ultimate in speed of frame construction and understand that time is money. Choose a framing system that reduces complexities and inefficiencies, saving time and cost. Get frames up faster, services in sooner, and onto the next stage of the job.
  • A framing system that is stronger in every way. Made in New Zealand by New Zealand Steel, AXXIS® is built for the toughest conditions and designed to last generations. For peace of mind that’ll stand the test of time.
  • For a smarter way to build. Dimensional integrity to ensure a precise and superior finish, every time.
  • Made by New Zealand Steel, who from 2026 will be manufacturing via an Electric Arc Furnace (EAF) — removing 1% of the country’s total emissions and producing lower carbon steel.
  • Galvanised to prevent corrosion & provide resilient protection when enclosed by the building envelope.
  • Prefabricated offsite, delivering minimal onsite waste.
LBC Declare Red List Free
LBC Declare Red List Free
NZ Made
NZ Made
Scope of Use
  • AXXIS® steel for framing is designed for use in residential and commercial structural framing applications.
  • The product is suitable for residential and low-rise construction up to 10m as described by NASH Standards Part 1 & 2: 2019, referenced as an Acceptable Solution by the NZBC clauses B1 and B2.
  • A broader range of applications are also achievable with fully engineered designs.
Statement of Building Code Compliance
  • B1 Structure: Structural capacities of the finished members should be obtained from the manufacturer.
  • B2 Durability: AXXIS® has a zinc coating in accordance with AS1397:2021. Durability of AXXIS® as a structural material can be determined by reference to the current Durability for AXXIS® publication.
  • C Fire: AXXIS® is rated as a Group 1-S material and has an average specific extinction area of 40.2 m²/kg, a peak heat release rate of 2.3 kW/m² and total heat released of 0.1 MJ/m² when tested in accordance with ISO 5660:2002 Part 1 and Part 2.
Other Performance Attributes
  • Made by New Zealand Steel, who from 2026 will be manufacturing via an Electric Arc Furnace (EAF) — removing 1% of the country’s total emissions and producing lower carbon steel.
  • Declare Red List Free
EPD
Environmental Product Declaration (EPD)
Documents
Product Information Sheet — AXXIS®
Performance Report
Axxis Red List Free Certificate
CAD/PDF Link
Brochure - AXXIS® High-Performance Framing

AXXIS® high-performance framing is the faster, stronger, smarter way to build. Made by New Zealand Steel, it’s precision engineered to save time on site, delivers superior strength and durability.

Product Enquiries

News from Axxis Steel

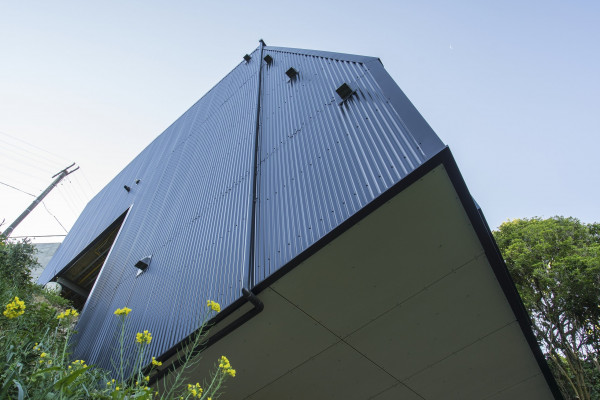

NZ Steel Products an Integral Part of Ground-Breaking 45 Degree Home
