VL-70S High Strength Screening Louvre
Description

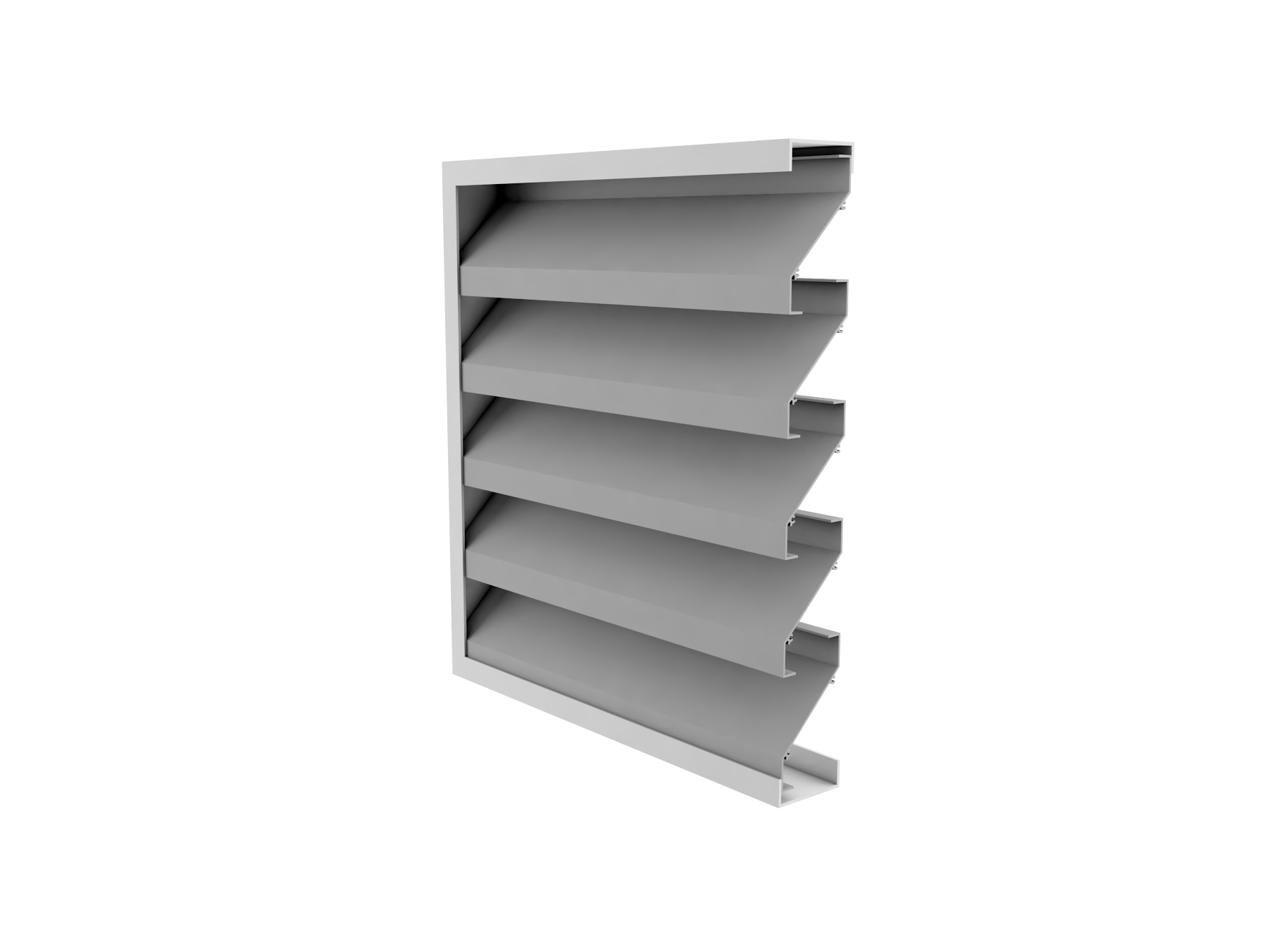

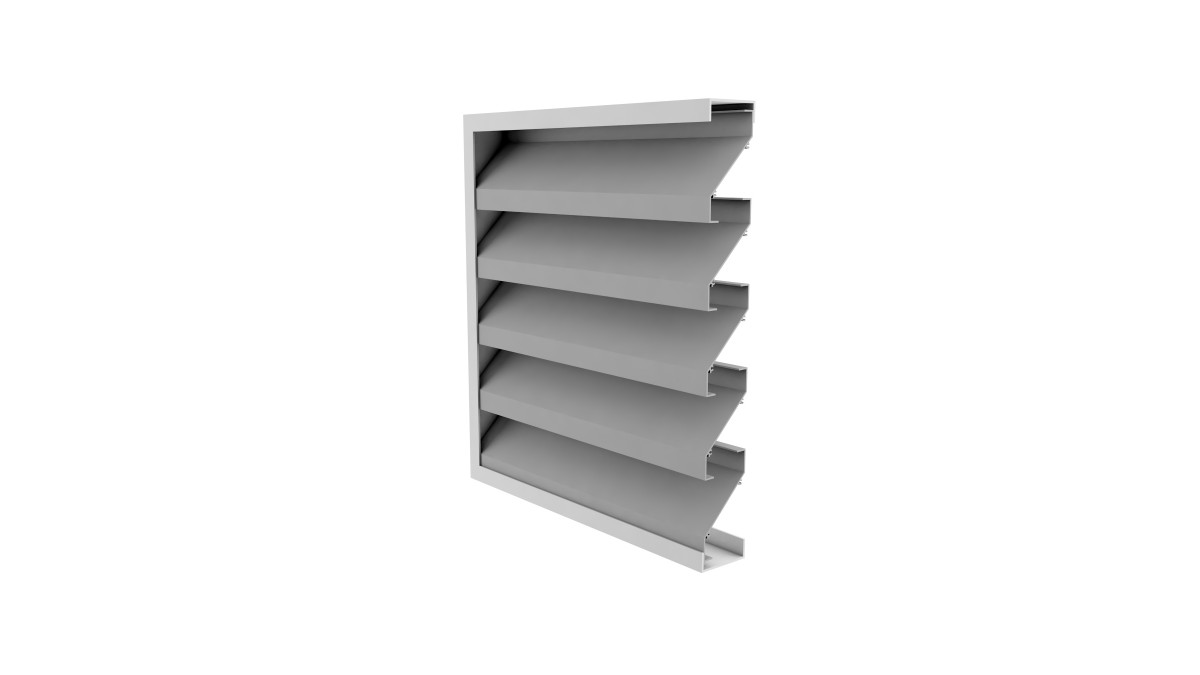

The Ventüer VL-70S aluminium louvre system provides a medium level of protection from wind driven rain. It is primarily designed to be a cost effective visual screening louvre, ideal for use in car parking buildings and around mechanical plant.

The rear of the louvre can be fitted with bird mesh, insect mesh or dust filters. Available in a wide range of standard powdercoat colours, the VL-70S is manufactured to order and can be fabricated in a wide range of sizes.

Key Features
  • Extruded aluminium construction, available in any standard powdercoat colour or anodising
  • Sturdy blade profile, suitable for high wind zones and for use as security screens
  • Can be fitted with ancillaries such as bird mesh, insect mesh, dust filters, mechanical dampers and plenums
Scope of Use
  • Designed for use as a screening louvre, as a decorative facade element or as a visual screen around mechanical plant enclosures
  • Constructed from extruded aluminium and suitable for salt-spray zones and other corrosive environments when powdercoated appropriately
  • Typically fixed directly to primary building structure such as walls or columns
  • Sturdy blade profile, suitable for high wind zones and for use as security screens
  • Can be fitted with ancillaries such as bird mesh, insect mesh, dust filters, mechanical dampers and plenums



Limitations on Use

Water ingress from wind driven rain can be substantial if exposed to high winds or situated where cross flow can occur (i.e. having louvres on both sides of an empty building such as a storage facility). If interior linings or equipment within the building can be damaged by exposure to water, consider using the double bank VL-2SD louvre system instead.

Installation Requirement

Installation requirements for the VL-70S louvre system vary dependent on the site wind loads, louvre panel sizes, cladding type and primary structure detailing. Ventüer provides full shop drawings for all installations which show sequencing, fixing type and sizing, flashing requirements and sealant details. Installers should make themselves fully conversant with these shop drawings prior to installation commencing.

Statement of Building Code Compliance
  • When sized correctly, the VL-70S louvre system complies with the requirements for natural ventilation of buildings under the New Zealand Building Code clause G4
  • When installed in accordance with Ventüer technical literature, shop drawings and site-specific engineering the VL-70S louvre system complies with the requirements for structure under the New Zealand Building Code clause B1
  • When installed in accordance with Ventüer technical literature and shop drawings the VL-70S louvre system complies with the requirements around external moisture as outline in New Zealand Building Code clause E2
In-Service History

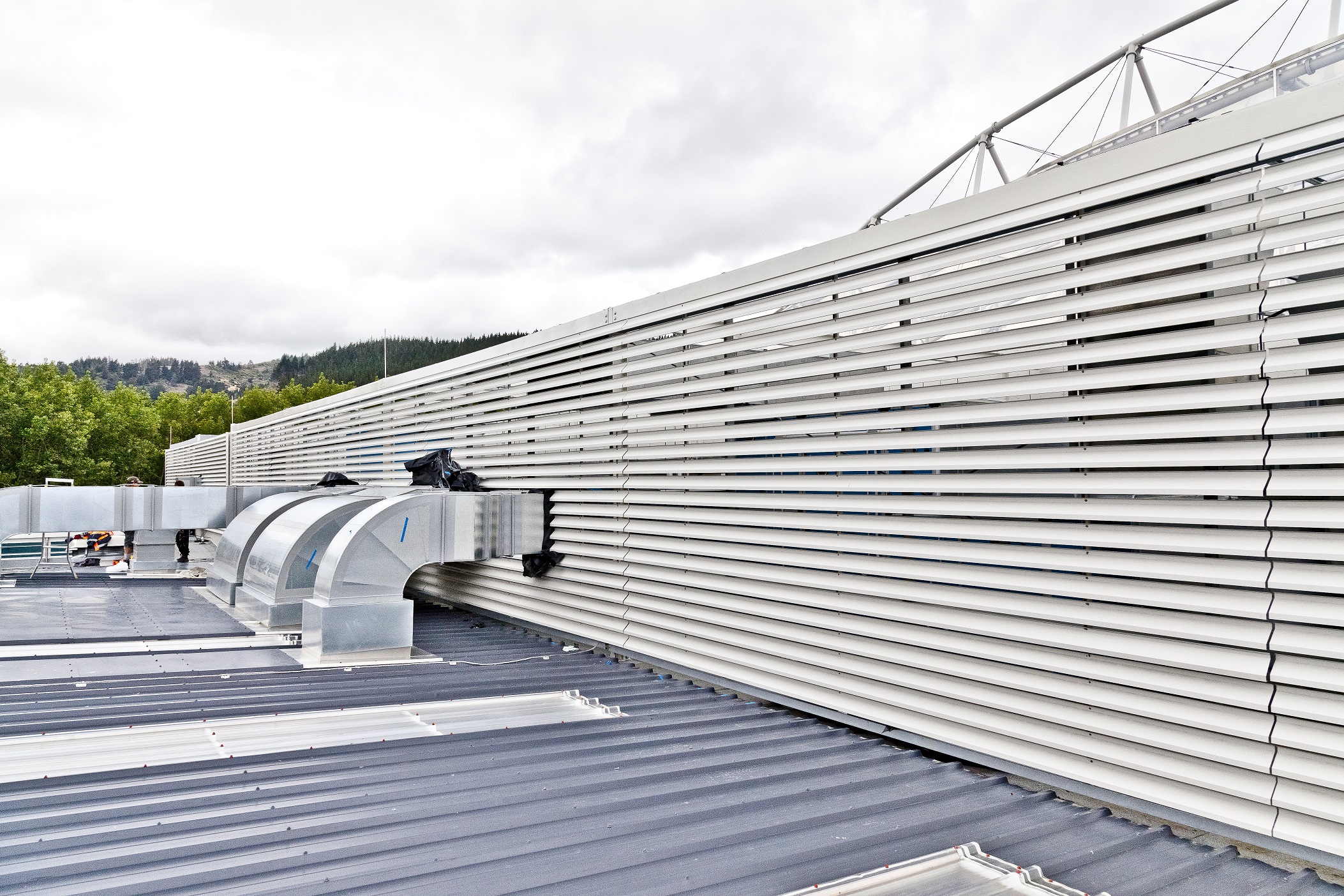

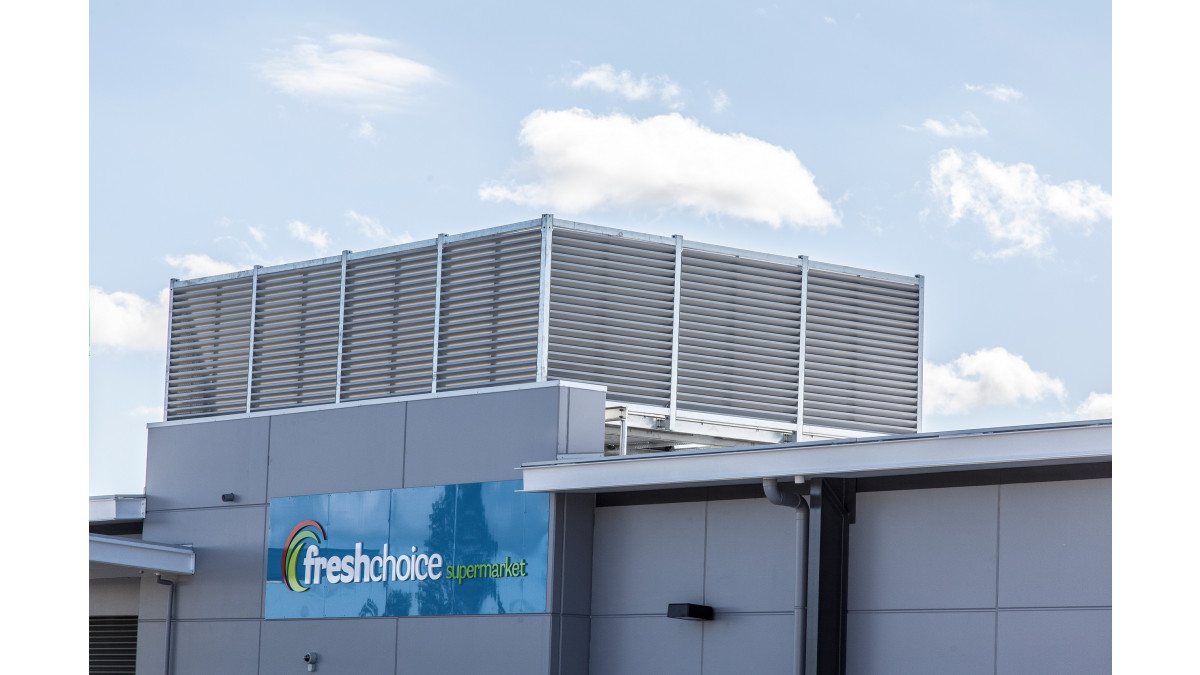

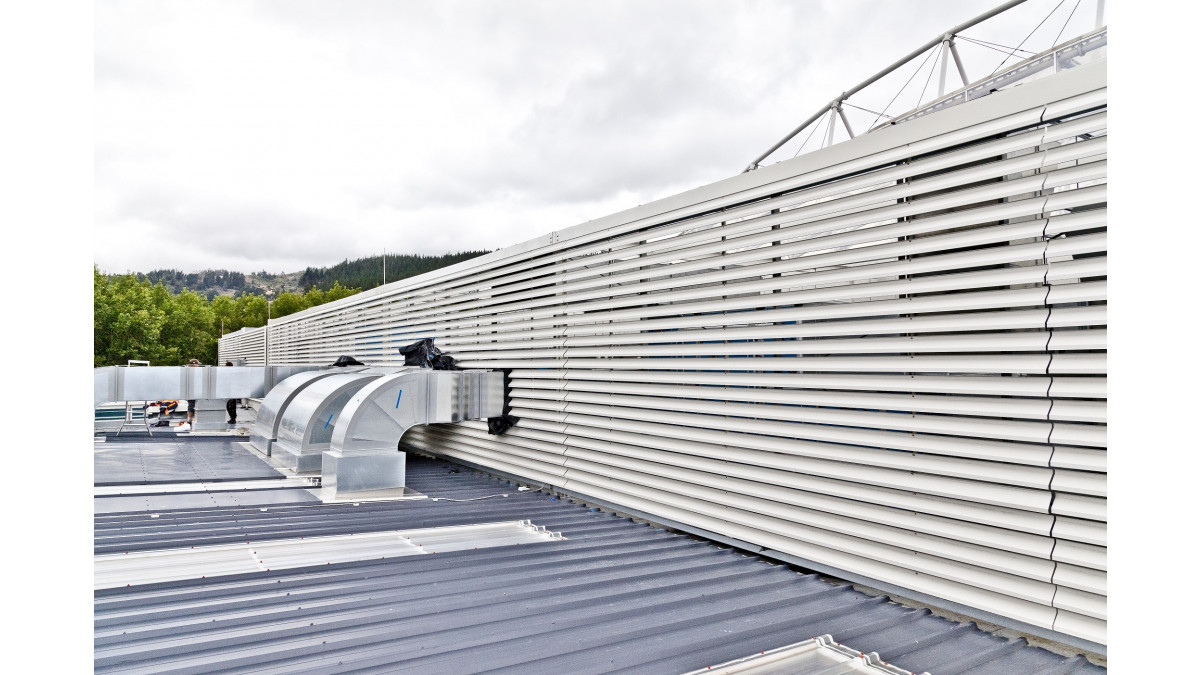

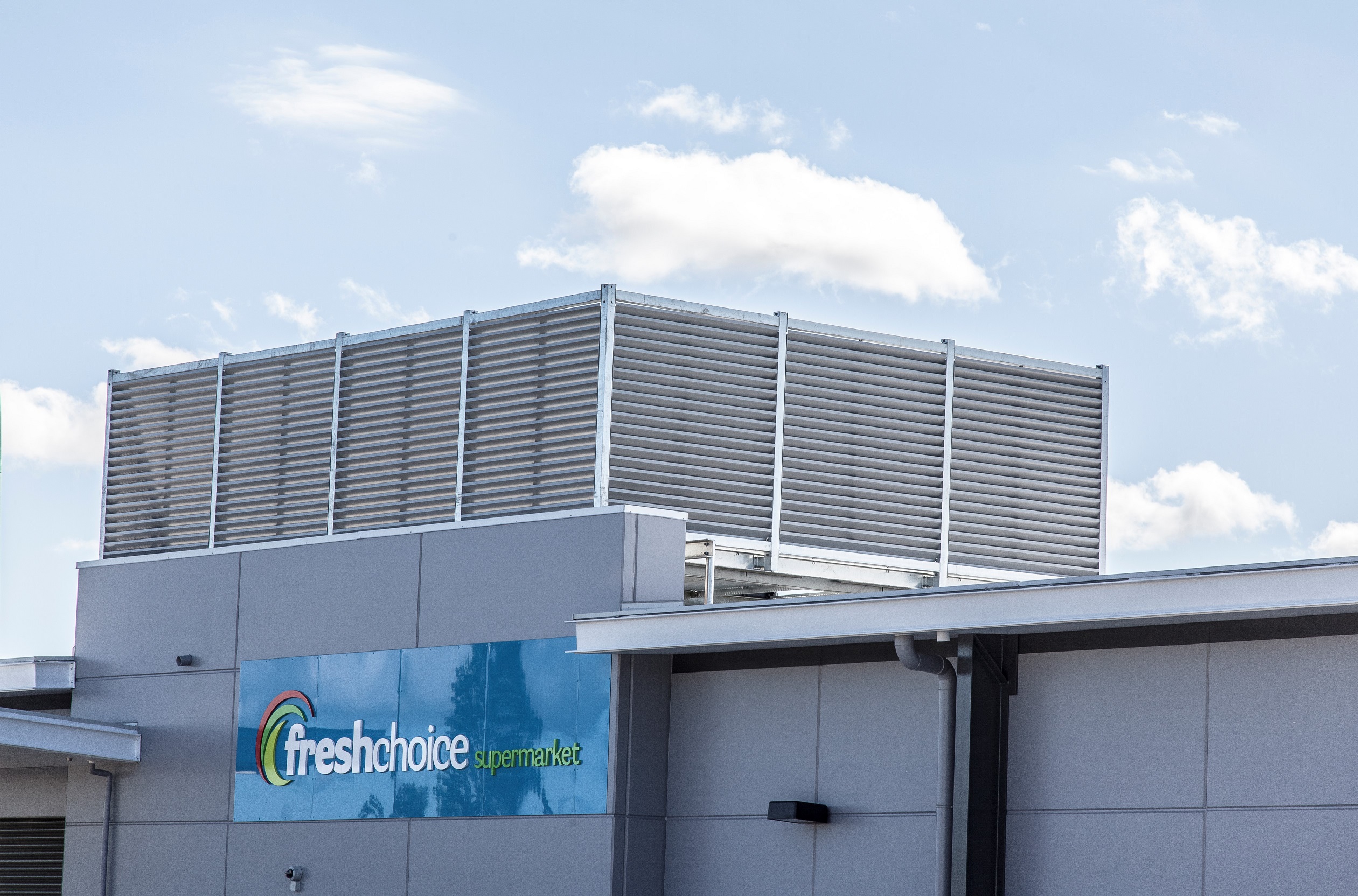

The VL-70S louvre system was developed in New Zealand in 2010. Since that time it has been used extensively on a wide range of projects including multi-story carparks, apartments, retail developments and industrial buildings throughout New Zealand. Refer to the Ventüer website for detailed case studies.

Other Performance Attributes

Engineered to withstand site-specific structural, seismic and wind loads in accordance with NZS:1170.

Fixings, flashings and sealant details are designed to comply with NZ Building Code Clause E9.

Warranty and Maintenance

Warranty information and maintenance requirements to comply with B2 can be found in the Ventüer Aluminium Ventilation Louvre Operation & Maintenance Manual.

Environmental Information

All Ventüer ventilation louvre systems are fabricated from aluminium which is extruded locally here in New Zealand. The majority of this aluminium is "green aluminium", meaning that the electricity for smelting is supplied from renewable energy sources (such as is the case with Tiwai Point, which relies on hydro-power).

Any waste generated during manufacture is fully recycled, as can be any louvres at the end of their useful life.

All powdercoating of louvre components is carried out by certified applicators and the use of chromate treatment processes is strictly avoided.

Effective use of passive ventilation devices such as louvre systems can significantly reduce the energy consumption of a building, reducing both its carbon footprint and whole of life cost.

Documents
Ventuer Ventilation Louvres Manual

2022

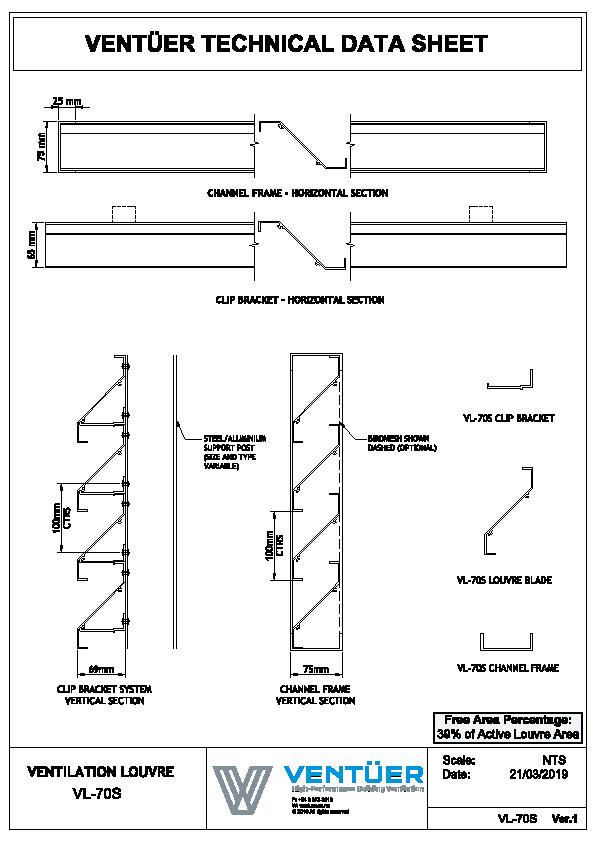

Data Sheet: VL-70S
Ventuer Aluminium Ventilation Louvre Operation & Maintenance Manual
Ventilation Louvre Structural Fixing Guide

VL-PFSG v1

Ventuer Powdercoat Colours

2018

Ventilation Case Studies
CAD/PDF Details
VL-70S Data Sheet

VL-70S

Installation Details

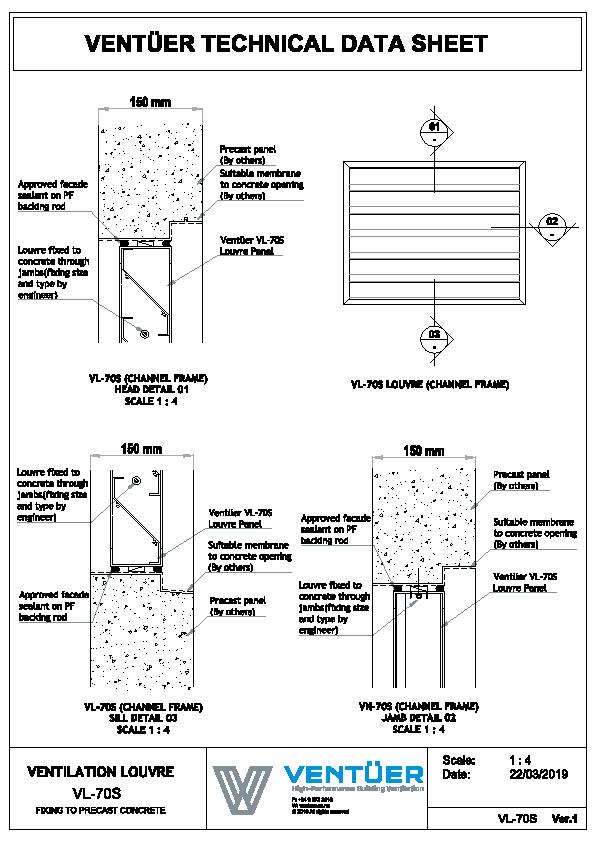

VL-70S Fixing to Precast Concrete
