Balustrades
Description

Louvretec has extended its range of operable balustrade systems.  The blades must run vertically to prevent any climbing toe holds and offer an opening of less than 100mm when the blades are open.  To also meet compliance the blades must be installed within an approved balustrade frame and post system of 1m minimum height. Choose from the following options:

  • Balustrade with Motorised, vertically placed Louvre blades (available using the 120mm Louvreline or Flush or weatherboard Louvre blades)
  • Balustrade with hand operable, vertically placed 70mm or 90mm Louvre blades using the Kiss Pivot system. To meet compliance the blades must be installed within an approved balustrade frame and post system of 1m in height

Please confirm all Balustrade details with local regulatory authority prior to balustrade installation.

NZ Made
NZ Made
Scope of Use
  • A barrier is required when someone could fall vertically 1m or more
  • Balustrade or barrier must be 1m high and of adequate strength to copy with people pressing against it
  • Ensure nowhere on the balustrade a child can get a foothold between 150mm and 750mm above the deck surface to climb over the balustrade or fall through it
  • In NZ the maximum opening between balustrade verticals is 100mm. Refer details to our 135mm Hi-Span Balustrade Louvre
  • In Australia the maximum opening between balustrade verticals is 125mm. Refer details to our 165mm Hi-Span Balustrade Louvre
NZS 3604 Corrosion Zone D suitable
Corrosion Exposure Zone D
NZS 3604 Earthquake Zone Very High suitable
Very High Earthquake Zone
NZS 3604 Wind Zone Specific Design suitable
Specific Design Wind Zone
Literature
Drawings
CAD
Product Assurance
Maintenance Instructions
Product Guide Warranty
Warranty
Other Literature
Lourvetec Product Guide
Louvretec Product Range
Online Product Guide: Balustrades, Gates, Chimney Surrounds
Product Guide: Balustrades, Gates, Chimney Surrounds
CAD/PDF Details

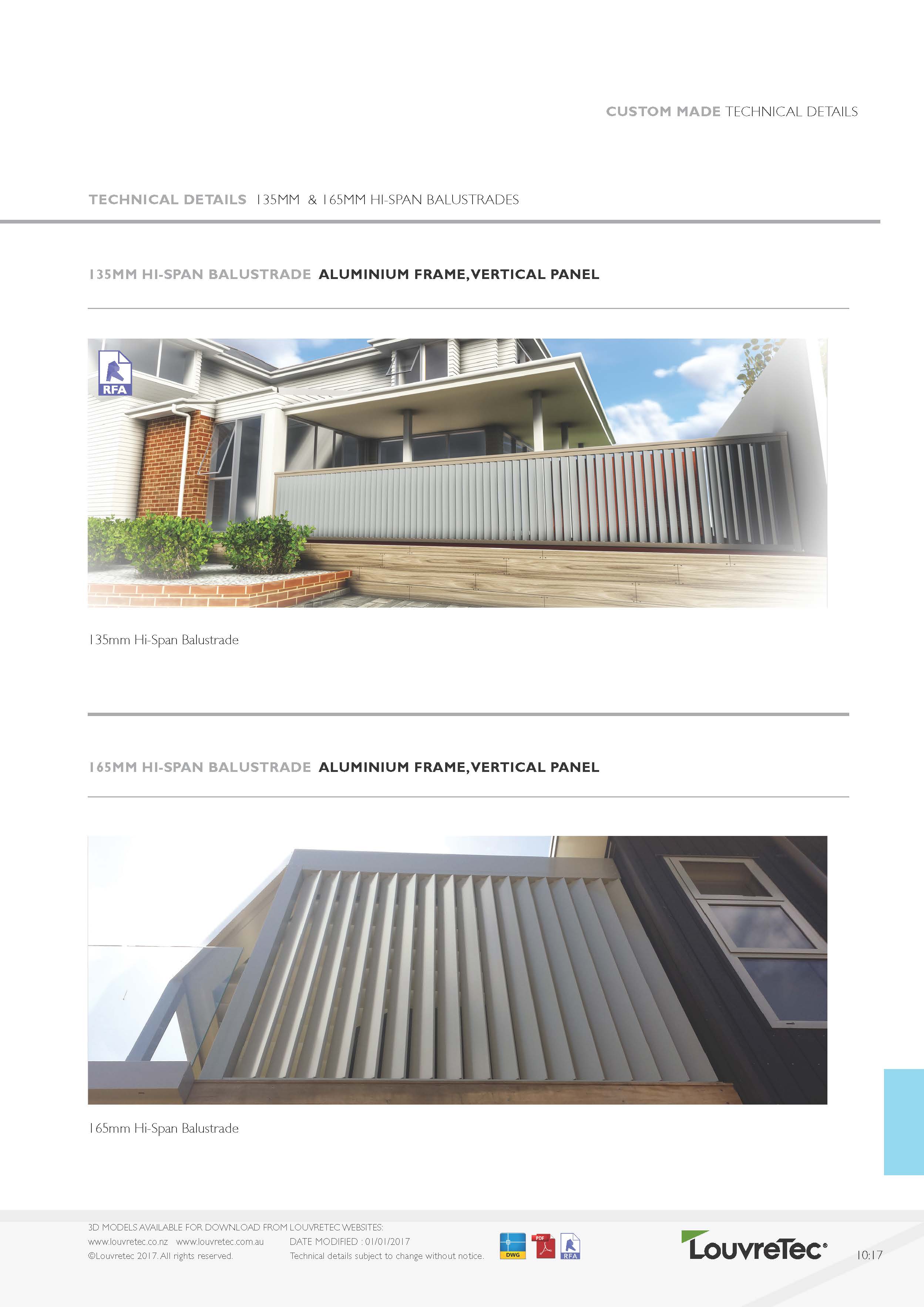

135mm Hi-Span Balustrade

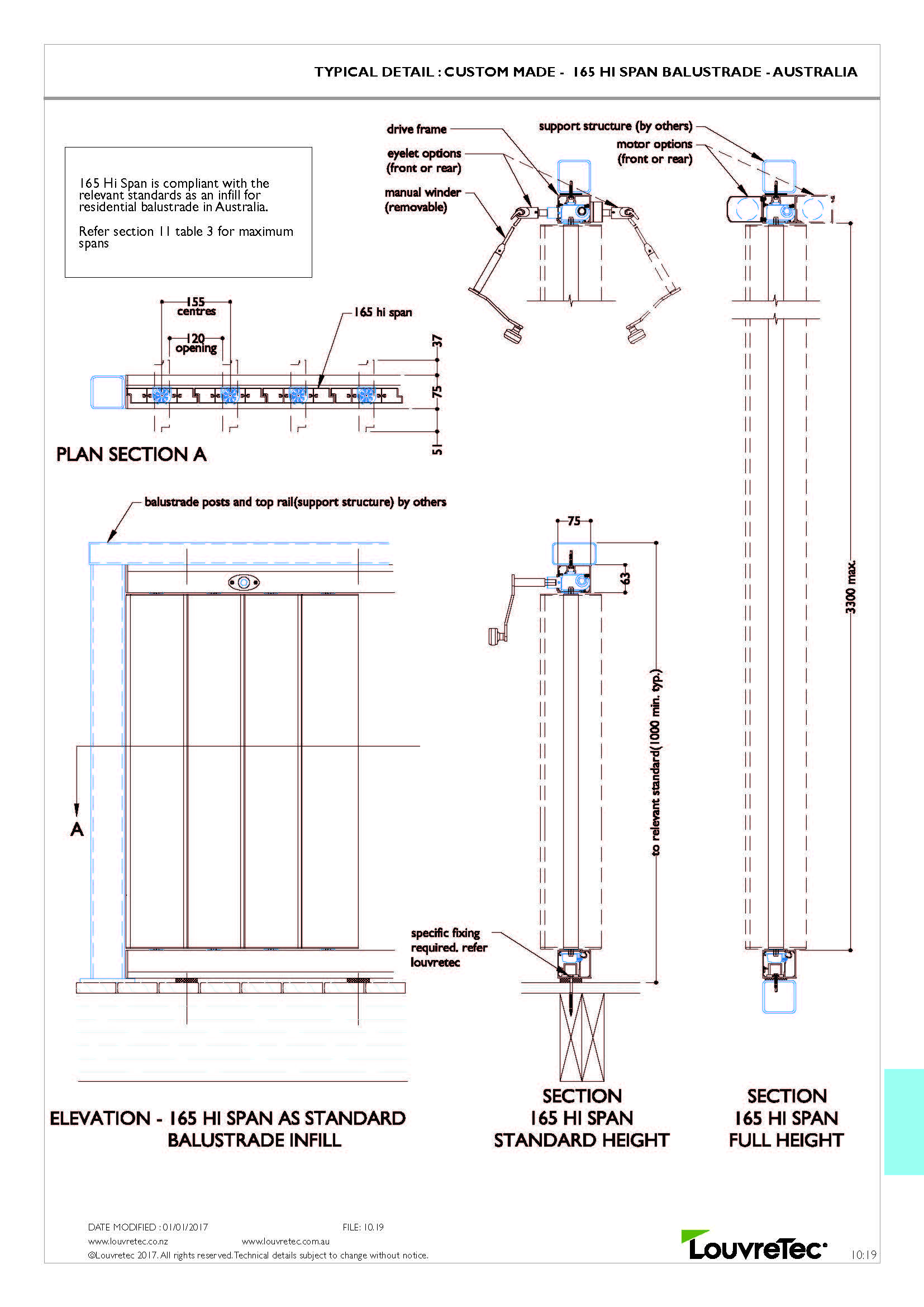

Typical Detail 165 Hi-Span Balustrade - Australia

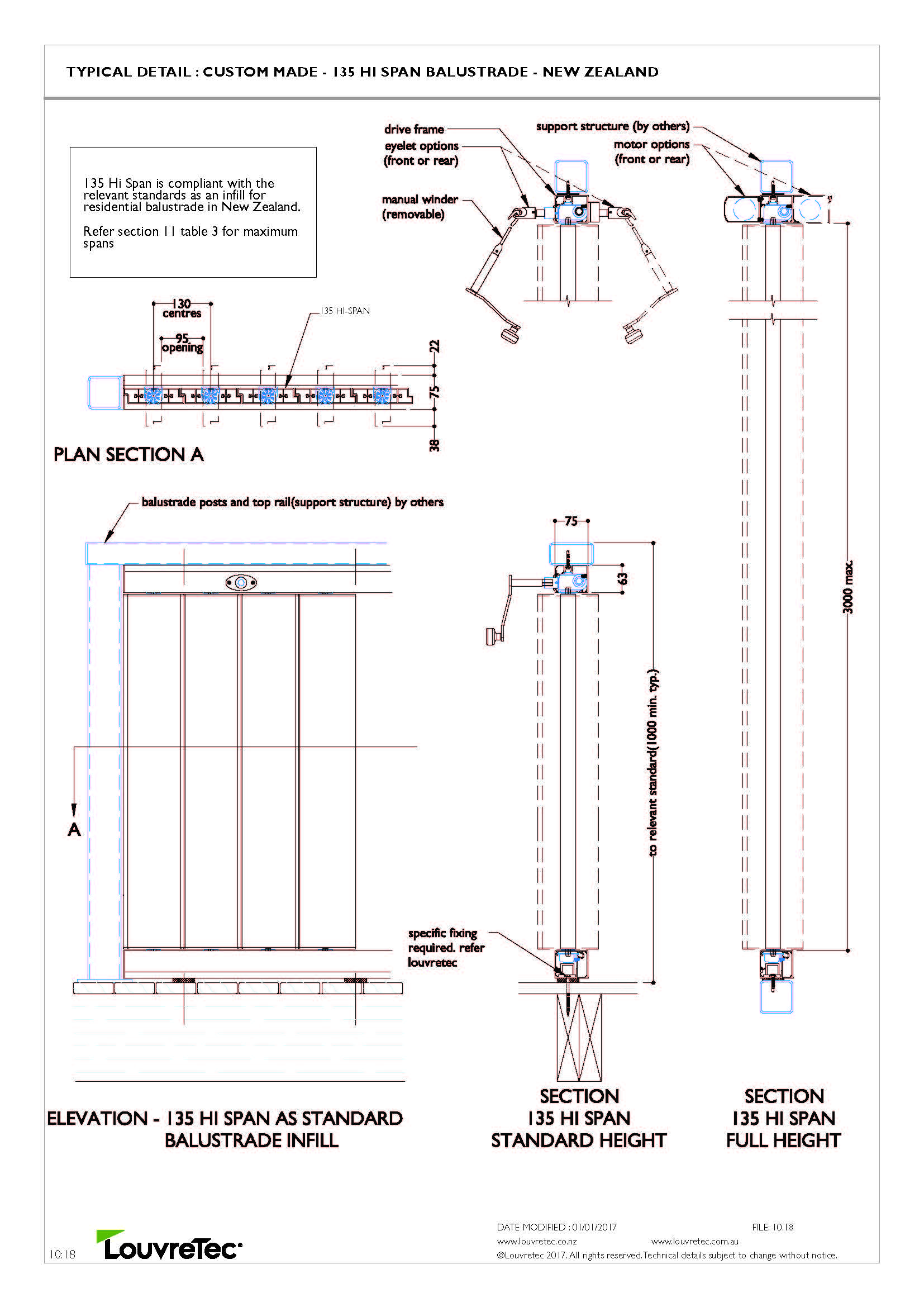

Typical Detail 135 Hi Span for New Zealand
