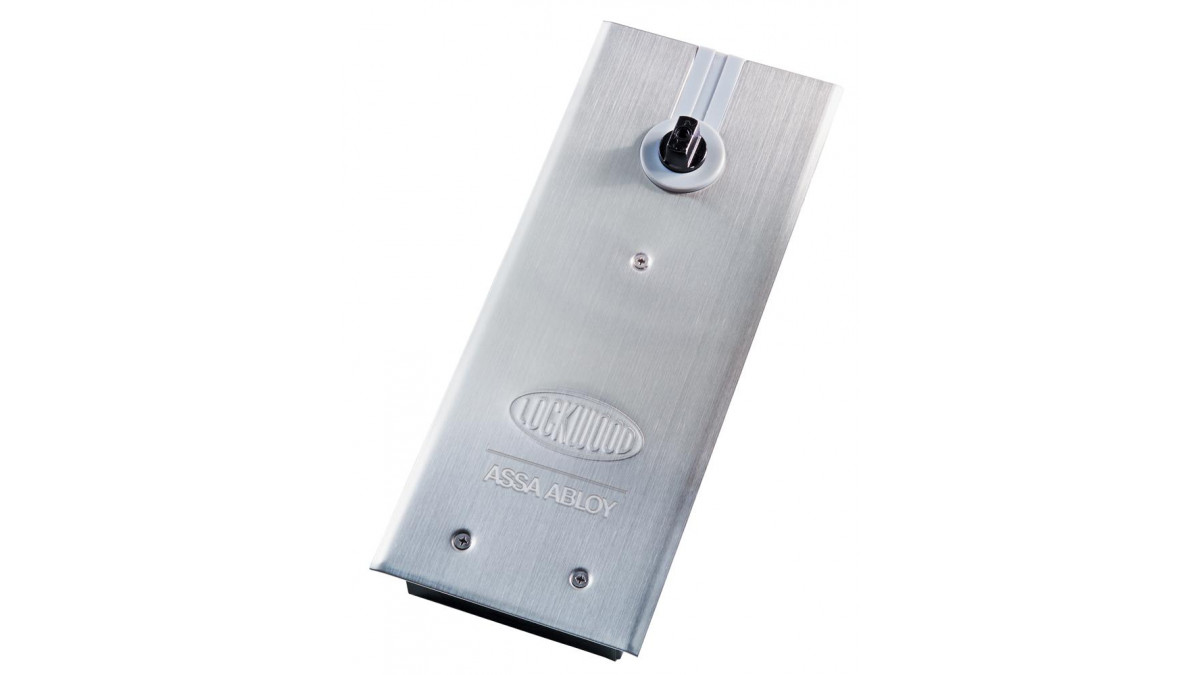

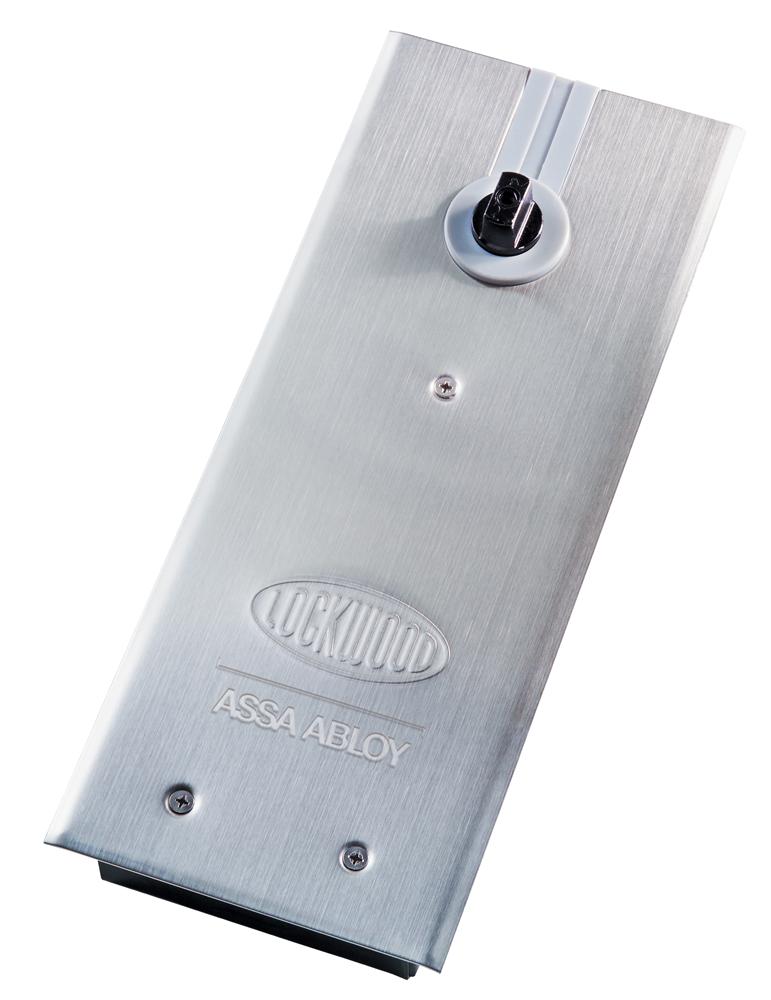

Lockwood Door Closers: 8800 Series Floor Closer
ASSA ABLOY
All products
8800

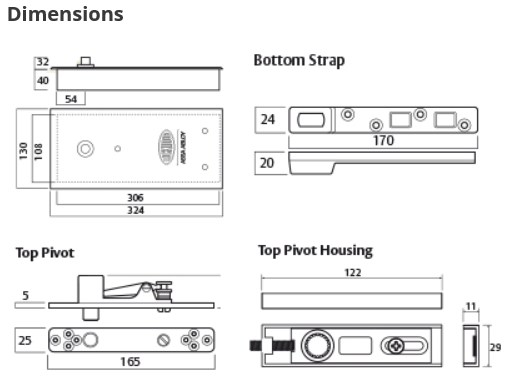

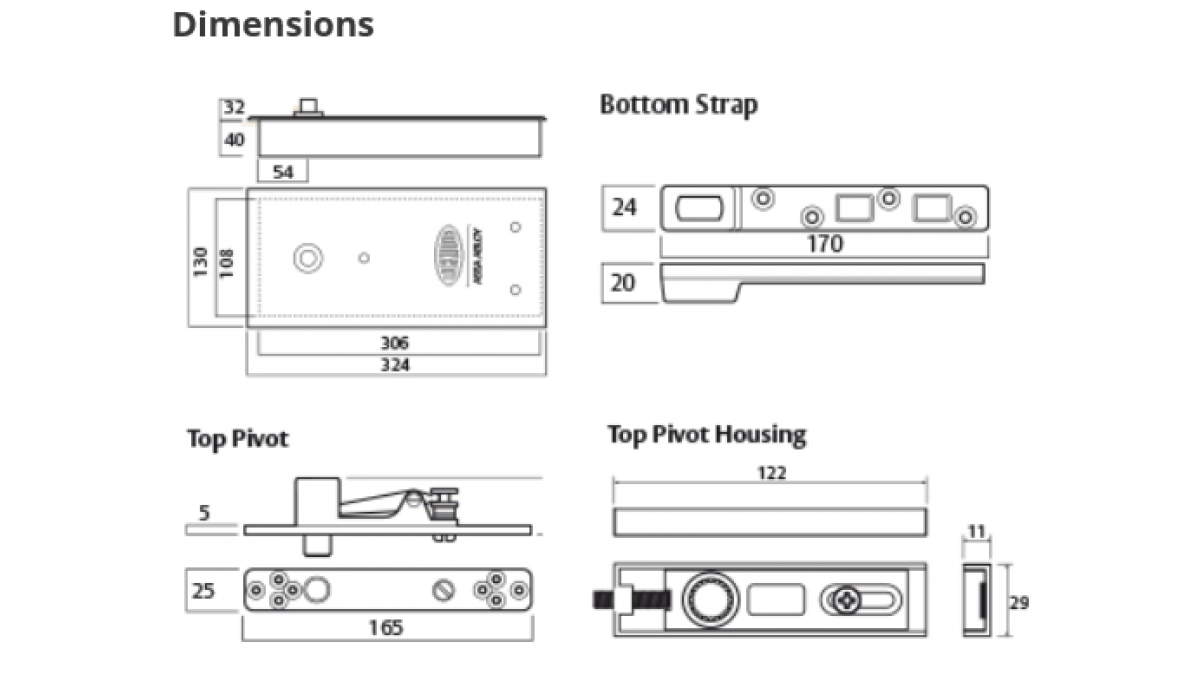

L8800 Dimensions
Description

The Lockwood 8800 Series Floor Closers are designed to provide door control on manually operated double action doors in a wide range of commercial applications. The mounting kit provided with the Lockwood 8800 Series will suit glass, timber and aluminium frame door construction as standard.

Key Features
  • Door adjustment: The Lockwood 8800 is positionally adjustable for a height of 4mm, a width of 10mm and a length of 9mm
  • Door control: Two independent adjustment valves provide full hydraulic control from 130˚ to 15˚ of closing and 15˚ to 0˚ of latching
  • Door frame type: Timber/aluminium/steel
  • Door thickness: Minimum for timber 32 mm
  • Door weight: Up to 120kg as standard
  • Door width: Up to 1150mm (refer to selection procedure)
  • Finishes: Stainless Steel (SSS) / Gold (GLD) / Polished Stainless Steel (PSS) / Other finishes on application
  • Hold-open: Available in both non hold-open and holdopen versions. Mechanical hold-open 90˚ and 105˚ in separate units
Categories
Door Closers
Ranges
Door Closers
Scope of Use
  • Suitable for door applications where a free swing pivot door is required. Consists of retractable top pivot set with heavy duty bottom pivot and strap.
  • Suitable for aluminium, glass and timber doors.
  • Available in both non hold-open and hold-open versions. Mechanical hold-open in 90˚ and 105˚ in separate units.
Limitations on Use
  • Max door width 1150mm
  • Max door weight 120kg
  • Minimum door thickness (for timber) 32mm
Documents
Brochure
pdf
Additional Information
URL

ASSA ABLOY specialise in door opening solutions, dedicated to satisfying end-user needs for security, safety and convenience.
