OmniCore: The Heart of Multi Room Heating or Cooling

Standard heat pump systems, with their one-to-one indoor and outdoor unit setup, can often constrain outdoor space, especially in medium to high-density developments like townhouses and apartments. Mitsubishi Electric OmniCore offers the ability to connect multiple indoor units to a single outdoor unit, giving back valuable exterior real estate space and enabling an uncluttered aesthetic.

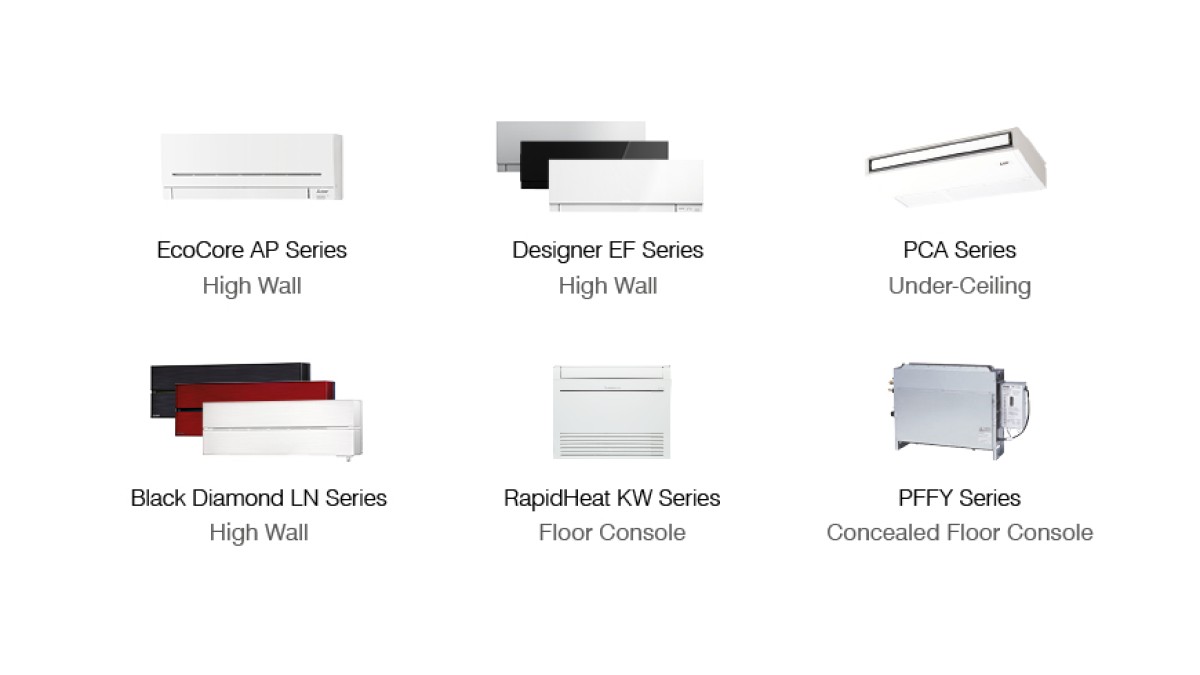

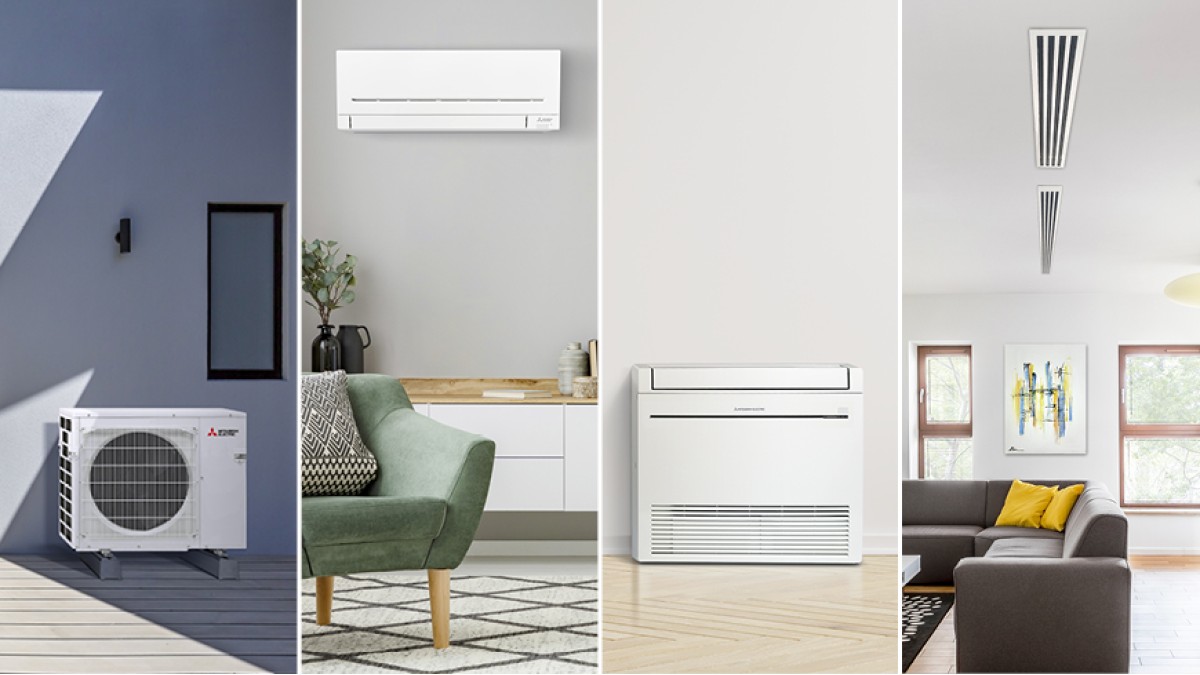

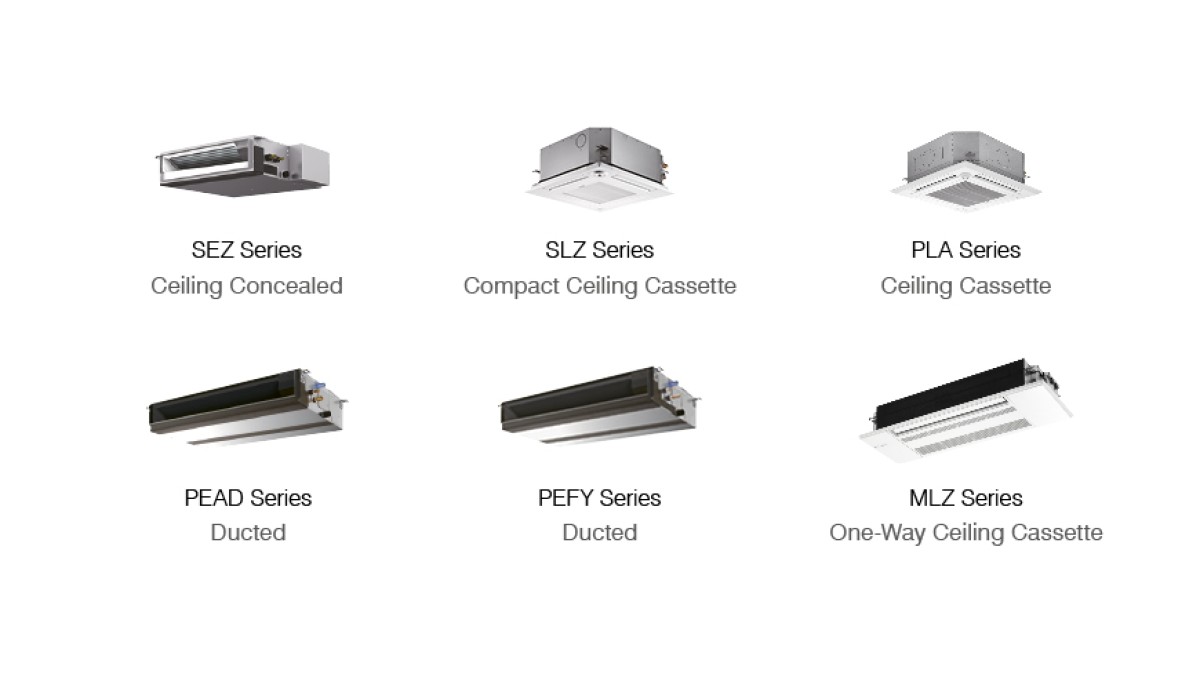

In addition to making the most of a limited outdoor area, an OmniCore Multi Room System helps maintain the integrity of your architectural vision, with over 80 different indoor units to choose from. Options range from high walls, floor consoles, ducted systems, to cassettes, providing you with the flexibility to mix and match units to best fit your design.

Multiple outdoor units are available depending on the scale of your project and future needs. Choose from small to medium residential and light commercial range the OmniCore Classic or for large residential and commercial buildings the OmniCore Pro range.

The competition has now closed. For more information on OmniCore, please contact Mitsubishi Electric.

OmniCore Classic Multi Room Heat Pump Systems — Small to Medium Residential Homes

Mitsubishi Electric

View Product

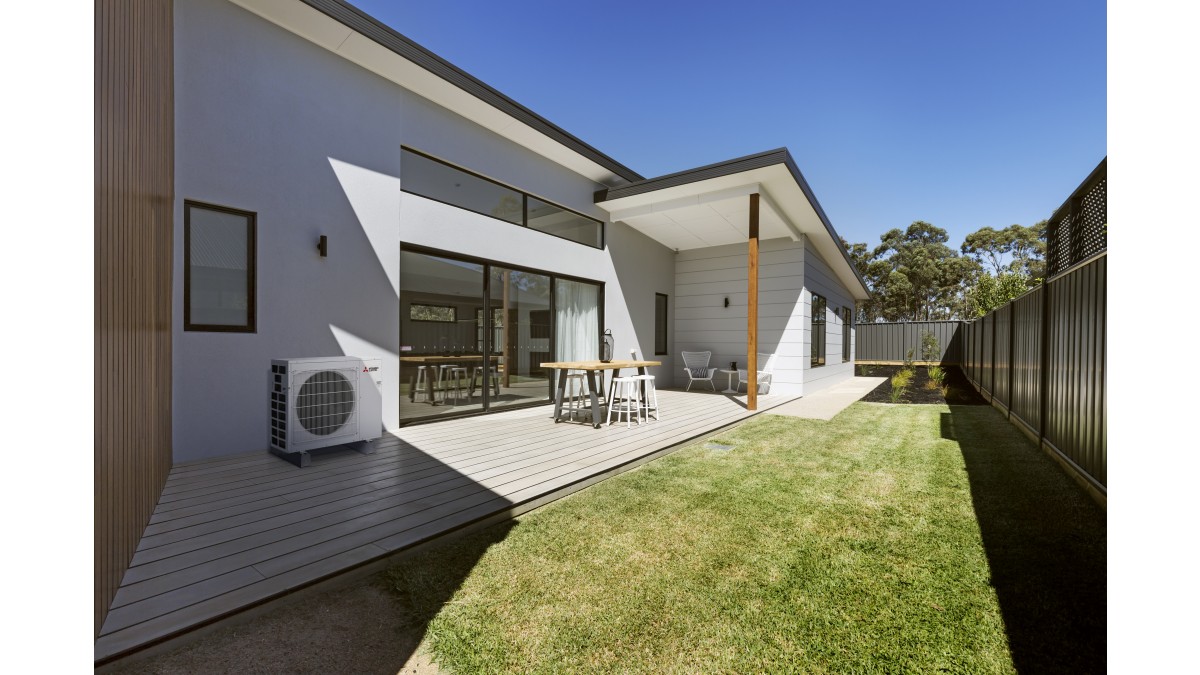

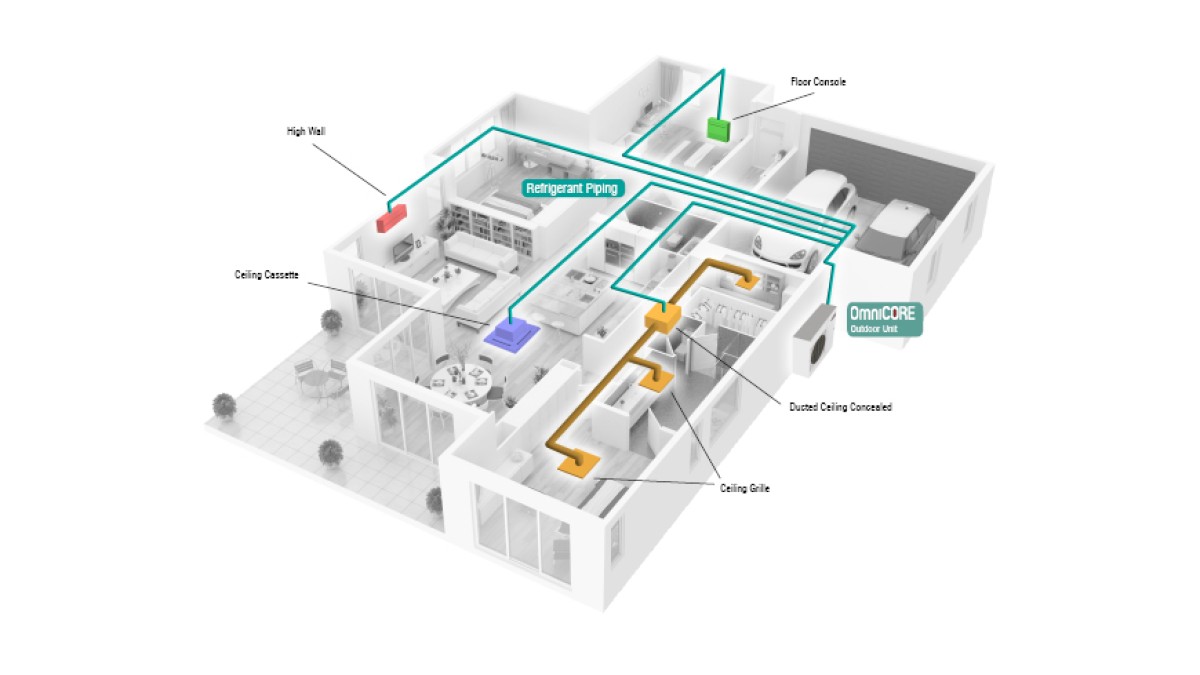

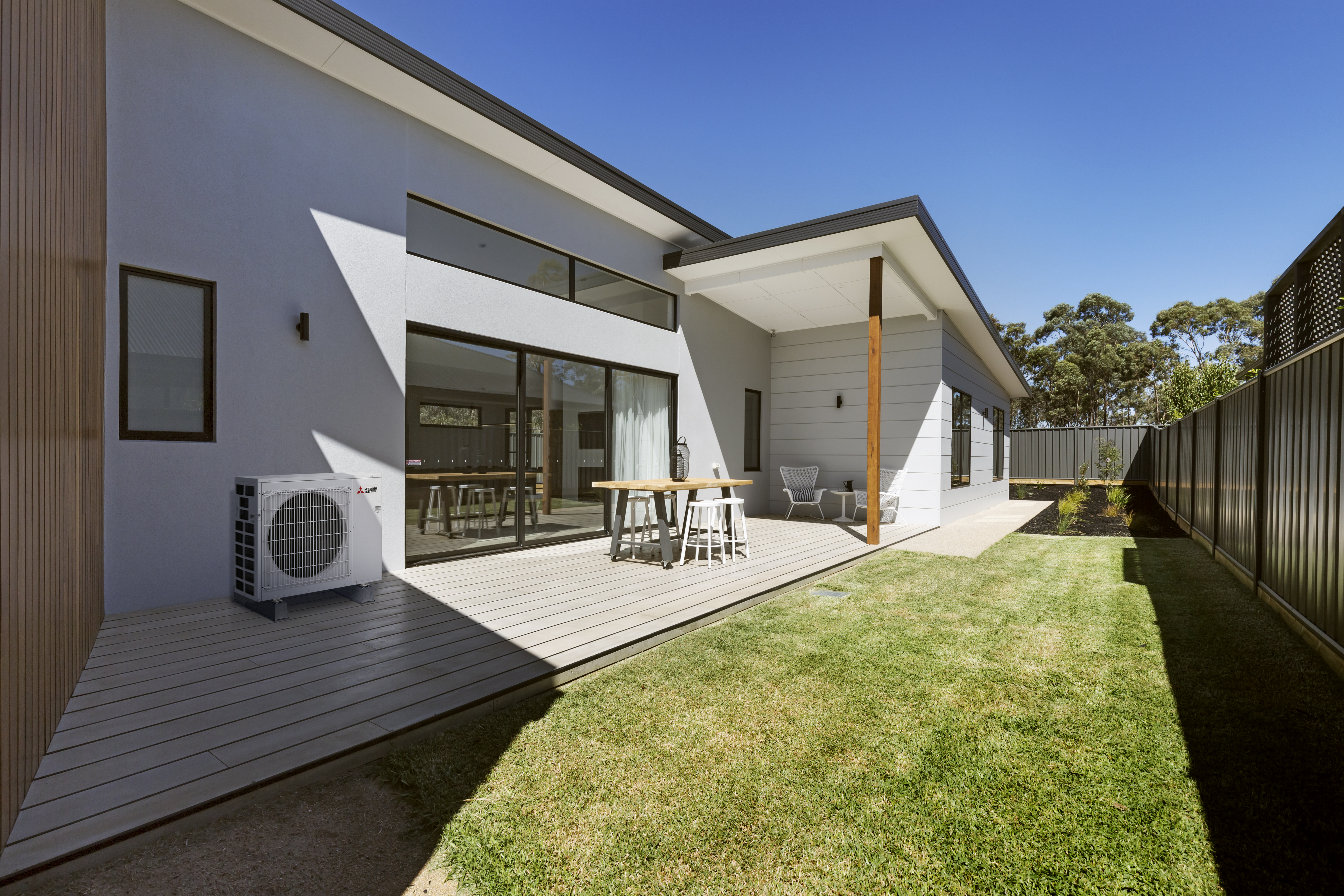

While a standard heat pump system consists of a single indoor and outdoor unit, an OmniCore Multi Room Heat Pump System provides a whole home heating or cooling solution by connecting multiple indoor units to a single OmniCore outdoor unit.

A Mitsubishi Electric OmniCore Multi Room Heat Pump System offers the flexibility to choose the perfect heat pump for each room with just one OmniCore outdoor unit. Intended to minimise the clutter of having several outdoor units outside while also offering flexible design opportunities and individual room temperature control — it's an ideal solution for small to medium-sized homes, townhouses and apartments.

OmniCore Classic — MXZ Range (R32) of Outdoor Units:

MXZ-2F52 (6.1 kW Heating) Connect 2 indoors
MXZ-3F54 (7.0 kW Heating) Connect 2-3 indoors
MXZ-4F71 (8.0 kW Heating) Connect 2-4 indoors
MXZ-4F80 (8.8 kW Heating) Connect 1-4 indoors
MXZ-5F100 (10.0 kW Heating) Connect 1-5 indoors
MXZ-6F120 (13.2 kW Heating) Connect 1-6 indoors

Final outdoor unit selection will be affected by several different factors:

The combination of rooms and their location, as well as operating use, will determine which of the proposed models required
In many cases, an outdoor unit with a lower heating capacity may be adequate where not all indoor units are required to operate at full capacity simultaneously
If considering adding more indoor units in the future, in the interests of future-proofing, it may be best to select an outdoor unit capable of providing more heating capacity than is currently required

Also note:

OmniCore Classic refrigerant piping is extendable up to 25m per indoor unit (MXZ-2F52 up to 20m)
Optional Corrosion Protection Service to reduce the likelihood of premature corrosion in coastal environments

The full range of Mitsubishi Electric products have been tested and registered in accordance with MEPS (Minimum Energy Performance Standards) requirements.

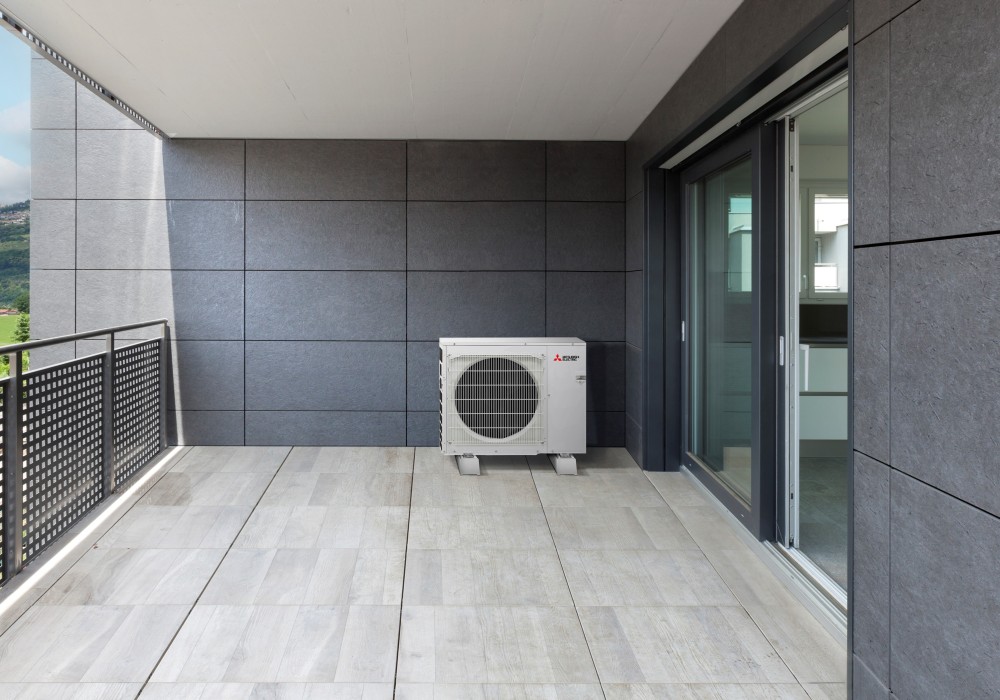

It is also important to note that any heat pump outside unit installed without a compliant cover within 1.2m of a balcony rail will fall outside of these requirements.

Mitsubishi Electric highly recommend Heat Pump Covers Ltd products in these situations, and have many examples of successful OmniCore installations on multi-story apartment balcony spaces using Heat Pump Covers Ltd products.

OmniCore Pro Multi Room Heat Pump Systems — Large Residential & Light Commercial

Mitsubishi Electric

View Product

While a standard heat pump system consists of a single indoor and outdoor unit, an OmniCore Pro Heat Pump System provides heating or cooling in multiple rooms by connecting up to 8 indoor units to a single OmniCore outdoor unit.

A Mitsubishi Electric OmniCore Multi Room Heat Pump System offers the flexibility to choose the perfect heat pump for each room with just one OmniCore outdoor unit. Intended to minimise the clutter of having several outdoor units outside while also offering flexible design opportunities and individual room temperature control — it's an ideal solution for larger homes, offices and other light commercial applications:

OmniCore Pro — PUMY-SP Range (R410A) of Outdoor Units:

PUMY-SP80 (10.0 kW Heating) Connect 2-7 indoors
PUMY-SP112 (14.0 kW Heating) Connect 2-8 indoors
PUMY-SP125 (16.0 kW Heating) Connect 2-8 indoors
PUMY-SP140 (16.5 kW Heating) Connect 2-8 indoors

Final outdoor unit selection will be affected by several different factors.

The combination of rooms and their location, as well as operating use, will determine which of the proposed models required
In many cases, an outdoor unit with a lower heating capacity may be adequate where not all indoor units are required to operate at full capacity simultaneously
If considering adding more indoor units in the future, in the interests of future-proofing, it may be best to select an outdoor unit capable of providing more heating capacity than is currently required

Optional Corrosion Protection Service to reduce the likelihood of pre-mature corrosion in coastal environments.

The full range of Mitsubishi Electric products have been tested and registered in accordance with MEPS (Minimum Energy Performance Standards) requirements.

It is also important to note that any heat pump outside unit installed without a compliant cover within 1.2m of a balcony rail will fall outside of these requirements.
