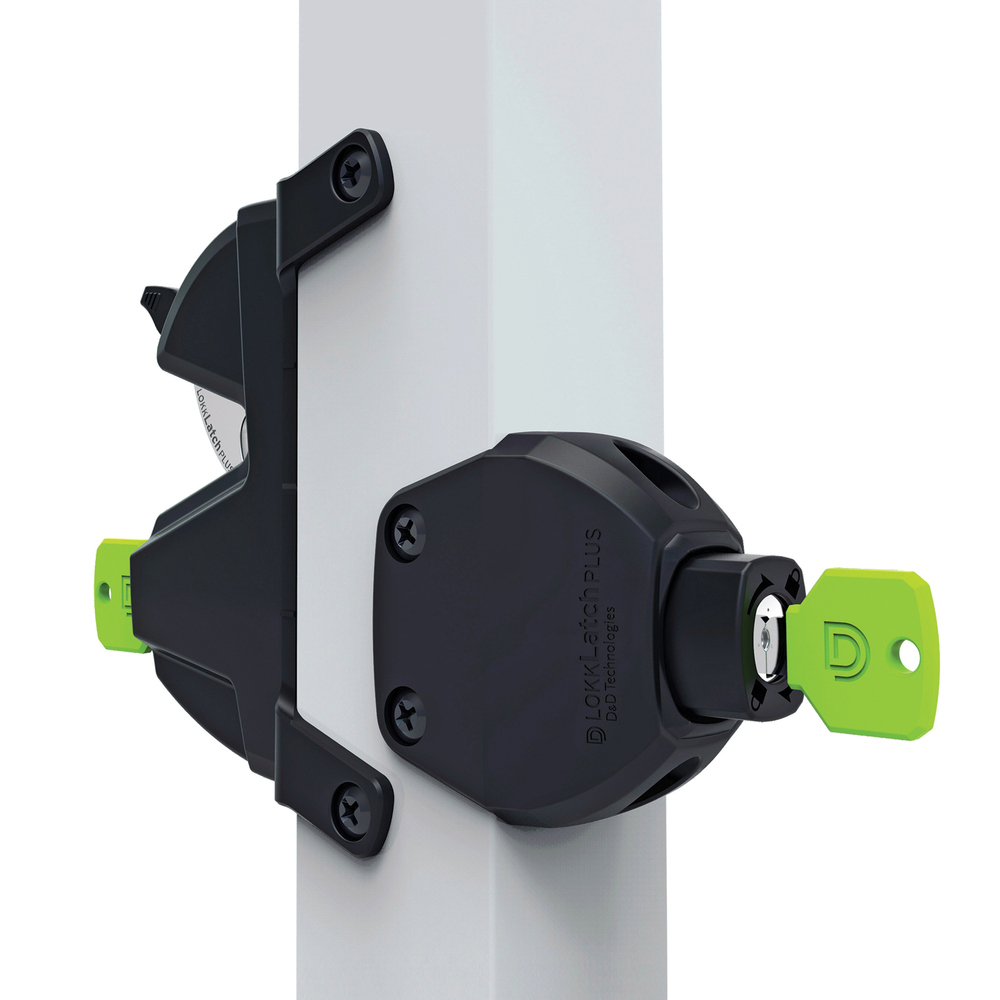

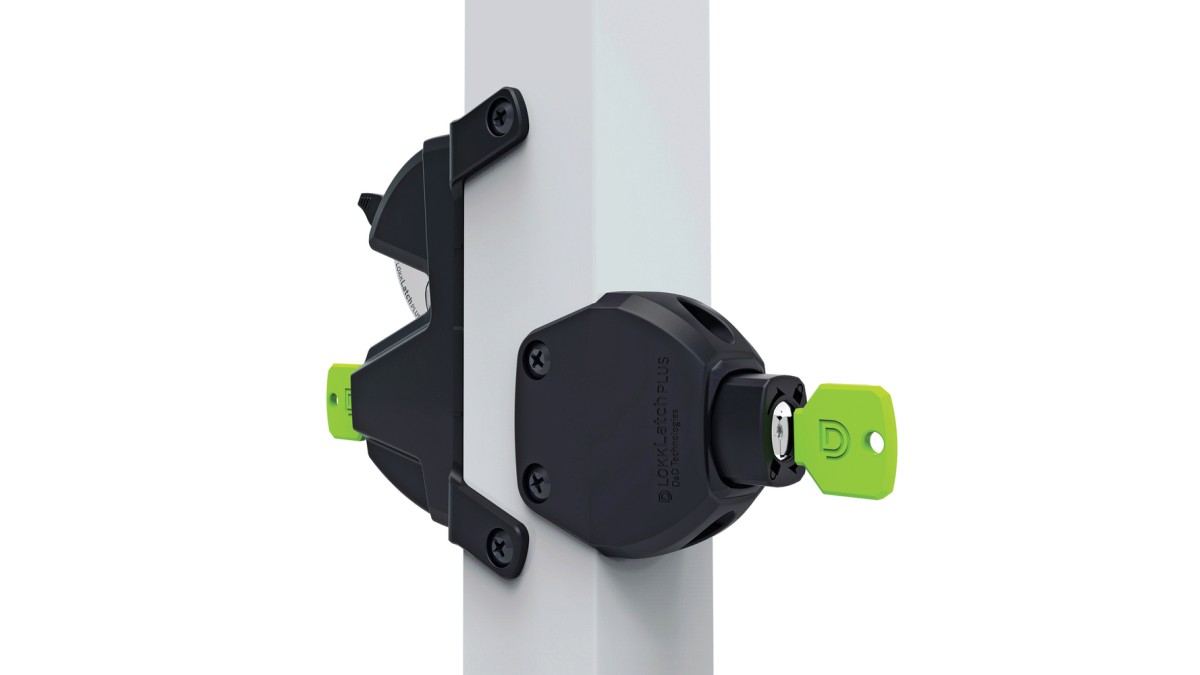

D&D Technologies Lokklatch® Plus Latch
Description

LokkLatch® Plus is the ideal general-purpose gate latch for many gates around home, gardens and back yards. It takes a radical new approach to the gravity latch principle and combines the benefits of key-lockability and reliable latching action with superior design and durable components.

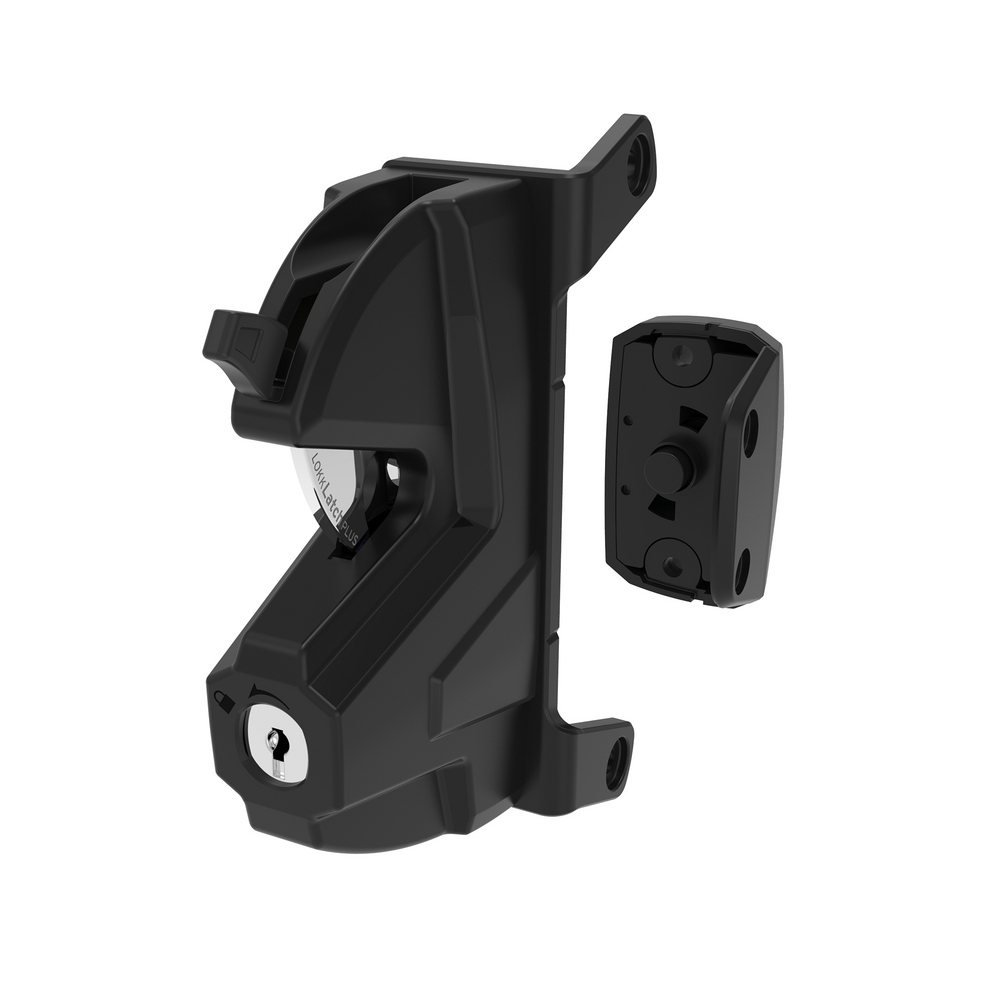

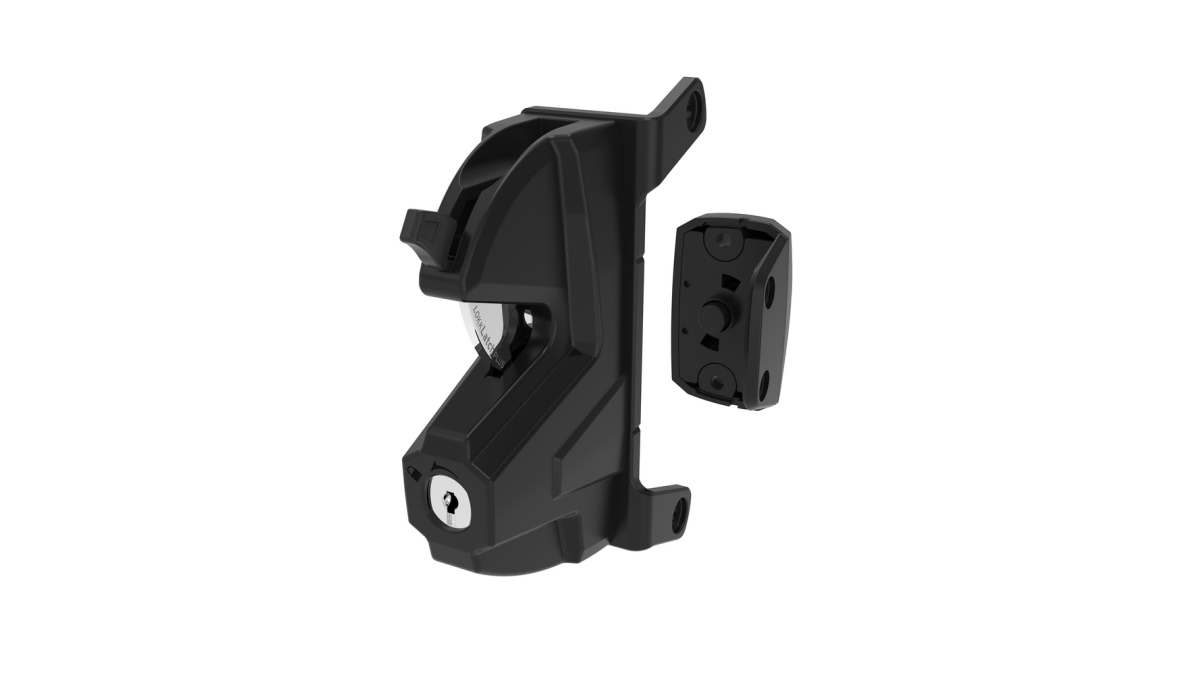

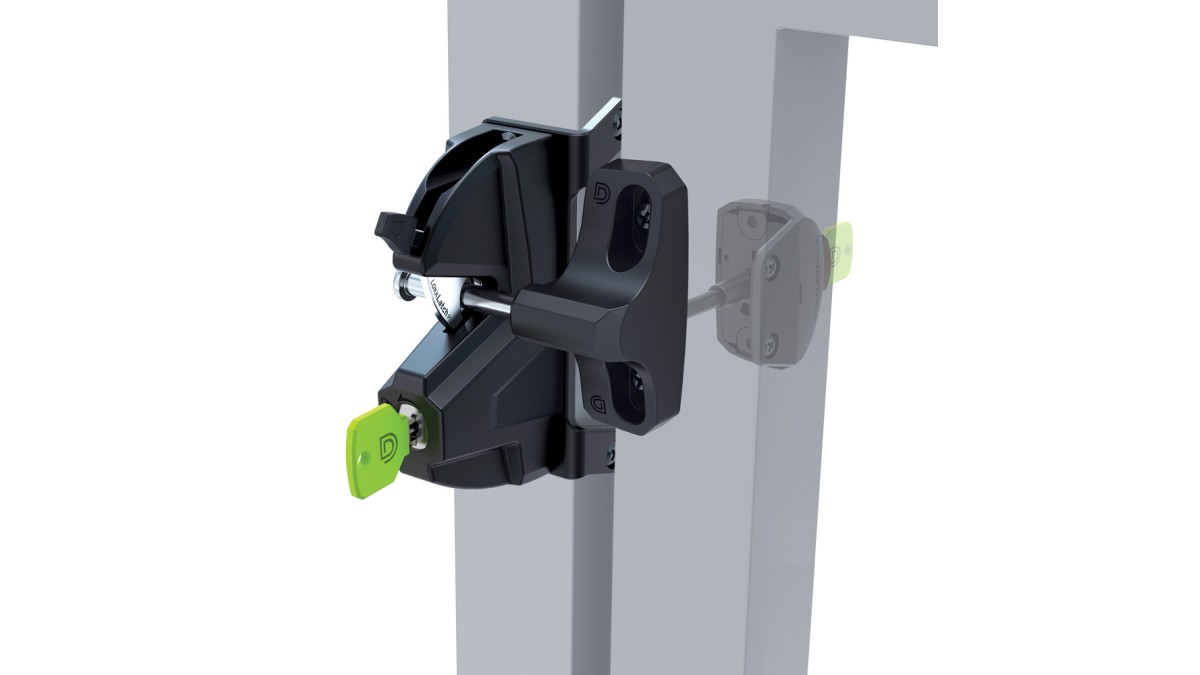

The LokkLatch is made of super-strong, rust-free polymers and stainless-steel components that won't rust or corrode, making the latch tough and reliable. Side-fixing legs provide easy fitting alignment and extra fixing strength. The two-part design provides an 'External Access Button' that allows street-side entry. The LokkLatch® Plus also offers vertical and horizontal adjustment to ensure precise fitting and reliable operation. It can be fitted to all square-posted gates and can be adapted to left- or right-swinging gates.

  • Product Code: LL3P
  • Gate Material: Aluminium, Steel/Ornamental Iron, Wood, Vinyl/PVC
  • Approx Gate Size: Any Size
  • Gate Frame/Post Shape: Square-to-Square
  • Min Post Size: 25mm+ (1")
  • Ideal Gate Gap: 19mm
  • Fixing Method: Screw-On
  • Colour/Finish: Black
  • Lock Type: Non Rekeyable
Key Features
  • Easy installation: drill one hole through post
  • Fits posts 25–150mm deep (includes 125mm and 150mm connector rods)
  • Keyed-different: 200 key combinations
  • Vertical and horizontal adjustment for reliable latching
  • Significantly shorter latch bolt to suit wall-mounted latch posts
  • Made from industrial-strength polymer (no rusting, binding or staining)
  • 316 marine-grade stainless components
  • Reversible mounting for right- or left-handed installation
Scope of Use

Medium Security Gate Latch

  • Gate Application: Front Gate, Side Gate, Pedestrian Gate, Driveway Gate - Single, Pet Gate, Privacy Gate
  • Gate Material: Aluminium, Steel/Ornamental Iron, Wood, Vinyl/PVC
  • Approx Gate Size: Any Size
  • Gate Frame/Post Shape: Square-to-Square
  • Min Post Size: 25mm+ (1")
  • Ideal Gate Gap: 19mm
  • Fixing Method: Screw-On
Other Performance Attributes
  • Made from industrial-strength polymer (no rusting, binding or staining)
  • 316 marine-grade stainless components
