Achieve Quiet Plumbing for Apartments with REHAU RAUPIANO PLUS Acoustic Plumbing

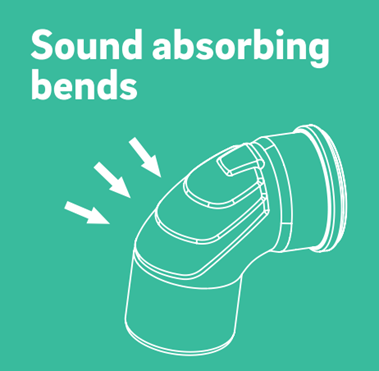

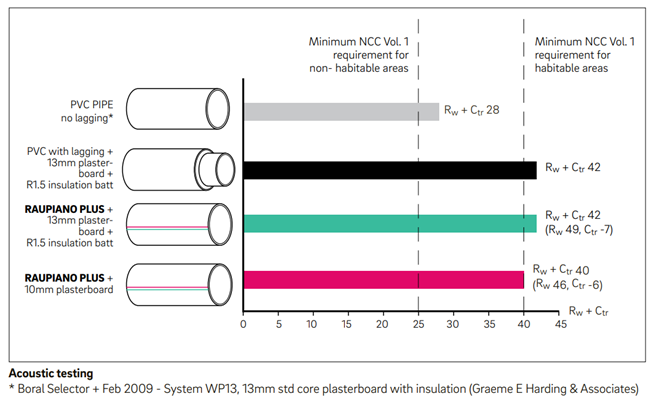

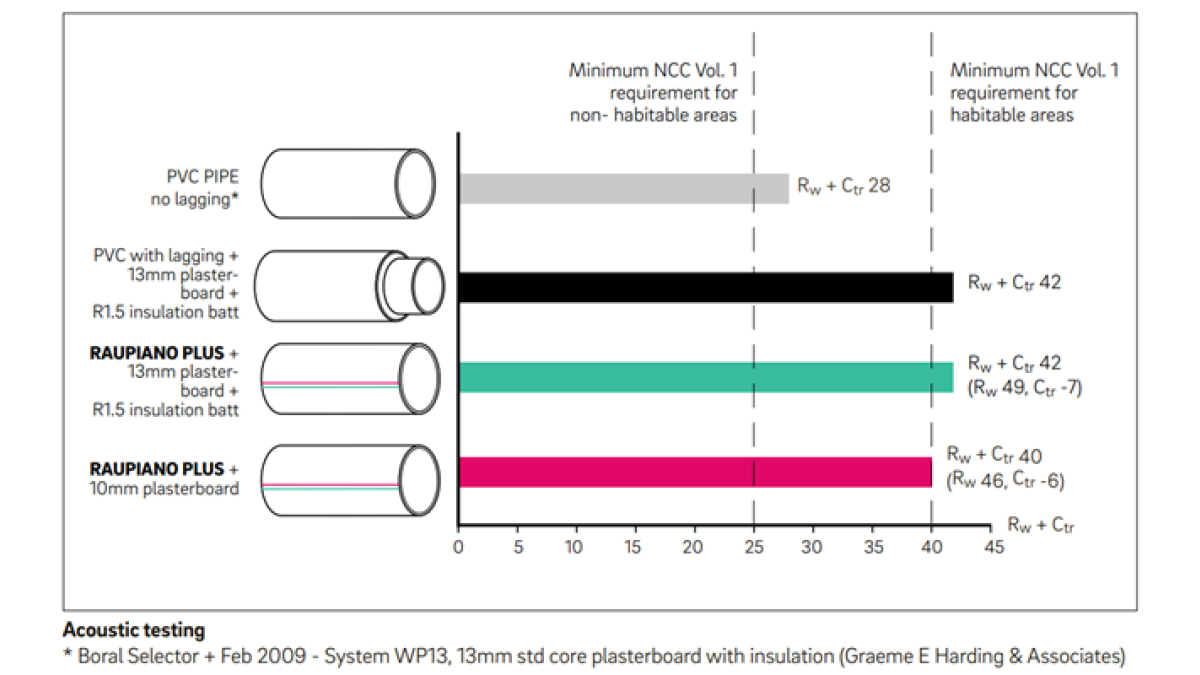

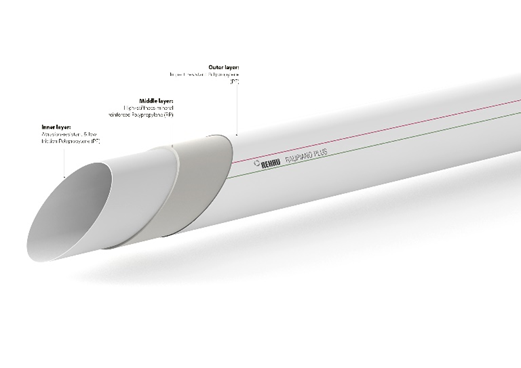

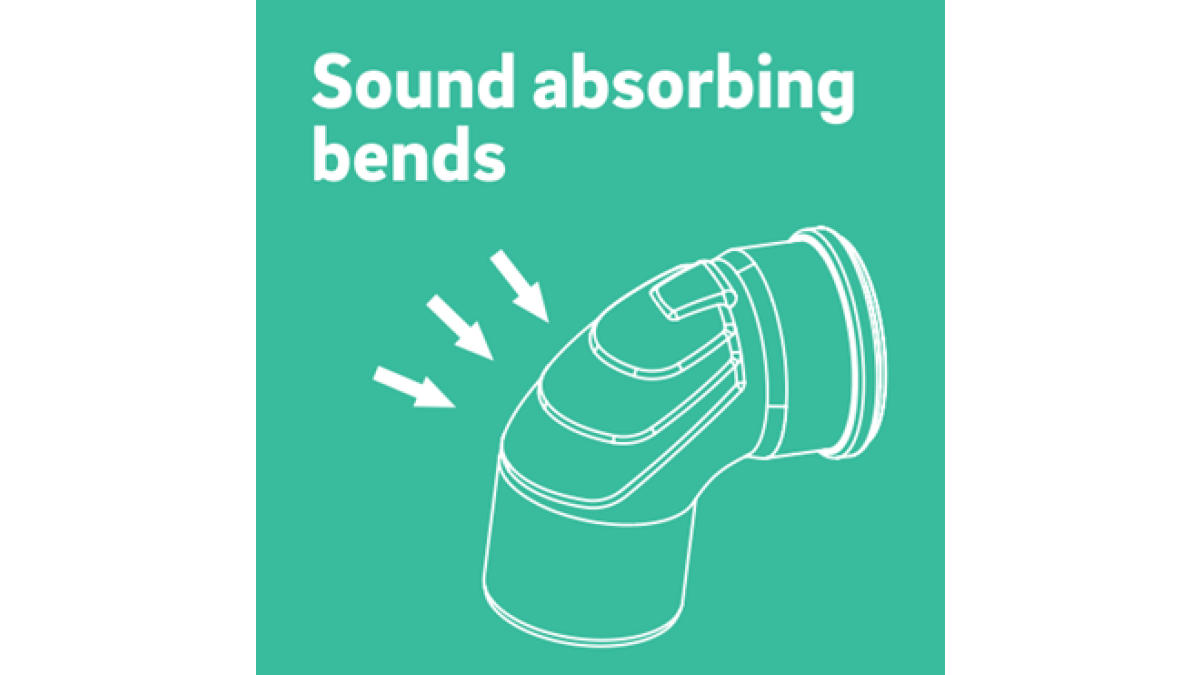

RAUPIANO PLUS is an acoustically rated polypropylene drainage system ideal for multi-unit residential projects such as apartments and townhouses. The system conforms to the BCA/NCC rating for habitable areas without the need for lagging due to the pipe being made from a dense mineral reinforced polypropylene, its modular sound absorbing bends and its sound-dampening brackets that minimise sound transfer between the pipe and building structure. In other words, it dampens sound so apartment-dwellers aren't subject to the showering, dishwashing and toilet flushing of neighbours.

The system features rubber ring seals which provide a faster installation when compared with PVC or HDPE. Being acoustically rated also provides the minimum number of trades as laggers are not required to be on site after the plumbers have completed their installation of the drainage.

RAUPIANO PLUS has been used in large commercial and multi-unit residential projects including, apartments, aged care facilities and hospitals throughout Australia and New Zealand. Installers have saved time and materials by using RAUPIANO PLUS for their projects and minimised the number of trades on site.

To learn more about how RAUPIANO PLUS can save time on site while achieving excellent acoustic insulation, please visit www.myREHAU.com or contact your local Area Sales Manager.

RAUPIANO PLUS Acoustic Plumbing and Drainage System

REHAU

View Product

The RAUPIANO PLUS Acoustic Plumbing and Drainage System is a polypropylene-based plumbing and drainage pipe system that consists of discharge pipes and fittings that have been acoustically designed to reduce the noise caused by water and waste passing through the discharge system.

The system is suitable in a wide range of buildings from comfortable homes, modern hospitals, and hectic commercial kitchens to contemporary skyscrapers.

The RAUPIANO PLUS Acoustic Plumbing and Drainage System has been appraised by BRANZ for use within the following scope:

as pipes, fittings and materials for sanitary plumbing system design and installation in accordance with NZBC Acceptable Solution G13/AS3 and AS/NZS 3500.2; and
for use as a sanitary plumbing system for internal use within buildings; and
for pipes and fittings of size 40 mm and greater, for drainage system design and installation in accordance with NZBC Acceptable Solution G13/AS3 and AS/NZS 3500.2.

In the opinion of BRANZ, The RAUPIANO PLUS Acoustic Plumbing and Drainage System if designed, installed, used and maintained in accordance with the statements and conditions of Appraisal 809 (2013), will meet the following provisions of the NZBC.

Clause B2 DURABILITY: Performance B2.3.1 [a] not less than 50 years, and B2.3.1 [b] 15 years, and B2.3.2. The RAUPIANO PLUS Acoustic Plumbing and Drainage System meets this requirement. See Paragraph 8.1.
Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1. The RAUPIANO PLUS Acoustic Plumbing and Drainage System meets this requirement and does not present a health hazard to People.
Clause G13 FOUL WATER: Performance G13.3.1 and G13.3.2. The RAUPIANO PLUS Acoustic Plumbing and Drainage System meets these requirements. See Paragraphs 7.1 to 7.5.

Durability

Hazardous Building Materials

Foul Water

BRANZ Appraised
