November 2023
Feature: Commercial Cladding
Product News

Cemintel Cladding Now CodeMark Certified for Added Peace of Mind

State of Clad

State of Clad have achieved CodeMark certification for Cemintel Cladding, giving architects confidence that the systems comply with NZBC requirements, and ensuring a smoother consenting process.

State of Clad, a leading supplier of pre-finished cladding systems in Australasia, has achieved CodeMark status across its full range of building products.

This comprehensive third-party certification across all products means customers can be reassured that they are receiving guaranteed quality products that comply with the New Zealand Building Code and are proven to perform in New Zealand's changing climate.

State of Clad’s National Lightweight Systems Manager, Jonathan Brooks, says the company is proud to achieve this CodeMark status for all of their products.

“This is a big milestone for our company but most importantly, for our customers as this certification shows that our products are compliant with the Building Code requirements which can help save time, money and frustration during the consenting process.” Building consent authorities (BCAs) must accept a CodeMark certificate as evidence of compliance with the Building Code and will not need to sight or assess any of the product's supporting information.

"By designing quality products in a transparent way, we want to give our customers accurate and clear information that can support them in their decision-making and help speed up the overall building process,” says Brooks.

State of Clad systems are widely used in commercial buildings around New Zealand for their versatility, durability, and attractive aesthetic designs. The pre-finished cladding systems are easy to install and built to last, making them a practical choice for commercial clients who prefer low-maintenance options.

All products with a current CodeMark certification are exempt from the new Building Product Information Requirements (BPIR) regulations coming into effect on 11 December.

“This certification will mean customers can spend less time dealing with compliance issues, while still having the confidence that what they are specifying will meet the requirements of the Building Code and perform in the future,” adds Brooks.

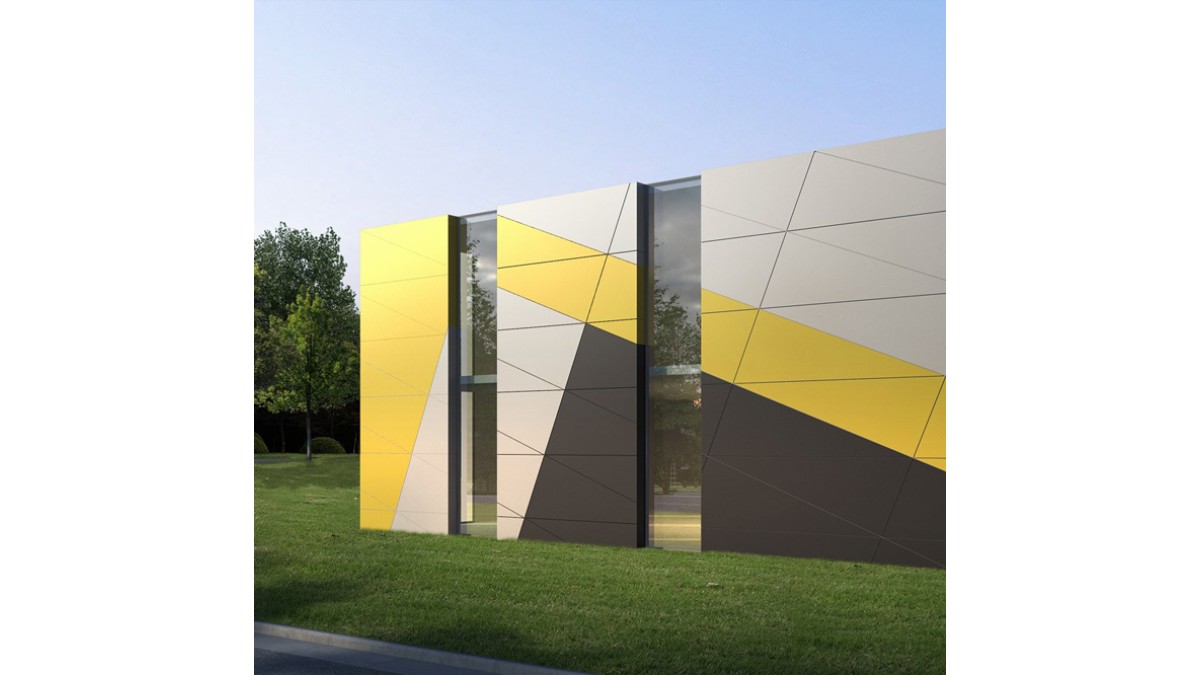

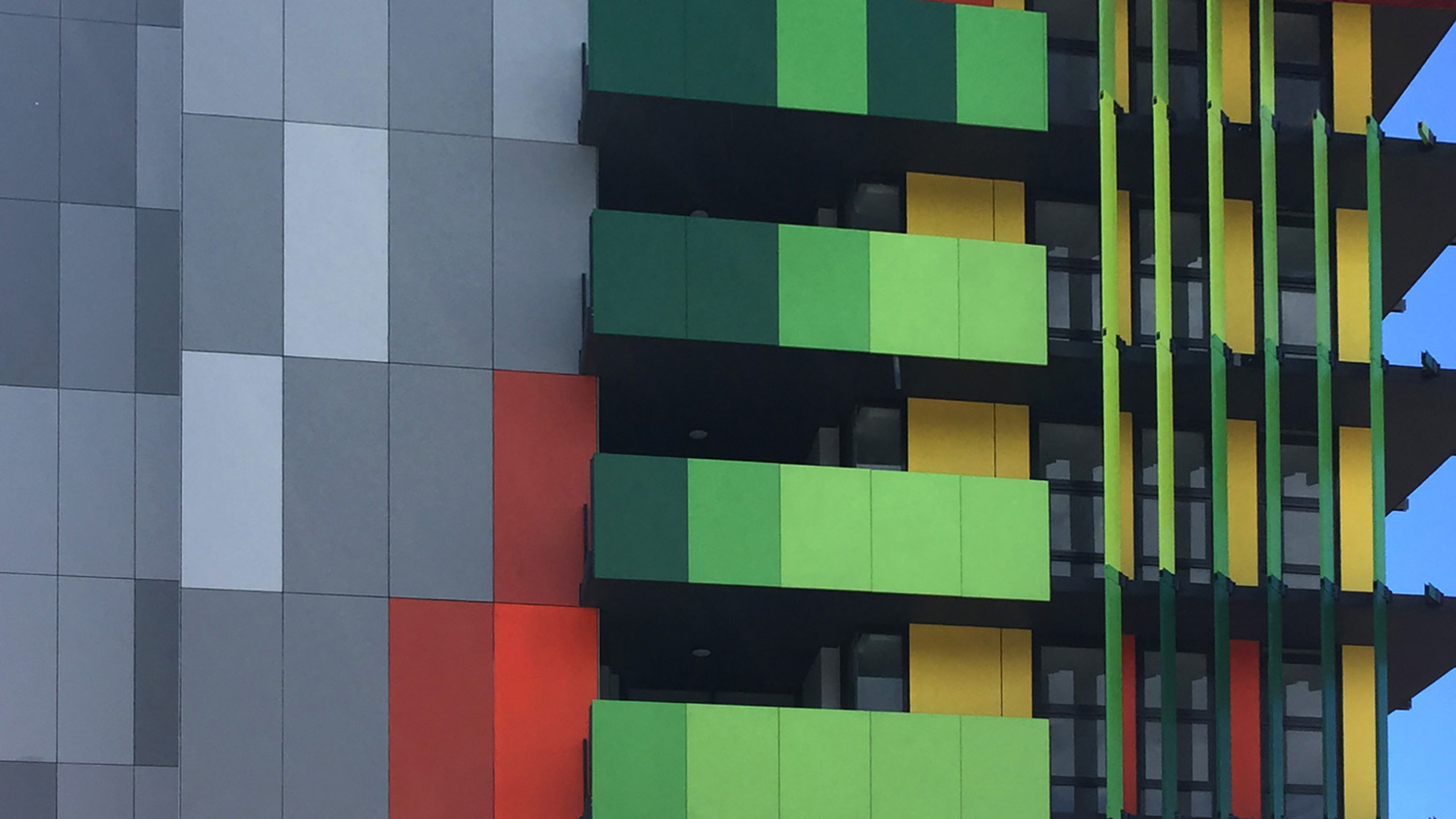

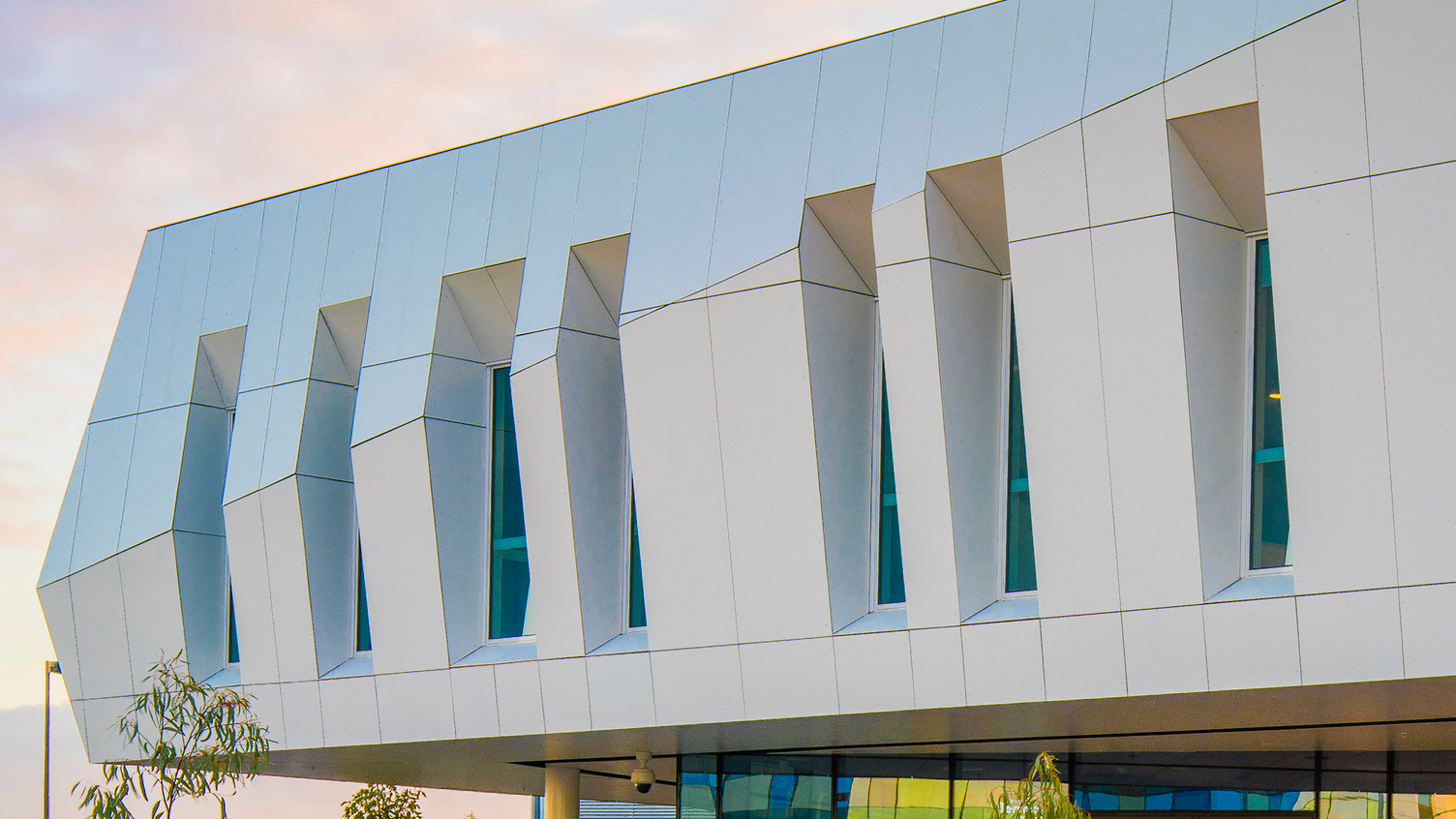

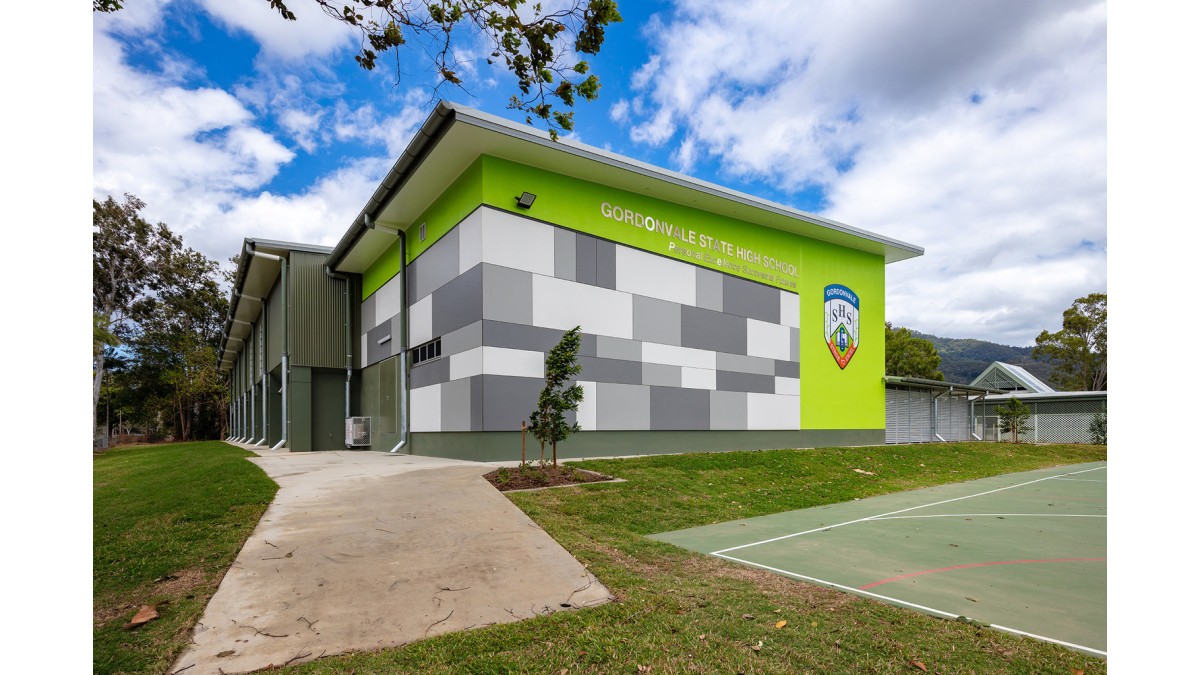

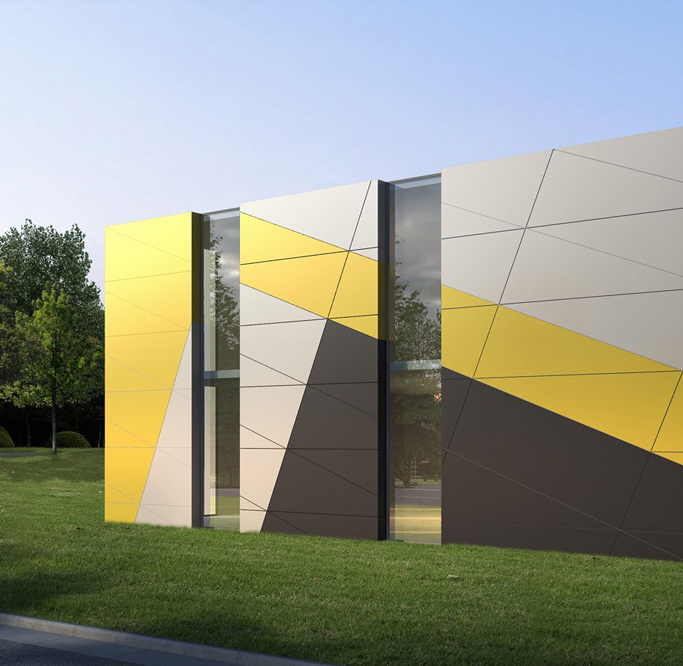

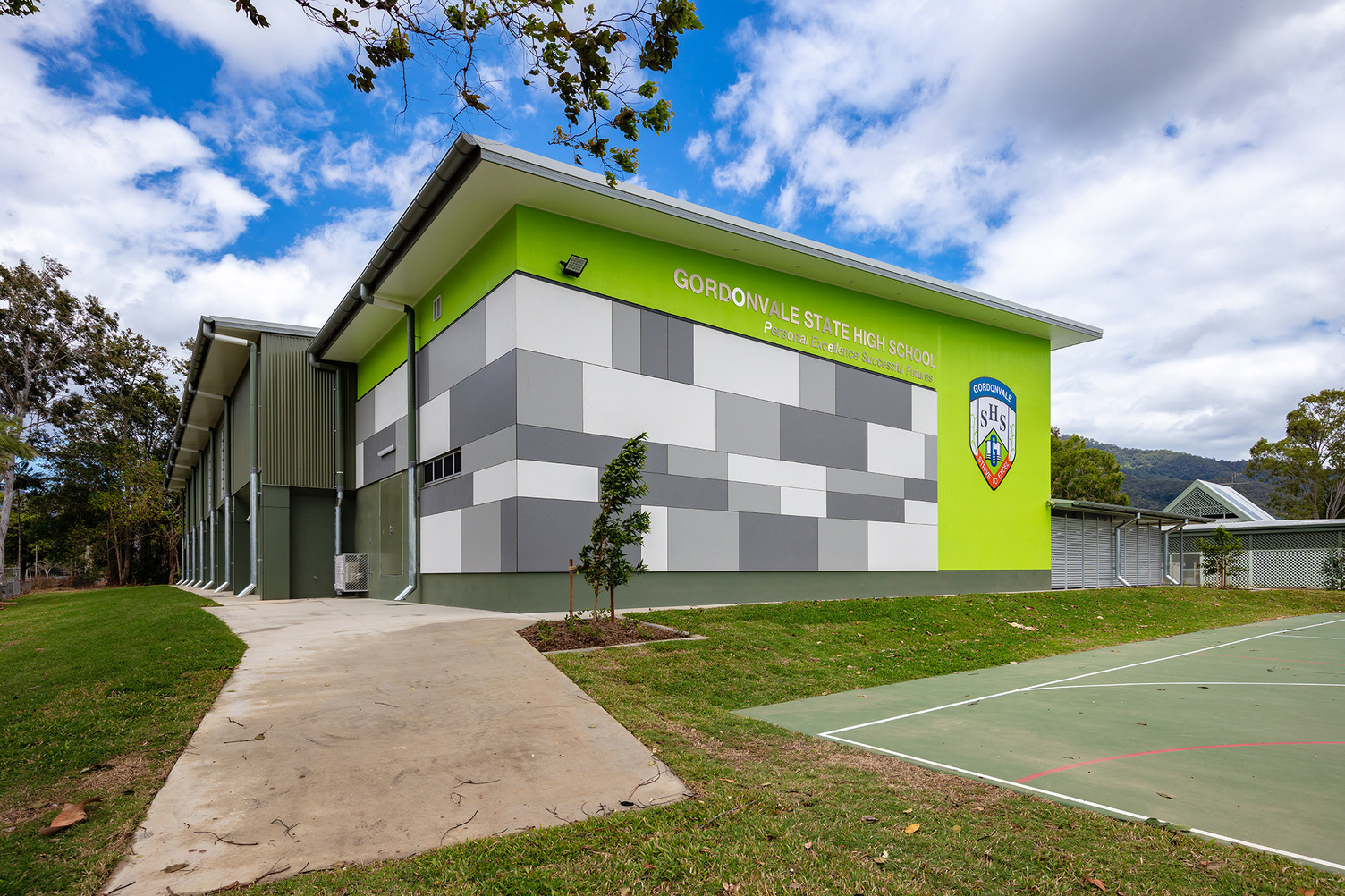

Cemintel Surround Cladding

Cemintel Surround Cladding

State of Clad

View Product

Cemintel Surround panels are prefinished, fibre cement panels that are colour bodied delivering a more natural appearance and depth of colour than can be achieved with a standard surface painted finish.

Show more

The Cemintel Surround wall cladding system has been assessed for use as an external wall cladding system on buildings:

Within the scope limitations of the New Zealand Building Code (NZBC) Acceptable Solution E2/AS1, Paragraph 1.1 with regards to building height and floor plan area, for buildings situated in Wind Zones up to and including Extra High, as defined in NZS3604:2011, constructed with:

  • Timber frame in accordance with NZS 3604:2011; or
  • Steel frame in accordance with NZS3404:2009 Part 1 and NASH Standard — Residential and Low-Rise Steel Framing Part 1: Design Criteria:2005; or
  • Masonry structures in accordance with NZS4229:2013;

Specifically engineering design in accordance with B1/VM1 and referenced loading standards AS/NZS 1170 and materials standards for:

  • Ultimate Limit State (ULS) wind pressure up to 6kpa
  • Serviceability Limit State (SLS) wind pressure up to 2.5kpa when installed as a pressure equalised system provided the stiffness of the structural frame limits deflections to span/250 for the serviceability wind loads.

In exposure Zones B, C and D (except microclimates) as defined in NZS3604:2011. except for fixing to Masonry which is limited to zones B & C.

Show more

NZS 3604 Corrosion Zone D suitable
Corrosion Exposure Zone D
NZS 3604 Wind Zone Extra High suitable
Extra High Wind Zone
NZS 3604 Wind Zone Specific Design suitable
Specific Design Wind Zone

The Cemintel Surround wall cladding system if designed, used, installed and maintained in accordance with the scope of the CodeMark Certificate and the Cemintel New Zealand Design & Installation Guide — Barestone External Installation Cemintel Barestone FCNZ604 July 2023, will meet the following provisions of the NZBC:

  • Clause B1 STRUCTURE: Performance B1.3.1, B1.3.2, and B1.3.4 (b), (c), (d) and (e) for the relevant physical conditions of B1.3.3 (a), (f), (h), (j) and (q). The Cemintel Surround wall cladding system meets these requirements.
  • Clause B2 DURABILITY: Performance B2.3.1 (b) no less than 15 years. The Cemintel Surround wall cladding system meets these requirements.
  • Clause C2- C6 PROTECTION FROM FIRE: C3.5 and C3.7 (b) and (c). The Cemintel Surround wall cladding system meets these requirements.
  • Clause E2 EXTERNAL MOISTURE: Performance E2.3.2 and E2.3.7. The Cemintel Surround wall cladding system meets these requirements.
  • Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1. The Cemintel Surround wall cladding system meets these requirements.

Show more

B1 Structure compliant
Structure
B2 Durability compliant
Durability
C Protection from Fire compliant
Protection from Fire
E2 External Moisture compliant
External Moisture
F2 Hazardous Building Materials compliant
Hazardous Building Materials
CodeMark
CodeMark
Cemintel Barestone Cladding

Cemintel Barestone Cladding

State of Clad

View Product

Barestone panels provide a natural, raw appearance that blends seamlessly with its environment and easily adapts to modern, contemporary building ;designs.

Show more

The Cemintel Barestone wall cladding system has been assessed for use as an external wall cladding system on buildings:

Within the scope limitations of the New Zealand Building Code (NZBC) Acceptable Solution E2/AS1, Paragraph 1.1 with regards to building height and floor plan area, for buildings situated in Wind Zones up to and including Extra High, as defined in NZS3604:2011, constructed with:

  • Timber frame in accordance with NZS 3604:2011; or
  • Steel frame in accordance with NZS3404:2009 Part 1 and NASH Standard — Residential and Low-Rise Steel Framing Part 1: Design Criteria: 2005; or
  • Masonry structures in accordance with NZS4229:2013;

Specifically engineering design in accordance with B1/VM1 and referenced loading standards AS/NZS 1170 and materials standards for:

  • Ultimate Limit State (ULS) wind pressure up to 6kpa
  • Serviceability Limit State (SLS) wind pressure up to 2.5kpa when installed as a pressure equalised system provided the stiffness of the structural frame limits deflections to span/250 for the serviceability wind loads.

In exposure Zones B, C and D (except microclimates) as defined in NZS3604:2011. except for fixing to Masonry which is limited to zones B & C.

Show more

NZS 3604 Corrosion Zone D suitable
Corrosion Exposure Zone D
NZS 3604 Wind Zone Extra High suitable
Extra High Wind Zone
NZS 3604 Wind Zone Specific Design suitable
Specific Design Wind Zone

The Cemintel Barestone wall cladding system if designed, used, installed and maintained in accordance with the scope of the CodeMark Certificate and the Cemintel New Zealand Design & Installation Guide — Barestone External Installation Cemintel Barestone FCNZ604 July 2023, will meet the following provisions of the NZBC:

  • Clause B1 STRUCTURE: Performance B1.3.1, B1.3.2, and B1.3.4 (b), (c), (d) and (e) for the relevant physical conditions of B1.3.3 (a), (f), (h), (j) and (q). The Cemintel Barestone wall cladding system meets these requirements.
  • Clause B2 DURABILITY: Performance B2.3.1 (b) no less than 15 years. The Cemintel Barestone wall cladding system meets these requirements.
  • Clause C2- C6 PROTECTION FROM FIRE: C3.5 and C3.7 (b) and (c). The Cemintel Barestone wall cladding system meets these requirements.
  • Clause E2 EXTERNAL MOISTURE: Performance E2.3.2 and E2.3.7. The Cemintel Barestone wall cladding system meets these requirements.
  • Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1. The Cemintel Barestone wall cladding system meets these requirements.

Show more

B1 Structure compliant
Structure
B2 Durability compliant
Durability
C Protection from Fire compliant
Protection from Fire
E2 External Moisture compliant
External Moisture
F2 Hazardous Building Materials compliant
Hazardous Building Materials
CodeMark
CodeMark
Cemintel Territory Cladding — Quarry

Cemintel Territory Cladding — Quarry

State of Clad

View Product

The Cemintel Territory cavity walling system combines a pre-finished cement-based panel with a simple installation system that can be used externally or internally for residential and commercial buildings.

Show more

Cemintel panels are designed for use externally or internally for residential and commercial buildings.

The Cemintel Territory wall cladding system has been assessed by CodeMark for use as an external wall cladding system on buildings:

  • Within the scope limitations of the New Zealand Building Code (NZBC) Acceptable Solution E2/AS1, Paragraph 1.1 with regards to building height and floor plan area, for buildings situated in Wind Zones up to and including Extra High, as defined in NZS3604:2011, constructed with:
    • Timber frame in accordance with NZS 3604:2011; or
    • Steel frame in accordance with NZS3404:2009 Part 1 and NASH Standard — Residential and Low-Rise Steel Framing Part 1: Design Criteria:2005; or
    • Masonry structures in accordance with NZS4229:2013; or,
  • In any Timber, Steel framed or masonry building that has been subject to Specific Engineering Design by a qualified engineer up to a ULS Design Wind Pressure of +6.0 / -6.0 kPa for horizontal installation and +2.6 / -3.3 kPa for vertical installation; and,
  • With Aluminium window and door joinery that meets the requirements of NZS 4211:2008 and is installed with vertical jambs and horizontal heads and sills; and,
  • In exposure Zones B, C and D as defined in NZS3604:2011. Microclimatic Conditions (refer NZS3604:2011 paragraph 4.2.4) are outside the scope of this certificate; and,
  • Within 1 metre of the relevant boundary (subject to other fire related code compliance requirements)
  • Timber frame in accordance with NZS 3604:2011; or
  • Steel frame in accordance with NZS3404:2009 Part 1 and NASH Standard — Residential and Low-Rise Steel Framing Part 1: Design Criteria:2005; or
  • Masonry structures in accordance with NZS4229:2013; or,

Show more

NZS 3604 Corrosion Zone D suitable
Corrosion Exposure Zone D
NZS 3604 Wind Zone Extra High suitable
Extra High Wind Zone
NZS 3604 Wind Zone Specific Design suitable
Specific Design Wind Zone

The Cemintel Territory wall cladding system if designed, used, installed and maintained in accordance with the scope of the CodeMark Certificate and either the Cemintel New Zealand Design & Installation Guide — Territory Series External Horizontal Installation (FCNZ503 March 2019) or Cemintel New Zealand Design & Installation Guide — Territory Series External Vertical Installation (FCNZ523 March 2019) as applicable for the direction of installation (collectively referenced as 'Cemintel New Zealand Design & Installation Guide – Territory Series') will meet the following provisions of the NZBC:

  • Clause B1 STRUCTURE: Performance B1.3.1, B1.3.2, and B1.3.4 (b), (c), (d) and (e) for the relevant physical conditions of B1.3.3 (a), (f), (h), (j) and (q). The Cemintel Territory wall cladding system meets these requirements.
  • Clause B2 DURABILITY: Performance B2.3.1 (b) no less than 15 years. The Cemintel Territory wall cladding system meets this requirement
  • Clause C2- C6 PROTECTION FROM FIRE: C3.5 and C3.7 (b) and (c). The Cemintel Territory wall cladding system meets this requirement
  • Clause E2 EXTERNAL MOISTURE: Performance E2.3.2 and E2.3.7. The Cemintel Territory wall cladding system meets this requirement
  • Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1. The Cemintel Territory wall cladding system meets this requirement

Show more

B1 Structure compliant
Structure
B2 Durability compliant
Durability
C Protection from Fire compliant
Protection from Fire
E2 External Moisture compliant
External Moisture
CodeMark
CodeMark
Interior Fire Rating 1S
1S
Cemintel Territory Cladding — Savanna

Cemintel Territory Cladding — Savanna

State of Clad

View Product

The Cemintel Territory cavity walling system combines a pre-finished cement-based panel with a simple installation system that can be used externally or internally for residential and commercial buildings.

Show more

Cemintel panels are designed for use externally or internally for residential and commercial buildings.

The Cemintel Territory wall cladding system has been assessed by CodeMark for use as an external wall cladding system on buildings:

  • Within the scope limitations of the New Zealand Building Code (NZBC) Acceptable Solution E2/AS1, Paragraph 1.1 with regards to building height and floor plan area, for buildings situated in Wind Zones up to and including Extra High, as defined in NZS3604:2011, constructed with:
    • Timber frame in accordance with NZS 3604:2011; or
    • Steel frame in accordance with NZS3404:2009 Part 1 and NASH Standard — Residential and Low-Rise Steel Framing Part 1: Design Criteria:2005; or
    • Masonry structures in accordance with NZS4229:2013; or,
  • In any Timber, Steel framed or masonry building that has been subject to Specific Engineering Design by a qualified engineer up to a ULS Design Wind Pressure of +6.0 / -6.0 kPa for horizontal installation and +2.6 / -3.3 kPa for vertical installation; and,
  • With Aluminium window and door joinery that meets the requirements of NZS 4211:2008 and is installed with vertical jambs and horizontal heads and sills; and,
  • In exposure Zones B, C and D as defined in NZS3604:2011. Microclimatic Conditions (refer NZS3604:2011 paragraph 4.2.4) are outside the scope of this certificate; and,
  • Within 1 metre of the relevant boundary (subject to other fire related code compliance requirements)
  • Timber frame in accordance with NZS 3604:2011; or
  • Steel frame in accordance with NZS3404:2009 Part 1 and NASH Standard — Residential and Low-Rise Steel Framing Part 1: Design Criteria:2005; or
  • Masonry structures in accordance with NZS4229:2013; or,

Show more

NZS 3604 Corrosion Zone D suitable
Corrosion Exposure Zone D
NZS 3604 Wind Zone Extra High suitable
Extra High Wind Zone
NZS 3604 Wind Zone Specific Design suitable
Specific Design Wind Zone

The Cemintel Territory wall cladding system if designed, used, installed and maintained in accordance with the scope of the CodeMark Certificate and either the Cemintel New Zealand Design & Installation Guide — Territory Series External Horizontal Installation (FCNZ503 March 2019) or Cemintel New Zealand Design & Installation Guide — Territory Series External Vertical Installation (FCNZ523 March 2019) as applicable for the direction of installation (collectively referenced as 'Cemintel New Zealand Design & Installation Guide – Territory Series') will meet the following provisions of the NZBC:

  • Clause B1 STRUCTURE: Performance B1.3.1, B1.3.2, and B1.3.4 (b), (c), (d) and (e) for the relevant physical conditions of B1.3.3 (a), (f), (h), (j) and (q). The Cemintel Territory wall cladding system meets these requirements.
  • Clause B2 DURABILITY: Performance B2.3.1 (b) no less than 15 years. The Cemintel Territory wall cladding system meets this requirement
  • Clause C2- C6 PROTECTION FROM FIRE: C3.5 and C3.7 (b) and (c). The Cemintel Territory wall cladding system meets this requirement
  • Clause E2 EXTERNAL MOISTURE: Performance E2.3.2 and E2.3.7. The Cemintel Territory wall cladding system meets this requirement
  • Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1. The Cemintel Territory wall cladding system meets this requirement

Show more

B1 Structure compliant
Structure
B2 Durability compliant
Durability
C Protection from Fire compliant
Protection from Fire
E2 External Moisture compliant
External Moisture
CodeMark
CodeMark
Interior Fire Rating 1S
1S
Cemintel Territory Cladding — Woodlands

Cemintel Territory Cladding — Woodlands

State of Clad

View Product

The Cemintel Territory cavity walling system combines a pre-finished cement-based panel with a simple installation system that can be used externally or internally for residential and commercial buildings.

Show more

Cemintel panels are designed for use externally or internally for residential and commercial buildings.

The Cemintel Territory wall cladding system has been assessed by CodeMark for use as an external wall cladding system on buildings:

  • Within the scope limitations of the New Zealand Building Code (NZBC) Acceptable Solution E2/AS1, Paragraph 1.1 with regards to building height and floor plan area, for buildings situated in Wind Zones up to and including Extra High, as defined in NZS3604:2011, constructed with:
    • Timber frame in accordance with NZS 3604:2011; or
    • Steel frame in accordance with NZS3404:2009 Part 1 and NASH Standard — Residential and Low-Rise Steel Framing Part 1: Design Criteria:2005; or
    • Masonry structures in accordance with NZS4229:2013; or,
  • In any Timber, Steel framed or masonry building that has been subject to Specific Engineering Design by a qualified engineer up to a ULS Design Wind Pressure of +6.0 / -6.0 kPa for horizontal installation and +2.6 / -3.3 kPa for vertical installation; and,
  • With Aluminium window and door joinery that meets the requirements of NZS 4211:2008 and is installed with vertical jambs and horizontal heads and sills; and,
  • In exposure Zones B, C and D as defined in NZS3604:2011. Microclimatic Conditions (refer NZS3604:2011 paragraph 4.2.4) are outside the scope of this certificate; and,
  • Within 1 metre of the relevant boundary (subject to other fire related code compliance requirements)
  • Timber frame in accordance with NZS 3604:2011; or
  • Steel frame in accordance with NZS3404:2009 Part 1 and NASH Standard — Residential and Low-Rise Steel Framing Part 1: Design Criteria:2005; or
  • Masonry structures in accordance with NZS4229:2013; or,

Show more

NZS 3604 Corrosion Zone D suitable
Corrosion Exposure Zone D
NZS 3604 Wind Zone Extra High suitable
Extra High Wind Zone
NZS 3604 Wind Zone Specific Design suitable
Specific Design Wind Zone

The Cemintel Territory wall cladding system if designed, used, installed and maintained in accordance with the scope of the CodeMark Certificate and either the Cemintel New Zealand Design & Installation Guide — Territory Series External Horizontal Installation (FCNZ503 March 2019) or Cemintel New Zealand Design & Installation Guide — Territory Series External Vertical Installation (FCNZ523 March 2019) as applicable for the direction of installation (collectively referenced as 'Cemintel New Zealand Design & Installation Guide – Territory Series') will meet the following provisions of the NZBC:

  • Clause B1 STRUCTURE: Performance B1.3.1, B1.3.2, and B1.3.4 (b), (c), (d) and (e) for the relevant physical conditions of B1.3.3 (a), (f), (h), (j) and (q). The Cemintel Territory wall cladding system meets these requirements
  • Clause B2 DURABILITY: Performance B2.3.1 (b) no less than 15 years. The Cemintel Territory wall cladding system meets this requirement
  • Clause C2- C6 PROTECTION FROM FIRE: C3.5 and C3.7 (b) and (c). The Cemintel Territory wall cladding system meets this requirement
  • Clause E2 EXTERNAL MOISTURE: Performance E2.3.2 and E2.3.7. The Cemintel Territory wall cladding system meets this requirement
  • Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1. The Cemintel Territory wall cladding system meets this requirement

Show more

B1 Structure compliant
Structure
B2 Durability compliant
Durability
C Protection from Fire compliant
Protection from Fire
E2 External Moisture compliant
External Moisture
CodeMark
CodeMark
Cemintel Territory Cladding — Ridge

Cemintel Territory Cladding — Ridge

State of Clad

View Product

The Cemintel Territory cavity walling system combines a pre-finished cement-based panel with a simple installation system that can be used externally or internally for residential and commercial buildings.

Show more

Cemintel panels are designed for use externally or internally for residential and commercial buildings.

The Cemintel Territory wall cladding system has been assessed by CodeMark for use as an external wall cladding system on buildings:

  • Within the scope limitations of the New Zealand Building Code (NZBC) Acceptable Solution E2/AS1, Paragraph 1.1 with regards to building height and floor plan area, for buildings situated in Wind Zones up to and including Extra High, as defined in NZS3604:2011, constructed with:
    • Timber frame in accordance with NZS 3604:2011; or
    • Steel frame in accordance with NZS3404:2009 Part 1 and NASH Standard — Residential and Low-Rise Steel Framing Part 1: Design Criteria:2005; or
    • Masonry structures in accordance with NZS4229:2013; or,
  • In any Timber, Steel framed or masonry building that has been subject to Specific Engineering Design by a qualified engineer up to a ULS Design Wind Pressure of +6.0 / -6.0 kPa for horizontal installation and +2.6 / -3.3 kPa for vertical installation; and,
  • With Aluminium window and door joinery that meets the requirements of NZS 4211:2008 and is installed with vertical jambs and horizontal heads and sills; and,
  • In exposure Zones B, C and D as defined in NZS3604:2011. Microclimatic Conditions (refer NZS3604:2011 paragraph 4.2.4) are outside the scope of this certificate; and,
  • Within 1 metre of the relevant boundary (subject to other fire related code compliance requirements)
  • Timber frame in accordance with NZS 3604:2011; or
  • Steel frame in accordance with NZS3404:2009 Part 1 and NASH Standard — Residential and Low-Rise Steel Framing Part 1: Design Criteria:2005; or
  • Masonry structures in accordance with NZS4229:2013; or,

Show more

NZS 3604 Corrosion Zone D suitable
Corrosion Exposure Zone D
NZS 3604 Wind Zone Extra High suitable
Extra High Wind Zone
NZS 3604 Wind Zone Specific Design suitable
Specific Design Wind Zone

The Cemintel Territory wall cladding system if designed, used, installed and maintained in accordance with the scope of the CodeMark Certificate and either the Cemintel New Zealand Design & Installation Guide — Territory Series External Horizontal Installation (FCNZ503 March 2019) or Cemintel New Zealand Design & Installation Guide — Territory Series External Vertical Installation (FCNZ523 March 2019) as applicable for the direction of installation (collectively referenced as 'Cemintel New Zealand Design & Installation Guide – Territory Series') will meet the following provisions of the NZBC:

  • Clause B1 STRUCTURE: Performance B1.3.1, B1.3.2, and B1.3.4 (b), (c), (d) and (e) for the relevant physical conditions of B1.3.3 (a), (f), (h), (j) and (q). The Cemintel Territory wall cladding system meets these requirements.
  • Clause B2 DURABILITY: Performance B2.3.1 (b) no less than 15 years. The Cemintel Territory wall cladding system meets this requirement
  • Clause C2- C6 PROTECTION FROM FIRE: C3.5 and C3.7 (b) and (c). The Cemintel Territory wall cladding system meets this requirement
  • Clause E2 EXTERNAL MOISTURE: Performance E2.3.2 and E2.3.7. The Cemintel Territory wall cladding system meets this requirement
  • Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1. The Cemintel Territory wall cladding system meets this requirement

Show more

B1 Structure compliant
Structure
B2 Durability compliant
Durability
C Protection from Fire compliant
Protection from Fire
E2 External Moisture compliant
External Moisture
CodeMark
CodeMark
Interior Fire Rating 1S
1S
Cemintel Territory Cladding — Canyon

Cemintel Territory Cladding — Canyon

State of Clad

View Product

The Cemintel Territory cavity walling system combines a pre-finished cement-based panel with a simple installation system that can be used externally or internally for residential and commercial buildings.

Show more

Cemintel panels are designed for use externally or internally for residential and commercial buildings.

The Cemintel Territory wall cladding system has been assessed by CodeMark for use as an external wall cladding system on buildings:

  • Within the scope limitations of the New Zealand Building Code (NZBC) Acceptable Solution E2/AS1, Paragraph 1.1 with regards to building height and floor plan area, for buildings situated in Wind Zones up to and including Extra High, as defined in NZS3604:2011, constructed with:
    • Timber frame in accordance with NZS 3604:2011; or
    • Steel frame in accordance with NZS3404:2009 Part 1 and NASH Standard — Residential and Low-Rise Steel Framing Part 1: Design Criteria:2005; or
    • Masonry structures in accordance with NZS4229:2013; or,
  • In any Timber, Steel framed or masonry building that has been subject to Specific Engineering Design by a qualified engineer up to a ULS Design Wind Pressure of +6.0 / -6.0 kPa for horizontal installation and +2.6 / -3.3 kPa for vertical installation; and,
  • With Aluminium window and door joinery that meets the requirements of NZS 4211:2008 and is installed with vertical jambs and horizontal heads and sills; and,
  • In exposure Zones B, C and D as defined in NZS3604:2011. Microclimatic Conditions (refer NZS3604:2011 paragraph 4.2.4) are outside the scope of this certificate; and,
  • Within 1 metre of the relevant boundary (subject to other fire related code compliance requirements)
  • Timber frame in accordance with NZS 3604:2011; or
  • Steel frame in accordance with NZS3404:2009 Part 1 and NASH Standard — Residential and Low-Rise Steel Framing Part 1: Design Criteria:2005; or
  • Masonry structures in accordance with NZS4229:2013; or,

Show more

NZS 3604 Corrosion Zone D suitable
Corrosion Exposure Zone D
NZS 3604 Wind Zone Extra High suitable
Extra High Wind Zone
NZS 3604 Wind Zone Specific Design suitable
Specific Design Wind Zone

The Cemintel Territory wall cladding system if designed, used, installed and maintained in accordance with the scope of the CodeMark Certificate and either the Cemintel New Zealand Design & Installation Guide — Territory Series External Horizontal Installation (FCNZ503 March 2019) or Cemintel New Zealand Design & Installation Guide — Territory Series External Vertical Installation (FCNZ523 March 2019) as applicable for the direction of installation (collectively referenced as 'Cemintel New Zealand Design & Installation Guide – Territory Series') will meet the following provisions of the NZBC:

  • Clause B1 STRUCTURE: Performance B1.3.1, B1.3.2, and B1.3.4 (b), (c), (d) and (e) for the relevant physical conditions of B1.3.3 (a), (f), (h), (j) and (q). The Cemintel Territory wall cladding system meets these requirements.
  • Clause B2 DURABILITY: Performance B2.3.1 (b) no less than 15 years. The Cemintel Territory wall cladding system meets this requirement
  • Clause C2- C6 PROTECTION FROM FIRE: C3.5 and C3.7 (b) and (c). The Cemintel Territory wall cladding system meets this requirement
  • Clause E2 EXTERNAL MOISTURE: Performance E2.3.2 and E2.3.7. The Cemintel Territory wall cladding system meets this requirement
  • Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1. The Cemintel Territory wall cladding system meets this requirement

Show more

B1 Structure compliant
Structure
B2 Durability compliant
Durability
C Protection from Fire compliant
Protection from Fire
E2 External Moisture compliant
External Moisture
CodeMark
CodeMark
Interior Fire Rating 1S
1S
State of Clad
View more information on State of Clad, including contact details.
comments powered by Disqus
November 2023 EBOSSNOW Product News

News from State of Clad

Cemintel Cladding Now CodeMark Certified for Added Peace of Mind
Cemintel Cladding Now CodeMark Certified for Added Peace of Mind
State of Clad
November 2023 Product News
Lightweight Brick-Look Cladding Resolves Weight Challenges for Heritage Reclad
Lightweight Brick-Look Cladding Resolves Weight Challenges for Heritage Reclad
State of Clad
September 2022 Case Studies
Cemintel Territory Cladding System: Making Low Maintenance Claddings the New Norm
Cemintel Territory Cladding System: Making Low Maintenance Claddings the New Norm
State of Clad
July 2020 Case Studies
View all news

Popular Products from State of Clad

Cemintel Territory Cladding — Canyon
Cemintel Territory Cladding — Canyon
State of Clad
Cemintel Territory Cladding — Woodlands
Cemintel Territory Cladding — Woodlands
State of Clad
Cemintel Surround Cladding NEW
Cemintel Surround Cladding
State of Clad

View all products

Most Popular

Scheduling Construction Made Easier with UNI PLUS Flexible Air Barrier

by Masons Plastabrick

Introducing the New Colours of Corian for 2023

by APT

New Centrafix Thermal Windows Feature in Fletcher Living Pilot Project

by VANTAGE Windows & Doors

New Reverse Run SlimClad Provides an Economical Cladding Solution

by Roofing Industries

Laminex NZ's Wet Wall Panelling Solutions Deliver Trusted Performance

by Laminex New Zealand

Top 20 Colours From Resene

by Resene

See All

Popular Products

APL Architectural Series Sliding Doors 1
APL Architectural Series Sliding Doors
VANTAGE Windows & Doors
Roofing Industries Trimrib 2
Roofing Industries Trimrib
Roofing Industries
XLam CLT Floor System 3
XLam CLT Floor System
XLam Cross Laminated Timber Panels

See All

Popular Blog Posts

1
Why is it Being Reported that New Terrace Housing is Overheating in Summer?
Keith Huntington
27 November 2023
2
What Makes Good Medium Density Design?
Guy Marriage
27 November 2023

See All

Get a free weekly digest of essential news

New and updated architectural products, design solutions, inspiration, technical advice and more when you sign up for EBOSS.
