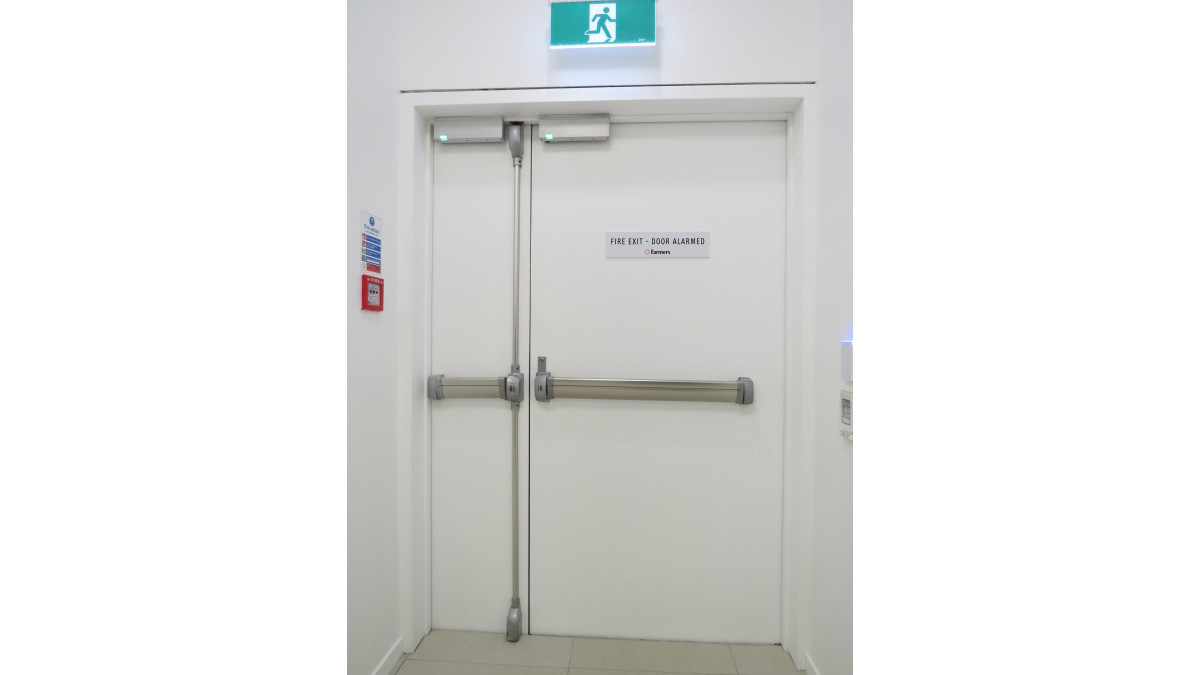

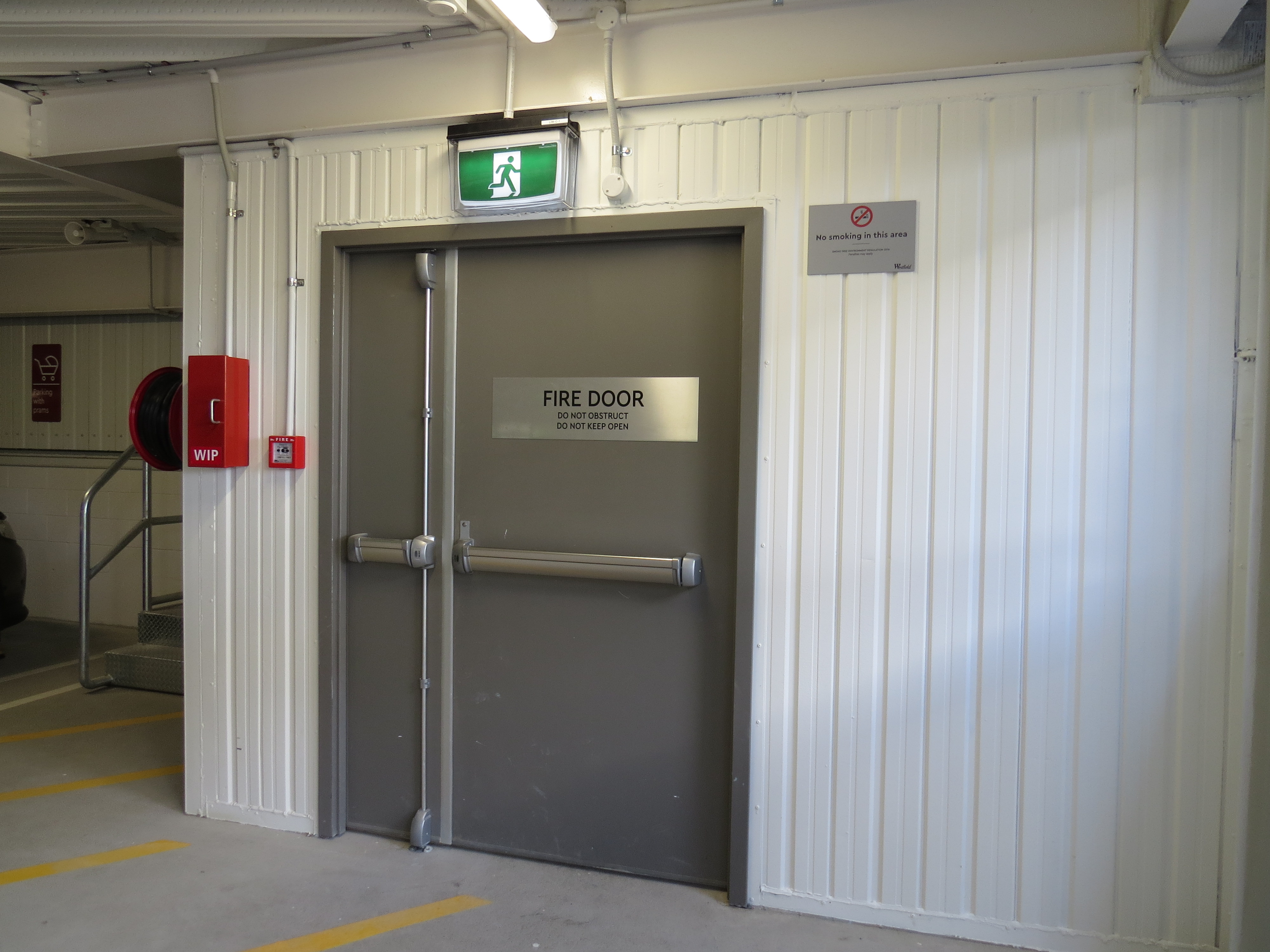

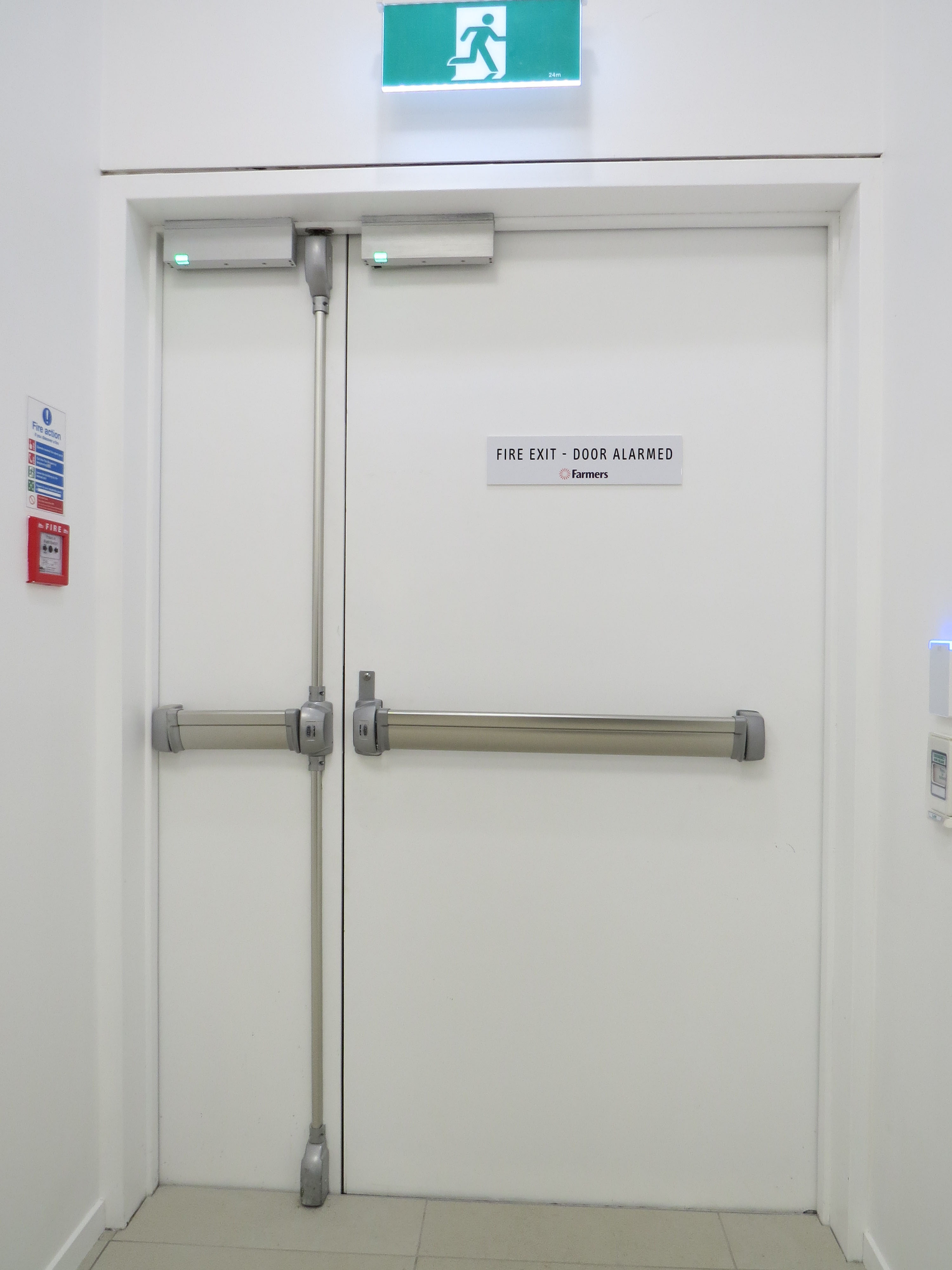

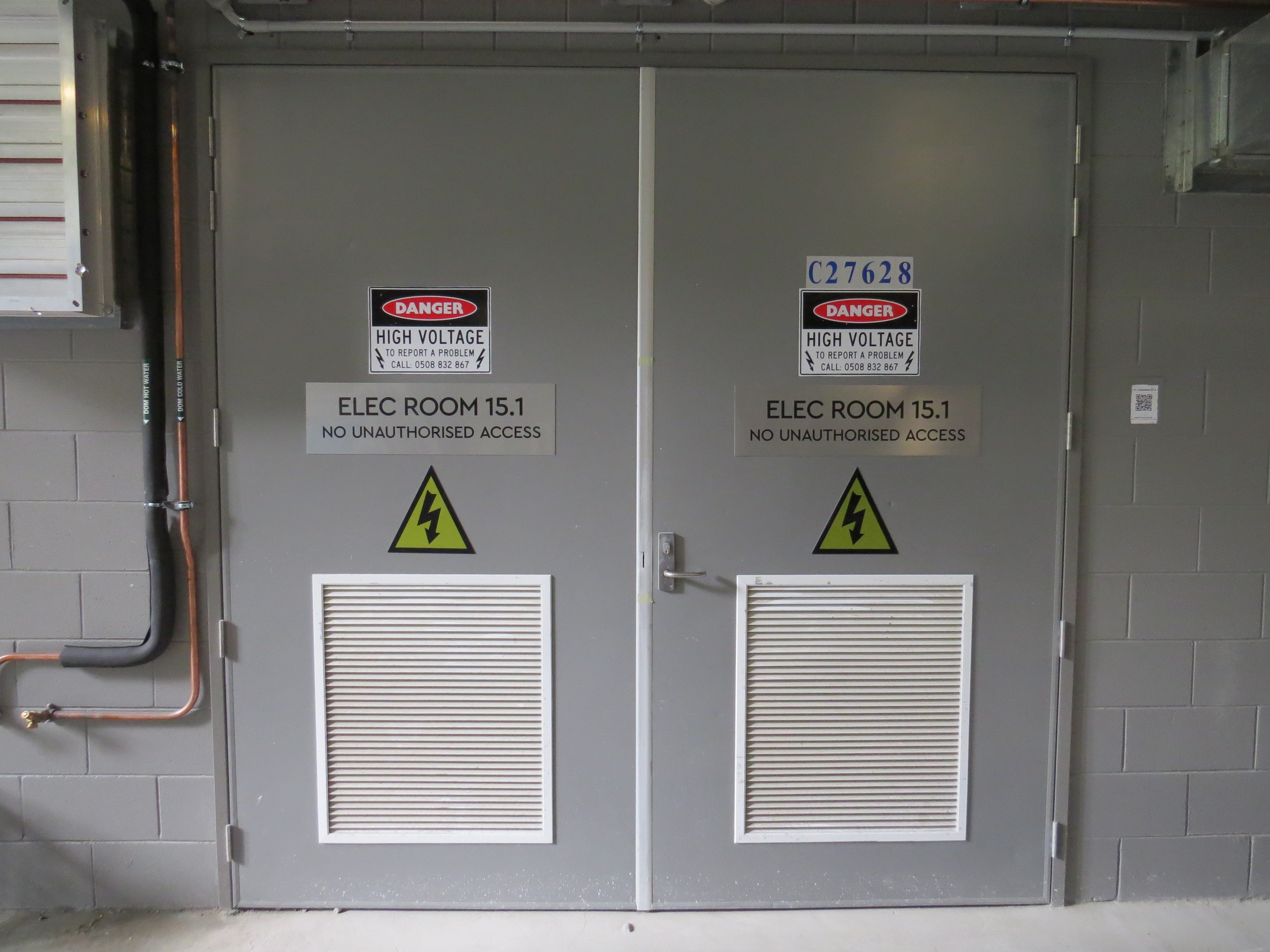

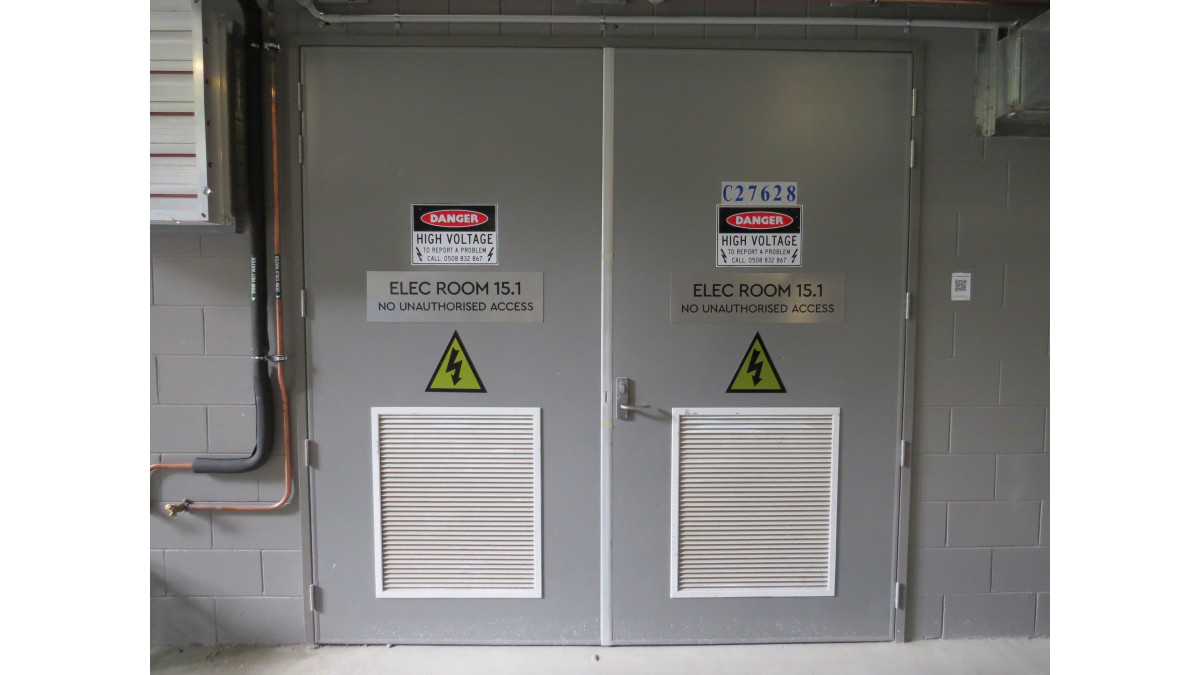

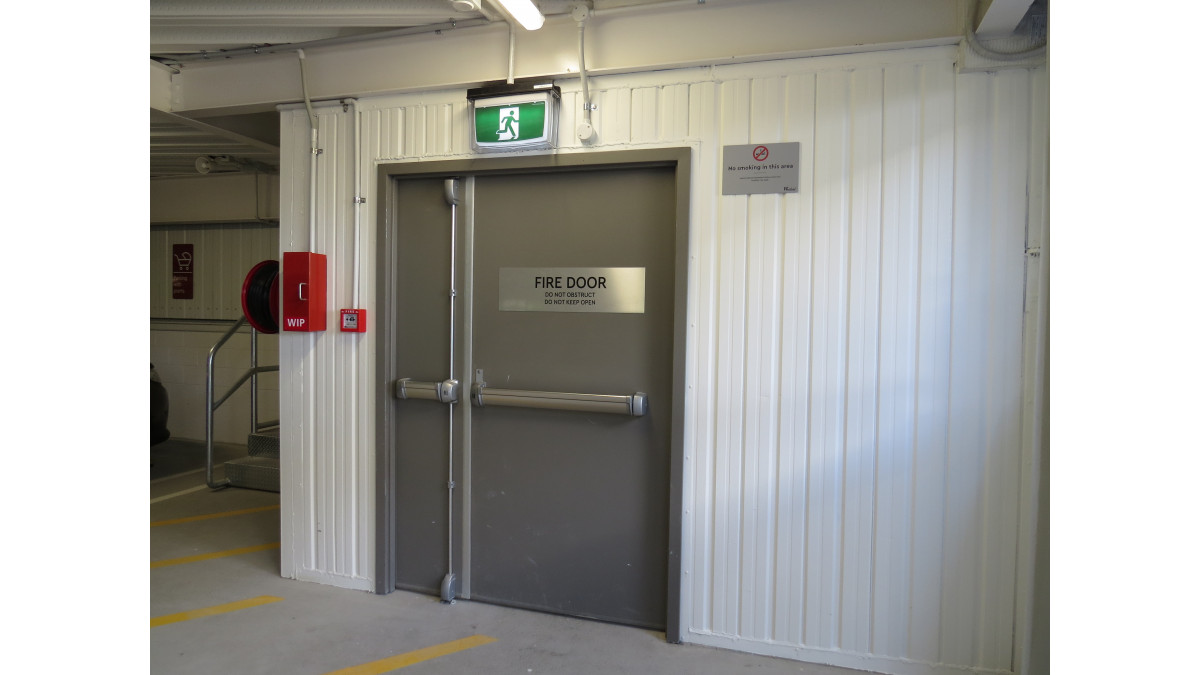

Split Steel Framed Fire Rated Doorsets

The use of steel framing in a fire doorset is mandatory where a firewall of 90min to 240min is specified. Although steel frames can still be used for non-fire, 30 and 60min fire-rated doors using solid timber leaves.

NZFD have recently enhanced the steel split frame option to withstand the rigours of various commercial applications. They have been the frame chosen for major retail projects such the Westfield Newmarket development and The Crossing in Tauranga.

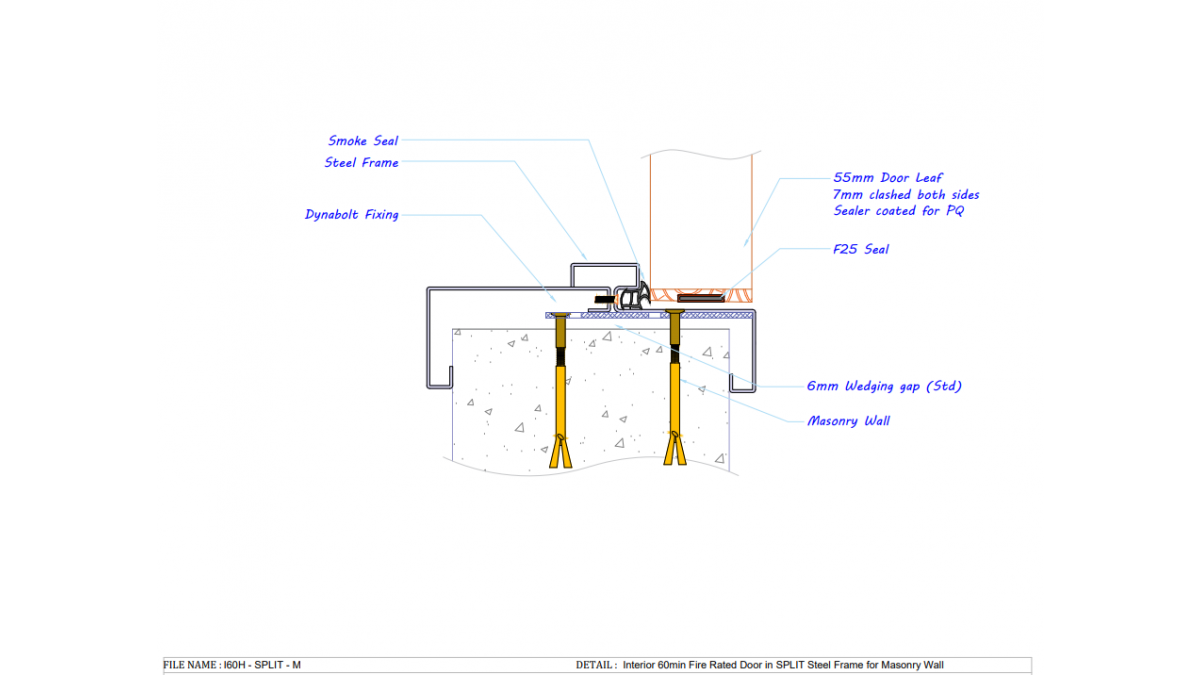

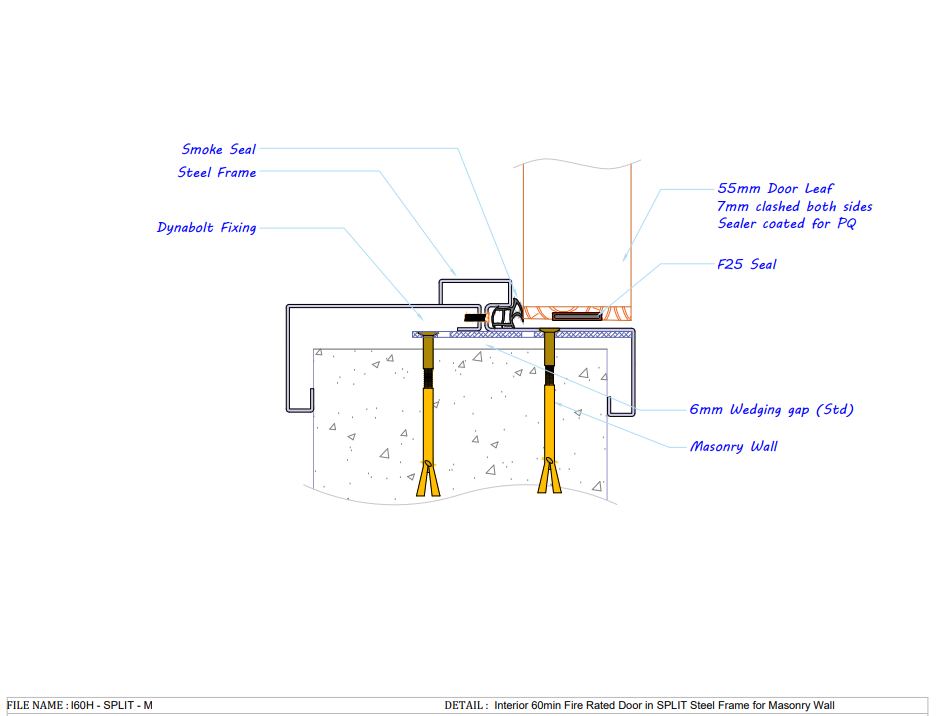

The frame features a two-piece design comprising a front half that houses the leaf and hinges and the back half which is subsequently fitted into place. The benefits of this option are:

Wall elements can be finished before the door frame is fitted
As the frame wraps over the fire rated wall, no backfilling is required to meet fire regulations
Unique design provides concealed fixing in behind the fire seal.
Internal and external applications with various door facing options

For more information on the options available for this and further fire-rated solutions, visit the NZFD website.

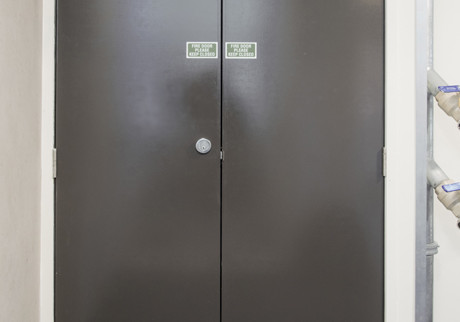

90 Minute Plus Fire-rated Door — Interior

NZ Fire Doors

View Product

Interior doors with a 90 to 120 minute rating are available with two options; Hung doors, or Double Acting (door swings both ways) both available as single leaf or pair.

Interior door appropriate for 90 to 120 minute rating

90+ Minute Fire-rated Interior Doors supplied by NZ Fire Doors Limited complies with the requirements of NZS 4520 Fire-resistant door sets when installed in accordance with NZ Fire Doors Installation Instructions into a complying fire-resistant wall, and when fitted with approved hardware.

Such compliance will be evident by certification tags applied to the jamb and leaf of each door:

Doors manufactured by NZ Fire Doors Limited have been tested to and meet the physical endurance requirements of NZS 4520 Appendix A
Doors manufactured by NZ Fire Doors Limited will satisfy the requirements of NZBC, B2 “Durability” under conditions of use, installation and maintenance specified by NZ Fire Doors, or specific contractual guarantees, whichever are overriding

NZS 4520 is referenced in the New Zealand Building Code Acceptable Solutions (Appendix C 6.1.1). NZ Fire Doors Limited fire doors have been successfully fire-tested in accordance with AS1530.4, as referenced in NZS 4520 and in Appendix C 5.1.1

Where fire rated laminated glass vision panels are fitted to fire doors manufactured by NZ Fire Doors Limited, the use of such glass is also within the prescription detailed in Certifire Certificate of Approval CF 862

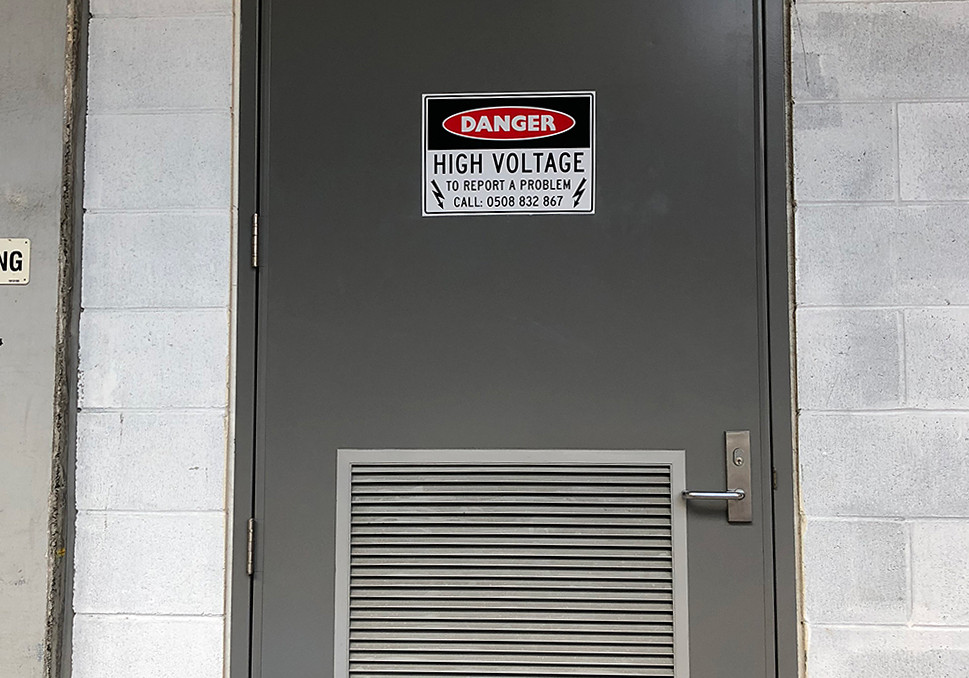

90 Minute Fire-rated Door — Exterior

NZ Fire Doors

View Product

Exterior doors with a 90 to 240 minute rating are supplied as a complete exterior fire, smoke and acoustic door set, including door leaf, door jamb, seals and, when requested, appropriate hardware.

Exterior door appropriate for 90 to 120 minute rating

Such compliance will be evident by certification tags applied to the jamb and leaf of each door:

Doors manufactured by NZ Fire Doors Limited have been tested to and meet the physical endurance requirements of NZS 4520 Appendix A
Doors manufactured by NZ Fire Doors Limited will satisfy the requirements of NZBC, B2 “Durability” under conditions of use, installation and maintenance specified by NZ Fire Doors, or specific contractual guarantees, whichever are overriding
