Feature: Commercial Cladding
Case Studies

Cemintel Territory Covers Commercial Cladding Options

State of Clad

Cemintel Territory (formerly known as Designer Series) has recently been updated with a new range, new CodeMark certificate and new detailing as part of a thorough review of the system.

Cemintel Territory is an excellent option for commercial and multi-residential projects as it gives the designer plenty of options in colour, texture and installation method. The product also has in service history in New Zealand on commercial buildings, giving the client confidence.

The updated CodeMark certificate now includes Sea Spray Zone D, which had previously been excluded, as well as increasing the building height scope to buildings outside of NZS 3604. Almost all CodeMark certificates are limited by the scope of NZS 3604 or a risk score of 0-20, so being able to offer a cladding product with a CodeMark certificate outside of these limitations is a big advantage when dealing with councils. The Cemintel Territory system can be used on buildings with ULS wind pressures of up to +2.6/-3.3kPa for vertical installation and up to +6.0/-6.0 kPa for horizontal installation.

The Cemintel Territory cladding has been tested to ISO 5660 and has passed the required tests as a Type A cladding for use on buildings over 7m. The product also has a 1-S Material Group Number for internal usage. The product has also been tested in Australia to the AS 5113 fire test standard and reports are available for this whole of wall test as well.

The range has been increased to include the Quarry Concrete, Steppe Alpine and Steppe Montane panels, as well as an indent range of a further nine finishes. On top of these options, the Japanese manufacturer makes over 300 different finishes and colours so for larger projects the option to import a custom panel to meet the design requirements of the building is available.

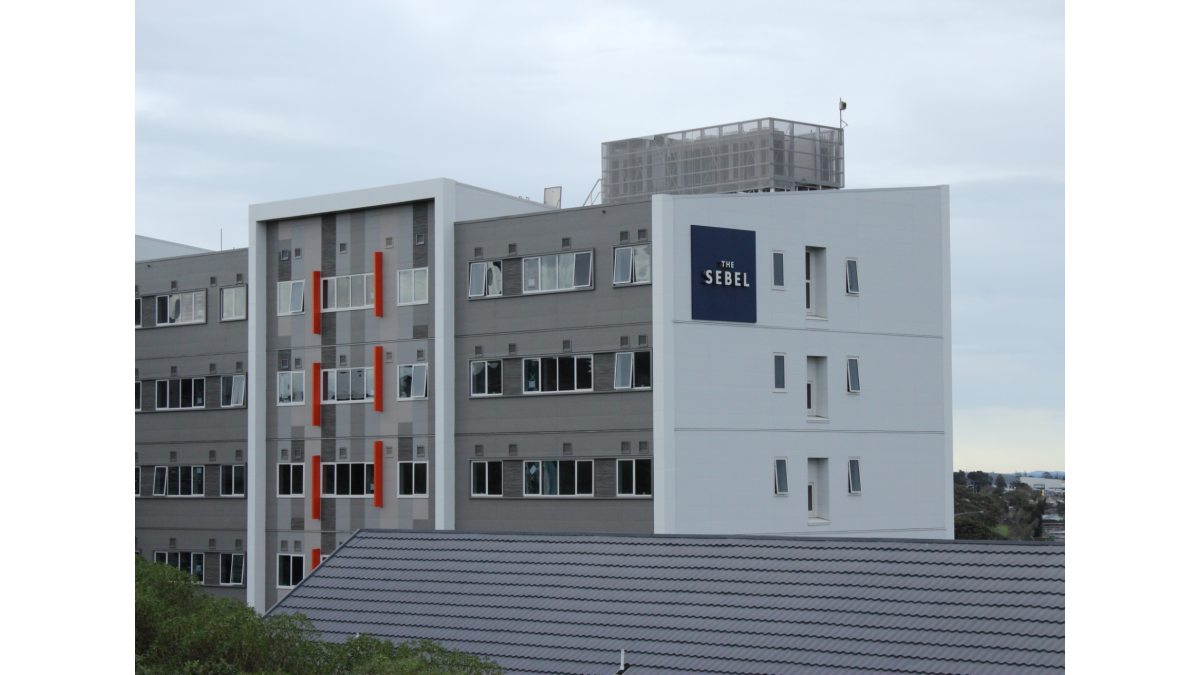

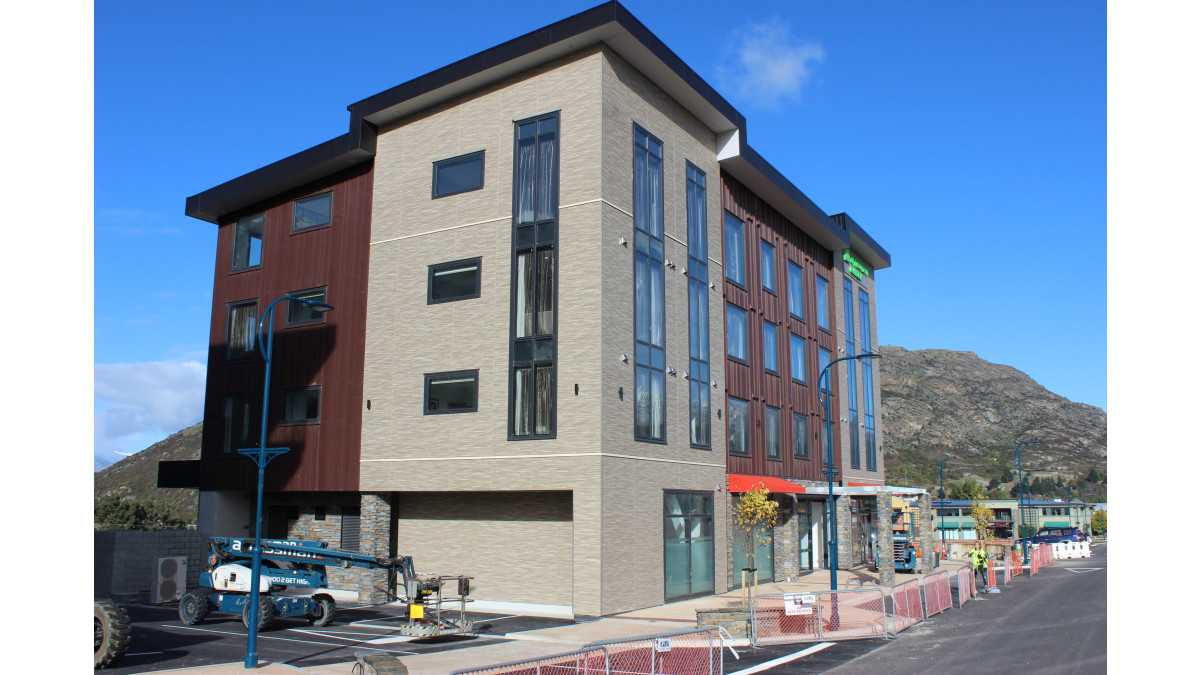

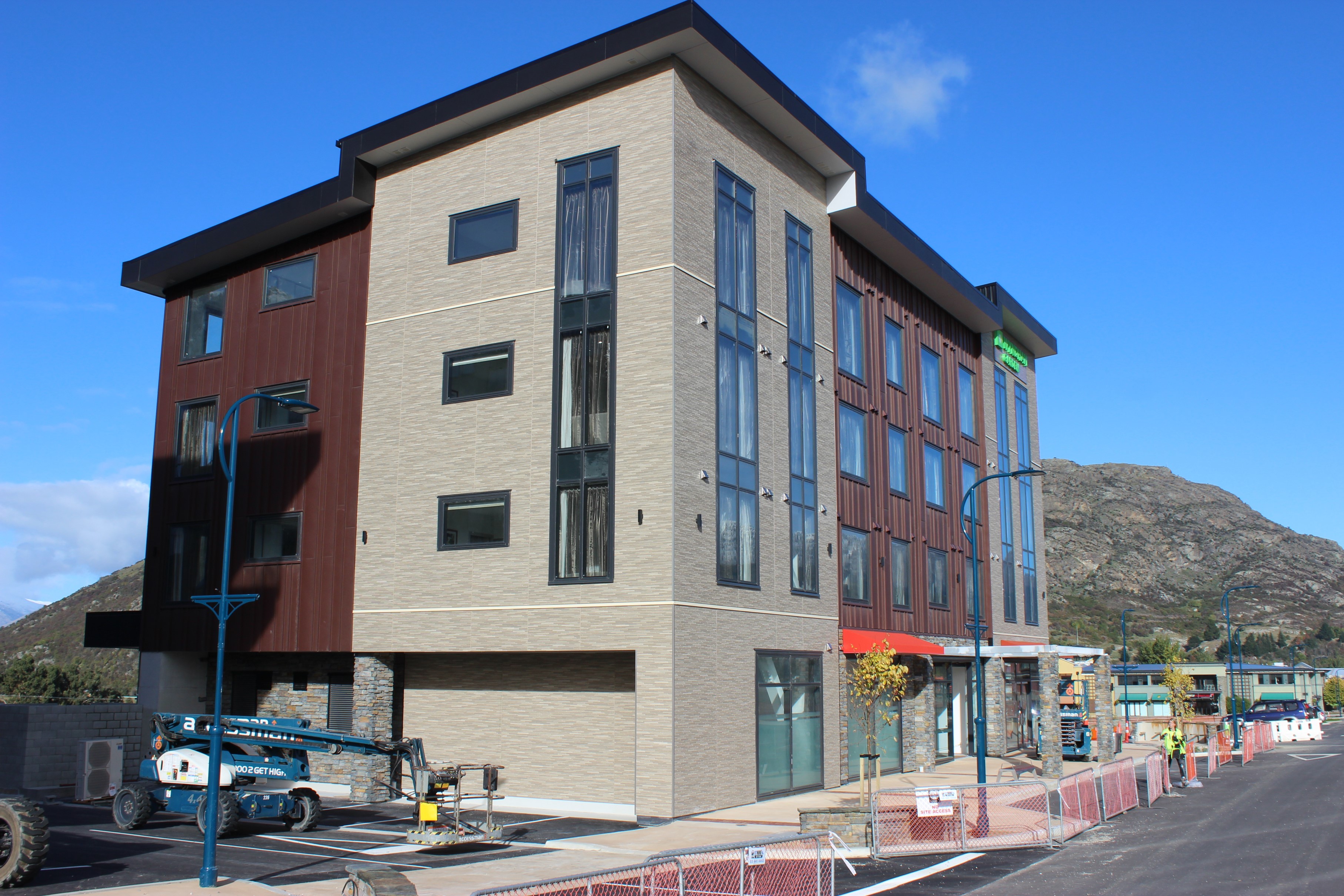

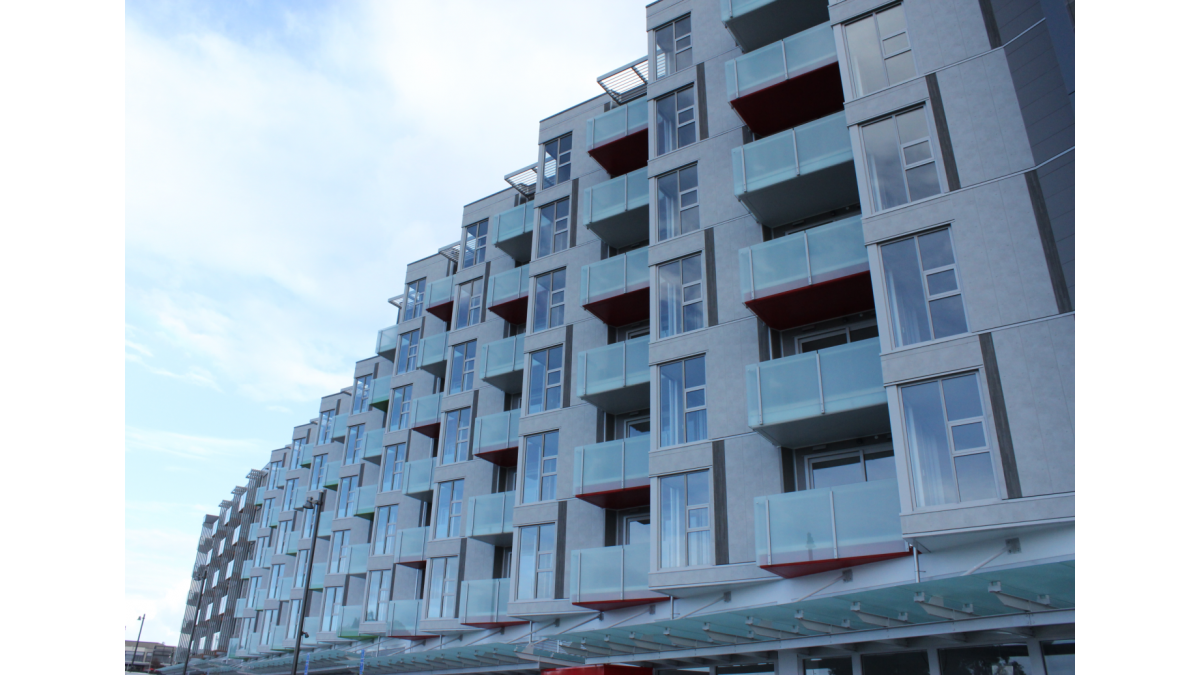

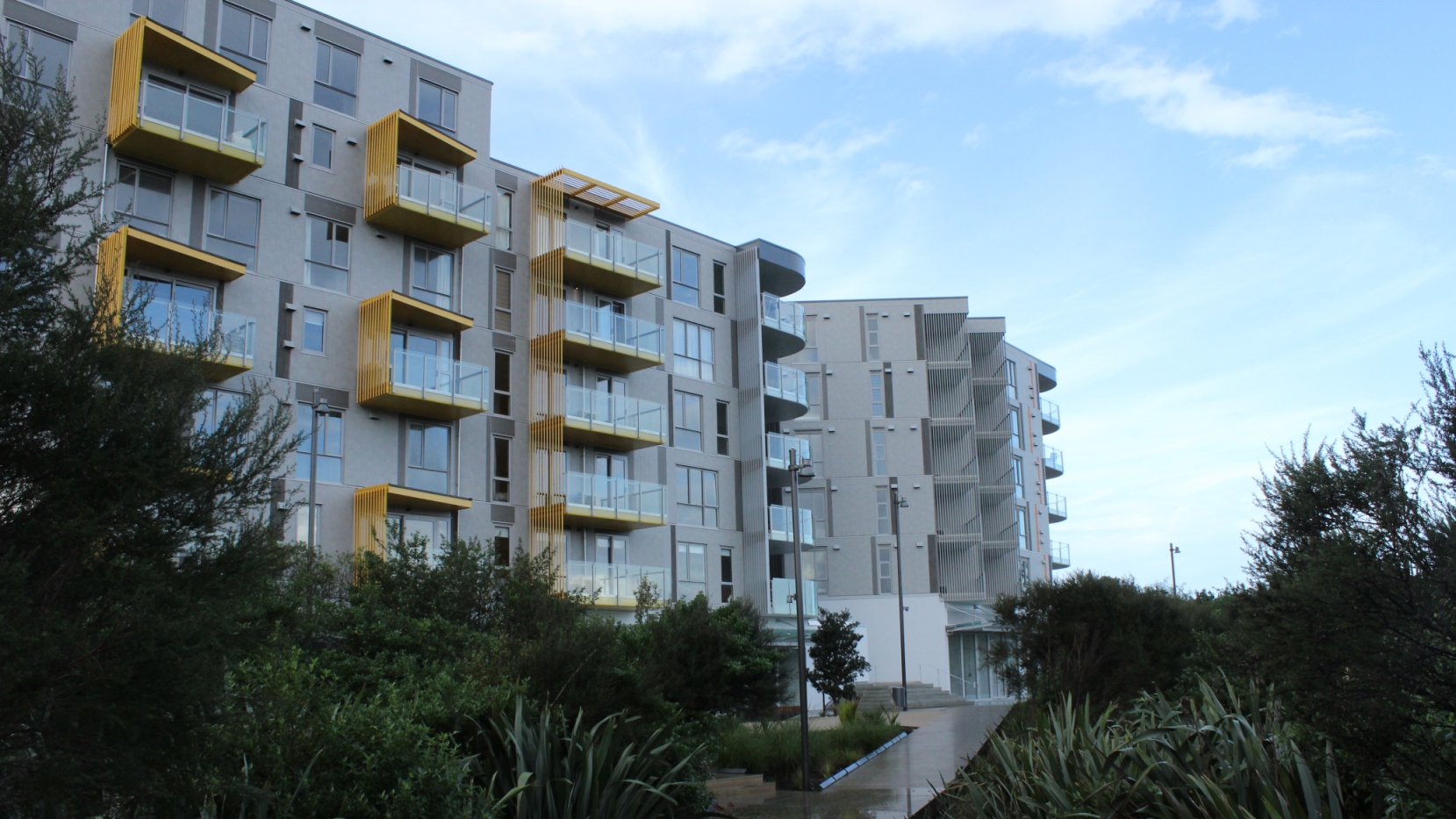

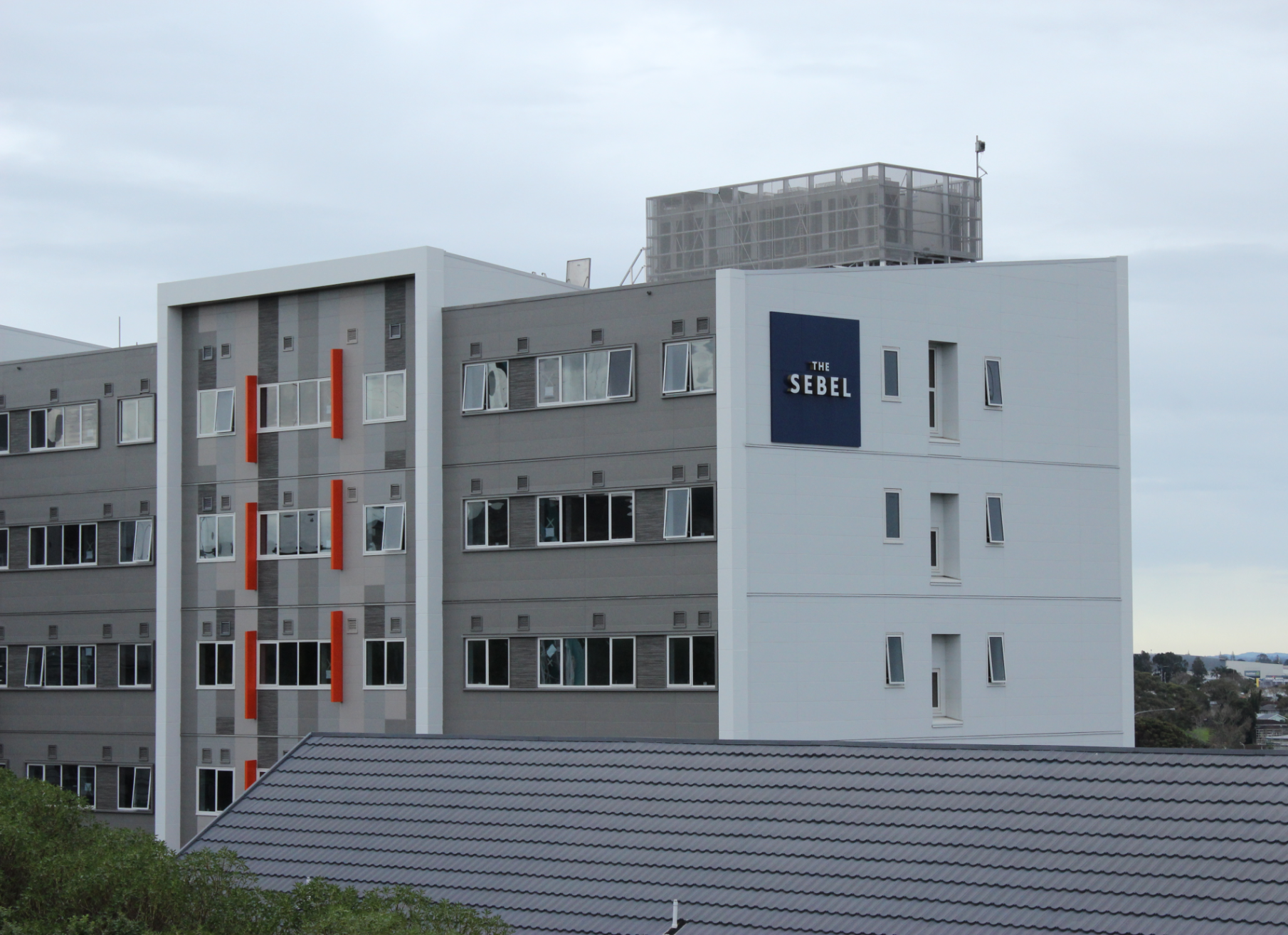

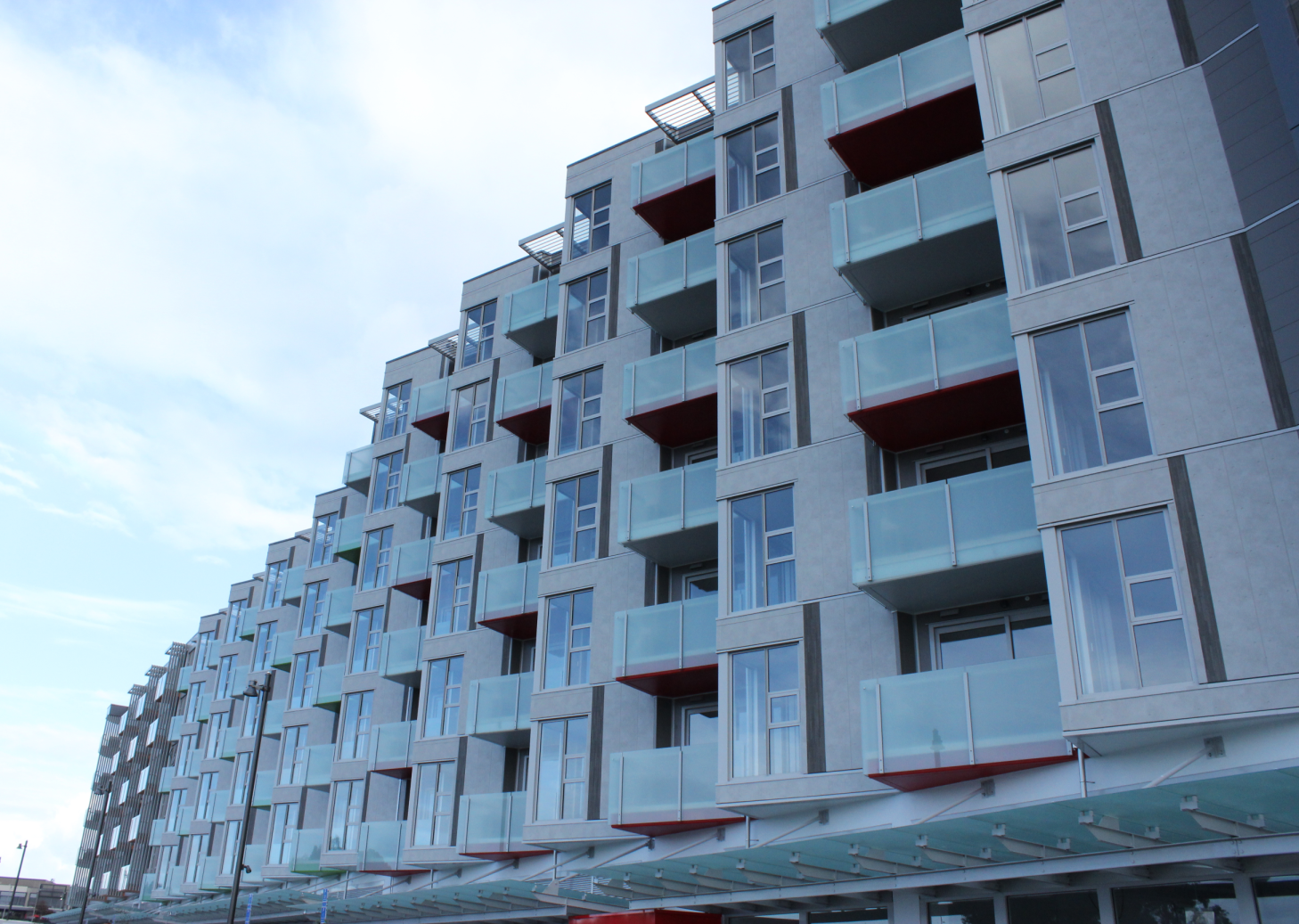

The product has been used on the Rose Garden Apartments in Albany, Auckland, The Sebel Manukau hotel in Manukau, Auckland and the Wyndham Garden Remarkable Park Hotel in Queenstown as well as a five-story apartment building in Queenstown. The Woodlands Teak panel is currently specified on the Mary Potter Apartments project in Wellington.

Cemintel Territory Cladding — Quarry

Cemintel Territory Cladding — Quarry

State of Clad

View Product

The Cemintel Territory cavity walling system combines a pre-finished cement-based panel with a simple installation system that can be used externally or internally for residential and commercial buildings.

Show more

Cemintel panels are designed for use externally or internally for residential and commercial buildings.

The Cemintel Territory wall cladding system has been assessed by CodeMark for use as an external wall cladding system on buildings:

  • Within the scope limitations of the New Zealand Building Code (NZBC) Acceptable Solution E2/AS1, Paragraph 1.1 with regards to building height and floor plan area, for buildings situated in Wind Zones up to and including Extra High, as defined in NZS3604:2011, constructed with:
    • Timber frame in accordance with NZS 3604:2011; or
    • Steel frame in accordance with NZS3404:2009 Part 1 and NASH Standard — Residential and Low-Rise Steel Framing Part 1: Design Criteria:2005; or
    • Masonry structures in accordance with NZS4229:2013; or,
  • In any Timber, Steel framed or masonry building that has been subject to Specific Engineering Design by a qualified engineer up to a ULS Design Wind Pressure of +6.0 / -6.0 kPa for horizontal installation and +2.6 / -3.3 kPa for vertical installation; and,
  • With Aluminium window and door joinery that meets the requirements of NZS 4211:2008 and is installed with vertical jambs and horizontal heads and sills; and,
  • In exposure Zones B, C and D as defined in NZS3604:2011. Microclimatic Conditions (refer NZS3604:2011 paragraph 4.2.4) are outside the scope of this certificate; and,
  • Within 1 metre of the relevant boundary (subject to other fire related code compliance requirements)
  • Timber frame in accordance with NZS 3604:2011; or
  • Steel frame in accordance with NZS3404:2009 Part 1 and NASH Standard — Residential and Low-Rise Steel Framing Part 1: Design Criteria:2005; or
  • Masonry structures in accordance with NZS4229:2013; or,

Show more

NZS 3604 Corrosion Zone D suitable
Corrosion Exposure Zone D
NZS 3604 Wind Zone Extra High suitable
Extra High Wind Zone
NZS 3604 Wind Zone Specific Design suitable
Specific Design Wind Zone

The Cemintel Territory wall cladding system if designed, used, installed and maintained in accordance with the scope of the CodeMark Certificate and either the Cemintel New Zealand Design & Installation Guide — Territory Series External Horizontal Installation (FCNZ503 March 2019) or Cemintel New Zealand Design & Installation Guide — Territory Series External Vertical Installation (FCNZ523 March 2019) as applicable for the direction of installation (collectively referenced as 'Cemintel New Zealand Design & Installation Guide – Territory Series') will meet the following provisions of the NZBC:

  • Clause B1 STRUCTURE: Performance B1.3.1, B1.3.2, and B1.3.4 (b), (c), (d) and (e) for the relevant physical conditions of B1.3.3 (a), (f), (h), (j) and (q). The Cemintel Territory wall cladding system meets these requirements.
  • Clause B2 DURABILITY: Performance B2.3.1 (b) no less than 15 years. The Cemintel Territory wall cladding system meets this requirement
  • Clause C2- C6 PROTECTION FROM FIRE: C3.5 and C3.7 (b) and (c). The Cemintel Territory wall cladding system meets this requirement
  • Clause E2 EXTERNAL MOISTURE: Performance E2.3.2 and E2.3.7. The Cemintel Territory wall cladding system meets this requirement
  • Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1. The Cemintel Territory wall cladding system meets this requirement

Show more

B1 Structure compliant
Structure
B2 Durability compliant
Durability
C Protection from Fire compliant
Protection from Fire
E2 External Moisture compliant
External Moisture
CodeMark
CodeMark
Interior Fire Rating 1S
1S
Cemintel Territory Cladding — Savanna

Cemintel Territory Cladding — Savanna

State of Clad

View Product

The Cemintel Territory cavity walling system combines a pre-finished cement-based panel with a simple installation system that can be used externally or internally for residential and commercial buildings.

Show more

Cemintel panels are designed for use externally or internally for residential and commercial buildings.

The Cemintel Territory wall cladding system has been assessed by CodeMark for use as an external wall cladding system on buildings:

  • Within the scope limitations of the New Zealand Building Code (NZBC) Acceptable Solution E2/AS1, Paragraph 1.1 with regards to building height and floor plan area, for buildings situated in Wind Zones up to and including Extra High, as defined in NZS3604:2011, constructed with:
    • Timber frame in accordance with NZS 3604:2011; or
    • Steel frame in accordance with NZS3404:2009 Part 1 and NASH Standard — Residential and Low-Rise Steel Framing Part 1: Design Criteria:2005; or
    • Masonry structures in accordance with NZS4229:2013; or,
  • In any Timber, Steel framed or masonry building that has been subject to Specific Engineering Design by a qualified engineer up to a ULS Design Wind Pressure of +6.0 / -6.0 kPa for horizontal installation and +2.6 / -3.3 kPa for vertical installation; and,
  • With Aluminium window and door joinery that meets the requirements of NZS 4211:2008 and is installed with vertical jambs and horizontal heads and sills; and,
  • In exposure Zones B, C and D as defined in NZS3604:2011. Microclimatic Conditions (refer NZS3604:2011 paragraph 4.2.4) are outside the scope of this certificate; and,
  • Within 1 metre of the relevant boundary (subject to other fire related code compliance requirements)
  • Timber frame in accordance with NZS 3604:2011; or
  • Steel frame in accordance with NZS3404:2009 Part 1 and NASH Standard — Residential and Low-Rise Steel Framing Part 1: Design Criteria:2005; or
  • Masonry structures in accordance with NZS4229:2013; or,

Show more

NZS 3604 Corrosion Zone D suitable
Corrosion Exposure Zone D
NZS 3604 Wind Zone Extra High suitable
Extra High Wind Zone
NZS 3604 Wind Zone Specific Design suitable
Specific Design Wind Zone

The Cemintel Territory wall cladding system if designed, used, installed and maintained in accordance with the scope of the CodeMark Certificate and either the Cemintel New Zealand Design & Installation Guide — Territory Series External Horizontal Installation (FCNZ503 March 2019) or Cemintel New Zealand Design & Installation Guide — Territory Series External Vertical Installation (FCNZ523 March 2019) as applicable for the direction of installation (collectively referenced as 'Cemintel New Zealand Design & Installation Guide – Territory Series') will meet the following provisions of the NZBC:

  • Clause B1 STRUCTURE: Performance B1.3.1, B1.3.2, and B1.3.4 (b), (c), (d) and (e) for the relevant physical conditions of B1.3.3 (a), (f), (h), (j) and (q). The Cemintel Territory wall cladding system meets these requirements.
  • Clause B2 DURABILITY: Performance B2.3.1 (b) no less than 15 years. The Cemintel Territory wall cladding system meets this requirement
  • Clause C2- C6 PROTECTION FROM FIRE: C3.5 and C3.7 (b) and (c). The Cemintel Territory wall cladding system meets this requirement
  • Clause E2 EXTERNAL MOISTURE: Performance E2.3.2 and E2.3.7. The Cemintel Territory wall cladding system meets this requirement
  • Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1. The Cemintel Territory wall cladding system meets this requirement

Show more

B1 Structure compliant
Structure
B2 Durability compliant
Durability
C Protection from Fire compliant
Protection from Fire
E2 External Moisture compliant
External Moisture
CodeMark
CodeMark
Interior Fire Rating 1S
1S
Cemintel Territory Cladding — Canyon

Cemintel Territory Cladding — Canyon

State of Clad

View Product

The Cemintel Territory cavity walling system combines a pre-finished cement-based panel with a simple installation system that can be used externally or internally for residential and commercial buildings.

Show more

Cemintel panels are designed for use externally or internally for residential and commercial buildings.

The Cemintel Territory wall cladding system has been assessed by CodeMark for use as an external wall cladding system on buildings:

  • Within the scope limitations of the New Zealand Building Code (NZBC) Acceptable Solution E2/AS1, Paragraph 1.1 with regards to building height and floor plan area, for buildings situated in Wind Zones up to and including Extra High, as defined in NZS3604:2011, constructed with:
    • Timber frame in accordance with NZS 3604:2011; or
    • Steel frame in accordance with NZS3404:2009 Part 1 and NASH Standard — Residential and Low-Rise Steel Framing Part 1: Design Criteria:2005; or
    • Masonry structures in accordance with NZS4229:2013; or,
  • In any Timber, Steel framed or masonry building that has been subject to Specific Engineering Design by a qualified engineer up to a ULS Design Wind Pressure of +6.0 / -6.0 kPa for horizontal installation and +2.6 / -3.3 kPa for vertical installation; and,
  • With Aluminium window and door joinery that meets the requirements of NZS 4211:2008 and is installed with vertical jambs and horizontal heads and sills; and,
  • In exposure Zones B, C and D as defined in NZS3604:2011. Microclimatic Conditions (refer NZS3604:2011 paragraph 4.2.4) are outside the scope of this certificate; and,
  • Within 1 metre of the relevant boundary (subject to other fire related code compliance requirements)
  • Timber frame in accordance with NZS 3604:2011; or
  • Steel frame in accordance with NZS3404:2009 Part 1 and NASH Standard — Residential and Low-Rise Steel Framing Part 1: Design Criteria:2005; or
  • Masonry structures in accordance with NZS4229:2013; or,

Show more

NZS 3604 Corrosion Zone D suitable
Corrosion Exposure Zone D
NZS 3604 Wind Zone Extra High suitable
Extra High Wind Zone
NZS 3604 Wind Zone Specific Design suitable
Specific Design Wind Zone

The Cemintel Territory wall cladding system if designed, used, installed and maintained in accordance with the scope of the CodeMark Certificate and either the Cemintel New Zealand Design & Installation Guide — Territory Series External Horizontal Installation (FCNZ503 March 2019) or Cemintel New Zealand Design & Installation Guide — Territory Series External Vertical Installation (FCNZ523 March 2019) as applicable for the direction of installation (collectively referenced as 'Cemintel New Zealand Design & Installation Guide – Territory Series') will meet the following provisions of the NZBC:

  • Clause B1 STRUCTURE: Performance B1.3.1, B1.3.2, and B1.3.4 (b), (c), (d) and (e) for the relevant physical conditions of B1.3.3 (a), (f), (h), (j) and (q). The Cemintel Territory wall cladding system meets these requirements.
  • Clause B2 DURABILITY: Performance B2.3.1 (b) no less than 15 years. The Cemintel Territory wall cladding system meets this requirement
  • Clause C2- C6 PROTECTION FROM FIRE: C3.5 and C3.7 (b) and (c). The Cemintel Territory wall cladding system meets this requirement
  • Clause E2 EXTERNAL MOISTURE: Performance E2.3.2 and E2.3.7. The Cemintel Territory wall cladding system meets this requirement
  • Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1. The Cemintel Territory wall cladding system meets this requirement

Show more

B1 Structure compliant
Structure
B2 Durability compliant
Durability
C Protection from Fire compliant
Protection from Fire
E2 External Moisture compliant
External Moisture
CodeMark
CodeMark
Interior Fire Rating 1S
1S
Cemintel Territory Cladding — Woodlands

Cemintel Territory Cladding — Woodlands

State of Clad

View Product

The Cemintel Territory cavity walling system combines a pre-finished cement-based panel with a simple installation system that can be used externally or internally for residential and commercial buildings.

Show more

Cemintel panels are designed for use externally or internally for residential and commercial buildings.

The Cemintel Territory wall cladding system has been assessed by CodeMark for use as an external wall cladding system on buildings:

  • Within the scope limitations of the New Zealand Building Code (NZBC) Acceptable Solution E2/AS1, Paragraph 1.1 with regards to building height and floor plan area, for buildings situated in Wind Zones up to and including Extra High, as defined in NZS3604:2011, constructed with:
    • Timber frame in accordance with NZS 3604:2011; or
    • Steel frame in accordance with NZS3404:2009 Part 1 and NASH Standard — Residential and Low-Rise Steel Framing Part 1: Design Criteria:2005; or
    • Masonry structures in accordance with NZS4229:2013; or,
  • In any Timber, Steel framed or masonry building that has been subject to Specific Engineering Design by a qualified engineer up to a ULS Design Wind Pressure of +6.0 / -6.0 kPa for horizontal installation and +2.6 / -3.3 kPa for vertical installation; and,
  • With Aluminium window and door joinery that meets the requirements of NZS 4211:2008 and is installed with vertical jambs and horizontal heads and sills; and,
  • In exposure Zones B, C and D as defined in NZS3604:2011. Microclimatic Conditions (refer NZS3604:2011 paragraph 4.2.4) are outside the scope of this certificate; and,
  • Within 1 metre of the relevant boundary (subject to other fire related code compliance requirements)
  • Timber frame in accordance with NZS 3604:2011; or
  • Steel frame in accordance with NZS3404:2009 Part 1 and NASH Standard — Residential and Low-Rise Steel Framing Part 1: Design Criteria:2005; or
  • Masonry structures in accordance with NZS4229:2013; or,

Show more

NZS 3604 Corrosion Zone D suitable
Corrosion Exposure Zone D
NZS 3604 Wind Zone Extra High suitable
Extra High Wind Zone
NZS 3604 Wind Zone Specific Design suitable
Specific Design Wind Zone

The Cemintel Territory wall cladding system if designed, used, installed and maintained in accordance with the scope of the CodeMark Certificate and either the Cemintel New Zealand Design & Installation Guide — Territory Series External Horizontal Installation (FCNZ503 March 2019) or Cemintel New Zealand Design & Installation Guide — Territory Series External Vertical Installation (FCNZ523 March 2019) as applicable for the direction of installation (collectively referenced as 'Cemintel New Zealand Design & Installation Guide – Territory Series') will meet the following provisions of the NZBC:

  • Clause B1 STRUCTURE: Performance B1.3.1, B1.3.2, and B1.3.4 (b), (c), (d) and (e) for the relevant physical conditions of B1.3.3 (a), (f), (h), (j) and (q). The Cemintel Territory wall cladding system meets these requirements
  • Clause B2 DURABILITY: Performance B2.3.1 (b) no less than 15 years. The Cemintel Territory wall cladding system meets this requirement
  • Clause C2- C6 PROTECTION FROM FIRE: C3.5 and C3.7 (b) and (c). The Cemintel Territory wall cladding system meets this requirement
  • Clause E2 EXTERNAL MOISTURE: Performance E2.3.2 and E2.3.7. The Cemintel Territory wall cladding system meets this requirement
  • Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1. The Cemintel Territory wall cladding system meets this requirement

Show more

B1 Structure compliant
Structure
B2 Durability compliant
Durability
C Protection from Fire compliant
Protection from Fire
E2 External Moisture compliant
External Moisture
CodeMark
CodeMark
