Ultratherm MSR Metal Skin Warm Roof System
Description

The RoofLogic Ultratherm MSR Warm Roof System is an insulated metal skin warm roof system assembly providing proven thermal, acoustic, and structural performance to commercial projects.

Install the Ultratherm MSR system over RoofLogic's engineered structural liner deck or standard plywood and concrete substrates.

RoofLogic offers tailored system designs for each project, carefully selecting components to ensure that the installed system meets the client's requirements. The performance of the system is thoroughly evaluated, taking into account structural, thermal, and acoustic aspects. Additionally, conducting project-specific hygrothermal analysis ensures effective mitigation of condensation risks, along with those associated with mould and corrosion within the roof assembly.

RoofLogic Ultratherm MSR is a robust roof system that delivers exceptional weathertightness and enhances thermal and acoustic performance while effectively mitigating condensation risk.

Key Features
  • Design Flexibility: Various components within the MSR system can be adjusted for performance:
    • Range of gauge options for LinerDeck and TopDeck depending on purlinspacings/wind uplift
    • Range of TopDeck profiles (trapezoidal, concealed clip, architectural standing seam)
    • Insulation thickness can be varied depending on required thermal performance
    • Acoustic Board can be introduced to increase acoustic performance
    • The MSR system can be seamlessly integrated in to internal gutters and parapets using the full range of RoofLogic system solutions to ensure more robust detailing and an unbroken thermal envelope.
  • Separable Top Skin: TopDeck profiles are locally manufactured they can be supplied on short lead times in precise single lengths from ridge to gutter, eliminating intermediate lap joints that occur with composite panels and often result in roof leaks. The separable top skin also provides life-cycle benefits because this can be replaced when required (20/25 years) with the remainder of the system left in place.
  • Elimination of thermal bridging: The PIR board is continuously laid over the RL Liner Deck and is unbroken by structural elements in the way that internally installed insulation is. This thermal continuity is maintained in to the gutter and at the roof/gutter transition.
  • Programme: The MSR system allows for early close-in taking the roof construction off the critical path. The first process is the installation of the RL Liner Deck and RL Vapour Control Layer (self-adhesive SBS bitumen.) The vapour control layer extends in to internal gutters, dresses in to outlets etc to ensure stormwater is well-managed during the construction phase. This compares to traditional build-ups where there are 6 or 7 steps (netting, paper, top hat purlins, insulation, more netting, more paper, cavity battens etc) none of which provide a weather-tight roof until the final step of installing the metal roof skin.
Categories
Metal Roofing
Scope of Use
  • RoofLogic Ultratherm MSR Warm Roof System is an insulated metal roof assembly for commercial projects
  • Ideal for education buildings, high-end projects, and buildings with complex geomtries
  • Provides thermal, acoustic and structural performance
  • Installed over RoofLogic's engineered structural liner deck or standard plywood and concrete substrates
  • Range of gauge options for LinerDeck and TopDeck depending on purlinspacings/wind uplift
  • Range of TopDeck profiles (trapezoidal, concealed clip, architectural standing seam)
  • Insulation thickness can be varied depending on required thermal performance
  • Acoustic Board can be introduced to increase acoustic performance
  • RoofLogic offers tailored system designs for each project
  • Suitable for all New Zealand climate zones
  • All RoofLogic warm roof membrane and metal skin roofing systems can go up to ISO Category 5 Corrosion Zones (severe marine environments)
Statement of Building Code Compliance
  • H1: Energy Efficiency — Meets all Climate Zone requirements
In-Service History

Over the past decade, the Ultratherm MSR system has seen widespread installation across New Zealand, covering tens of thousands of square meters, with successful results. The feedback from designers and their clients has been unanimous, highlighting that RoofLogic Ultratherm MSR is a robust roof system that delivers exceptional weathertightness and enhances thermal and acoustic performance while effectively mitigating condensation risk.

Projects include:

  • Te Pae — Christchurch Convention Centre
  • Te Kahu o Waipuna — Marlborough Library and Art Gallery
  • Tākina — Wellington Convention & Exhibition Centre
  • B:HIVE Smales Farm
  • Te Kairanga Winery, Martinborough
  • Moore Wilsons, Masterton
  • Wairarapa College
  • Grafton Hall Student Accommodation
Other Performance Attributes

The separable top skin provides life-cycle benefits because this can be replaced when required (20/25 years) with the remainder of the system left in place.

Documents
System Overview: RL Ultratherm MSR

2023

ColorCote — Corrosion Zones
ColorCote Colour Chart

Engineering New Zealand’s very best commercial roofing solutions

Product Enquiries

News from RoofLogic

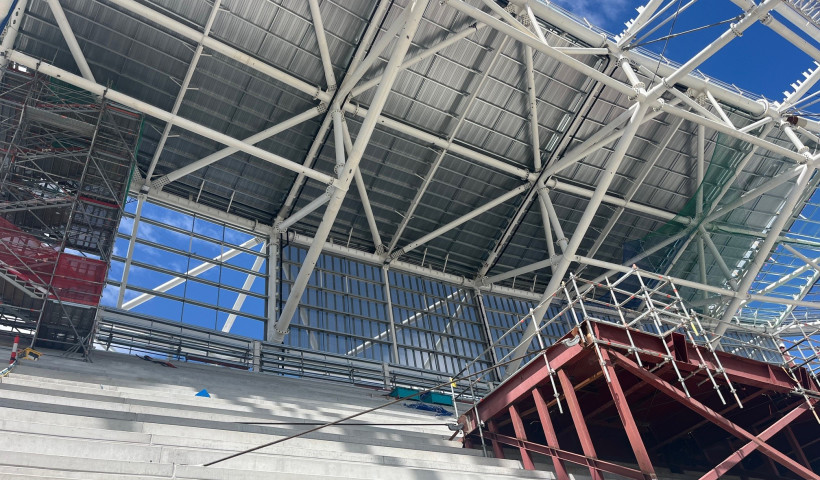

Addressing Airborne Sound Transmission and Rain Noise
