MITEK Systems - Truss & Frame
Description

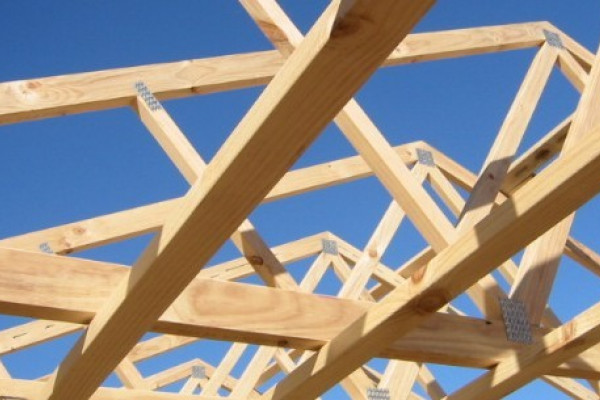

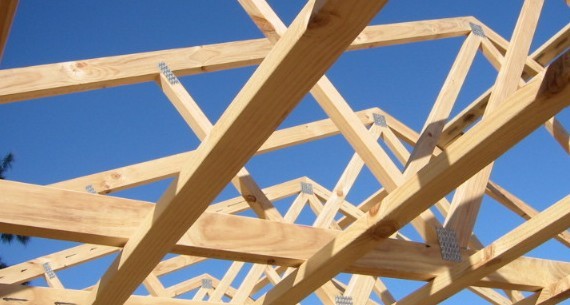

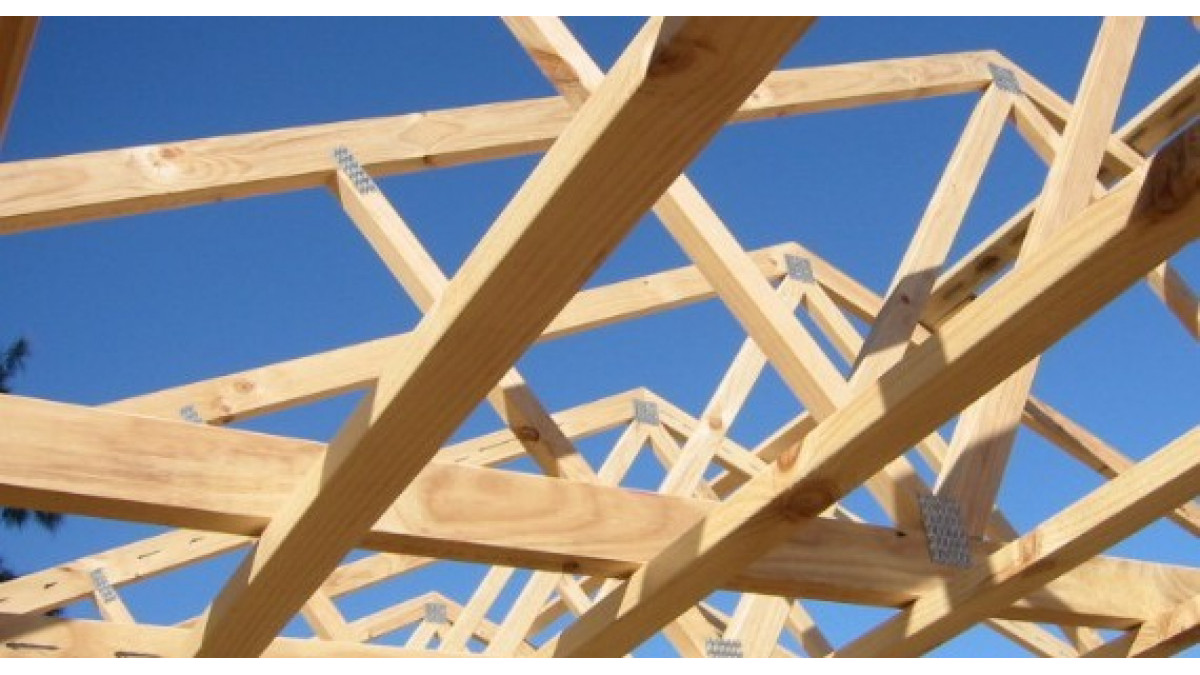

The MiTek Truss System is based on MiTek design software and the GANG-NAIL connector plate, a steel plate with multiple spikes or teeth projecting from one face. The connector plates are pressed into the timber using hydraulic or pneumatic presses. Timber components can be joined together with strength and ease to make trusses and other structural timber components.

The ease of installation and effectiveness as a timber connector make GANG-NAIL connector plates ideal for the prefabrication industry where speed and reliability are paramount. The name MITEK truss has become synonymous with quality prefabricated timber roof trusses.

MiTek New Zealand does not actually manufacture trusses.

MiTek manufactures the steel GANG-NAIL connector plates that are supplied to a select national network of MiTek accredited truss fabricators who manufacture trusses to the MiTek specification.  Each of these companies has been chosen as a MiTek Fabricator for their high standards of management and their professionalism within the building components industry.

Key Features

MiTek provides technical support for:

  • The MiTek software package developed by MiTek and used by MiTek accredited fabricators to design, detail and cost trusses and wall-frames. The system also enables information to be directly downloaded to computer controlled saws and other fabricating equipment.
  • A structural design service for architects and designers specifying or using MiTek products.
  • Mechanical equipment for timber truss and wall-frame manufacture.

MiTek trusses and wall-frames are available through MiTek accredited fabricators.

NZS 3604 Wind Zone Extra High suitable
Extra High Wind Zone
NZS 3604 Wind Zone Specific Design suitable
Specific Design Wind Zone
B1 Structure compliant
Structure
Documents
MiTek Software
Roof Truss Installation

MiTek New Zealand manufacture GANG-NAIL connector plates and design software for accredited truss fabricators and LUMBERLOK and BOWMAC hardware for merchants
